What have you done to your Landie today.

Chrisw8 said:

Mine's doing that. What one did you get?

Click to expand...

twelsh37 said:

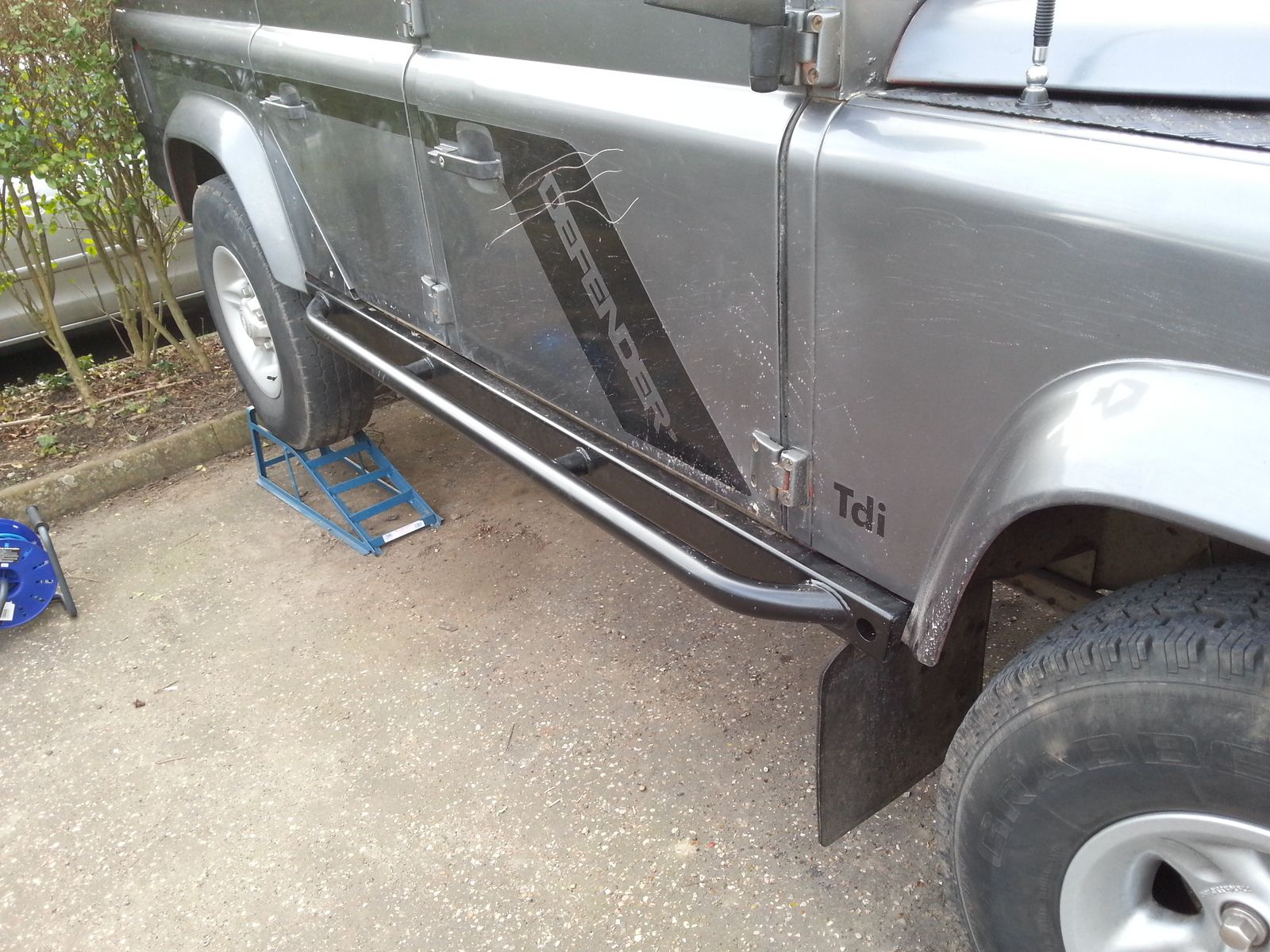

Fitted my tree/rocksliders from Richmond ShotblastingView attachment 69892

Click to expand...

a2dds said:

Need to pull the timing case off of my disco 200tdi lump to replace oil seals that have let go. Does anyone know what gaskets I need for the time case to block? I can't seem to find the right ones. If anyone has done it before any advice would be much appreciated. Its a larger job to do!


Just want to confirm - the big bolt holding the crank pulley on is a 30mm on a disco 200tdi? Does anyone know if this has a torque setting and need thread lock? Whats the best way of securing the pulley when trying to tighten it up? Cheers

Click to expand...

easye1 said:

hi a2dds, after having to do my timing belt twice on my 200 tdi,
the first time I made all my tools...
could have just bought them, but I have time, so,
found a socket that fits, welded that to a fecked 1/2 ratchet.
split a length of scaffold pole long enough to cover the outside of the socket, then welded that on too.......you will find out why !!
upon unbolting the actual bottom pulley by its 4 bolts, used that as a guage to markout a lump of steel chequerplate that goes over the bottom pulley, bolts to it, but long enough to cover the chassis rail....you will find out why !!
obviously, the rad was out !
you need to set the chequerplate so it touches the chassis, put your socket on the nut, and I used a length of scaffold pole and heaved, or,
you can use the starter to swing your socket with short bar (held very tightly on socket bar) WITHOUT the bolted chequerplate being bolted on, and just flick the starter and BANG it will go..
(top tip / chalk a line from crank bolt to front rubber & steel part of pulley)
so you can keep a check on if its undoing..
it does work this way but can chuck off the socket and bar alarmingly..lol

time for tightening needs the chequerplate holding the big pully/balancer tight, locktight in threads, socket on, and tighten to specs (about 230 ft lbs If I can remember)
or in my case, with a grunt and length of scafold pole...your choice..
gaskits needed are suitable for your engine, everyone sells then with oil seal I guess....

just a thought, if your going to take off the front plate, why not do the timing belt too, you get everything you need in a kit then.....

sorry for being long winded, but its the way I explain..

I`m in north essex, and can lend my tools for doing the job to anyone who needs them, but if I dont get them back I`ll do a Niam Leeson...

lol...

Click to expand...

a2dds said:

Lovely stuff. Thanks for that useful tips in there.

I have actually replaced my timing belt once before (with help hence asking for details on the big nut) problem is that I need to pull all of that out. And the sprockets the belt follows. Right off so there are just bare shafts sticking out. Then pull the entire timing case off the front of the block to get at the front out and front inner crank oil seals & cam shaft oil seal.

I think I know how to pull It all apart, I just don't know the names of the gaskets that go between the timing case and the block. Rather then the timing cover bit and tha case that holds the cam belt.

.... If that makes sense. Cheers! Adam.

Click to expand...

easye1 said:

perfect sense adam....
maybe just phone a reliable landie parts supplier and give your engine number,
they can look it up in there data base - perhaps.

Click to expand...
