What did you do with your Range Rover today

pwood999 · Jun 18, 2024

Having sorted my Green P38 heater distribution motor & gears recently, it's now having issues with the blend motors.

*** Now moved to a separate thread *** https://www.landyzone.co.uk/land-rover/hevac-blend-motor-testing.393300/

pwood999 · Jun 18, 2024

.....

Datatek · Jun 19, 2024

pwood999 said:
Adding to above, I’m also thinking about how to measure the HEVAC output voltage in case the board has hardware fault. I have a spare with bad display so the main board from that might help.

I can give you details of the motor drive chips if it would help. Bad display? Not the ZEBRA strip which can be replaced?

pwood999 · Jun 19, 2024

* moved *

Datatek · Jun 19, 2024

pwood999 said:
Probably the zebra yes, but never got round tuit. Are the motors direct from the chip, or any output transistors ? Was gonna look myself, but if you already have the info ?

Maybe I should move this & the previous posts to a separate thread.

Direct from OP Amp driver chips. I'll dig the info out this evening.

Datatek · Jun 19, 2024

Datatek said:
Direct from OP Amp driver chips. I'll dig the info out this evening.

It's raining again so here is the info on the chip that drives the blend and distribution motors.

You can find the full spec on line.

pwood999 · Jun 19, 2024

* moved *

stuu · Jun 20, 2024

New belts done
All front arms and balljoints done
New inner and outer tie and track rods
New discs and pads all round
New rear toe arms done,
New camber bushes and bolts
New lower hub bushes,
Tyres are down to like 2.5mm so they'll need done soon

Rubberknees · Jun 21, 2024

Hoping to have the old gal back today from having FIP gaskets done but there is a problem. They couldn't stop it from leaking along the body. On and off 3 times and still leaks. Looks like hair line fracture in the FIP body. It was noticed some one had worked on it before as the tamper bolt in the top had been swapped. Good news Shaun has a good pump on another P38 and Monday he will swap it over for the one on mine to get me back on the road again. Glad I trusted him to do the job as he knows them inside out I isn't out to rip me off.

Grrrrrr · Jun 22, 2024

Rubberknees said:
Hoping to have the old gal back today from having FIP gaskets done but there is a problem. They couldn't stop it from leaking along the body. On and off 3 times and still leaks. Looks like hair line fracture in the FIP body. It was noticed some one had worked on it before as the tamper bolt in the top had been swapped. Good news Shaun has a good pump on another P38 and Monday he will swap it over for the one on mine to get me back on the road again. Glad I trusted him to do the job as he knows them inside out I isn't out to rip me off.

From memory there's an oval section each side that cones off with a spring and an o-ring underneath. Could that be leaking and that is what you are picking up? The one on the engine side is awkward as ****.

Rubberknees · Jun 22, 2024

Grrrrrr said:
From memory there's an oval section each side that cones off with a spring and an o-ring underneath. Could that be leaking and that is what you are picking up? The one on the engine side is awkward as ****.

The FIP was taken off so they could all be changed

Grrrrrr · Jun 22, 2024

Rubberknees said:
The FIP was taken off so they could all be changed

Not the leak-off pipes leaking down from #1?

Rubberknees · Jun 22, 2024

Grrrrrr said:
Not the leak-off pipes leaking down from #1?

No first thing that was checked. You can see the diesel bubbling out of the pump.

Grrrrrr · Jun 22, 2024

Rubberknees said:
No first thing that was checked. You can see the diesel bubbling out of the pump.

Never seen that before. Someone must have really mullered that security bolt.

Rubberknees · Jun 22, 2024

Grrrrrr said:
Never seen that before. Someone must have really mullered that security bolt.

The guy who owned the P38 I had the engine out of was a welder and bit of a bodger. I wonder if he'd tried some kind of repair in the past and now its finally let go?.
I'm fortunate I am getting a known good replacement and all done at mates rates.

hef19898 · Jun 22, 2024

Today was prep work for the exhaust, turned out I missed some bits and pieces. And since I had not much motivation to get dirty, I emptied the car to get the new carpets in. This also means new wirimg for the second battery (some out lets in the trunk for camping, and some somewhere for a fridge and phones). And the box middle concolse went out, the radiondied a while ago, so I assembled the original one again, with a new cover from the upholsterer. Who will get some more work, the center carpet is missing the wholes for the parking break, transfercase and diff lock button for some reason... Well, I don't meed the full set anyways, so some carpets for the back will have to be sacrificed for that. And the door panels, a) because the speakers will go as well and b) because I picked the wrong color, still original but more brown instead of the beige mine had. Still looks good so, and fits very nicely with the new front seats! Pics to follow once everything is back in! Exhaust will have to wait for next week.

And the fuel issue is the fuel line, when I deplug it from the tank, it spils out just fine. I have some of the same hose left, that'll have to do until I can justify some better quality one.

Blob · Jun 24, 2024

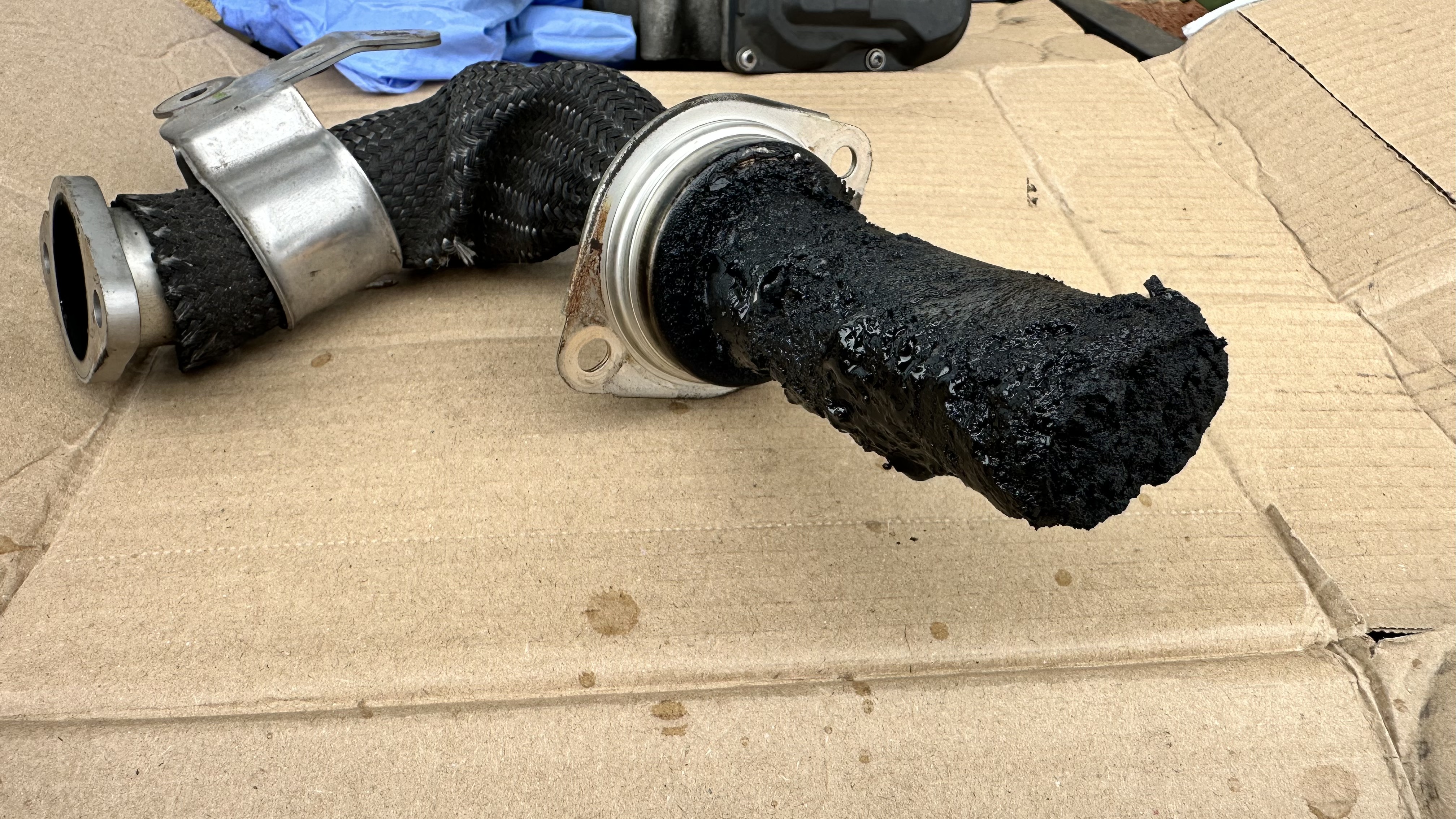

The new (to me) 4.4 has been complaining; "EGR Flow Insufficient". So I decided to look into that and while I was there to remove the donut intake and inspect the rubbers to see if they were the cause of my sporadic low boost pressure issue. There was definitely a little evidence of EGR fouling to put it mildly.

This is what happens with low mileage, short journey cars but please don't get me started on the merits of EGR!

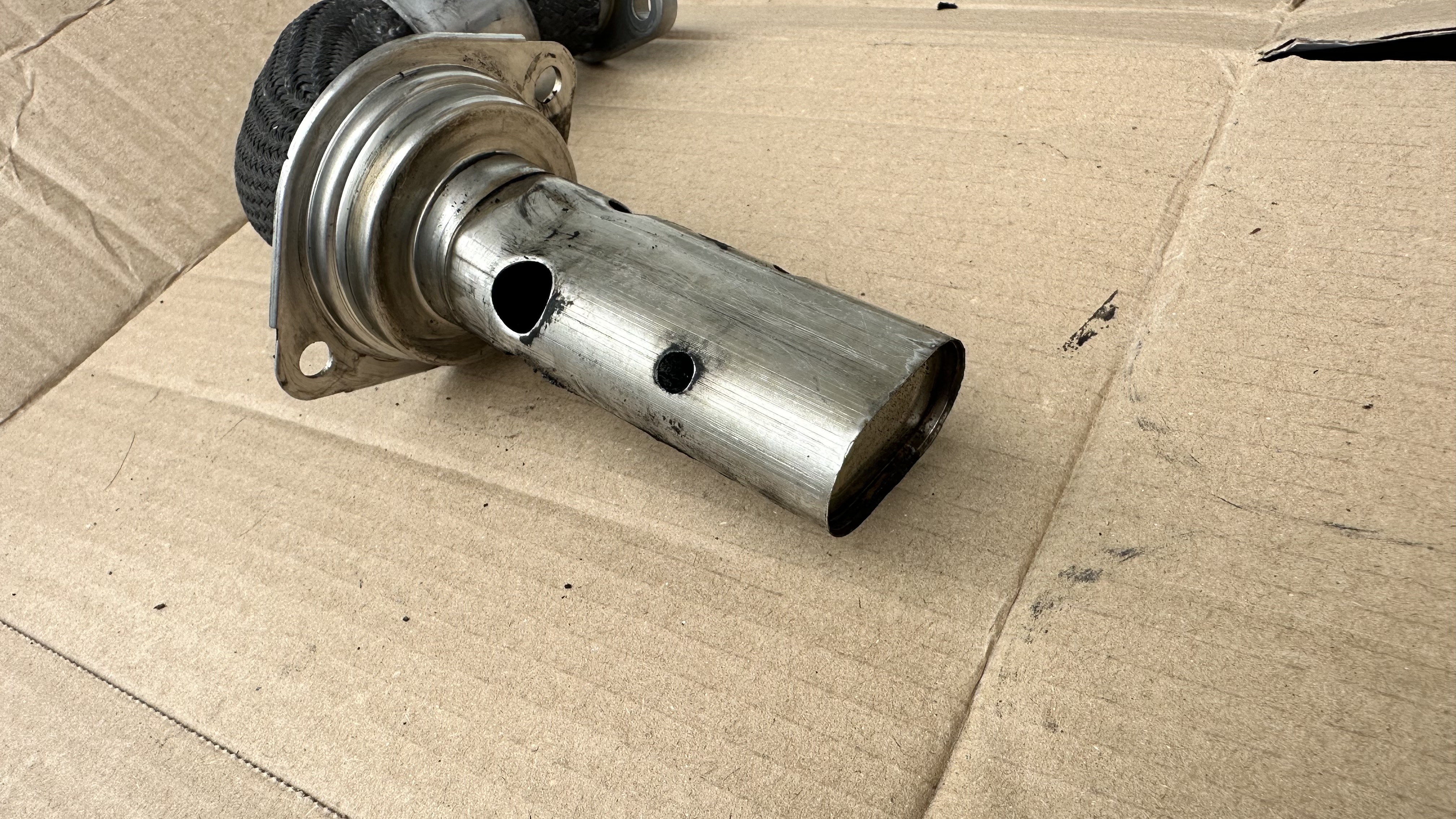

All nice and clean now. I scraped about 10mm of gunk off the MAP sensor while I was in there cleaning it too. I now have very reliable boost correlation errors so that is now working nicely again albeit highlighting other issues. Another step closer even if it feels like it's going slightly backwards sometimes.

doriz · Jun 24, 2024

^^^that’s crazy

Rubberknees · Jun 24, 2024

doriz said:
^^^that’s crazy

It's called down and dirty

Graculus · Jun 24, 2024

Blob said:
The new (to me) 4.4 has been complaining; "EGR Flow Insufficient". So I decided to look into that and while I was there to remove the donut intake and inspect the rubbers to see if they were the cause of my sporadic low boost pressure issue. There was definitely a little evidence of EGR fouling to put it mildly.

This is what happens with low mileage, short journey cars but please don't get me started on the merits of EGR!

All nice and clean now. I scraped about 10mm of gunk off the MAP sensor while I was in there cleaning it too. I now have very reliable boost correlation errors so that is now working nicely again albeit highlighting other issues. Another step closer even if it feels like it's going slightly backwards sometimes.

The low flow error will most likely have been due to the MAP sensor not reacting quickly enough, due to the coating of oily soot, there would still have been sufficient flow through the EGR despite appearances.
