VCU's again. Anyone help?

Lionhound

Well-Known Member

Posts

288

Location

Scotland.

• Jan 19, 2015

• #1

Snowy again so back to needing 4wd. Front prop was damaged last year so spotted an ad for 2nd hand full shaft (front, back & vcu) at good price nearby.
It was off a V6 but hey, a propshafts a propshaft eh?[emoji45]
Well, answer is yes, pretty much but the VCU's are different as shown below.
Questions are, what difference will it make? Can I just use the full V6 prop as is? Do I have to fart about changing over the VCU's?

Ps I love my Freelander but why does it never make things easy. [emoji26]



htr

Well-Known Member

Posts

1,556

Location

Central Otago, Southern New Zealand

• Jan 19, 2015

• #2

I'm guessing here but other more knowledgeable fellows and fellowesses who may comment but I'd say the V6 one would be slightly bigger to handle the higher torque/power output from that motor. It may be 'stiffer' by design too. If you fit it to a 4 cylinder FL it may not work as you'd like it - lots more wheel spin before it does its job? Beside, would it actually fit in the FL1 4 cylinders prop shaft assembly?

On another point your photo shows the top VCU from your FL1 4 cylinder - it hasn't got a harmonic dampener on it? But the V6 one does.



Hippo

Lord Hippo

Posts

53,847

• Jan 19, 2015

• #3

v6 vcu doesn't have the damper fitted. We assume it's due to the engine being smoother.
v6 front prop is different to the other engines I think.



Lionhound

Well-Known Member

Posts

288

Location

Scotland.

• Jan 19, 2015

• #4

Thanks guys.
Both front props appear to be the same.
Will I have to swap the VCU's round?
Will it cause damage if I don't?



R

roccotune

New Member

Posts

428

• Jan 19, 2015

• #5

Iirc bell engineering said both VCU types can be used. Do a search and you may find the post



fredi250

Well-Known Member

Posts

14,983

Location

Alcossebre

• Jan 19, 2015

• #6

My 2003 TD4 has the harmonic dampener does that mean it was of a V6 to my knowledge its been on the car for at least 6 years



Lionhound

Well-Known Member

Posts

288

Location

Scotland.

• Jan 20, 2015

• #7

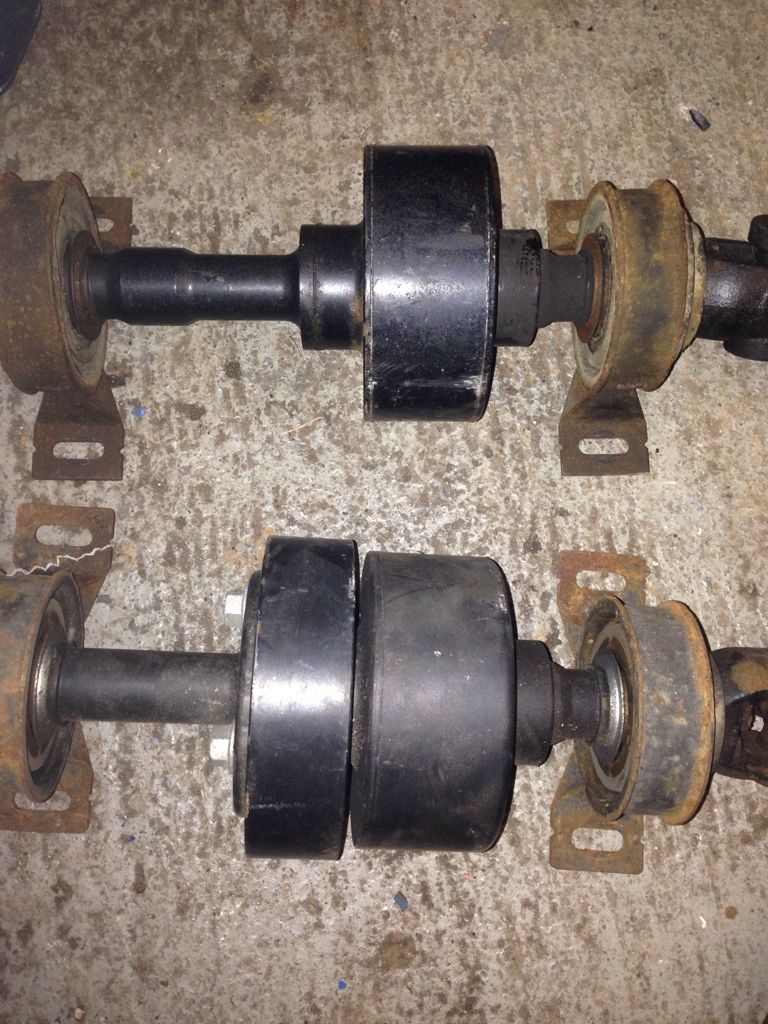

For info, as think may be causing some confusion, top VCU in pic is the V6 one bottom is the TD4.
Thanks Rocco, found it. Appears damper is virtually only difference.
Gonna go ahead and fit full unit on basis that if gives any probs will then swap VCU's.
Just need to decide whether to get standard support bushes or the V6 ones which ara apparently 20mm lower!!!
Never bloody easy eh!!! [emoji4]



Hippo

Lord Hippo

Posts

53,847

• Jan 20, 2015

• #8

The difference in bearing mount for the vcu is dependent on the year of the v6 Freelander. They changed for some reason. Compare your vin number to the part numbers on ere:

http://www.landyzone.co.uk/lz/f69/freelander-1-vcu-bearing-replacement-how-guide-156068.html



britishwardog

Active Member

Posts

394

Location

Cranleigh, Surrey

• Jan 20, 2015

• #9

I'd be seriously tempted to swop over the VCUs, if you know your one is good then why take a chance on the V6 one? The damage a fooked one can cause makes it a sensible choice.
