Just bought on 04 Freelander 1.8 with 103000 miles. Tried the test but it wouldn't move at all so pulled the drive shaft off. It might not be seized solid but ain't far from it.
VCU Torque test results
- Thread starter The Mad Hat Man
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Hippo
Lord Hippo
- Posts
- 53,849
Did you do the test by lifting 1 rear wheel?Just bought on 04 Freelander 1.8 with 103000 miles. Tried the test but it wouldn't move at all so pulled the drive shaft off. It might not be seized solid but ain't far from it.
Hand brake off during test?
If you lift both rear wheels do they spin freely?
Arctic2
Well-Known Member
- Posts
- 2,738
- Location
- Westmidlands
Shamefully I have had my FL since October last year and I have still not done this test yet, I must get round to it what have done though while I have the rear up on axle stands to fit a back box exhaust, was spin one wheel in the forward motion as I did this the opposite wheel rotated spun rearwards.
Should this happen ?
Should this happen ?
Hippo
Lord Hippo
- Posts
- 53,849
Yes. It does this because there's a diff in the middle of the rear wheels, and both wheels are lifted oft the ground.
Arctic2
Well-Known Member
- Posts
- 2,738
- Location
- Westmidlands
Thanks that's a relief at first I thought that cant be right, still leaning a lot about these FL I must say though it is the first time I have owned one and so far am really enjoying it.
I intend to slowly replace all the bushes as they must be getting old now after 10 yrs but will do test asap and report back cheers for all the help Arctic2
Alibro
Well-Known Member
- Posts
- 7,182
- Location
- Northern Ireland
Yes, one wheel off the ground and handbrake off. I tried slowly pulling the wheel around but it would only turn a little before springing back. Didn't try both wheels off the ground.
Last edited:
- Posts
- 83,282
- Location
- Embasinga stocæ
landyhaze
Active Member
- Posts
- 107
- Location
- Cambridge UK
My VCU test results.
2004MY Freelander facelift TD4, no tow bar, 139k miles, ambient temperature 4 Celsius.
1.2 meter bar with 5.0 kg of bricks on 32mm wheel nut, one wheel lifted, handbrake off, time to go from 45 degrees to horizontal: 42,40,41,39 seconds.
So my VCU is okay for now.?
2004MY Freelander facelift TD4, no tow bar, 139k miles, ambient temperature 4 Celsius.
1.2 meter bar with 5.0 kg of bricks on 32mm wheel nut, one wheel lifted, handbrake off, time to go from 45 degrees to horizontal: 42,40,41,39 seconds.
So my VCU is okay for now.?
Alibro
Well-Known Member
- Posts
- 7,182
- Location
- Northern Ireland
Sounds like it's a hell of a lot better than mine anyway,
With that mileage it's probably been replaced already or it would be seized solid. Mine was seized and my car 04 K series has 103,000 miles.
Arctic2
Well-Known Member
- Posts
- 2,738
- Location
- Westmidlands
I managed to do a couple of tests yesterday on the VCU, first time I have done one of these tests.
The first test Fl1 TD4 jacked up handbrake off first gear selected, breaker bar and a length of wood 1.2 metes, I used a 7.5kg weight, it took 1 minute 32 seconds to reach the ground.
What can you glean from that advise please.
http://www.youtube.com/watch?v=FcHaBd3OX4A
The second test I used 12 kg weight and it took 45 seconds to reach the ground again does' this make my VCU ok ? cheers Arctic2
http://www.youtube.com/watch?v=Pxm97H99hEU
The first test Fl1 TD4 jacked up handbrake off first gear selected, breaker bar and a length of wood 1.2 metes, I used a 7.5kg weight, it took 1 minute 32 seconds to reach the ground.
What can you glean from that advise please.
http://www.youtube.com/watch?v=FcHaBd3OX4A
The second test I used 12 kg weight and it took 45 seconds to reach the ground again does' this make my VCU ok ? cheers Arctic2
http://www.youtube.com/watch?v=Pxm97H99hEU
hippochris
New Member
- Posts
- 15
I did the same as above and it took 2 minutes 2 seconds. :/
Arctic2
Well-Known Member
- Posts
- 2,738
- Location
- Westmidlands
What can we conclude from these tests you and I took, hopefully one of the more experienced members whom know more on the subject will tell us cheers Arctic2
- Posts
- 83,282
- Location
- Embasinga stocæ
anything of 30 secs for 90 degrees needs investigating further - over a minute, I would get it checked professionally, it could already be serious.
hippochris
New Member
- Posts
- 15
I've just done the test with a 7.5kg weight and got the following results -
1:53
2:00
1:45
I think my original test was flawed somewhat, but it still isn't looking good!
edit - Didn't see your post. This one is from a garage and has two months of a three month 'mechanical warranty' on it, this coupled with a banging noise from below the drivers seat, and oil coming out of the drivers side driveshaft from the IRD definitely does not look good, now just to convince the garage that the VCU is buggered and the IRD needs attention!
Out of interest, how much play should the propshaft bushes have? I can move mine quite a lot by hand...about an inch either direction.
(also, thanks for making this thread and getting everyone posting!)
1:53
2:00
1:45
I think my original test was flawed somewhat, but it still isn't looking good!
edit - Didn't see your post. This one is from a garage and has two months of a three month 'mechanical warranty' on it, this coupled with a banging noise from below the drivers seat, and oil coming out of the drivers side driveshaft from the IRD definitely does not look good, now just to convince the garage that the VCU is buggered and the IRD needs attention!
Out of interest, how much play should the propshaft bushes have? I can move mine quite a lot by hand...about an inch either direction.
(also, thanks for making this thread and getting everyone posting!)
Last edited:
Arctic2
Well-Known Member
- Posts
- 2,738
- Location
- Westmidlands
What is serious ? the VCU as it as only been fitted as far as I know for 18 months before I bought the Fl ? drives great picks up all through the gear range and where would the best place be to have it checked in the West Midlands than you.
Last edited:
hippochris
New Member
- Posts
- 15
I'll give that a go, I do have a slight whiring (is that a word?) noise from the rear when going along, could be that or a bearing perhaps? Or even the diff? Oh so many things to go wrong.
Hippo
Lord Hippo
- Posts
- 53,849
Bearing or rear diff potentially. You could test for play in the diff by turning the prop connection flange without the prop connected.I'll give that a go, I do have a slight whiring (is that a word?) noise from the rear when going along, could be that or a bearing perhaps? Or even the diff? Oh so many things to go wrong.
Does it do it when turning left/right or both?
hippochris
New Member
- Posts
- 15
Just when I'm driving along straight, I don't think it changes appreciably when turning. It occurs at around 30mph upwards, although I think it tapers off around 50mph, but that could just be road noise drowning it out.
Will go out into the cold and test with both sides up now!
Edit - it's off to the garage as it's in warranty, shall see what happens.
Will go out into the cold and test with both sides up now!
Edit - it's off to the garage as it's in warranty, shall see what happens.
Last edited:
Arctic2
Well-Known Member
- Posts
- 2,738
- Location
- Westmidlands

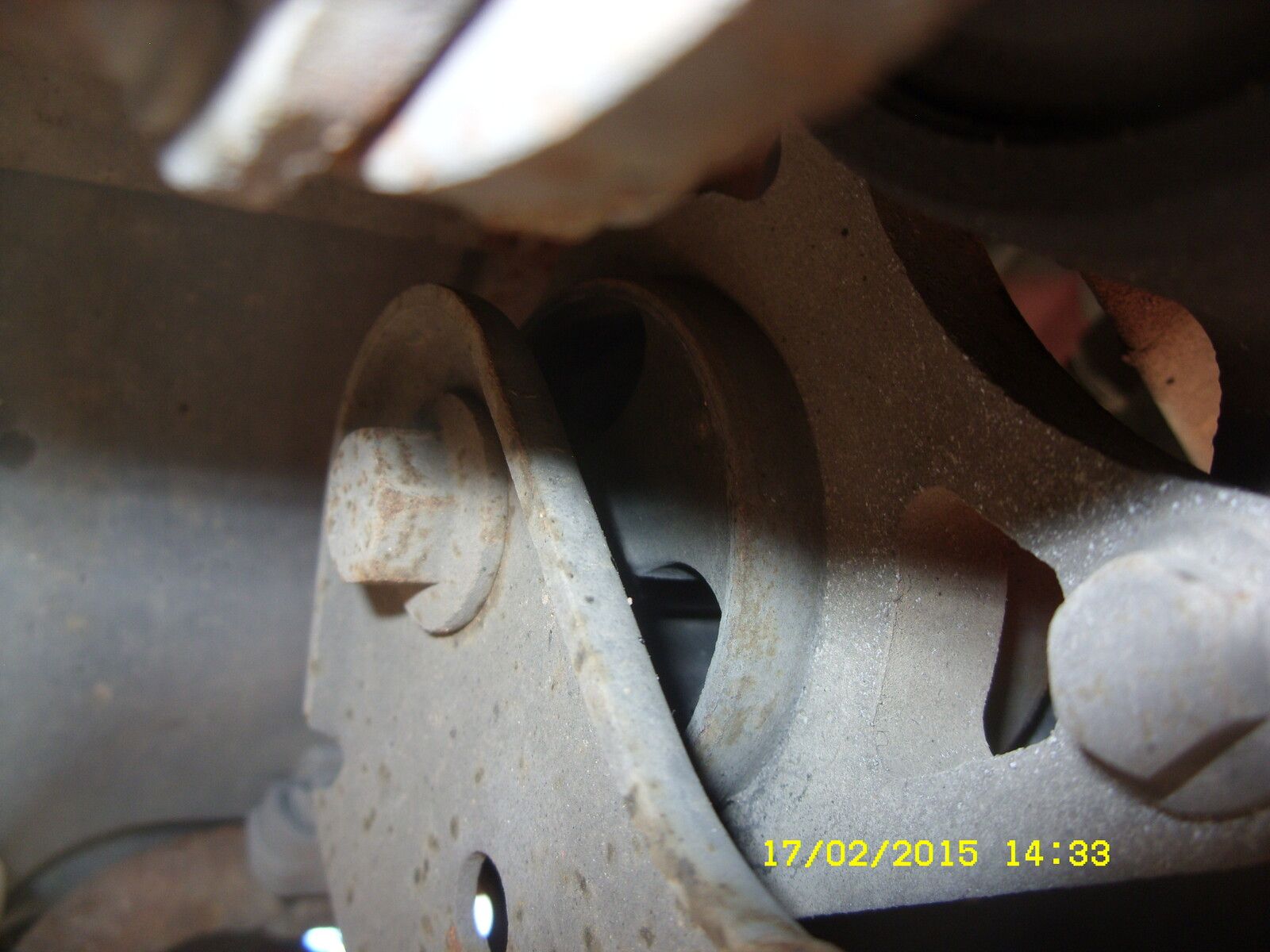

Hi please report back and let us know if you will thank you, I found that my brakes are in fact dragging I have ordered some new shoes, brake cables, already fitted the drums, and found at the same time the centre rear front bush as failed so have ordered all three to change I will then do another test, FL not being used until the above jobs have been completed.
