bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
Aye, guid yin trewey
Trewey's home made Snorkle.
- Thread starter Trewey
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Dorset VogueSE
Well-Known Member
- Posts
- 1,259
Trewy,
Did you just guess at the pipe size required, or is it the same as proper bought ones?
I have a (badly) home made one on mine that I'm lookin to improve. I have some 2 1/4" aluminium tubing (borrowed from work), and not sure if it's big enough???
Did you just guess at the pipe size required, or is it the same as proper bought ones?
I have a (badly) home made one on mine that I'm lookin to improve. I have some 2 1/4" aluminium tubing (borrowed from work), and not sure if it's big enough???
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
The original pipe from the airbox to the wing vent is 2 1/4", so your pipe should be fine.
I used 2 1/2" because that's what guttering downpipe is!
I used 2 1/2" because that's what guttering downpipe is!
Dorset VogueSE
Well-Known Member
- Posts
- 1,259
Trewy, from reading this, I take it you kept the standard airbox and filter.
I was thinking of connecting my aluminium ducting directly to the flexible at turbo inlet (binning the factory filter and airbox)
and putting this on the top of the intake tube as a filter.
Its a stainless performance filter thing wot you you normally find on Kevin's (or should that be Grippas ) mota darn
Maccydees car park. The only thing that worries me is water ingress from rain etc as there won't be any
drain on the system.
Do you or any of the other bright sparks on ere have any views on wether this is a good plan or not????
I was thinking of connecting my aluminium ducting directly to the flexible at turbo inlet (binning the factory filter and airbox)
and putting this on the top of the intake tube as a filter.
Its a stainless performance filter thing wot you you normally find on Kevin's (or should that be Grippas ) mota darn Maccydees car park. The only thing that worries me is water ingress from rain etc as there won't be any
drain on the system.
Do you or any of the other bright sparks on ere have any views on wether this is a good plan or not????
- Posts
- 83,296
- Location
- Embasinga stocæ
Trewy - i dunno wot the Kernow lanes are like - but that wouldnt last 2 mins on the amsheer lanes - its mainly drivin thru bushes an trees and the side flexi bit would be ripped orf in no time.
DV - interesting idea - was talkin about tha to Patman yesterday, cos he is having airbox relocation "issues".
DV - interesting idea - was talkin about tha to Patman yesterday, cos he is having airbox relocation "issues"
.
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
Oooh a B&Q special. Every fooker round here makes em like that. Cos we're all tite fookers. Trew it dint matter if it gets a few knocks cos it's easy to repair just keep a foot or so of, drainpipe, tube of solvent weld adhesive and an hacksaw in the landy. If it gets a whack cut a patch and stick it over the hole. 30secs and it'll be airtite agin. & the flexi will just flatten if that takes a knock but that's easily fixed by sticking yer hand in and reshaping it.
Every fooker round here makes em like that. Cos we're all tite fookers. Trew it dint matter if it gets a few knocks cos it's easy to repair just keep a foot or so of, drainpipe, tube of solvent weld adhesive and an hacksaw in the landy. If it gets a whack cut a patch and stick it over the hole. 30secs and it'll be airtite agin. & the flexi will just flatten if that takes a knock but that's easily fixed by sticking yer hand in and reshaping it.
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
Yes, I kept the standard filter, but replaced the silly rubber tit drain valve with a proper 1/2" 1-way valve.Trewy, from reading this, I take it you kept the standard airbox and filter.
I was thinking of connecting my aluminium ducting directly to the flexible at turbo inlet (binning the factory filter and airbox)
and putting this on the top of the intake tube as a filter.
View attachment 6564 Its a stainless performance filter thing wot you you normally find on Kevin's (or should that be Grippas
Maccydees car park. The only thing that worries me is water ingress from rain etc as there won't be any
drain on the system.
Do you or any of the other bright sparks on ere have any views on wether this is a good plan or not????
I'd be worried about rainwater ingress with that boy racer filter on top.
Why don't you get a K&N in-line filter and plumb it in under the bonnet with a proper mushroom or safari type top on the snork?
big ad
Active Member
- Posts
- 907
- Location
- Barnstaple , Devon

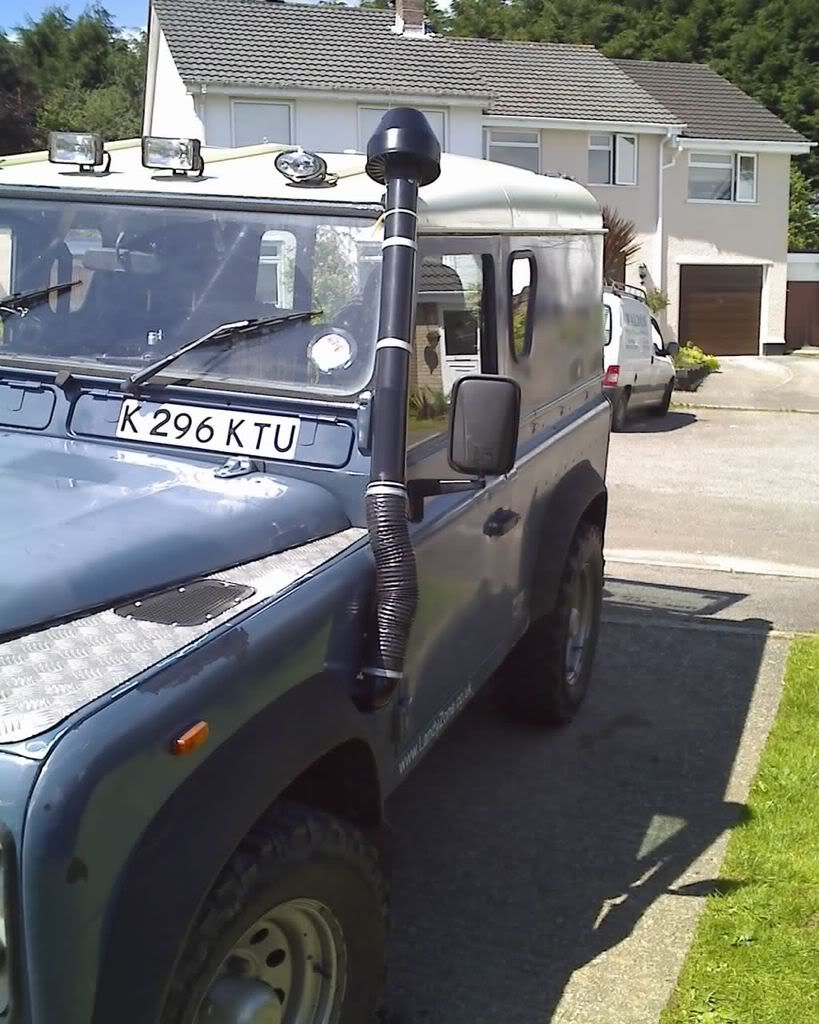

I decided to make me own for 2 reasons. First off, they're expensive to buy for what they are. Secondly, I think it's very difficult to get a proper seal to the outside of the wing and the plastic mouldings inside the wing are a poor fit.
I used a length of 70mm flexible ducting (cut into 2 pieces), a length of 2.5" plastic downpipe and 2 downpipe 90 deg bends. Also needed were some jubilee clips and some strip ally (to make the brackets).
I got the top second hand from flea-bay for a tenner.
The total cost was less than 30 quid and it works - I tested it by putting a plastic bag over the top and the engine stopped.
Am reet pleased with meeself.
Looks good mate , only one thing bothers me though and that is on the last picture the pipe looks very close to the exhaust down pipe, are you not worried that it might melt or worse yet catch fire???
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
It's not as close as it looks in the pic (the camera shortens perspective) and it follows the line of the original pipe. The flexi that I used is heat resistant to 150 degC, so I think it will be OK.
TheVengefulElephant
Well-Known Member
- Posts
- 6,527
Temps in the combustion chamber can reach up to 1500 degrees C
rustyrhinos
Well-Known Member
- Posts
- 2,625
- Location
- Stamford, Lincs
You think he is tight? My budget was £3 for the bit of pipe and the rest was borrowed (from the garden).
Take a bull bar...
Cut it up a bit and add some pipe, silicon, make some brackets etc..
Worked superb..no dust or any crap got in the airbox at all.
I will be doing a similar thing for the series 2a...except I will be swapping over to a Range Rover or similar airbox
Take a bull bar...
Cut it up a bit and add some pipe, silicon, make some brackets etc..
Worked superb..no dust or any crap got in the airbox at all.
I will be doing a similar thing for the series 2a...except I will be swapping over to a Range Rover or similar airbox
Oddie
AntiSeptic Sandal Wearer
- Posts
- 26,178
- Location
- In a puddle in Kernow
Best not build a snorkel in there then!Temps in the combustion chamber can reach up to 1500 degrees C
- Posts
- 83,296
- Location
- Embasinga stocæ
I fink someone is siphoning fool out of ya motor, mate.
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
MINGE!
Where's yer anti-slitty missiles?
Where's yer anti-slitty missiles?
Oddie
AntiSeptic Sandal Wearer
- Posts
- 26,178
- Location
- In a puddle in Kernow
Dunno but it's been reported that macdonalds is missing a straw!I fink someone is siphoning fool out of ya motor, mate.
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
That'll be Nellie. I heard he'd expanded trhe business and was now providing a feltching service
Ennisboyne
Member
- Posts
- 26
would the heat of the exhaust not melt the plastic and is it blocking the vent??
90boy
Well-Known Member
- Posts
- 6,836
- Location
- Worcestershire, Tenbury Wells
here we go again trewey you can tell him i cant be bottered
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
No, it's well clear of the eggsorst and the ducting is rated at 125 degC.
The side vent is now redundant - the snorkle replaces it!
madfrank
New Member
- Posts
- 434
- Location
- Burton on trent
Trewy, from reading this, I take it you kept the standard airbox and filter.
I was thinking of connecting my aluminium ducting directly to the flexible at turbo inlet (binning the factory filter and airbox)
and putting this on the top of the intake tube as a filter.
View attachment 6564 Its a stainless performance filter thing wot you you normally find on Kevin's (or should that be Grippas
Maccydees car park. The only thing that worries me is water ingress from rain etc as there won't be any
drain on the system.
Do you or any of the other bright sparks on ere have any views on wether this is a good plan or not????
Bad plan if you loose the filter offa the end of the pipe theirs nuthing stopping a small fury animal getting sucked in and meeting its doom on the blades of ya turbo
and have you seen the mess they can make of the engine bay.
