Trailer - challenge truck build

D90mitch · Dec 4, 2014

200tdi ayre said:
i wish !!! haha

Look forward to seeing the next change then, so far the farthest i've got with me disco is removing the LPG and getting a f-ing expensive trailer.....

Roll cage and rear space frame before Easter I hope....

discomark10 · Dec 4, 2014

Its like xmas! Guve us a hint

200tdi ayre · Dec 4, 2014

discomark10 said:
Its like xmas! Guve us a hint

Well I think Jim is handling the process as a clue

Mr Noisy · Dec 5, 2014

Soooo

Gigglepin?

discomark10 · Dec 5, 2014

Twin top, wide drum?

Mr Noisy · Dec 5, 2014

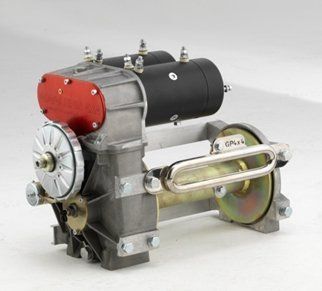

winch operated butt scratcher?

200tdi ayre · Dec 5, 2014

I'm poor now

200tdi ayre · Dec 5, 2014

A pallet is arriving next wednesday

200tdi ayre · Dec 5, 2014

:behindsofa:

Mr Noisy · Dec 6, 2014

Wahhhhhhhh! :lvlove-158:

discomark10 · Dec 6, 2014

200tdi ayre said:
:behindsofa:

Sweet. . Bet that cost a fair bit!

200tdi ayre · Dec 6, 2014

discomark10 said:
Sweet. . Bet that cost a fair bit!

You're not wrong !!!

And I bought full lockers shafts CV's pegging kits service kits and 2 batteries :doh:

200tdi ayre · Dec 6, 2014

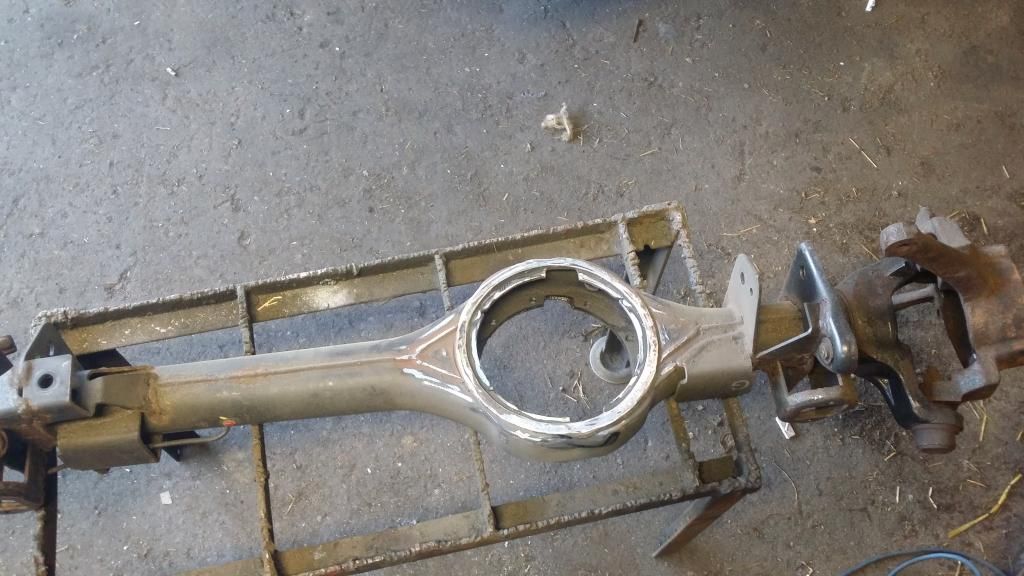

Todays mission HD diff pan

One hole

One turtle

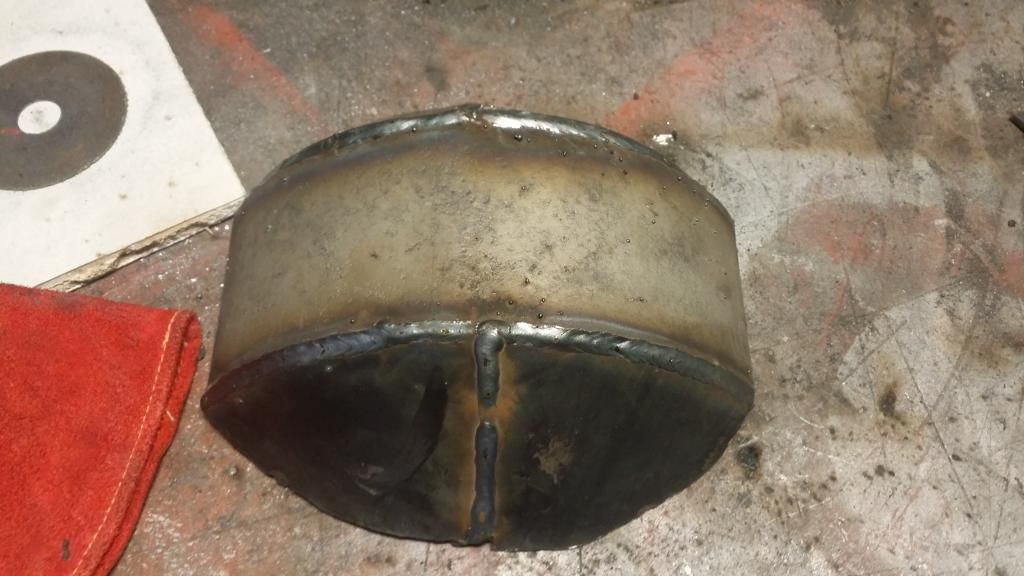

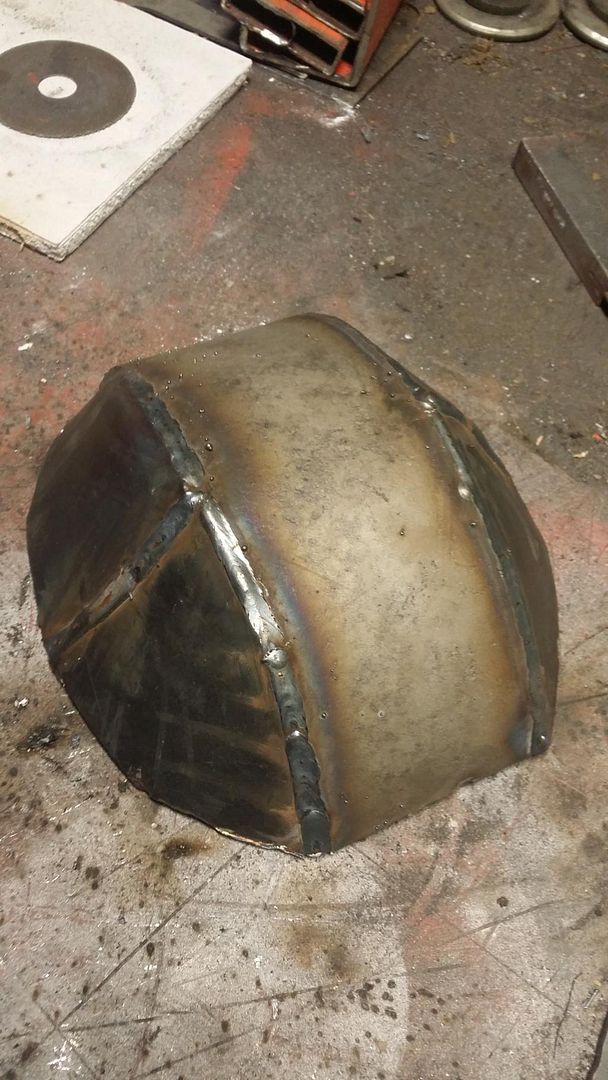

Welded inside and out on the bench then cleaned up and welded on

Just gotta drill and weld in a plug and shes done

1 more to do

200tdi ayre · Dec 6, 2014

Mr Noisy said:
Wahhhhhhhh! :lvlove-158:

Hehehehe

IamRobbie · Dec 6, 2014

I wanna be this skilled

200tdi ayre · Dec 7, 2014

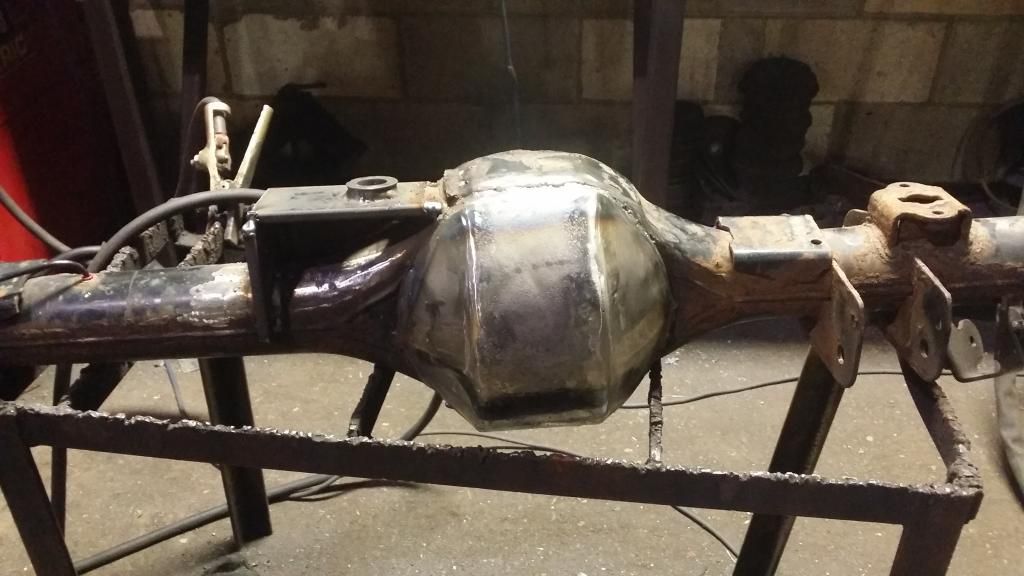

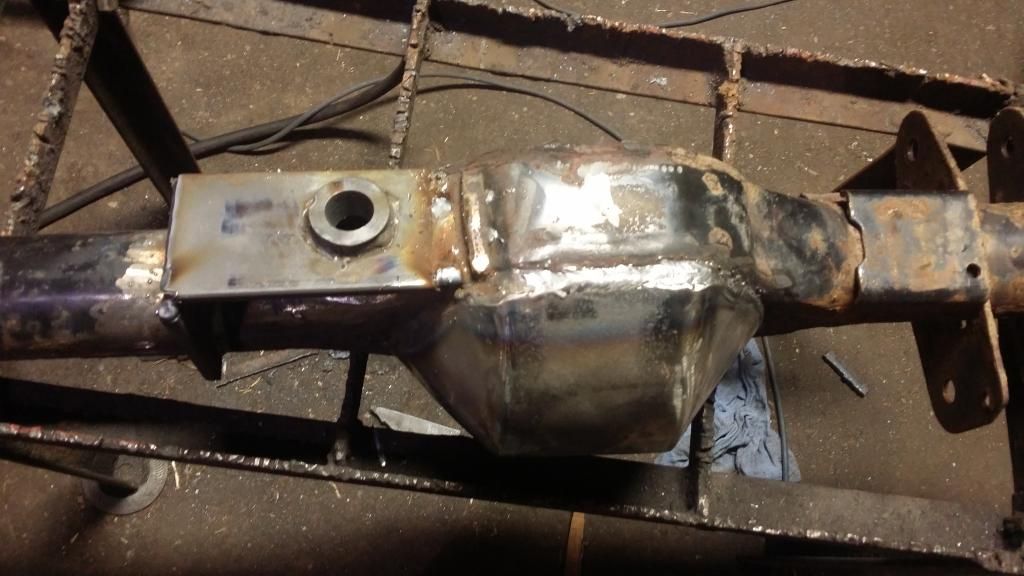

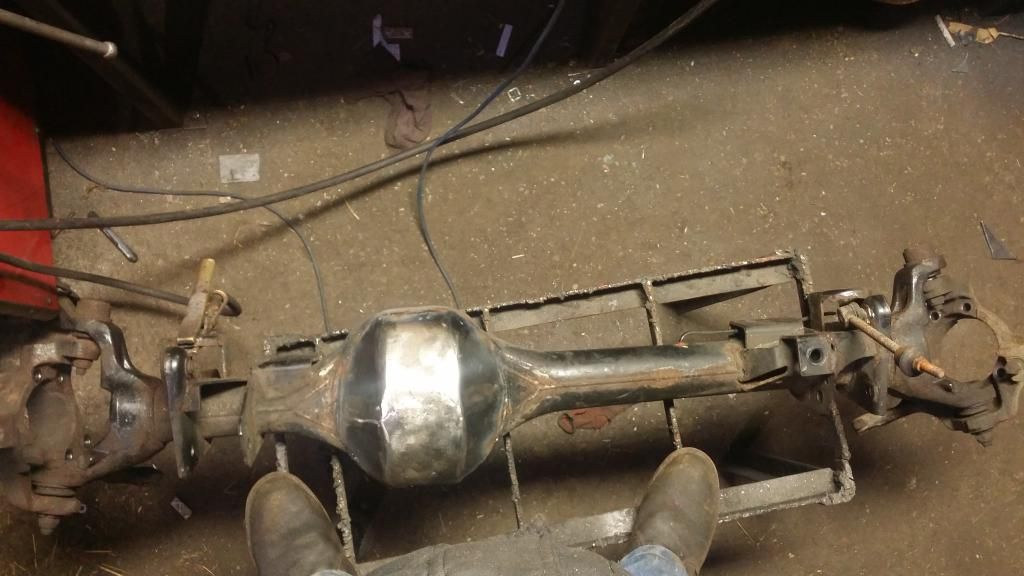

Rear diff cover done and a frame mount done

Yes it is level

Ill send them for shotblasting tomorrow and hopefully have them ready for shafts on wednesday

Mr Noisy · Dec 7, 2014

That's some daub style welding if I ever did see it

200tdi ayre · Dec 7, 2014

Shes beefy

contemplating wekding a plate under the diff but I might make a bolt on one like yours sam that will help protect the prop too

discomark10 · Dec 8, 2014

That bung went in well. I assume you got it centered. Looks like stick weld.
how did you bend the pan?

200tdi ayre · Dec 8, 2014

discomark10 said:
That bung went in well. I assume you got it centered. Looks like stick weld.
how did you bend the pan?

Yeah took me almost half an hour to get it centred, I got it to within 2mm straight away that last bit was a pita haha

Yeah bung works well just gotta hope its right as its not coning off now

Nahh just thick ass mig, pushing about 180 amps into it shes well penetrated, I veed the sides too so its quite a wide weld

The main bit of the pan was 8mm 9 inch tube that we had lying around

the side parts are 6mm that I bemt with a combination of the press and artistic use of a hammer
