Tomcat Project

marjon · Mar 28, 2019

I know lots of inappropriate words for the situation. No prayers he don’t seem to listen to me

I guess as you have had it running, you need to back track what you have disturbed, the tunnel looked a bit messy (wiring wise) when you first got it. But basically go back to the basics is a start to narrow down stuff.

J

marjon · Mar 28, 2019

What does it do/ not do? When you turn the key.

J

Hicap phill · Mar 28, 2019

Start

marjon · Mar 28, 2019

Obviously not ^^^

J

DaveP_Tomcat · Mar 28, 2019

marjon said:
What does it do/ not do? When you turn the key.

J

Now it does nothing...
The key switch puts power to the coil and solenoid at the appropriate times, and there's 12.8v to the solenoid direct from the battery.... but no clunk, and no whirrrrrrr

Going to take everything back to basics.

marjon · Mar 28, 2019

Short the posts with a big screwdriver, prepare for some sparks

and see what happens.

Don’t blame me

J

DaveP_Tomcat · Mar 31, 2019

Today I shall pull the starter and solenoid to have a bench test.... Should be fun.

But first to map out what to do with this jigsaw puzzle:

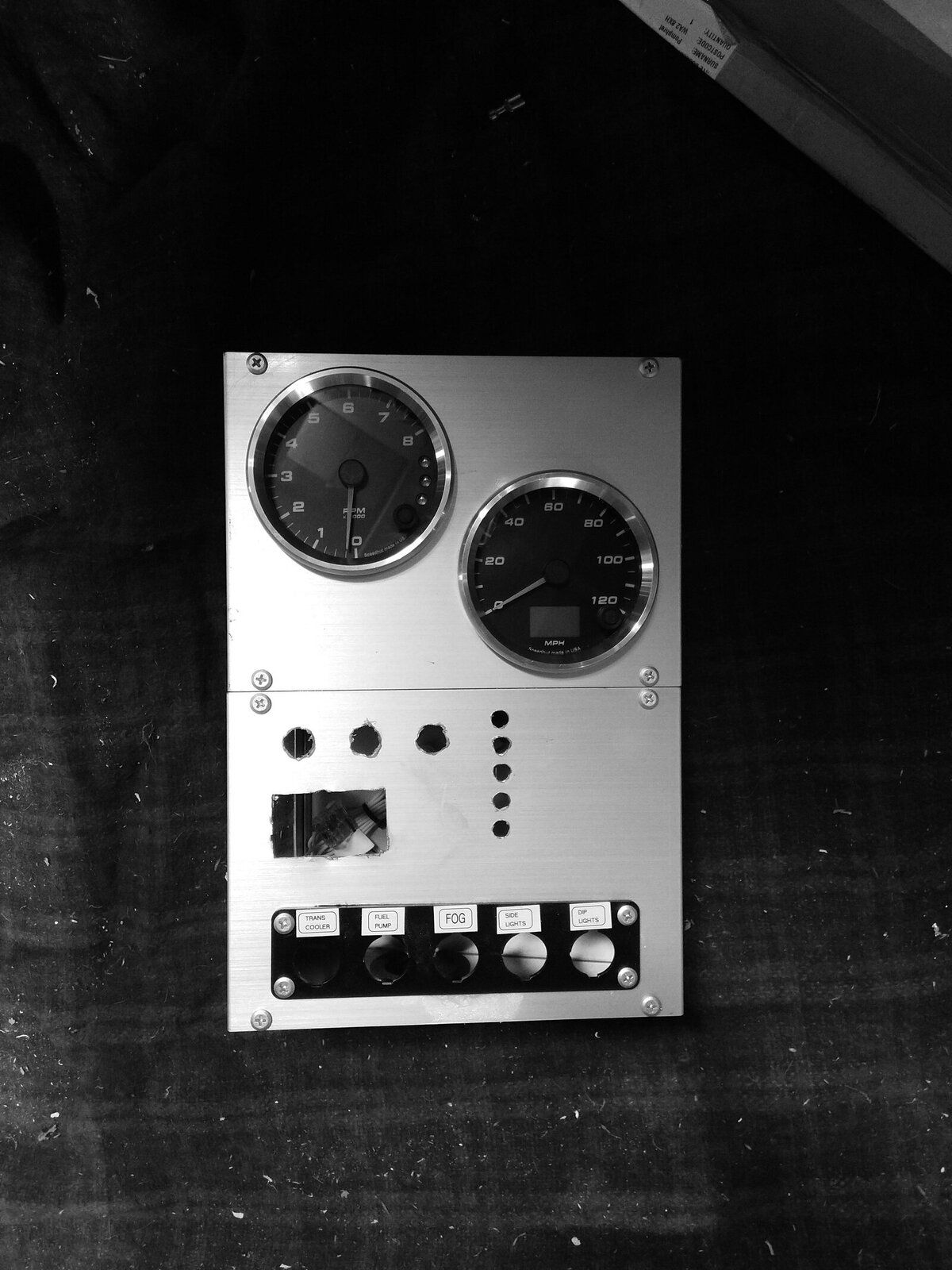

Oh yeah, almost finished the dash:

marjon · Mar 31, 2019

Jigsaws when new are better than when rusty that’s for sure

Dash coming together, is it going in the center?
What switches you using, check regs on light switches and required warning lights/ symbols for certain functions.
Fog needs 1 for sure, also believe lights too.

Keep it up, and don’t let the starter get away from the bench when it spins up

J

DaveP_Tomcat · Apr 1, 2019

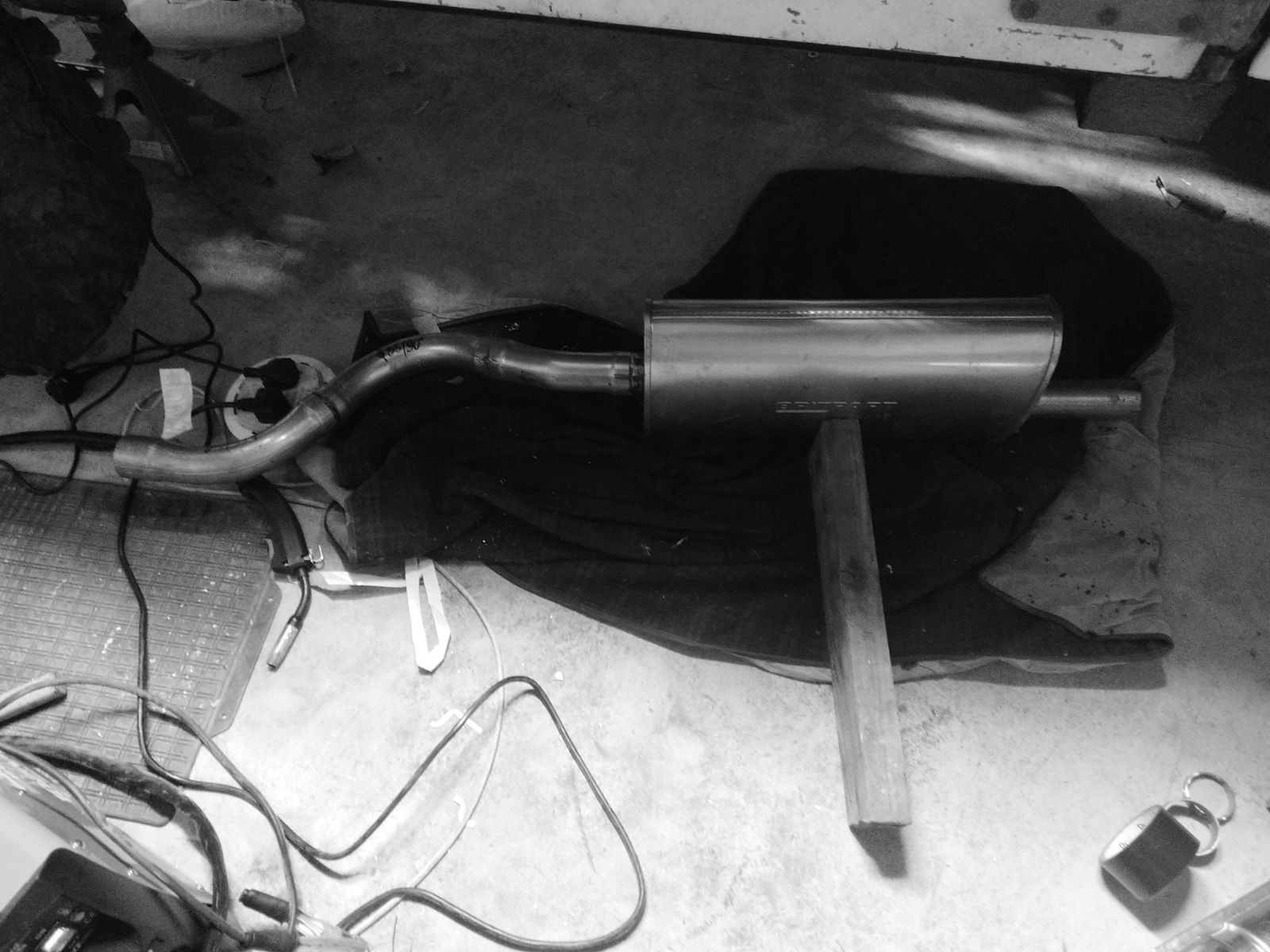

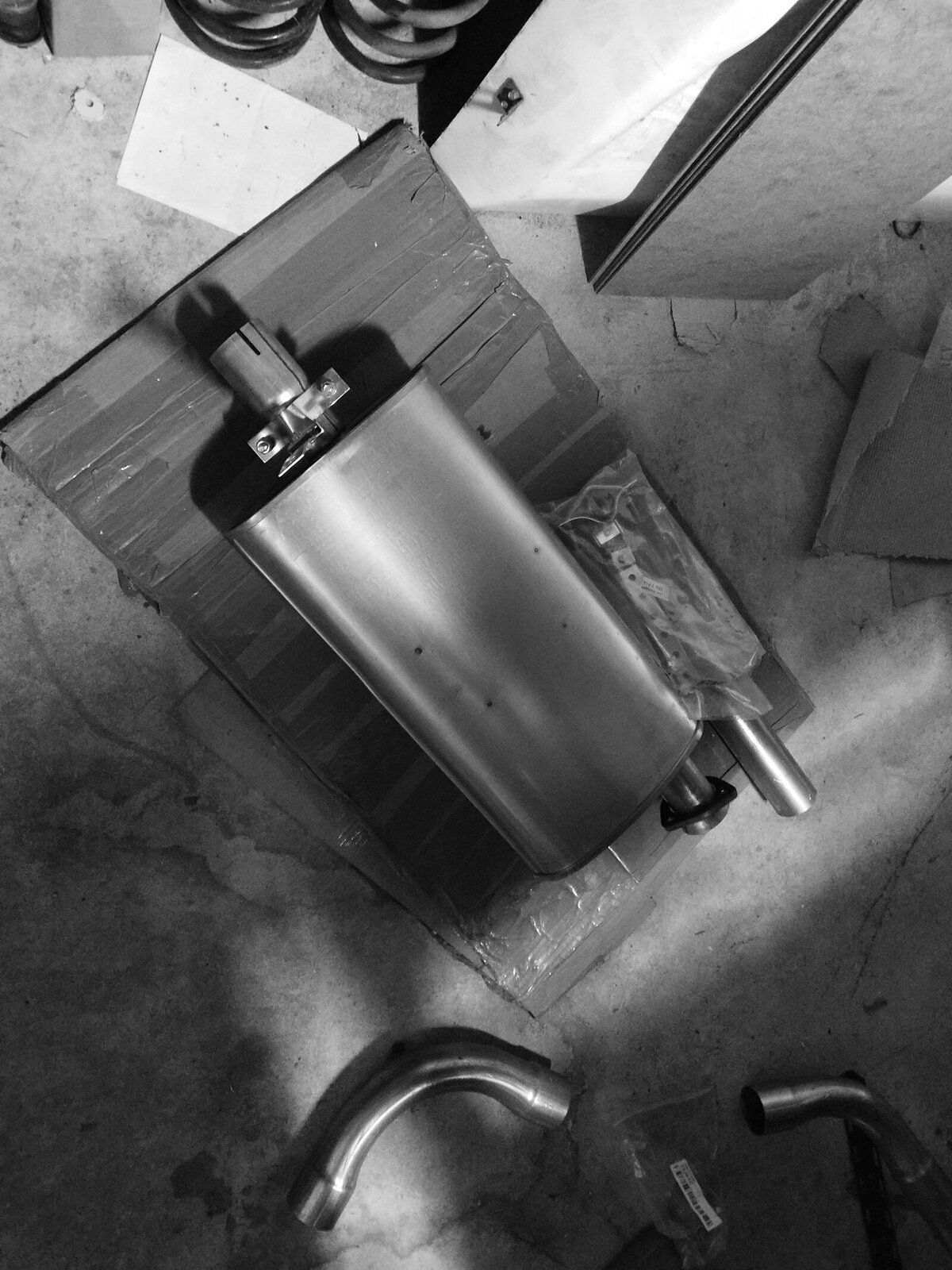

Ho hum... Not had chance to drop the starter, but did manage to waste an evening measuring up, cutting then tacking this lot together:

Bennehboy · Apr 1, 2019

DaveP_Tomcat said:
Door latches fitted to newly welded and painted box-section... transmission tunnel now boxed in... transfer case H/L lever reinstated... brakes bled.

Now I can't get the damn lump to start! Anyone know any useful/appropriate prayers?

I see your slot for the hi/lo selector won't allow for difflock, are you going to electrical/air/vac operate that, or is it still WIP?

DaveP_Tomcat · Apr 1, 2019

Bennehboy said:
I see your slot for the hi/lo selector won't allow for difflock, are you going to electrical/air/vac operate that, or is it still WIP?

I've a bent 10mm spanner fitted to the selector...

Think I'll leave it open for most of the time but close it for off roading.
