Things started to cool over there yet? It's been fall since June over here temp wise. Of course the southern softies have had it ok as usual.
Timing belt broken, I think...
- Thread starter Gary Gilbert
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Things started to cool over there yet? It's been fall since June over here temp wise. Of course the southern softies have had it ok as usual.
West Slope Rover
Well-Known Member
- Posts
- 8,617
- Location
- deep underground
Today's forecast high is 86 degrees F. It's getting into the low 40's at night.Things started to cool over there yet? It's been fall since June over here temp wise. Of course the southern softies have had it ok as usual.
What configuration of sprockets / pulleys did you have?
Could you have made the mistake of replacing the idler with the current version, without replacing the crank sprocket with similar?
(originally the idler had a ridge, and the crank sprocket did not - current config is that the idler is bare, and the crank sprocket has the rim)
A setup without a rim on one of them will cause the belt to wander / ware / catch, but probably not that swiftly.
- Posts
- 58,170
- Location
- Preston Lancs.
Don't think we have had anything like that all summer, just a few odd warm days. It's been pretty bloody bad but the reservoirs are full for sure.
- Posts
- 83,282
- Location
- Embasinga stocæ
Is that a yoofamissum?
- Posts
- 83,282
- Location
- Embasinga stocæ
Been a lovely summer - you just live in a ****-hole
. You are just used to the smog and coal dust in the air
Gary Gilbert
Member
- Posts
- 78
- Location
- Germany
Hi julian, have the right configuration ridge on the crankshaft pull and smooth on the idler.
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
Have you got the rocker cover off yet?
Gary Gilbert
Member
- Posts
- 78
- Location
- Germany
Have taken the cover off and it is worse than I first thought....

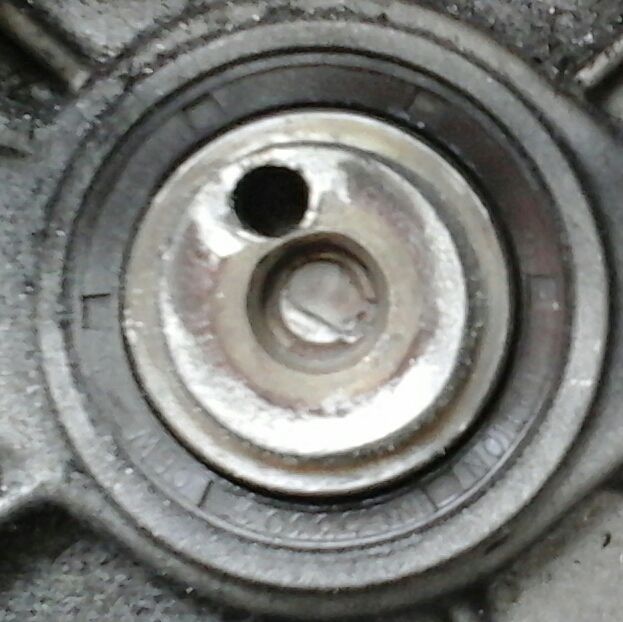

The belt is shredded but not broken, the bolt holding the cam sprocket on, however, broke and that caused the sh*t to hit the fan... "only" 3 bent pushrods and as far as I can tell no damage to the rocker but I have a piece of bolt in the cam shaft, a guide hole that's now a bit looser that it was and a cam sprocket that can't be reused... the only thing I can think of is that I didn't tighten the cam shaft hub to bolt to the correct torque when I replaced the seal and that caused stress on the bolt which it shouldn't have..
So where do I go from here? What should my next steps be? Look for a replacement motor?
Cheers and thanks for the help! Here some photos of the mess.
The belt is shredded but not broken, the bolt holding the cam sprocket on, however, broke and that caused the sh*t to hit the fan... "only" 3 bent pushrods and as far as I can tell no damage to the rocker but I have a piece of bolt in the cam shaft, a guide hole that's now a bit looser that it was and a cam sprocket that can't be reused... the only thing I can think of is that I didn't tighten the cam shaft hub to bolt to the correct torque when I replaced the seal and that caused stress on the bolt which it shouldn't have..
So where do I go from here? What should my next steps be? Look for a replacement motor?
Cheers and thanks for the help! Here some photos of the mess.
Magicgrotto
Well-Known Member
- Posts
- 2,769
- Location
- doncaster
If your GOOD with a hammer & a center punch you should be able to get the broken stud out ! It will only need a bit of a turn then it should screw out ! I know wot your thinking ! that it will be tight ! but it wont be trust me
Gary Gilbert
Member
- Posts
- 78
- Location
- Germany
OK will give it a try
Though what about the somewhat stretched out guide hole? I doubt the guide will stay in now without the addition of some liquid metal...which I'm not sure would be a good idea to begin with...
I'm a bit scared to take head off, those bolts on the manifold look like they would love to break off not to forget the turbo but without taking the head off there is no way to see if we have more damage right?
Cheers and thanks!
Magicgrotto
Well-Known Member
- Posts
- 2,769
- Location
- doncaster
Gary your in the middle of no were so your gunna have to suck it & see If you can get that stud out your halfway there ! New belt New pulley New pin for guide hole or is that to do with timing ? push rods stick it back together & see wot happens If it dunt work ring work & tell them you've been kidnapped
Steve
so your gunna have to suck it & see If you can get that stud out your halfway there ! New belt New pulley New pin for guide hole or is that to do with timing ? push rods stick it back together & see wot happens If it dunt work ring work & tell them you've been kidnappedSteve
Gary Gilbert
Member
- Posts
- 78
- Location
- Germany
Been travelling for 1 1/2 years there is no work to ring anymore.
Good question! the pin is ok the whole is a bit stretched, though i imagine it has to do with the timing, as far as I know its there to ensure the pully can only be put on one way. But I am sure others know better than I do.
Cheers
Gary
- Posts
- 83,282
- Location
- Embasinga stocæ
If you gotta have new bits sent to you, don't risk straightened pushrods.
Personally, depending on how ****ed you are, id drill out the bolt, and just reassemble the lot, and hope for the best.
Id imagine that, if you can get the belt, you can get the pushrods, but, as above, ive heard of them being hammered straight in an emergency.
With regard to the enlarged hole - ive not messed with the cam seal on any of ours, so ive not taken the sprocket off myself, but, once youre somewhere more suitable, could it be drilled and then fitted with an oversized pin? (again, ive never looked at the part, so this may not be applicable at all)
If you have taken the rocker assembly out, does evreything turn freely now? My concern is the possibility that somthing locked, causing the cam sprocket to snap off, rather than the other way arround.
Id imagine that, if you can get the belt, you can get the pushrods, but, as above, ive heard of them being hammered straight in an emergency.
With regard to the enlarged hole - ive not messed with the cam seal on any of ours, so ive not taken the sprocket off myself, but, once youre somewhere more suitable, could it be drilled and then fitted with an oversized pin? (again, ive never looked at the part, so this may not be applicable at all)
If you have taken the rocker assembly out, does evreything turn freely now? My concern is the possibility that somthing locked, causing the cam sprocket to snap off, rather than the other way arround.
Magicgrotto
Well-Known Member
- Posts
- 2,769
- Location
- doncaster
Gary Gilbert
Member
- Posts
- 78
- Location
- Germany
I should be able to get parts, there is a landy mechanic 2 hrs from here who also sells parts so perhaps they have some things in stock already and we don't have to wait a couple of weeks before we see if the valves are screwed.
With the bent pushrods and rocker assembly removed I checked to see if I could budge the crank and I moved so easily i thought that something had to be wrong..but then without the pushrods there should be no tension and it should turn easy right?
I cant remember if you can see the seats that the push rods sit in by looking down the channel? Ive heard that they can get damaged.
I suspect you cant see them. If you put a (straight) pushrod back in, and push down on it gently whilst rotating the cam, hopefully it all feels ok?
I suspect you cant see them. If you put a (straight) pushrod back in, and push down on it gently whilst rotating the cam, hopefully it all feels ok?
