Stripped radiator thread

[Hicap phill]

200 and 300 have different cooler pipe set ups at the rad end.
Iirc the threaded adaptors are available on their own.

For 200 item 3, no idea on 300 version!
View attachment 278084

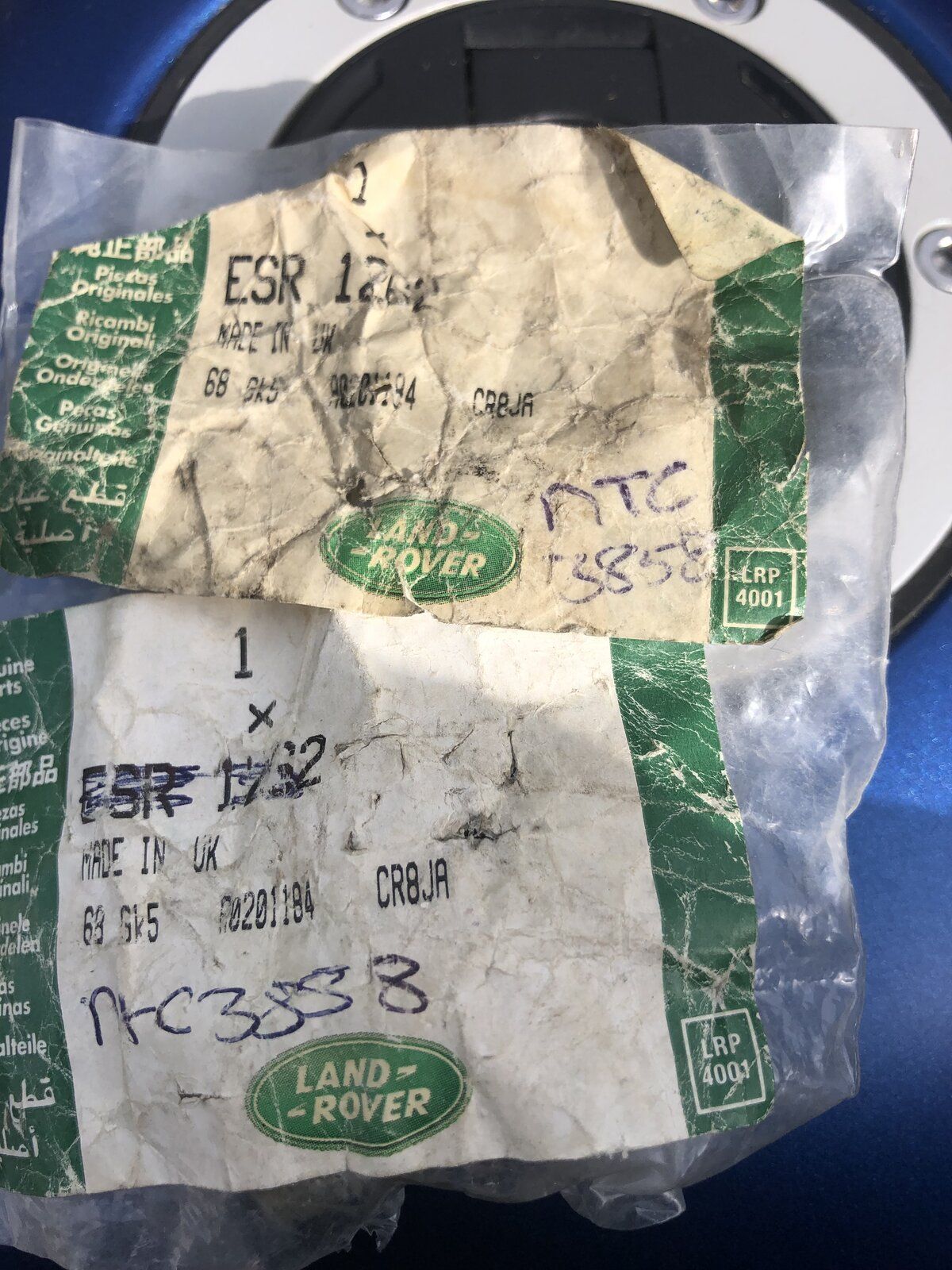

these are 300 TDI fittings for the radiator to oil pipe. Note the part numbers have changed

This is a 300tdi end. No copper washer only O ring

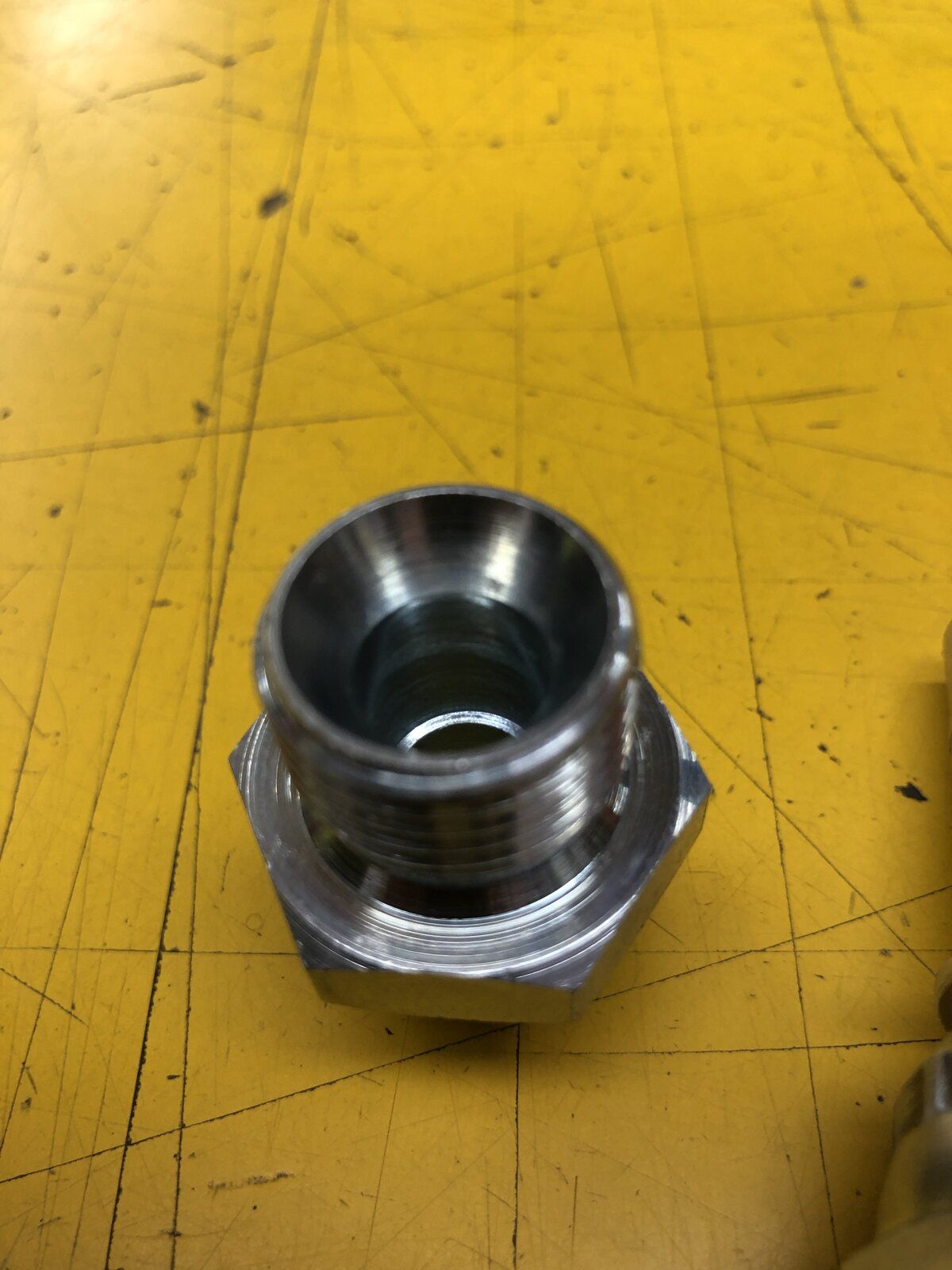

You can get these ends which suits 200tdi from pirtek

This is a 200end. You can not use these for 300 as pipe ends are different.

Hope this helps ….



[Lej]

these are 300 TDI fittings for the radiator to oil pipe. Note the part numbers have changed
View attachment 278183

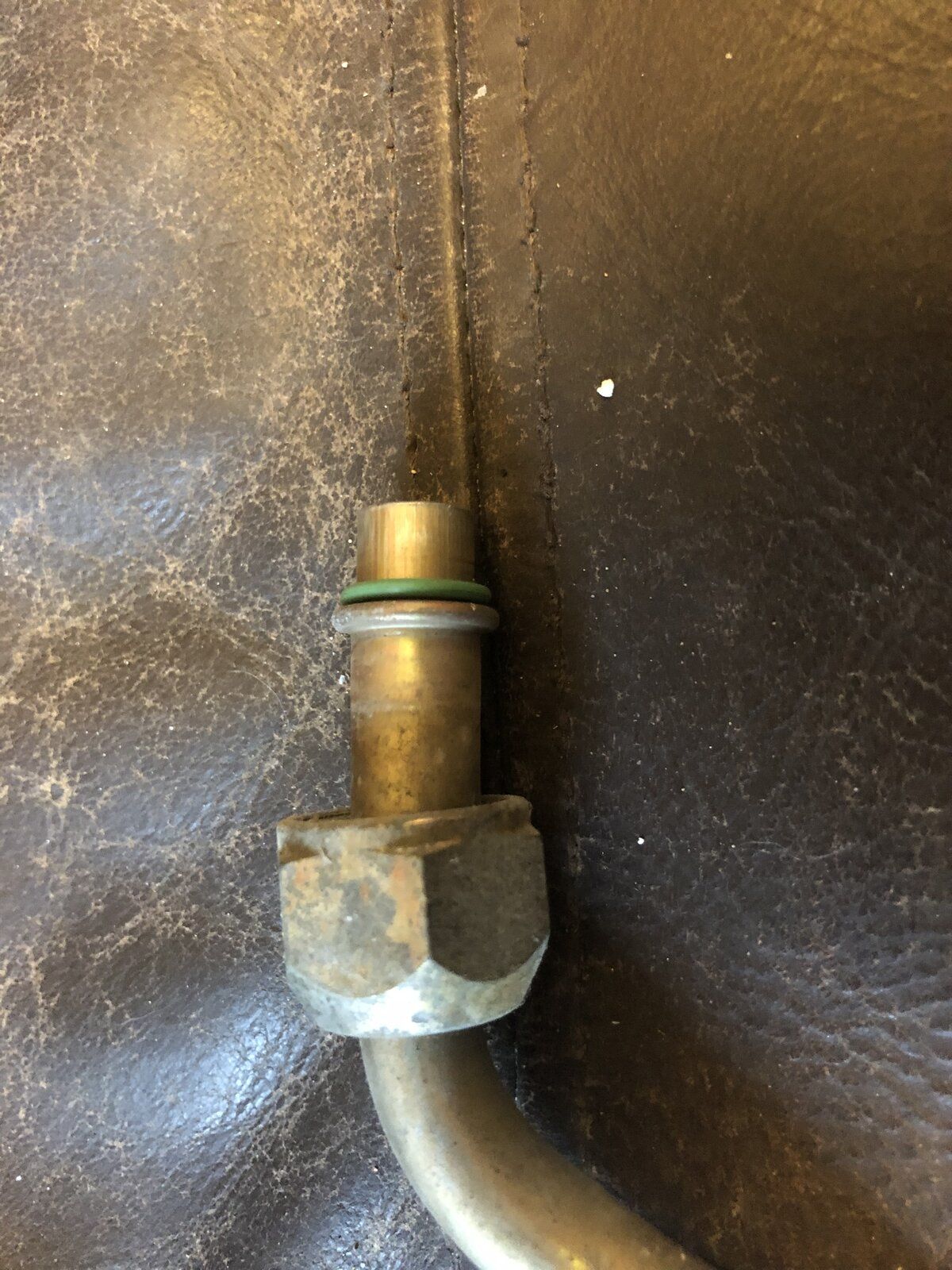

This is a 300tdi end. No copper washer only O ring
View attachment 278184

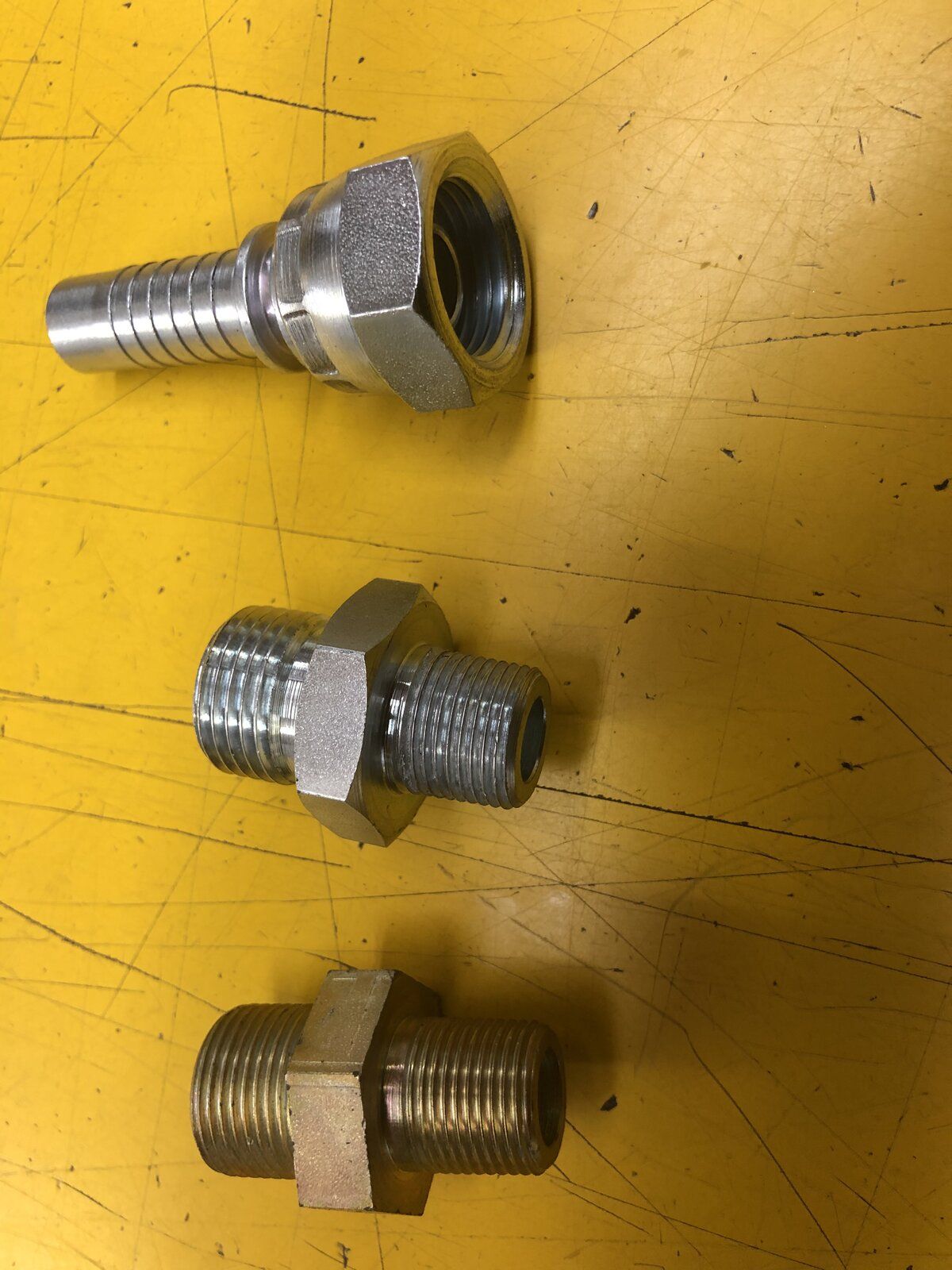

You can get these ends which suits 200tdi from pirtek
View attachment 278185

This is a 200end. You can not use these for 300 as pipe ends are different.
View attachment 278186

Hope this helps ….

Thank you all so much for your help!

Phill,

I've just got home so I can't check- but please excuse my naivety... Does this mean that the stripped out connection is actually a removeable piece on the radiator end and I can just... replace it?



[Hicap phill]

Thank you all so much for your help!

Phill,

I've just got home so I can't check- but please excuse my naivety... Does this mean that the stripped out connection is actually a removeable piece on the radiator end and I can just... replace it?

We are all here to learn…
On the ends of your pipes will be the connectors that screw into the radiator. These mate the rad & pipes together.

yep these connectors are replaceable.
Look at the earlier post form @lynall which shows the picture & this will help.

Also if you take a photo of what you have damaged we can all see the problem & help.
A photo helps us all



[Lej]

Hi Phill,

Right, so this may not actually be as bad as I thought it might be...

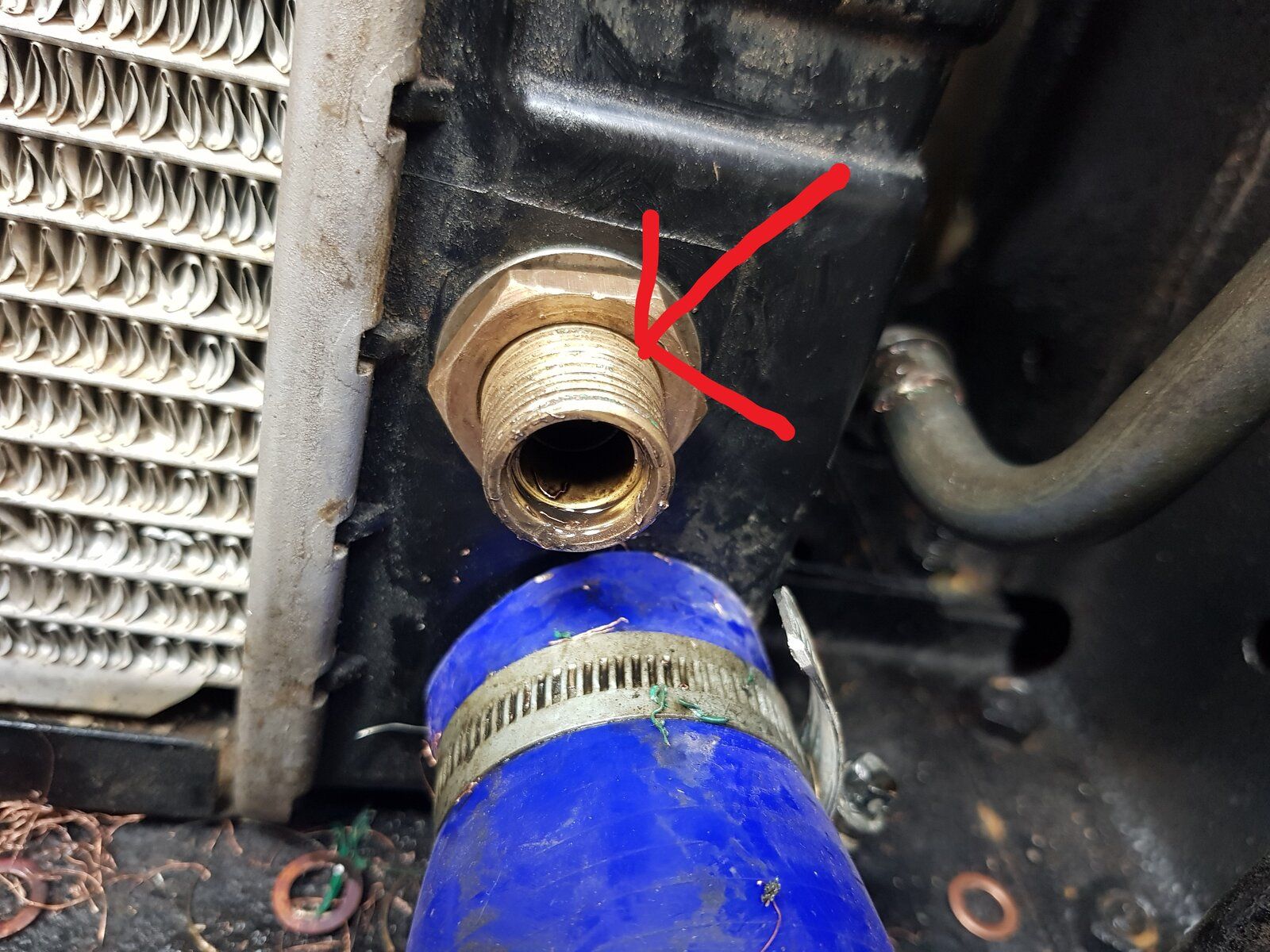

The brass fitting is what I've munched, 3/4 of the thread is now useless.



[Hicap phill]

Hi Phill,

Right, so this may not actually be as bad as I thought it might be...

The brass fitting is what I've munched, 3/4 of the thread is now useless. View attachment 278237

Yep replaceable

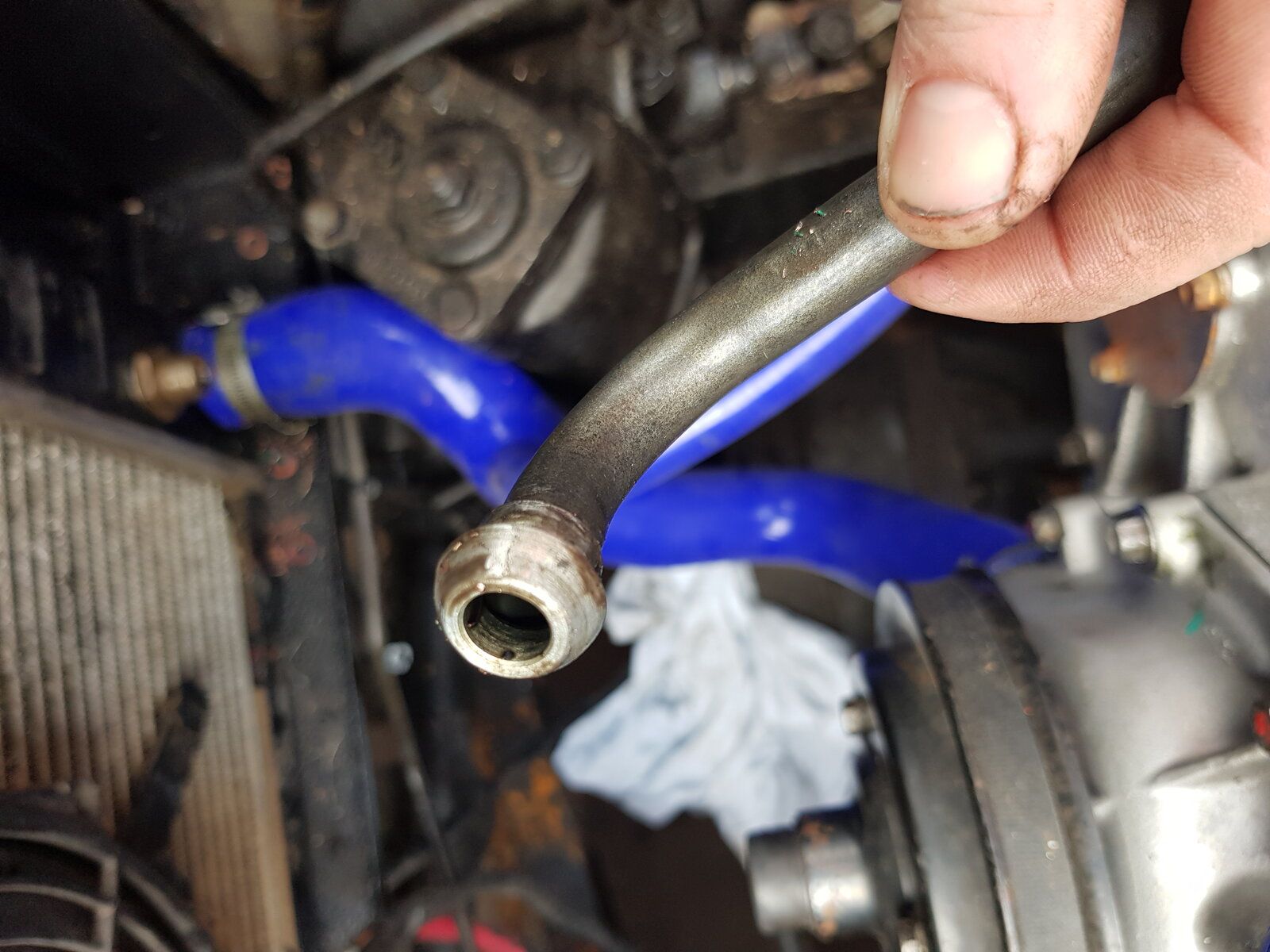

Can you take a photo of the oil pipe end?



[Hicap phill]

Looks 300tdi
Ntc3858



[Lej]

Yippee! I like an easy fix.. Not a fan of simple things going wrong, but can't have it always...



[Lej]

Looks 300tdi
Ntc3858

That's where it got me confused,

The pipes I have would be 200 tdi, but coupled up with a 300tdi rad connection? So it's been the wrong connection the whole time I've had it...



[Hicap phill]

Whhoooo(how did I miss all your earlier photos????)
That’s a 200 end of the pipe…
You need a different end to what I have quoted

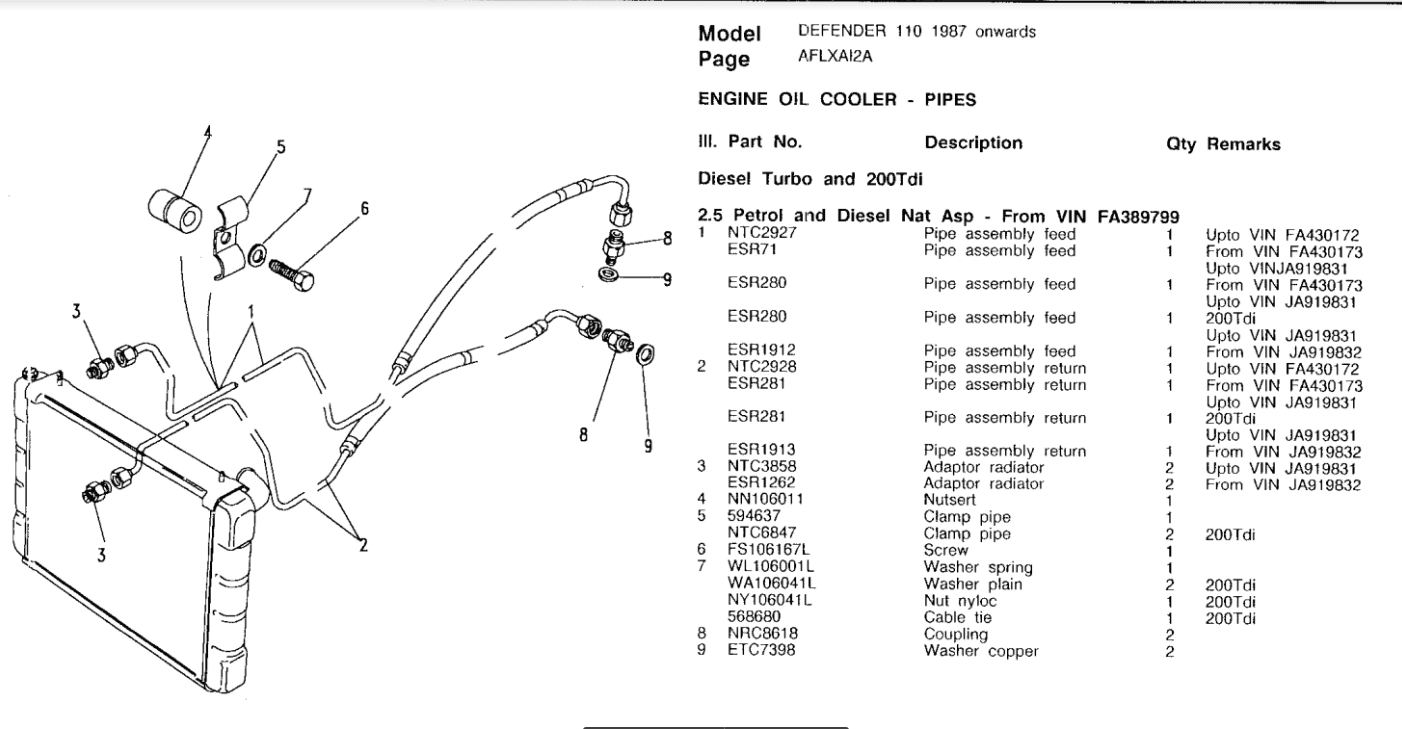

Use number 3 off @lynall picture.



[Lej]

I shouldn't say that really, It'll probably go wrong again now...

Looking at the fittings you've posted pictures of above, wouldn't the last picture be the fitting I'm after? As both the male and female ends will be curved?

Also, will I need a washer?



[tottot]

Thats the one, only washer you need is the one between fitting and rad body



[Lej]

Thats the one, only washer you need is the one between fitting and rad body

Thank you,

Would that be part number: NRC8618



[tottot]

I do not do much with part numbers on items like washers, just go to my box of copper or Dowty [ washers with a rubber seal in the centre] washers and pick one that fits. The one on your rad would very likely be fine.
