So AA mates to BB and CC mates to DD. The chassis side from DD behind outrigger and down to trailing mount might be beyond repair. I'll still do CC to DD as if it isn't sacrificial and go from there. You think that will cover It? I'll redo the lid too using the outer corner welds as you posted above.
Steep learning curve
- Thread starter resto_d1
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
So AA mates to BB and CC mates to DD. The chassis side from DD behind outrigger and down to trailing mount might be beyond repair. I'll still do CC to DD as if it isn't sacrificial and go from there. You think that will cover It? I'll redo the lid too using the outer corner welds as you posted above.
Hicap phill
Well-Known Member
- Posts
- 16,238
- Location
- Wiltshire
Bit like joggling
Gives you a rear strip & the gap can vary.
Gives you a rear strip & the gap can vary.
Going to cut a few 2 inch pieces of off cuts to try out and try and destroy before applying. Such a simple idea that will take away my worry as to weather I'm digging in enough without worry of blowing throughBit like joggling
Gives you a rear strip & the gap can vary.
Hicap phill
Well-Known Member
- Posts
- 16,238
- Location
- Wiltshire
Another tip....
Joggel 1 side then put the odd hole in the other piece of metal for plug welds.
I'm glad I don't weld no more.
Joggel 1 side then put the odd hole in the other piece of metal for plug welds.
I'm glad I don't weld no more.
Well, ripped the section I just did out. When I cut carefully to remove the 2mm and not the three, I realised my weld had made contact with the 3mm Lol.
I then spent the next hour ripping put a repair that worked
But, I had doubts and it's better to clarify than be wondering if the repair was man enough. The repair also wasn't particularly aesthetic and I'm sure I could do a touch better. So. I cursed, cut, pryed and got it out. I supported each side first on jacks.
Here is what we have. The rear join was sat on top of the end of the 3mm. Next time I can nip it back and take advantage of 3mm backing. The being said, the 2mm weld has penetrated through and actually sat against the 3
I blew through when putting the lid on, more than once. I will set up the outer corner welds as described above to hopefully be consistent. Again, that bring said, I bent the he'll out of the metal with full force and she will not break.
that's the top corner splayed out. Left hand is side, right hand top.
So. Did I need to rip it out? Doubt it. For minds sake I did though. There's no harm in practice, this bit of chassis now becomes my test piece for angles and my mk2 repair should be of a better standard.
I then spent the next hour ripping put a repair that worked
But, I had doubts and it's better to clarify than be wondering if the repair was man enough. The repair also wasn't particularly aesthetic and I'm sure I could do a touch better. So. I cursed, cut, pryed and got it out. I supported each side first on jacks.
Here is what we have. The rear join was sat on top of the end of the 3mm. Next time I can nip it back and take advantage of 3mm backing. The being said, the 2mm weld has penetrated through and actually sat against the 3
I blew through when putting the lid on, more than once. I will set up the outer corner welds as described above to hopefully be consistent. Again, that bring said, I bent the he'll out of the metal with full force and she will not break.
So. Did I need to rip it out? Doubt it. For minds sake I did though. There's no harm in practice, this bit of chassis now becomes my test piece for angles and my mk2 repair should be of a better standard.
Weather looks absolutely rubbish tomorrow and I'm full of cold. However, I can't sit on my hands so looks like it's a day on the fender with my biggest flask of coffee and some Sudafed
@Hicap phill bulkhead is out, tub still on though. What would you do next? I'm thinking wire wheel what I've already got off before starting on tub removal? You said make note of spacers etc and @dieseldog69 said not to remove tub prior to knowing if I'm putting new rear chassis on for lining up purposes. However, I'm not sure I can condemn rear of chassis without tub coming off first to thoroughly check
@Hicap phill bulkhead is out, tub still on though. What would you do next? I'm thinking wire wheel what I've already got off before starting on tub removal? You said make note of spacers etc and @dieseldog69 said not to remove tub prior to knowing if I'm putting new rear chassis on for lining up purposes. However, I'm not sure I can condemn rear of chassis without tub coming off first to thoroughly check
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Weather looks absolutely rubbish tomorrow and I'm full of cold. However, I can't sit on my hands so looks like it's a day on the fender with my biggest flask of coffee and some Sudafed
@Hicap phill bulkhead is out, tub still on though. What would you do next? I'm thinking wire wheel what I've already got off before starting on tub removal? You said make note of spacers etc and @dieseldog69 said not to remove tub prior to knowing if I'm putting new rear chassis on for lining up purposes. However, I'm not sure I can condemn rear of chassis without tub coming off first to thoroughly check
You can pull the tun off to check the chassis but pop it back on if you are cutting out that back end, you could slice the chassis through the top and half way down on both sides and on both rails, pop the tub back on so that the rear tabs line up with the plates, cut the rest off and when you fit the new section use the bolt tabs to line it up with the tub and once tacked you can pop it back off and seam weld it all up
Hicap phill
Well-Known Member
- Posts
- 16,238
- Location
- Wiltshire
Count the spacers from the outrigger to bulkhead.
Then do as per @dieseldog69 above.
There may be shims on the brackets behind the seat base on the rear out tuned out riggers.
Don't forget the loom is in the chassis. Don't worry about the length they use a 110 loom in a 90.
Most people put the loom onto outer of the chassis when rebuilding.
Fuel pipes/brake pipes run on the top/side in clips
Rebuild from back body to bulkhead.
Then do as per @dieseldog69 above.
There may be shims on the brackets behind the seat base on the rear out tuned out riggers.
Don't forget the loom is in the chassis. Don't worry about the length they use a 110 loom in a 90.
Most people put the loom onto outer of the chassis when rebuilding.
Fuel pipes/brake pipes run on the top/side in clips
Rebuild from back body to bulkhead.
Well my sinuses are being savaged by man flu but I couldn't waste a day and am busy next weekend with in laws

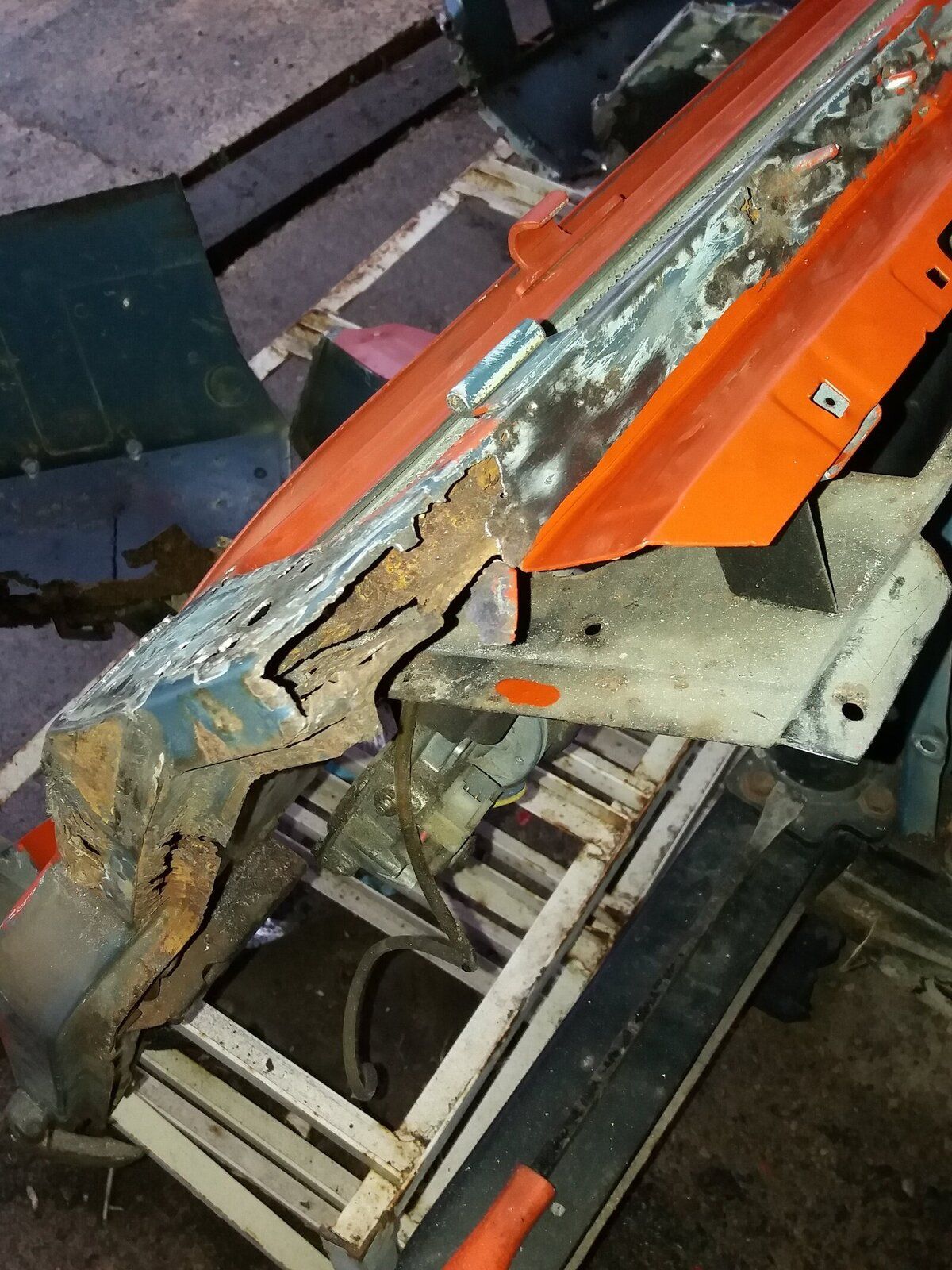

The bulkhead has seen better days. It's pretty much going to just be a template to follow I think. At least the seal lip and windscreen edge are ok though.
After a while I was cold, the dog was cold so now we are back on the sofa sharing a bag of discos
The bulkhead has seen better days. It's pretty much going to just be a template to follow I think. At least the seal lip and windscreen edge are ok though.
After a while I was cold, the dog was cold so now we are back on the sofa sharing a bag of discos
- Posts
- 83,279
- Location
- Embasinga stocæ
nothing that 2000hrs, £150 on sheet steel and £30 of paint wont cure .
.Hicap phill
Well-Known Member
- Posts
- 16,238
- Location
- Wiltshire
There's some welding to do there...
Take your time & keep measuring so the footwell/bulkhead dimensions does not shrink
Take your time & keep measuring so the footwell/bulkhead dimensions does not shrink
Hicap phill
Well-Known Member
- Posts
- 16,238
- Location
- Wiltshire
Crazy idea....
Have thought about getting this galvanised to save you another job in a few years
Have thought about getting this galvanised to save you another job in a few years
- Posts
- 9,105
- Location
- Roaming the UK on assignments
The Triggers broom of bulkheads
Good work there though Ed, nice to see one getting some attention and not just a new part for a change, many blokes would have just binned that off for a new Ashtree galvanised jobby
Crazy idea....
Have thought about getting this galvanised to save you another job in a few years
Not mine Phil and don't think the finances are available, especially if chassis rear needs replacing
