Disco 1 SRS & ABS lights on

hi guys
Have just got back into disco's and bought myself a 300tdi ES on a 95(N) plate. The SRS & ABS lights are on, how do I check them out. I have a decent OBD reader but not sure if there is an OBD socket on the car?
Also looking to tweak the pump as its a bit flat when pulling away. All suggestions/advice gratefully received.
Thanks
Doug

Had the same problem when my airbag fell out of my steering wheel!
No obd socket to reset so took the bulb out! Sorted.

The socket for the SRS is under the cubby box with the ECU, usual issue is the rotary coupler or one of the crash sensor's in the engine bay if u have the early system, the info is in RAVE, and there is an OBD socket on the left of the main fuse box lid.

Thanks guys for your help. Being a returnee to Disco ownership can anyone point me in the direction of where to download RAVE???
Thanks

puddlejumper said:

Thanks guys for your help. Being a returnee to Disco ownership can anyone point me in the direction of where to download RAVE???
Thanks

Click to expand...

This is where I got my copy. http://www.landroverresource.com/

discool said:

This is where I got my copy. http://www.landroverresource.com/

Click to expand...

Cheers mate, much obliged

Hi Discool,
When you say the obd is under the cubby box, do you mean the passenger side cubby box or the center cubby box between the seats?
As i have hunted high and low for a obd socket on my car and have been told by a couple of landrover dealers that it hasn't got one!

busagsx1300 said:

Hi Discool,
When you say the obd is under the cubby box, do you mean the passenger side cubby box or the center cubby box between the seats?
As i have hunted high and low for a obd socket on my car and have been told by a couple of landrover dealers that it hasn't got one!

Click to expand...

The one between the seats, and as shown in RAVE workshop manual, there's also a 4pin air bag diagnostic in the dash below the steering wheel according to RAVE.
Also stated is:

All Models
"In the event of a fault in the system the warning light will illuminate. The airbag diagnostic control unit logs the fault which can only be accessed using TestBook"

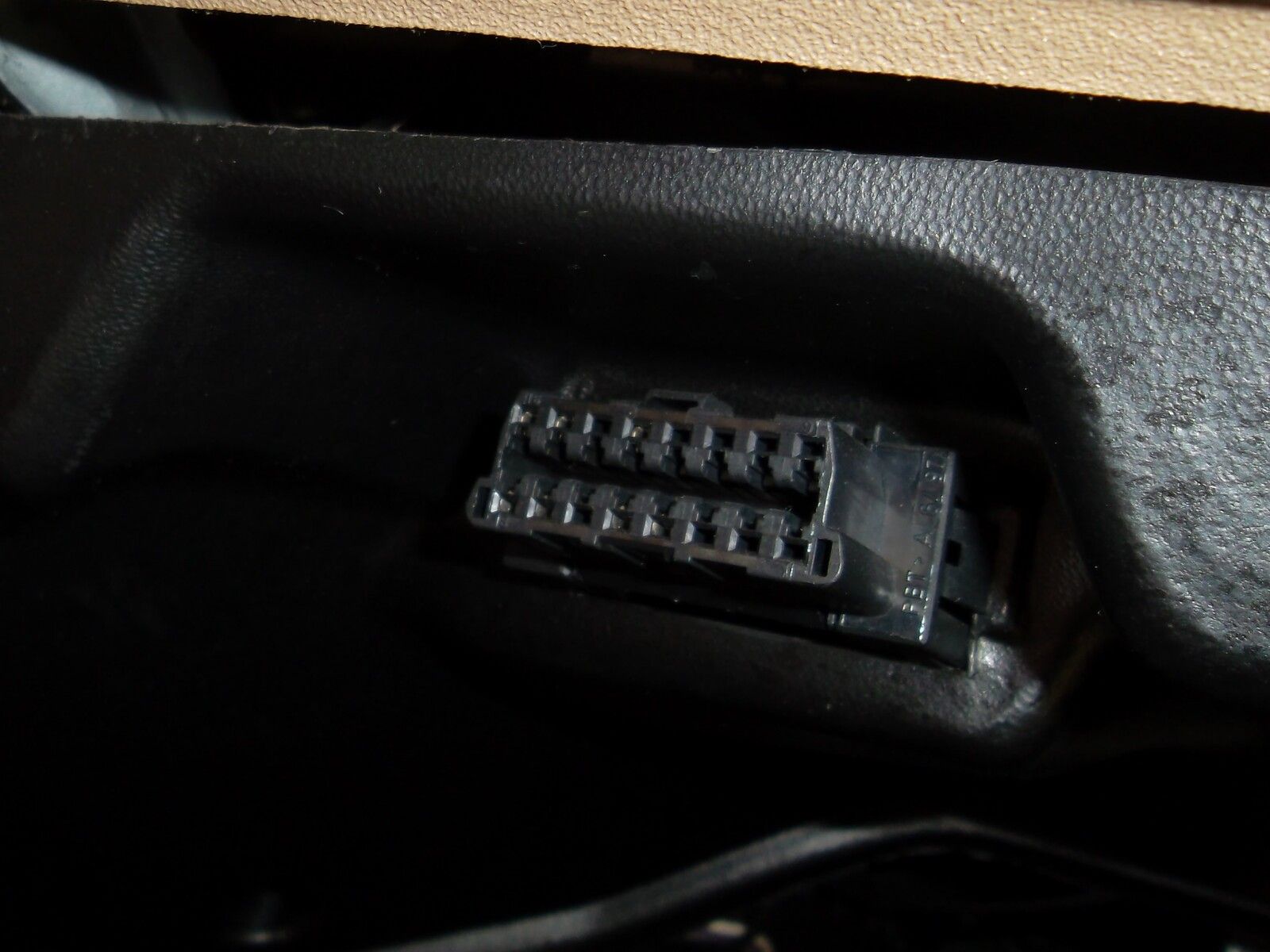

A pic of the OBD socket below the fuse box lid.

Well definitely not got one below the fusebox like the pic, will have a look though under the cubby box as that's the only place i haven't ventured!
I have RAVE and a lot of the time the wires etc don't correspond with mine so it must be some freak or other.
Headlamp wires different colours, no fog lamp connections etc.
I know mine came from Germany so don't know if they changed certain area for some reason?
But thanks for the help.
