[JP];774133 said:
PM on way - pop in and see me - i am about 300yds from Maplins.
Spot lights - 55W or 100W?
- Thread starter [JP]
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
PM on way - pop in and see me - i am about 300yds from Maplins.
lerk
New Member
- Posts
- 1,763
- Location
- Creswell, Derbyshire UK

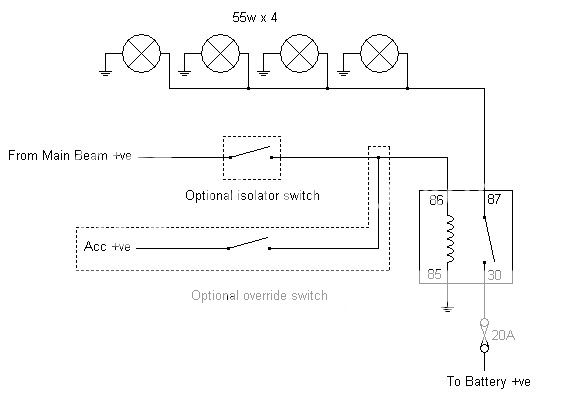

Here ya go, everything you need
You only need one fuse for your power circuit, mount it as close to the battery as possible.
The main beam trigger from the stalk (i talked about earlier) is already suitably fused.
You only need one fuse for your power circuit, mount it as close to the battery as possible.
The main beam trigger from the stalk (i talked about earlier) is already suitably fused.
![[JP]](/data/avatars/m/29/29578.jpg?1437394565){kind=avatar}
[JP]
New Member
- Posts
- 3,980
- Location
- Newbury, Berks
Nice one lerk..thanks for that..
very professional drawing.. did you use Visio?
MHM, thanks for the offer and will see you later today.
very professional drawing.. did you use Visio?
MHM, thanks for the offer and will see you later today.
- Posts
- 83,296
- Location
- Embasinga stocæ
just one thing to add - the two switches could be incorporated in one off/on/on switch (like a side/headlight switch) so that you have off/on with headlights/on all the time positions. would save another switch position and having to remember which switch does what....
Toggle switch.
3 position light switch. replaces Lucas 31788.
Heavy duty with metal body and plastic toggle lever.
Switch body dimensions: 37x27 x31mm deep.
10A @ 12V, 5A @ 24V.
in the above circuit, common (to 86 on relay would be 4, main beam circuit would be to 6 and overide would be 8).
Toggle switch.
3 position light switch. replaces Lucas 31788.
Heavy duty with metal body and plastic toggle lever.
Switch body dimensions: 37x27 x31mm deep.
10A @ 12V, 5A @ 24V.
in the above circuit, common (to 86 on relay would be 4, main beam circuit would be to 6 and overide would be 8).
Attachments
Last edited:
Here ya go, everything you need
You only need one fuse for your power circuit, mount it as close to the battery as possible.
The main beam trigger from the stalk (i talked about earlier) is already suitably fused.
that "optional isolator switch" isnt actually optional - it's required or else your mains would be on whenever the fogs were on as you'd be back feeding them
the only way you'd be able to have the fogs on (and the mains off) would be to isolate the mains feed from the connection to the coil live
and you should fuse protect the relay coil
- Posts
- 83,296
- Location
- Embasinga stocæ
covered with my 3 way switch, Sean.
rustyrhinos
Well-Known Member
- Posts
- 2,625
- Location
- Stamford, Lincs
Diagrams make things danting for me for some reason. When I have wires/fuse/switch in hand for some reason it seems more obvious and less complicated to me!
- Posts
- 83,296
- Location
- Embasinga stocæ
if yu need a hand - pm me - come down and we can sort it.
but be forewarned - i dont cut corners
but be forewarned - i dont cut corners
yes but ..........
"they are about £10 and as I have 2 switches already I might as well use them"
[JP]
New Member
- Posts
- 3,980
- Location
- Newbury, Berks
Sean.. well spoted..
but as MHM says, don't like to cut corners, I also like a job properly done, so for the sake of a tenner I might "invest" on that switch and do a proper job of it...
I shouldn't have bought that wiring kit from the seller! doesnt even come with fuses.. ho well, live and learn, next time I'll just hang on till I have time to get to a proper shop..
but as MHM says, don't like to cut corners, I also like a job properly done, so for the sake of a tenner I might "invest" on that switch and do a proper job of it...
I shouldn't have bought that wiring kit from the seller! doesnt even come with fuses.. ho well, live and learn, next time I'll just hang on till I have time to get to a proper shop..
[JP]
New Member
- Posts
- 3,980
- Location
- Newbury, Berks
Ho yes please!!! hahaha
He might be able to tell me what are the so many wires and plugs that I have hanging, not connected to anything... but that's what happens buying second hand!
He might be able to tell me what are the so many wires and plugs that I have hanging, not connected to anything... but that's what happens buying second hand!
- Posts
- 83,296
- Location
- Embasinga stocæ
i doubt it - I havent sorted mine yet - prob is I am too expensive for me to afford me.
- Posts
- 83,296
- Location
- Embasinga stocæ
yu might be able to get away with an on/off/on switch (about £3.50) if there are enough contacts.
lerk
New Member
- Posts
- 1,763
- Location
- Creswell, Derbyshire UK
Nope, thats just basic paint!
the 'optional' isolator switch is only optional if you're not putting the override switch on...
the 'optional' isolator switch is only optional if you're not putting the override switch on...
[JP]
New Member
- Posts
- 3,980
- Location
- Newbury, Berks
basic paint??
you've got some skills!!
you've got some skills!!
- Posts
- 83,296
- Location
- Embasinga stocæ
[JP]
New Member
- Posts
- 3,980
- Location
- Newbury, Berks
quick update..
thanks to everyone on this, spot lights are not fitted yet, but all the wiring and switches have been tested and all is working fine, just need to bolt the bar on the roof and run the wires in, all the rest is in place.
In the end I took the live for the main beam from the back of the fuse box, it's behind fuse A3 or A4 (it has the main beam symbol on it)
thanks!
thanks to everyone on this, spot lights are not fitted yet, but all the wiring and switches have been tested and all is working fine, just need to bolt the bar on the roof and run the wires in, all the rest is in place.
In the end I took the live for the main beam from the back of the fuse box, it's behind fuse A3 or A4 (it has the main beam symbol on it)
thanks!
lerk
New Member
- Posts
- 1,763
- Location
- Creswell, Derbyshire UK
[JP];777072 said:
That's where i was trying to describe... you made it sound much easier!
