set belt bar

Defender-Sam · Apr 16, 2014

in the end i also got the exmoor one the diagonal supports suit some holes already on the cappings but the other 4 needed drilling, I've flipped my brackets for the belts the other way round (down yours are up) and seems ok just need to re-drill some holes further out as the belt is reluctant to retract in the original 7/16 unf ones.
Sam

Innzy · Apr 16, 2014

Defender-Sam said:
in the end i also got the exmoor one the diagonal supports suit some holes already on the cappings but the other 4 needed drilling, I've flipped my brackets for the belts the other way round (down yours are up) and seems ok just need to re-drill some holes further out as the belt is reluctant to retract in the original 7/16 unf ones.
Sam

Was gonna make up some longer brackets for the inertias because it looks like if I flip them down the bulkhead capping would be in the way of the mounting. Take it there is room to get to the bolts if you flip them then?

Defender-Sam · Apr 16, 2014

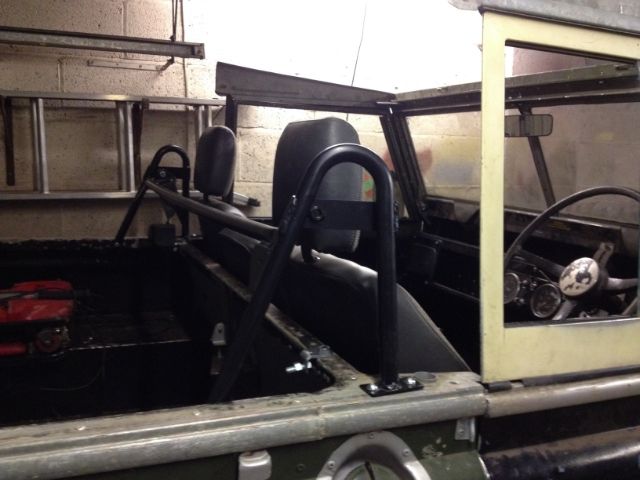

sorry i am aware its an awful picture but you have to put the bolt in before the top bolt. its fine clearance wise just needs moving out.

Innzy · Apr 16, 2014

Thanks for the pic, looks like your reel mounts are longer than mine

Easy to make some up though I suppose.
