Series 3 SWB Nut and Bolt rebuild

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Having freshly galvanized the original chassis do I paint it black or leave it as it is ?

  • Yes - Etch, prime and paint black

    Votes: 10 90.9%

  • No - Leave it galvanized

    Votes: 1 9.1%
  • Total voters
    11
  • Poll closed .

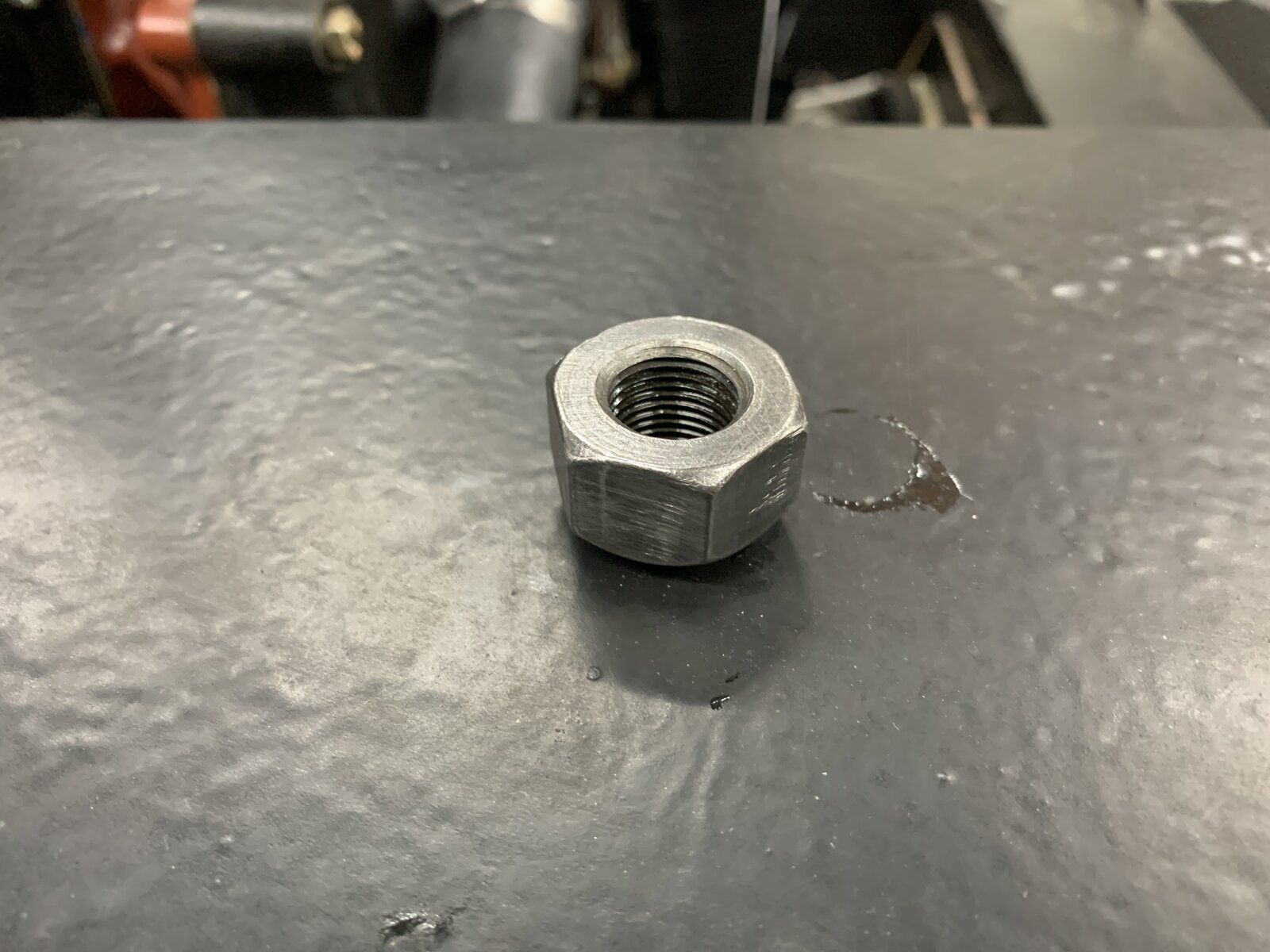

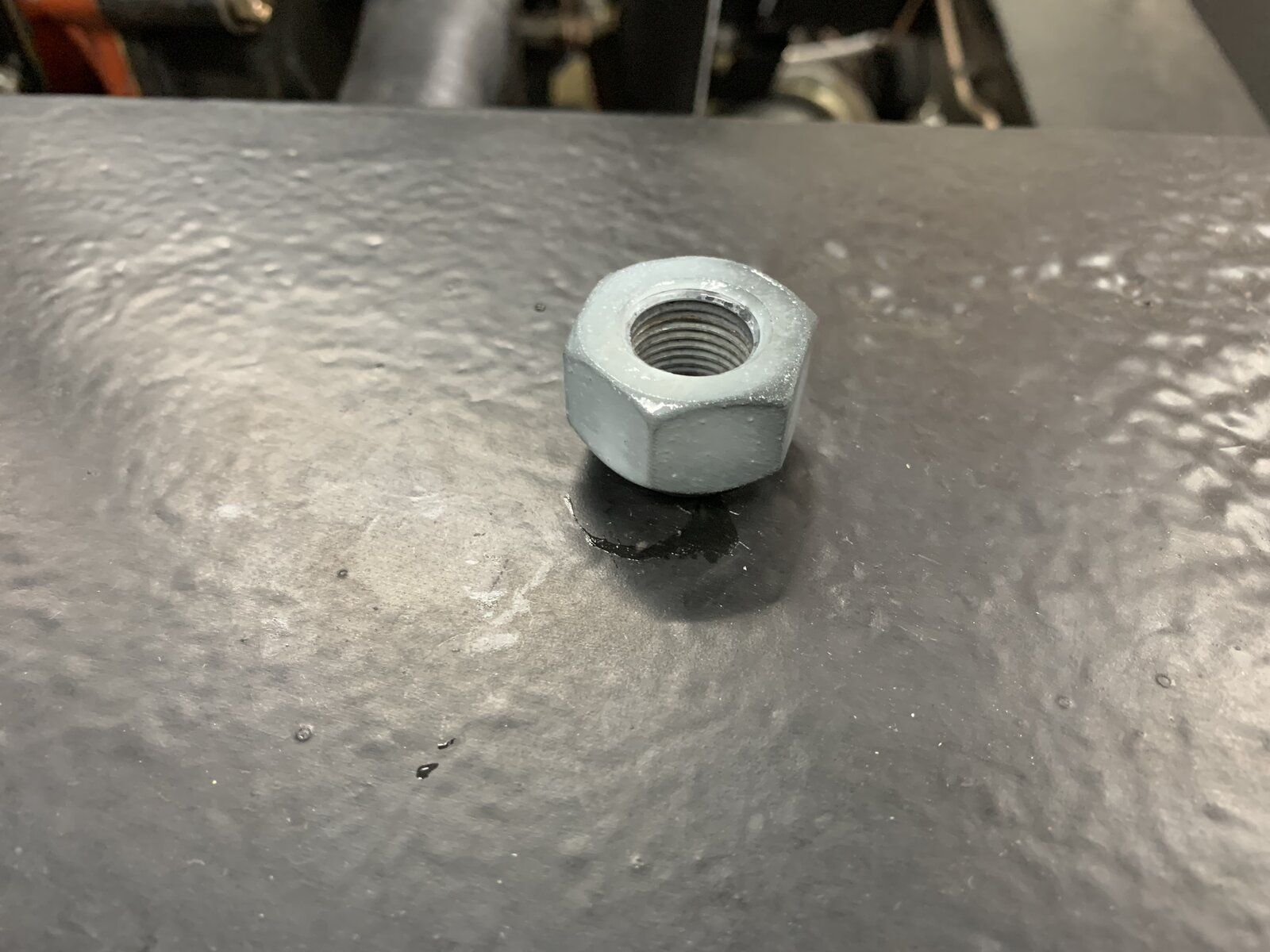

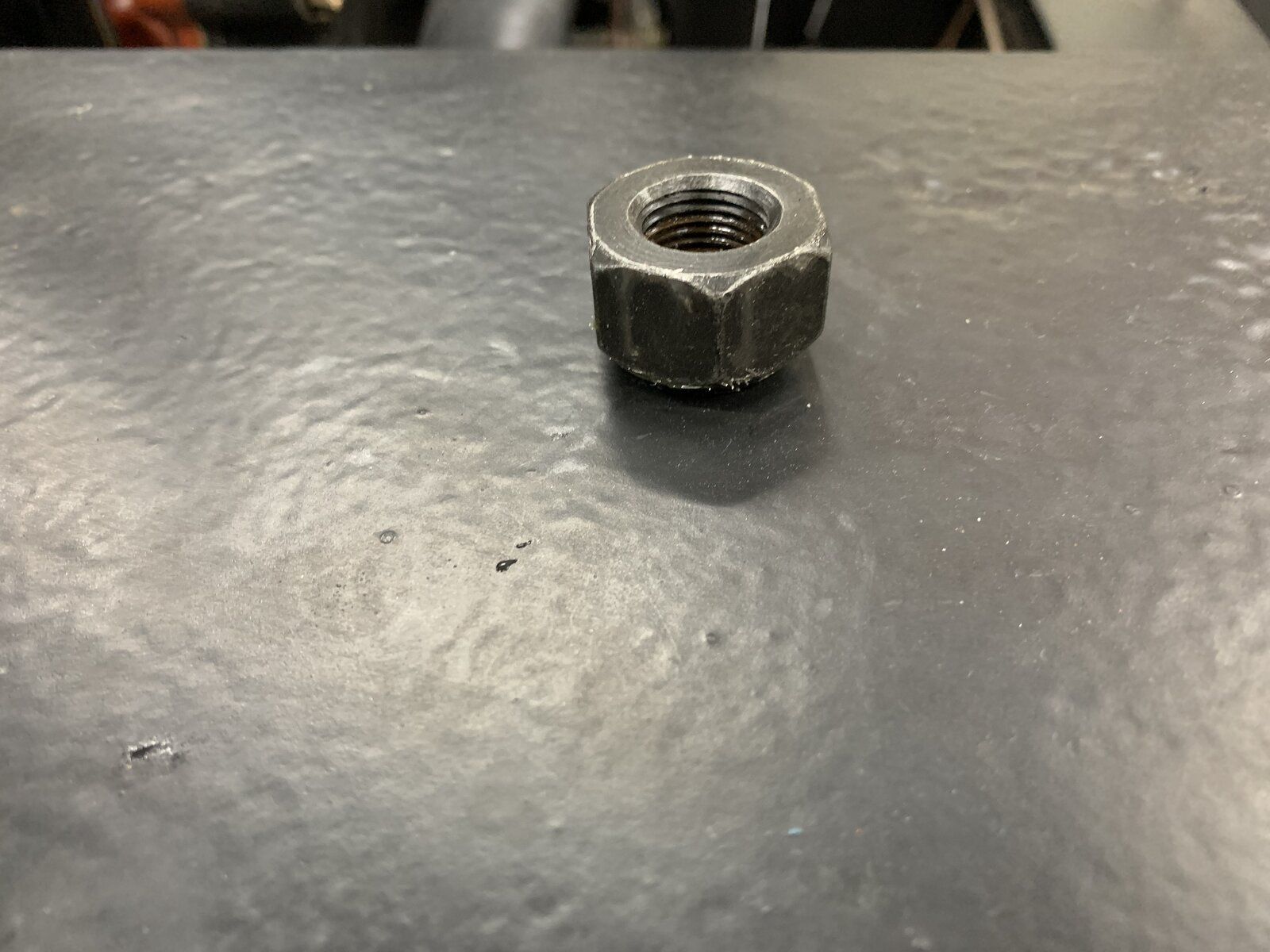

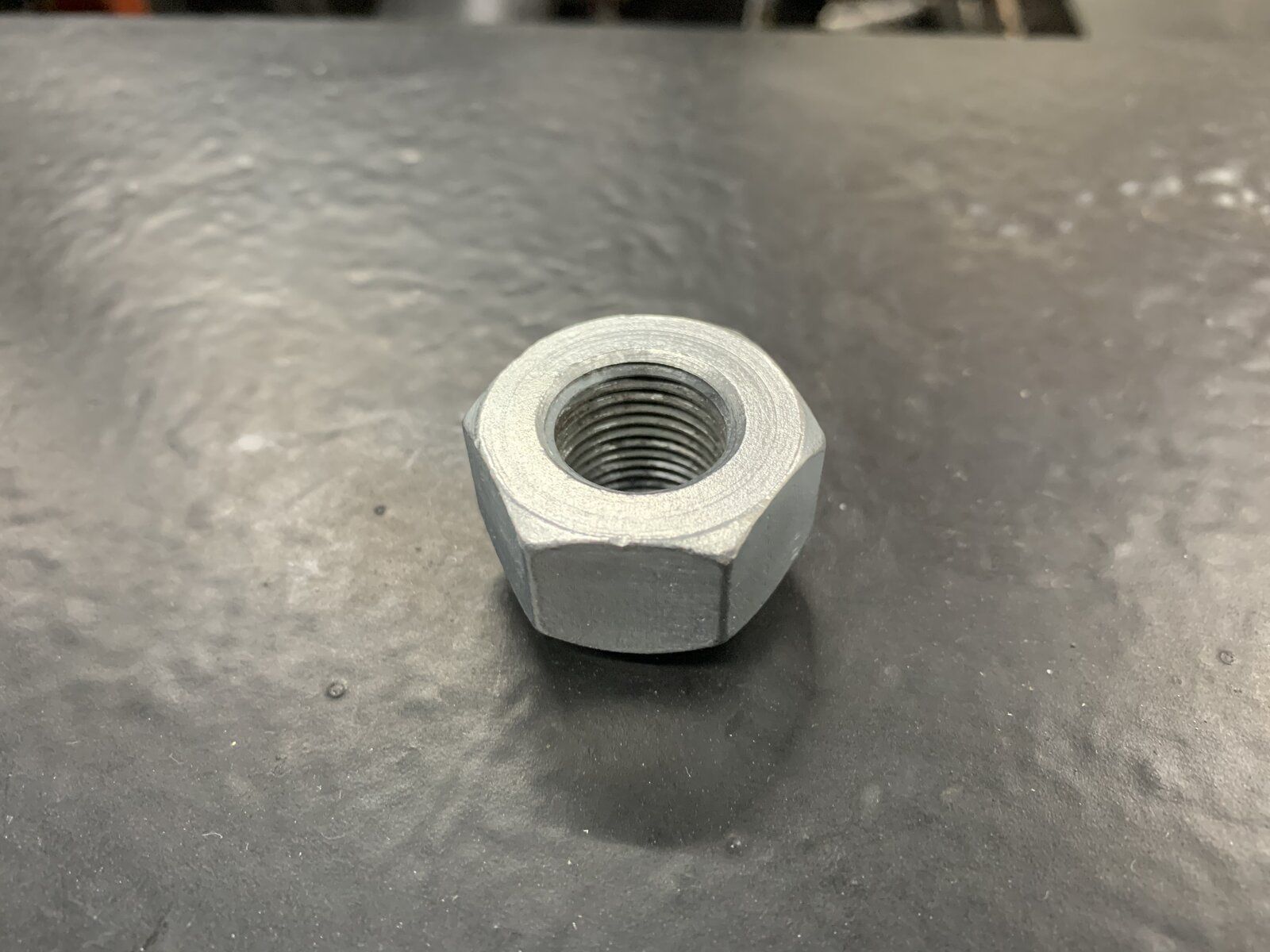

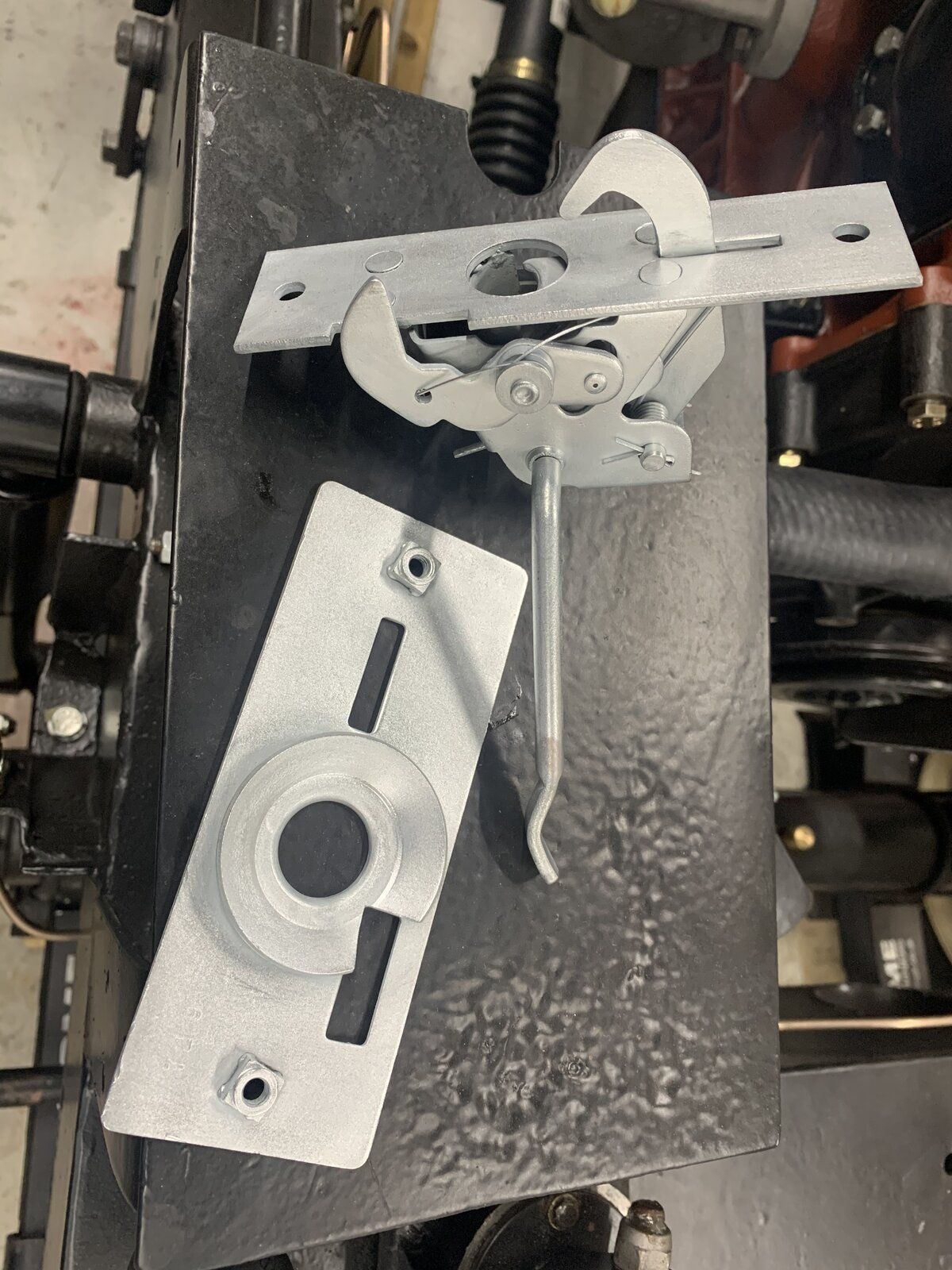

Zinc plating stages
1 - de grease
2 - wire brush
3 - de grease
4 - 10min zinc plating
5 - wire brush with brass brush
6 - clean in water
7 - second zinc coat 10min
8 - wire brush with brass brush
9 - dry and fit !


Attachments

  • B3DC8ABA-B5EE-4D64-ABF4-E683B4BE19B6.jpeg
    197.3 KB · Views: 155
  • 90EC0A2A-8EB1-4FDC-B6F6-88D3A418E224.jpeg
    185.7 KB · Views: 126
  • 0AA06723-B57D-4F04-8906-368AE8015EE2.jpeg
    202.2 KB · Views: 131
  • 38850771-7F9A-482F-8EA0-B13F3FDC09E5.jpeg
    182.3 KB · Views: 135

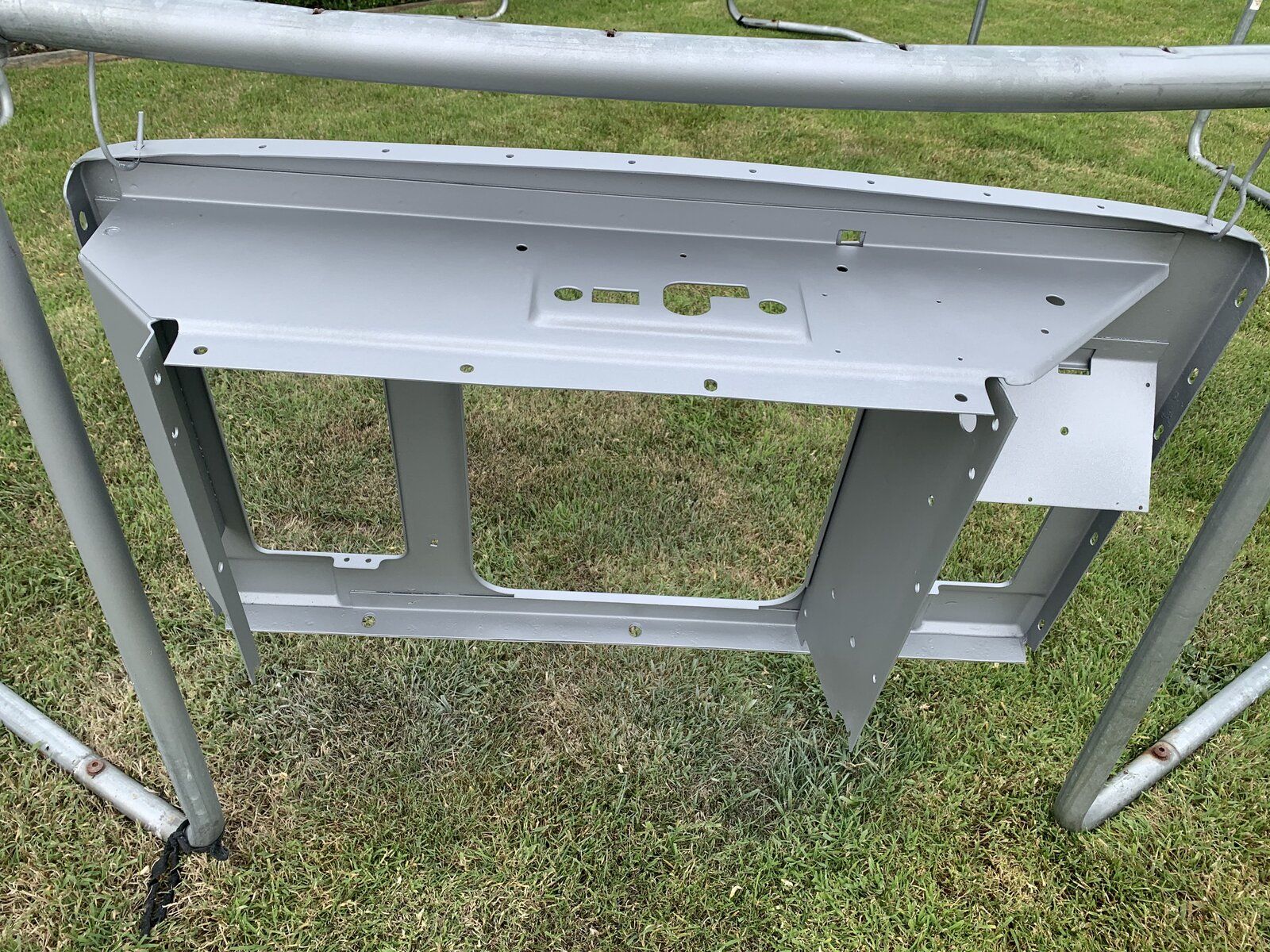

The front panel had taken 5 coates of primer, and hours of wet and dry to flatten out the pitting but well worth the effort ! Its now ready for blue paint along with the bulk head. Hope to have them back end of next week.


Attachments

  • 176BB8B2-540B-4167-97EF-8205AE47F612.jpeg
    557.5 KB · Views: 145

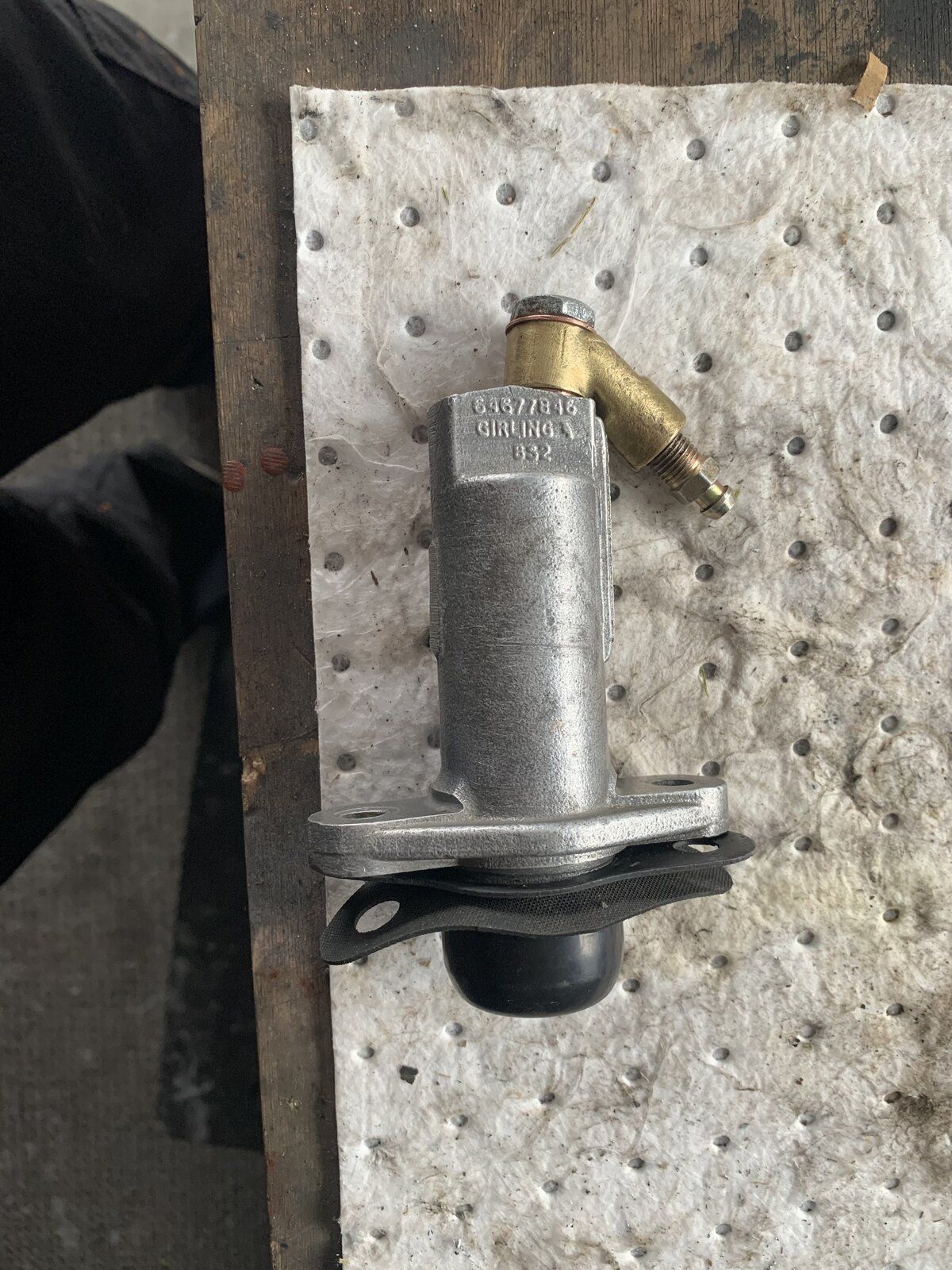

Slave clutch cylinder cleaned and put back together with a new seal kit, new bleed nipple and re zinc plated union bolt. So easier to buy a replacement part but you cant compare it to the origional !


Attachments

  • 41BB6085-3AC6-4069-A86F-3341A95212FA.jpeg
    358.9 KB · Views: 145
Last edited:
UpandOver said:
The front panel had taken 5 coates of primer, and hours of wet and dry to flatten out the pitting but well worth the effort ! Its now ready for blue paint along with the bulk head. Hope to have them back end of next week.
Click to expand...
Great use of a trampoline there! I'll have borrow ours from the kids when the time comes.

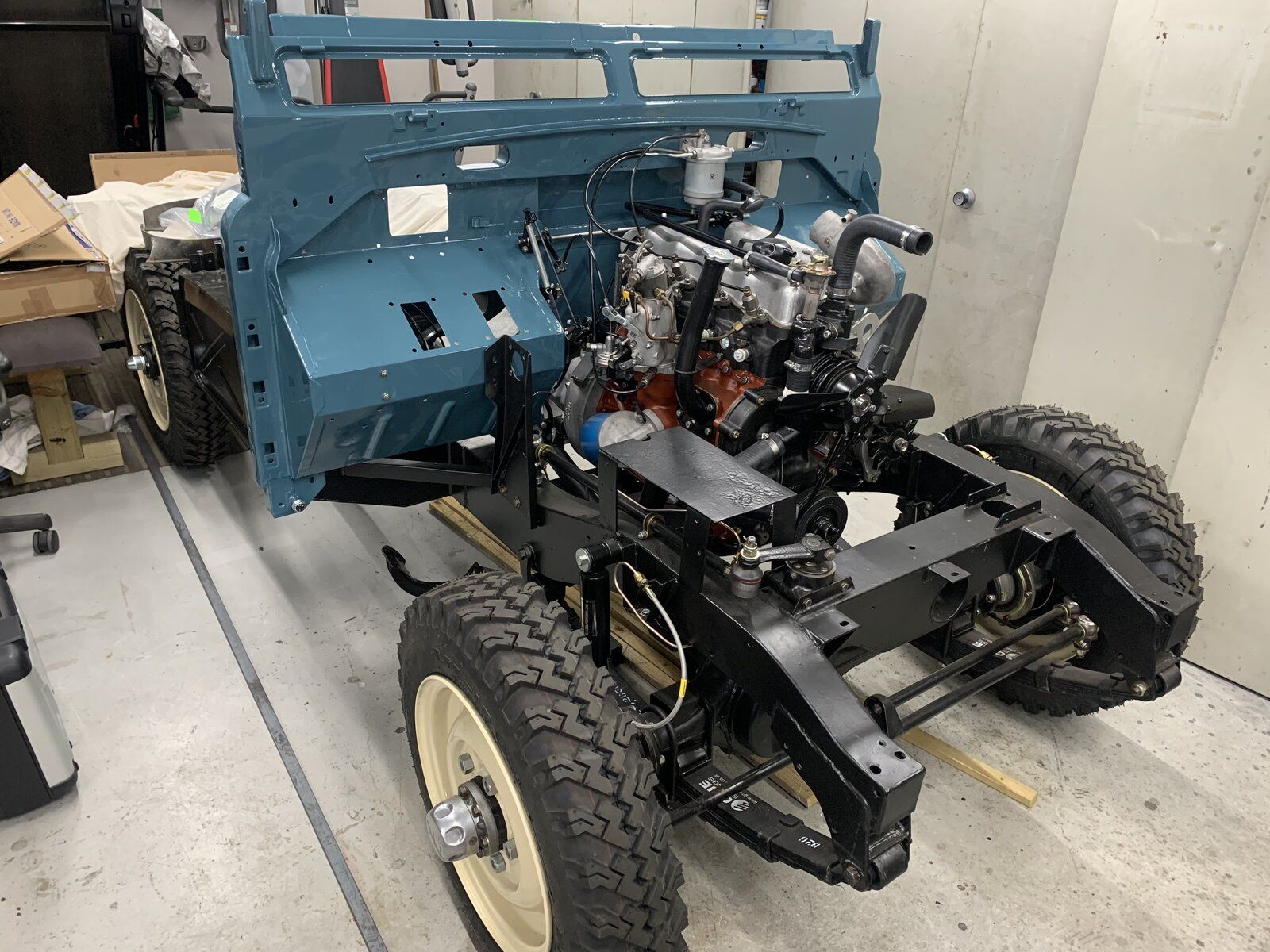

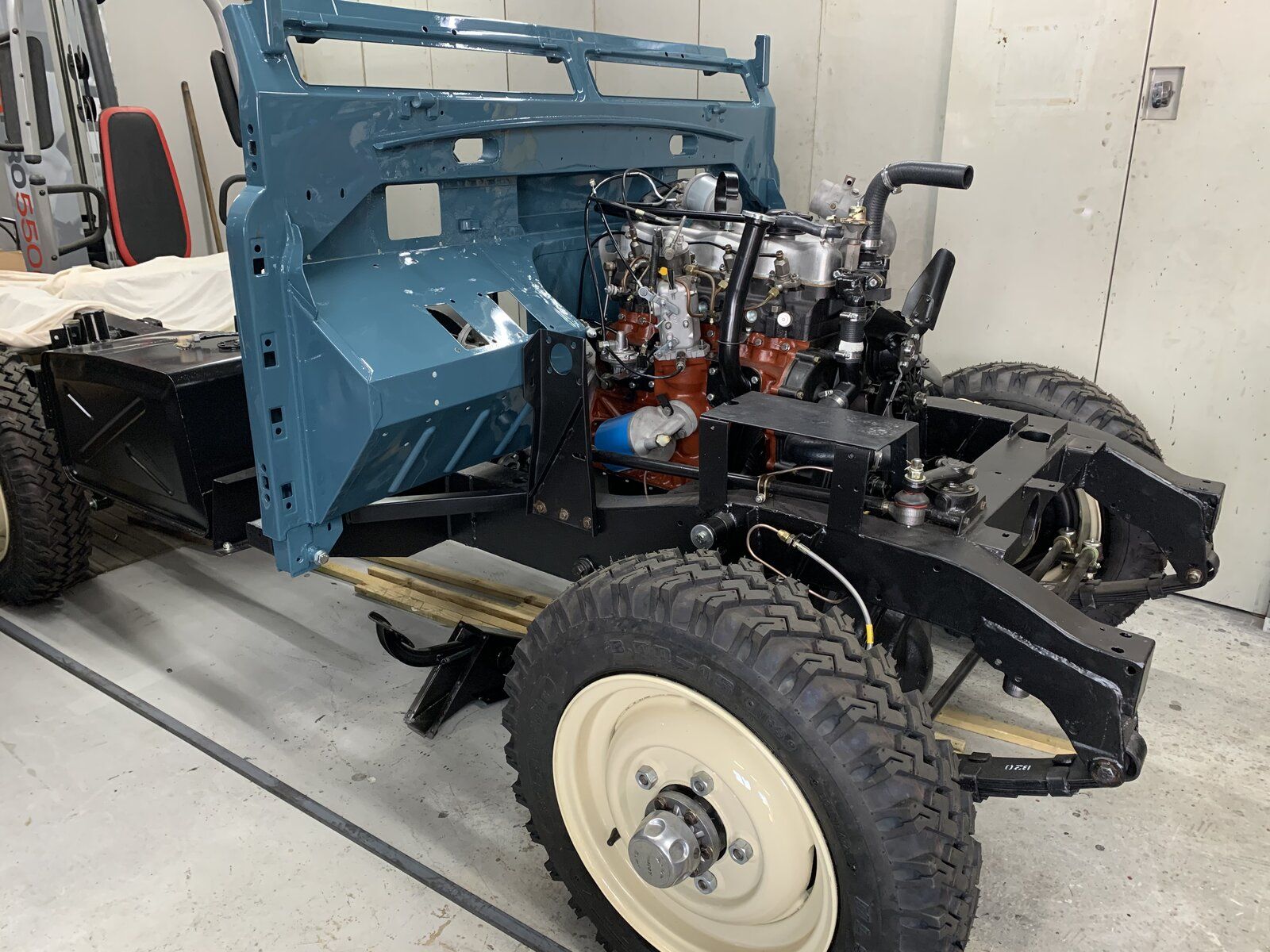

Well how happy was I yesterday when I get the call from the painters to say the bulkhead and front panel were ready! Couldn’t wait to finish work and get it fitted !


Attachments

  • A7DD14B1-07DE-4E95-B5A5-594664C249CE.jpeg
    323.6 KB · Views: 145
  • 700E354C-FDE1-4872-980D-CDDE935EC5C8.jpeg
    315 KB · Views: 147

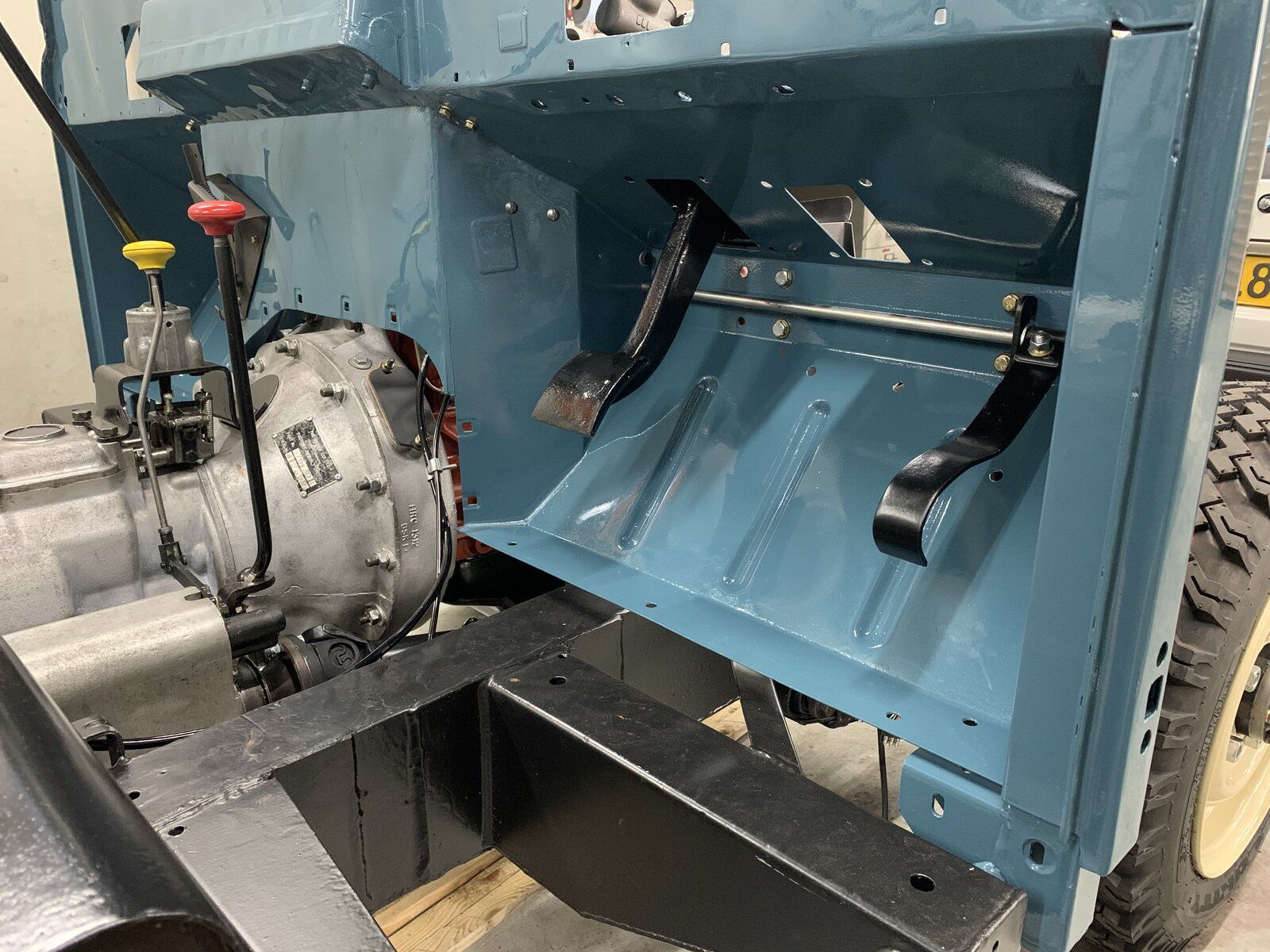

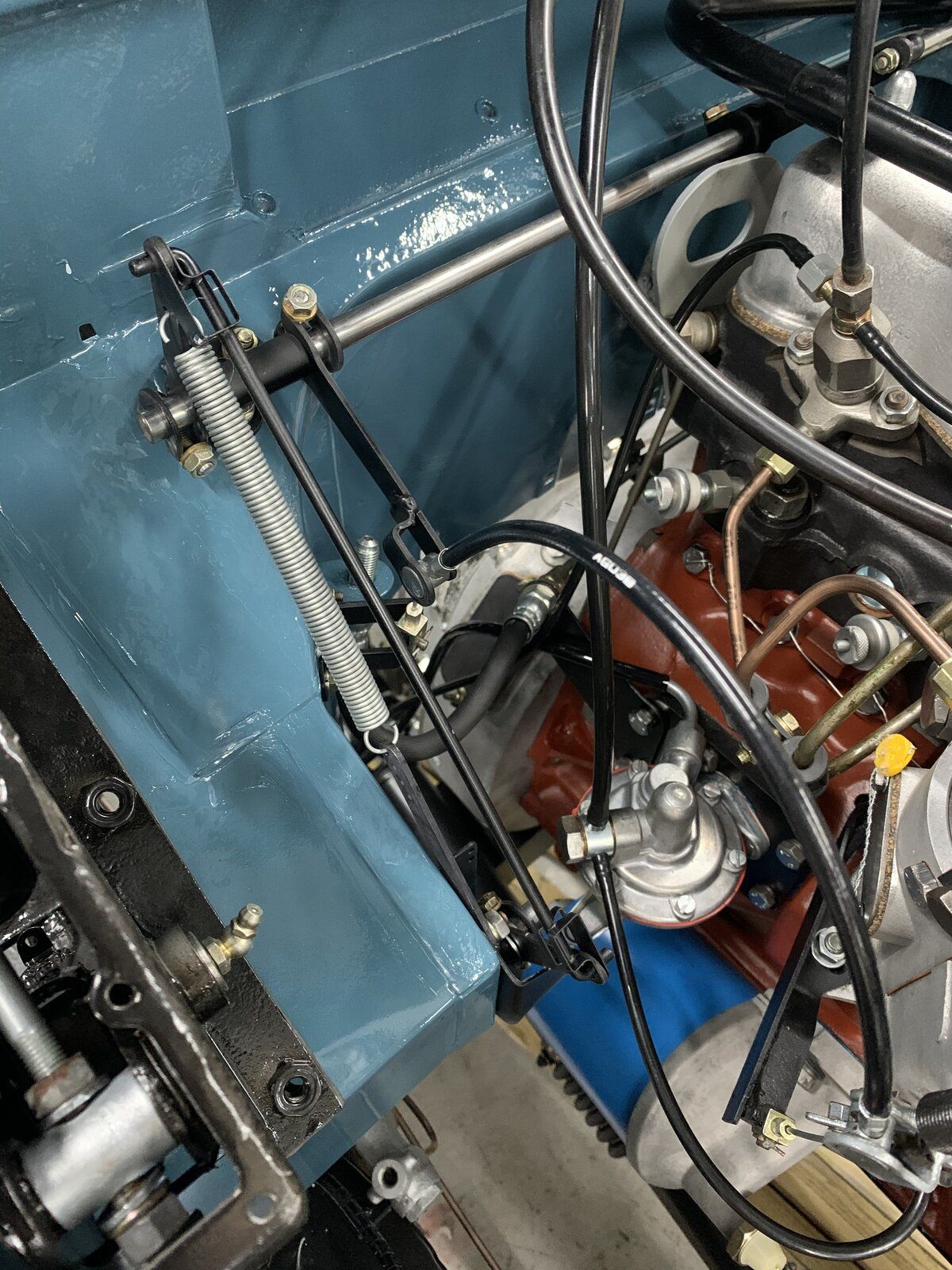

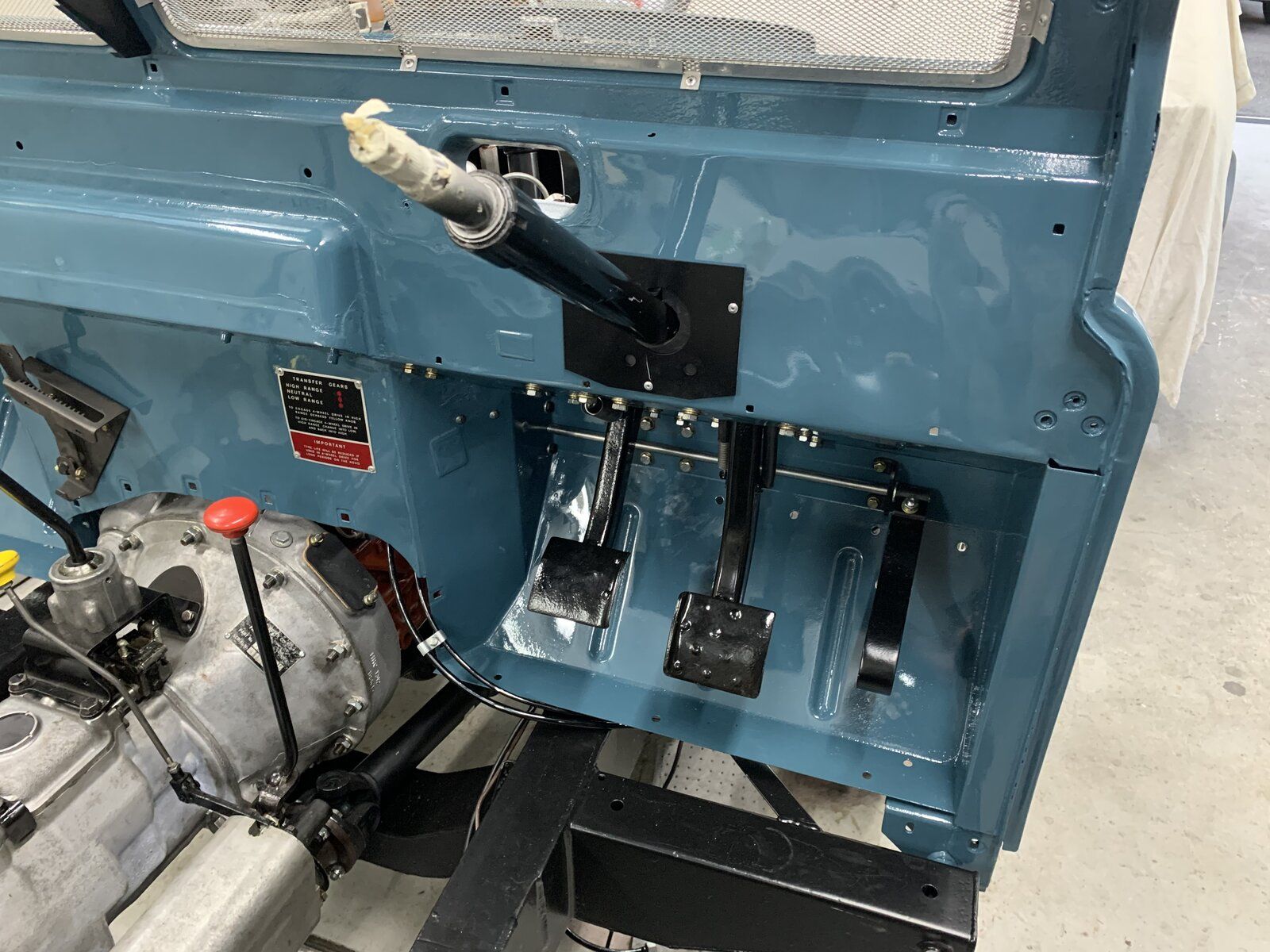

Clutch pedal box back together and new chassis loom pulled through. Encased the loom in a length of rubber hose that I cut down the middle just to make sure that it doesn’t rub inside the box chassis.


Attachments

  • 3F305803-E8B0-4E78-9F2F-981CBC77E566.jpeg
    365.8 KB · Views: 123
  • E81D5373-8074-43EB-99FA-E6F6FAED92AF.jpeg
    324.3 KB · Views: 136

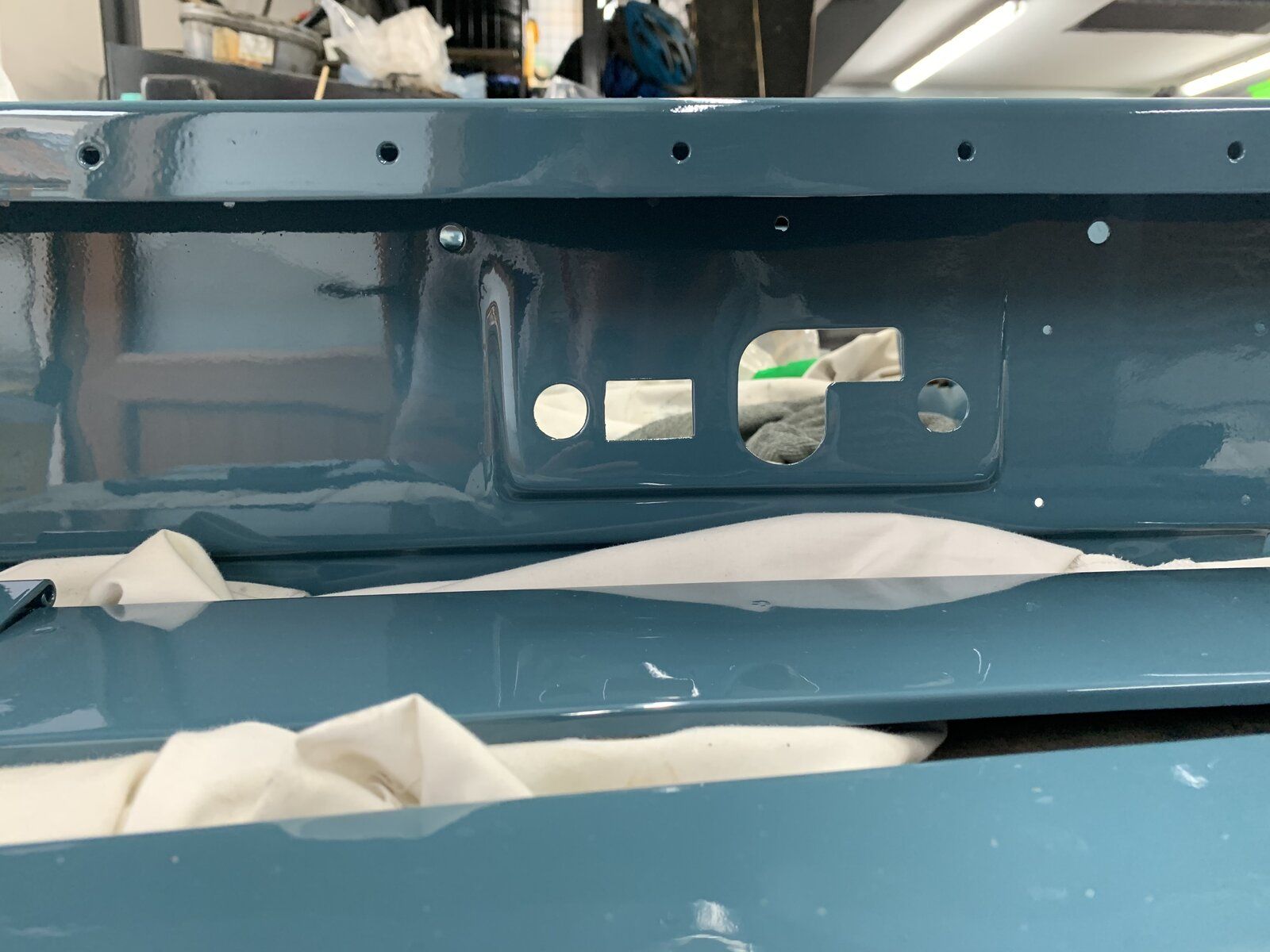

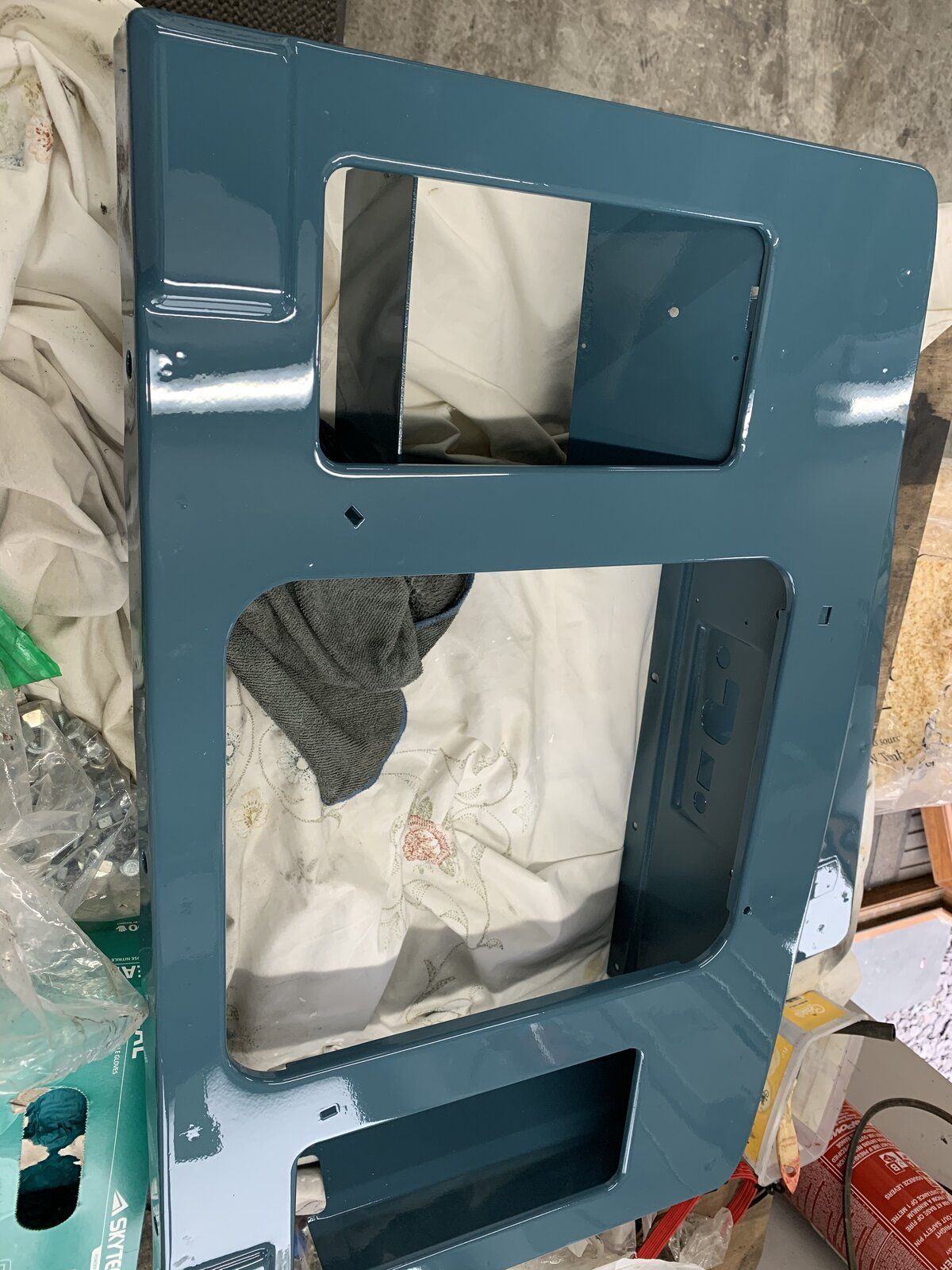

Well I have to admit all that primer, wet and dry and elbow grease really paid off ! There isnt a blemish on the front slam panel !


Attachments

  • FC6C44A1-FA32-4422-B2BD-836F2DFDBB46.jpeg
    163.8 KB · Views: 147
  • 759139EA-F19B-4065-AD9B-A152D50AB582.jpeg
    254.8 KB · Views: 135
Bearing this in mind I’m not looking forward to getting the wings and rear tub ready for paint ! Wet and dry ! More like hammer and chisels

AF18DDB1-D658-4D07-A941-DCF42B6BE0E7.jpeg FBF5D086-D90B-4499-9756-43699CF5CE74.jpeg 6FCF5EB6-E82B-4DA5-AC7B-F708FC678D22.jpeg

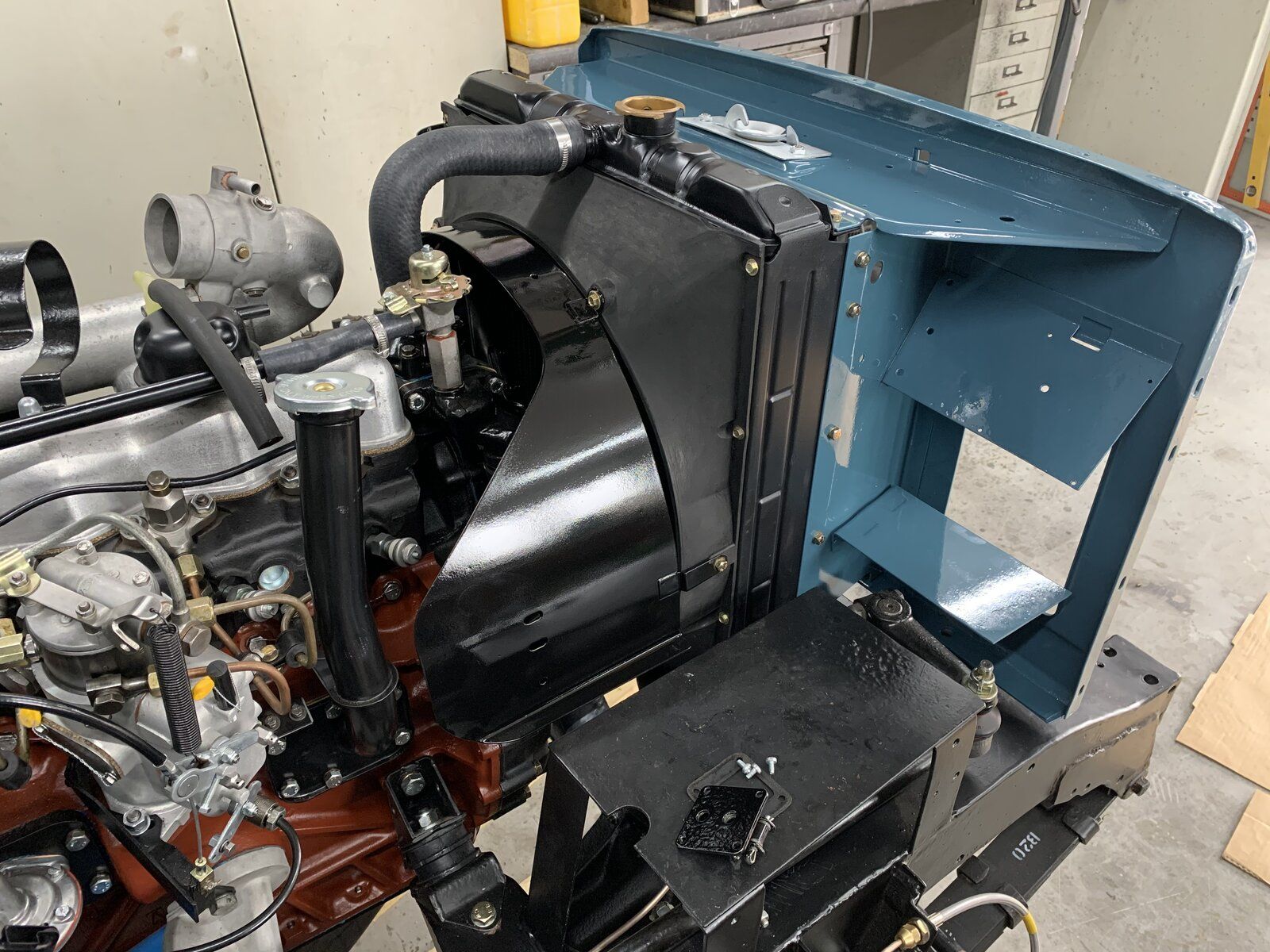

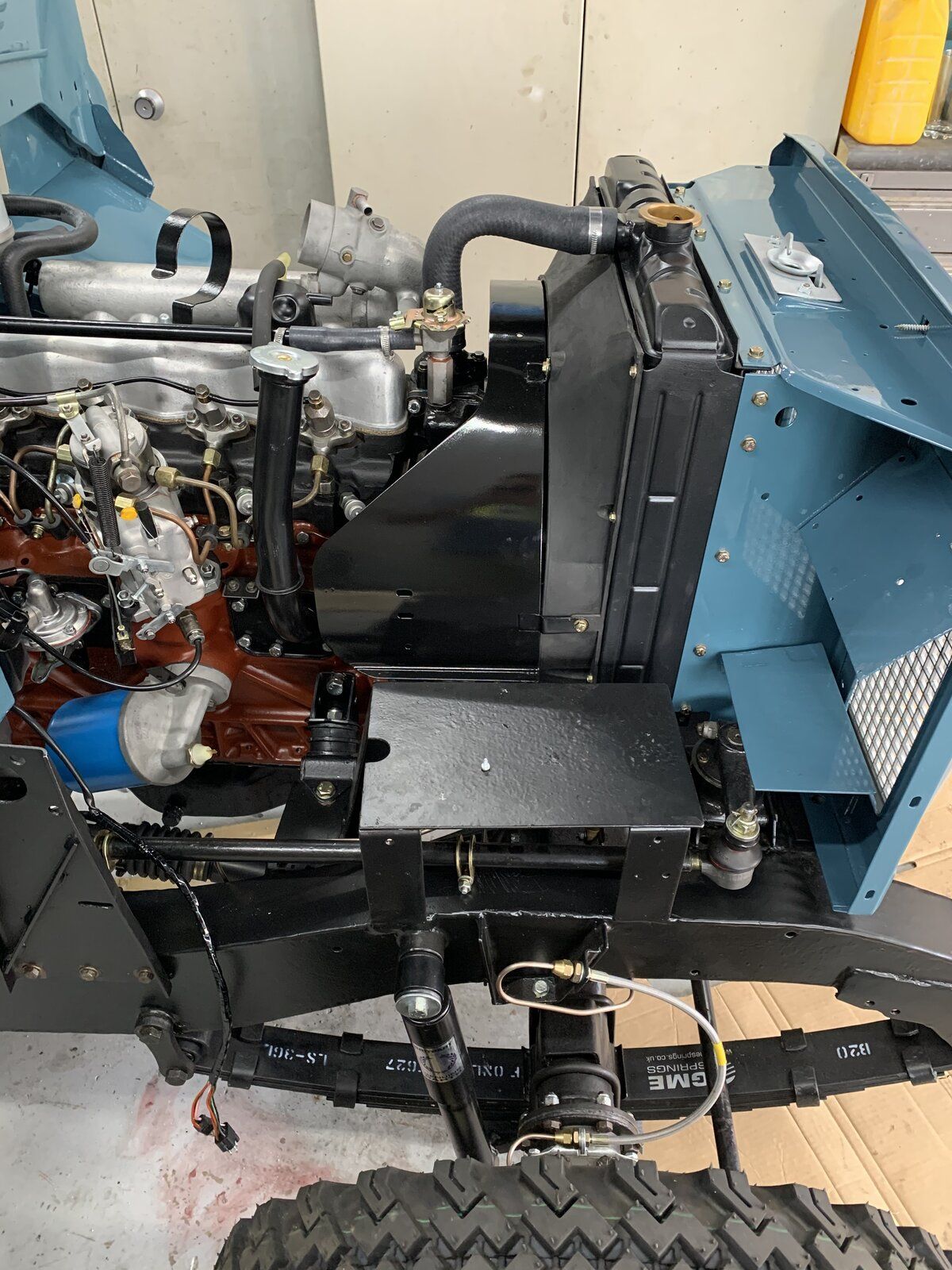

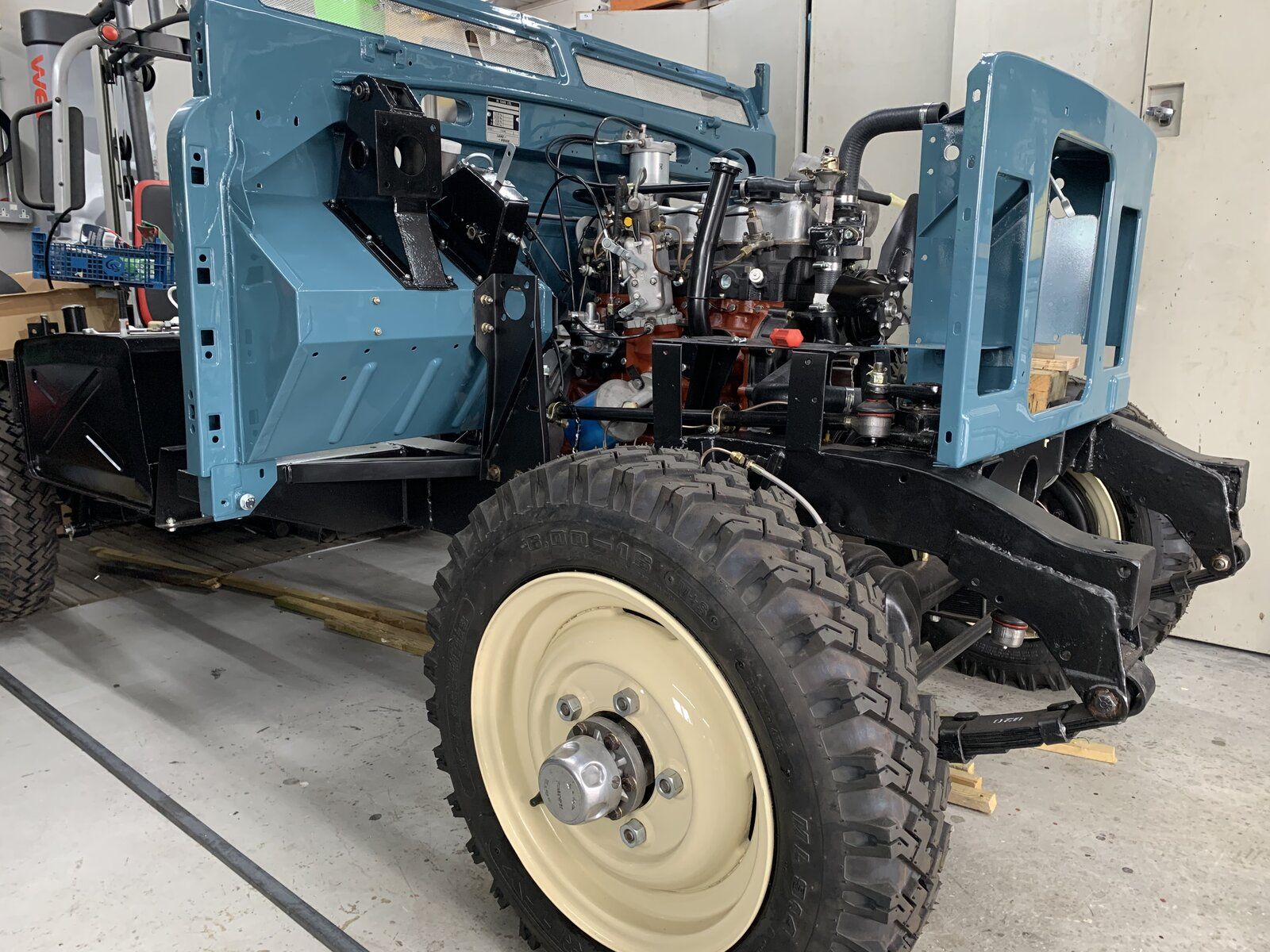

Radiator fitted to the front panel, rad plastic cowl cleaned and polished, then the steel fan guard fitted.

Last edited:

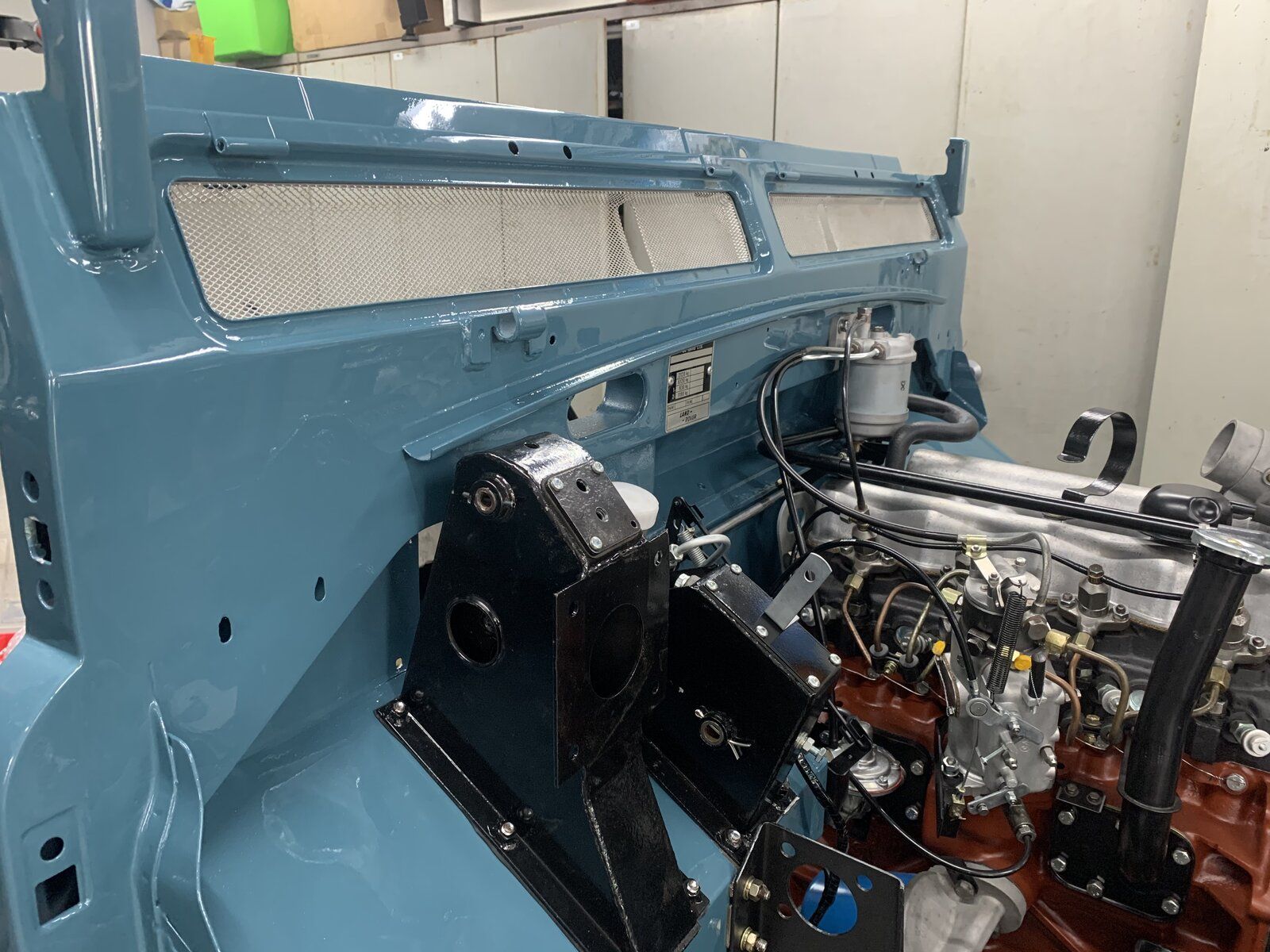

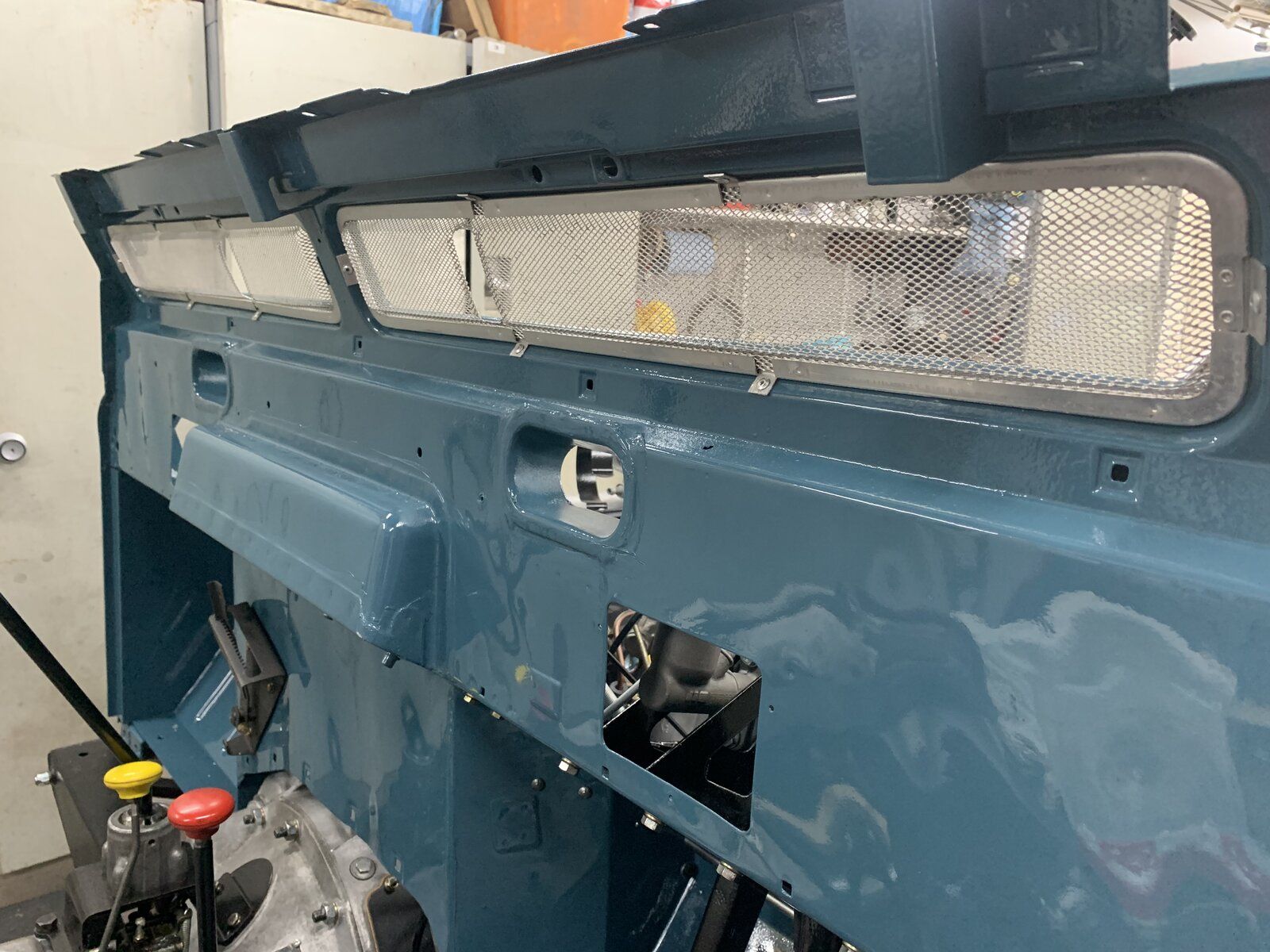

Vent mesh cleaned straightend then riveted in


Attachments

  • 5053179D-A277-4168-BAAB-D6E056F22C02.jpeg
    266.7 KB · Views: 122
Last edited:

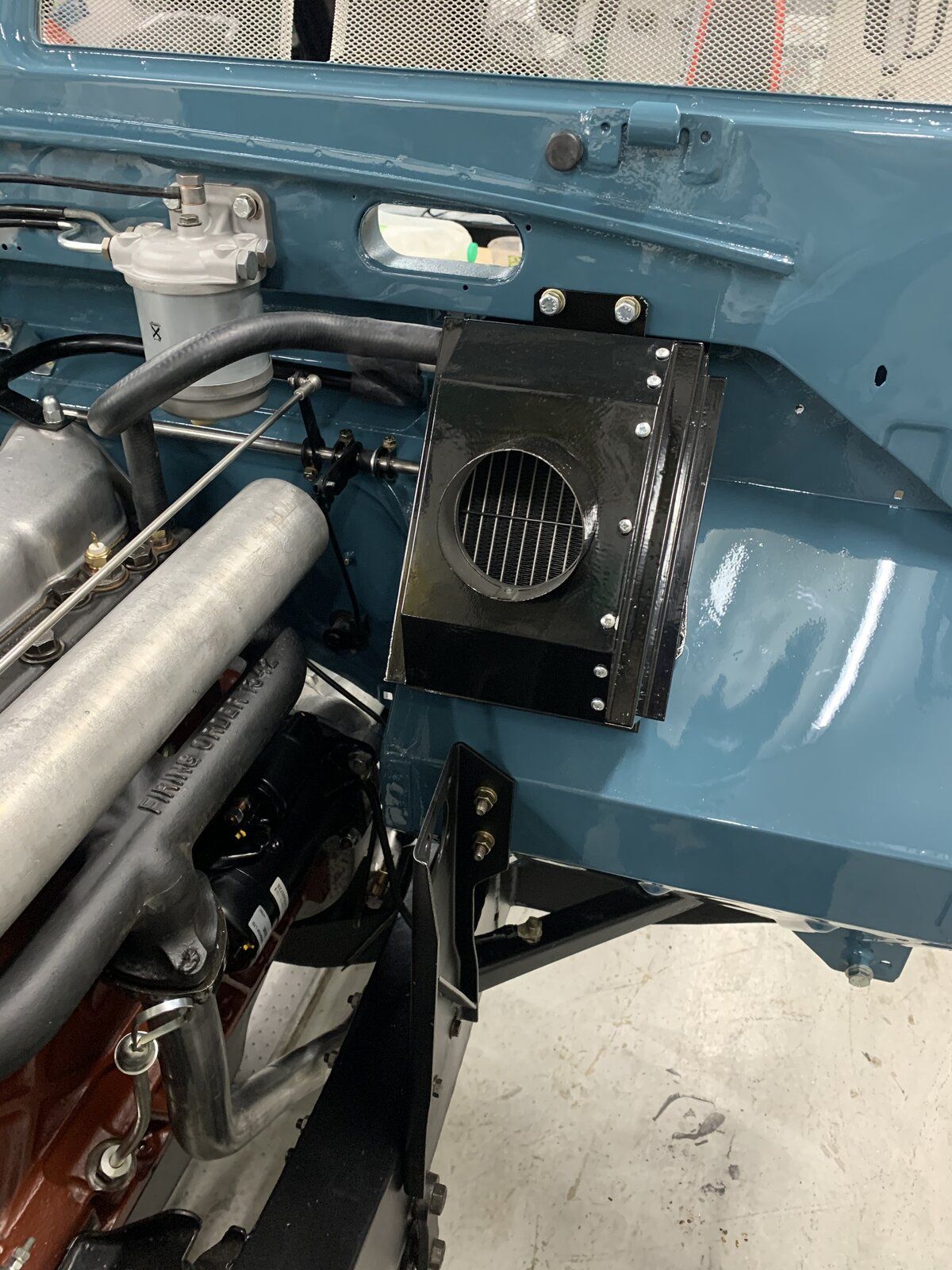

Heater box back together with new matrix ! Not sure why as this landy will only go out when its dry and sunny


Attachments

  • 6C676813-1705-45F2-8D39-113D2FC973AD.jpeg
    303.2 KB · Views: 146

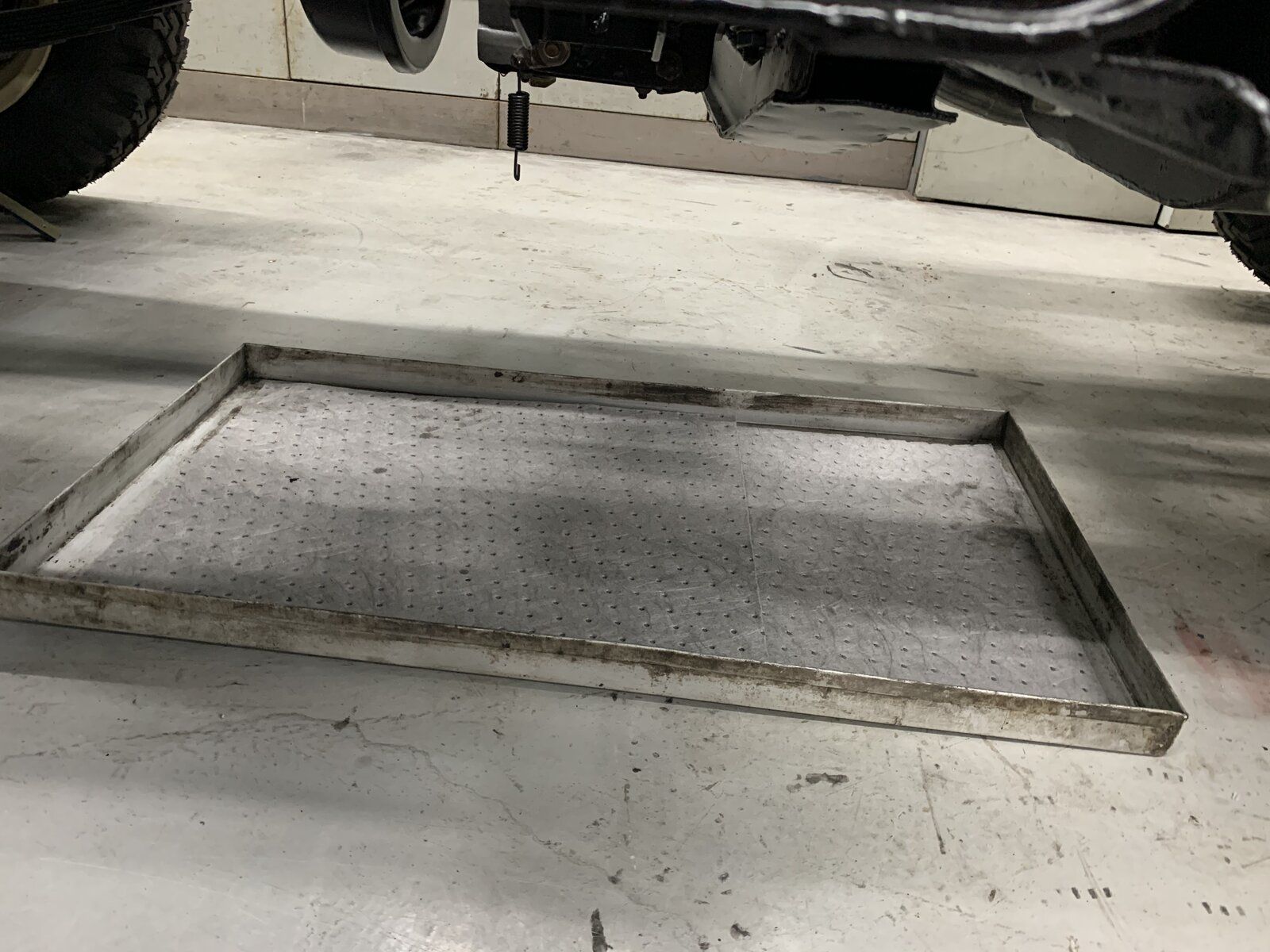

Filled the gearbox and transfer box and 2.5lts of oil ended up on the floor ...grrr looks like the handbrake output seal was not doing its job! Took it apart and it seems that the Corteco seal wasnt that tight on the output flange shaft (hmm that sounds well dirty) lol anyhow ordered a genuine landy one and boom ! Seals as tight as a ducks arse ! Now there’s something you dont see often ! A dry drip tray under a landy


Attachments

  • 23987B6A-29B7-47DE-9FC5-CF9353F238DE.jpeg
    248.4 KB · Views: 111
Steering column blasted painted and rebuilt with a rebuild seal and bearing kit. Filled with some fresh smelly EP90!


Attachments

  • E3BD14B6-F51A-4390-8C5B-93703F5CE723.jpeg
    328.8 KB · Views: 124
  • 73C26D32-C0FB-4BAA-939B-73CFA0C31F31.jpeg
    291.5 KB · Views: 121
