Series 3 SWB Nut and Bolt rebuild

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Having freshly galvanized the original chassis do I paint it black or leave it as it is ?

  • Yes - Etch, prime and paint black

    Votes: 10 90.9%

  • No - Leave it galvanized

    Votes: 1 9.1%
  • Total voters
    11
  • Poll closed .

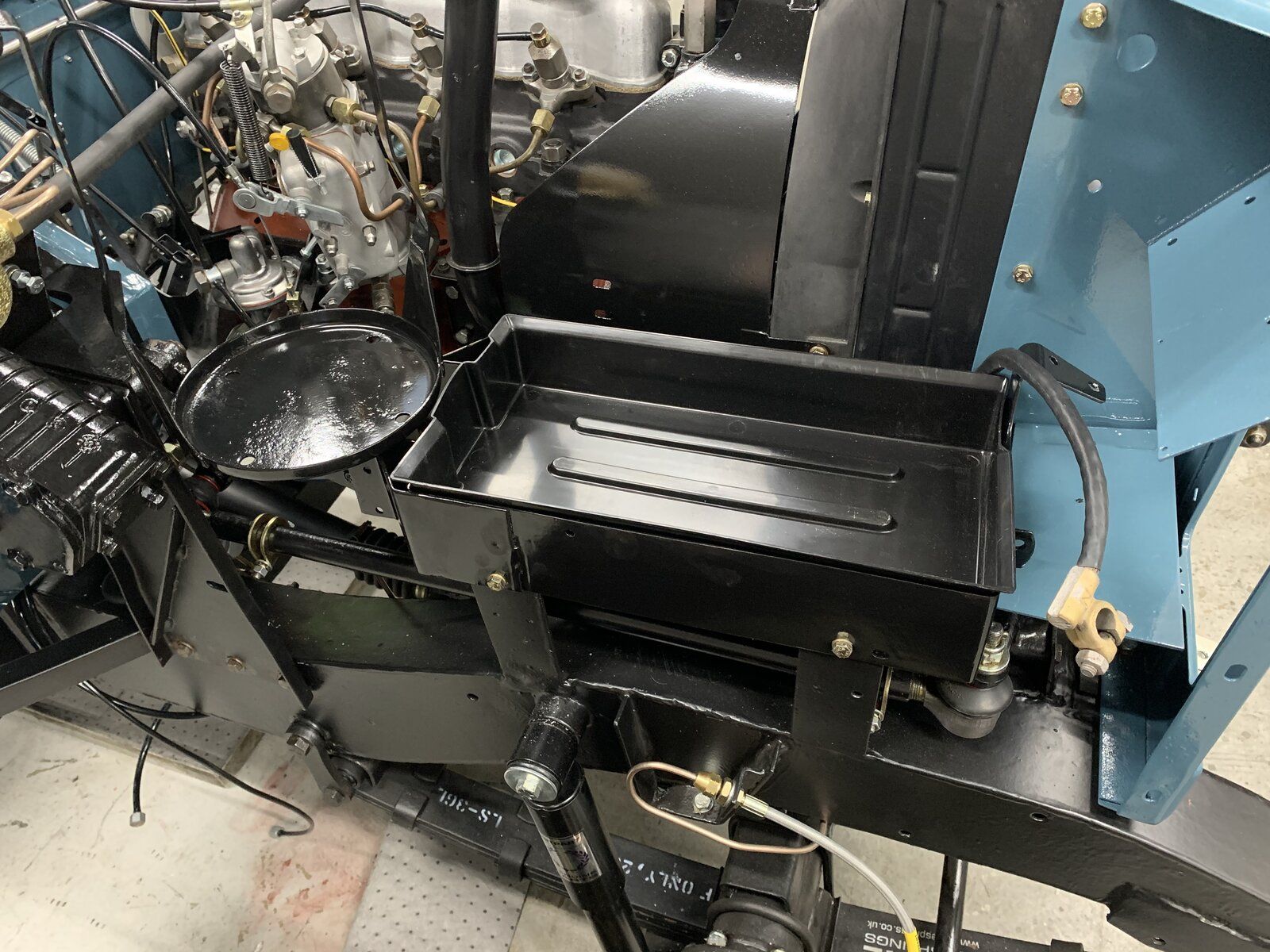

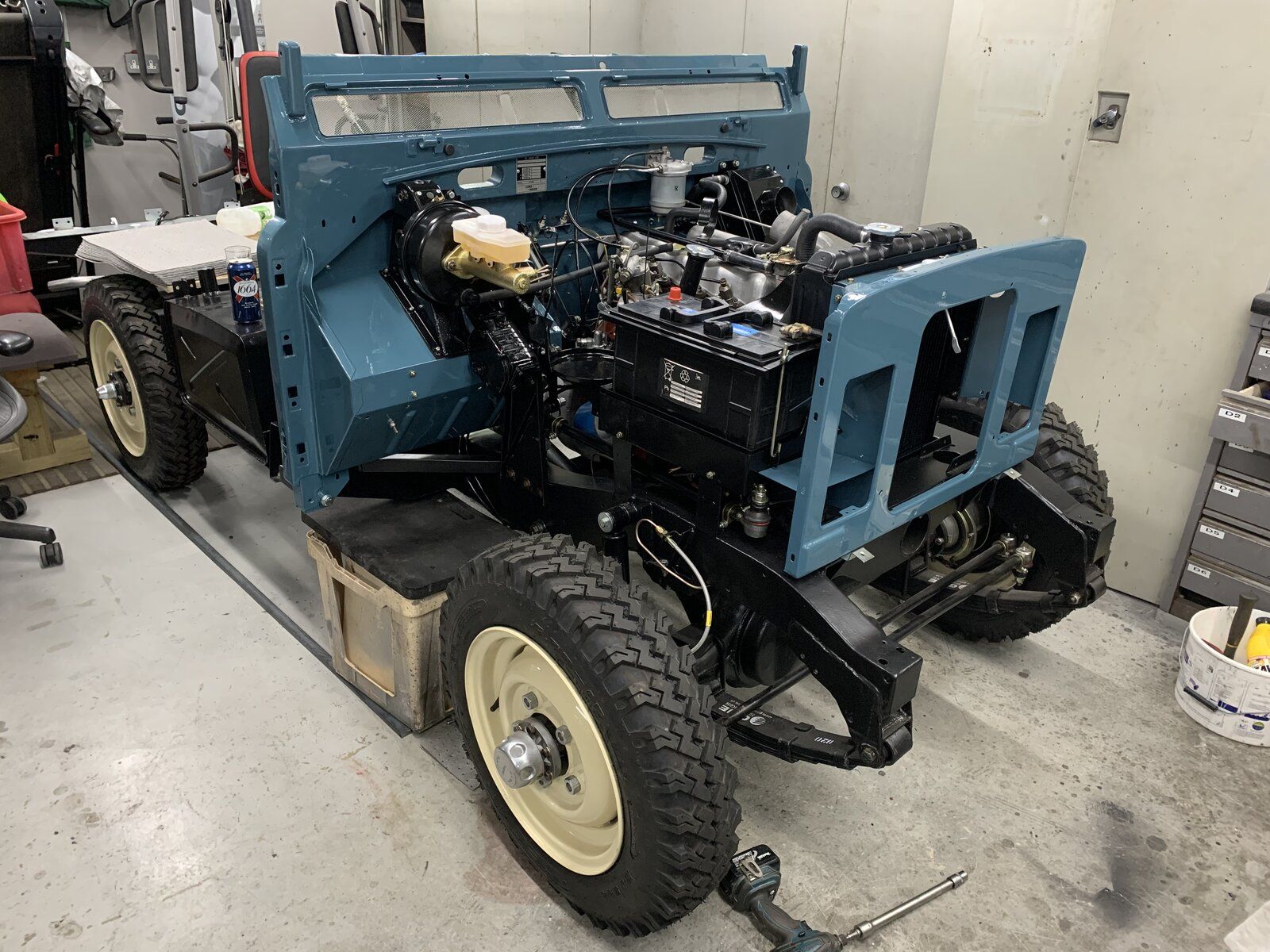

New Battery tray, heater matrix and servo fitted


Attachments

  • 7D7D9CE5-E23B-4CB6-96B2-42C218A1FC69.jpeg
    336.7 KB · Views: 150
  • 2738D0F9-DBD0-4556-AC86-2141AC5C7188.jpeg
    332.3 KB · Views: 155

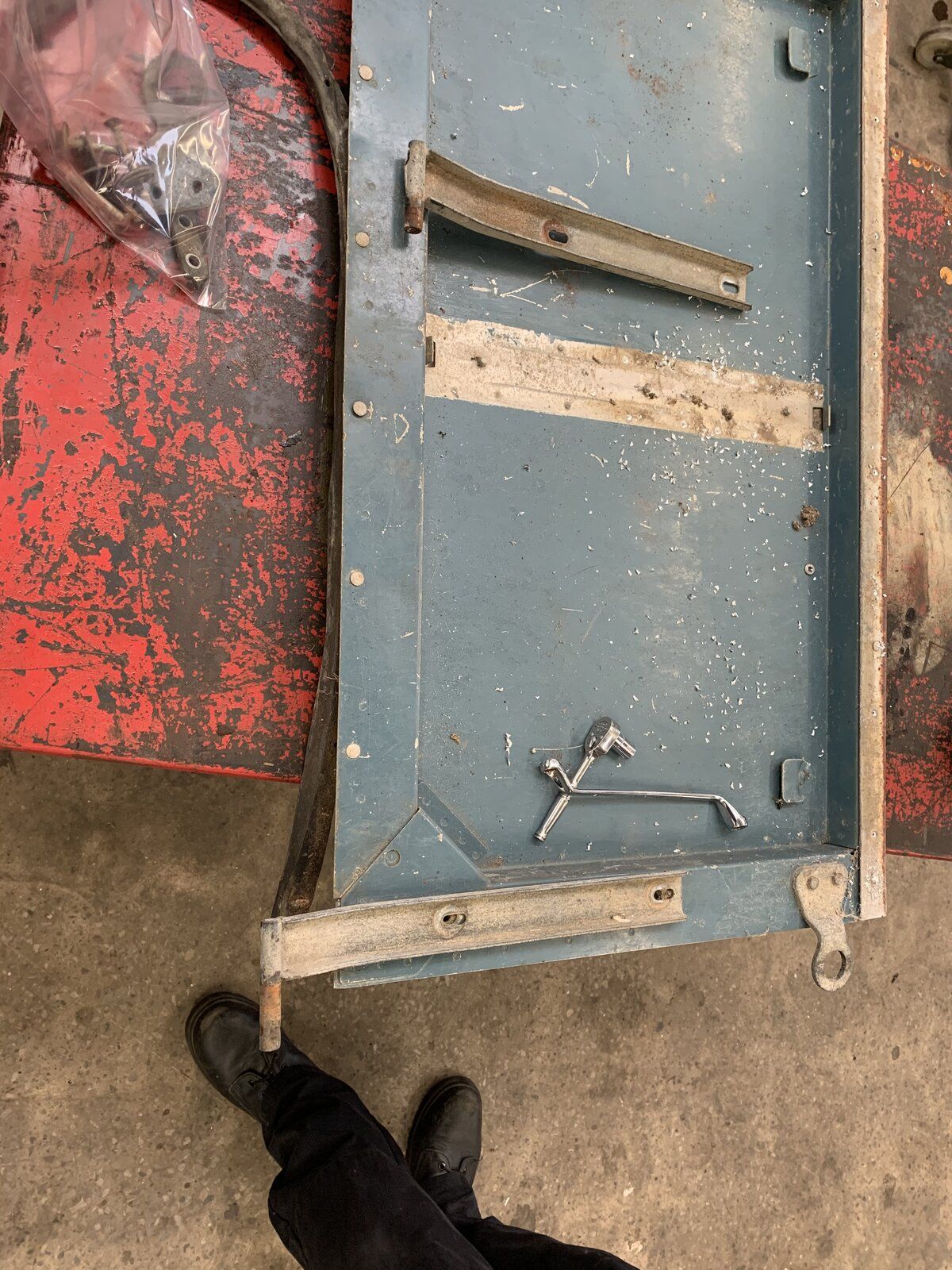

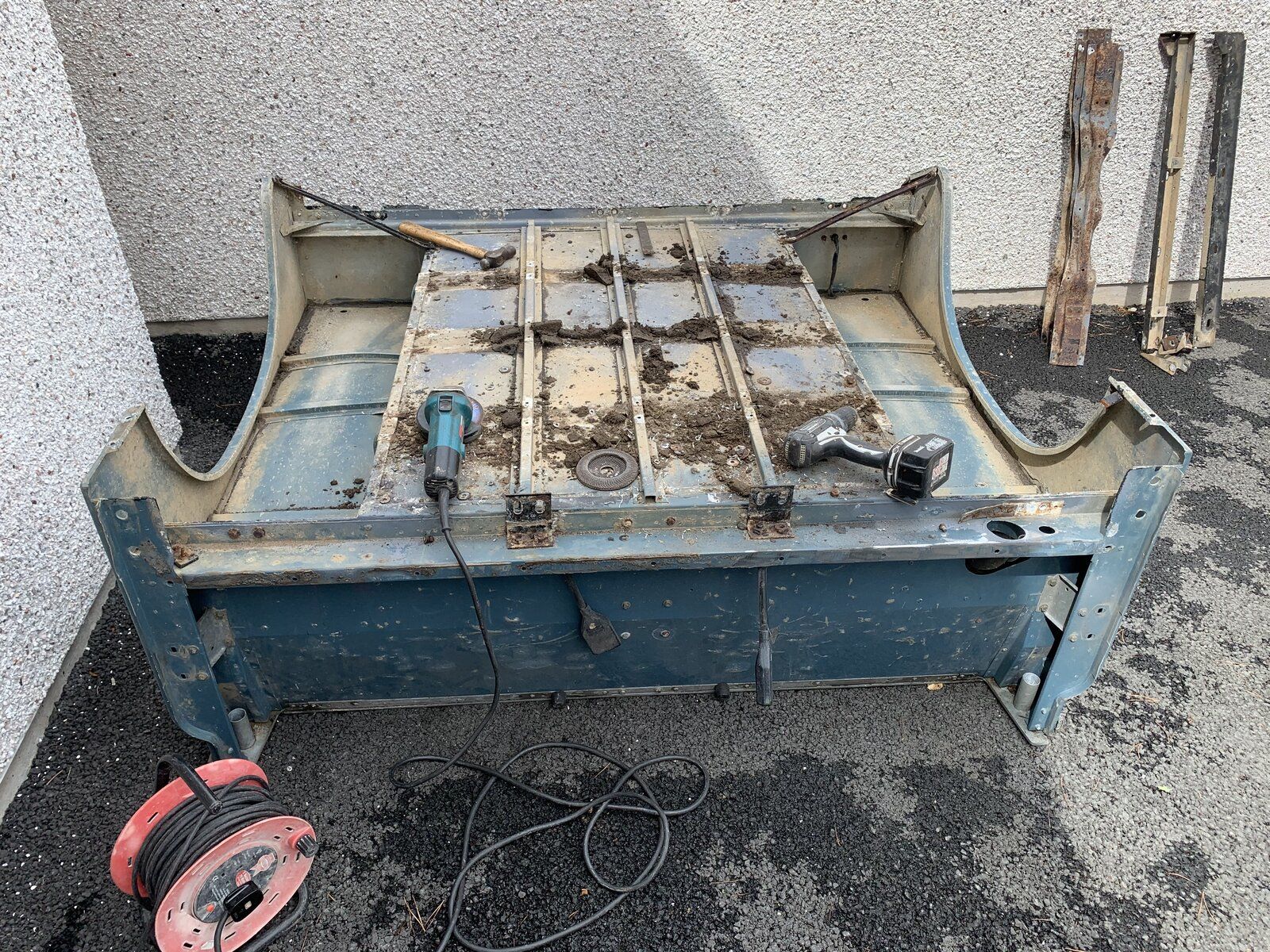

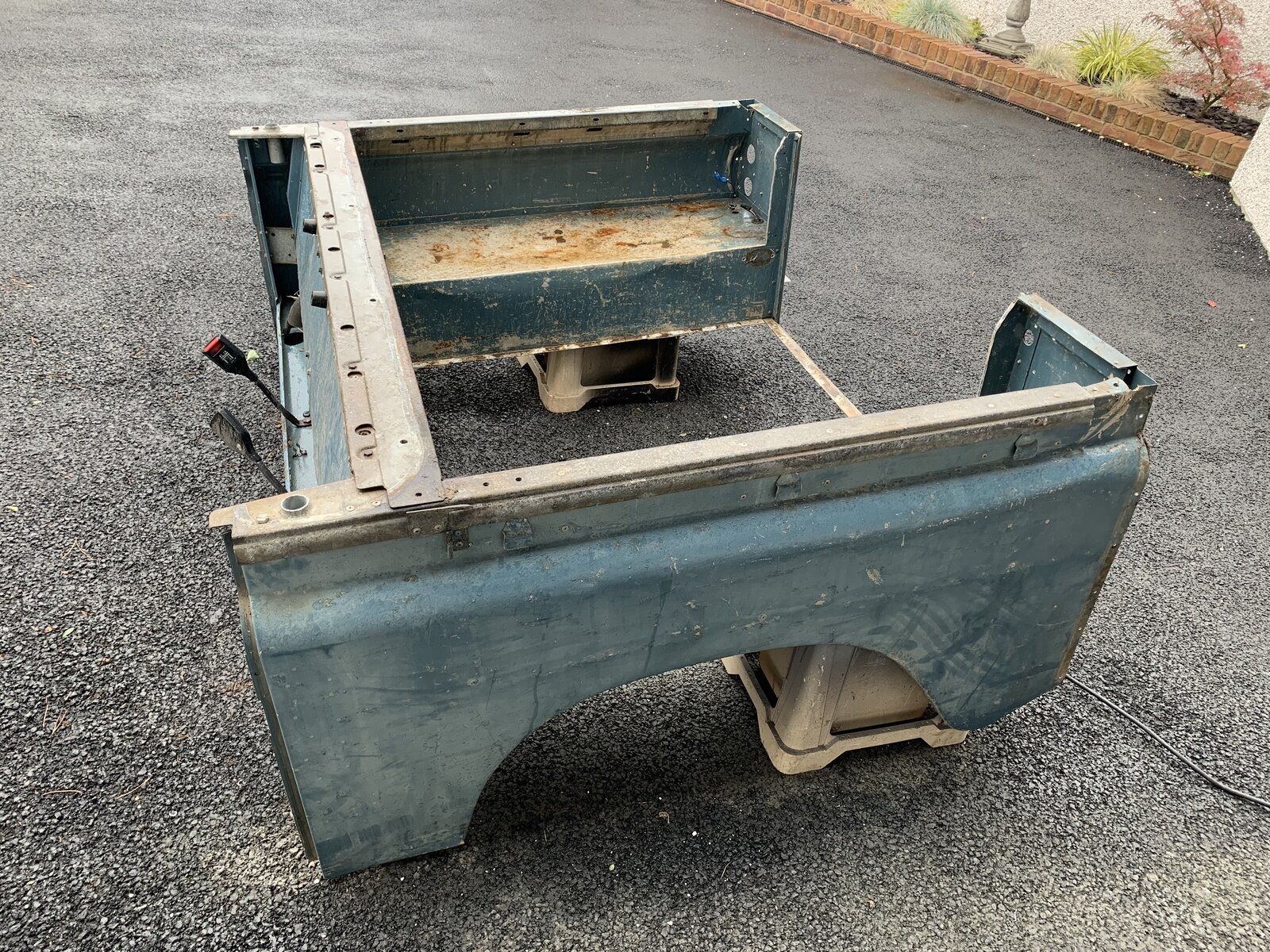

Work started on the rear tub! Needs a new floor and inner wheel arches, all galv bits removed for blasting and re galv.


Attachments

  • E0D1A56E-EA49-467C-A8F6-72D87988620E.jpeg
    670.7 KB · Views: 146
  • 3ADA7430-4064-49B4-A674-90156D84B09A.jpeg
    717.5 KB · Views: 147
  • 32AE2175-0364-4989-9546-825BF6108C06.jpeg
    400.8 KB · Views: 146

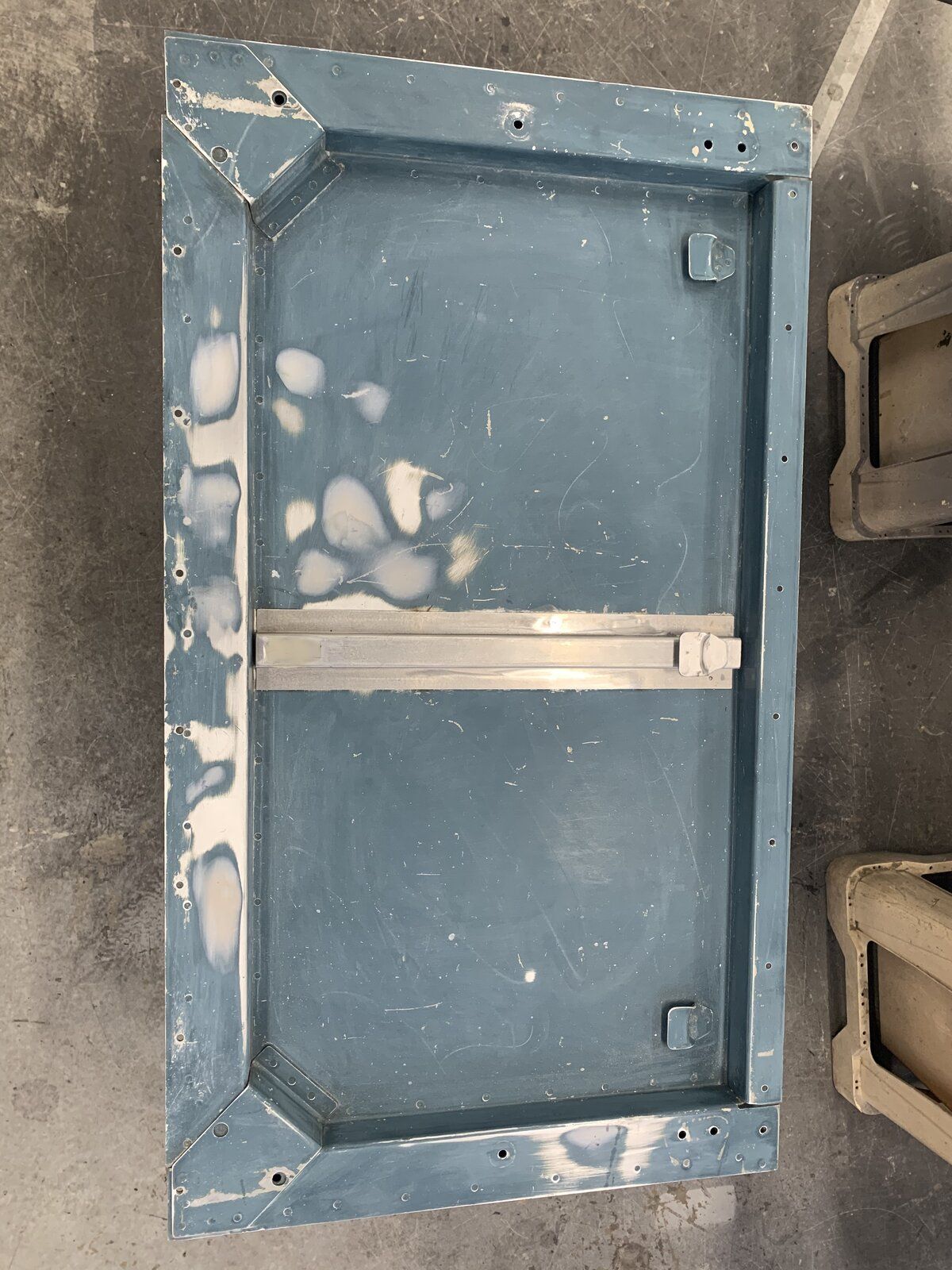

Rear door centre rib spot welded from the back


Attachments

  • 4D3A578A-9BED-49EB-BCEA-AD40F5D394E3.jpeg
    309 KB · Views: 129

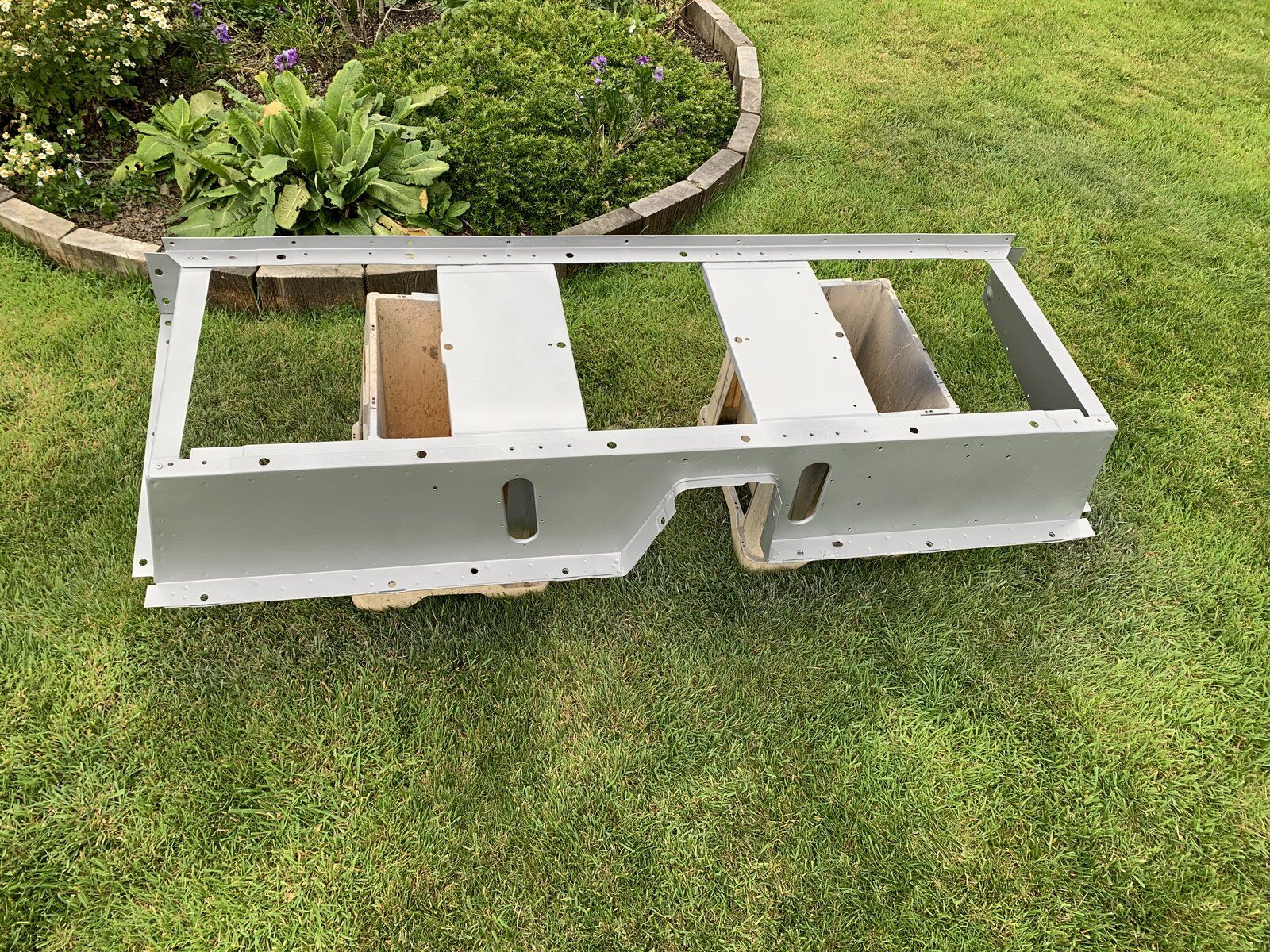

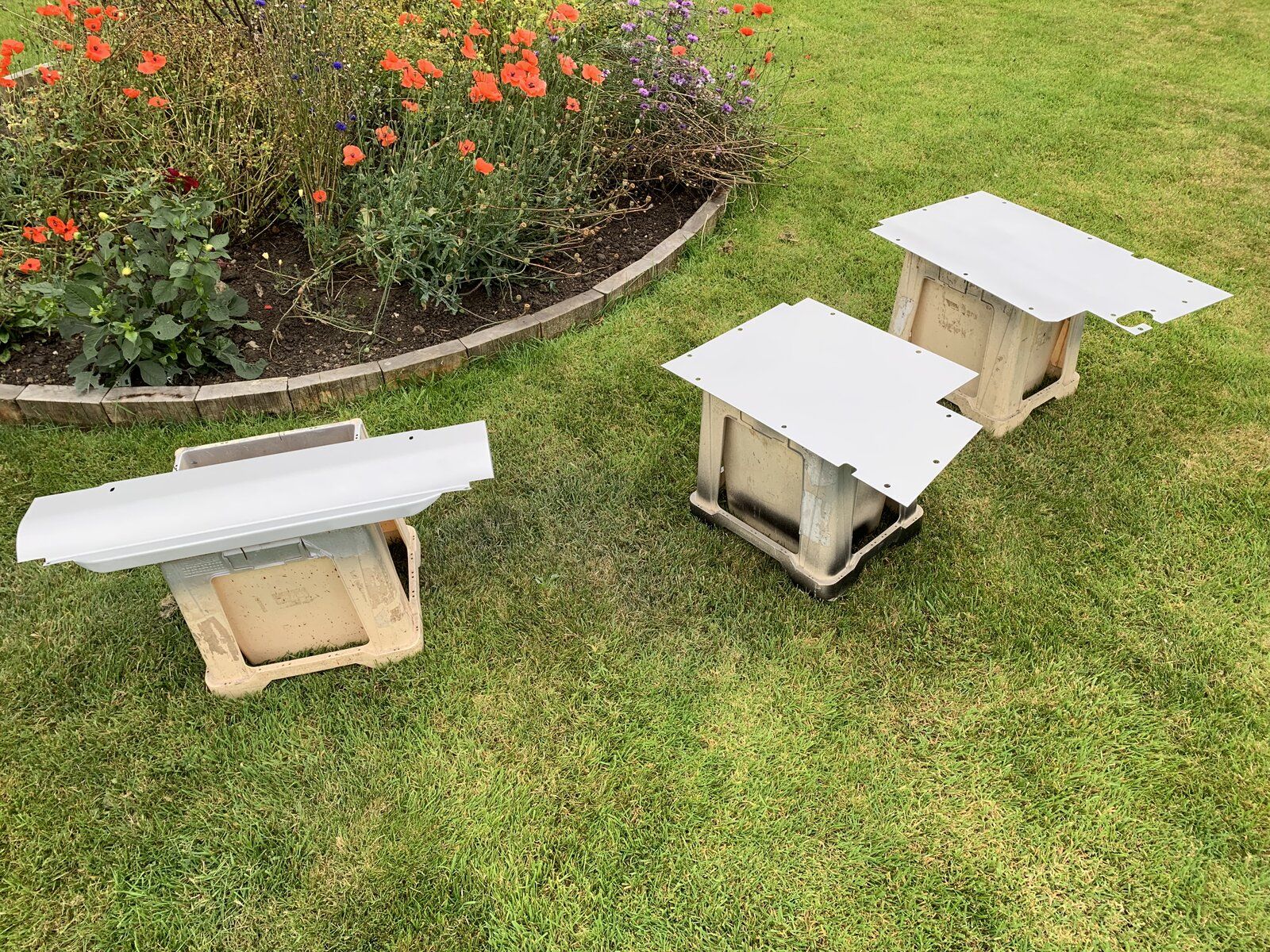

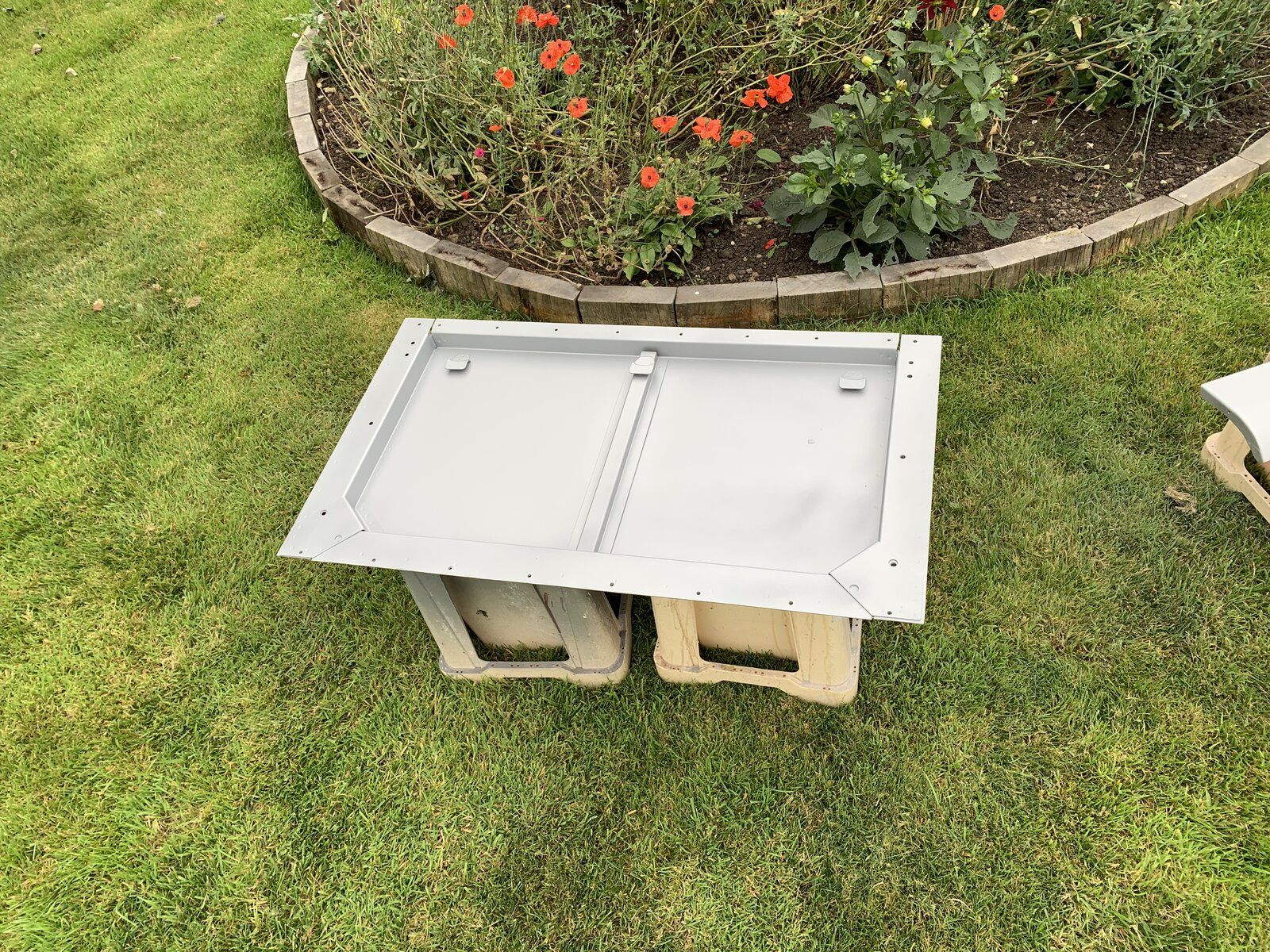

Primed but needs some wet and dry and maybe another 2-3 coats


Attachments

  • 578D2F09-94EA-4099-94A9-524BF2F9B9B8.jpeg
    756.1 KB · Views: 130
  • B7A6472F-F164-4176-9DFF-A86B5972D2C1.jpeg
    767.3 KB · Views: 152
  • C5E9DDBE-22D8-49C0-875E-9FC812A5F985.jpeg
    783.9 KB · Views: 125

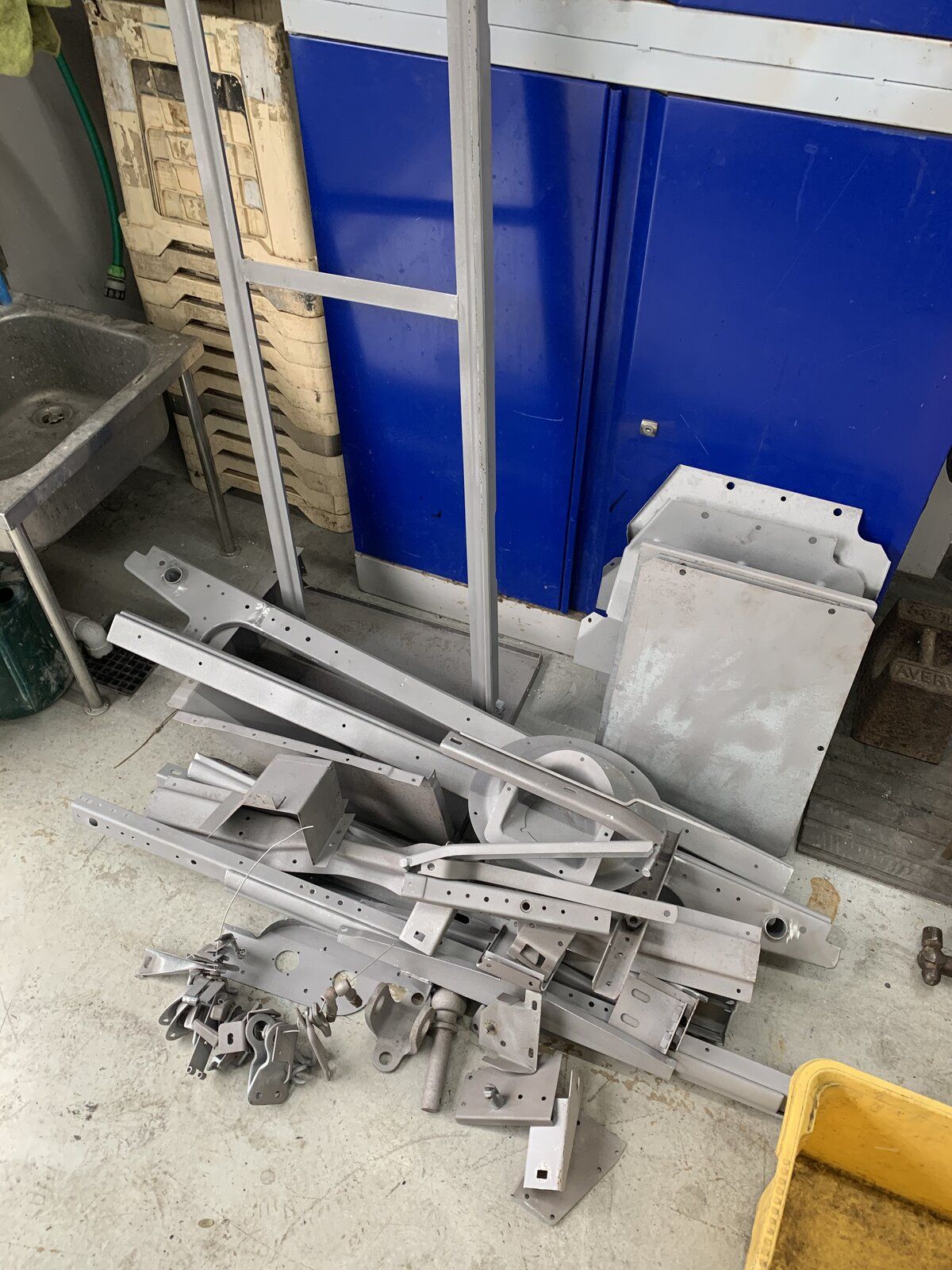

All the remaining galv items have been sand blasted repaired and sent to galvanisers should be back today !


Attachments

  • 6BA70C97-5C5E-41E8-AFE3-AACF954AE621.jpeg
    313.1 KB · Views: 129
Started on the bonnet which is in surprisingly good condition


Attachments

  • 482A91B2-9A22-43CD-8B54-228E73974454.jpeg
    345.6 KB · Views: 140
Didnt manage to upload the video will try via the computer rather than phone.

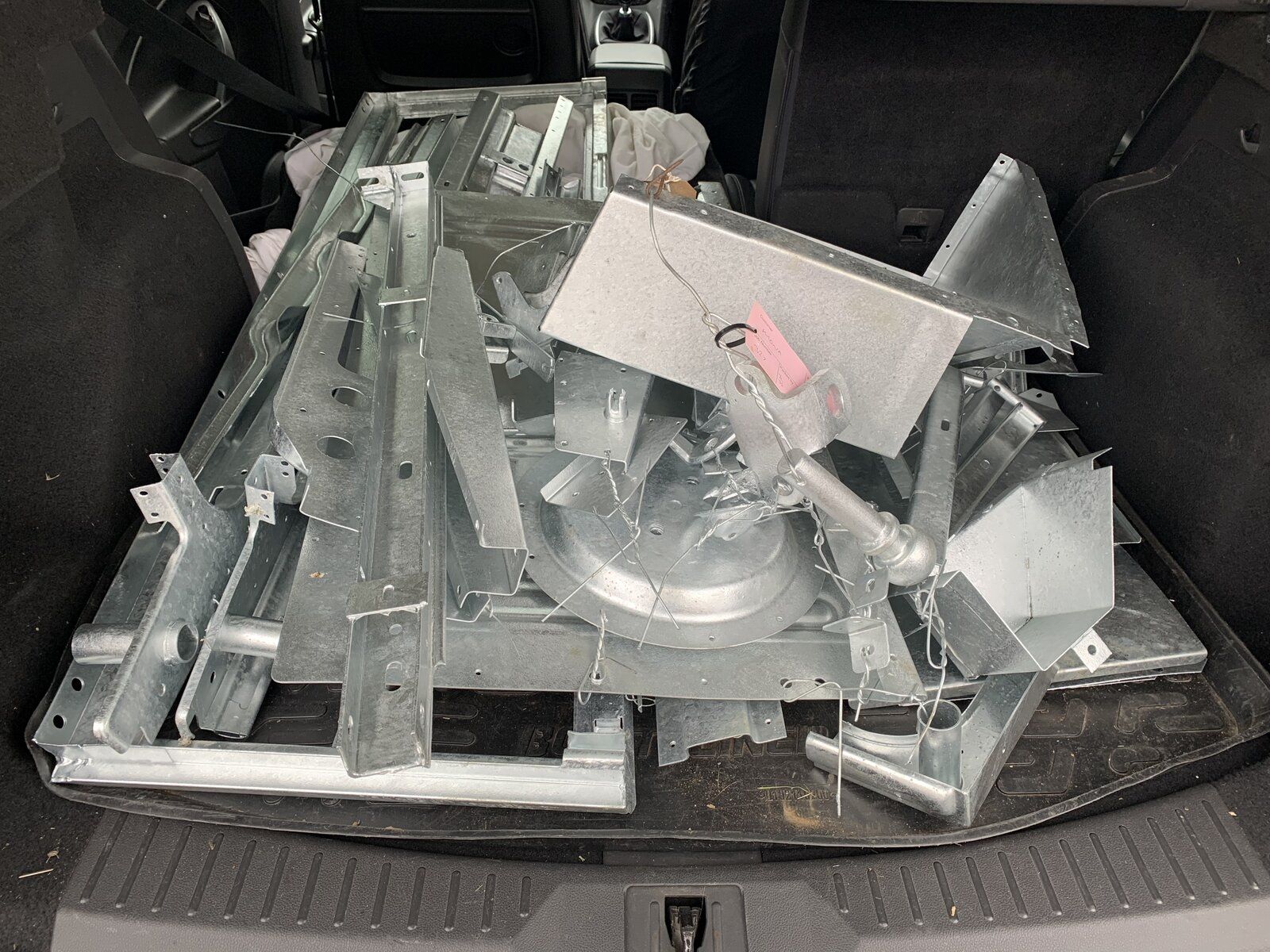

All the tin work back from the galv, great finish !


Attachments

  • 5DA942D2-352F-4600-9F64-E30B57B8B2C8.jpeg
    387.4 KB · Views: 128
Only disappointment with the galv is that the anti rattle closers for the rear door melted away ! They must have been made from poor quality casting but all is not lost will gring and drill them out and get new bolt on ones.

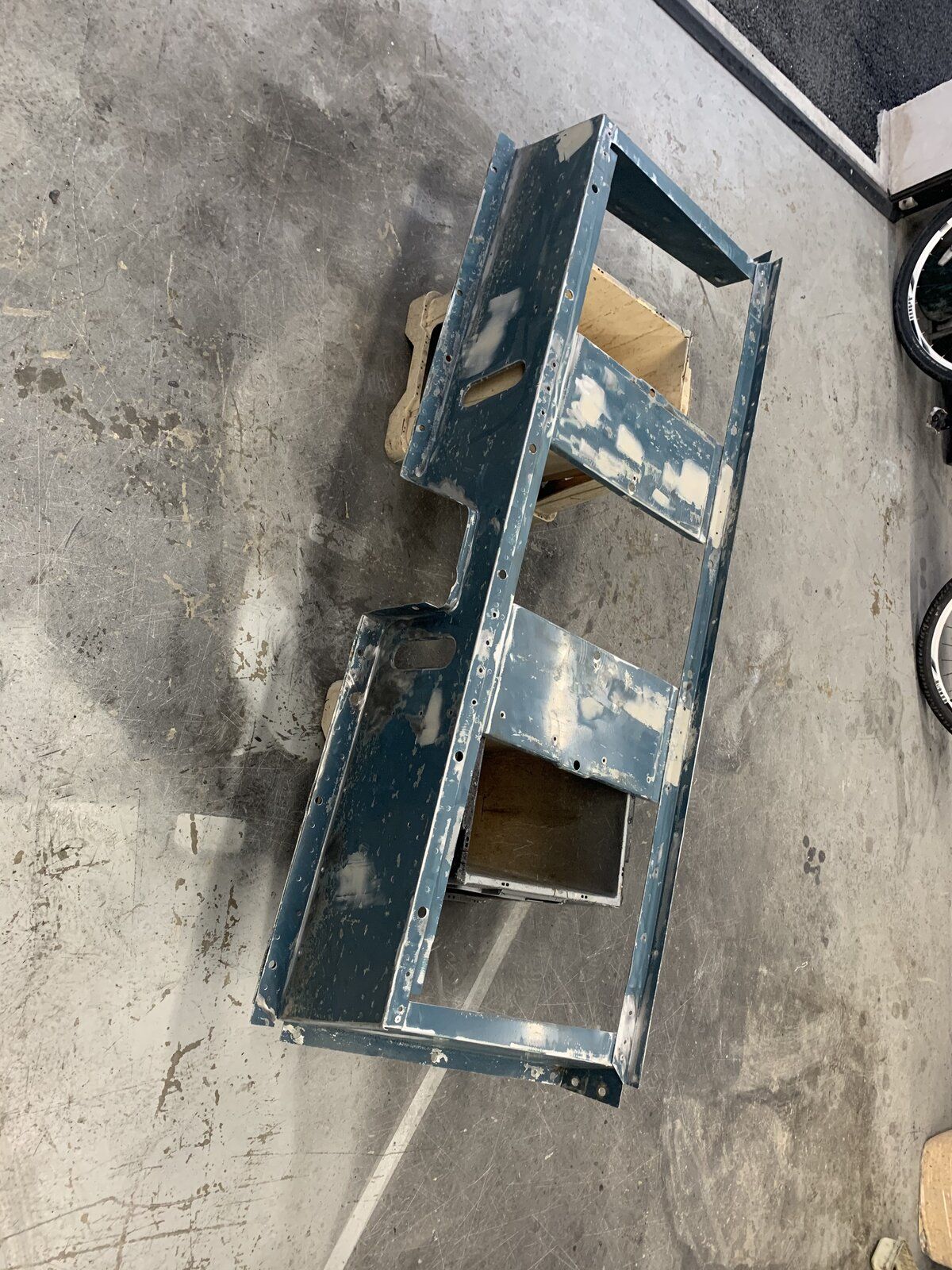

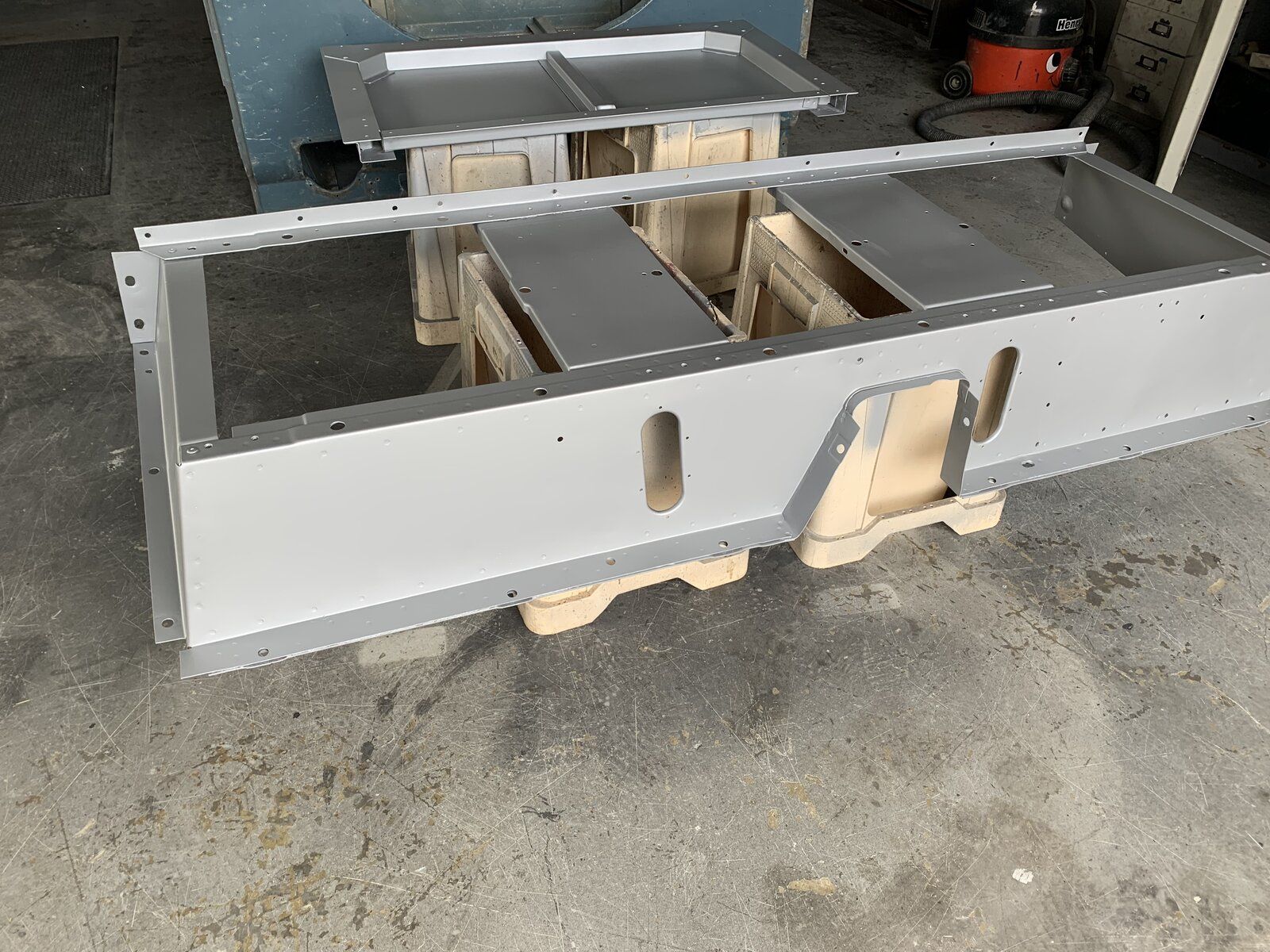

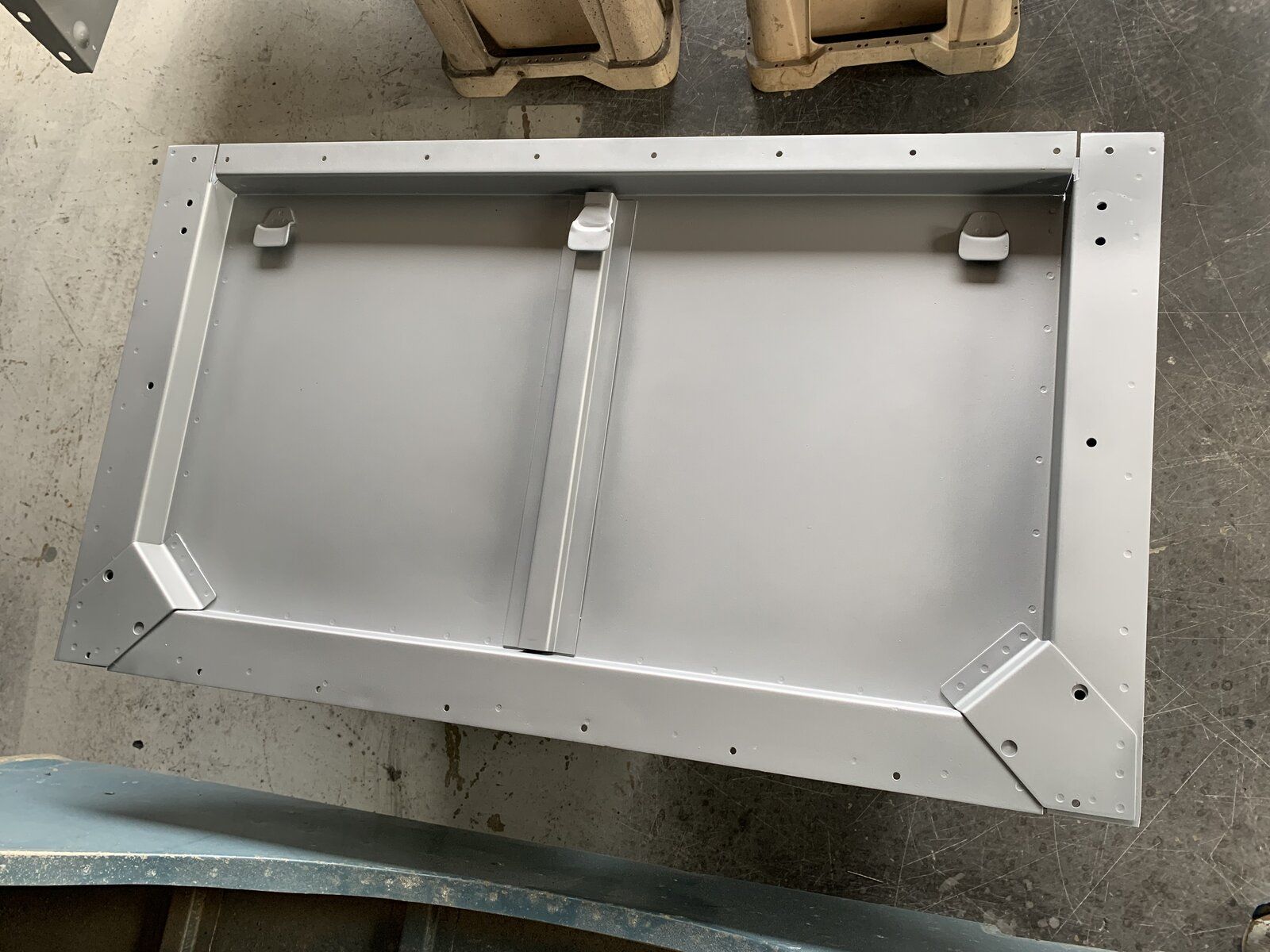

Rear tail gate and seat box prepared and ready for top coat of blue.


Attachments

  • 572E5FBD-4B21-4344-A8EB-86C801646FEF.jpeg
    227.9 KB · Views: 123
  • 415FB8AB-07C8-4B29-99D1-9D54D65B1697.jpeg
    367.9 KB · Views: 122

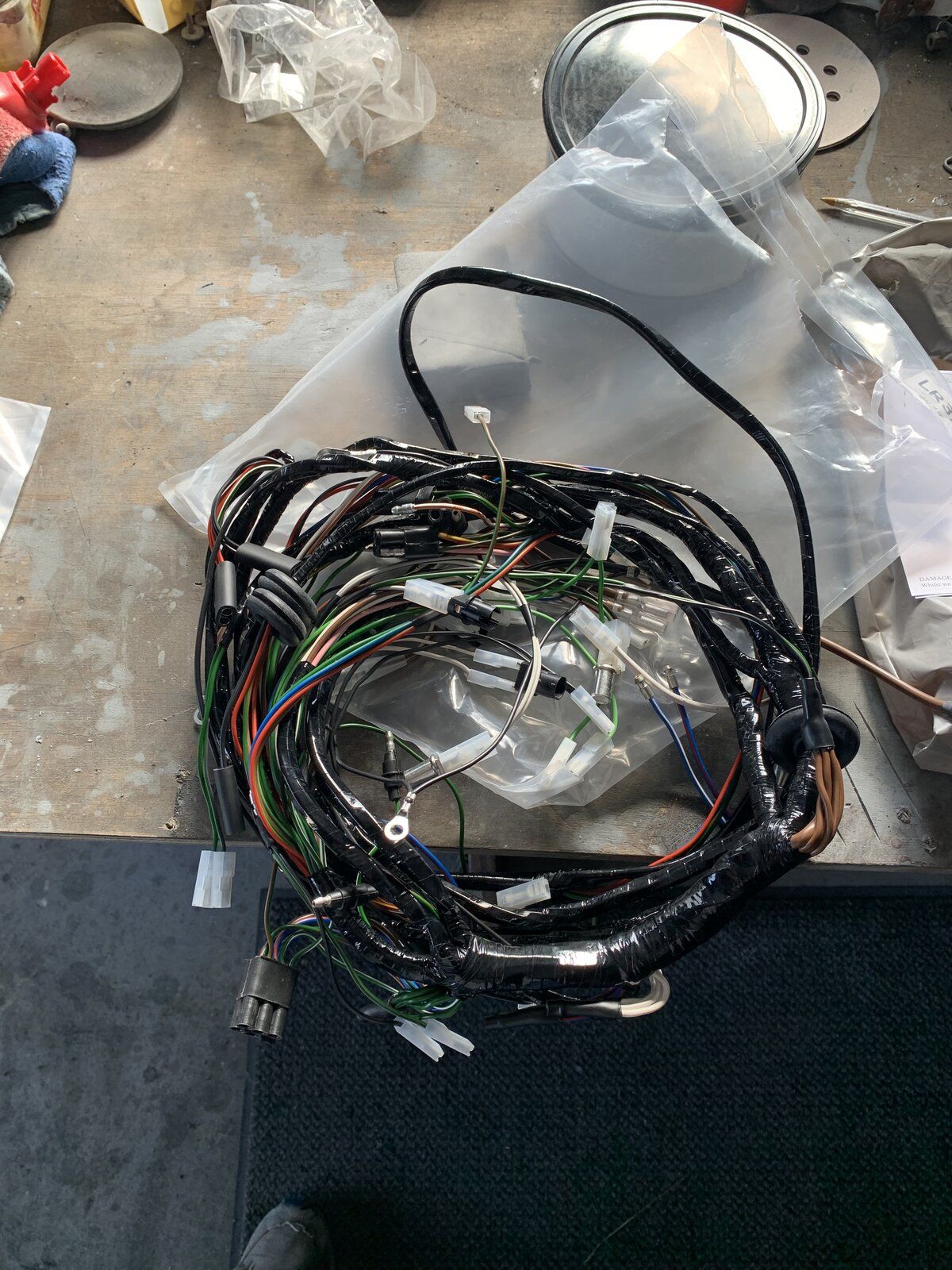

A productive day in the cave, installed the new wiring looms (autosparks) with the help of google images for cable routes !


Attachments

  • C5BF12A6-7CE9-4DC8-95E5-F525C30028BA.jpeg
    359.8 KB · Views: 124

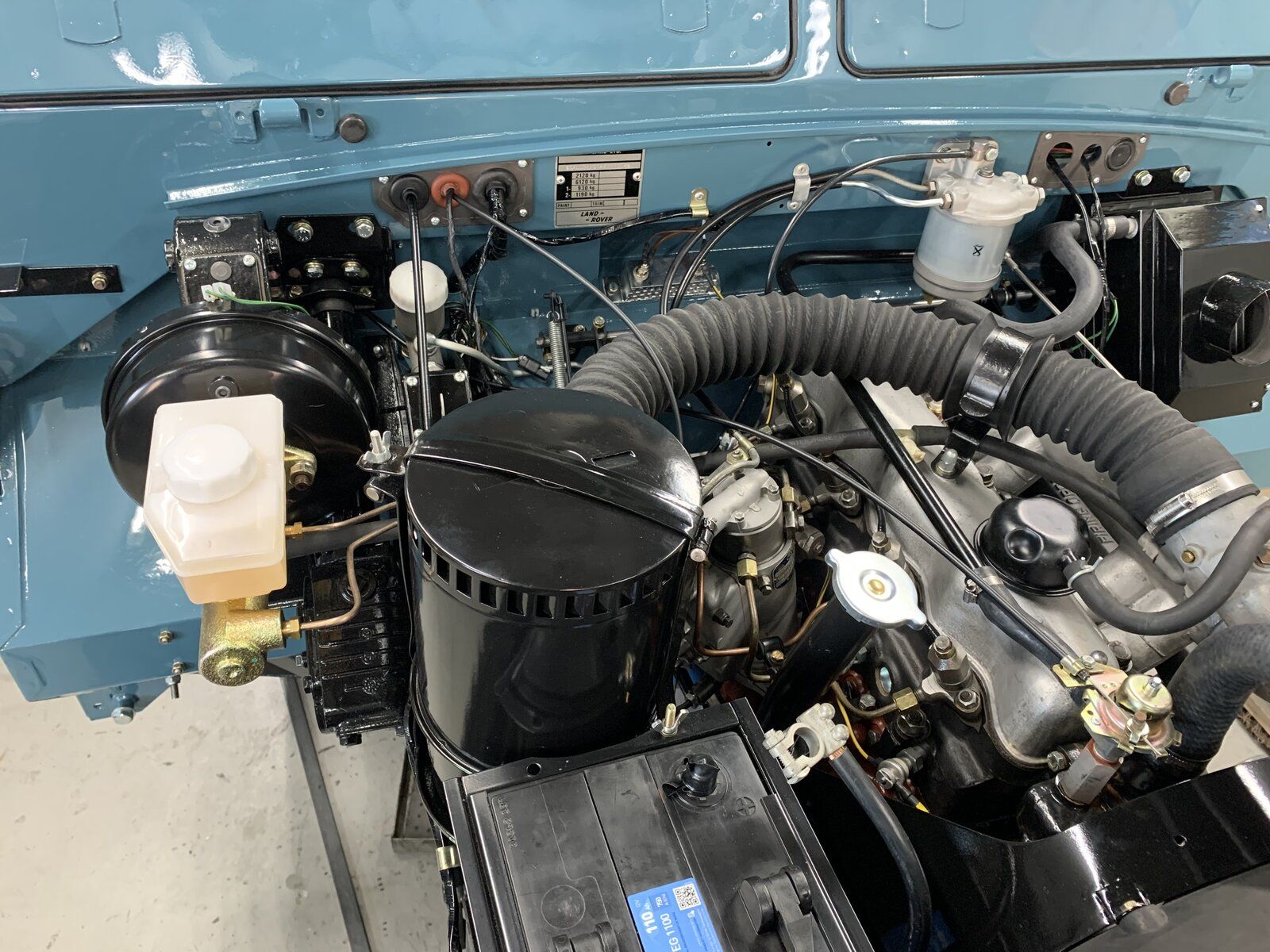

Fitted the speedo cable, stop cable and heater valve cable


Attachments

  • 8E8FFA6D-13CC-4E53-9191-A748312195E2.jpeg
    336.8 KB · Views: 111

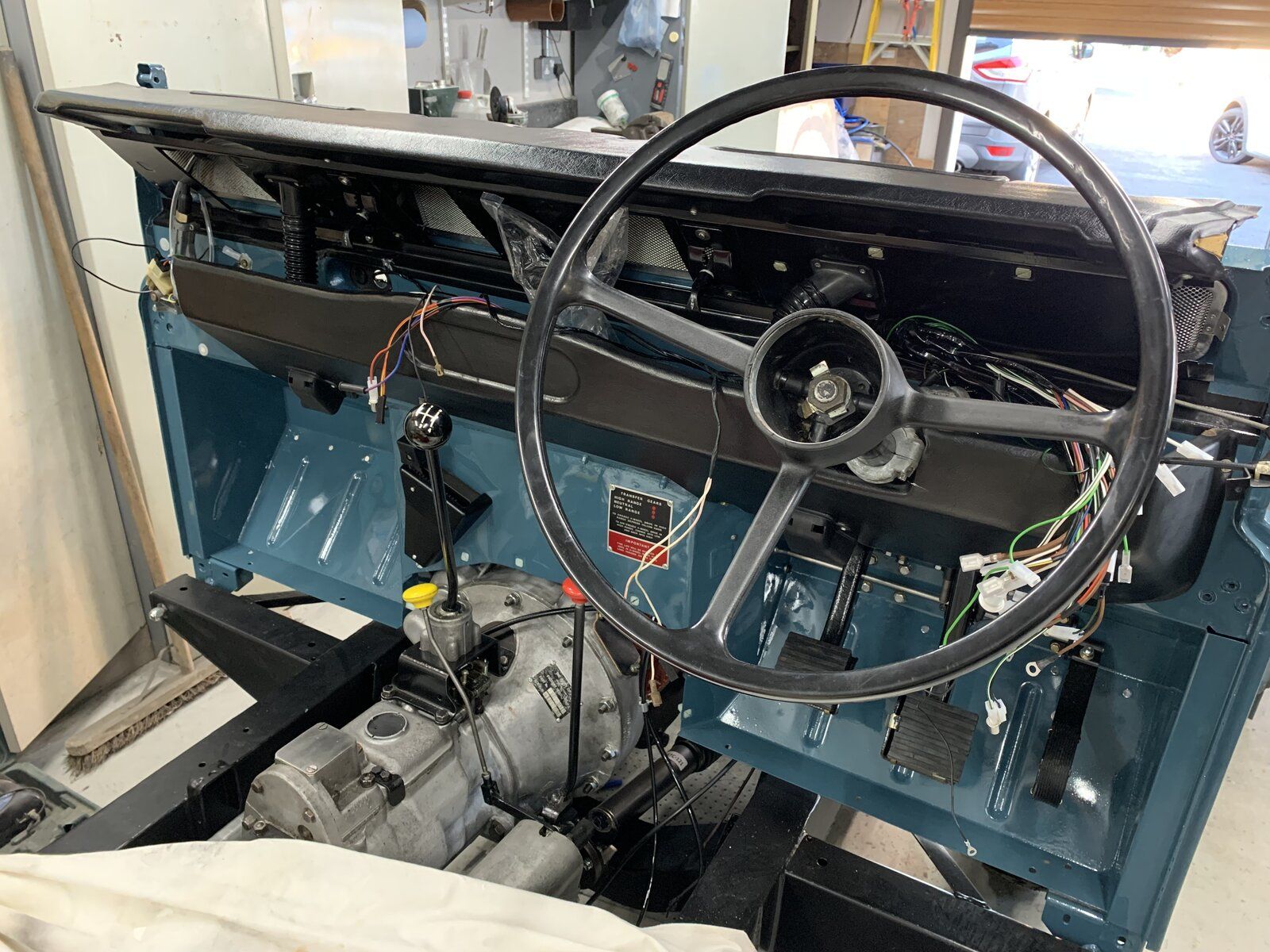

Lower and upper dash fitted, had cleaned and polished it a few months ago.


Attachments

  • 625118E4-3434-40E3-A7B7-F7962FB5747F.jpeg
    336.5 KB · Views: 133

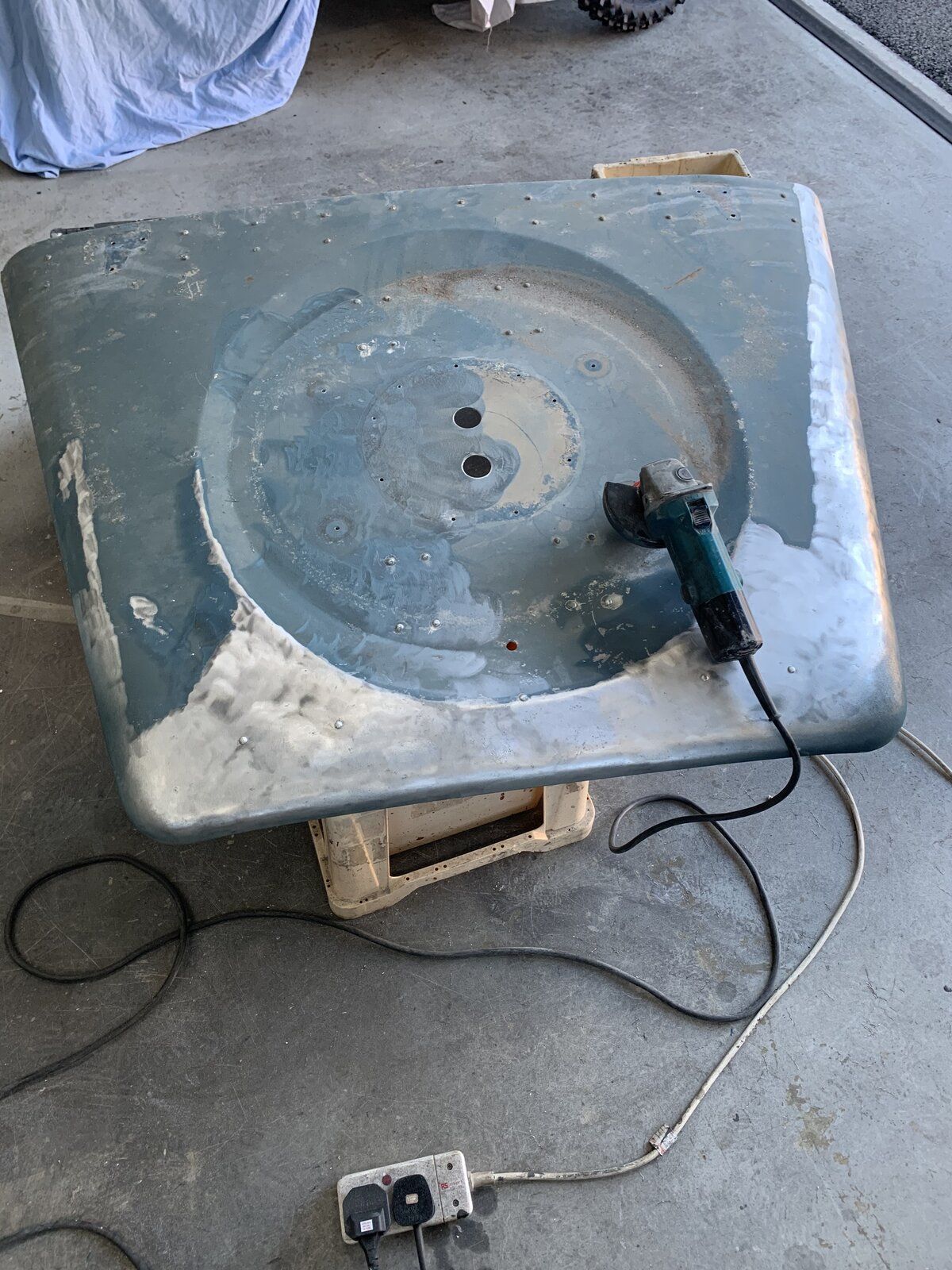

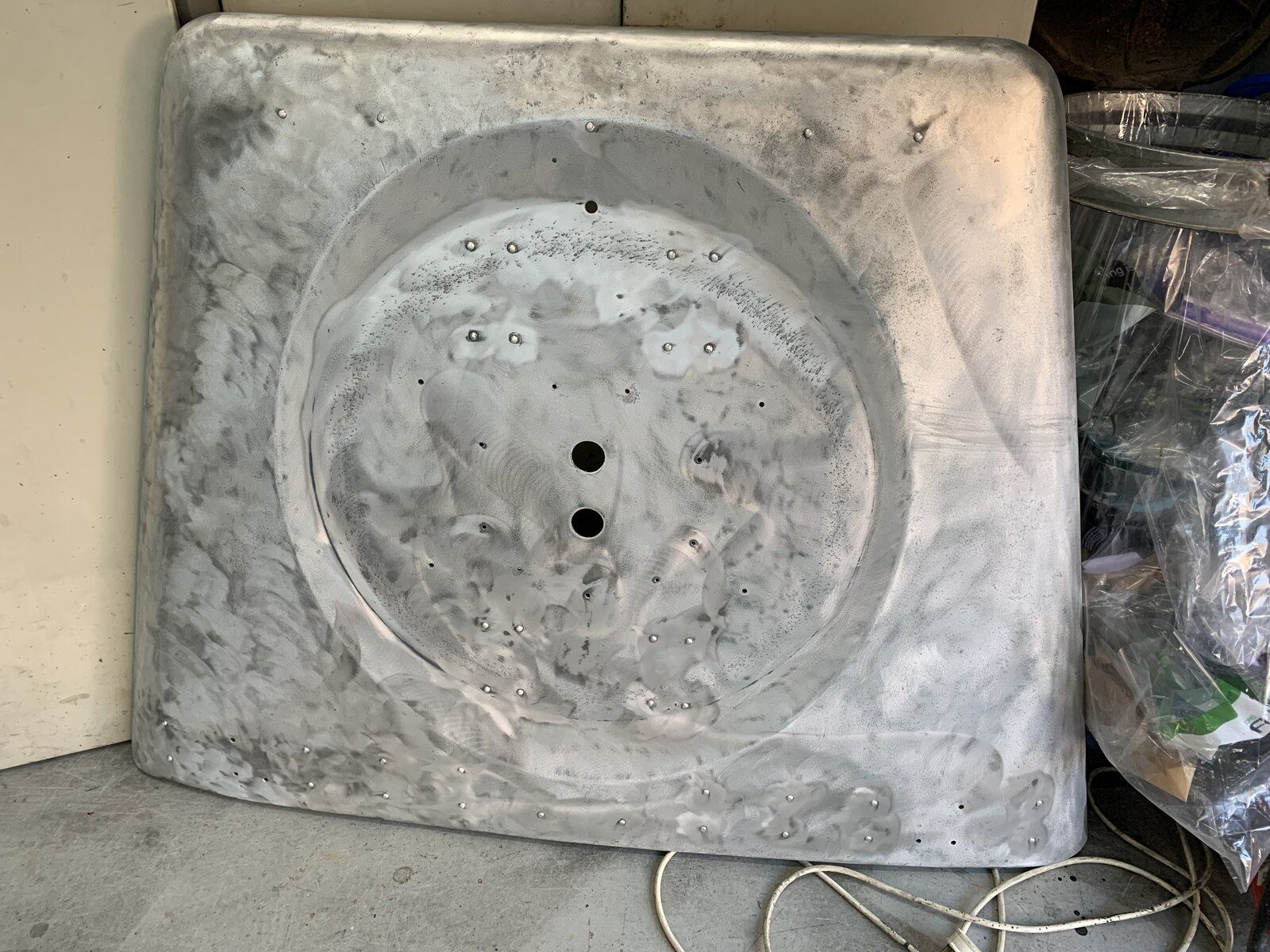

This is what I did yesterday. DA’d the bonnet inside and out ready for fetteling a few dents with some hammering and filler, to be honest its in pretty good nick.


Attachments

  • 52389EE6-E4E4-4AB0-AD04-55D8FAF5E930.jpeg
    356.9 KB · Views: 134

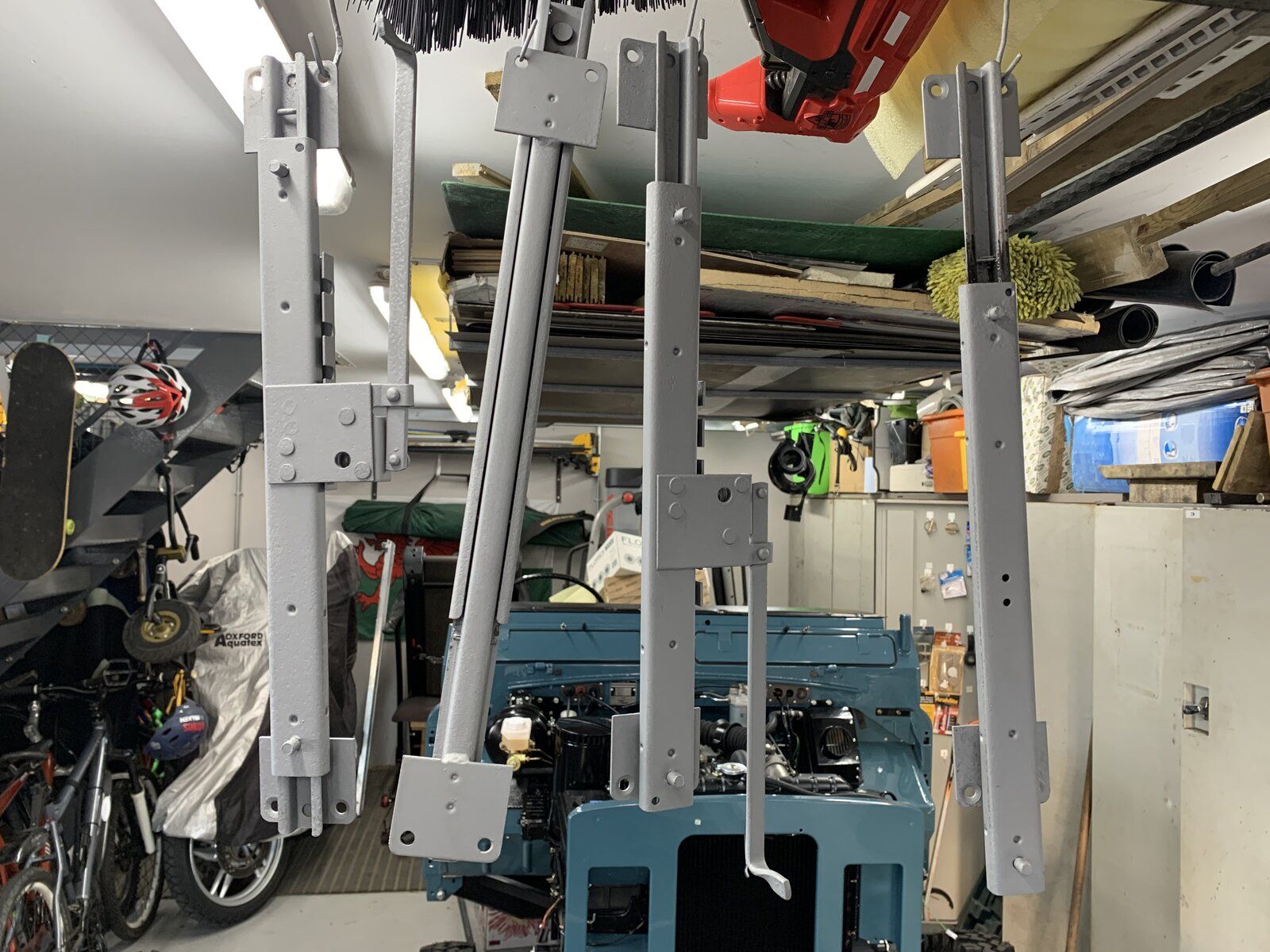

Seat sliding rails have been sand blasted, and primed. Any idea what finish they should be ? Seen some people spraying them silver / chrome but when I blasted them I noticed some black paint / powder coating ? Should they be black ? Any advice would be greatly received


Attachments

  • 7A78E760-B1E2-4A55-A4CF-7E4FA85079CE.jpeg
    298.3 KB · Views: 123
Looking really well, not far away now , I’d love to see the mot mans face when that drives in

UpandOver said:
This is what I did yesterday. DA’d the bonnet inside and out ready for fetteling a few dents with some hammering and filler, to be honest its in pretty good nick.
Click to expand...

was that a sanding disc to remove bonnet paint or some type of scrubber disc, sorted it nicely

the seat runners are glossy black , spray rather than heavy brush
