Sankey Wide Track "Expedition" Trailer Build

rustyrhinos · Oct 16, 2011

Progressing nicely now...

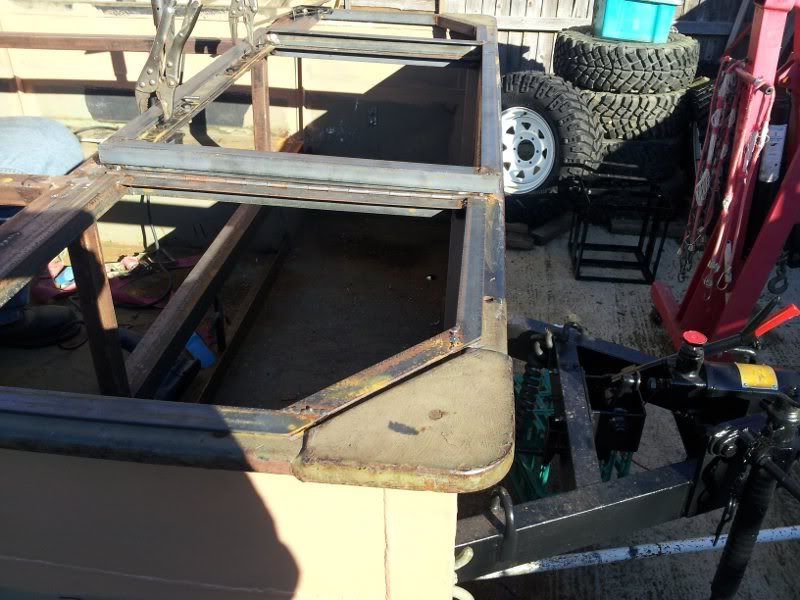

All hinges now made up for the front compartements. Have made this section unboltable...the reason being is that the "bulkhead" between these compartments will be ply...which no doubt will need replacing in years to come...with this section removable it makes that process much easier:

Trial fit of the main lid...

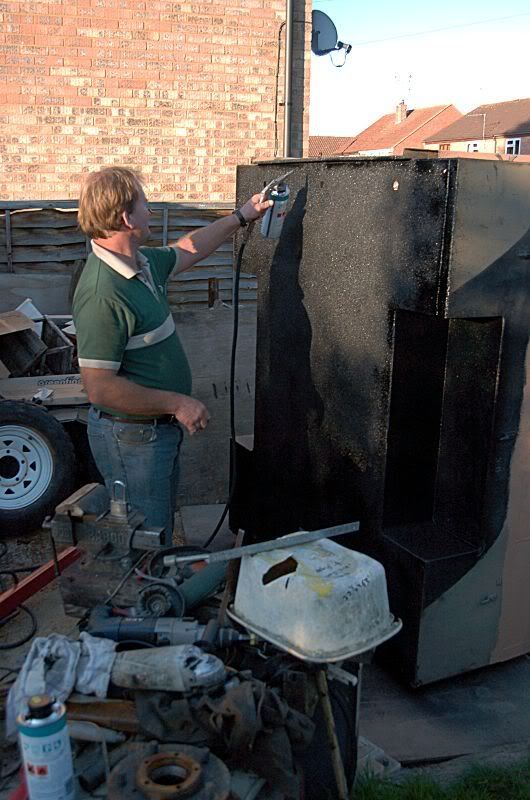

The underside was in very good nick...but thought it would be a good idea to whip it off and underseal it:

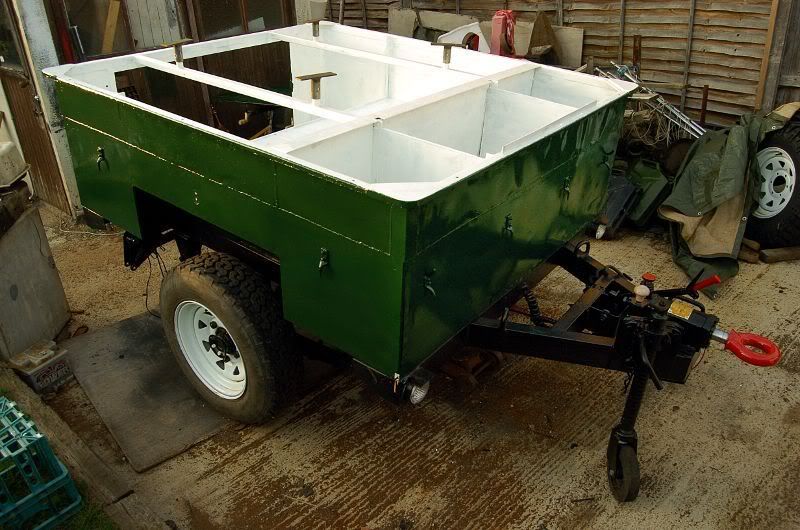

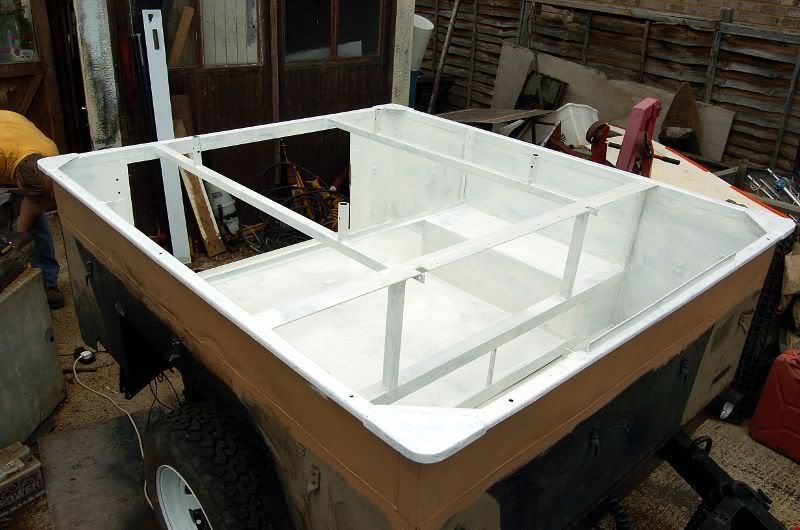

Hinged compartment taken out so the inside can be fully painted...wow thats clean...it hurts my eyes!:

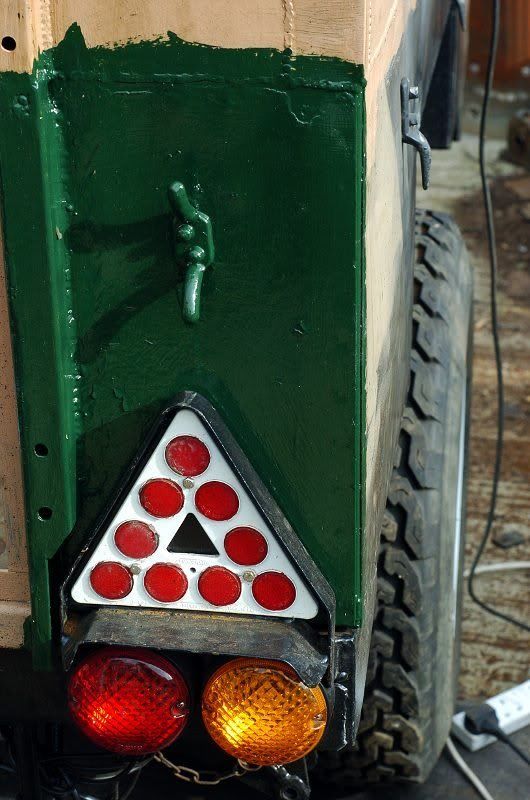

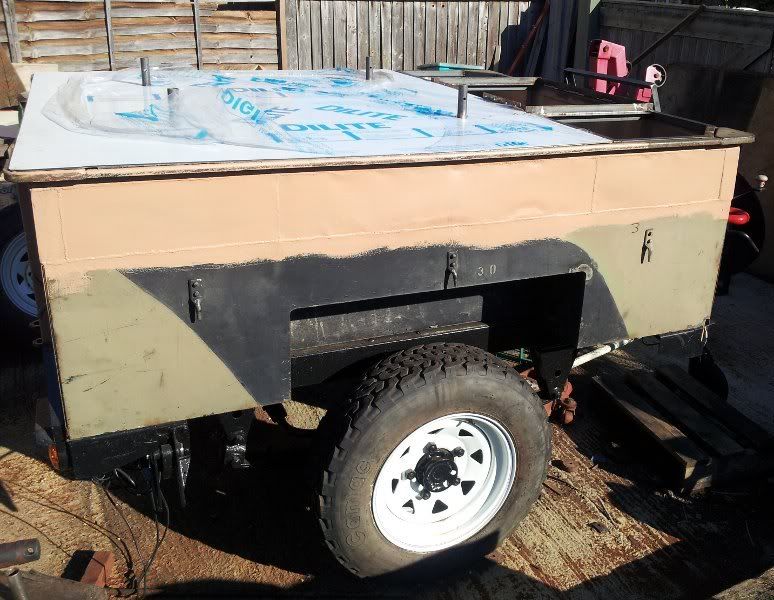

Sneak preview of paint colour (we had to paint this bit before putting the body back on so that we didn't have to remove the body again before getting the bit behind the triangle painted

):

Griffdowg · Oct 19, 2011

nice one mate

progressing nicely. Im still welding up holes!

G

rustyrhinos · Oct 19, 2011

Thanks

Yeah its certainly getting there

Are the holes deliberate or rusty bits?

Griffdowg · Oct 19, 2011

I changed all the latches as they were crap so I was left with 4 per catch plus 4 M10s in the roof from the PO's RTT and then 4 in the floor from the old brackets that were holding the water tank in

my welding aint great (learning) so its taking ages! just spent an hour doing 6 of them. 25 more to go!

If Im left with a few pin holes do you think it would be ok to use filler to finish them off? or is this a bad idea? eventually rattling off, falling out and taking my paintwork with it!?

G

rustyrhinos · Oct 19, 2011

Ah fair enough! sounds like you have a bit of work on your hands! You could use filler I suppose...but a pin hole? Just paint over it

. Depends how retty you want it to be I suppose (of course if these bits were a structural weld, pin holes suggests not a brilliant weld, so would not simply ignore it - but this isnt the case on yours by the sounds of it).

If you think filler might fall out (which it probably wont), you could always finish it off with a bit of chemical metal or similar...that norally stays where you put it

Griffdowg · Oct 20, 2011

rustyrhinos said:
Ah fair enough! sounds like you have a bit of work on your hands! You could use filler I suppose...but a pin hole? Just paint over it . Depends how retty you want it to be I suppose (of course if these bits were a structural weld, pin holes suggests not a brilliant weld, so would not simply ignore it - but this isnt the case on yours by the sounds of it).

If you think filler might fall out (which it probably wont), you could always finish it off with a bit of chemical metal or similar...that norally stays where you put it

excellent. I will see if my filler is ok then and if not bung some chemical metal in. Cant have a go tonight as I have my Russian Language class at the university!

Spasiba Rusty!

Dasvidania

G

rustyrhinos · Oct 21, 2011

Russian. Good stuff! Is that a hint of where you are going next?

Griffdowg · Oct 21, 2011

Indeed. Been in the planing for about 2 years now, but keeping it under my hat

G

Booger · Oct 21, 2011

Griffdowg said:
Indeed. Been in the planing for about 2 years now, but keeping it under my hat

G

Keeping it under your Ushanka you mean....

rustyrhinos · Oct 23, 2011

Sounds good G

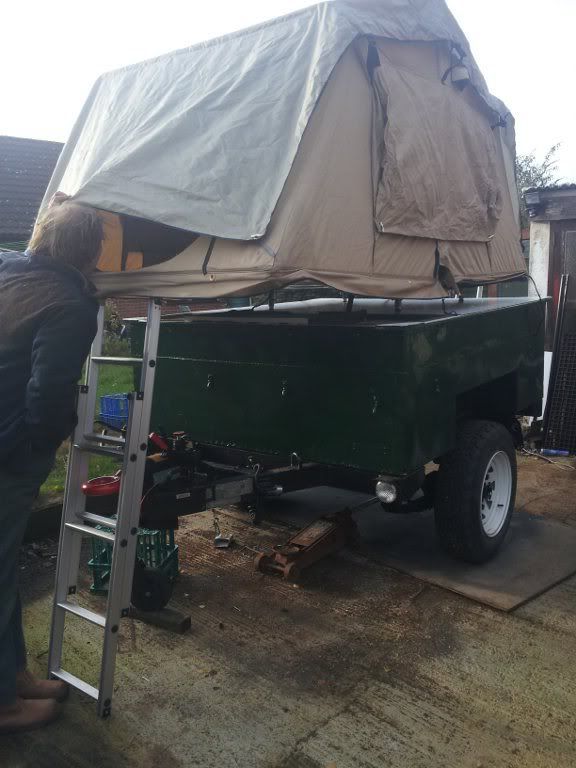

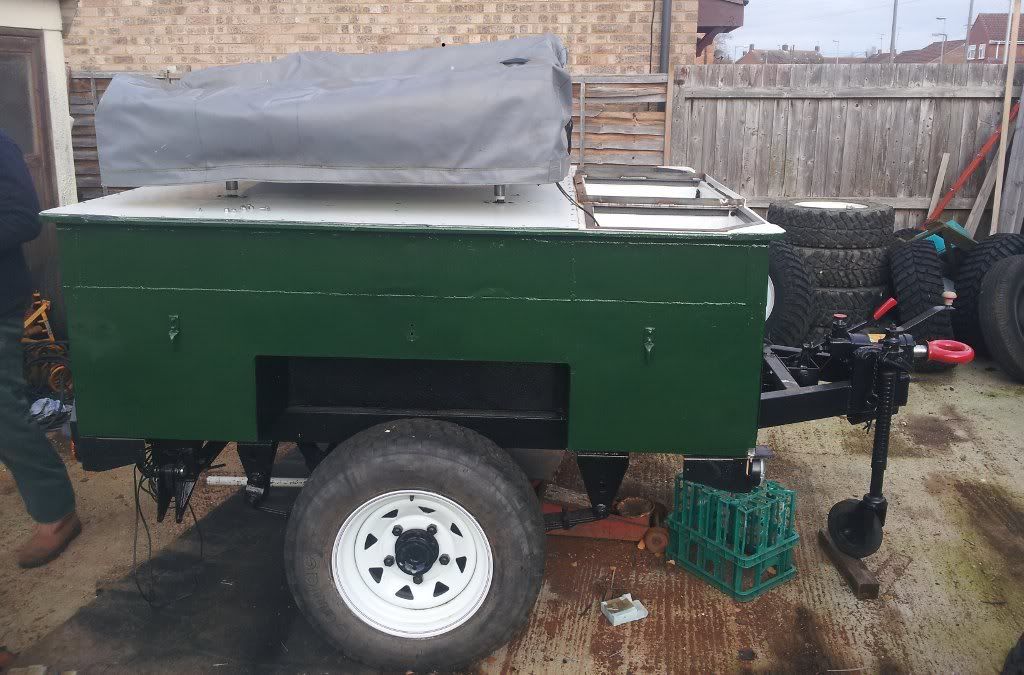

Quick coat of paint on the outside...

rustyrhinos · Dec 21, 2011

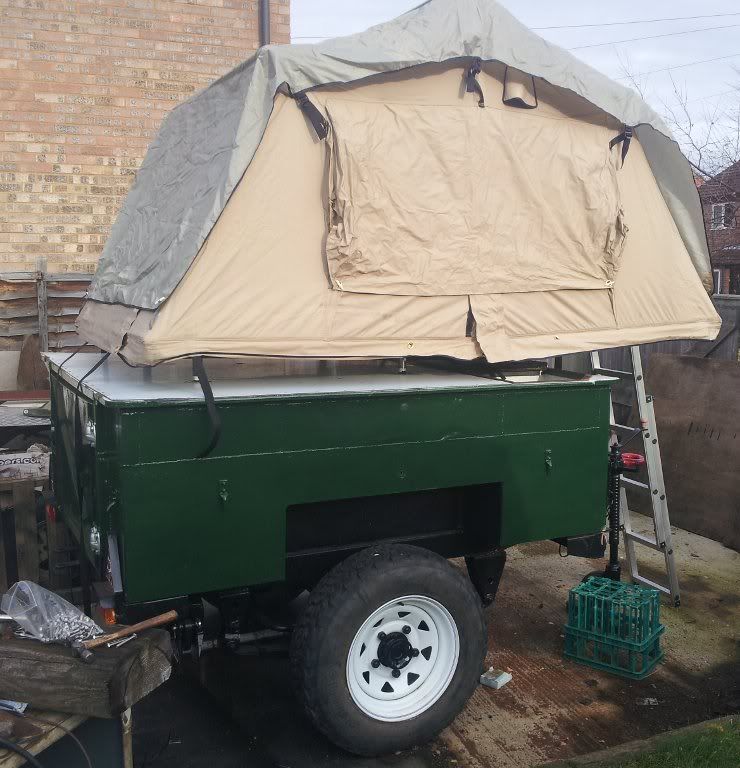

Just put it away for winter as other projects to deal with...but its pretty much there now

Bromsgrove Defender · Dec 22, 2011

Maybe it's just me being lazy...... But I'd put the tent on t'other way about so you wouldn't have to unhitch to put the tent up.

Buckhandle · Jan 7, 2012

Thank you for sharing this project so far! It's been a great documentary

I look forward to see how you seal the hatches ..

Lars

rustyrhinos · Jan 9, 2012

Ah, yes, the tent the other way round. We did think about this quite a lot and there are a few aspects to it. Firstly is that we often camp on un-level ground, so you cant raise/lower the front of the trailer much if it is attached to a car anyway. But the main point is this...most of the regularly accessed gear (food, water, camping equipment, clothes, etc) are kept in the back of the trailer. If the tent overhanged this, it would mean once the tent was pitched it would be a pain to then get stuff out, which would be annoying. This outweighs in our opinion having to un-hitch.

Glad you like it Buckhandle

rustyrhinos · May 27, 2012

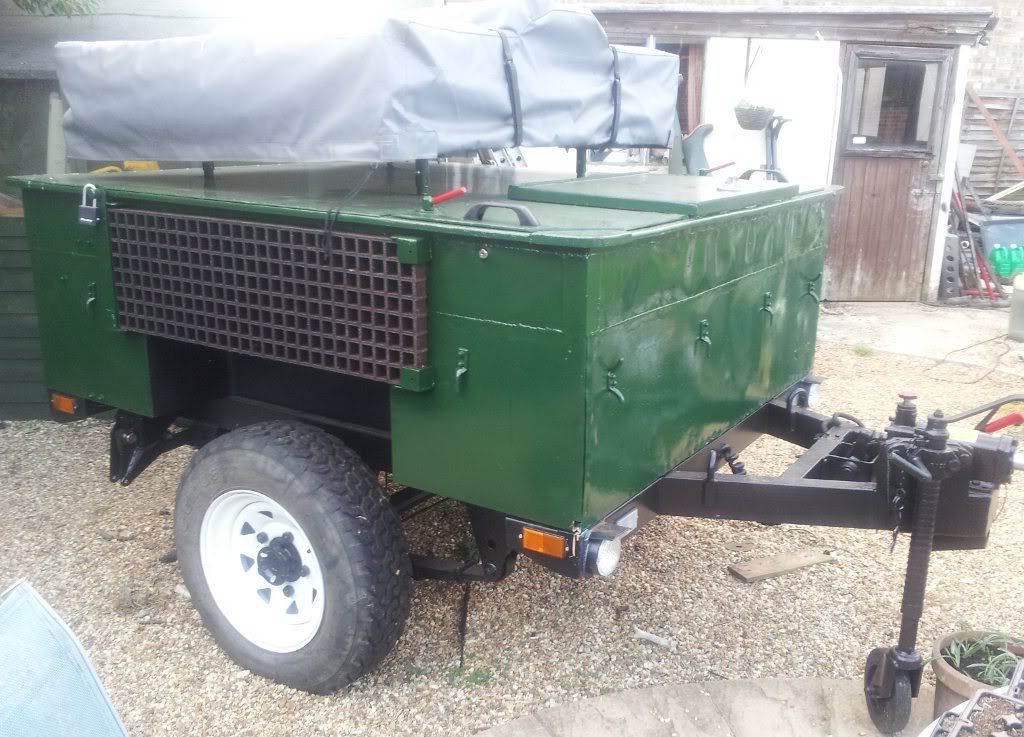

Only a small update again...but painted the top of it

JonnyP · May 27, 2012

Nice job..

rustyrhinos · May 27, 2012

Thanks

rustyrhinos · Jul 4, 2012

Pretty much there now with only a few minor touches left.

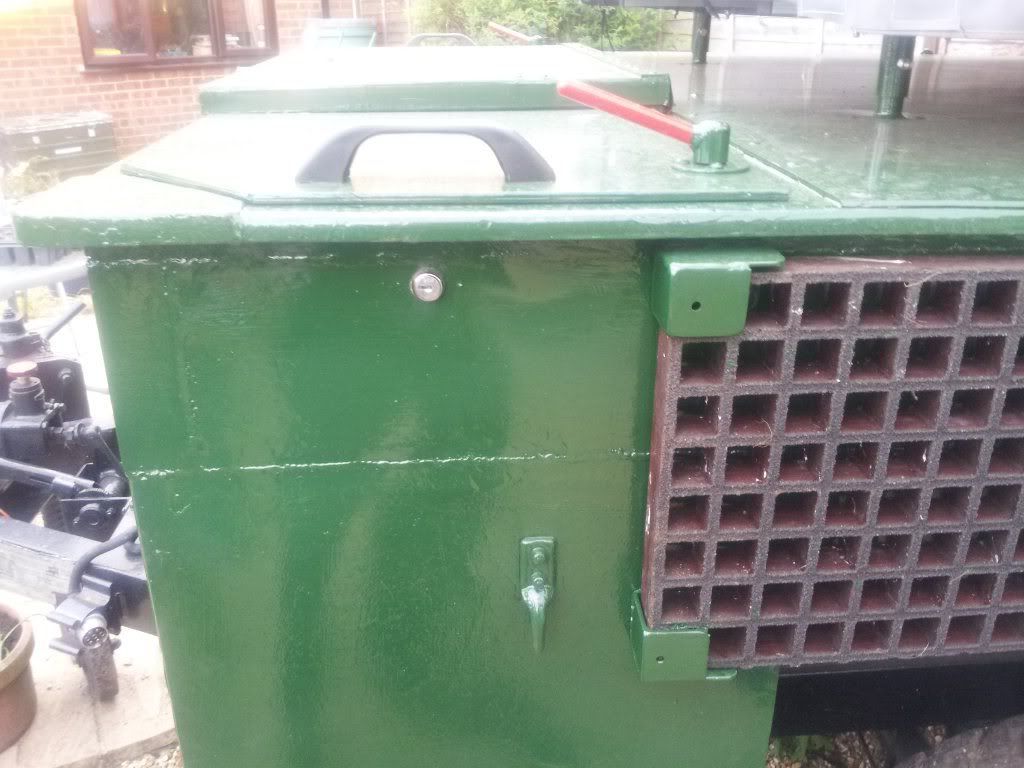

Mounting the waffle boards. Some simple brackets made and a hinged bracket on the other side with a padlock. The lids are now lockable. This wasn't in our opinion quite enough to stop the lids bouncing about - reckon the lock will just wear itself out. Added a home-brewed twist clamp (the red painted bit) to hold it down nicely:

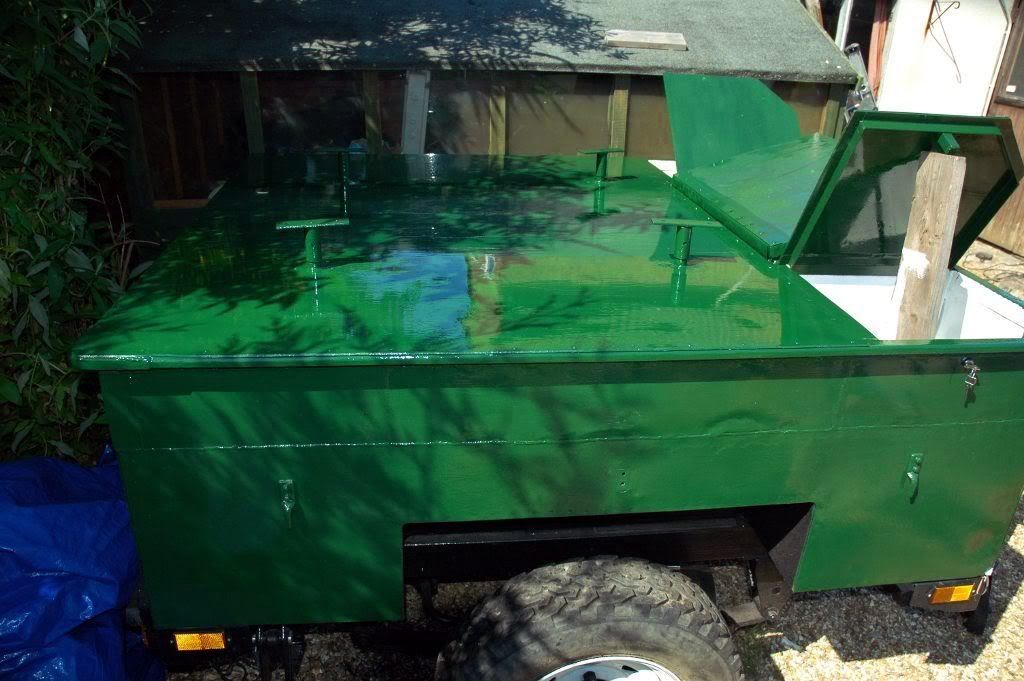

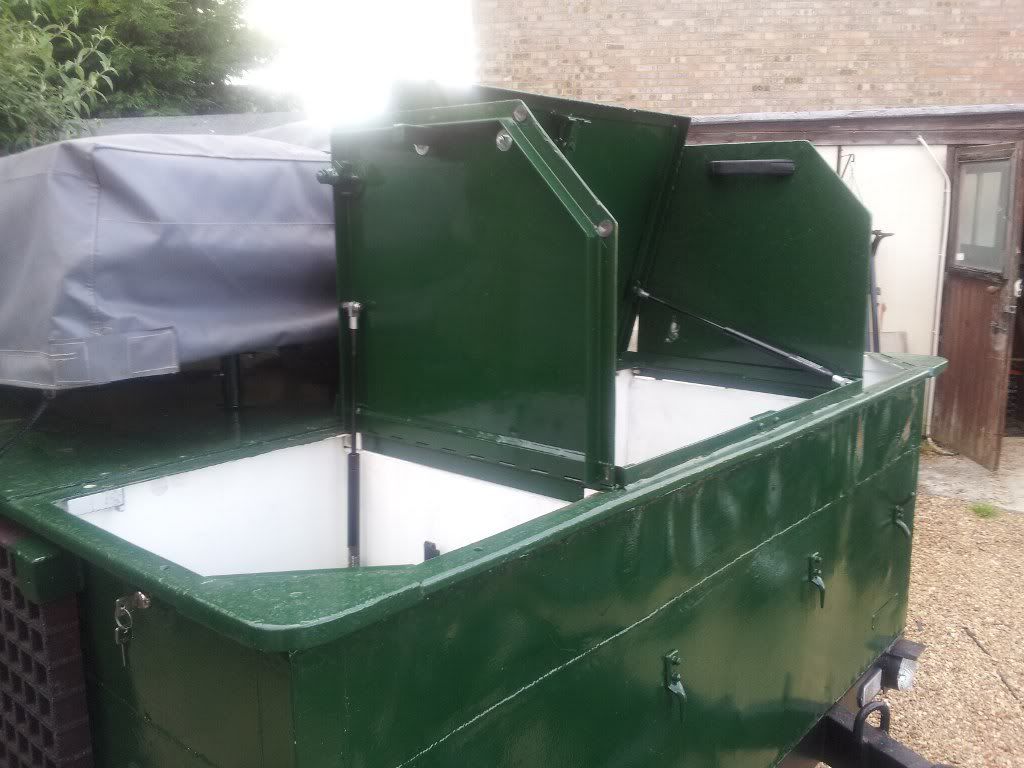

Lids are now complete with lifters:

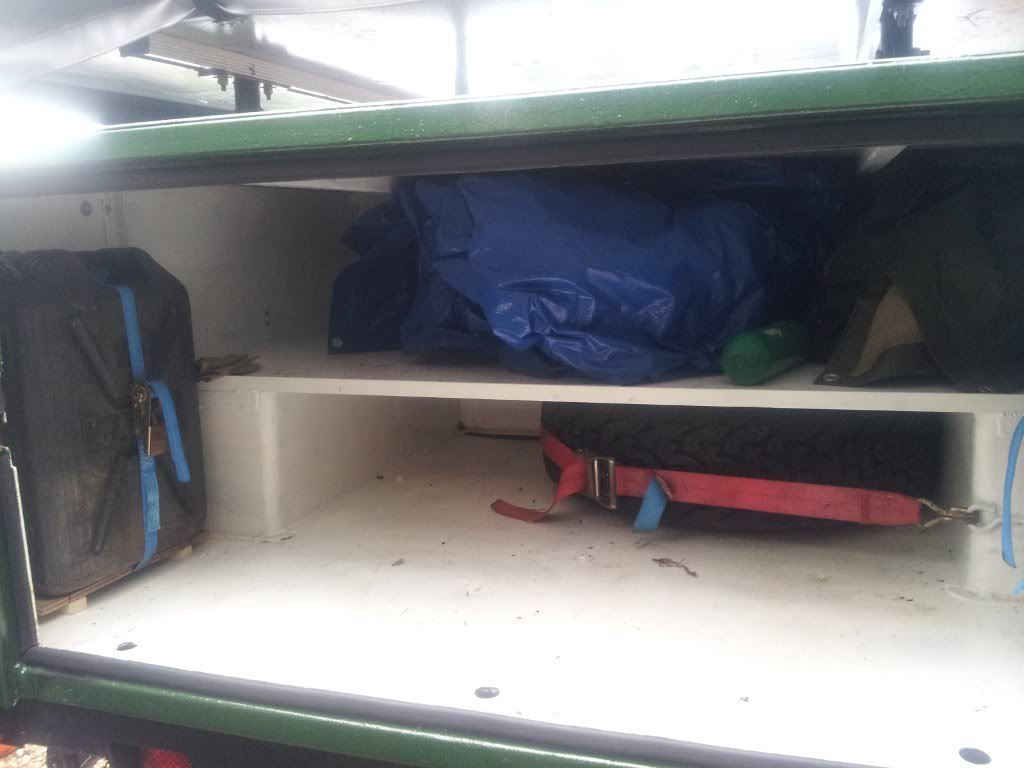

Simple way of securing the emergency water cans:

Sorted

wickford90 · Jul 4, 2012

just out of curio what does it weigh.

Buckhandle · Jul 4, 2012

I love it and want one. It is truly great to see projects like this .. YOUR project .. not just something you bought on the web..
