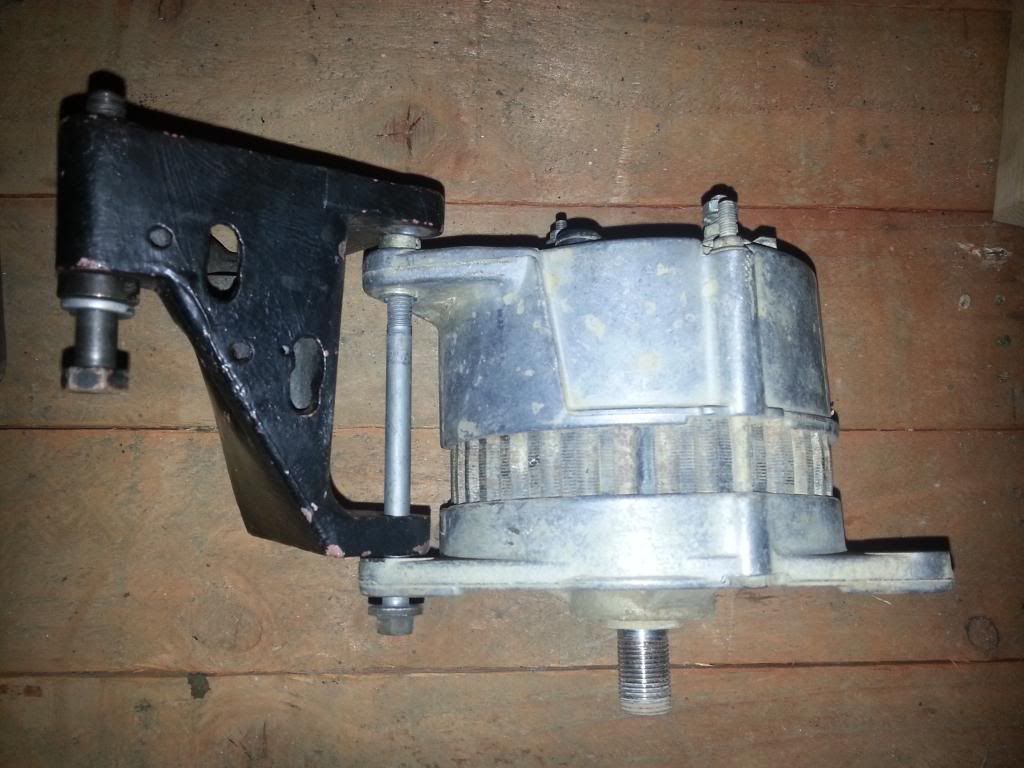

Rover V8 Right hand or second alternator bracket

discomark10 · Sep 6, 2013

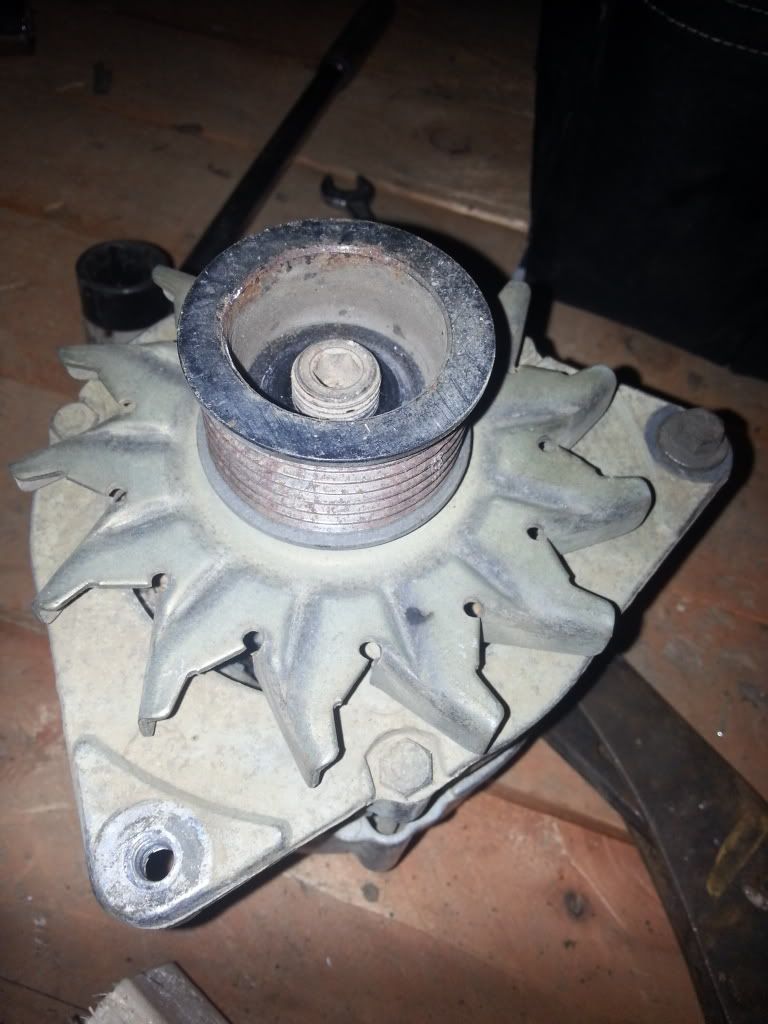

Got 1 pulley off, seems to be compression fit.

Mr Noisy · Sep 7, 2013

Yeah you might want to sweat the new pulleys on...

discomark10 · Sep 7, 2013

Mr Noisy said:
Yeah you might want to sweat the new pulleys on...

sweat? like as in heat?

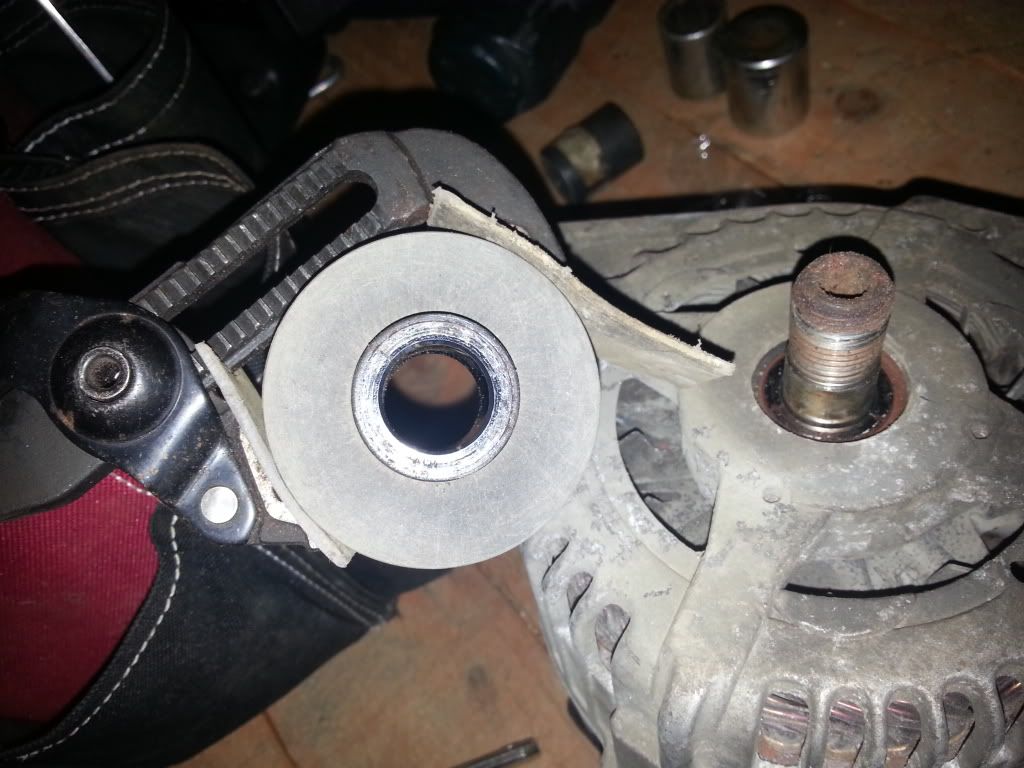

I popped of my current lucus unit and with a bit of a bash the pulley come of, and 2min later its on the new alternator!
Alignment looks good, need to double check when the rain stops.

discomark10 · Sep 7, 2013

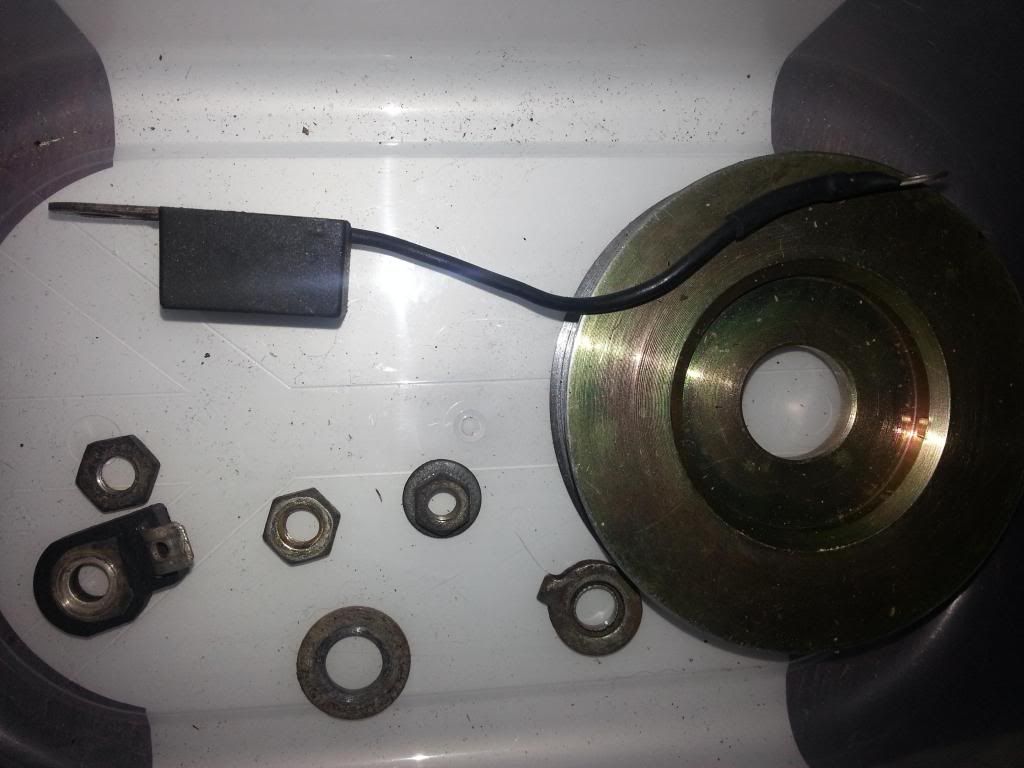

Had to have a faf with the alignment, but with the spacers and washers which were on the old one and the new I got it sorted

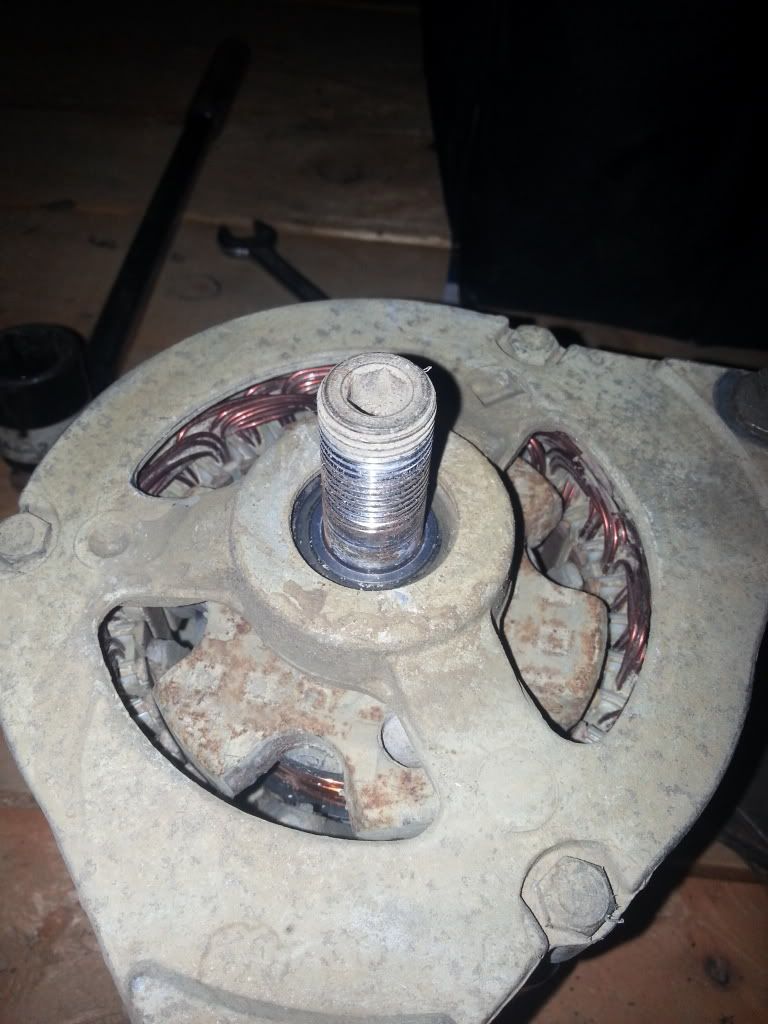

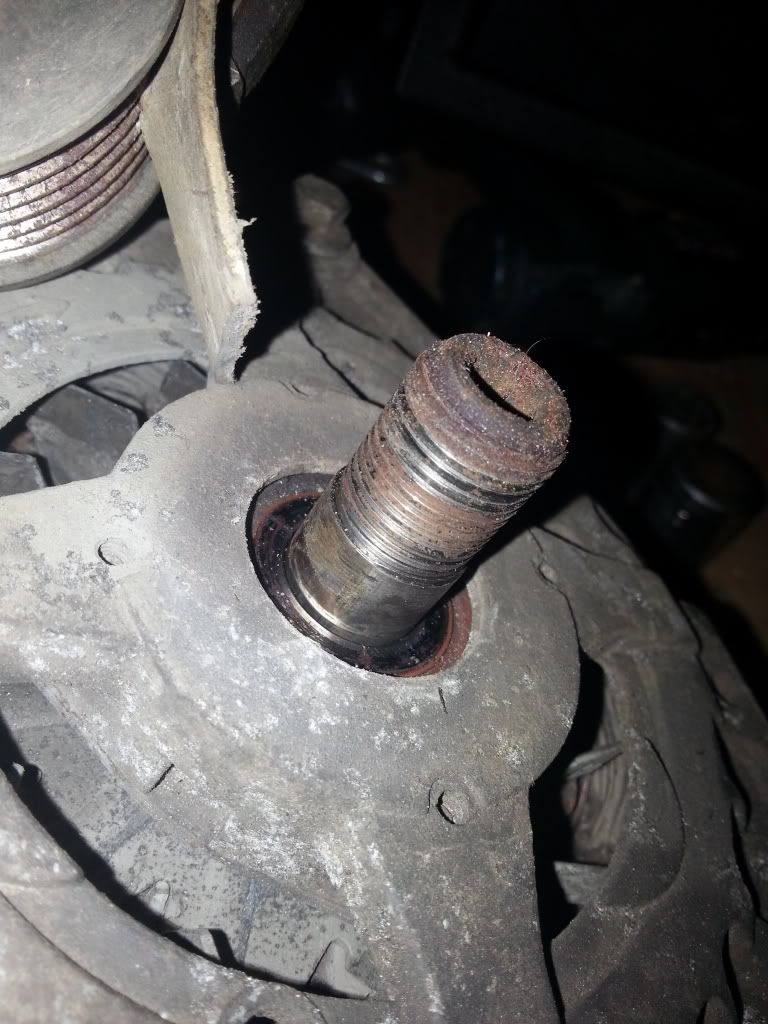

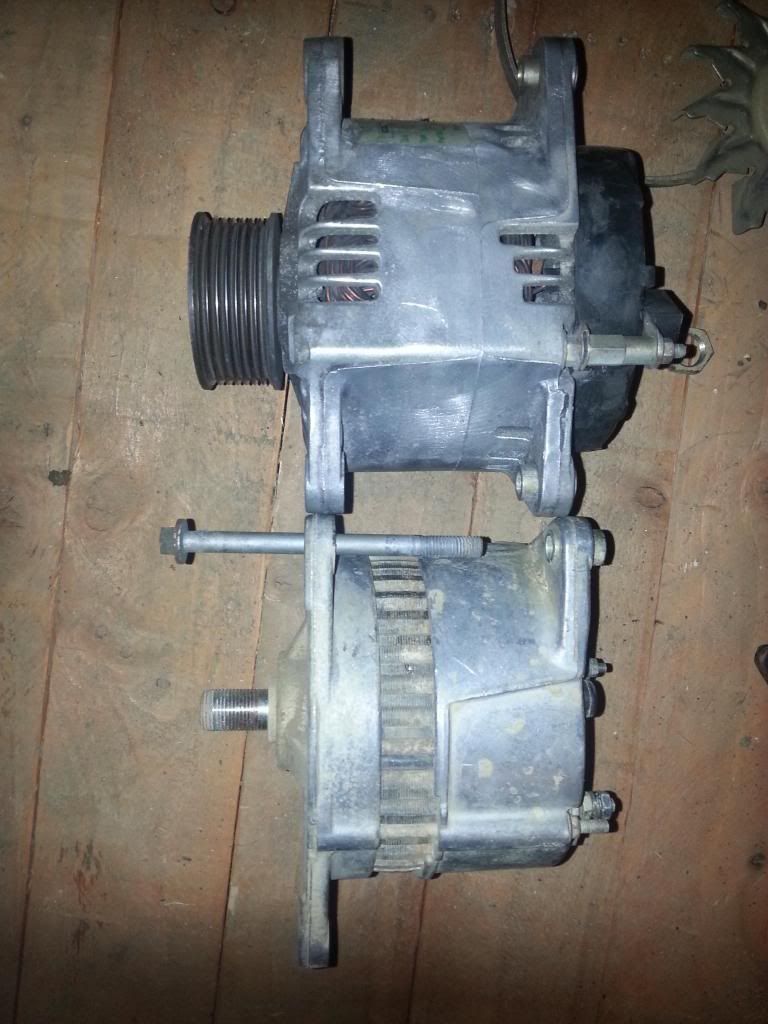

Old spindle looks almost identical to the newer one.

It would also work that way!

Mr Noisy · Sep 7, 2013

Easy job then!

Yeah I meant to heat the pulley to expand it but clearly not necessary.

Must get looking for a high output unit then, what was that from please mark? P38?

Mr Noisy · Sep 7, 2013

Also no fan on the new one??

discomark10 · Sep 7, 2013

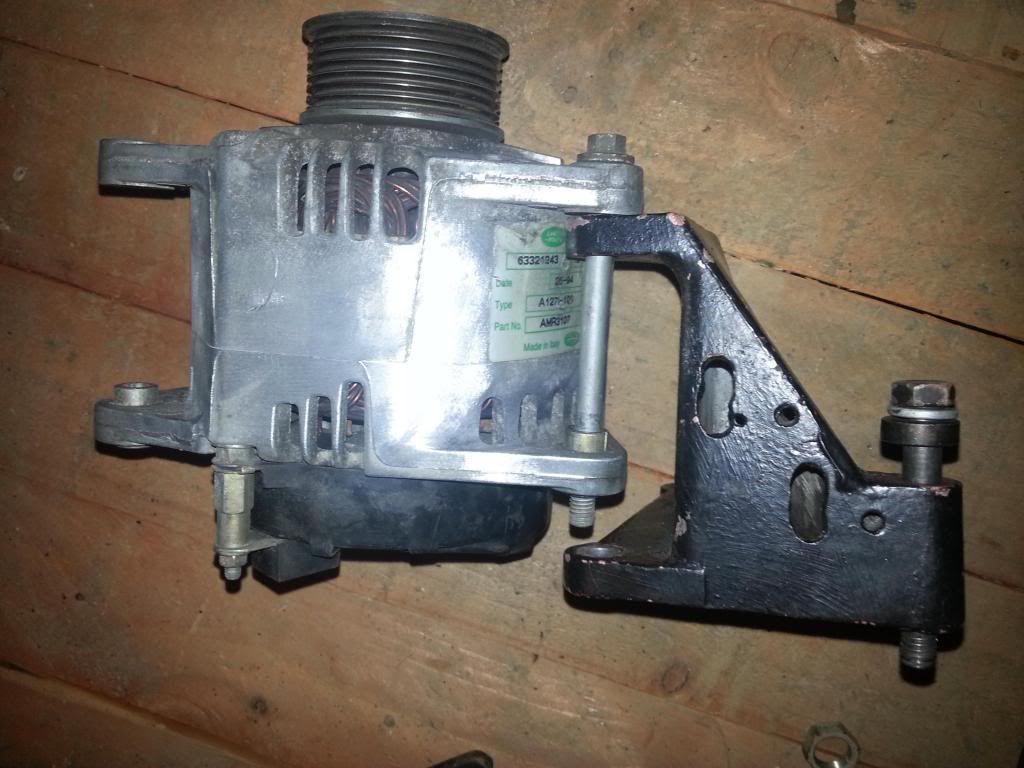

The only other things to note is the new ring terminal is larger and the mounts are closer together than on the newer alternator so had to use a few extra nuts n bolts.

Now to order another pulley and start fitting the other one!

discomark10 · Sep 7, 2013

It's a newer one which has the fan internally.
AMR3107
Rover V8 Alternator 100 Amp 62mm Serpentine Belt System AMR3107 | eBay

discomark10 · Sep 7, 2013

Funny note, in the description he sold it (them) due to it having a serp pulley

Mr Noisy · Sep 7, 2013

Thanks for the link!

That's good regards internal fan, I don't run a guard on my alternator but the fan can be a bugger, don't wana get too close to the bugger when trying to wash the alternator out to get it working again

Mr Noisy · Sep 7, 2013

discomark10 said:
Funny note, in the description he sold it (them) due to it having a serp pulley

Schoolboy error

discomark10 · Sep 10, 2013

discomark10 · Sep 11, 2013

Got the new pulley for the 2nd alternator today, looked a lil slim to me, a test fit it on a belt confirmed it, seems the grove isn't quite wide enough for the belt to sit in fully!
I think there is enough un machined bit to widen it sufficiently.
It looks to be of similar design to the original one.

discomark10 · Dec 29, 2013

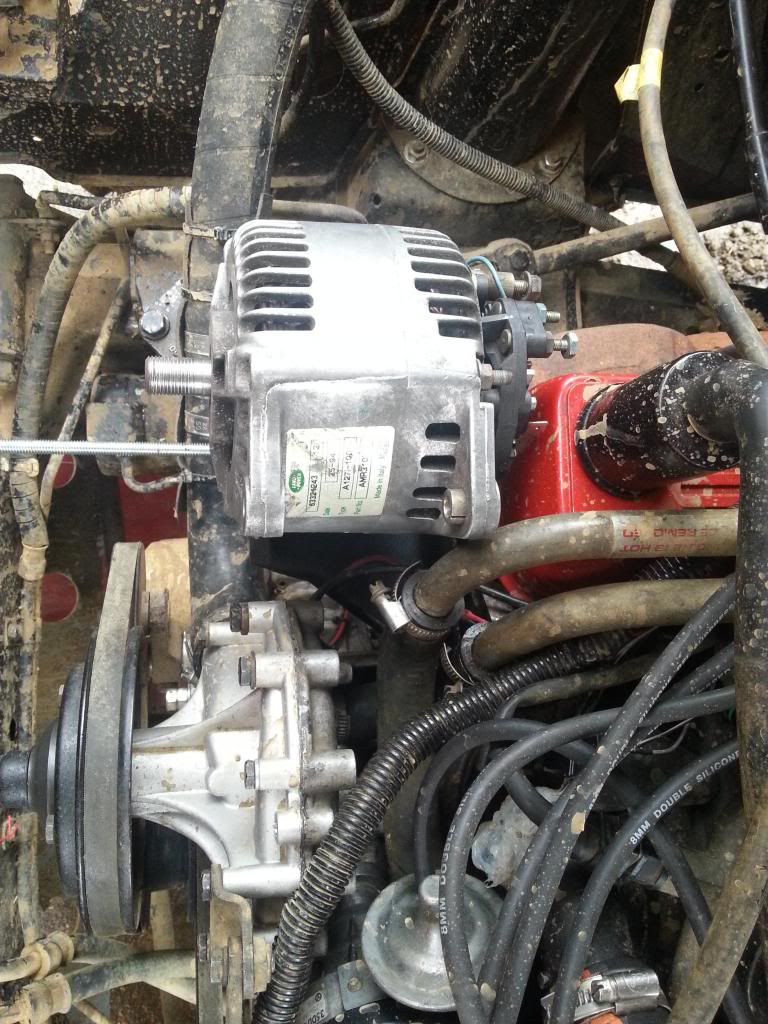

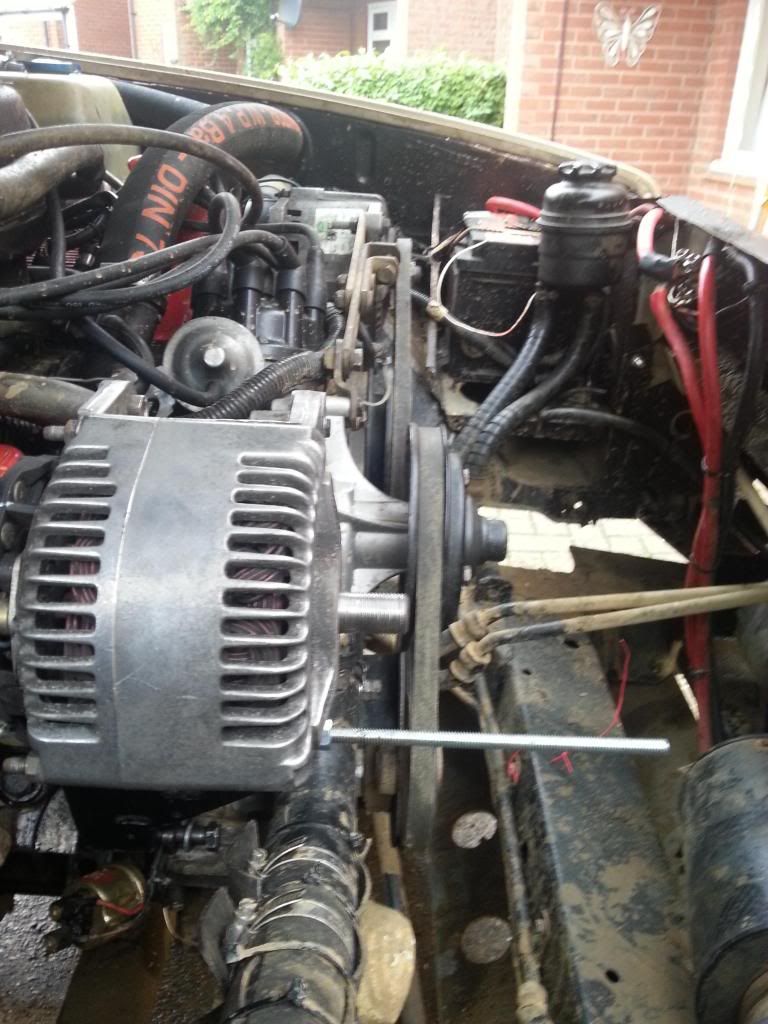

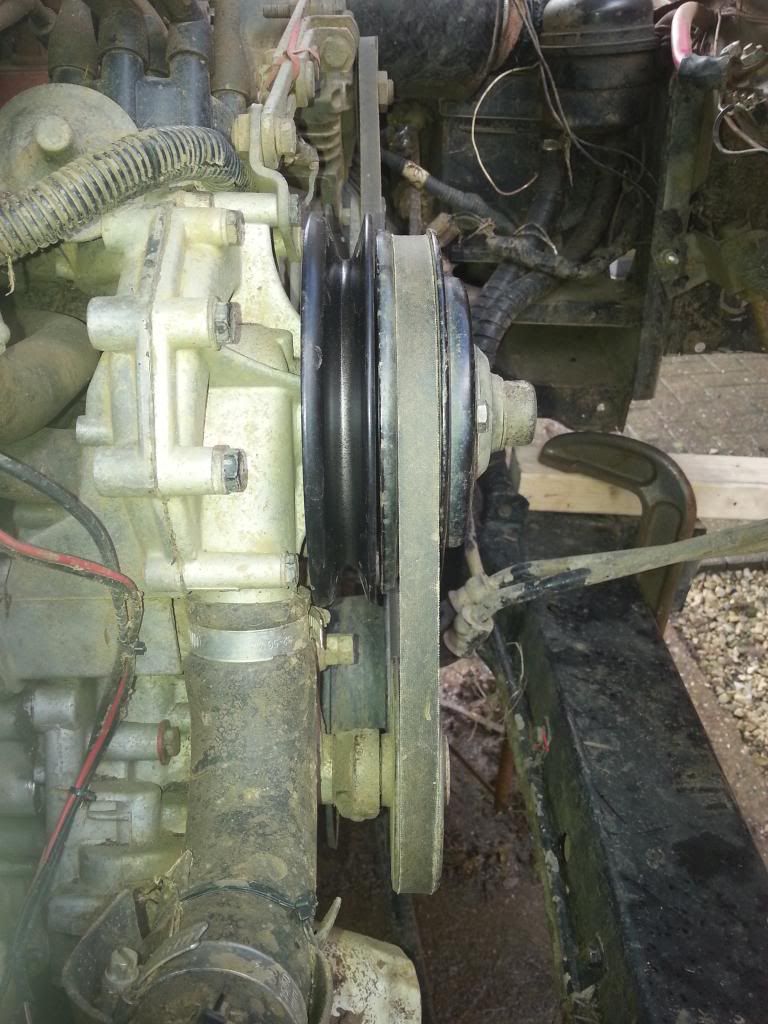

bunch of pics I forgot to upload, Going to take a fair bit of spacing to get the pully in lin with the pump belt.

zen · Dec 29, 2013

nicly done...BUT WHY???

just fit a big alternator???

twin alts will fight each other...one will do charging while other does feck all.
only any good if charging twin batterys independently..
i know cos i have,and its basic electrical theory.

but i admit..looks good

as i said have twin alts...

discomark10 · Dec 30, 2013

Yes two batteries on different circuits

zen · Dec 30, 2013

then all is kool!

carry on old bean!

looks good..

discomark10 · Jan 9, 2014

discomark10 said:
bunch of pics I forgot to upload, Going to take a fair bit of spacing to get the pully in lin with the pump belt.

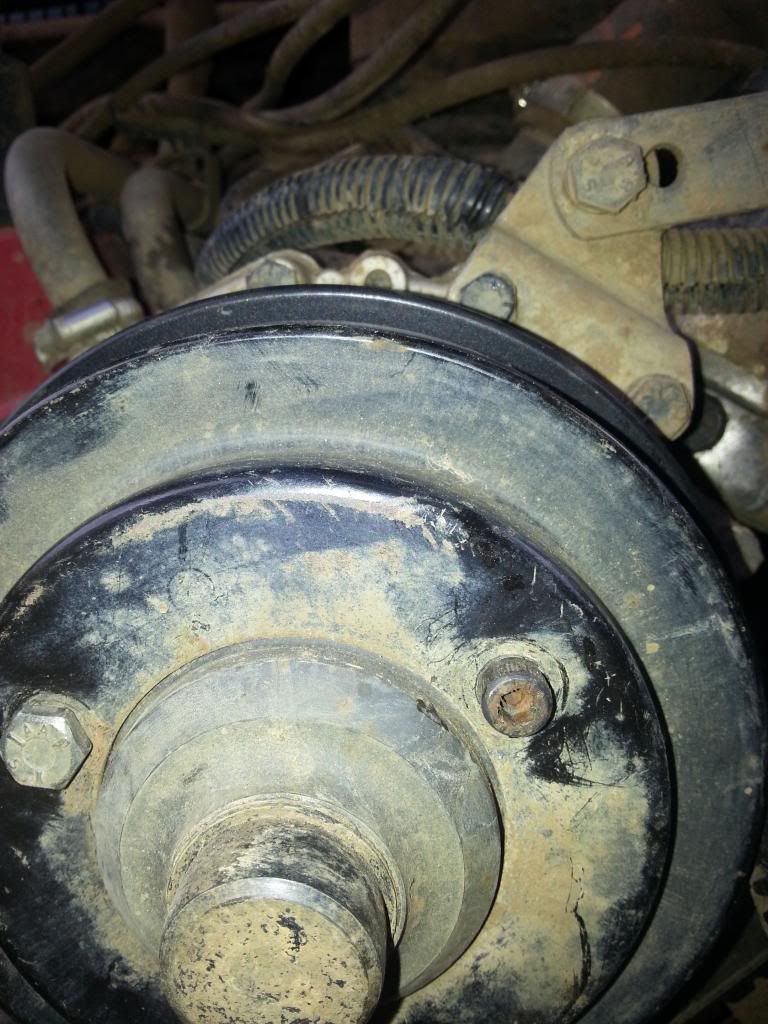

Think i found a solution to the offset pulley situation.
ETC5422

It fits in behind the water pump drive pulley

discomark10 · Jan 14, 2014

pulley has arrived

discomark10 · Jan 16, 2014

Fitted.

Its very slightly bigger than the water pump one, shouldn't matter a bit though!
