Comon postie.. deliver my mount!
Rover V8 Right hand or second alternator bracket
- Thread starter discomark10
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes

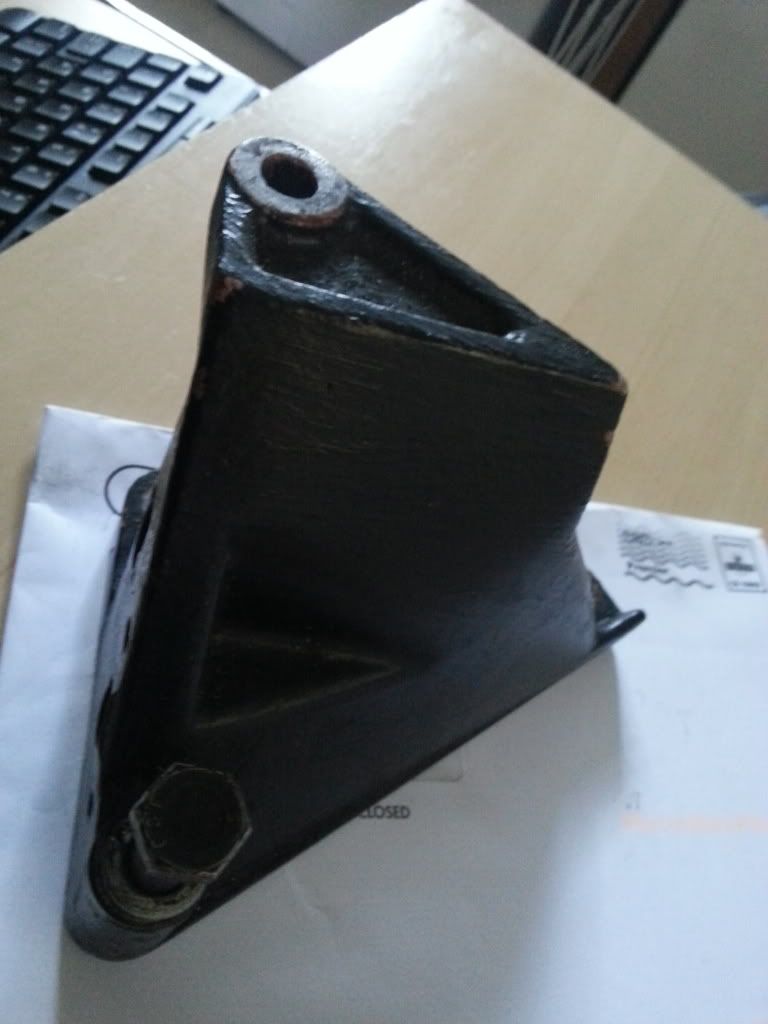

Got the bracket/mount today
Last edited:
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes

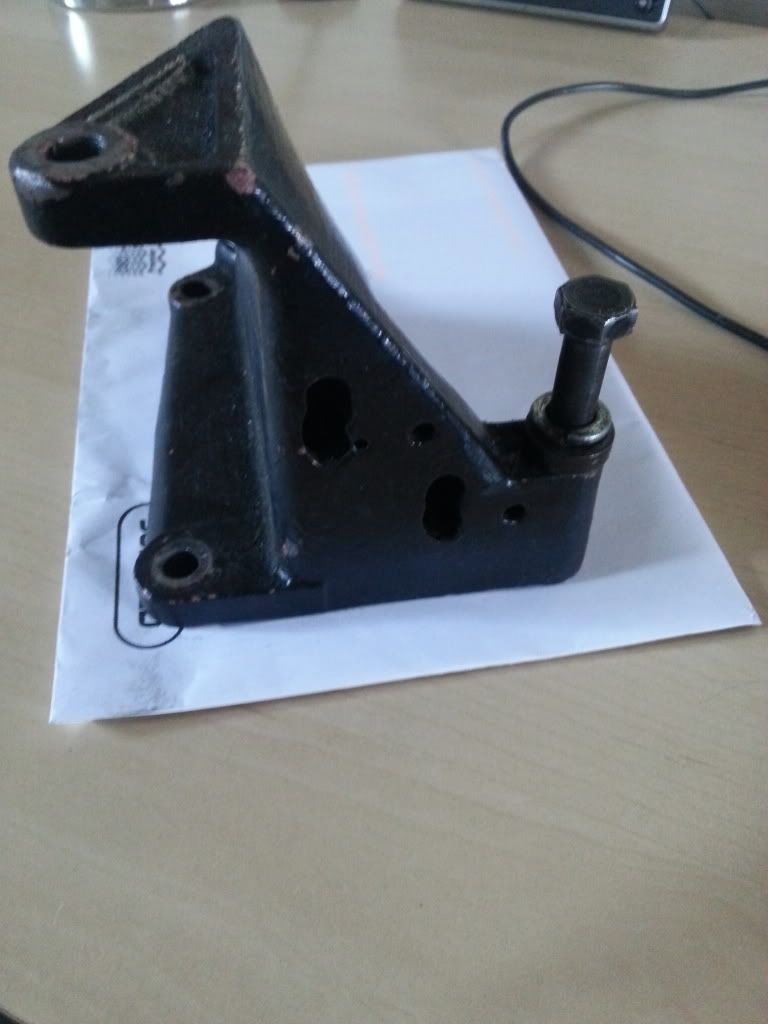

So had a bit of a measure up on the new (old) bracket, Its about 35mm to far back to fit straight on with the standard alternator.
shouldn't be to hard to adapt mind you.. To Be Continued"
shouldn't be to hard to adapt mind you.. To Be Continued"
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
Same bracket I have sat in the spares box, also got a drilled plate one which will be the one I use for now as it was the one on it originally
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes

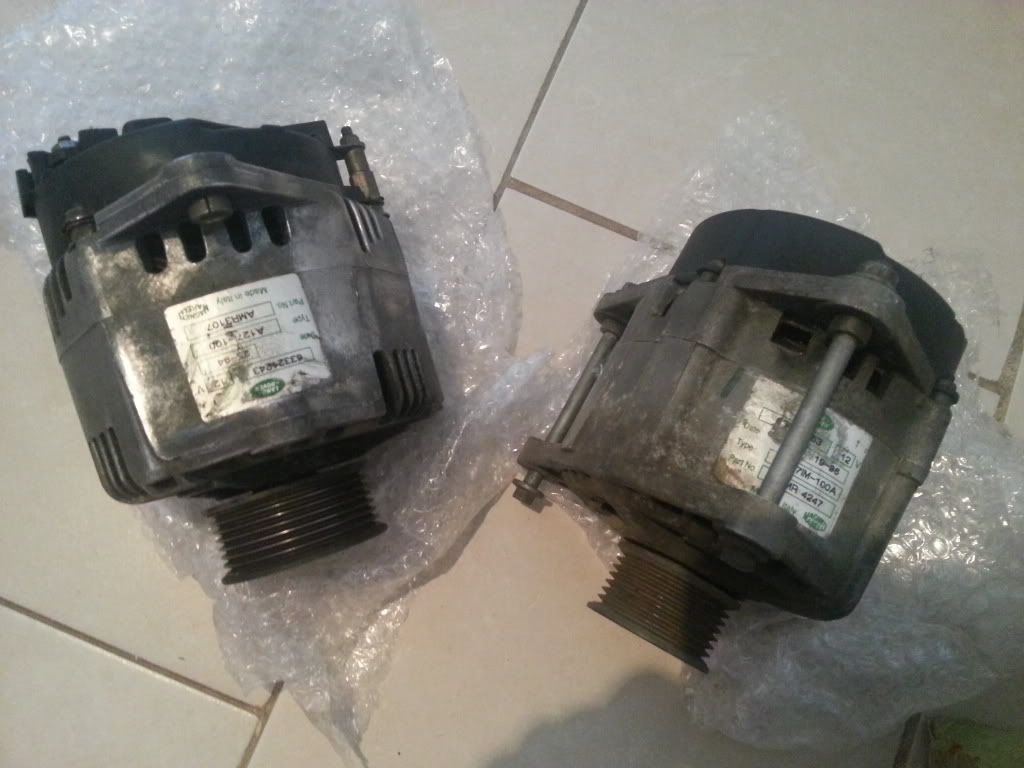

Small update, Won a bid on ebay for a 100a alternator and got them today!?
Result!
Just gota change the pullys now!
Result!
Just gota change the pullys now!
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Is it possible to put V belt pulleys on them?!?!
I only need/want one alternator (so far) but when you have put many detailed pics up of your install I may be forced to copy you
I only need/want one alternator (so far) but when you have put many detailed pics up of your install I may be forced to copy you
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Even so, would be interested to see if you can swap the pulley then maybe I'll just use a 100/120A etc in the original position.
Not sure if my noisy 70A will make another winter...
Not sure if my noisy 70A will make another winter...
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
I plan to obtain a new pulley from this site, providing they do one with a correct or close size.
Pulleys and Fans
Pulleys and Fans
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Oh I see!
Won't be an issue to under or overdrive your alternator, over driving would give better idle output actually!
Wonder if the Lucas type alternator (v belt) has the same/similar shaft to a Bosch (serp) ?
Or if you can only get an aftermarket?
That said, Bosch alternators are common enough that you should find something to fit one!
Won't be an issue to under or overdrive your alternator, over driving would give better idle output actually!
Wonder if the Lucas type alternator (v belt) has the same/similar shaft to a Bosch (serp) ?
Or if you can only get an aftermarket?
That said, Bosch alternators are common enough that you should find something to fit one!
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
Ill get a few measurements when I look at them, I'm pretty sure i have a Lucas one on atm.
I will need to try and match the gearing mind you, is there a reason you don't want to over drive them, apart from causing extra work due to the gearing?
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Yeah if you under drive it you get better top end bhp (negligible of course seeing as the alternator is regulated output anyway) and if you over drive it you will get better low rpm output, again, regulated top end so it will never over volt and the rpms doesn't matter either, your wheezy 5500rpm (peak shift is about 4700 anyway on stock cam) RV8 is nothing compared to a 8k Honda of the same era, so if anything, if you're winching, aim for an over drive.
It'll put more strain on your belt system but you will make more amperage at low rpms.
It'll put more strain on your belt system but you will make more amperage at low rpms.
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
most of the driving will be under 3500 any who, can't afford to rev it
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Yeah mate exactly, over drive won't harm then anyway.
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
Just had 5 seconds to look with a tape measure, they shafts on the Lucus and these 2 new (2nd hand) all look to be 17mm.
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Positive result so far, are they woodruff keyed, tapered, or simply interference fit?
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
Indeed, we shall see!
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
just having a read on this helpful page, seems the operating rpm is between 2k-10k, so as long as I don't overdrive it more than 2x the engine speed ill be ok as a rover v8 don't go much over 5k.
Using an Alternator in Renewable Energy Projects
Using an Alternator in Renewable Energy Projects
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Should be easy enough to work out how much you have overdriven it by connecting a tacho to the alternator and a tacho to the coil and the rpm difference is an approximate over drive percentage
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
Im going to do it even simpler than that, ill work out the circumference of the pullys
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Pfffft!
