Re-Discovery
- Thread starter 1988smithy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Hicap phill
Well-Known Member
- Posts
- 16,237
- Location
- Wiltshire
See priority on the packing/loading. Beer always first to hand.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
@Turboman
Between wolverley and caunston
View attachment 180460
View attachment 180461
View attachment 180462
View attachment 180463
Nice stretch of cut
View attachment 180464
Very nice, but quite easy to run aground on the inside of some of those bends, as I have found out in the past.
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
Arr, kids bikes first so they can fu...go and enjoy themselves without getting in the way
and the beer straight in the fridge. I've got the twin plugs on the Disco but ain't tried running the fridge while we're driving yet for some reason.
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands

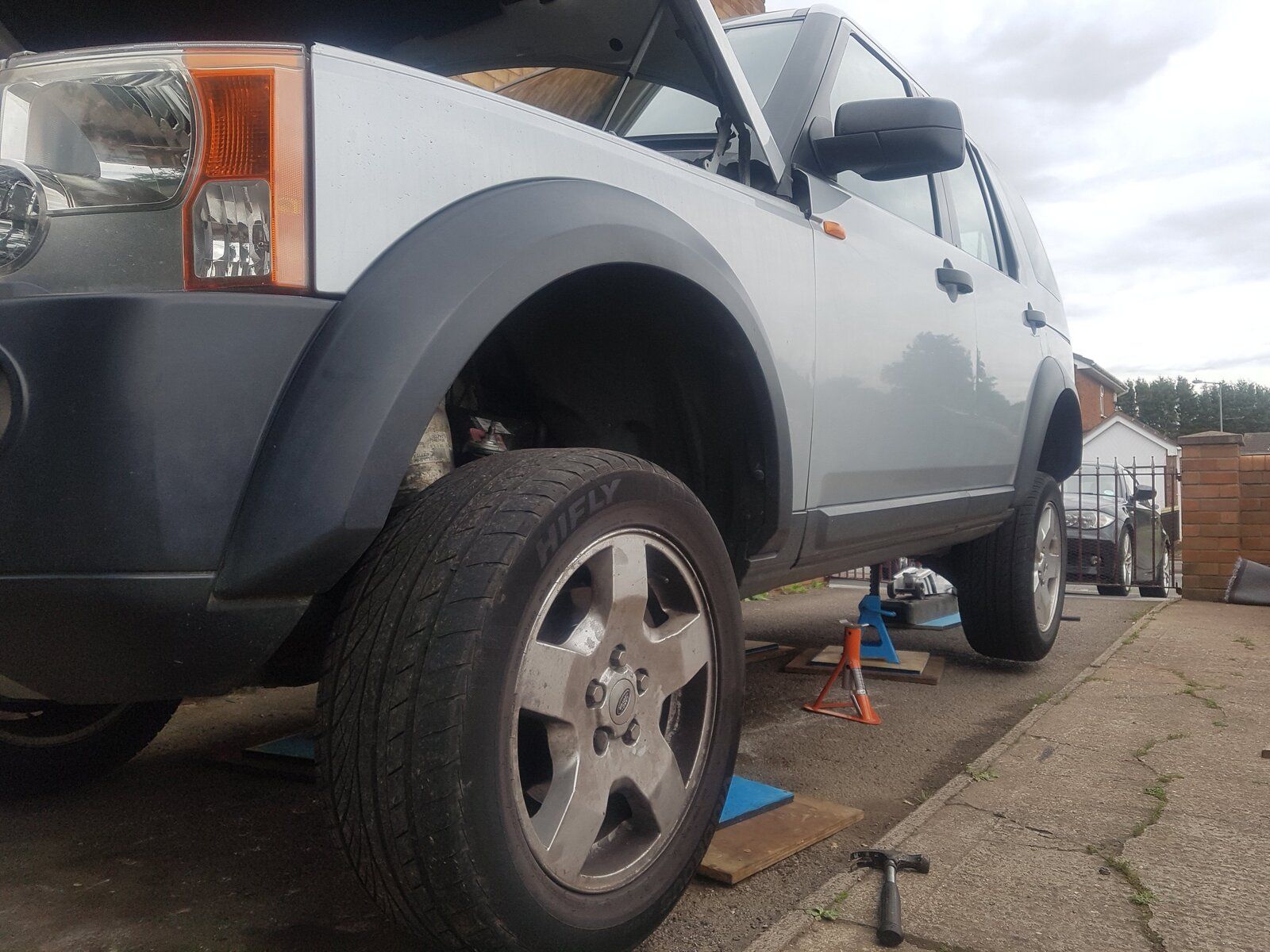

Sanity check before I dive under.
Plan is to take wheels off to reduce centrifugal forces, then run it and use me stethoscope to find the cause of this noise.

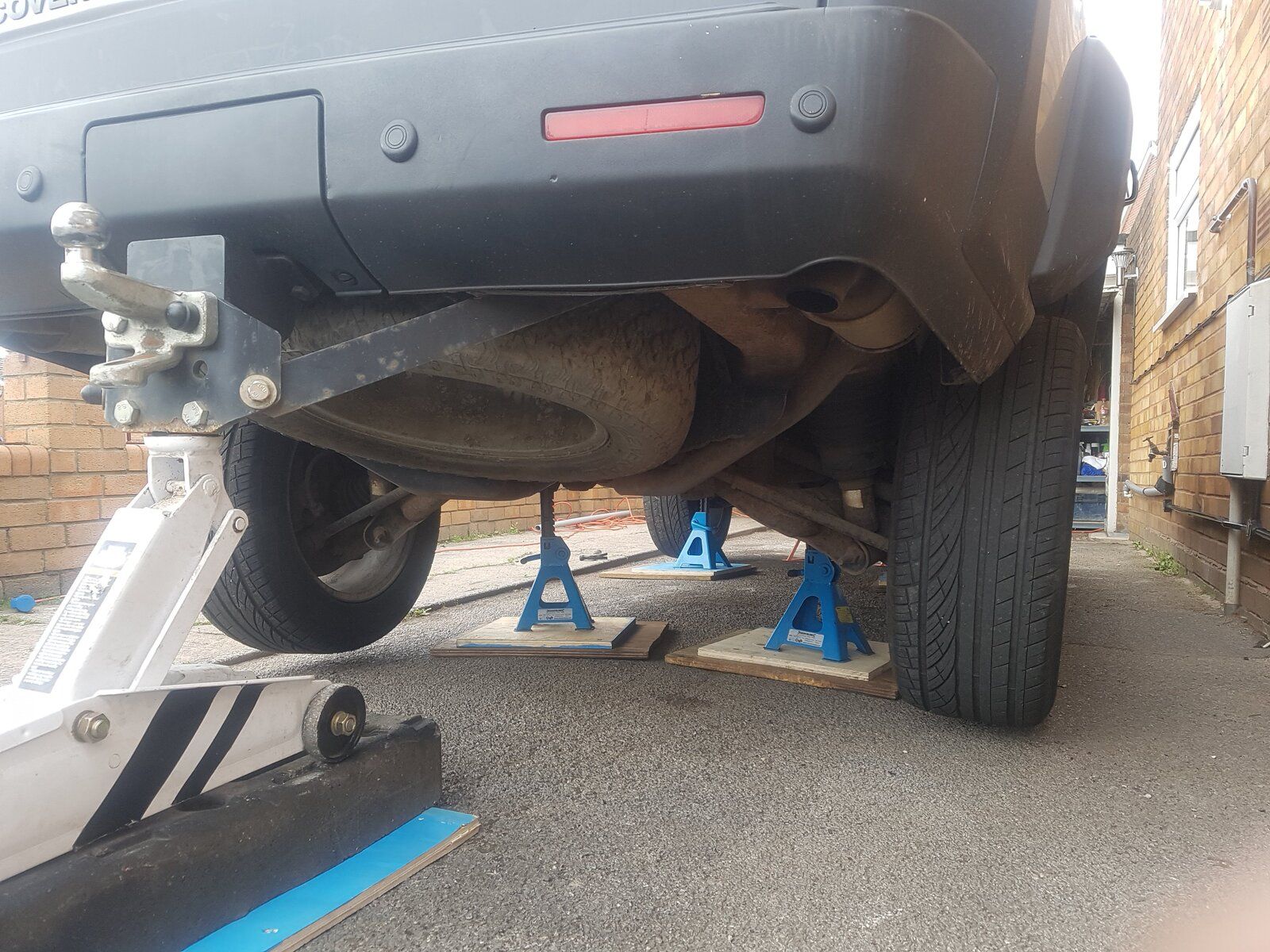

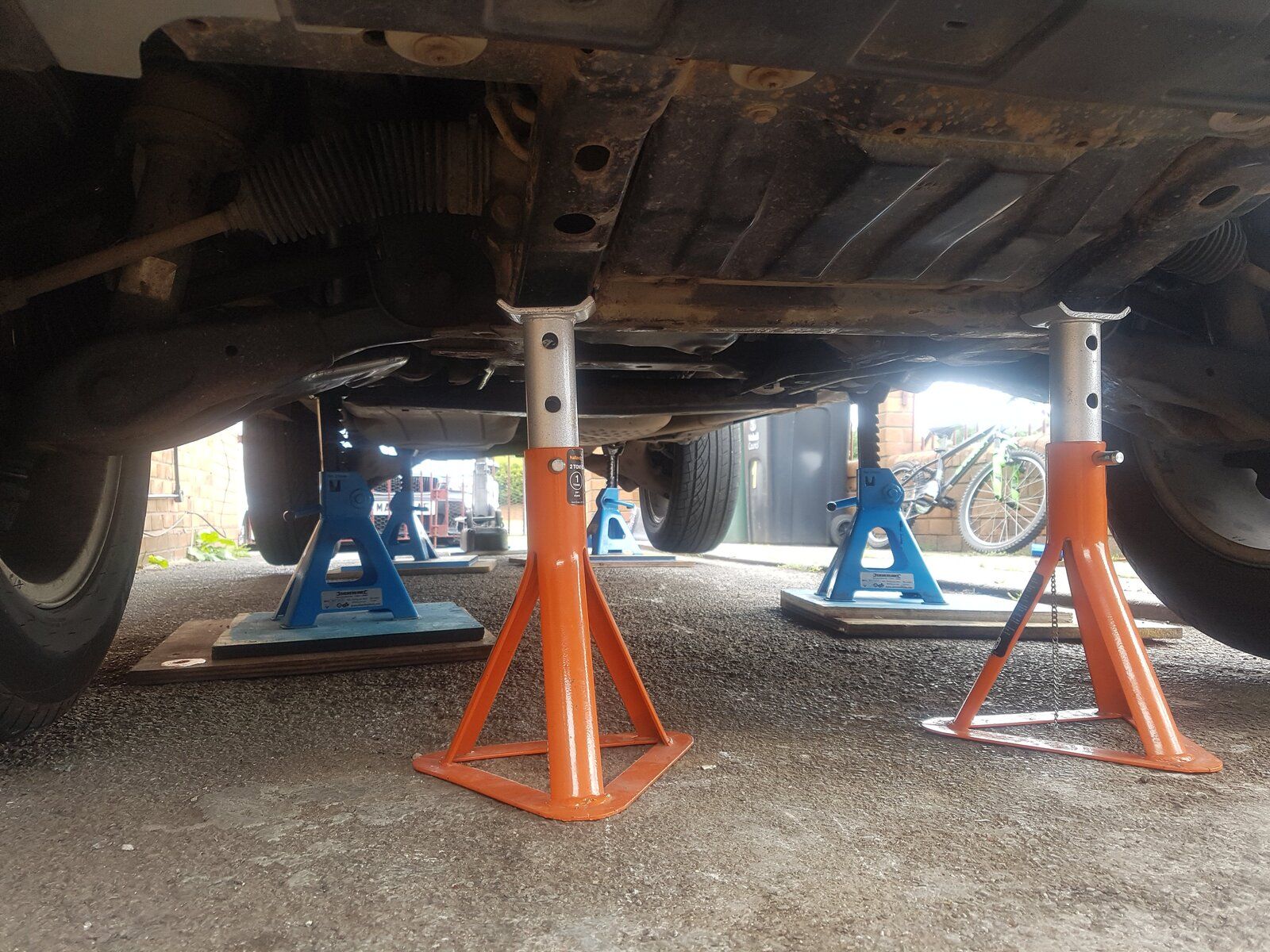

6ton (pair) of stands front and back on chassis, 2x 2tonne per pair as back up under front crossmember and 3ton jack under tow hitch. I've kicked, shook and jumped up and down and it ain't moved yet.
Am I stupid?
Plan is to take wheels off to reduce centrifugal forces, then run it and use me stethoscope to find the cause of this noise.
6ton (pair) of stands front and back on chassis, 2x 2tonne per pair as back up under front crossmember and 3ton jack under tow hitch. I've kicked, shook and jumped up and down and it ain't moved yet.
Am I stupid?
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
Left hand front driveshaft

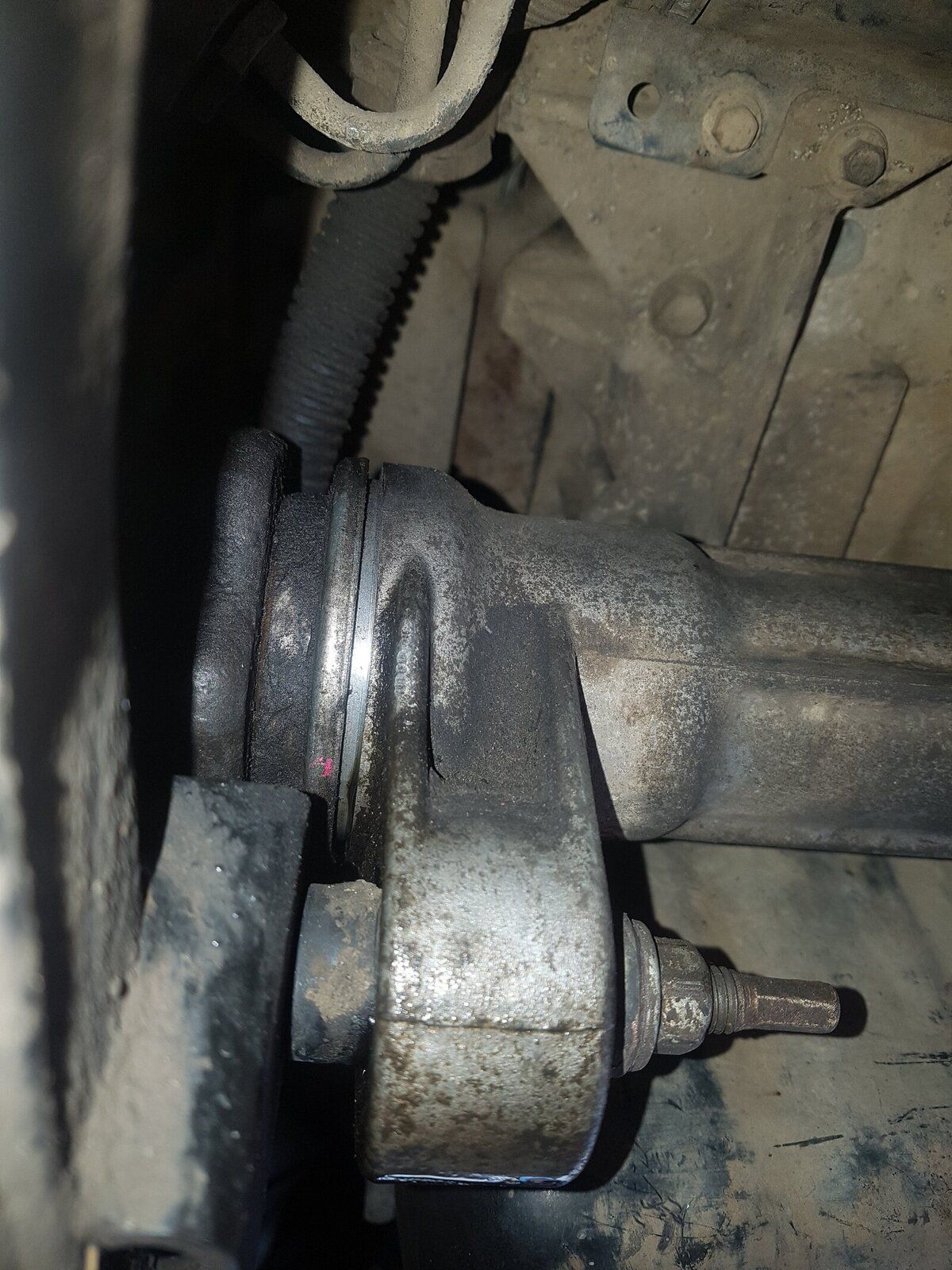

Small leak from right hand driveshaft where it butts against extension tube

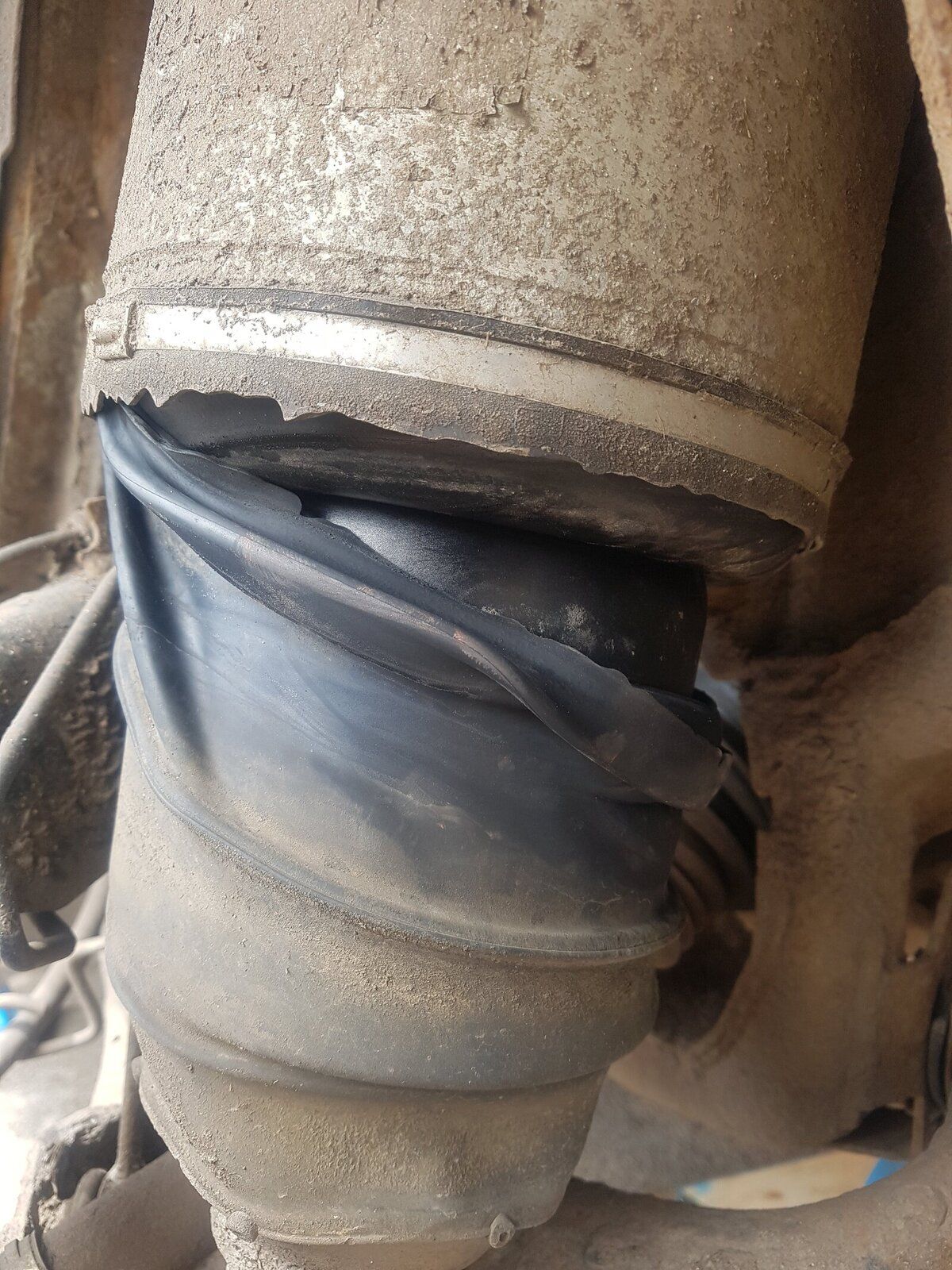

Rear left air spring
Small leak from right hand driveshaft where it butts against extension tube
Rear left air spring
Well I guess you found the beginnings of your next job
Wasn’t that the 1 you put new boot on? And wasn’t that the 1 test that I couldn’t get my head round last time? (Need to look back)
Don’t know the design in there but if it was the 1 you rebooted it looked ok at the time, are those tripoid(or what ever they are called) splined on the shaft too similar to the cvs on the props?
Think it’s look in the manual time
Oh and as for your “sanity check” yep we are all insane don’t worry
Good luck
J
Wasn’t that the 1 you put new boot on? And wasn’t that the 1 test that I couldn’t get my head round last time? (Need to look back)
Don’t know the design in there but if it was the 1 you rebooted it looked ok at the time, are those tripoid(or what ever they are called) splined on the shaft too similar to the cvs on the props?
Think it’s look in the manual time
Oh and as for your “sanity check” yep we are all insane don’t worry
Good luck
J
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
Well I guess you found the beginnings of your next job
Wasn’t that the 1 you put new boot on? And wasn’t that the 1 test that I couldn’t get my head round last time? (Need to look back)
Don’t know the design in there but if it was the 1 you rebooted it looked ok at the time, are those tripoid(or what ever they are called) splined on the shaft too similar to the cvs on the props?
Think it’s look in the manual time
Oh and as for your “sanity check” yep we are all insane don’t worry
Good luck
J
It was indeed the one I did boot on. Nevermind, debating wether to do both sides while I'm in there.... if you look in that crap vid, the right hand side driveshaft looks like it's jumping around a bit as it spins

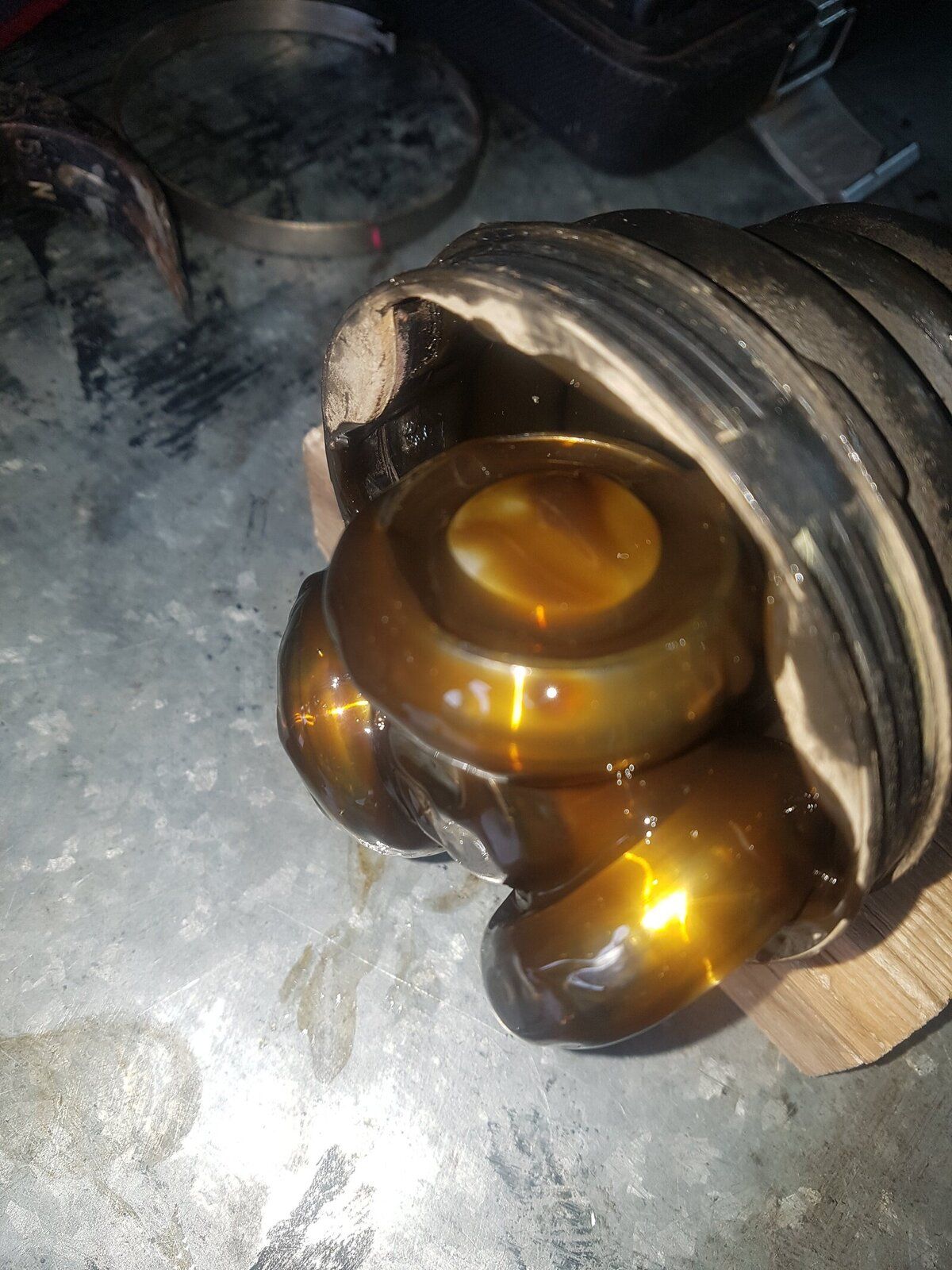

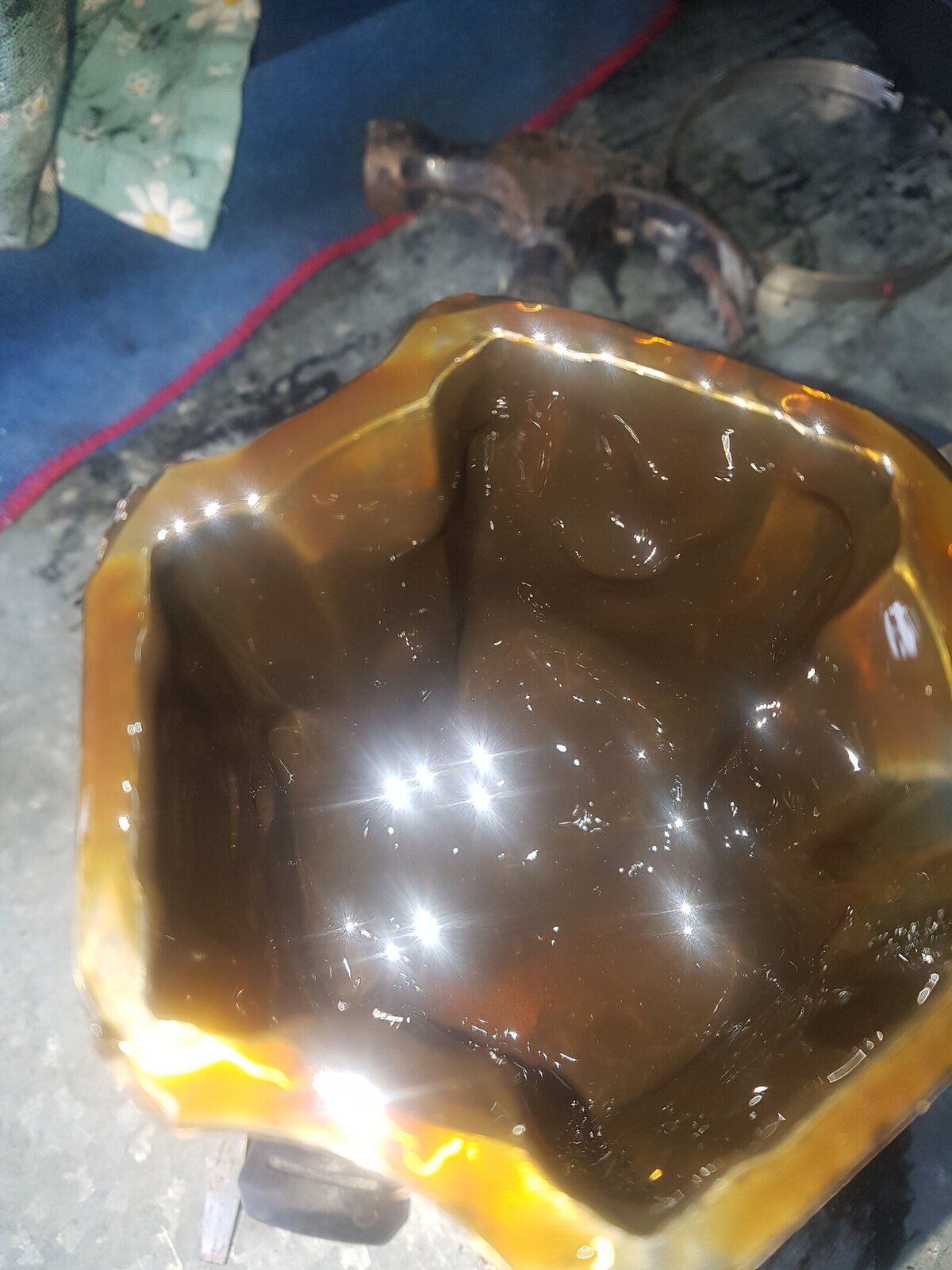

When I had it apart to do boot
Last edited:
Never noticed the other side.

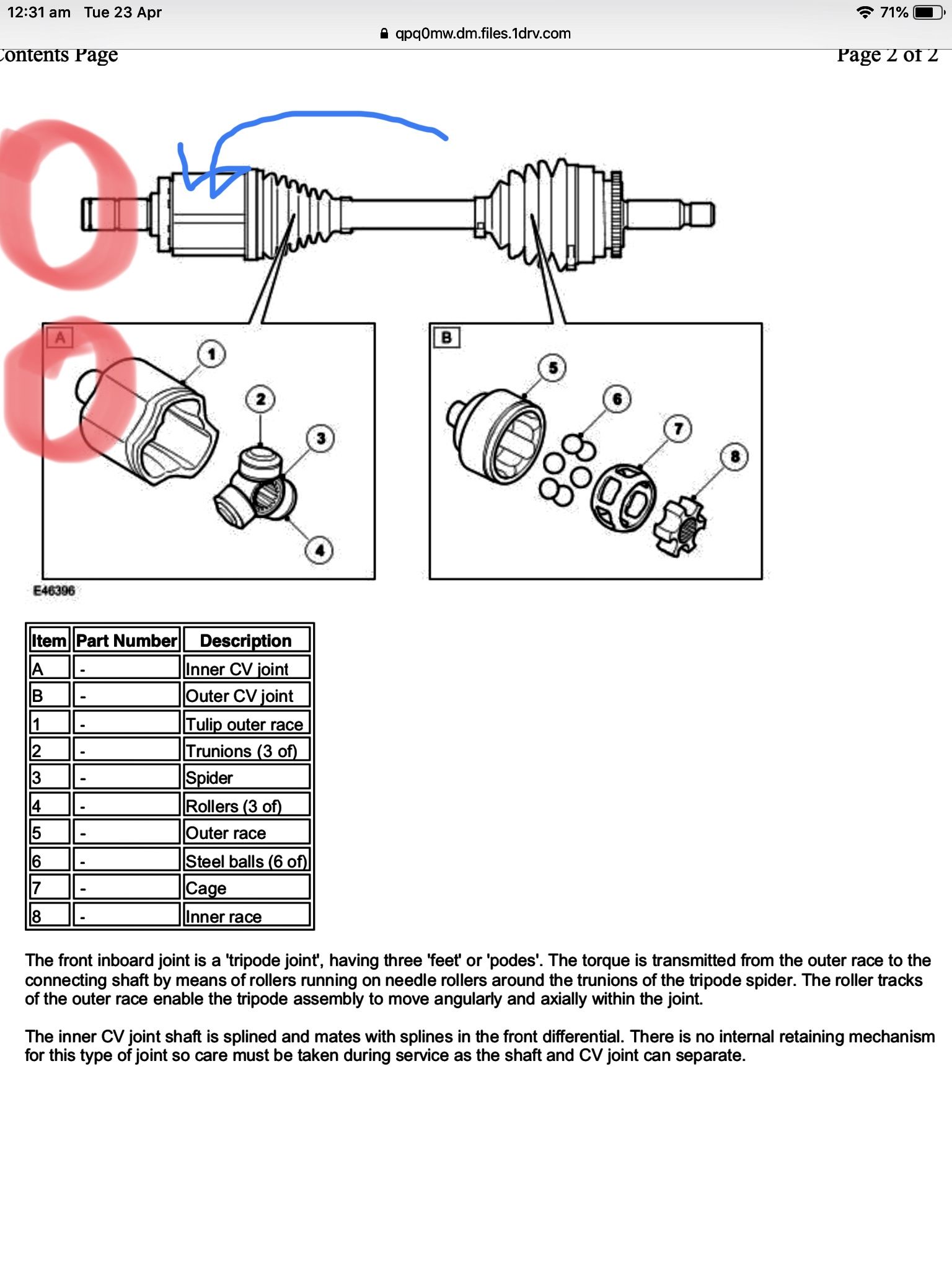

I marked up your pic(crudely) and it’s further in then, shaft to diff? Is that the long side?
I reckon the problem is the red areas because the blue arrow marked part doesn’t turn.
Are you still driving it? Not sure that’s a good idea.
J
I marked up your pic(crudely
) and it’s further in then, shaft to diff? Is that the long side?I reckon the problem is the red areas because the blue arrow marked part doesn’t turn.
Are you still driving it? Not sure that’s a good idea.
J
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
Never noticed the other side.
I marked up your pic(crudely
I reckon the problem is the red areas because the blue arrow marked part doesn’t turn.
View attachment 180664
Are you still driving it? Not sure that’s a good idea.
J
I think you're right, probably splines stripping on shaft to diff.
I was driving it this morning but won't be now until it's sorted.
2 new front shafts then?
What’s in that kit, as the actual outer shafts are ok? It’s from those thiriod things to diff that appears the problem.
Don’t have manual to ref. (So May make up names at random
)J
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
What’s in that kit, as the actual outer shafts are ok? It’s from those thiriod things to diff that appears the problem.
Don’t have manual to ref. (So May make up names at random
J
You can only get the outer cv joints as a kit. I'm looking at these
https://www.advancedfactors.co.uk/lr071930-odm-rh-driveshaft-lr047292-tdb500080-1150806-p.asp
https://www.advancedfactors.co.uk/lr072067-odm-lh-driveshaft-lr047293-tdb500090-1150803-p.asp
As always you need the whole thing
it’s a stitch up job. Not as bad in price as I was expecting I must admit though.
J
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
As always you need the whole thing
Not as bad in price as I was expecting I must admit though.
J
They ain't gkn though
Great thread and will have a proper read in a minute
Wished to add, battery MUST always be disconnected as the suspension will move on it own , regardless if ign is on or not
These vehicles when alarmed will keep waking up and do a self level check
Hope u didn’t mind me saying
Wished to add, battery MUST always be disconnected as the suspension will move on it own , regardless if ign is on or not
These vehicles when alarmed will keep waking up and do a self level check
Hope u didn’t mind me saying
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
Battery connected but pulled fuse 26
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
May have bigger problems to be honest. Cleaned up all the grime at the back end while wheels are off. Scraping dry mud and surface rust and came across a dodgy bit. I made this hole with a small blunt screwdriver.
Rear wheel arch/floorpan, within 30cm of body mount and 2nd row seat mount
I could find more I suspect
The vehicle may not be worth keeping gents
Rear wheel arch/floorpan, within 30cm of body mount and 2nd row seat mount
I could find more I suspect
The vehicle may not be worth keeping gents
I suppose it’s a compromise thing. It could last years
Or maybe they just never made it to the gkn factory to be boxed (and price doubled
)J
1988smithy
Well-Known Member
- Posts
- 4,044
- Location
- West midlands
Ohhhh pooo
J
I'm ****ed. What's the point in keeping it going mechanically if the body is rusting out? Just replace that 1 driveshaft and chop it in. I'd have another D3 though
