Rattler's 90 Chassis Swap

cornish rattler · Dec 8, 2015

Will try and sort out pic's this week, i know you are all waiting for them

cornish rattler · Dec 11, 2015

A slightly better change of plan as we are getting our new richards chassis on sunday through a different supplier so looks like we will be busy over christmas

cornish rattler · Dec 13, 2015

Friday son andy replaced the rusty tub side cappings, yesterday i spent the day making up chassis to tub plates for when bolting the tub onto the chassis and today andy has gone to collect our new chassis

cornish rattler · Dec 13, 2015

Going to have ago at sorting the pic's out tomorrow as i really need to sort this now

cornish rattler · Dec 14, 2015

Got the chassis now and it looks great, can't wait to start building it up again

cornish rattler · Dec 14, 2015

Just trying to upload pics from my phone so here goes[GALLERY=][GALLERY=][/GALLERY][/GALLERY]

cornish rattler · Dec 14, 2015

Right i have mastered the art of posting pic's on the land rover uk forum ( readers restorations ) but for some reason i can't post pic's on here so if any of you want to look please help yourself whilst i try and sort it out on here

cornish rattler · Dec 17, 2015

Not managed to sort pic's out yet but will once i get chance, anyway yesterday we turned the chassis round and rested it on blocks ready for fitting the axles at the weekend

cornish rattler · Dec 20, 2015

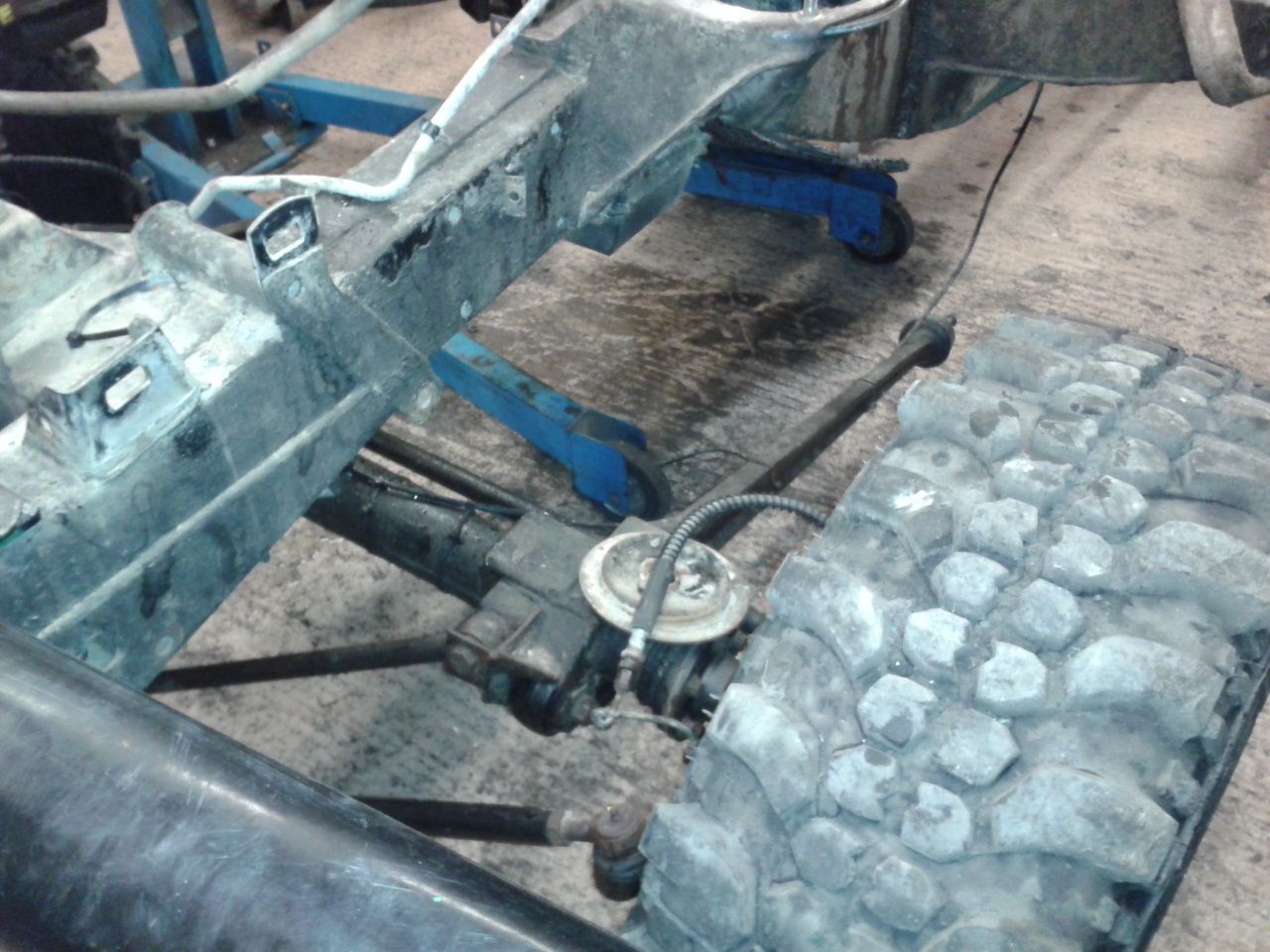

Fitted the axles yesterday and painted a few brackets ready for fitting on Monday

cornish rattler · Dec 20, 2015

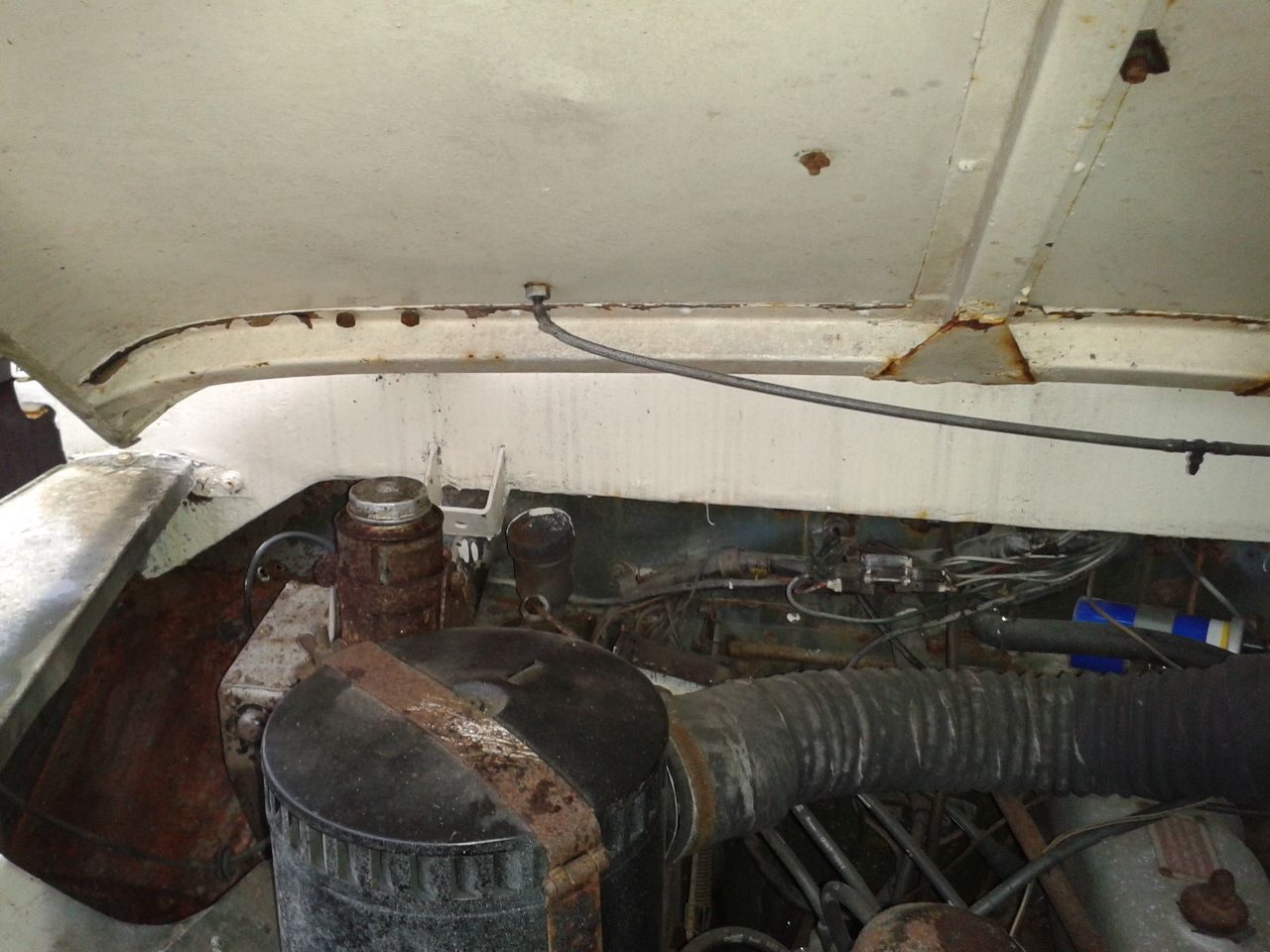

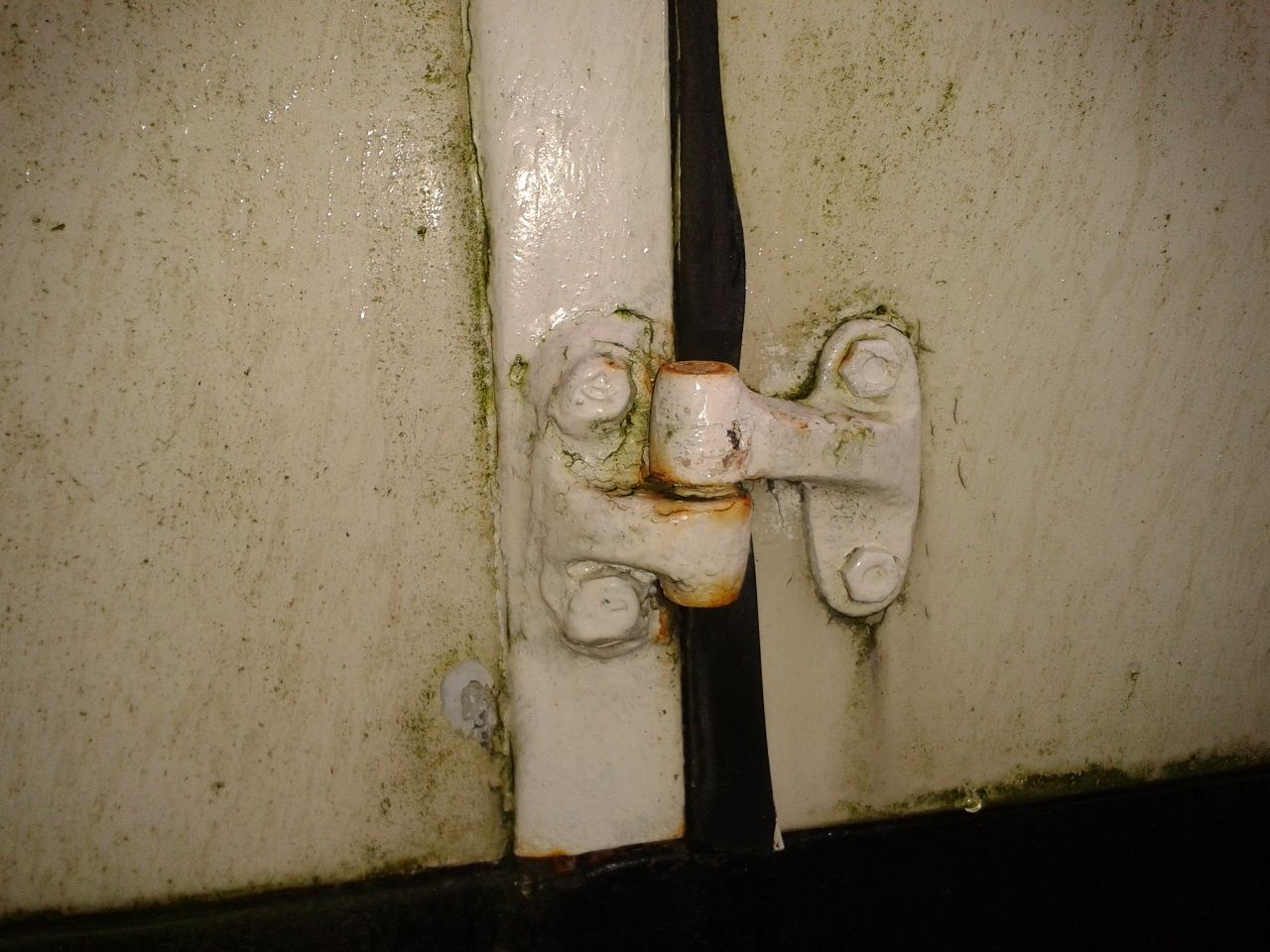

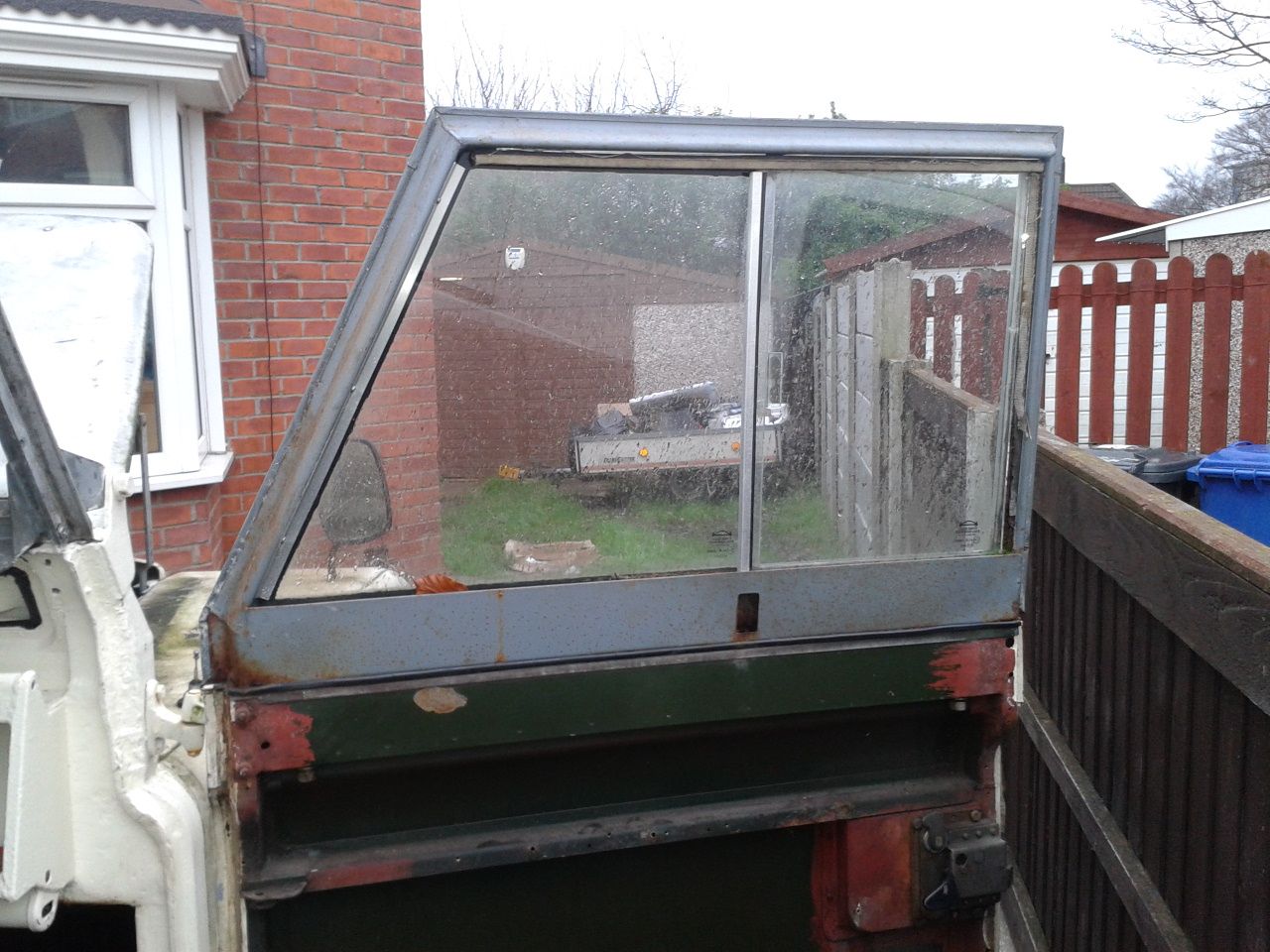

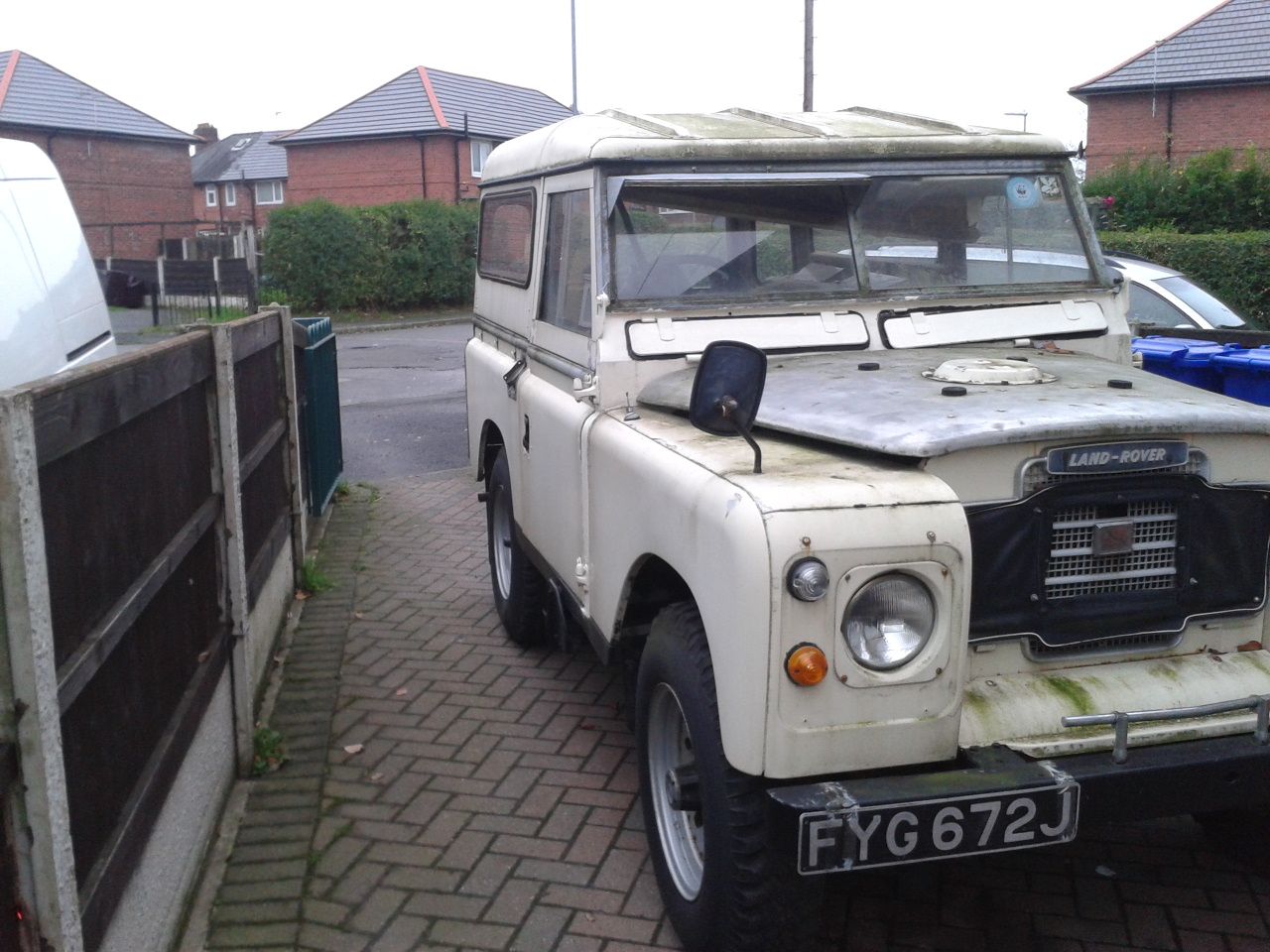

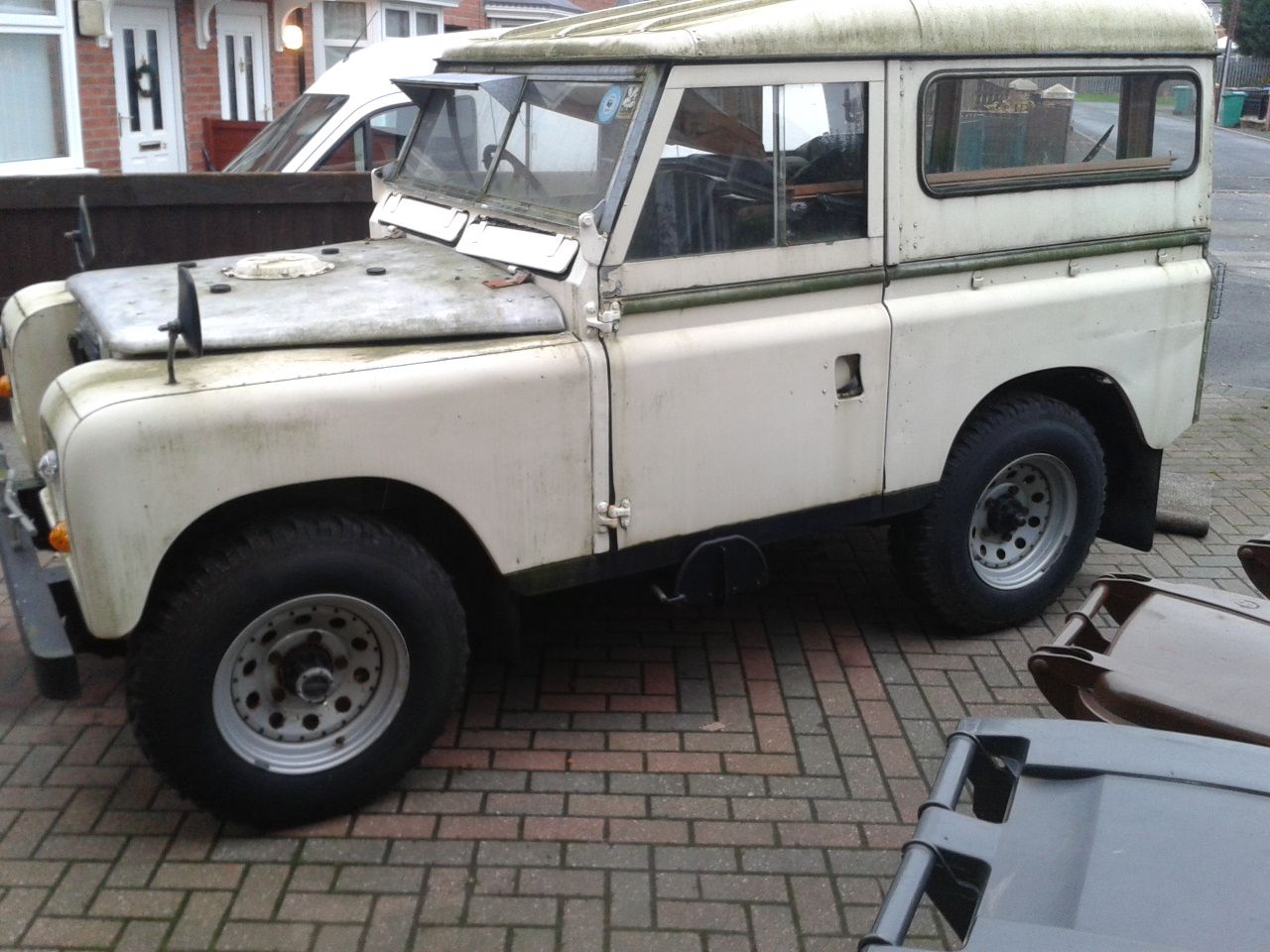

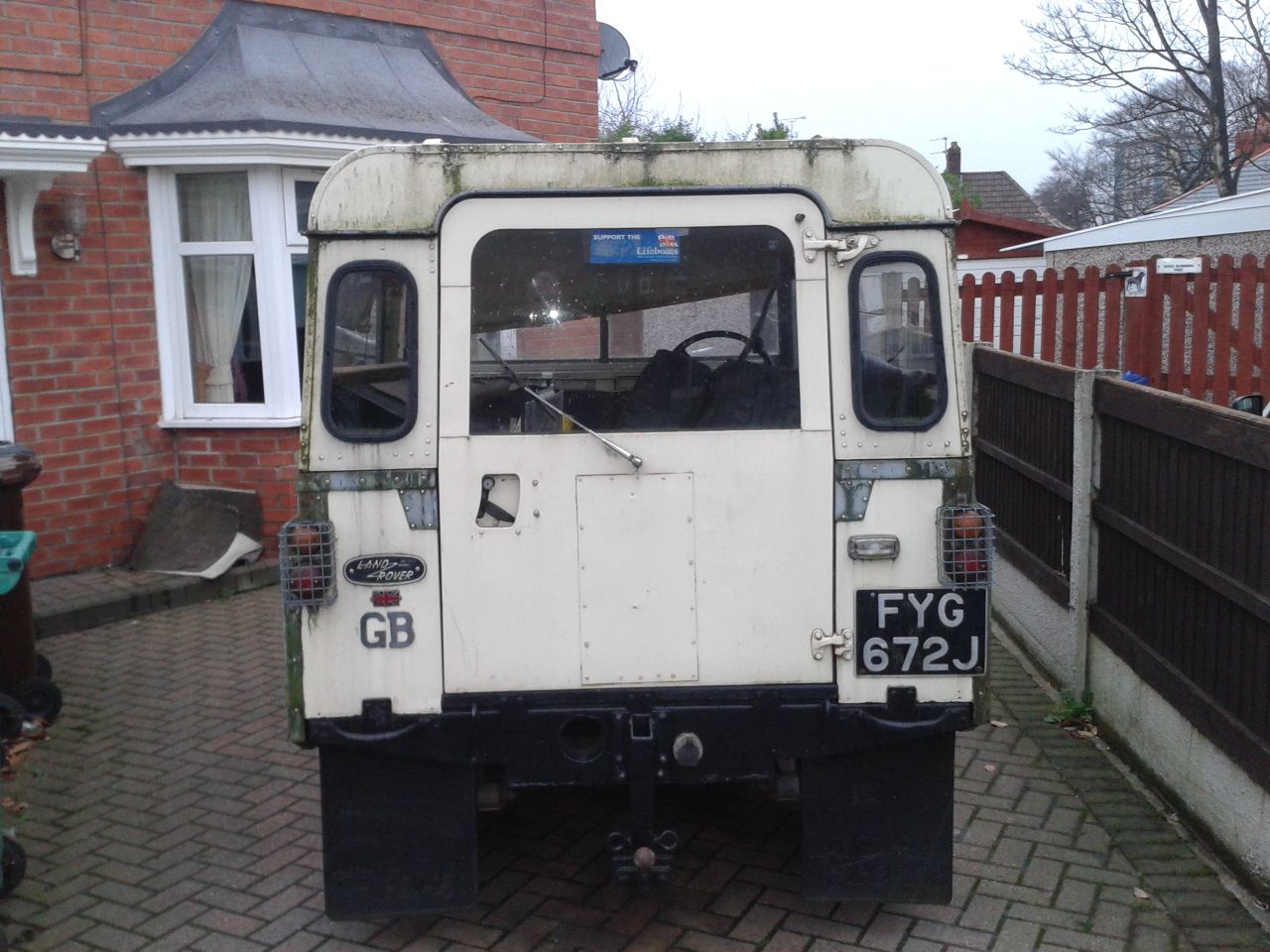

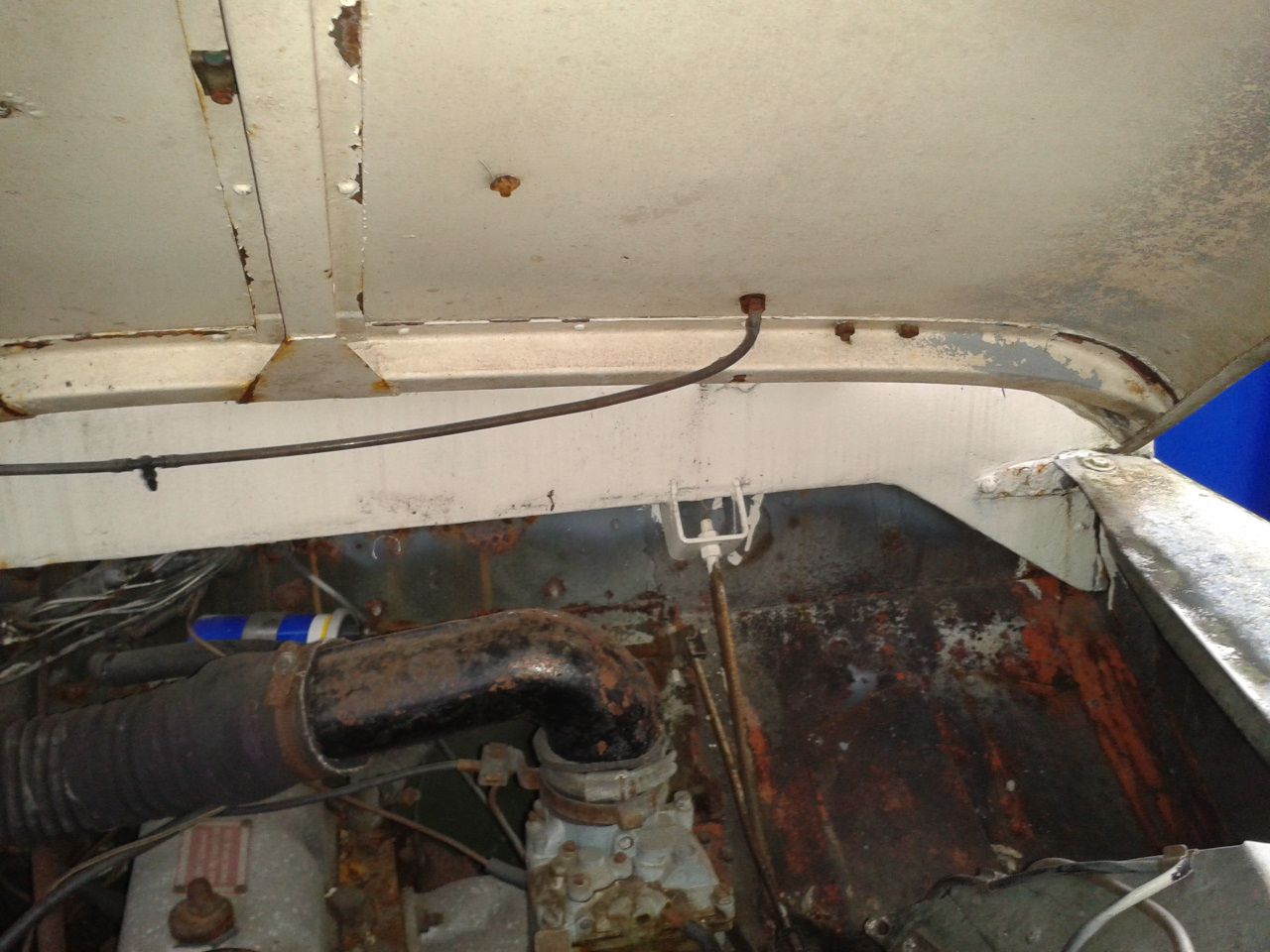

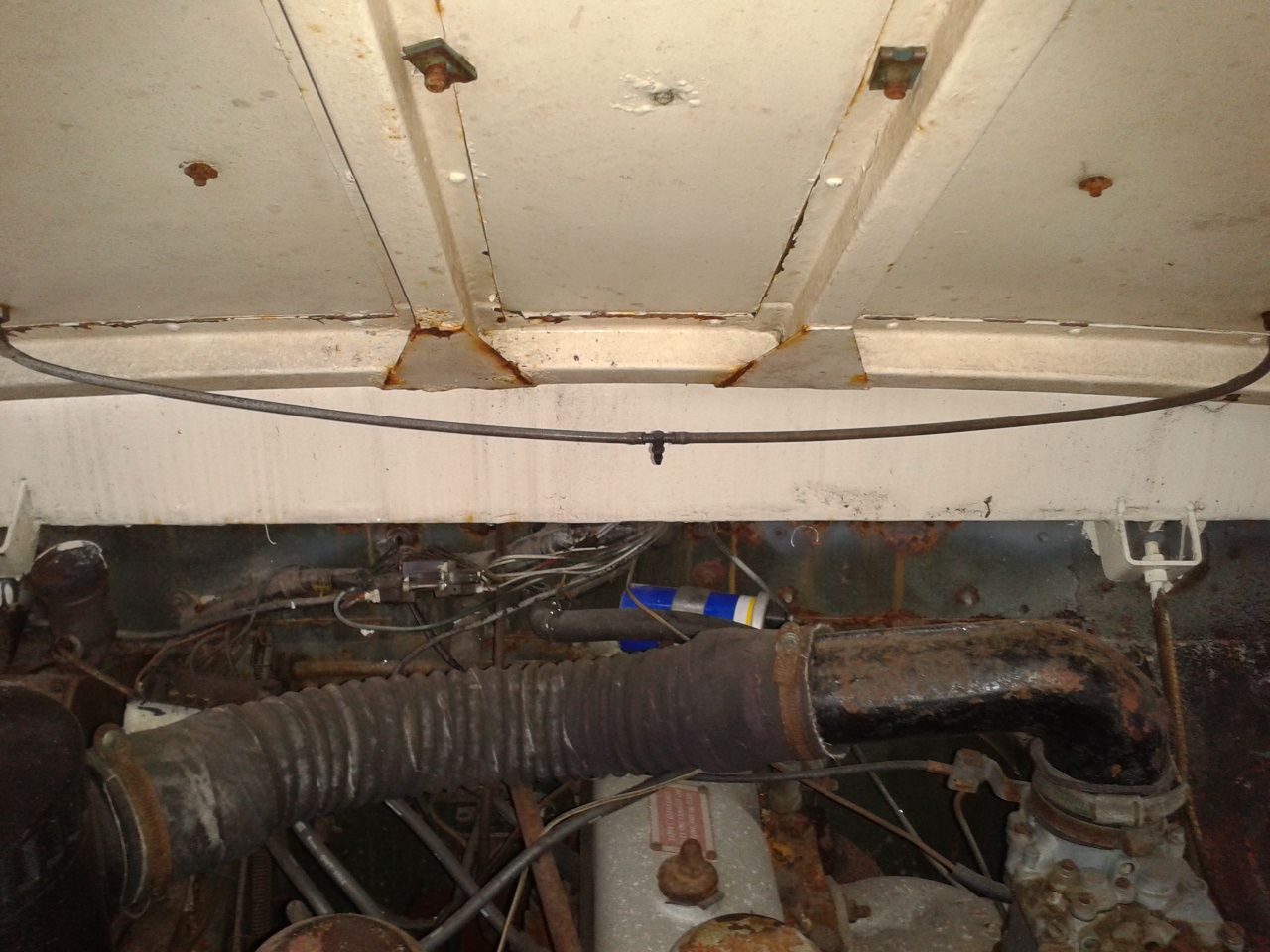

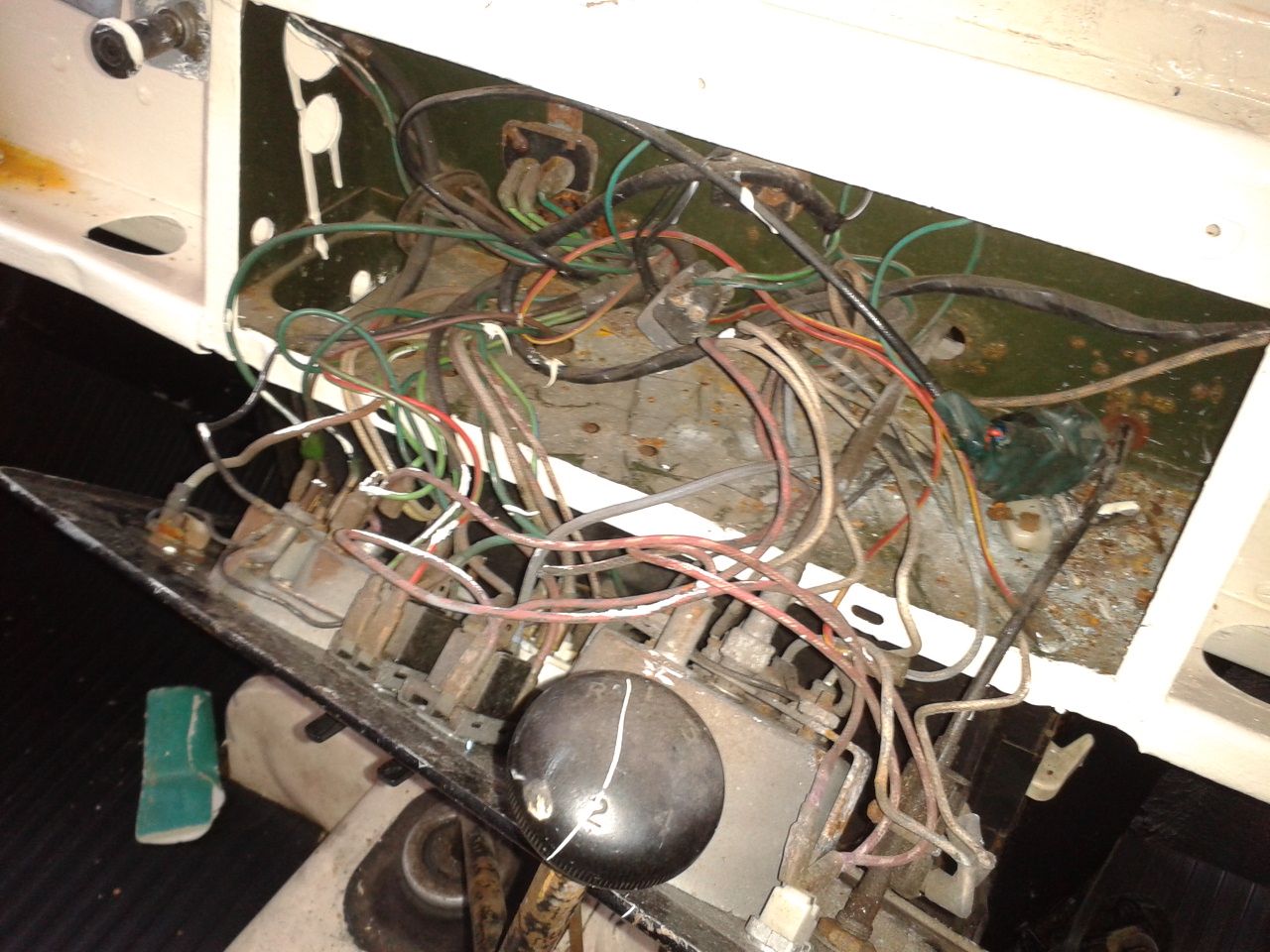

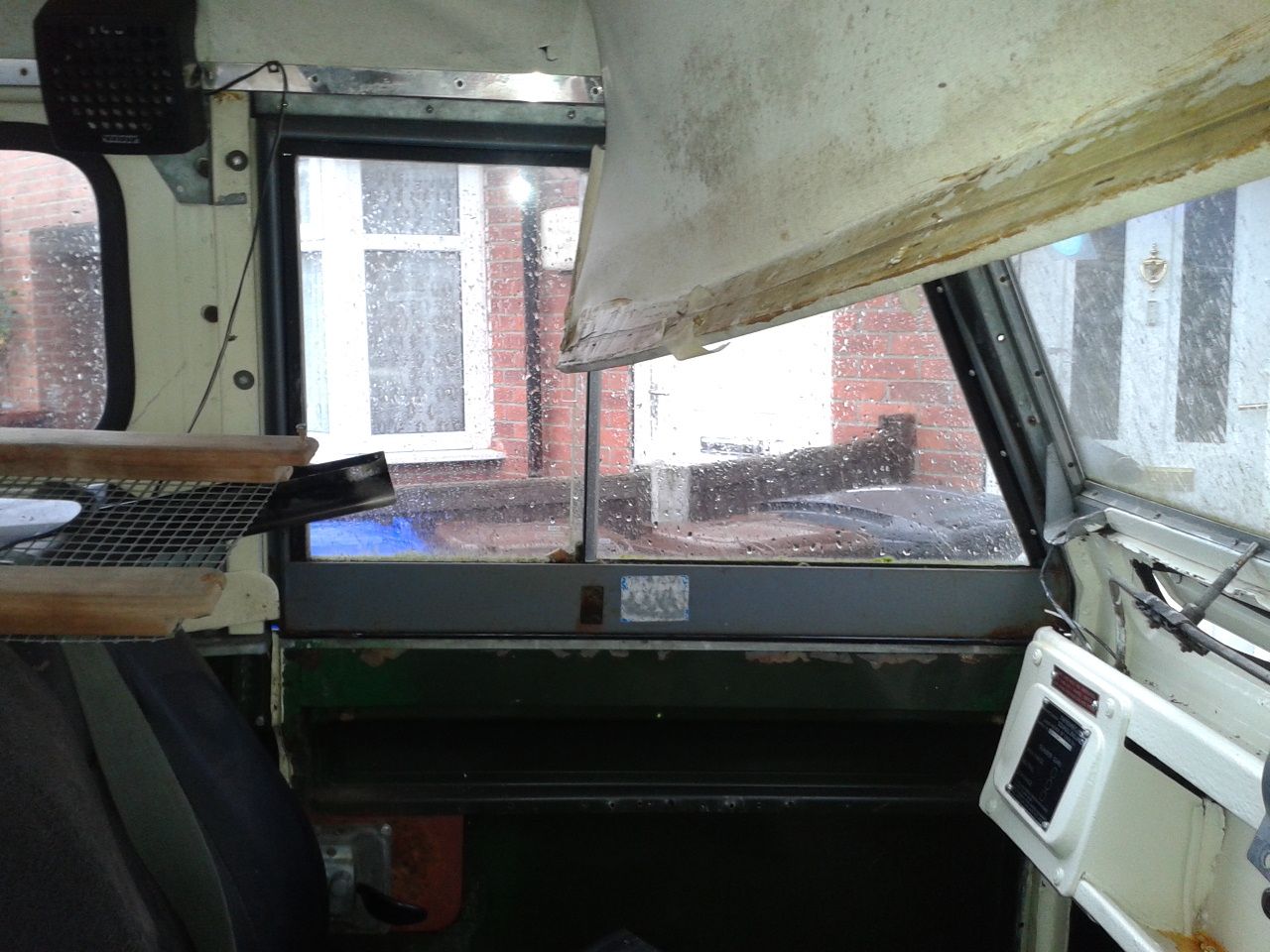

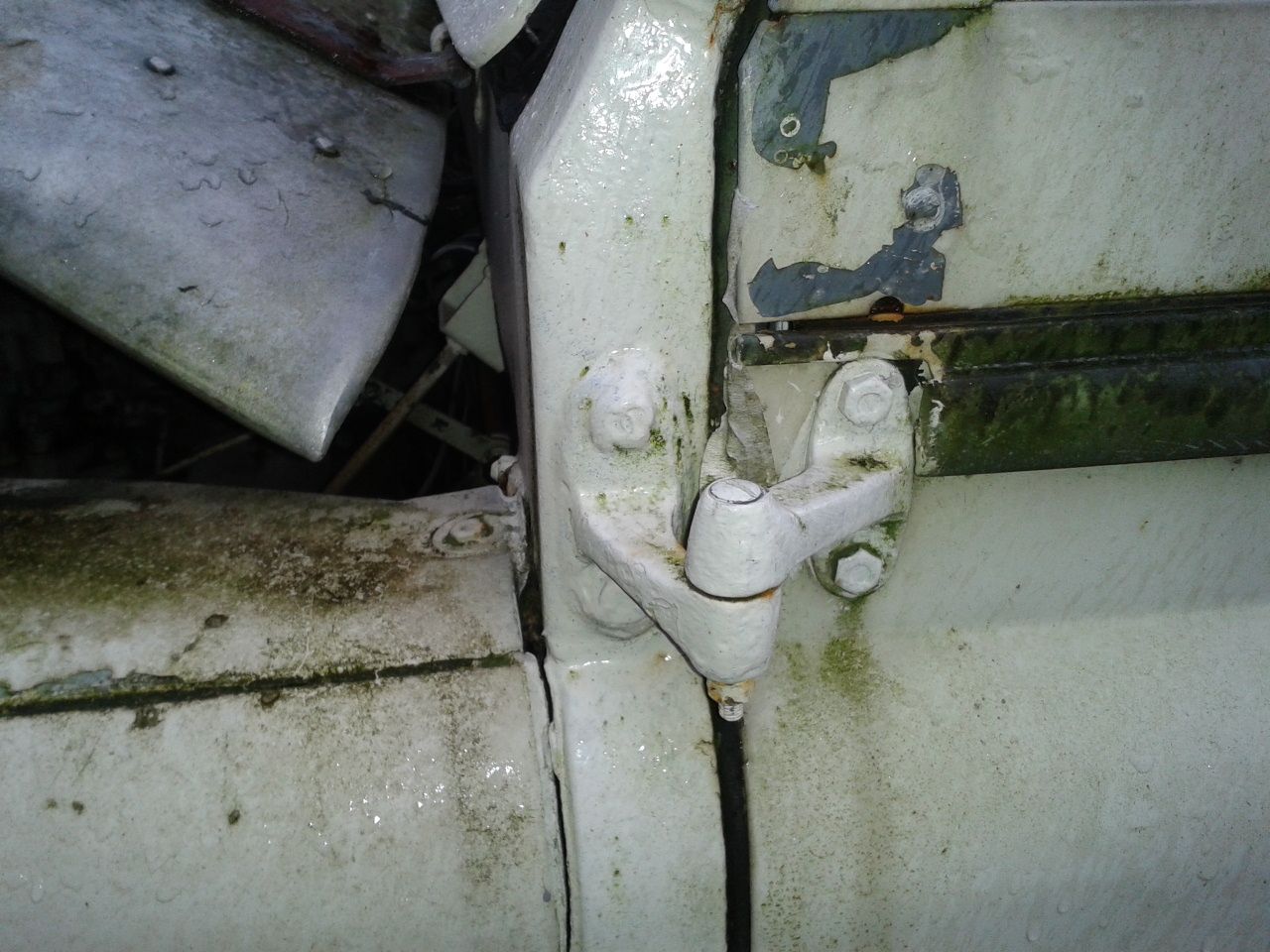

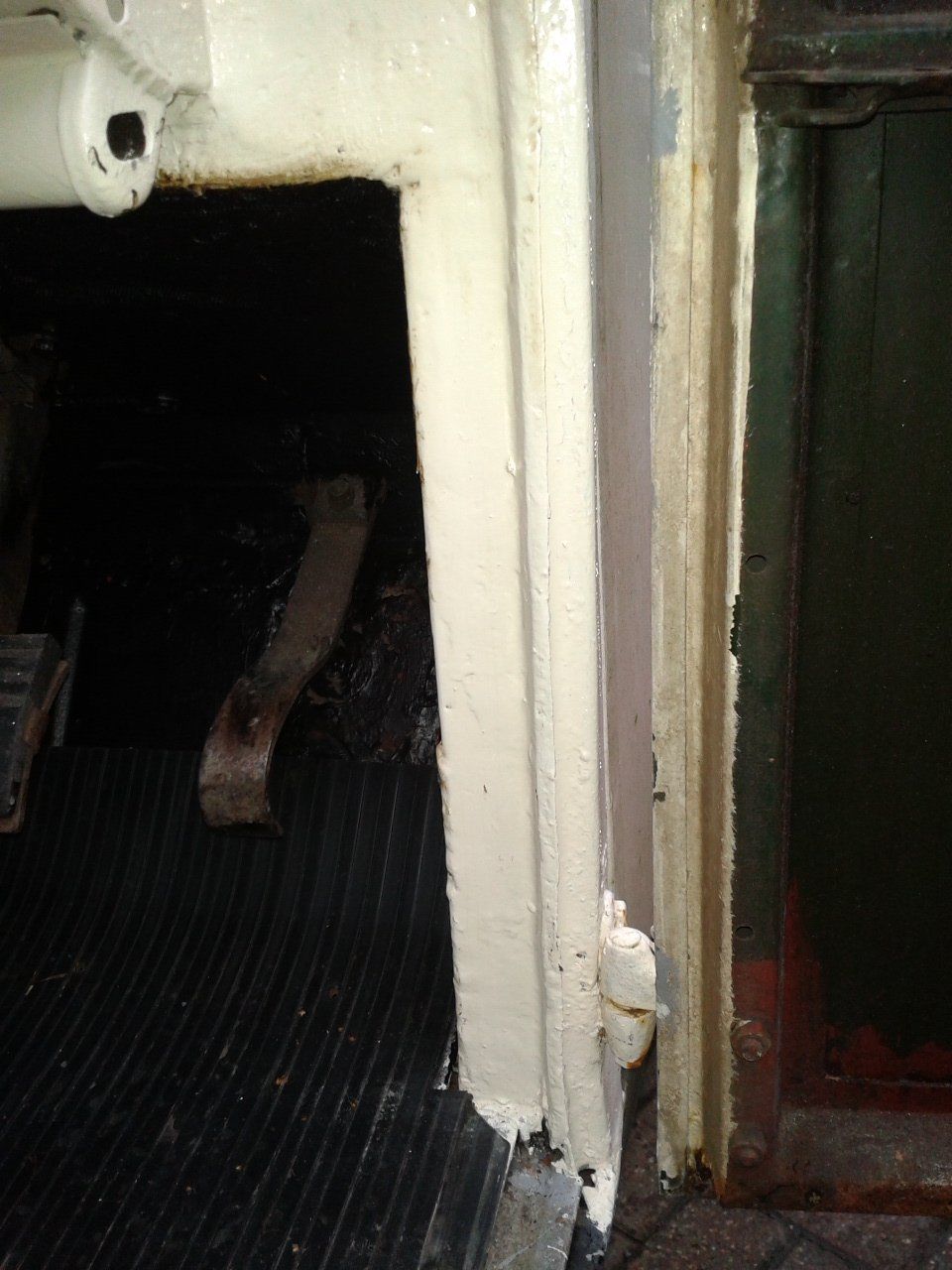

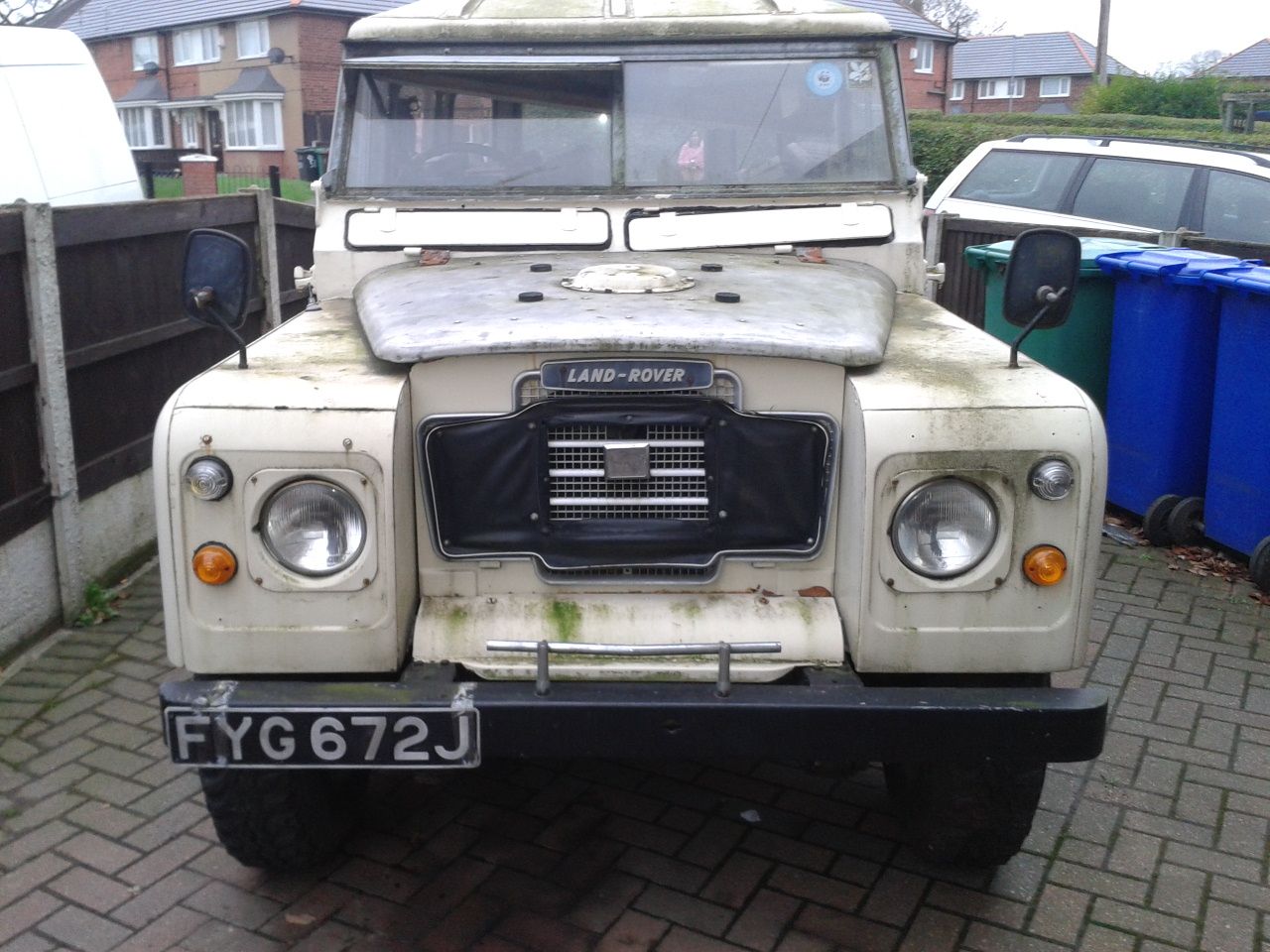

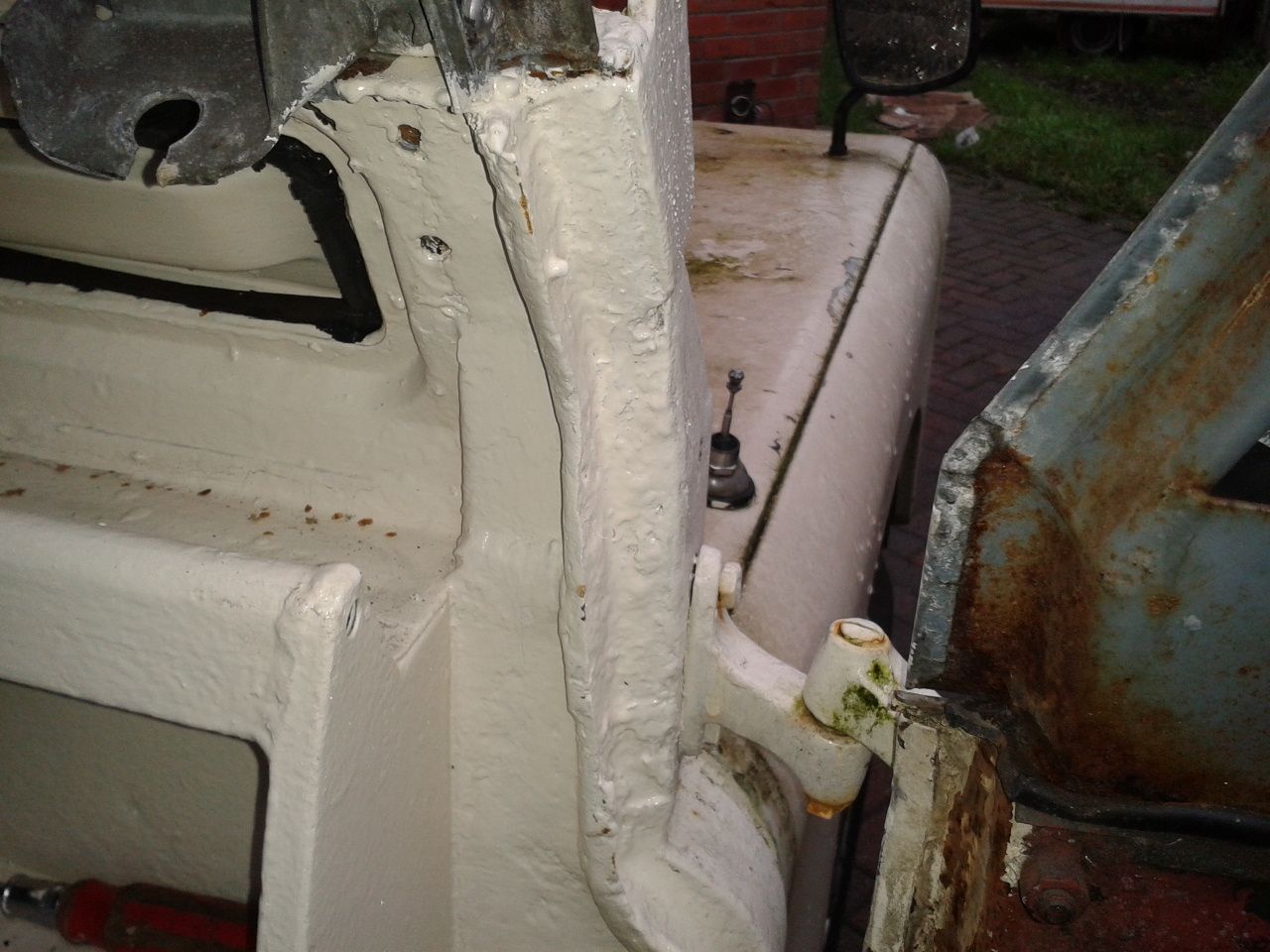

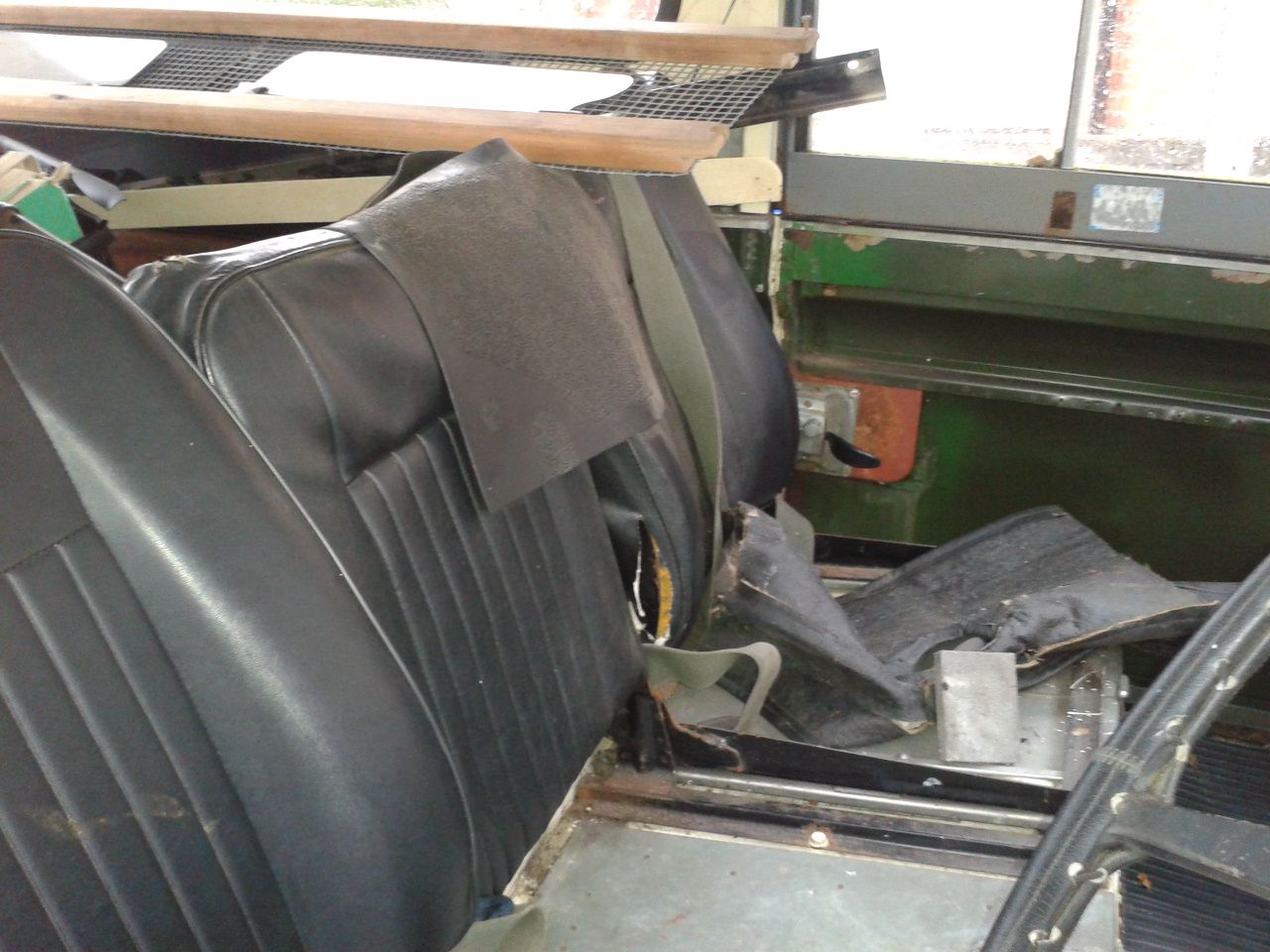

Some pic's of the s2a we bought last week

cornish rattler · Dec 20, 2015

And a few more

cornish rattler · Dec 20, 2015

And the last few

cornish rattler · Dec 20, 2015

AAAAARRRRRR they was all ment for the other thread

cornish rattler · Dec 20, 2015

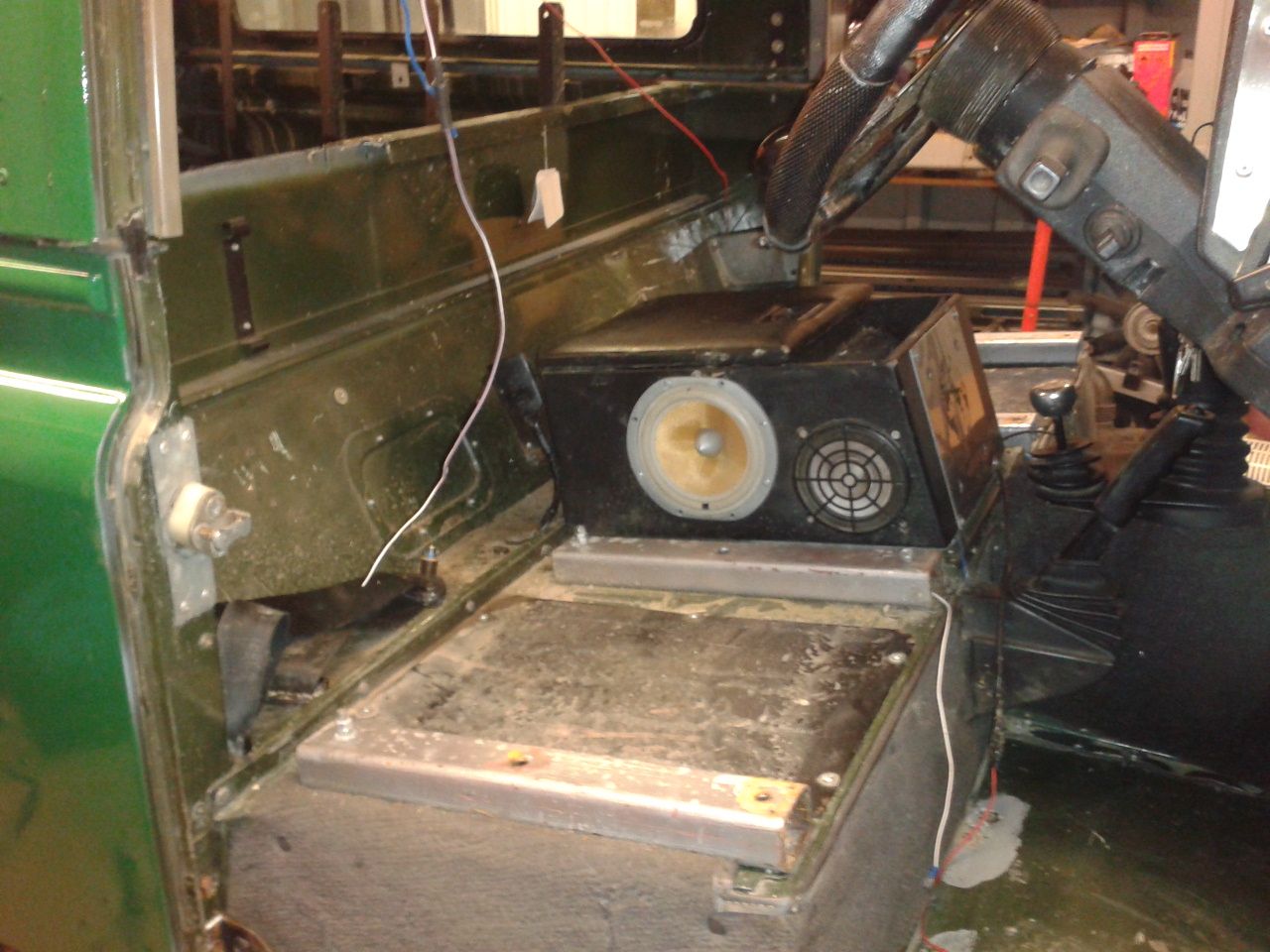

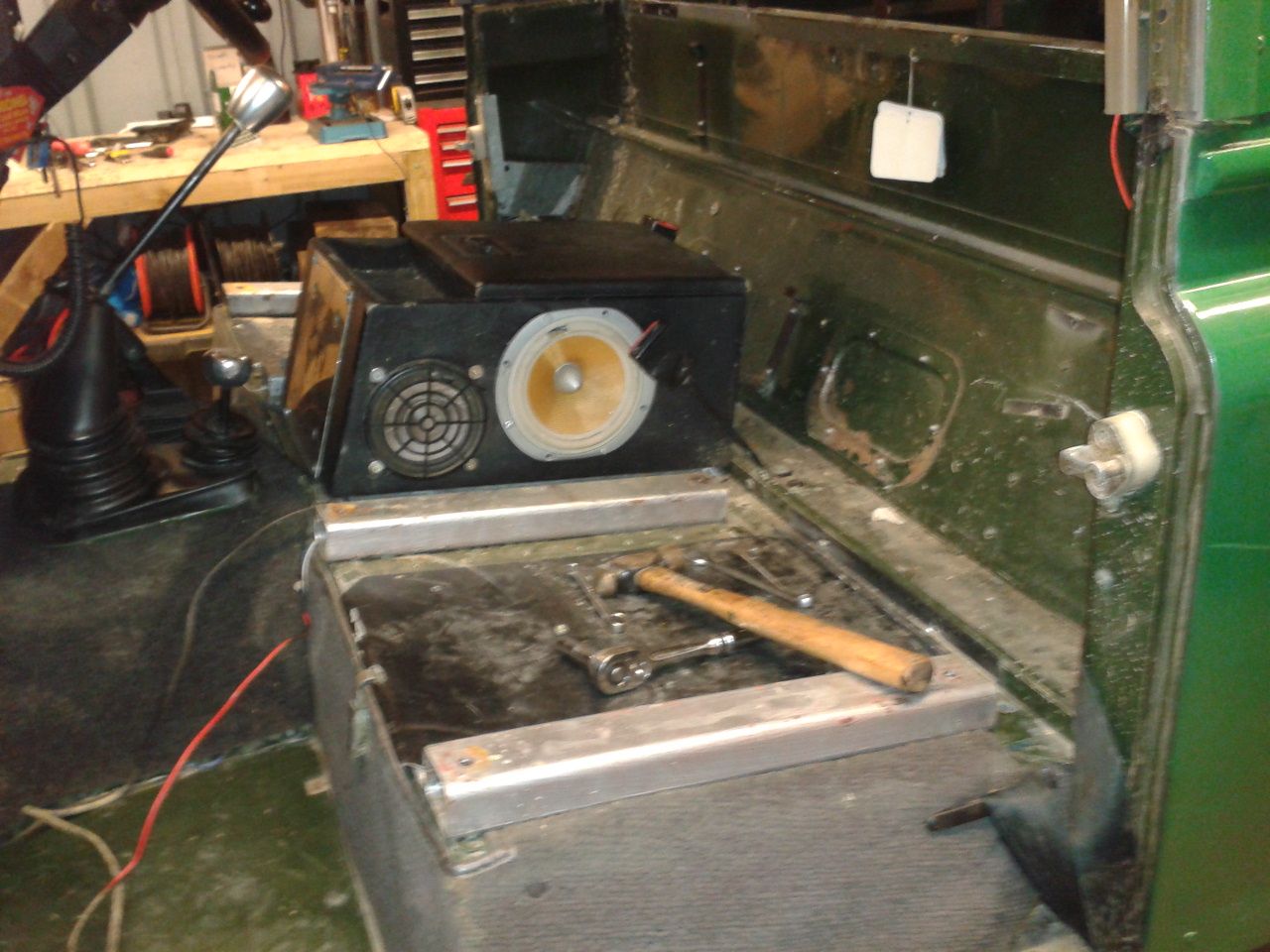

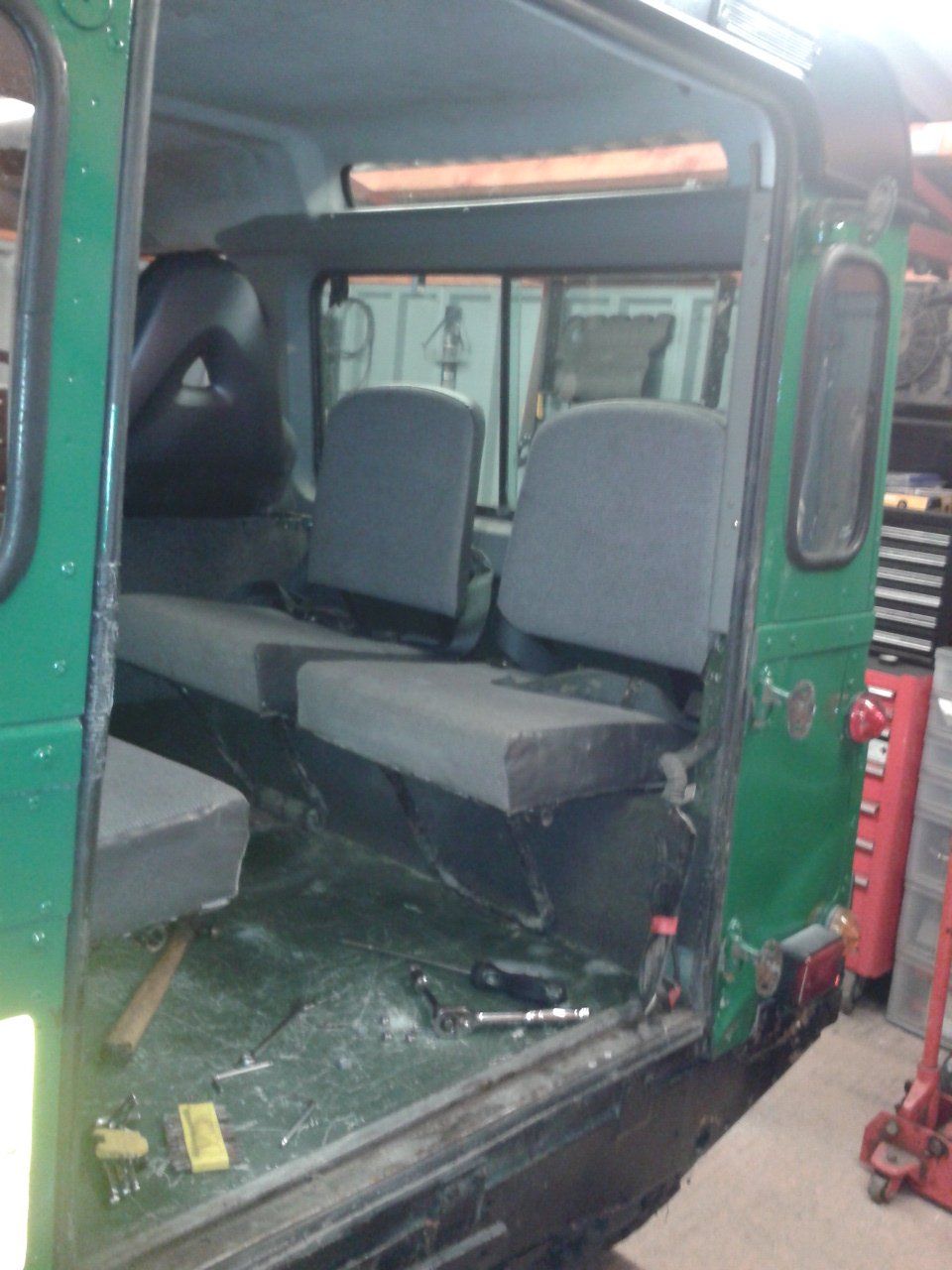

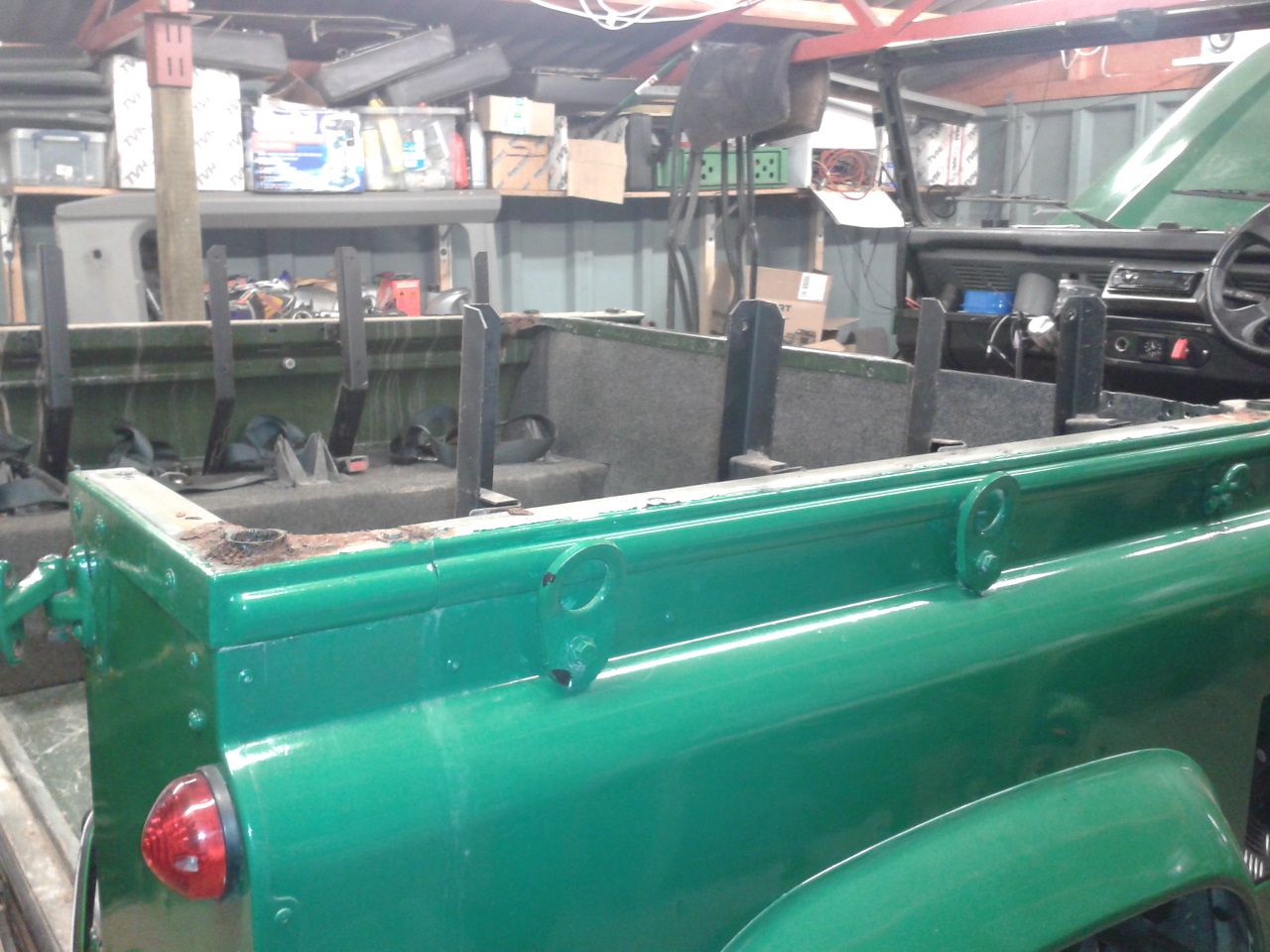

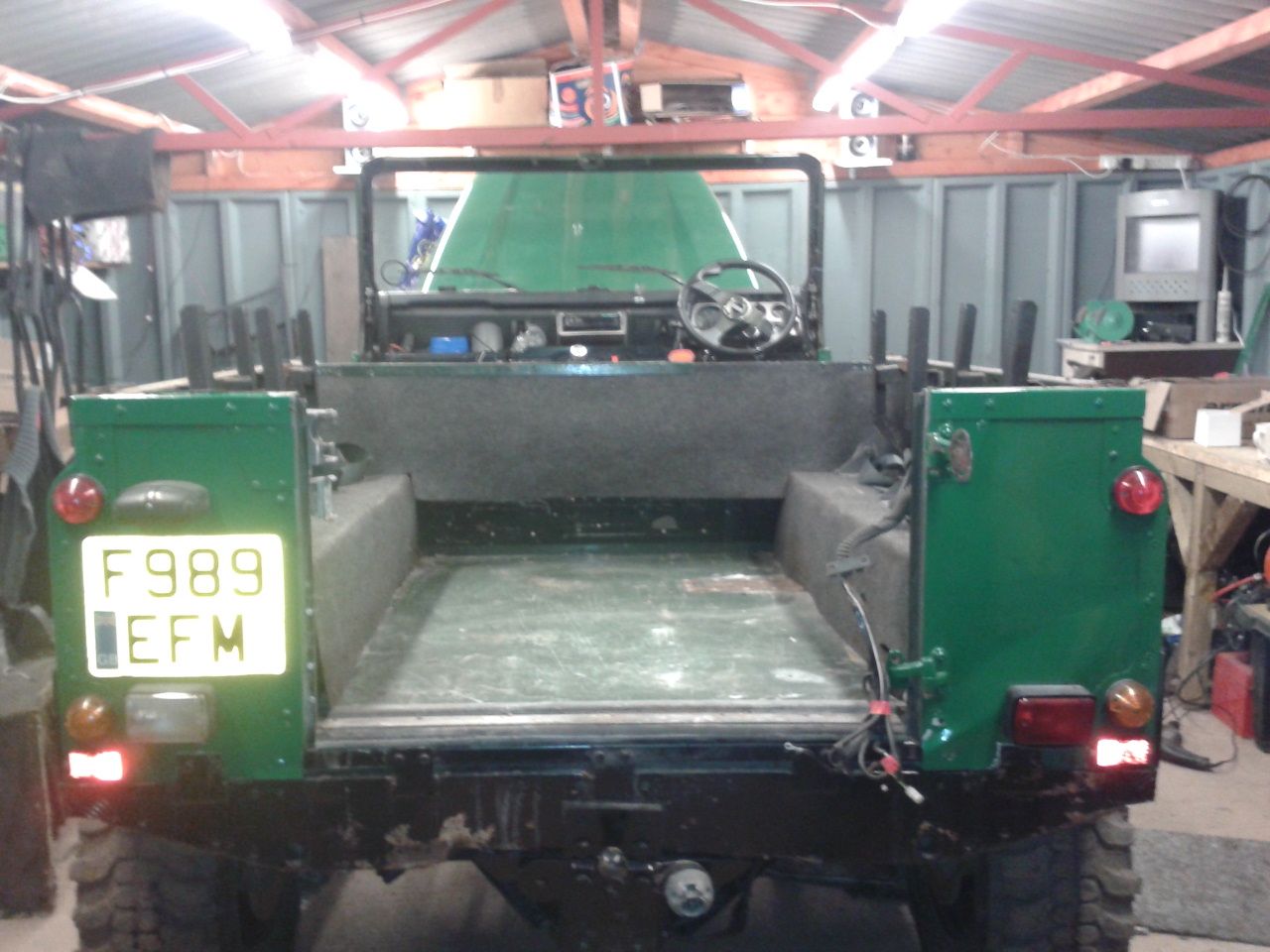

Right here are some pic's of the 90 being stripped

cornish rattler · Dec 20, 2015

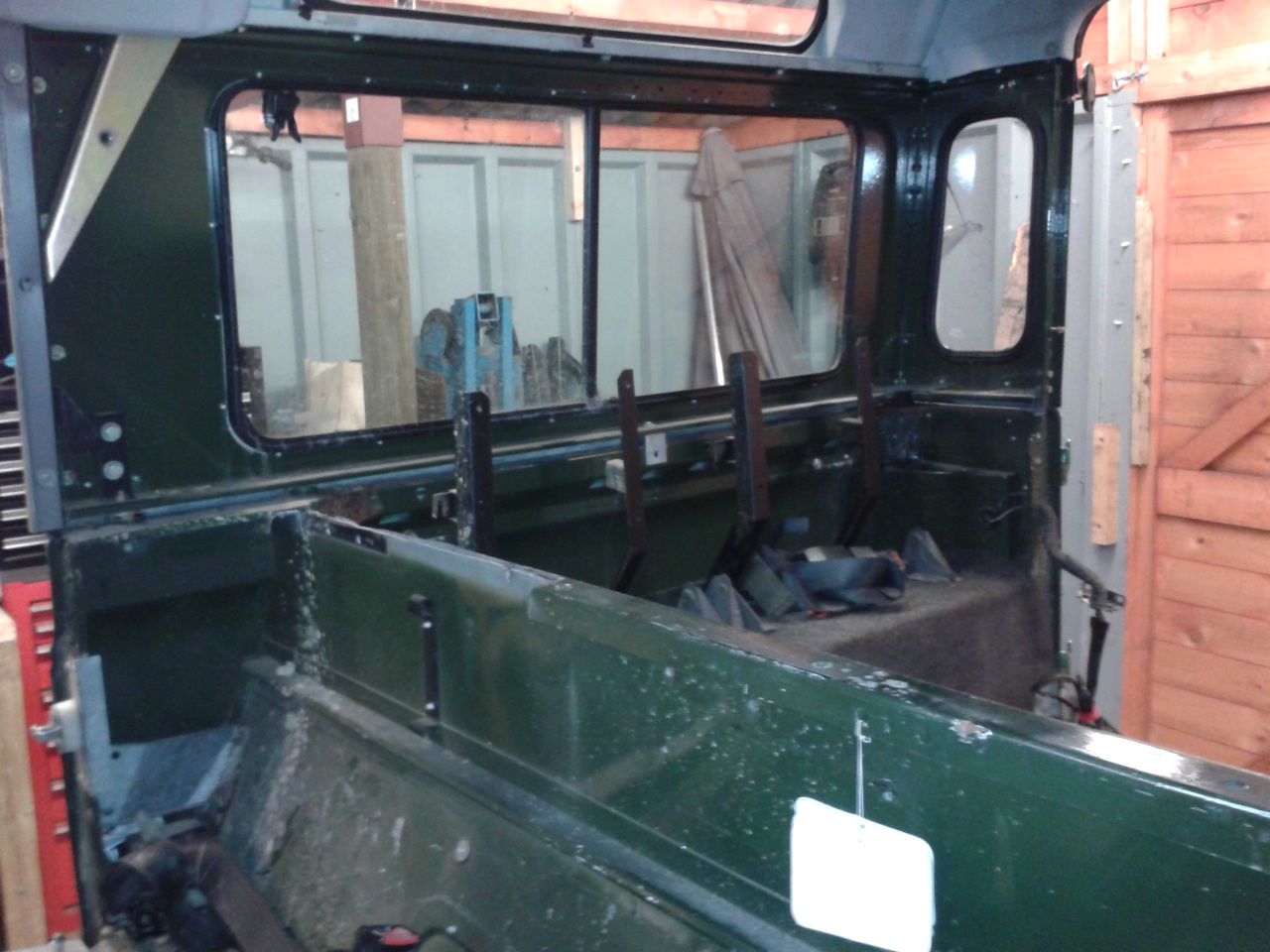

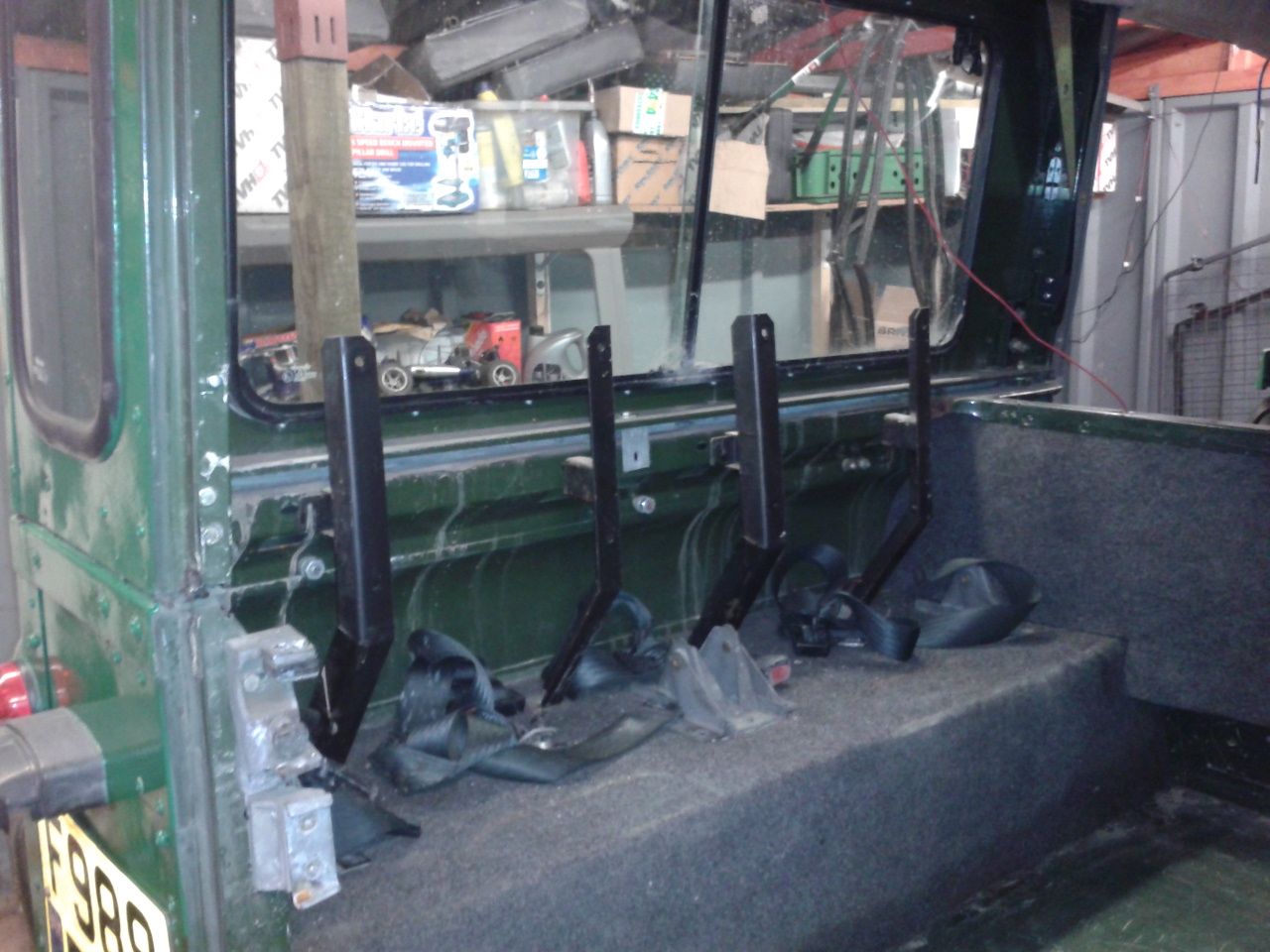

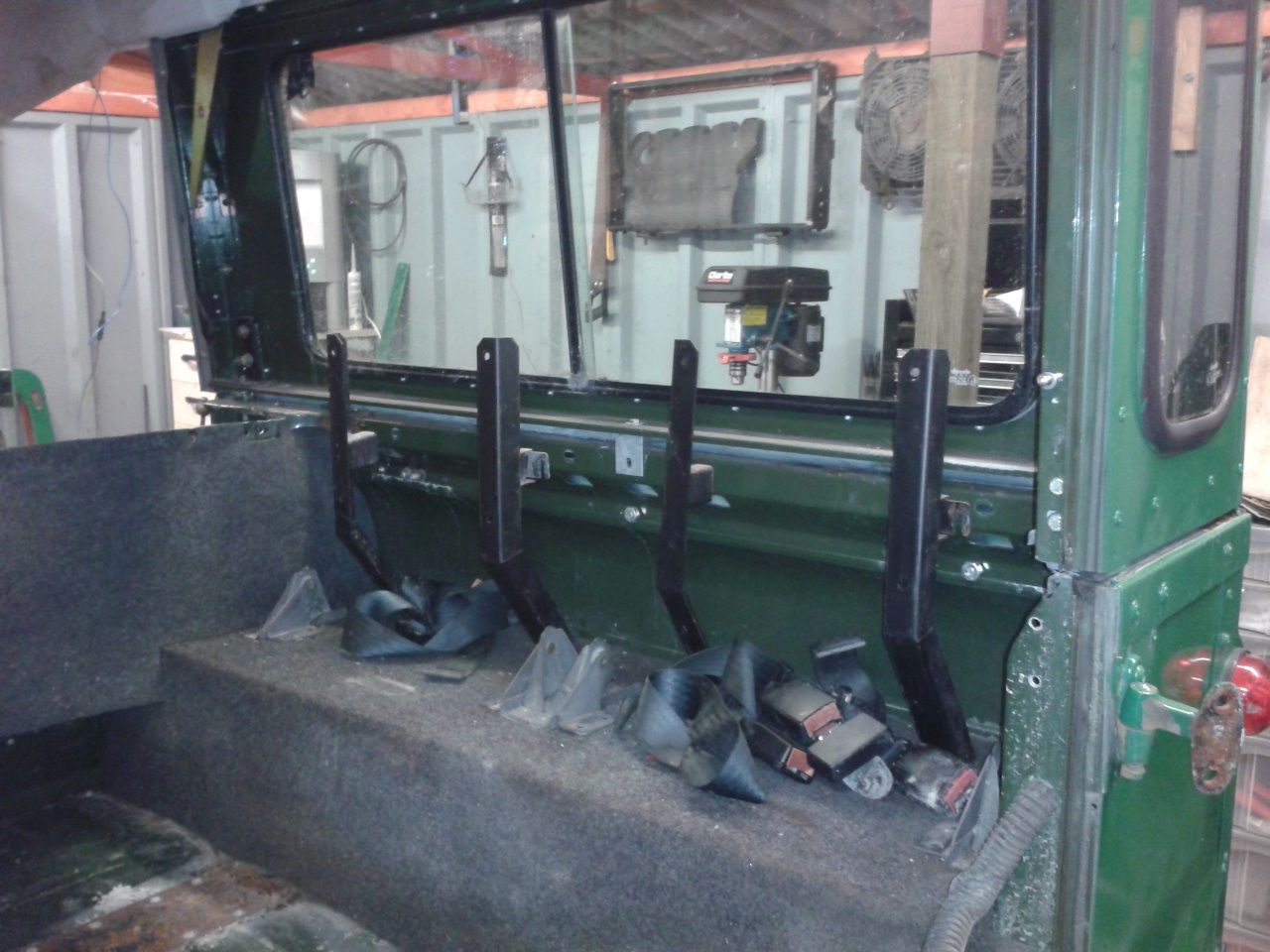

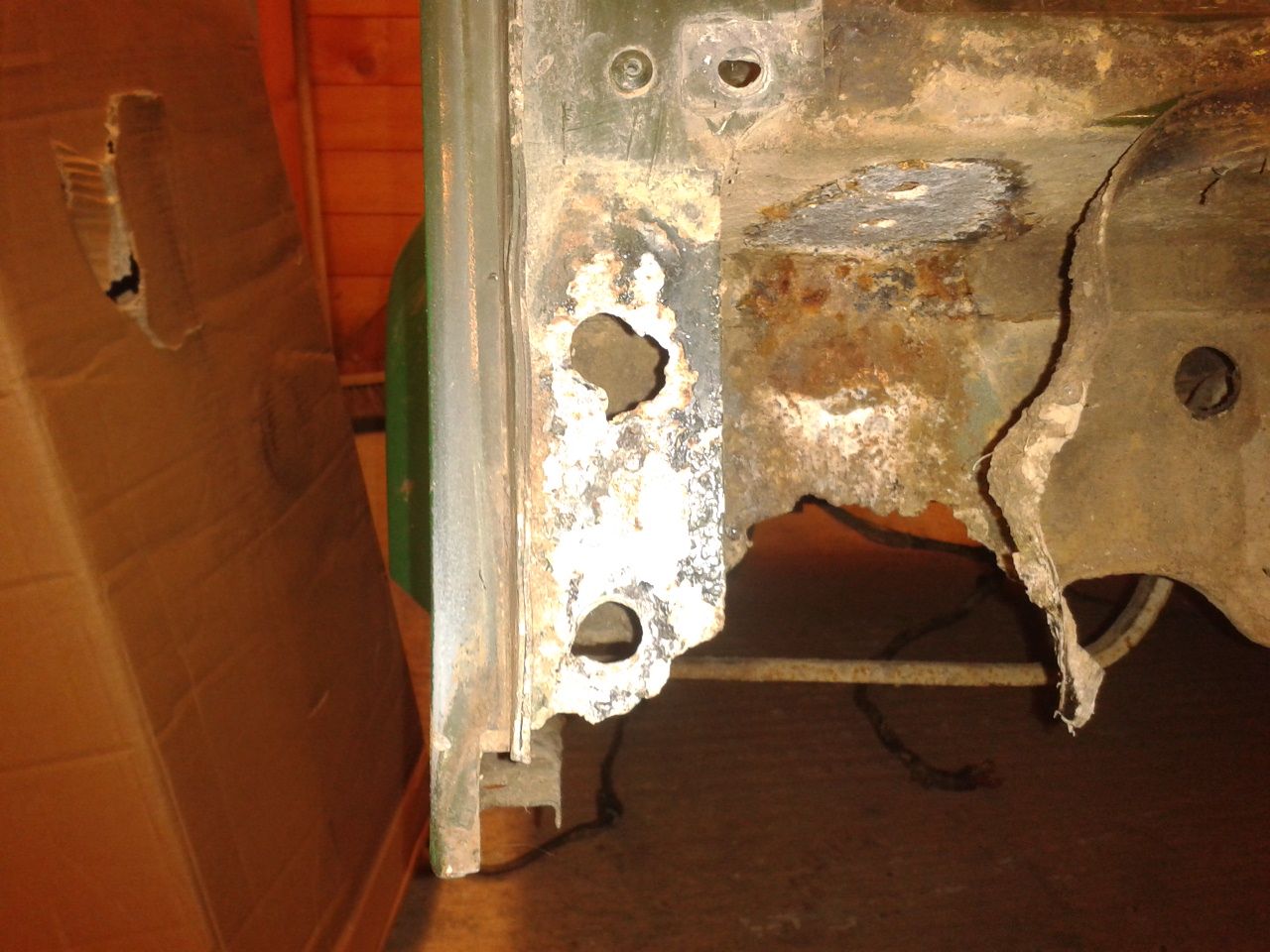

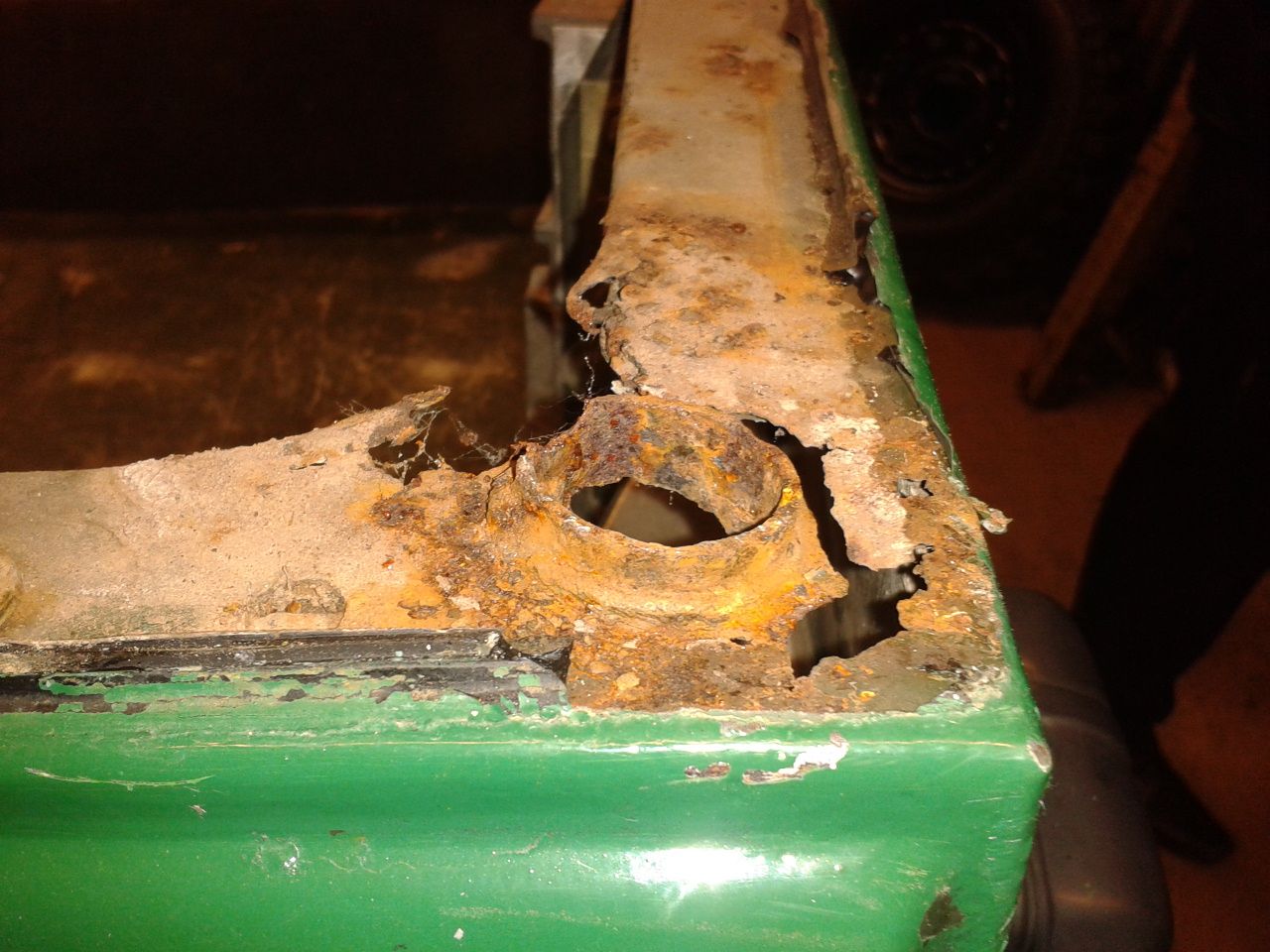

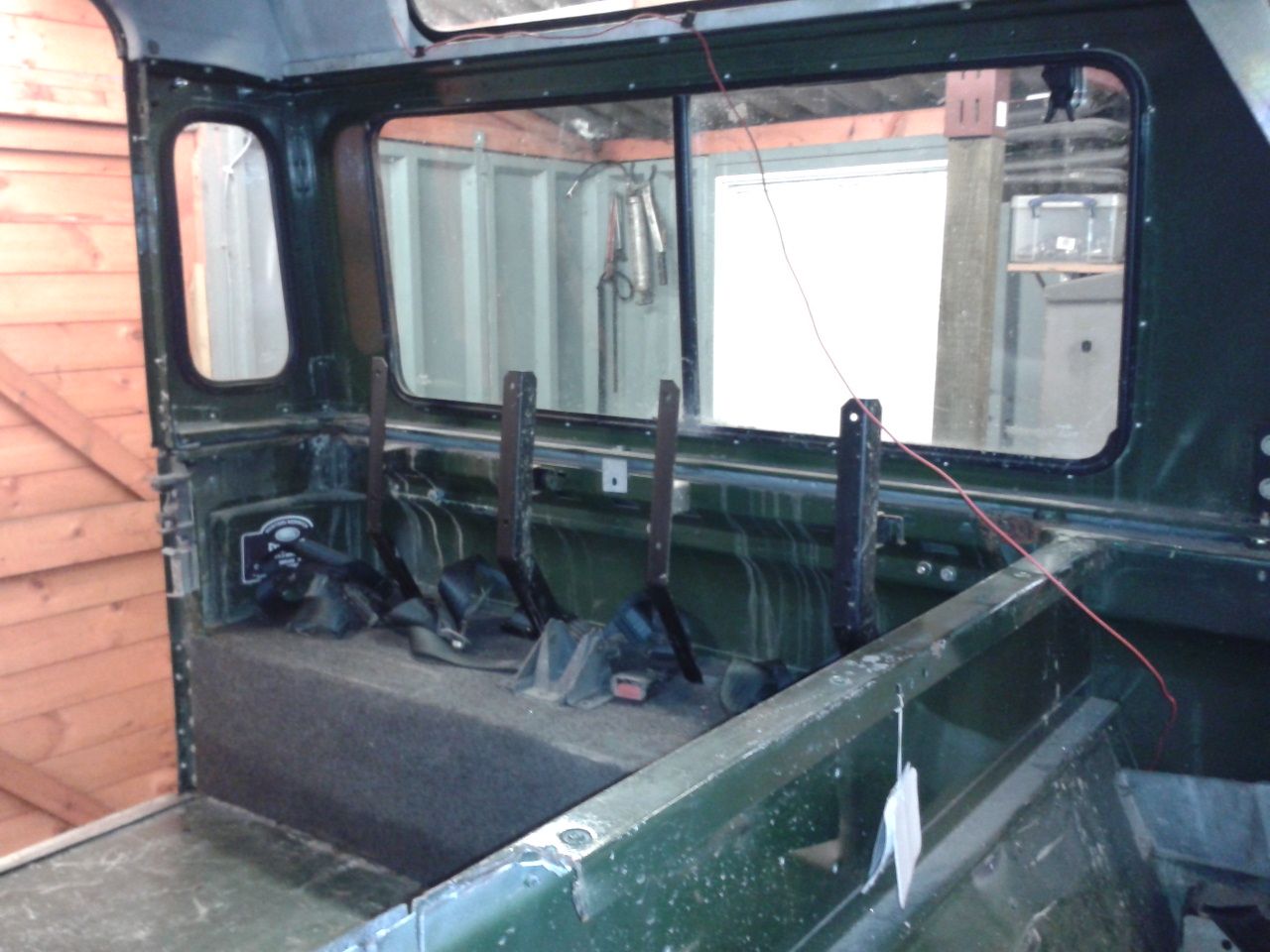

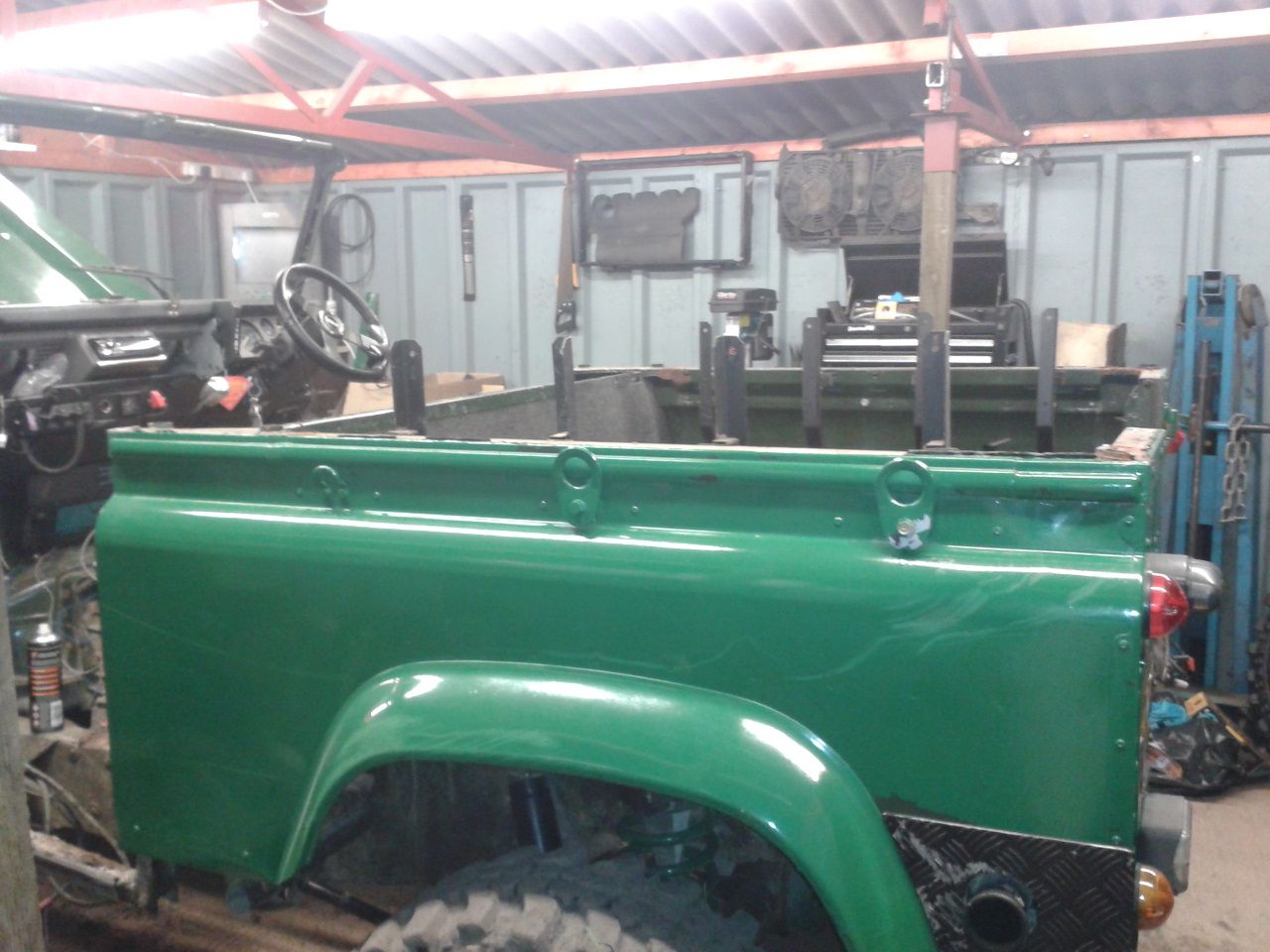

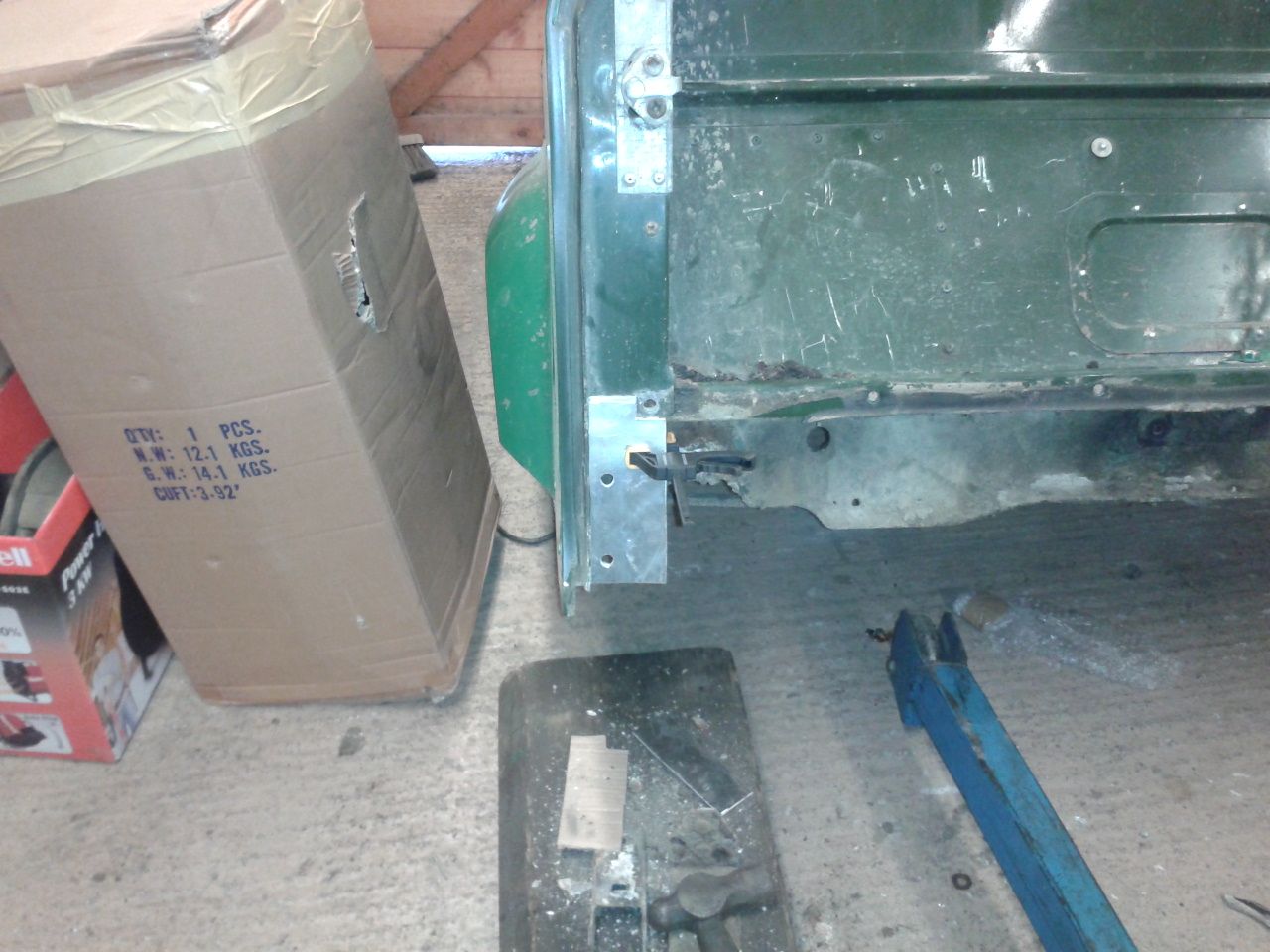

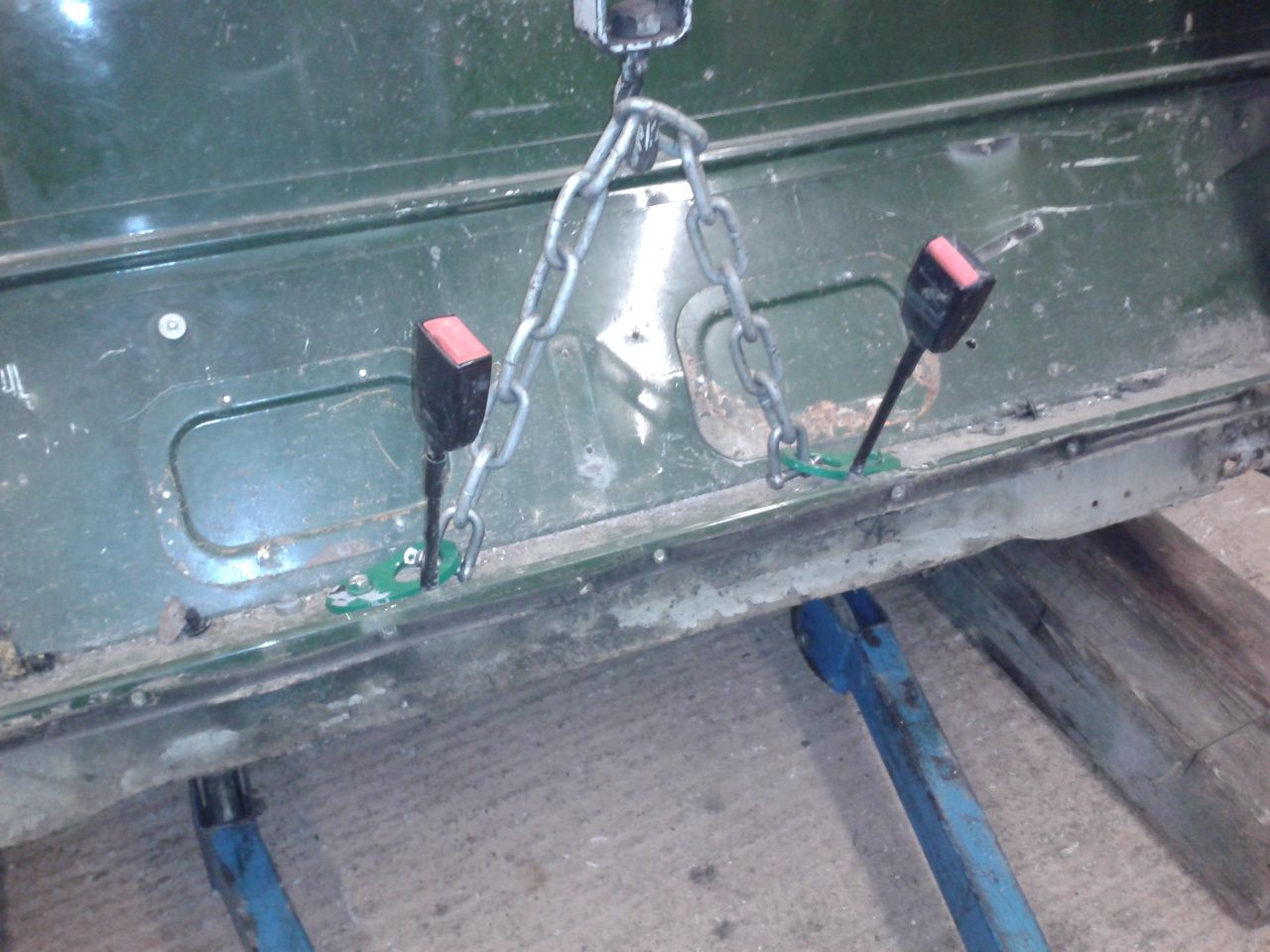

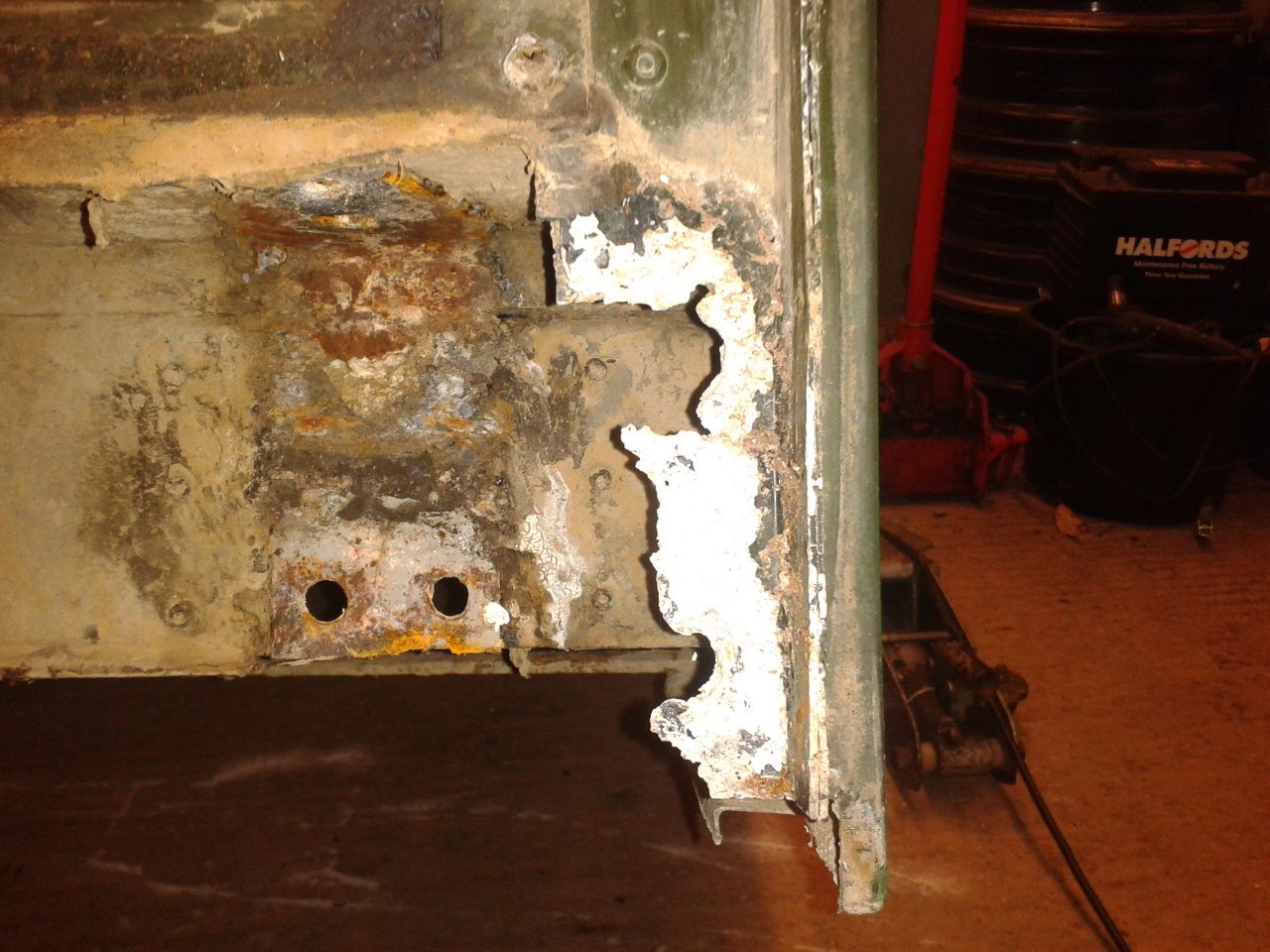

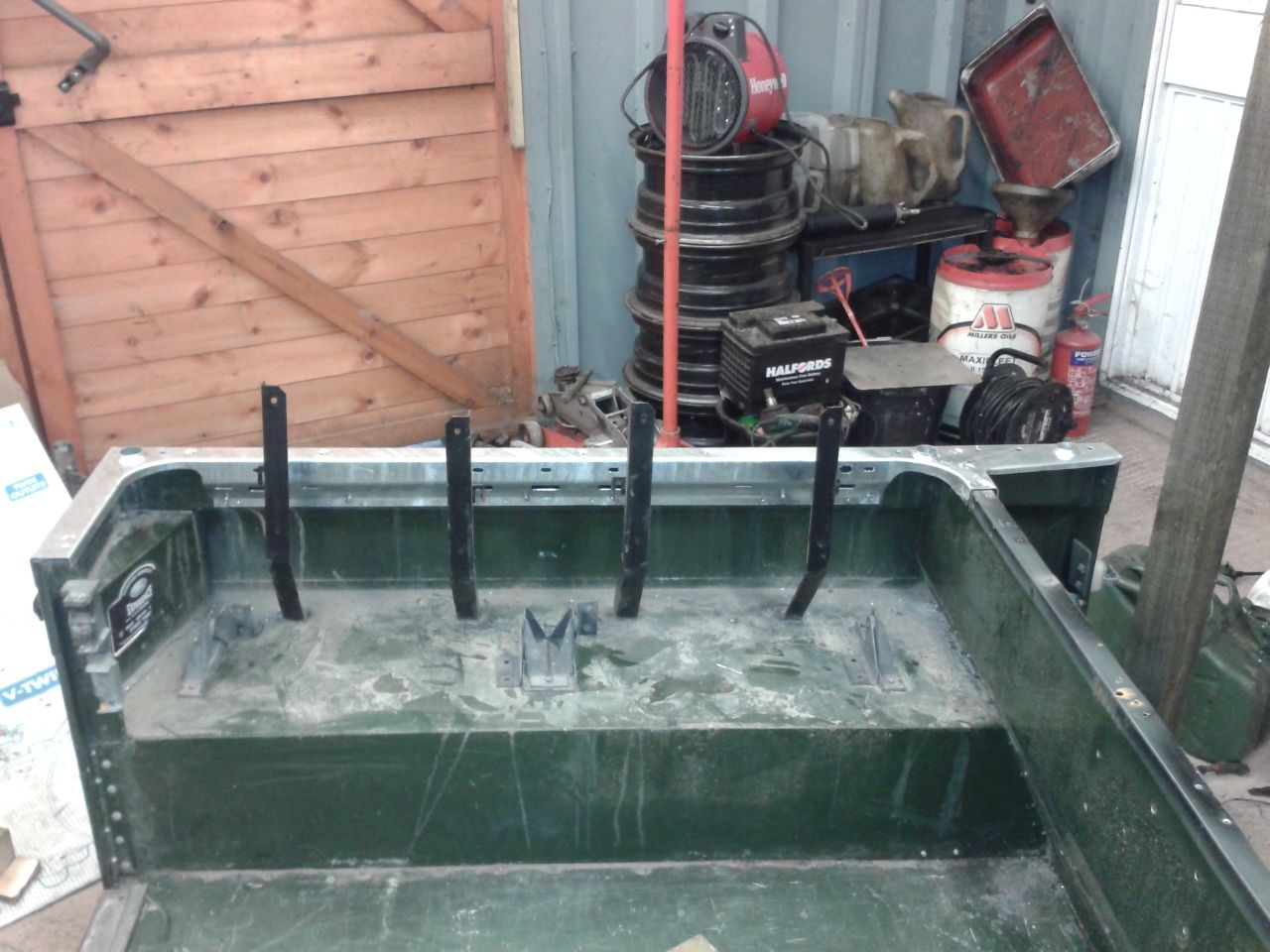

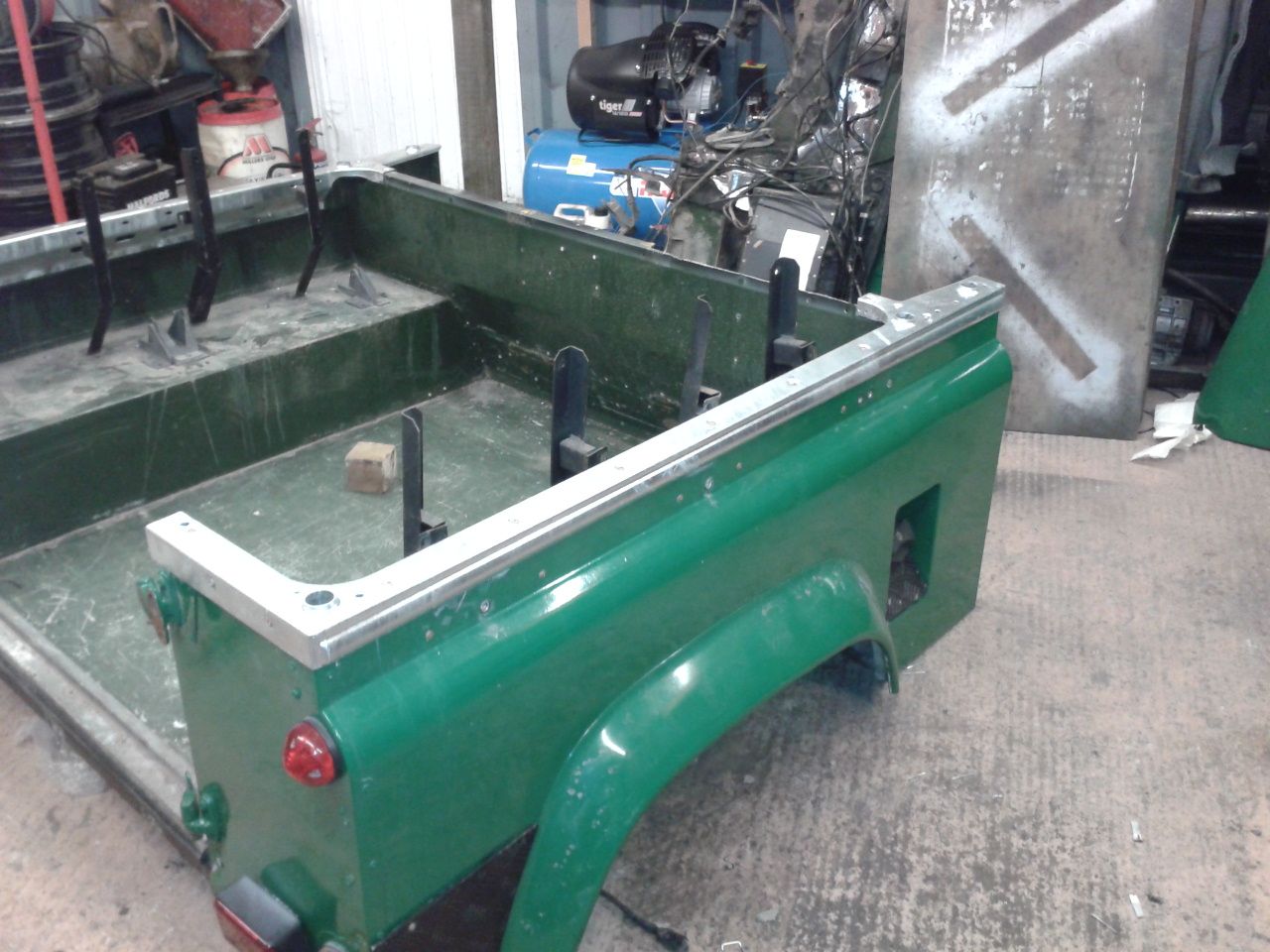

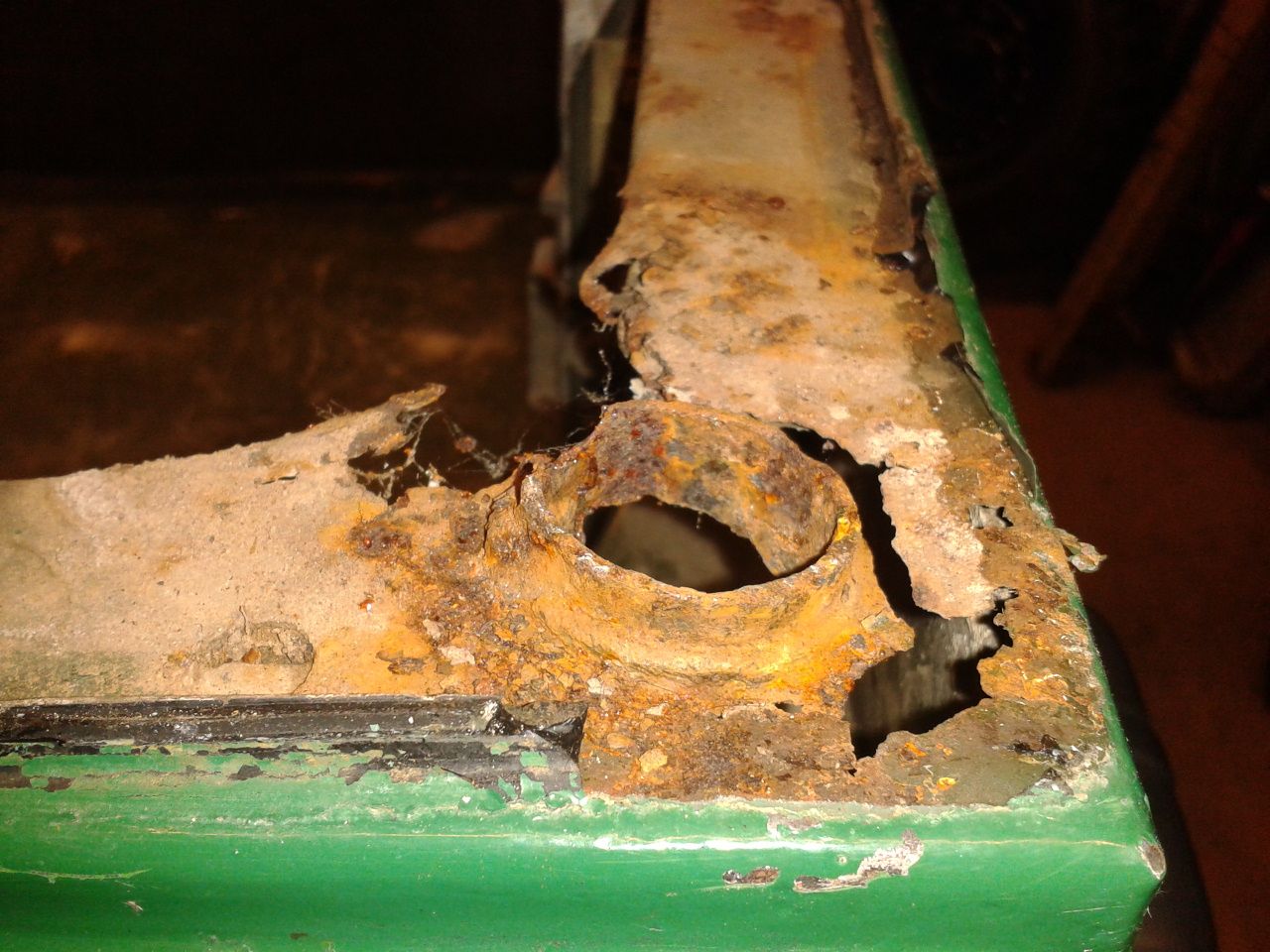

These pic's are of the tube cappings after being replace as it was son doing these and he didn't take pic's of them being stripped of

cornish rattler · Dec 20, 2015

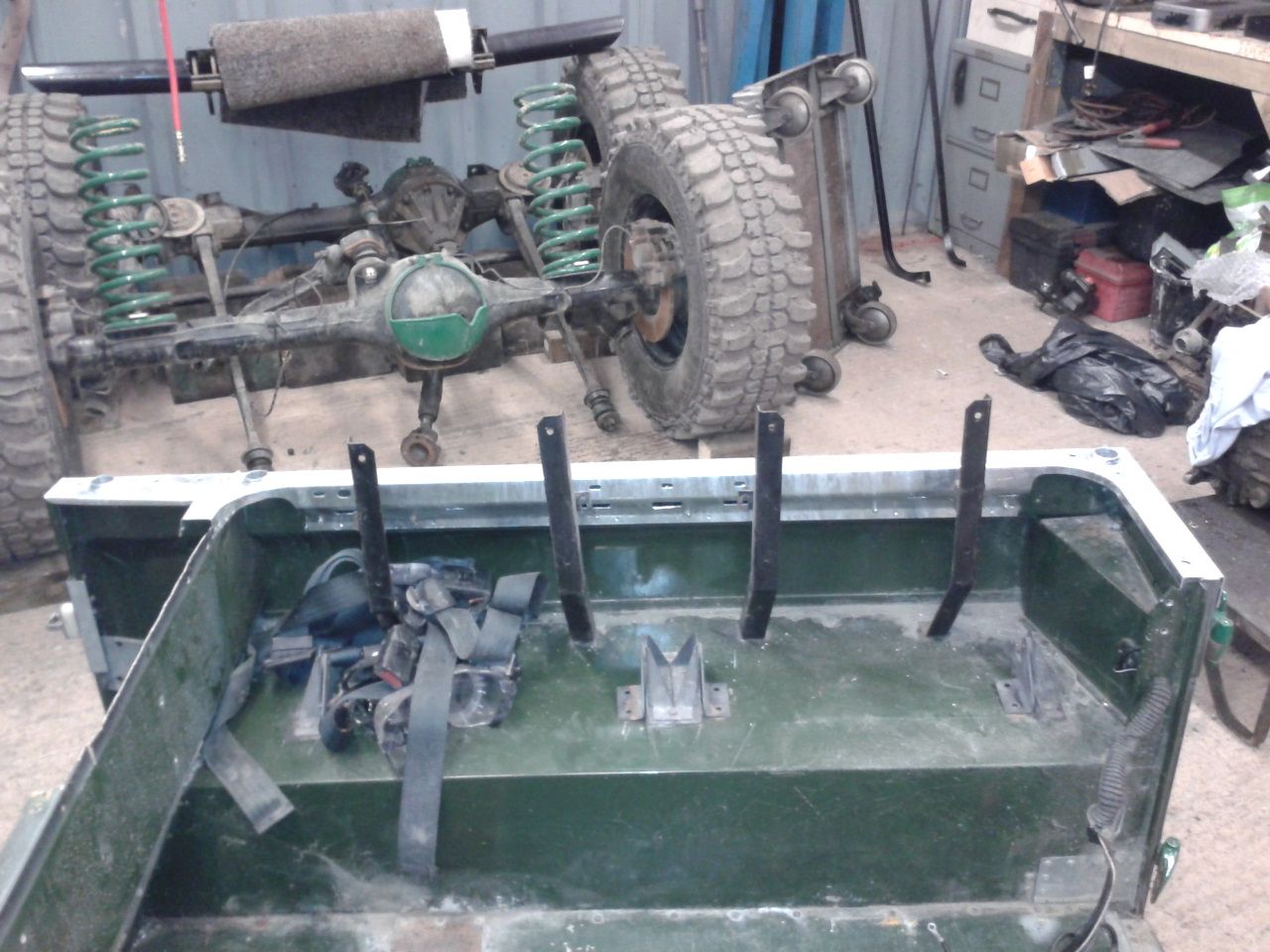

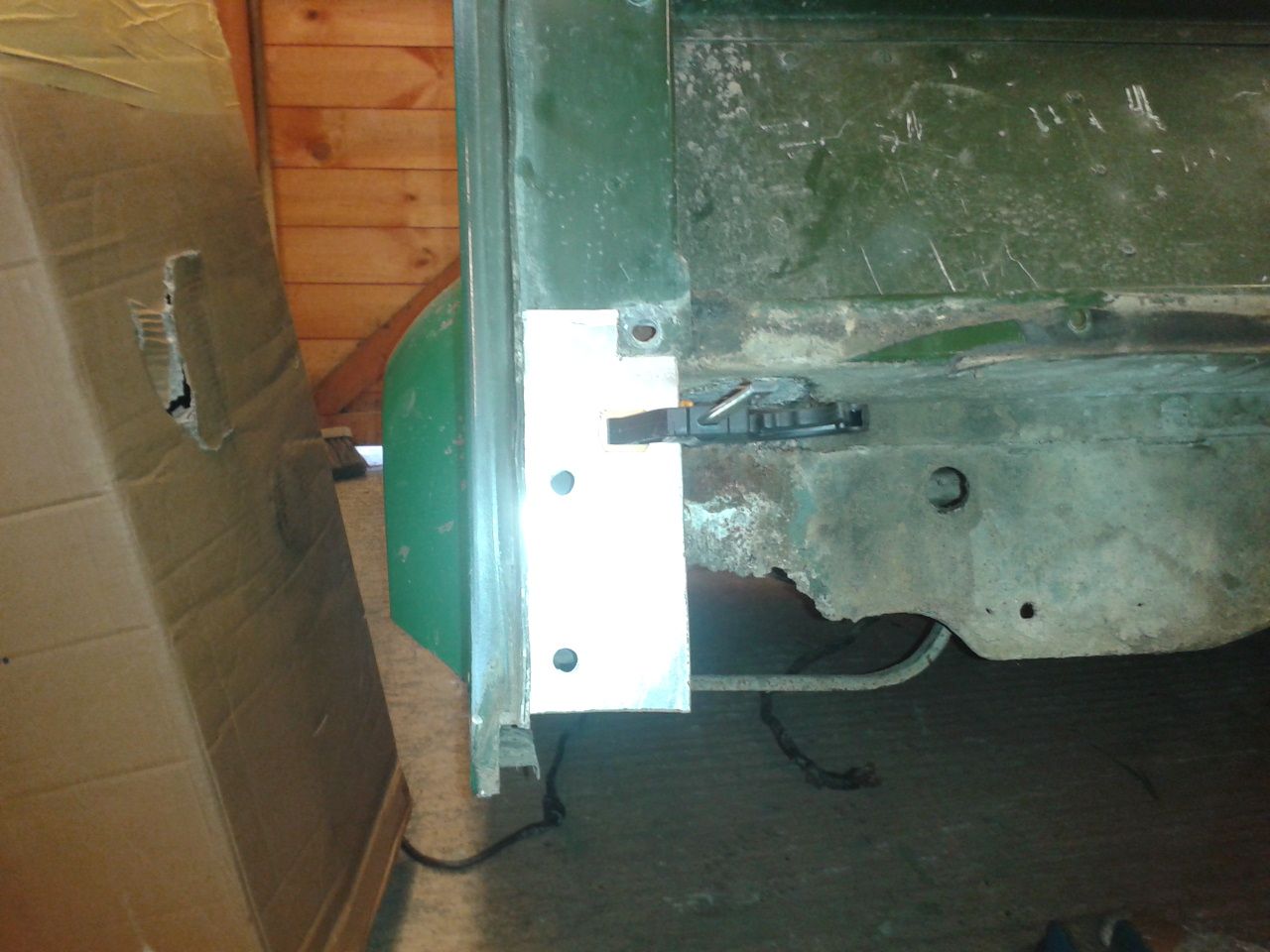

Then i made a few plates for when fitting the tub to the new chassis

cornish rattler · Dec 20, 2015

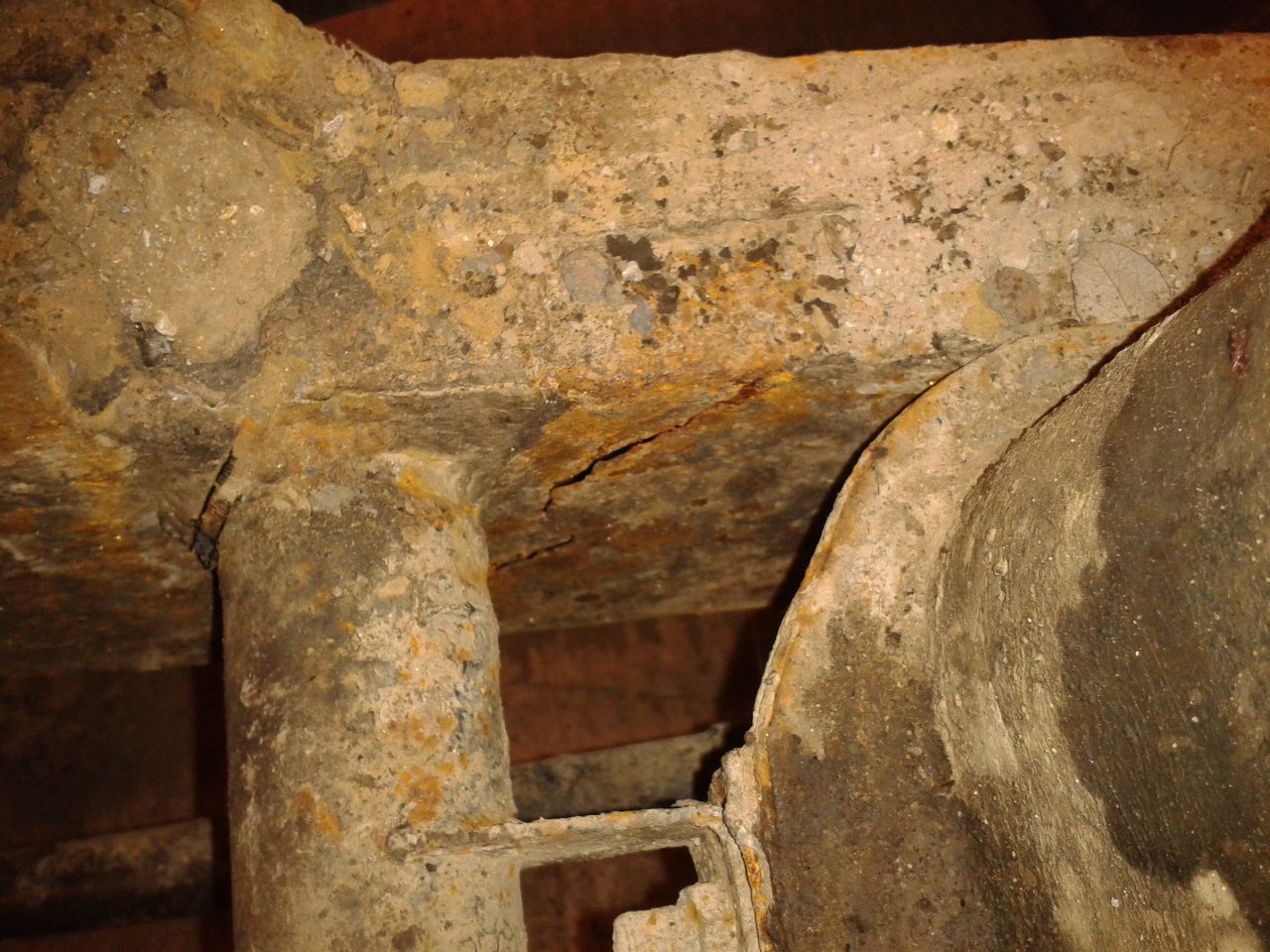

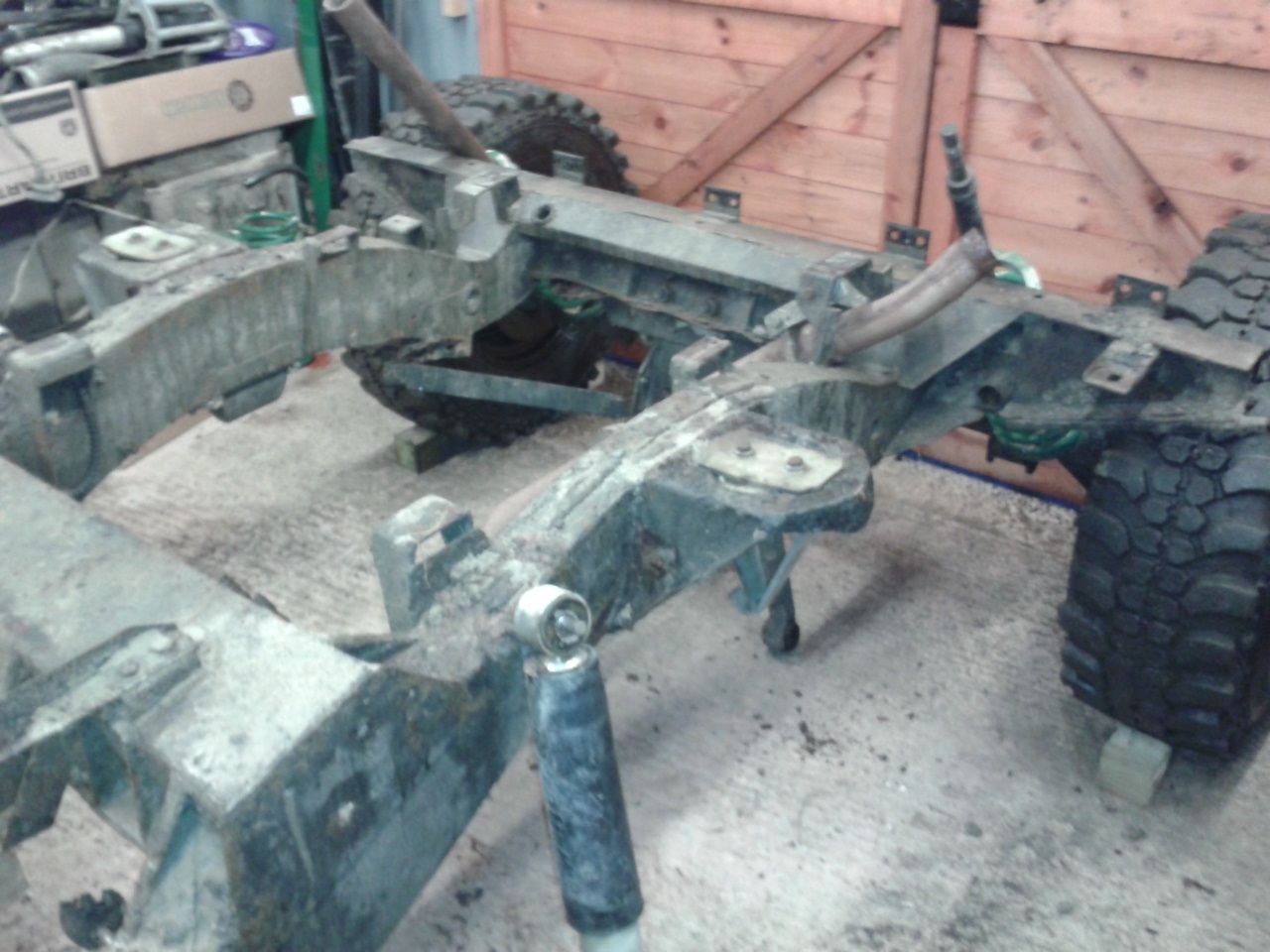

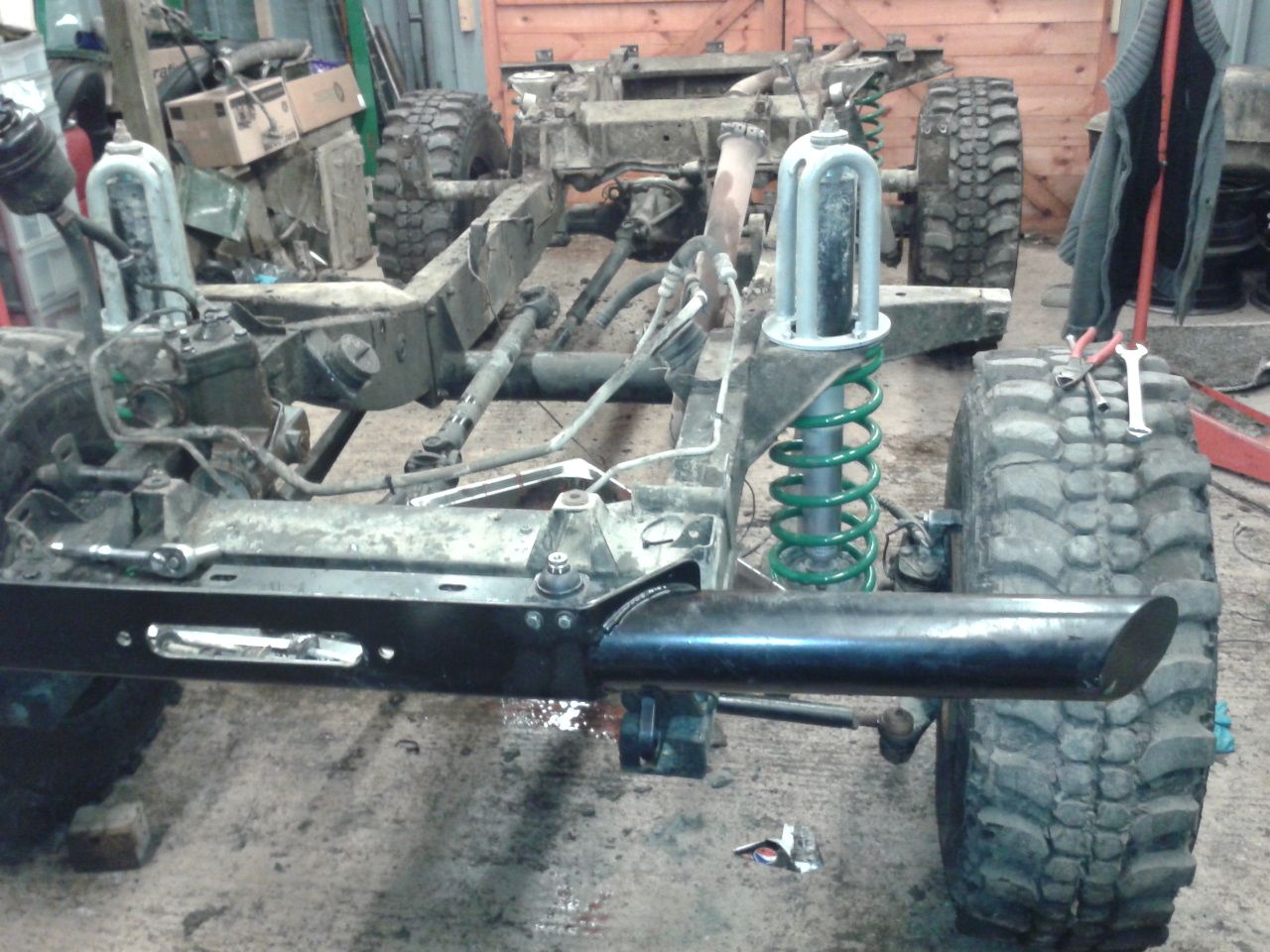

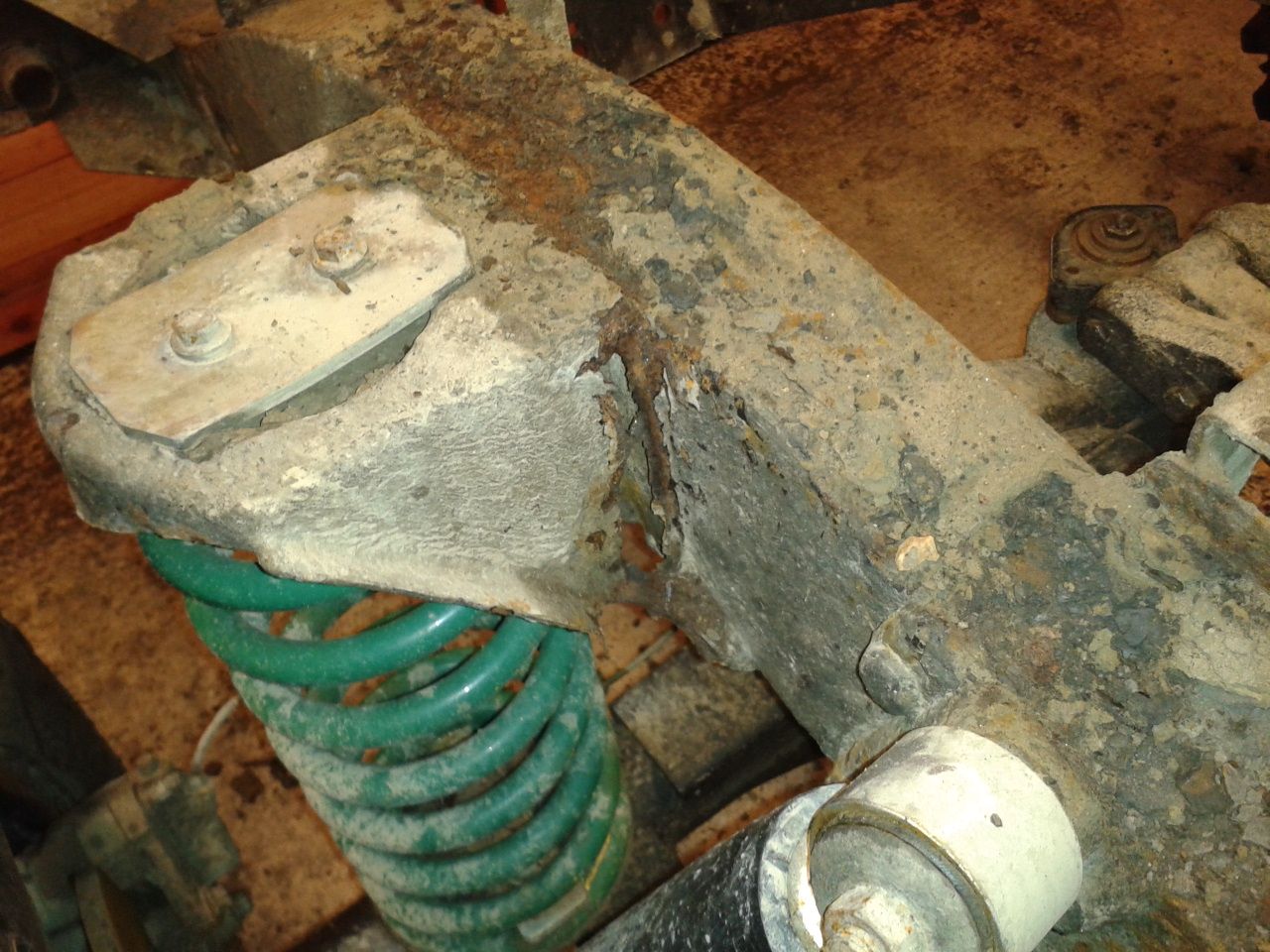

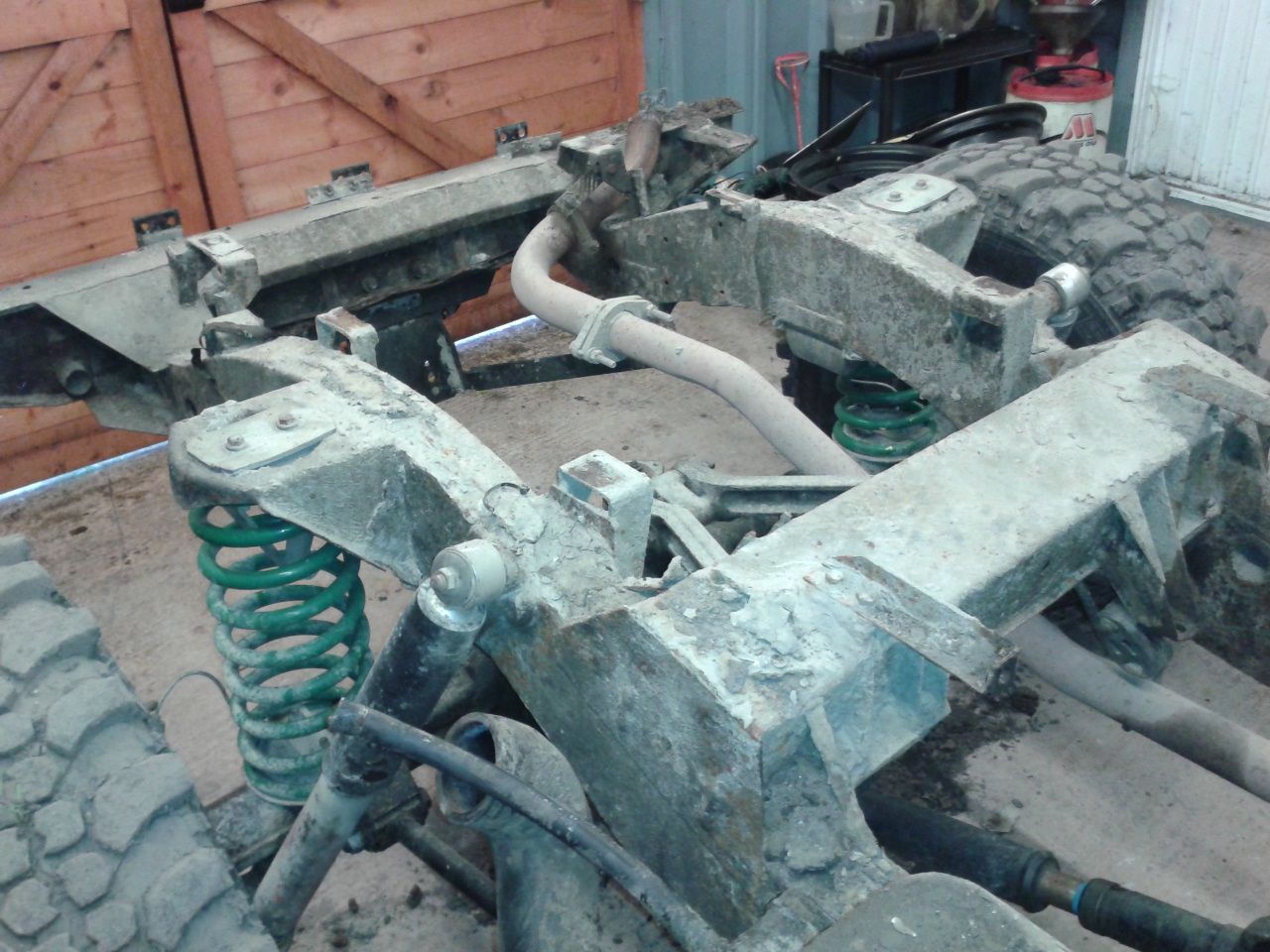

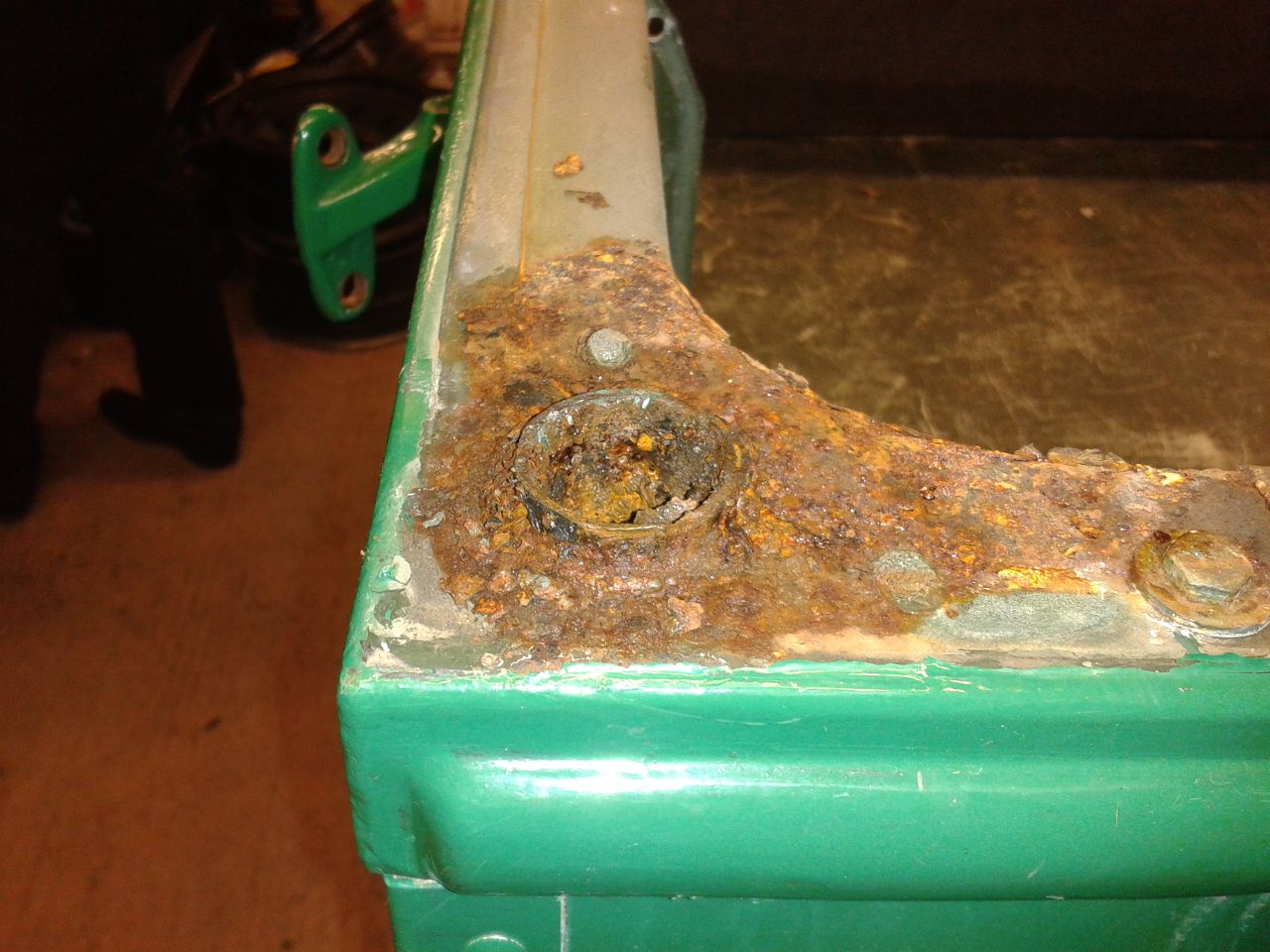

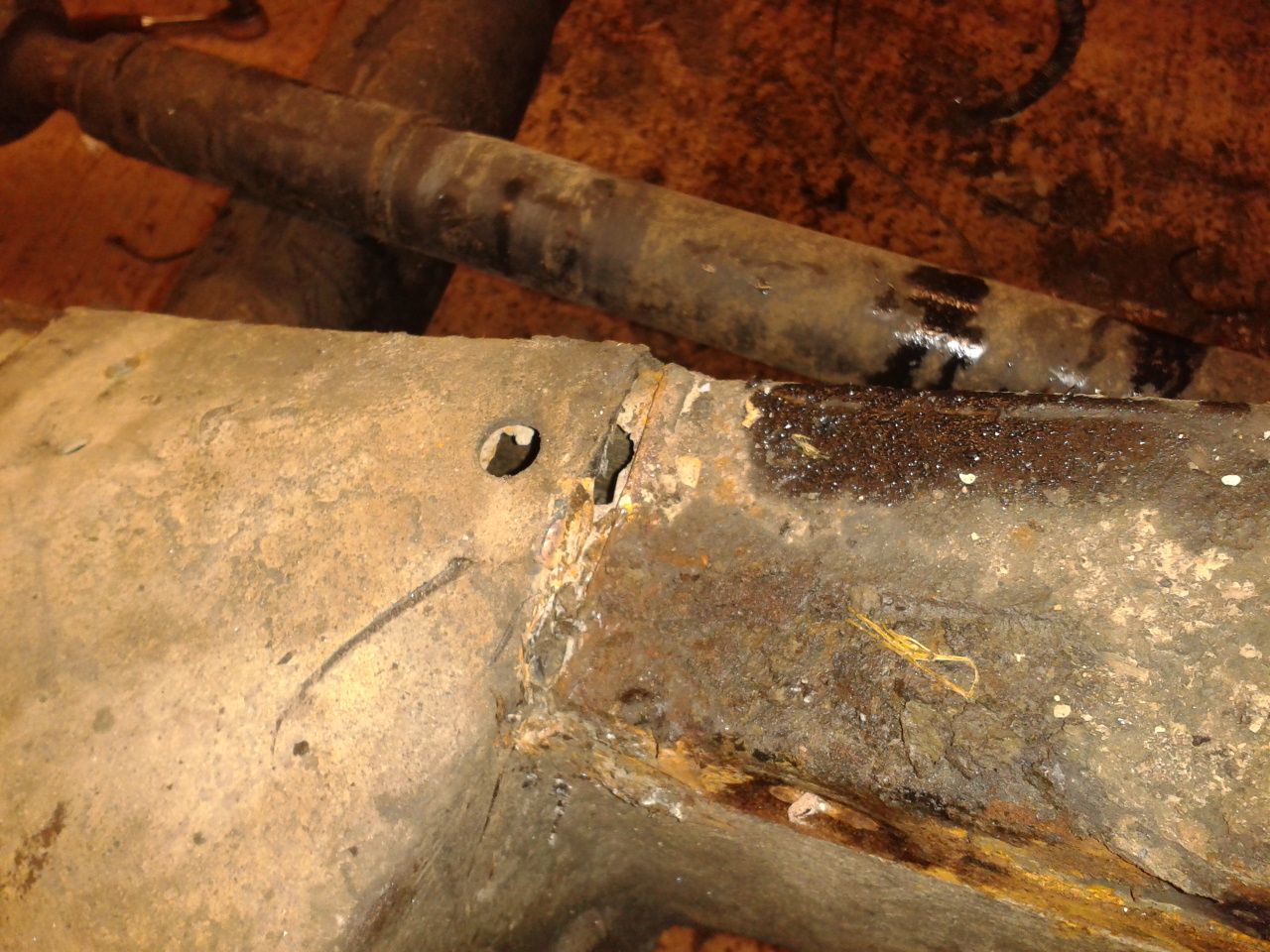

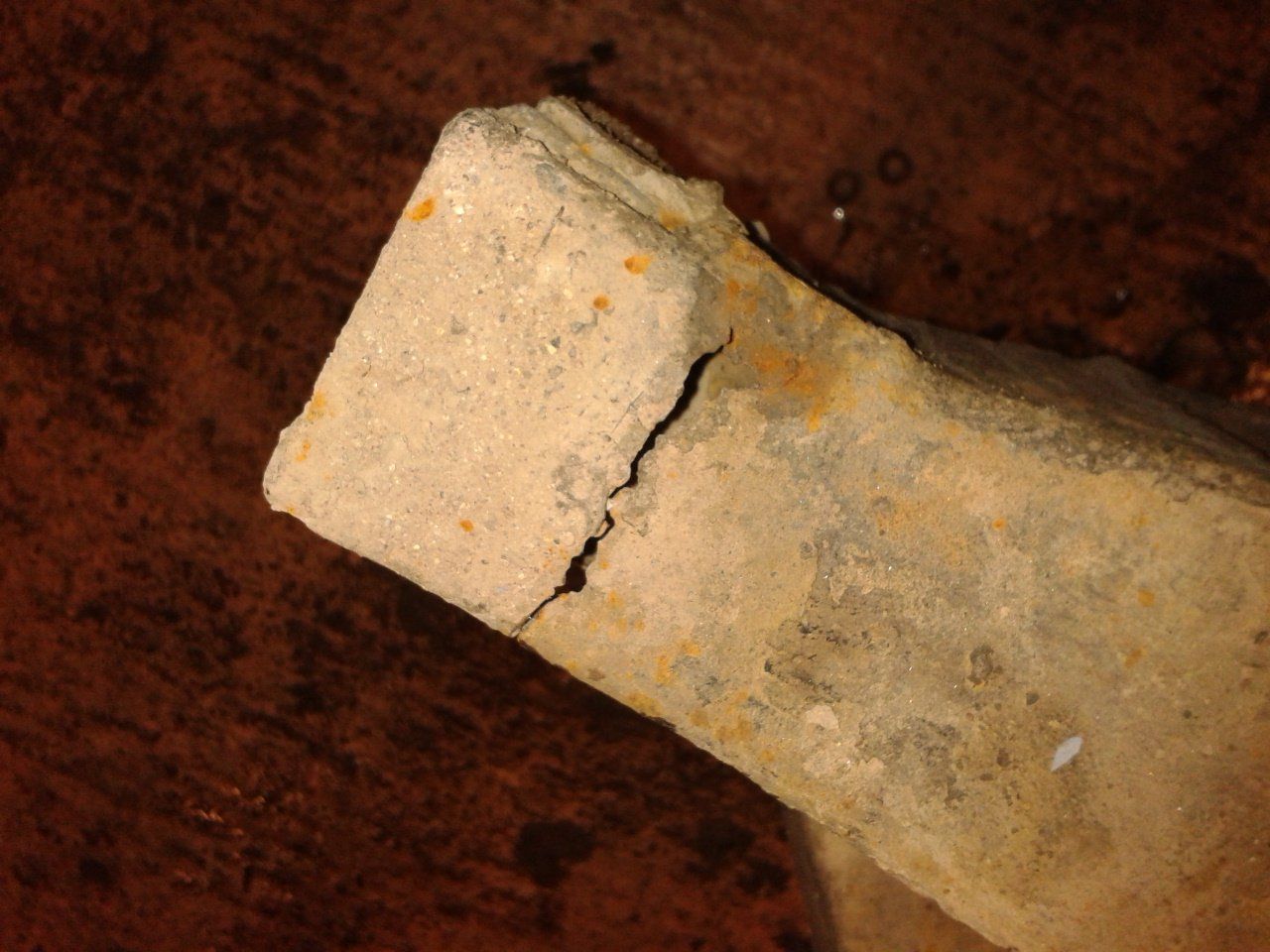

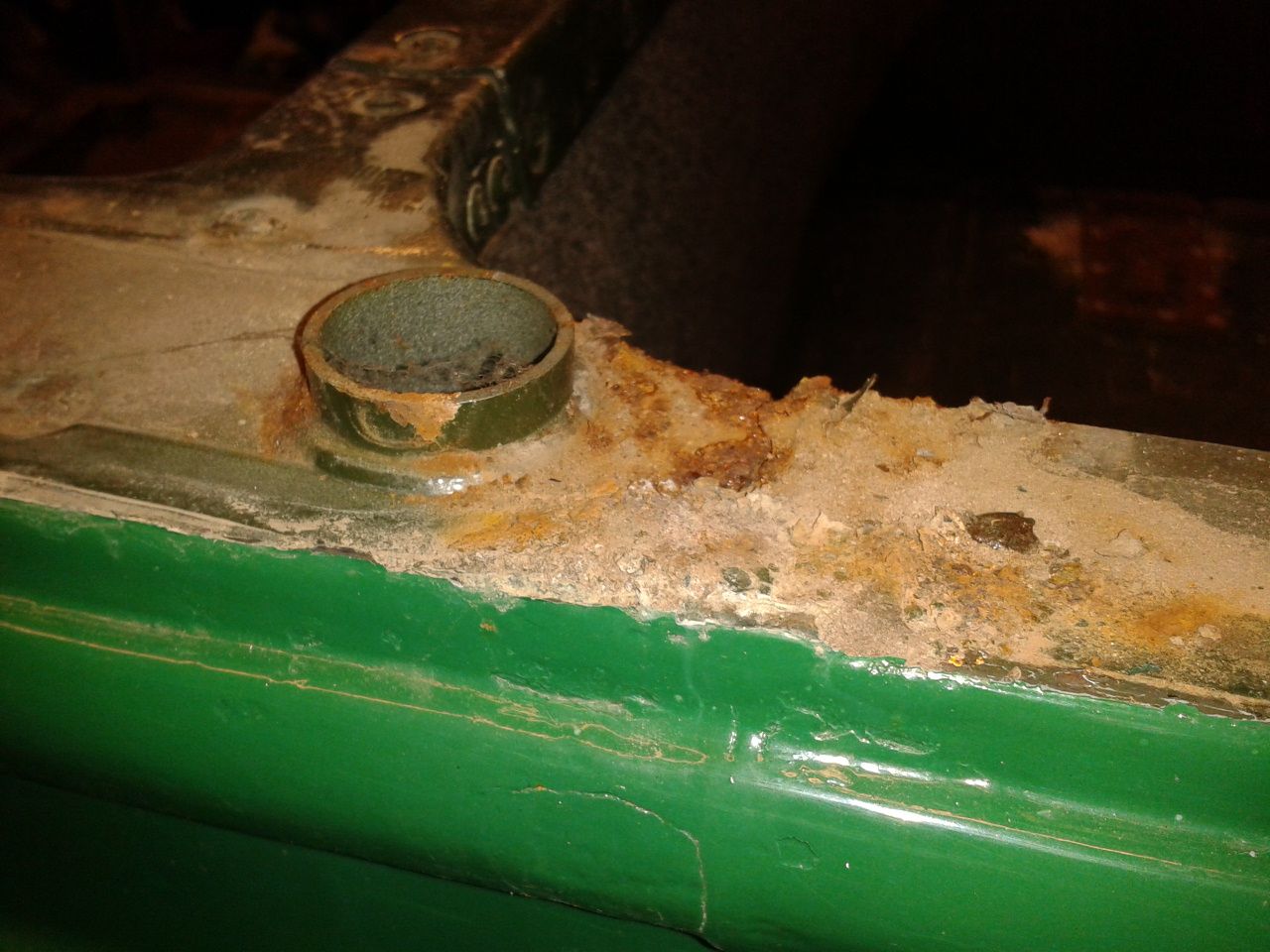

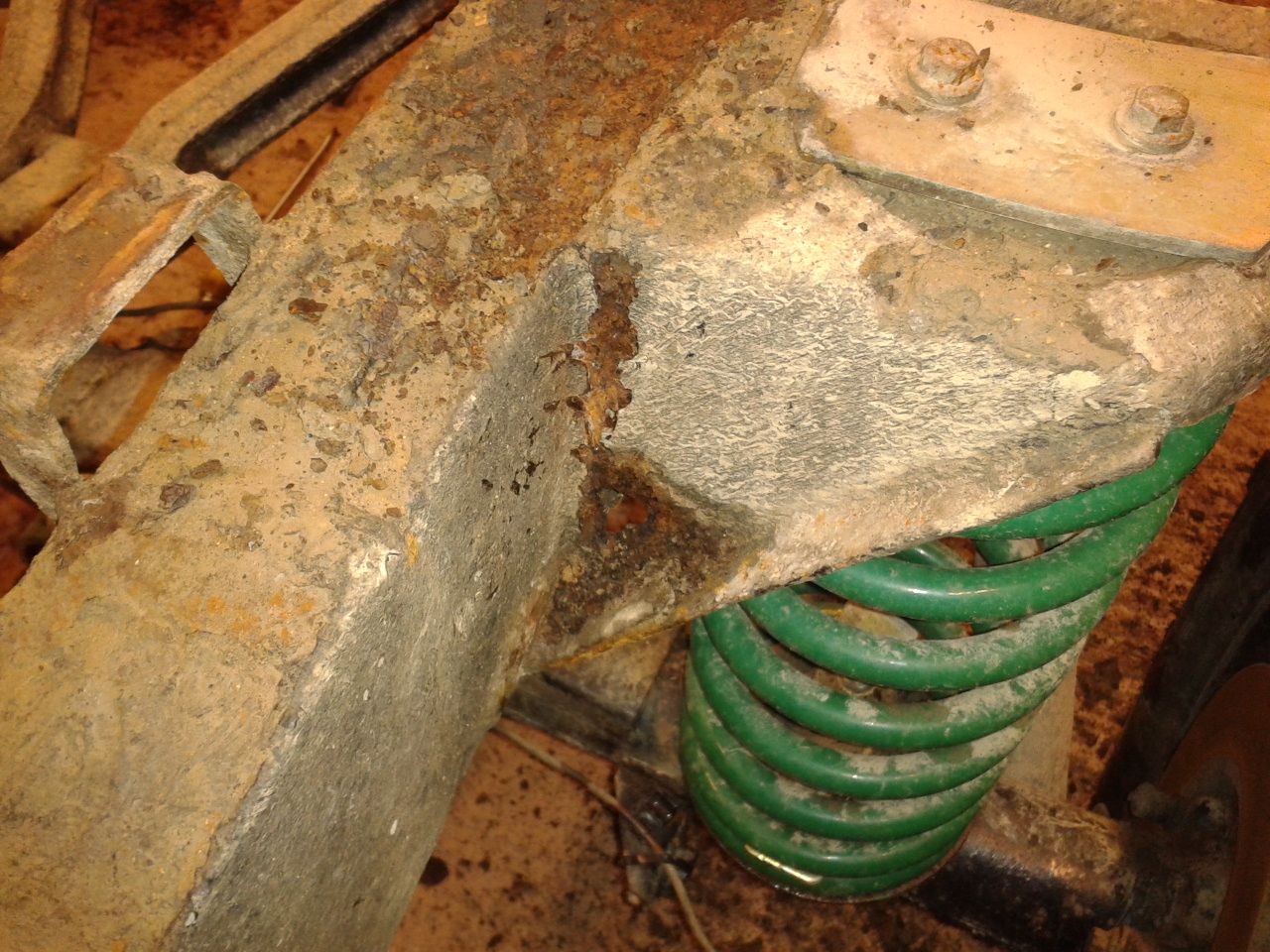

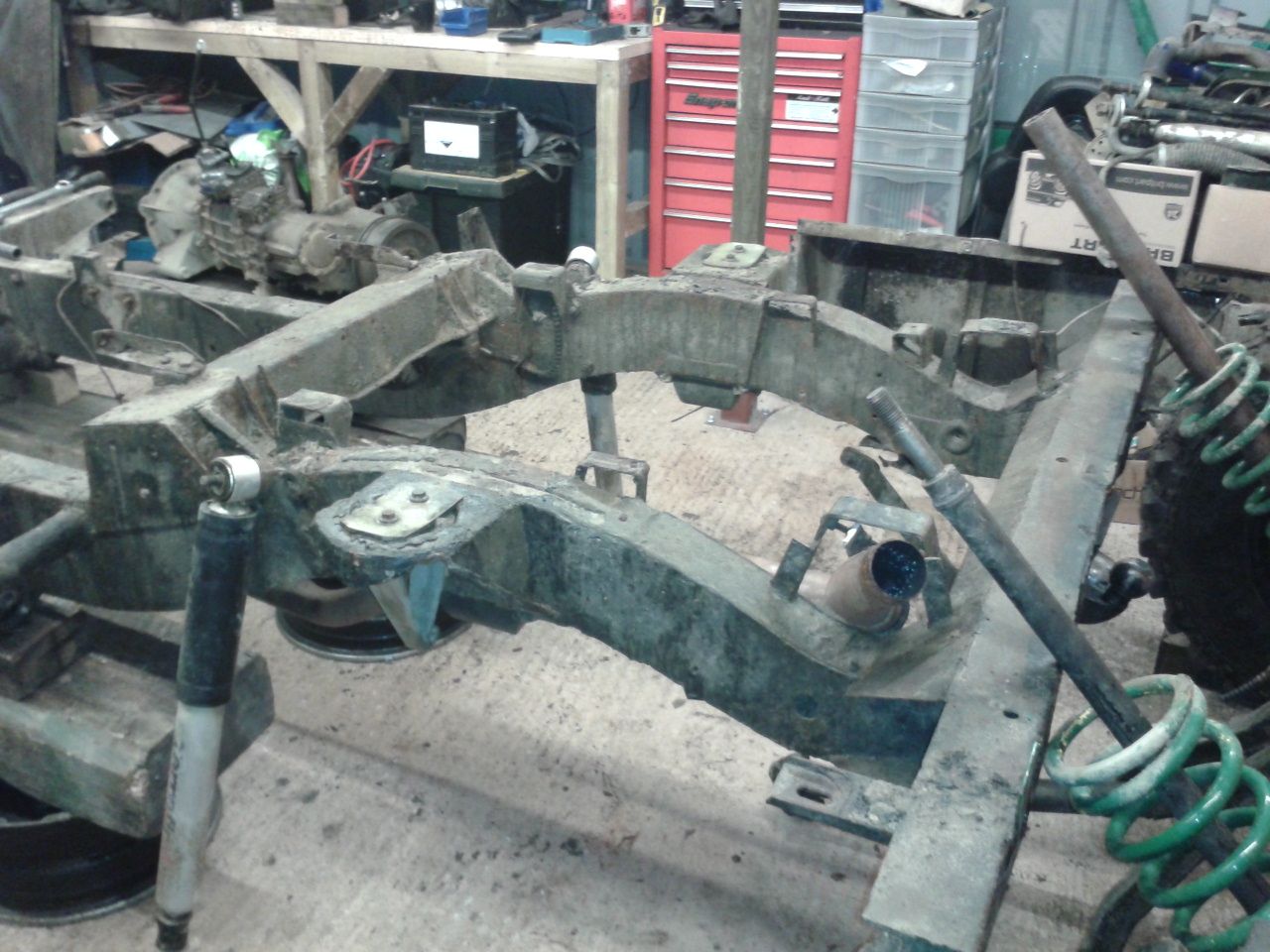

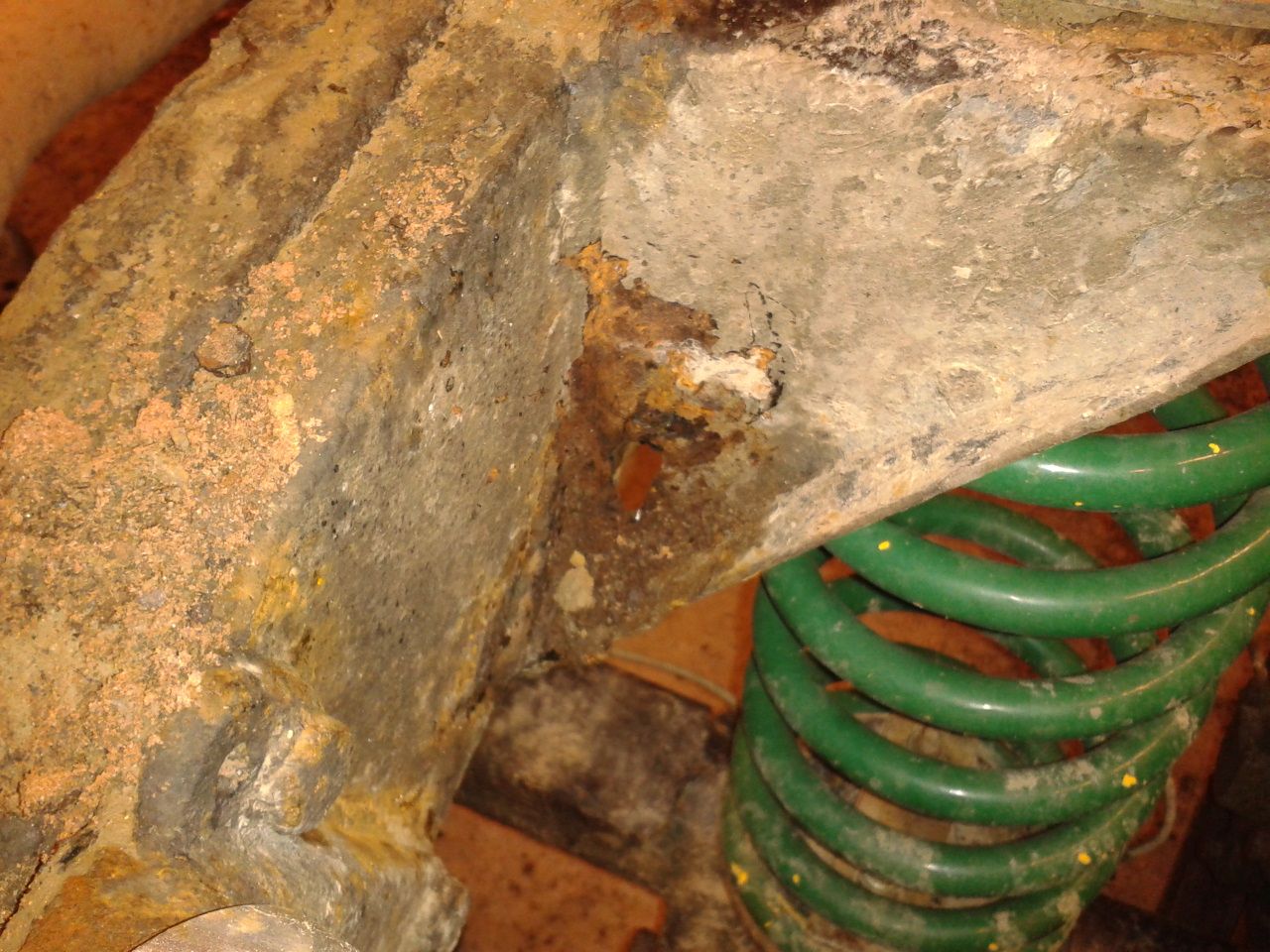

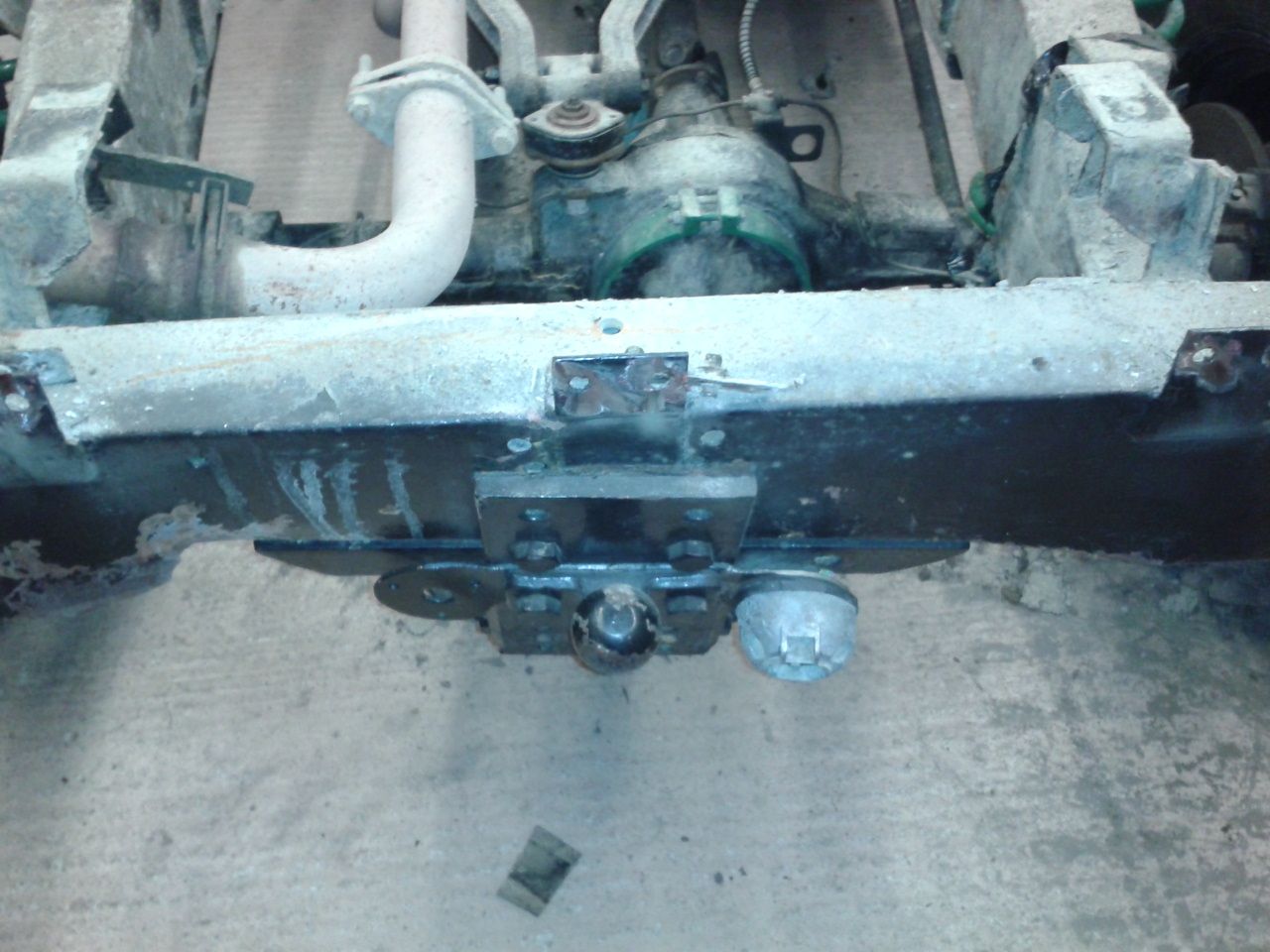

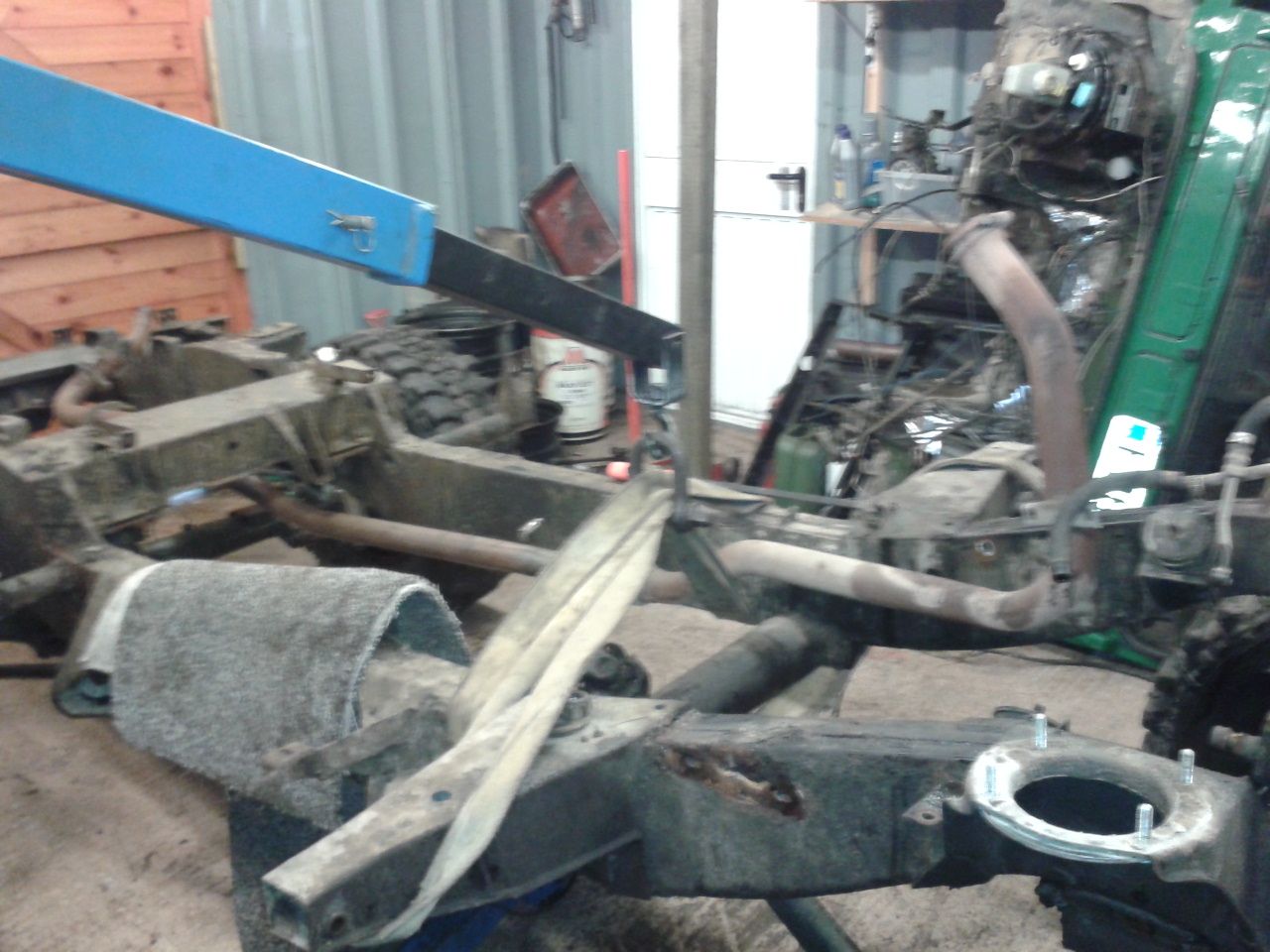

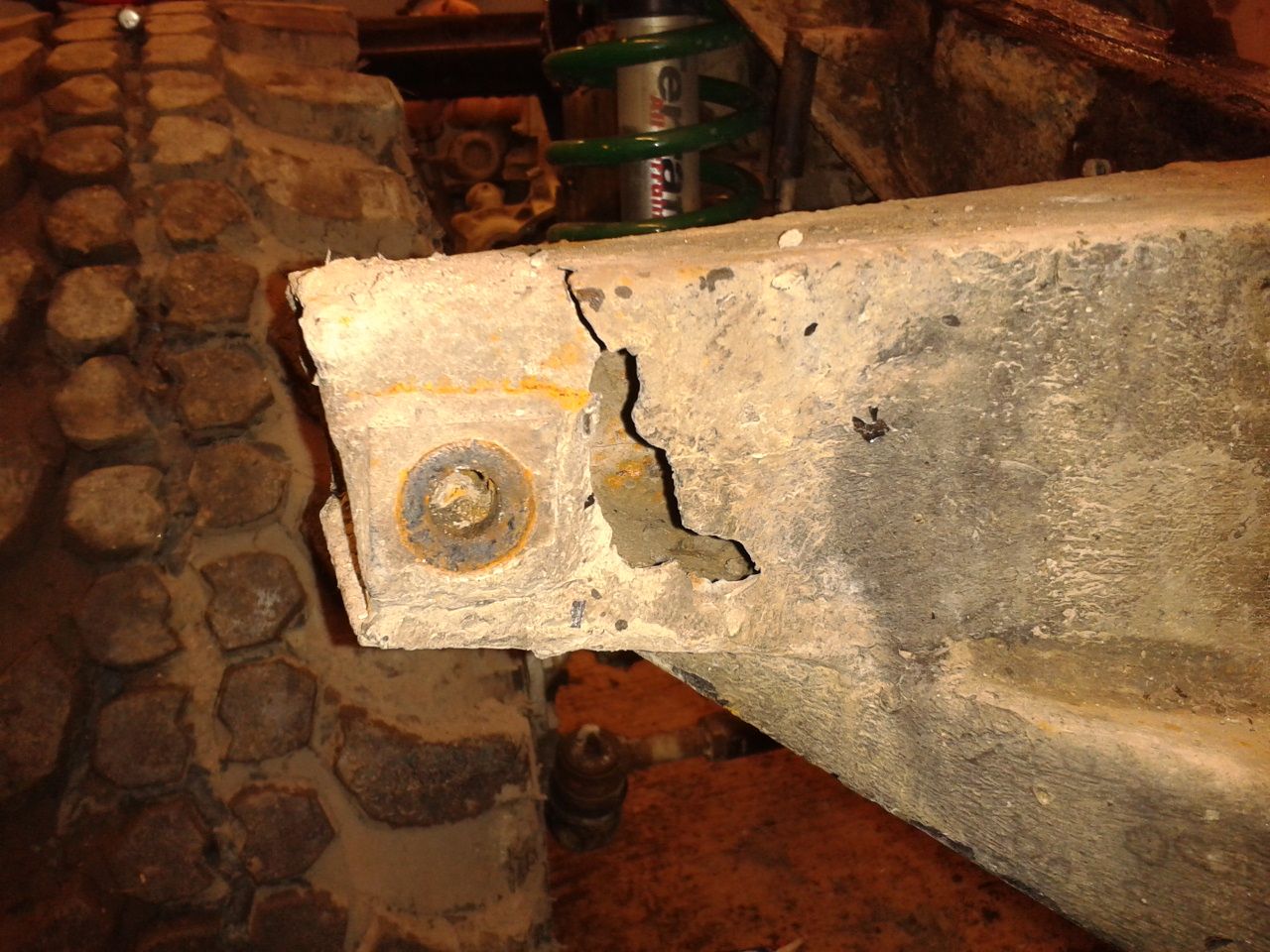

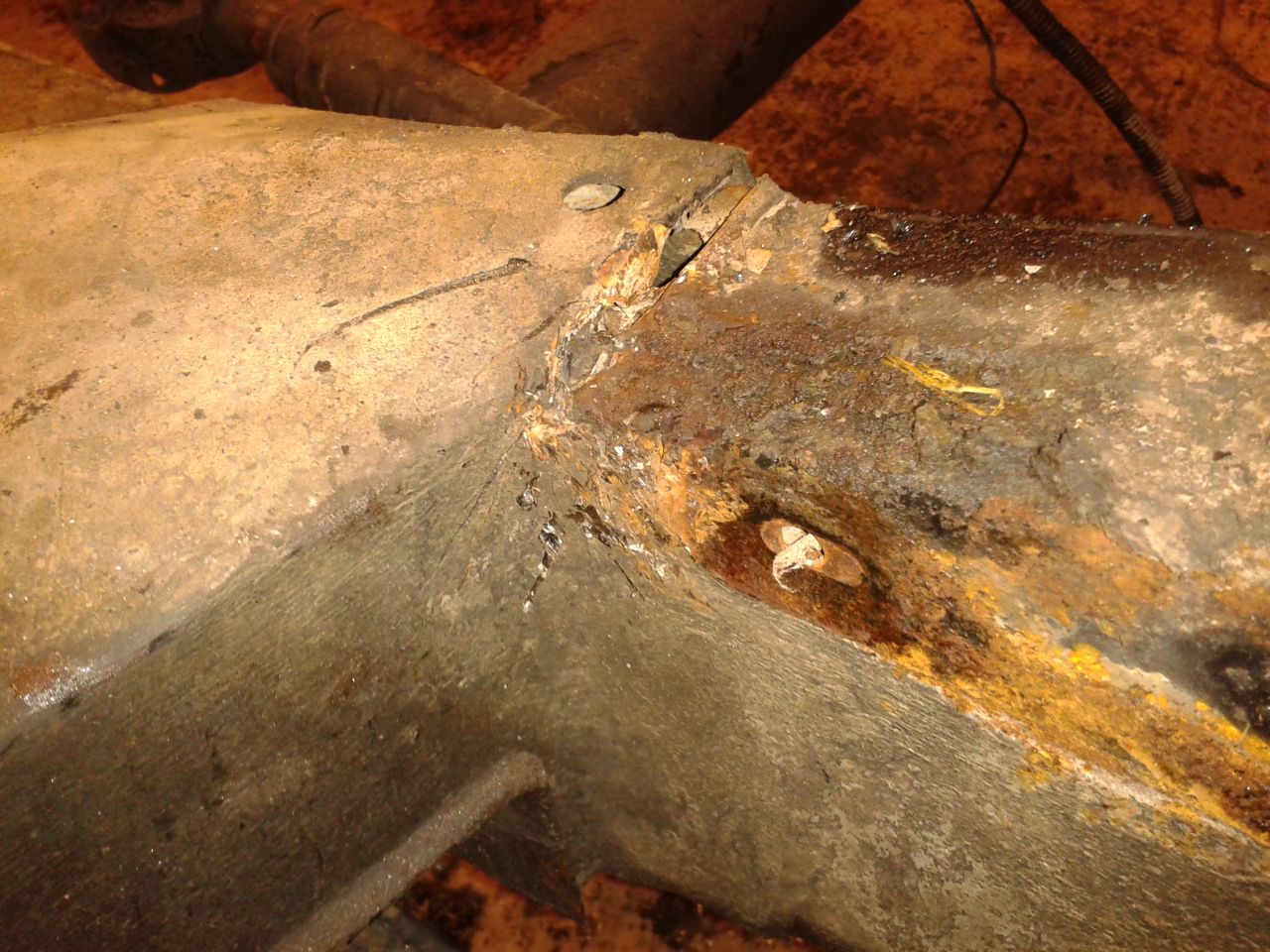

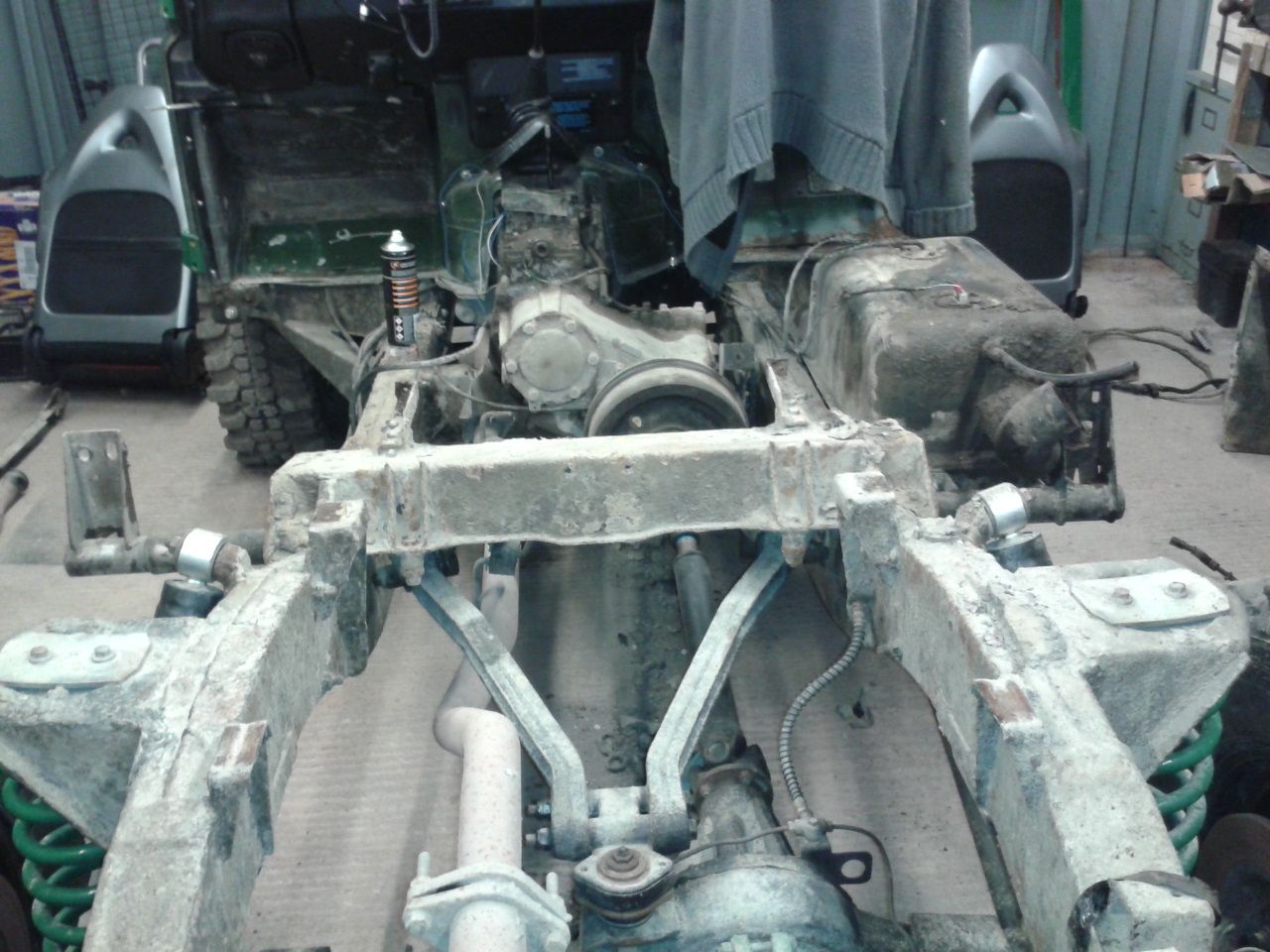

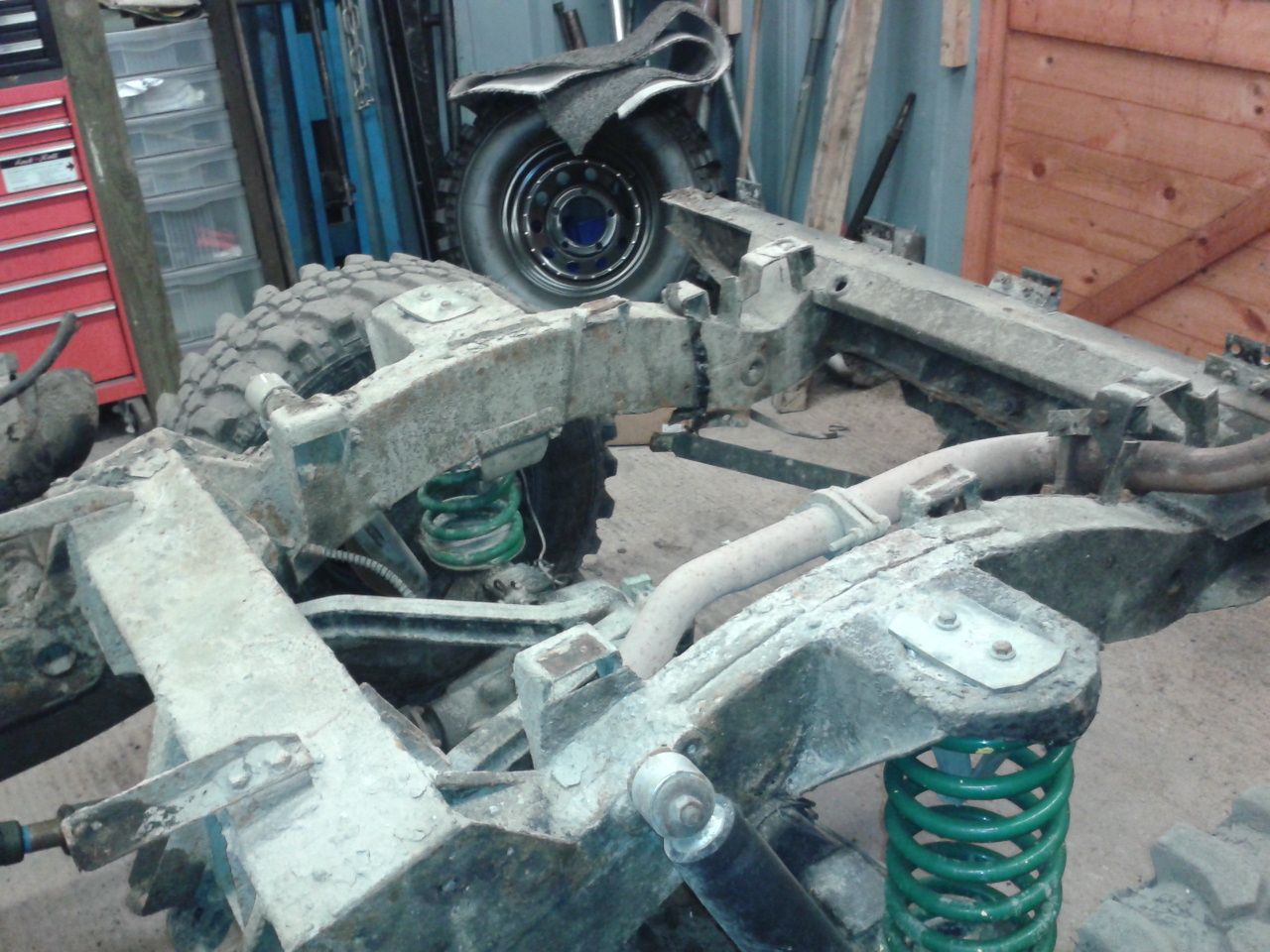

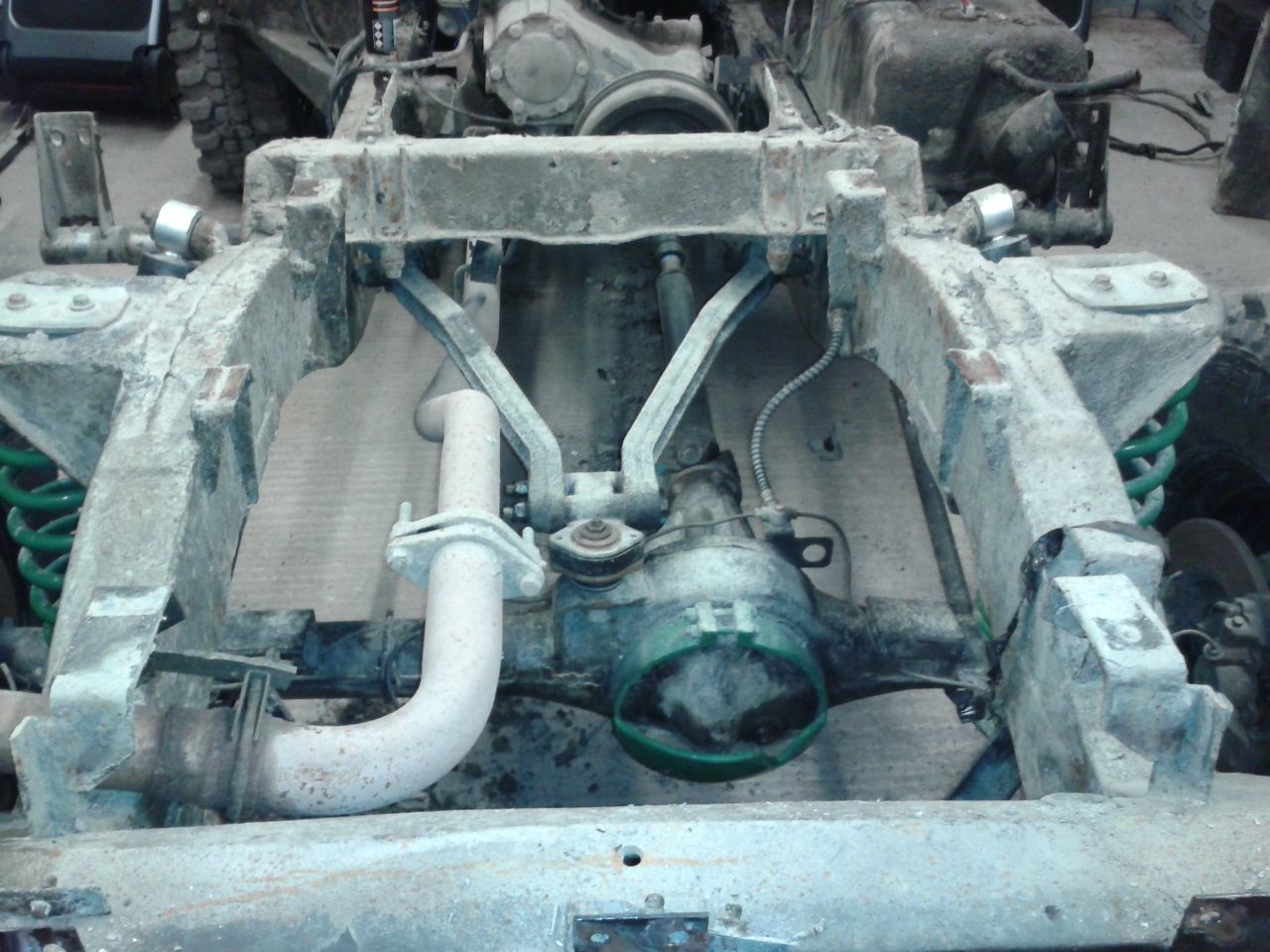

And here is the old chassis being stripped inc the damage from the impact and the rot

cornish rattler · Dec 20, 2015

Will post more later

cornish rattler · Dec 23, 2015

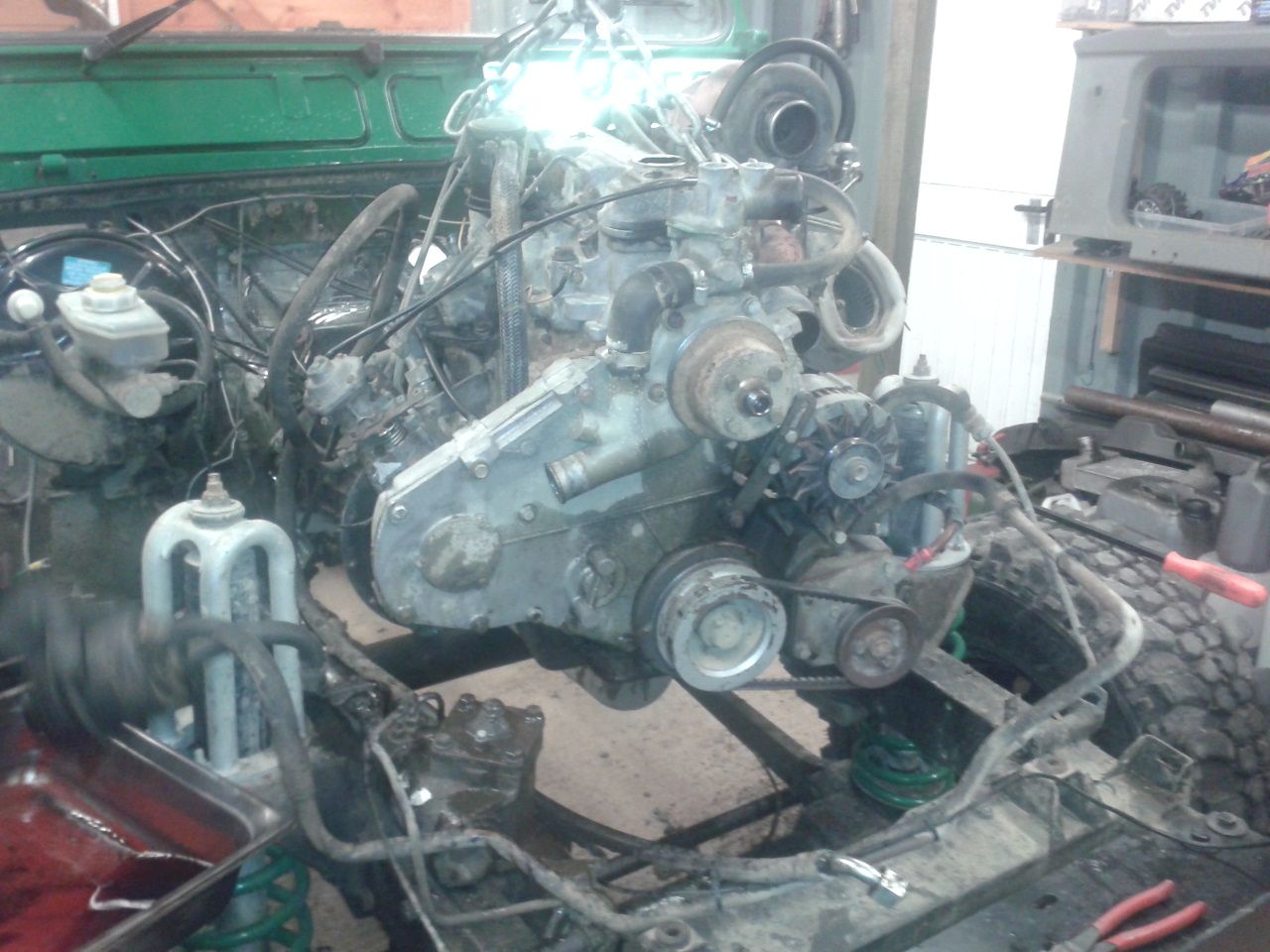

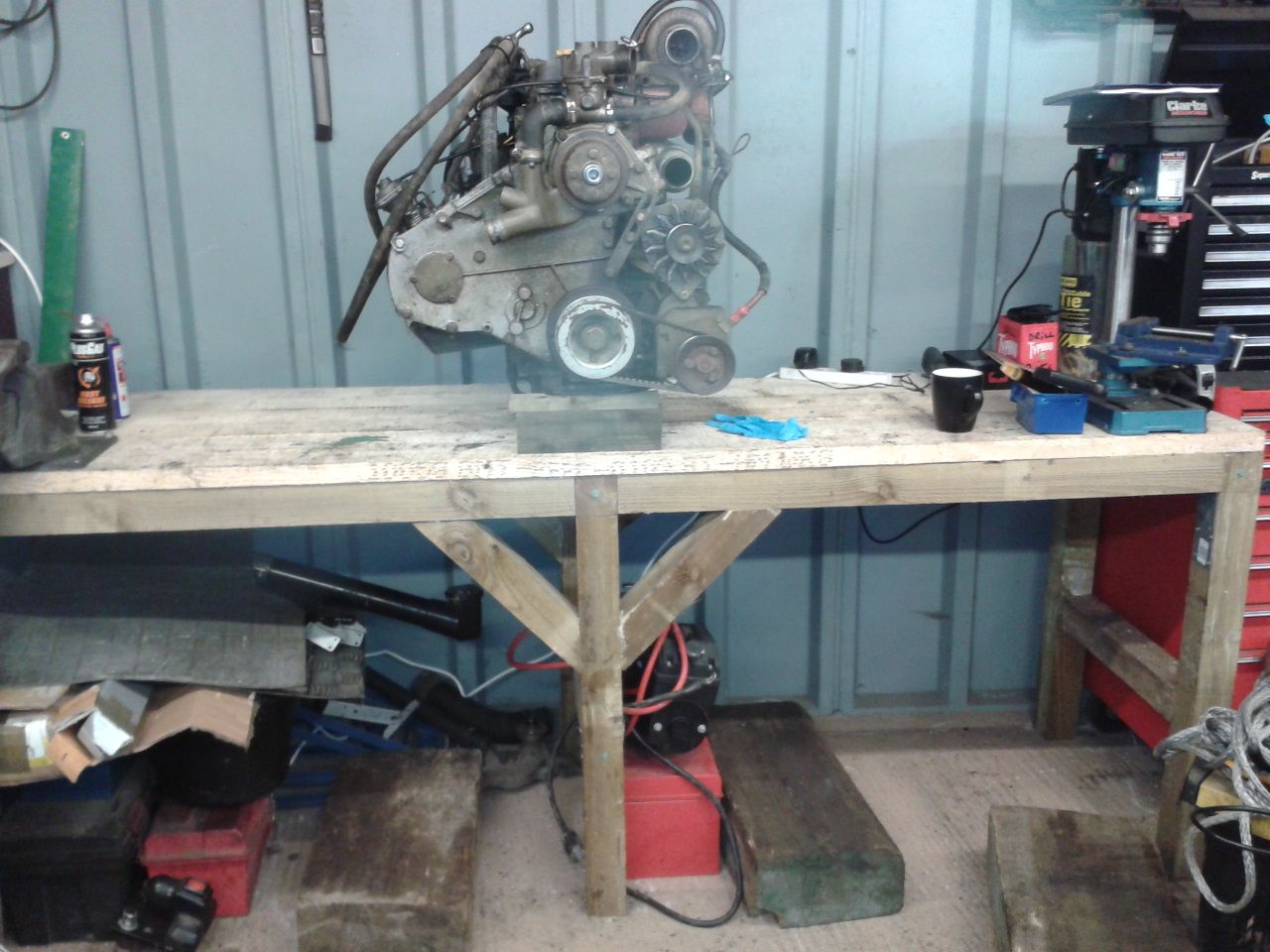

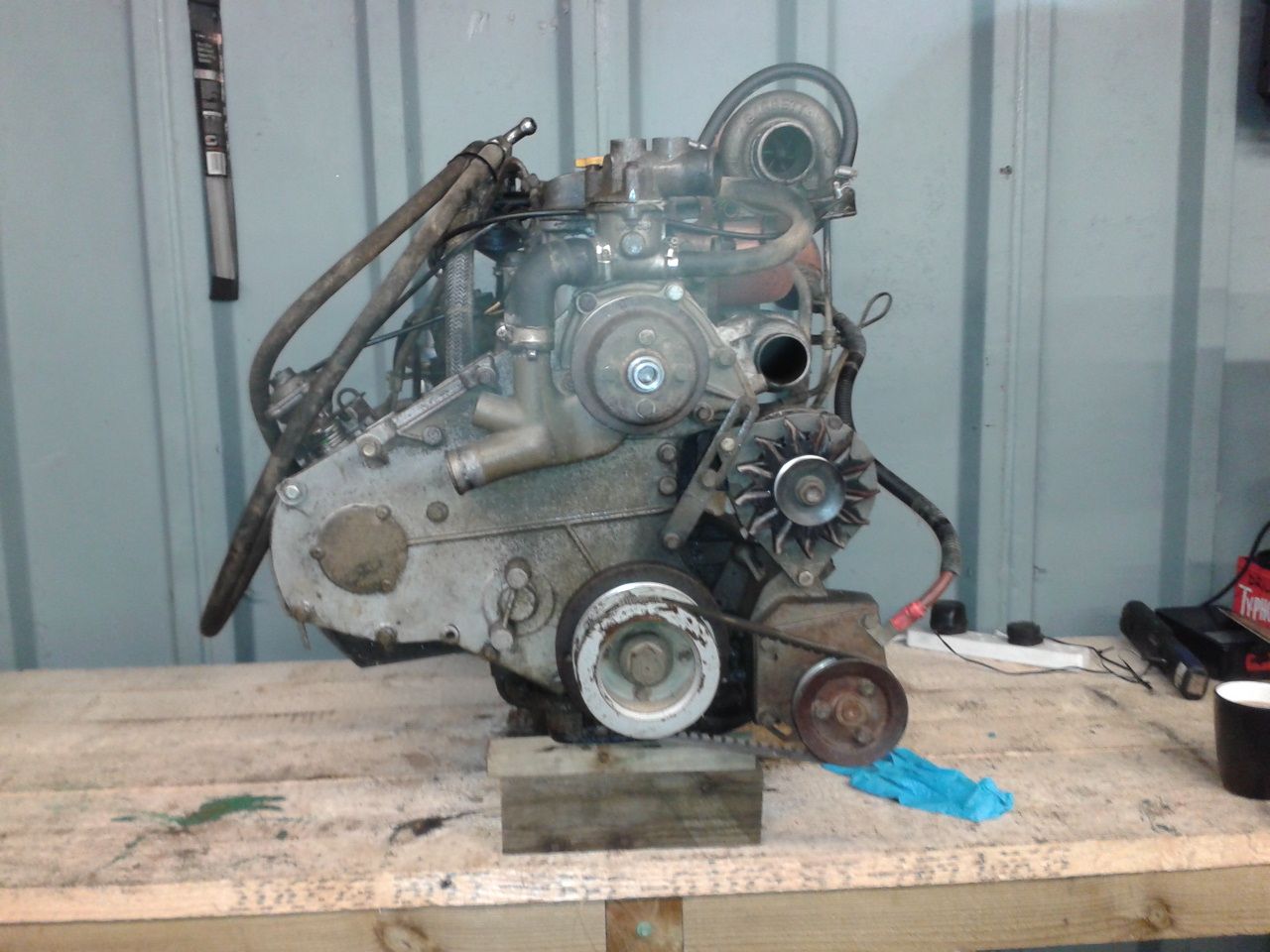

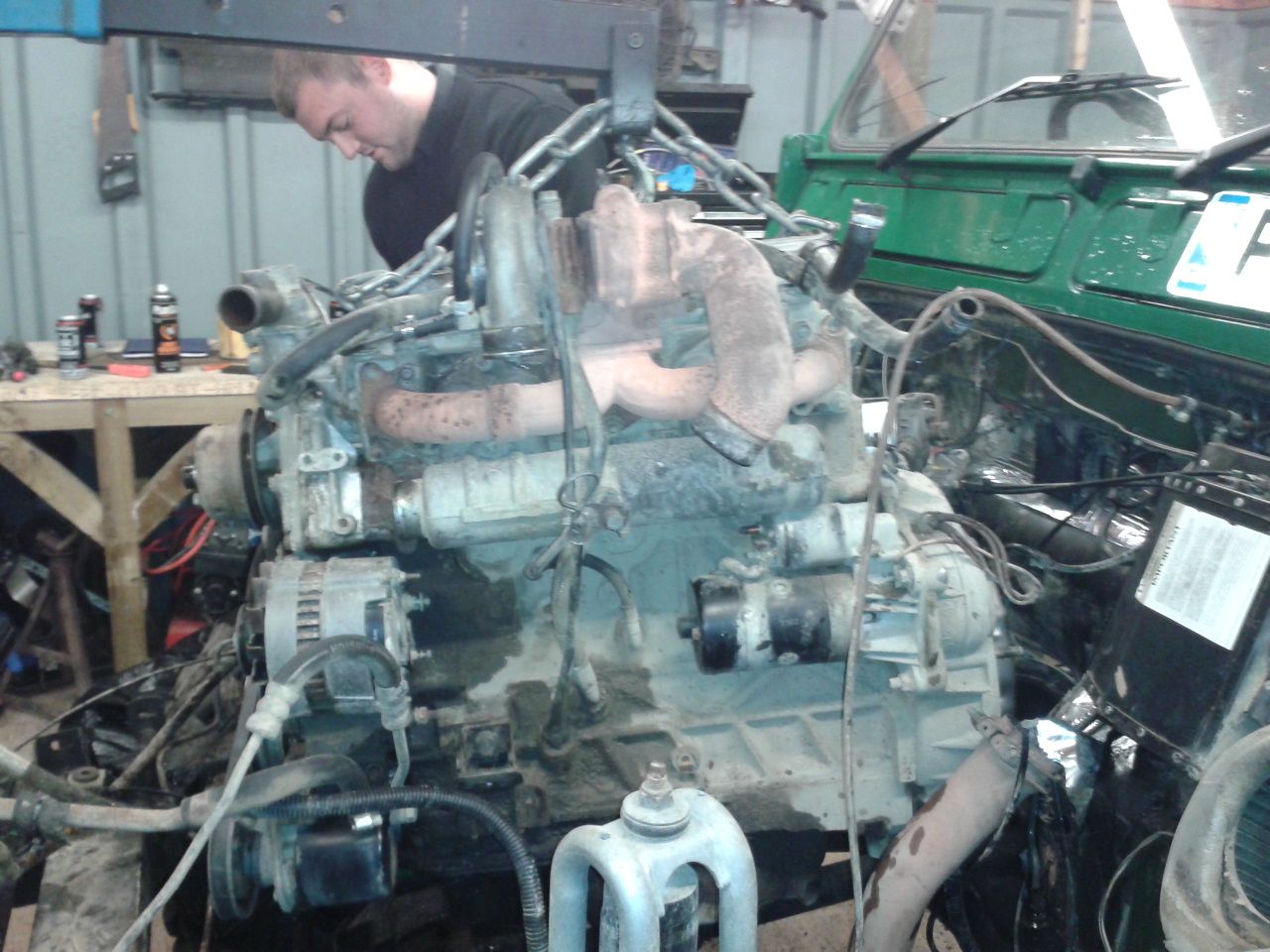

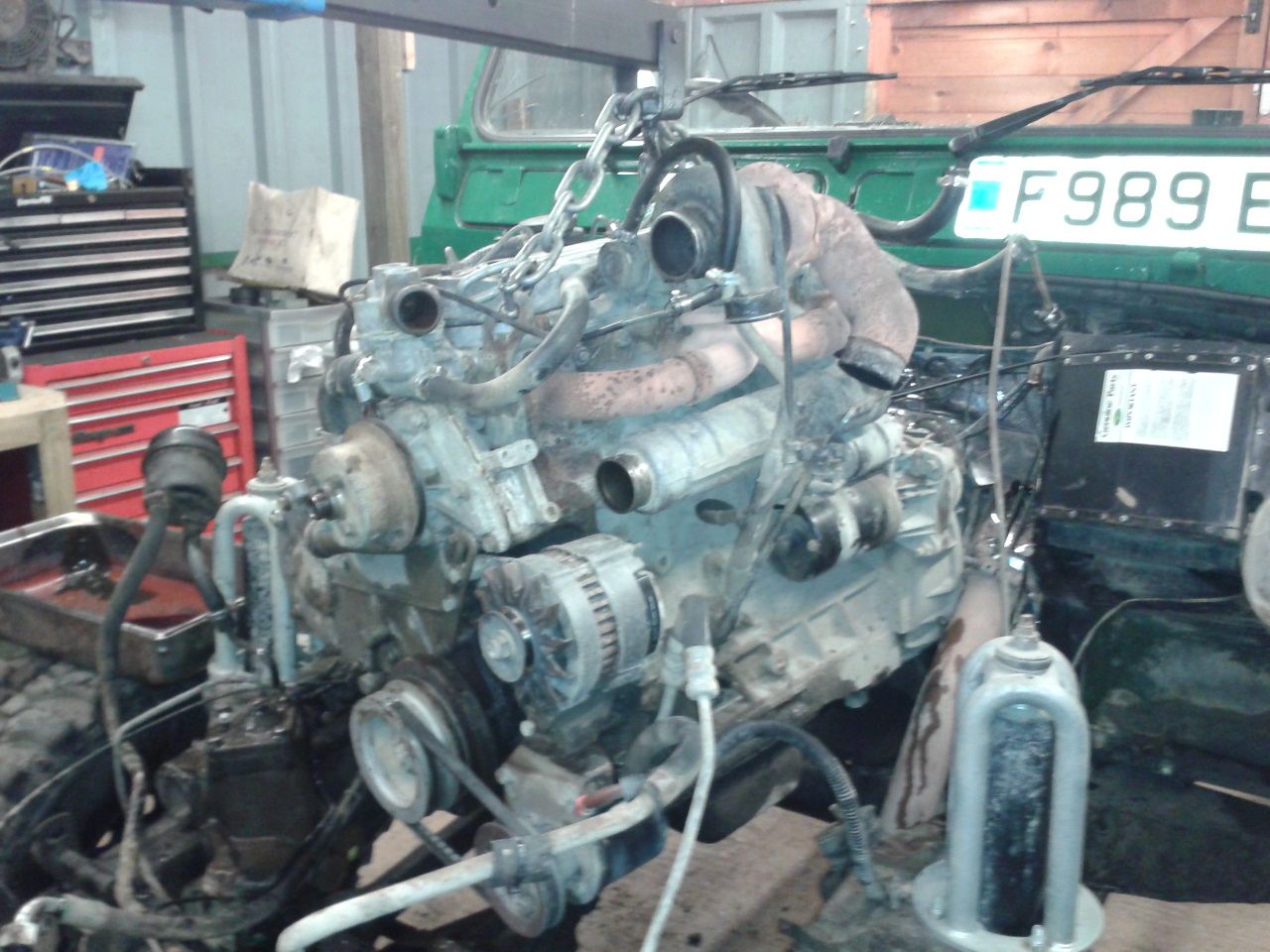

Right some more pics of the old chassis being stripped ready for the replacement chassis going in its place starting with putting the engine on the bench out of the way and to sort out the newly fitted bearmac water pump water leak ( gasket )

cornish rattler · Dec 23, 2015

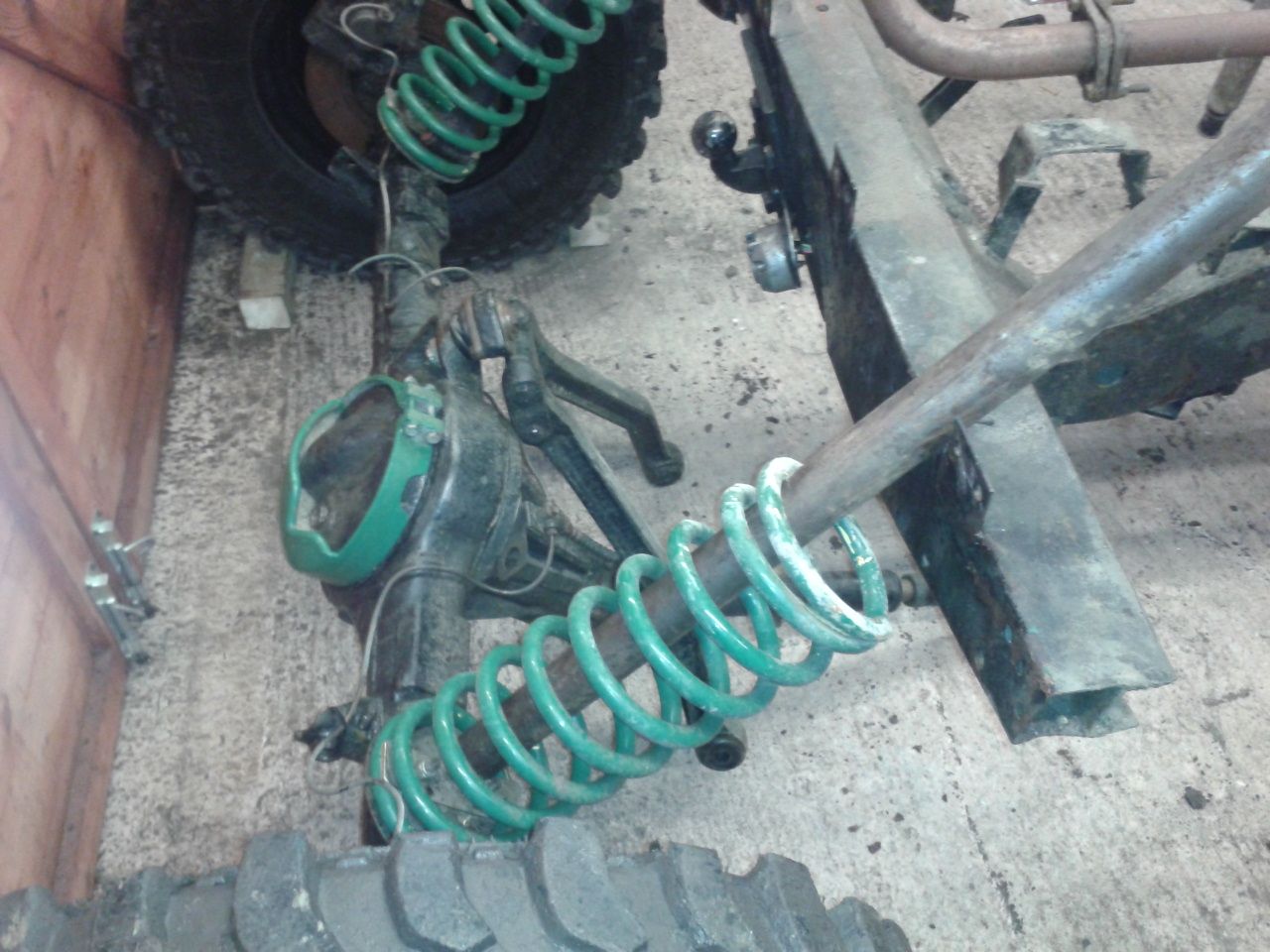

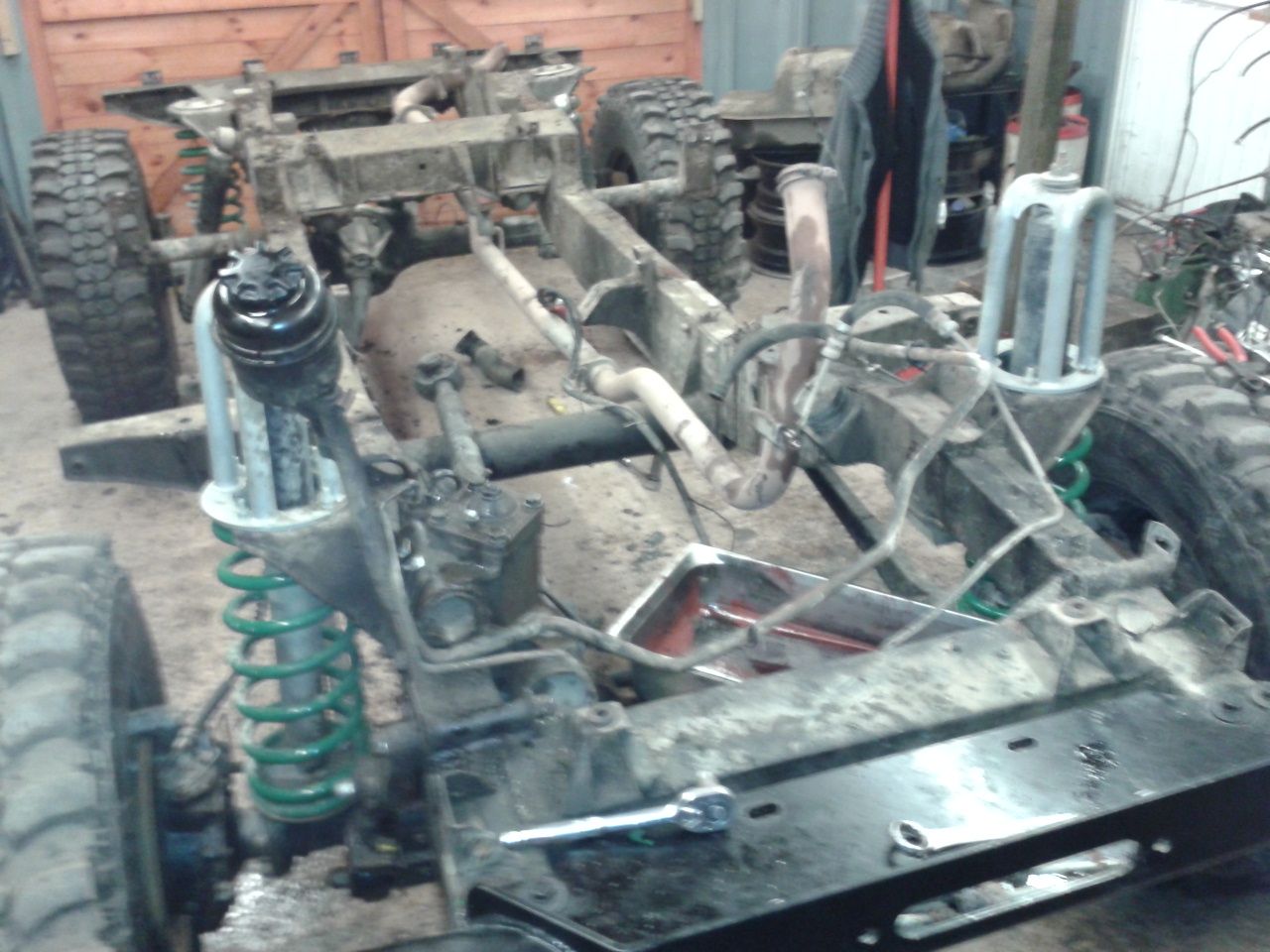

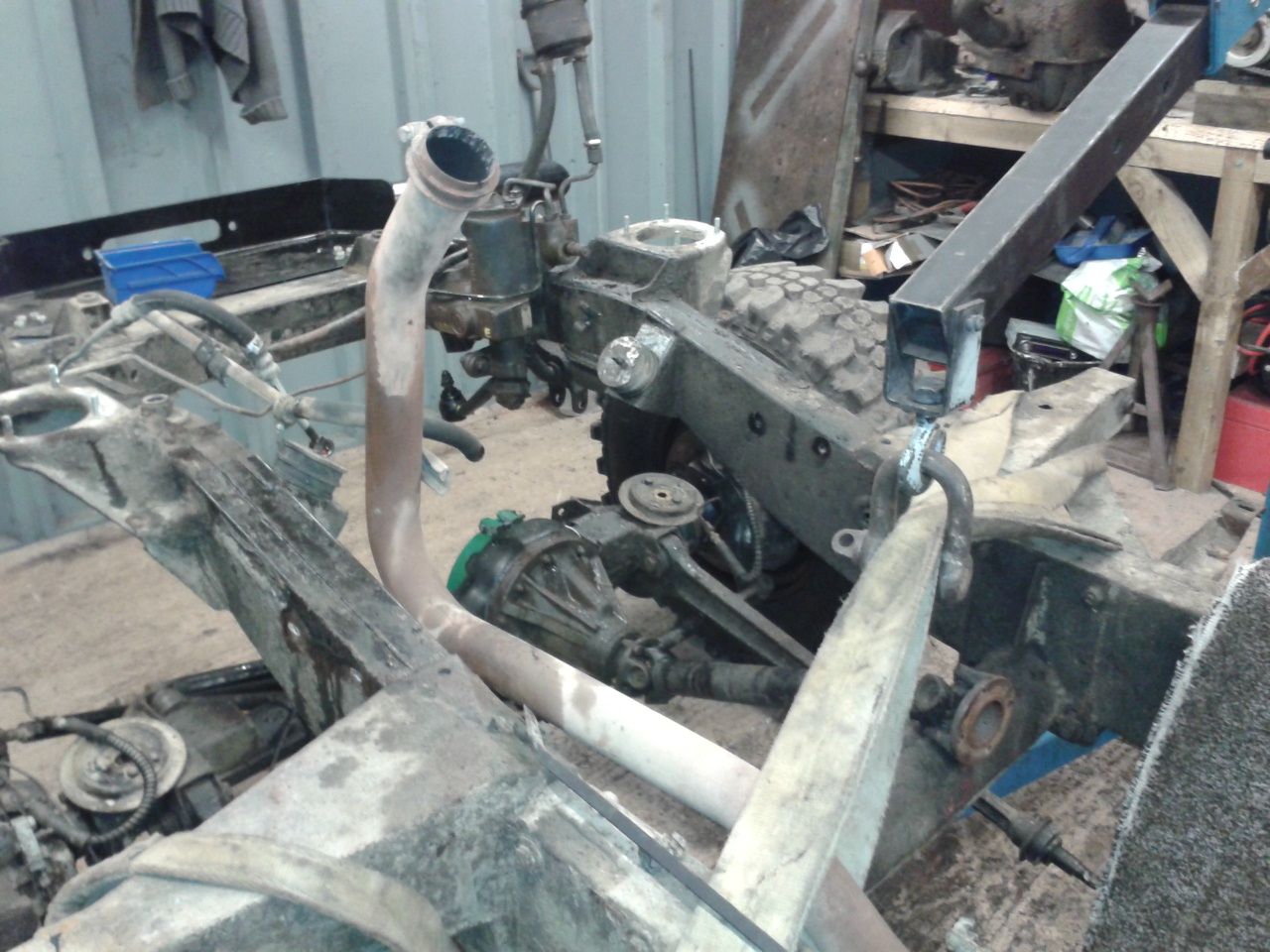

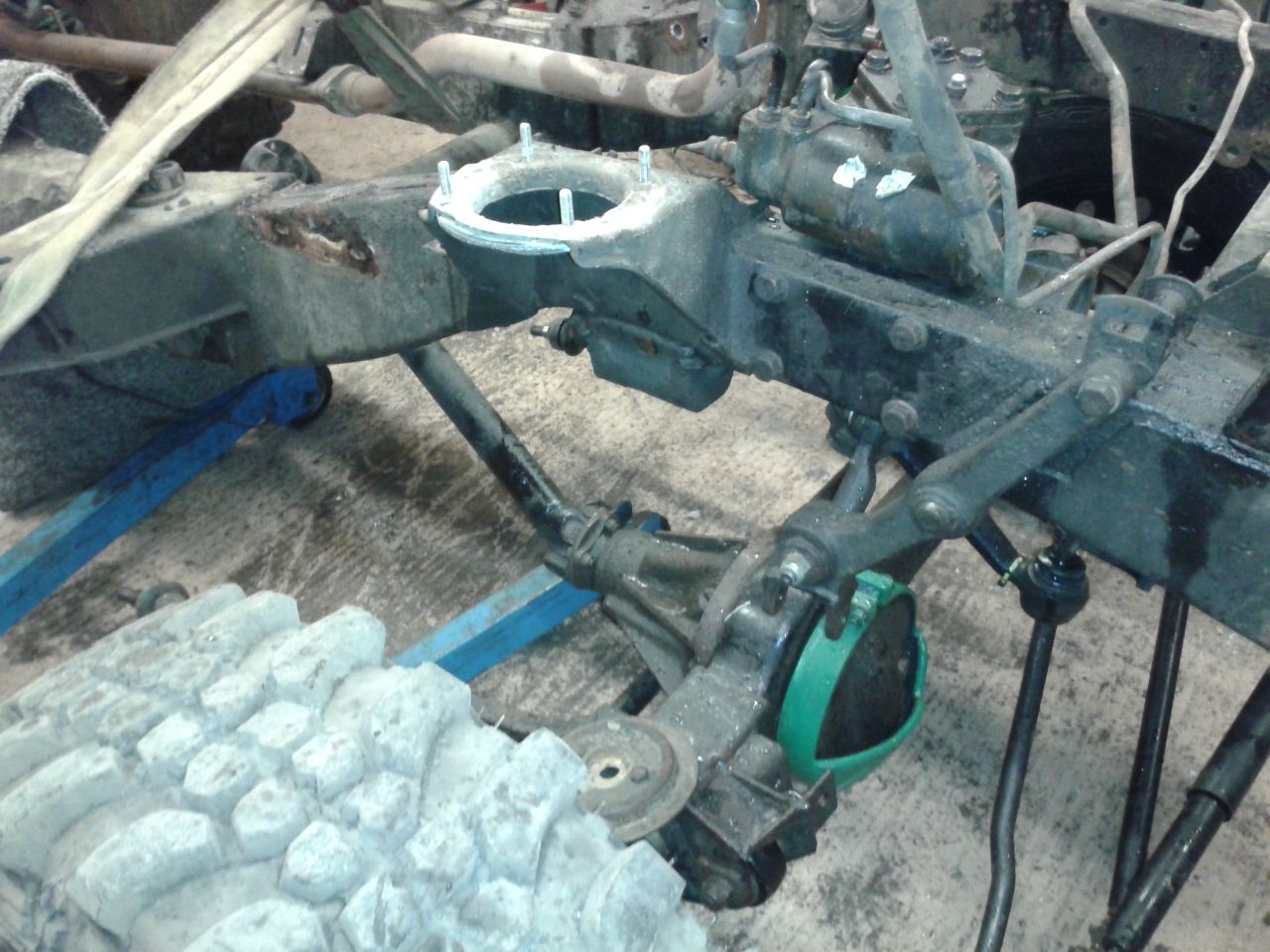

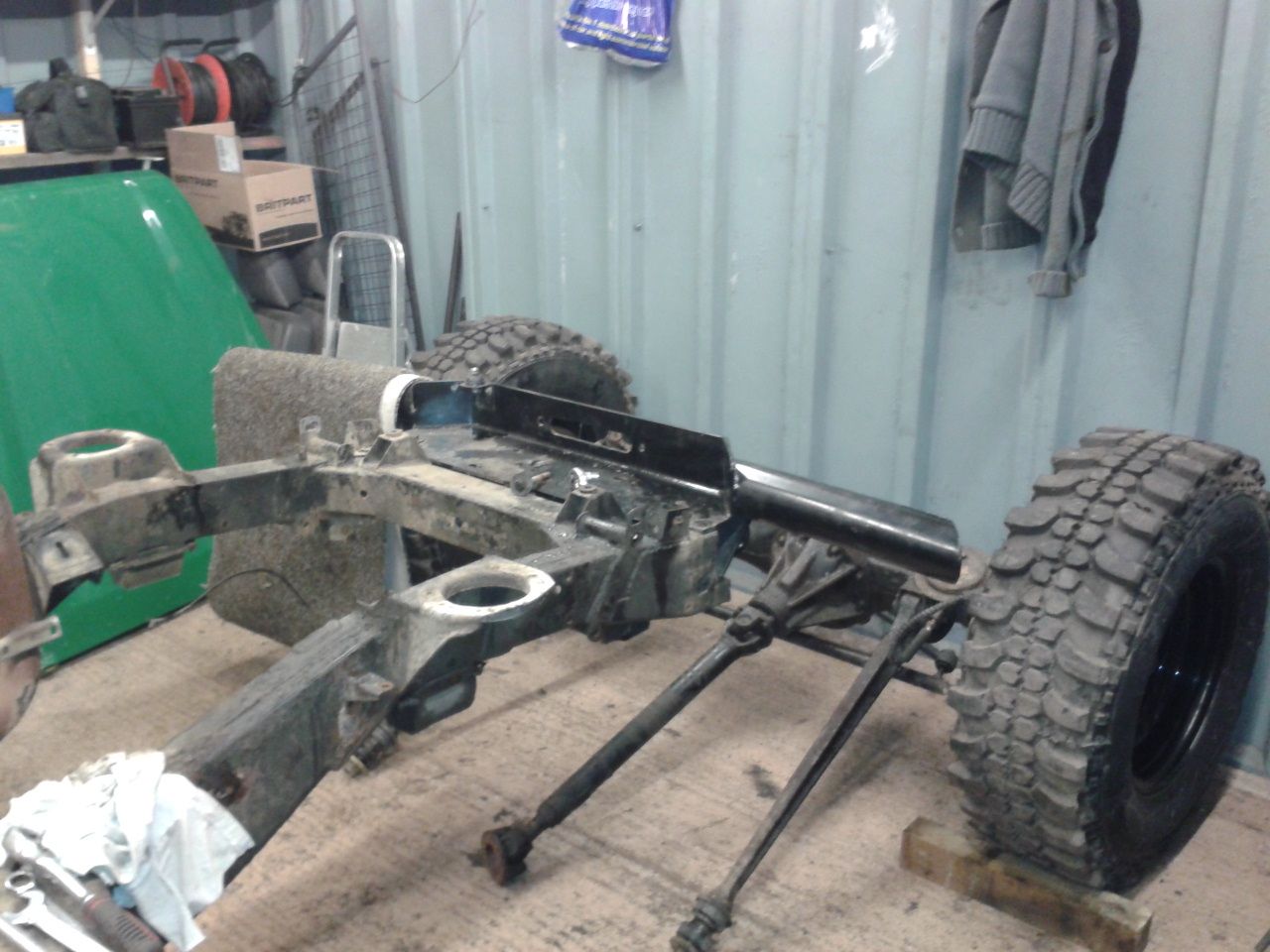

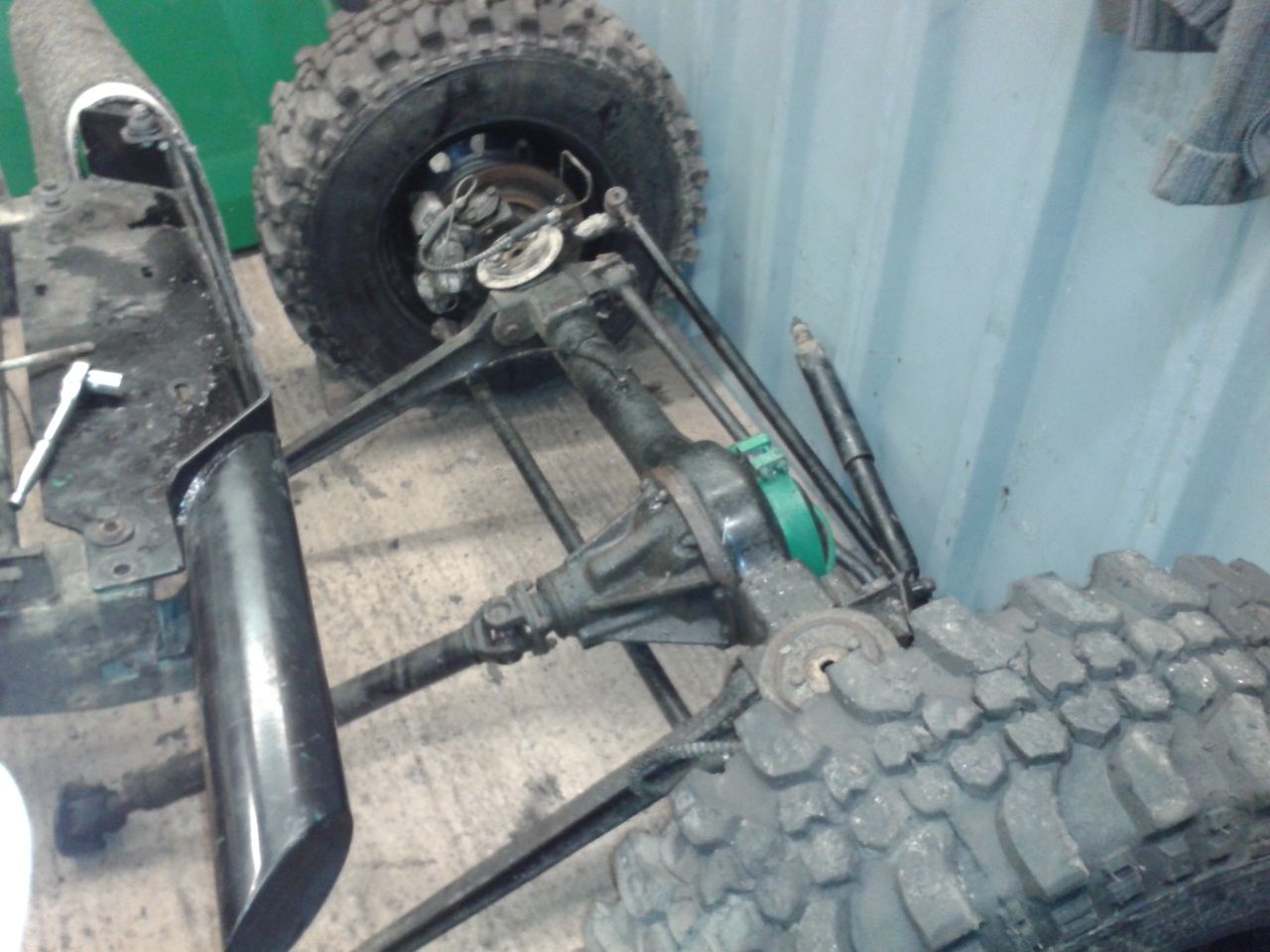

Then removing the axles and everything else from the chassis ready for cutting the chassis up
