Power Steering Box... What do you think?

RustyDefender · 2024-08-03T15:09:54+0100

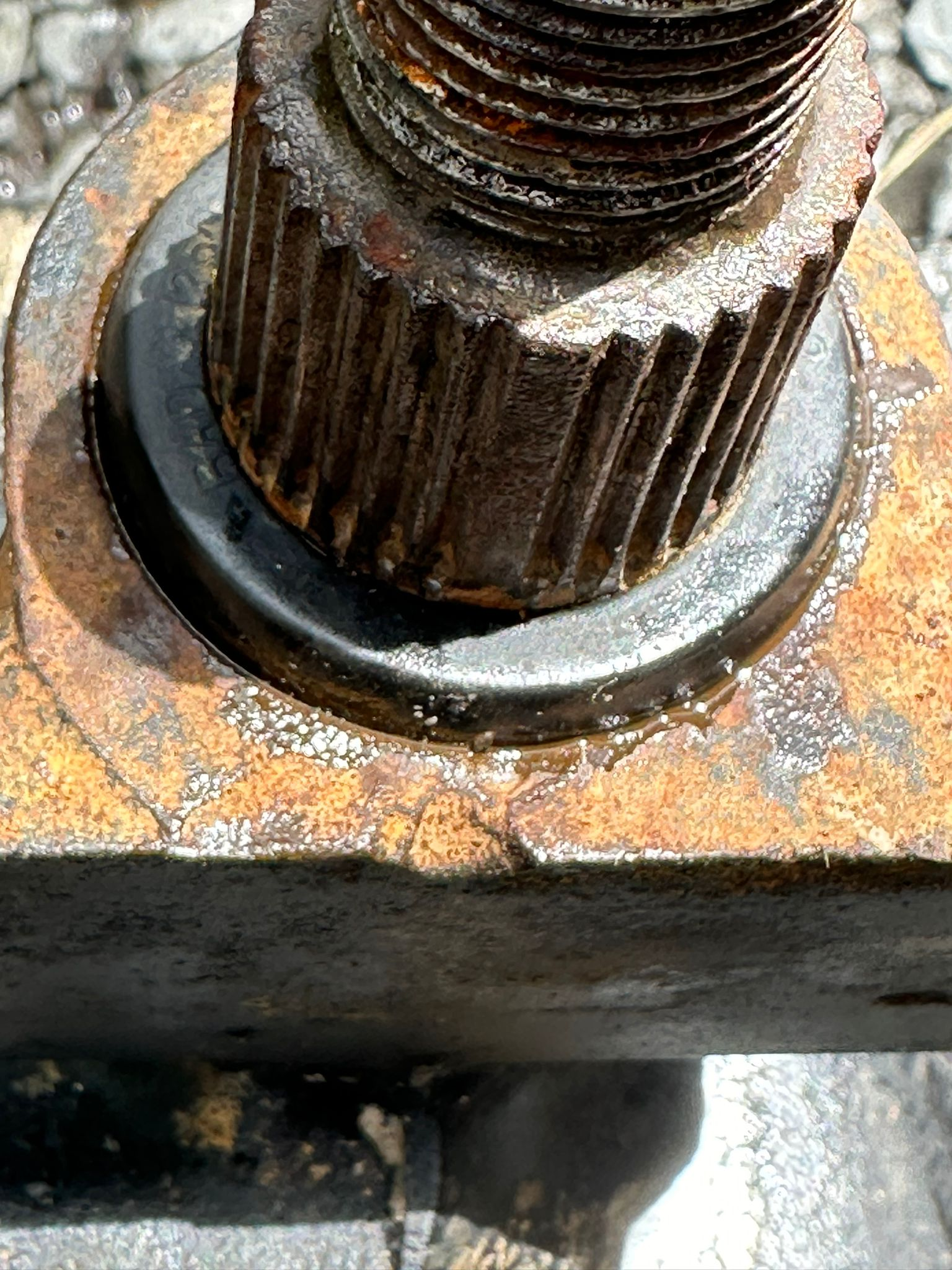

So what are peoples thoughts on this..

I have a genuine trans seal kit to go in, but now i'm just like well do i weld a bit to it and sand it down or do i just buy a whole new box?

Anaconda · 2024-08-03T16:15:07+0100

Do you mean the little chunk missing from the housing?
What will that affect?
If the casing isn't cracked and the part the seal goes in isn't damaged I would leave it.

RustyDefender · 2024-08-03T16:24:45+0100

Anaconda said:
Do you mean the little chunk missing from the housing?
What will that affect?
If the casing isn't cracked and the part the seal goes in isn't damaged I would leave it.

Just above that its also pitted into the seal area, i need to disassemble the box, but that will be a job for tomorrow to see if it's worth salvaging.. but from what i understand this is the outer seal right?

RustyDefender · 2024-08-03T16:25:33+0100

Anaconda · 2024-08-03T16:47:27+0100

If I remember rightly that seal doesn't stop oil getting out.
If it was me I would fit the kit since you have it.
How much is a new box nowadays, £700?

Anaconda · 2024-08-03T16:50:17+0100

Defender & Discovery 1 & Range Rover Classic 4-Bolt Power Steering Box Assembly RHD

Buy Defender & Discovery 1 & Range Rover Classic 4-Bolt Power Steering Box Assembly RHD - QAF500110 at JGS4x4. FAST and FREE UK delivery on eligible orders.

www.jgs4x4.co.uk

meego · 2024-08-03T16:52:17+0100

RustyDefender said:
So what are peoples thoughts on this..

View attachment 323045

I have a genuine trans seal kit to go in, but now i'm just like well do i weld a bit to it and sand it down or do i just buy a whole new box?

Is this an Adwest box ? If so I would have thought you would be seeing a circlip there. Unless that’s a dust cover sticking out !!

Hicap phill · 2024-08-03T17:51:10+0100

RustyDefender said:
Just above that its also pitted into the seal area, i need to disassemble the box, but that will be a job for tomorrow to see if it's worth salvaging.. but from what i understand this is the outer seal right?

Yes it’s just a dust seal. Don’t worry about welding it.

On your rebuild are you going to use a disco drop arm kit?

RustyDefender · 2024-08-03T18:27:04+0100

Hicap phill said:
Yes it’s just a dust seal. Don’t worry about welding it.

On your rebuild are you going to use a disco drop arm kit?

Yeah i just took it out, there is a circlip behind it..

meego said:
Is this an Adwest box ? If so I would have thought you would be seeing a circlip there. Unless that’s a dust cover sticking out !!

RustyDefender · 2024-08-03T18:30:12+0100

I'm just going to leave these pictures here LMAO

Dear diary..

Today I pulled out the steering box

RustyDefender · 2024-08-03T18:30:49+0100

I then decided i'll take the box apart.. out it comes..

RustyDefender · 2024-08-03T18:31:09+0100

With some risk

RustyDefender · 2024-08-03T18:31:47+0100

ok.. now we're in FFS territory

RustyDefender · 2024-08-03T18:32:10+0100

well im guessing this is the main cause of the leak

RustyDefender · 2024-08-03T18:32:31+0100

We got so far..

RustyDefender · 2024-08-03T18:33:35+0100

Outcome.. just buy another box.. I ain't spending hours pulling that bearing race out

Hicap phill · 2024-08-03T18:54:08+0100

RustyDefender said:
Outcome.. just buy another box.. I ain't spending hours pulling that bearing race out

You may need to rebuild it a bit as they might want an exchange.. just make it look like a box. Does not need to work

Anaconda · 2024-08-03T18:55:52+0100

Hicap phill said:
You may need to rebuild it a bit as they might want an exchange.. just make it look like a box. Does not need to work

£1000 or thereabouts, no exchange

Hicap phill · 2024-08-03T19:02:59+0100

Anaconda said:
£1000 or thereabouts, no exchange

Chuff…. When did bits get expensive..

meego · 2024-08-03T19:06:05+0100

RustyDefender said:
Outcome.. just buy another box.. I ain't spending hours pulling that bearing race out

I got the last reconditioned one I fitted to my Disco from AutoSteer Direct. Still leak free after a few years. It was £150 on ebay.
