Possibly another Project

jamesmartin · Apr 18, 2021

border said:
Got my first problem, wont be the first.
Bloody screws that hold the drums on, the rears came out fine, got 2 of this front ones out but think Ive well and truly knackered this one.
Any Ideas of how to get it out ?

whack them with a punch similar size to the screw head that should loosen them if done enough

border · Apr 18, 2021

jamesmartin said:
whack them with a punch similar size to the screw head that should loosen them if done enough

Thanks Mate will give that a go.

Blackburn · Apr 19, 2021

I have an old fashioned impact driver that you hit with a hammer works well.
Like this
https://www.ebay.co.uk/itm/Hand-hel...657966?hash=item422ad844ae:g:eVUAAOSwUstgK~mM

Amazon product

Kev12 · Apr 19, 2021

Blackburn said:
I have an old fashioned impact driver that you hit with a hammer works well.
Like this
https://www.ebay.co.uk/itm/Hand-hel...657966?hash=item422ad844ae:g:eVUAAOSwUstgK~mM

Amazon product

Still the best tool for the job too

border · Apr 21, 2021

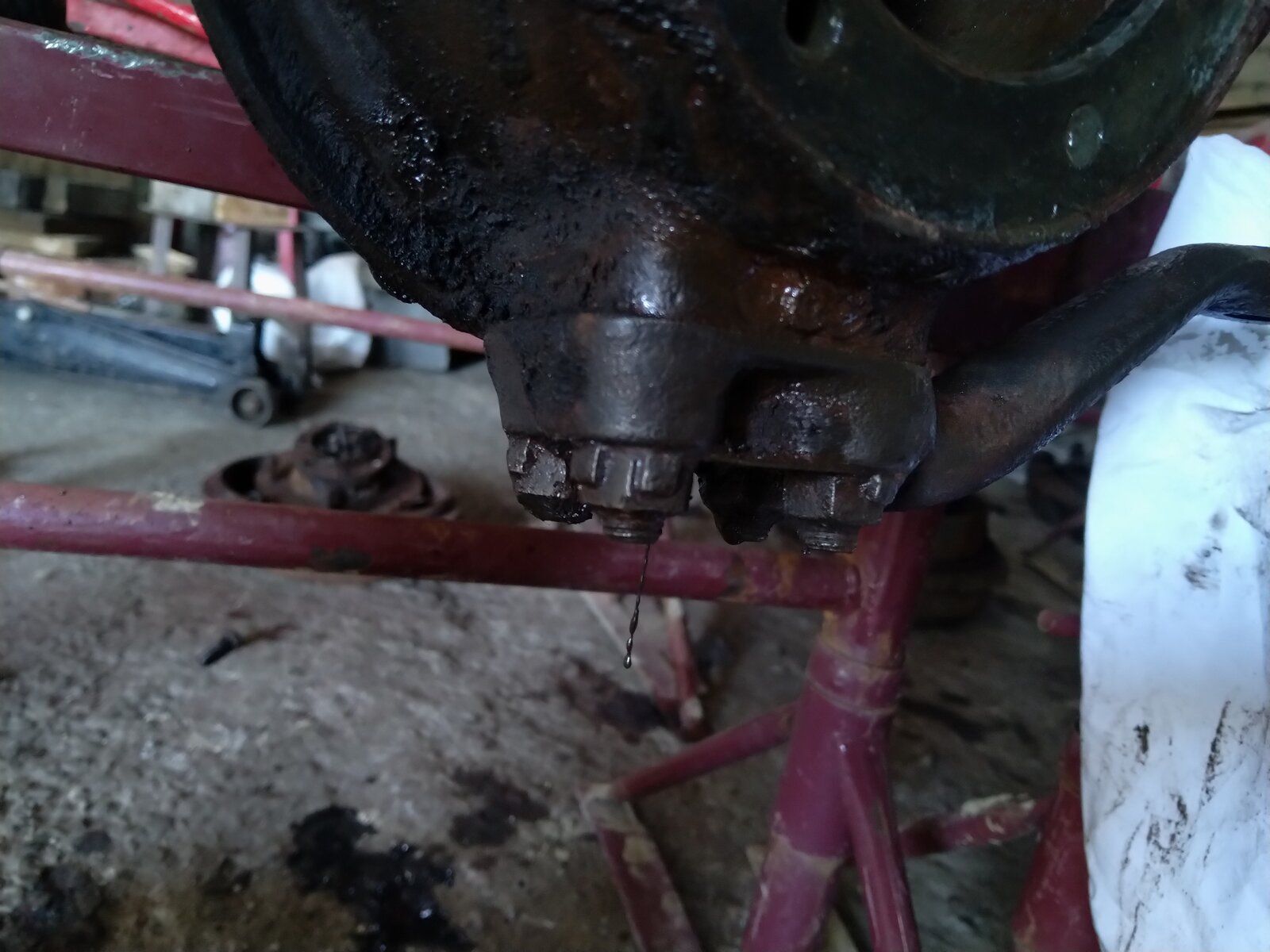

Front Axle Housing bottom arm, Is this some kind of castle nut, ? cant find a socket that fits , they were covered in thick crud, maybe need cleaning a bit more.

V8bob · Apr 21, 2021

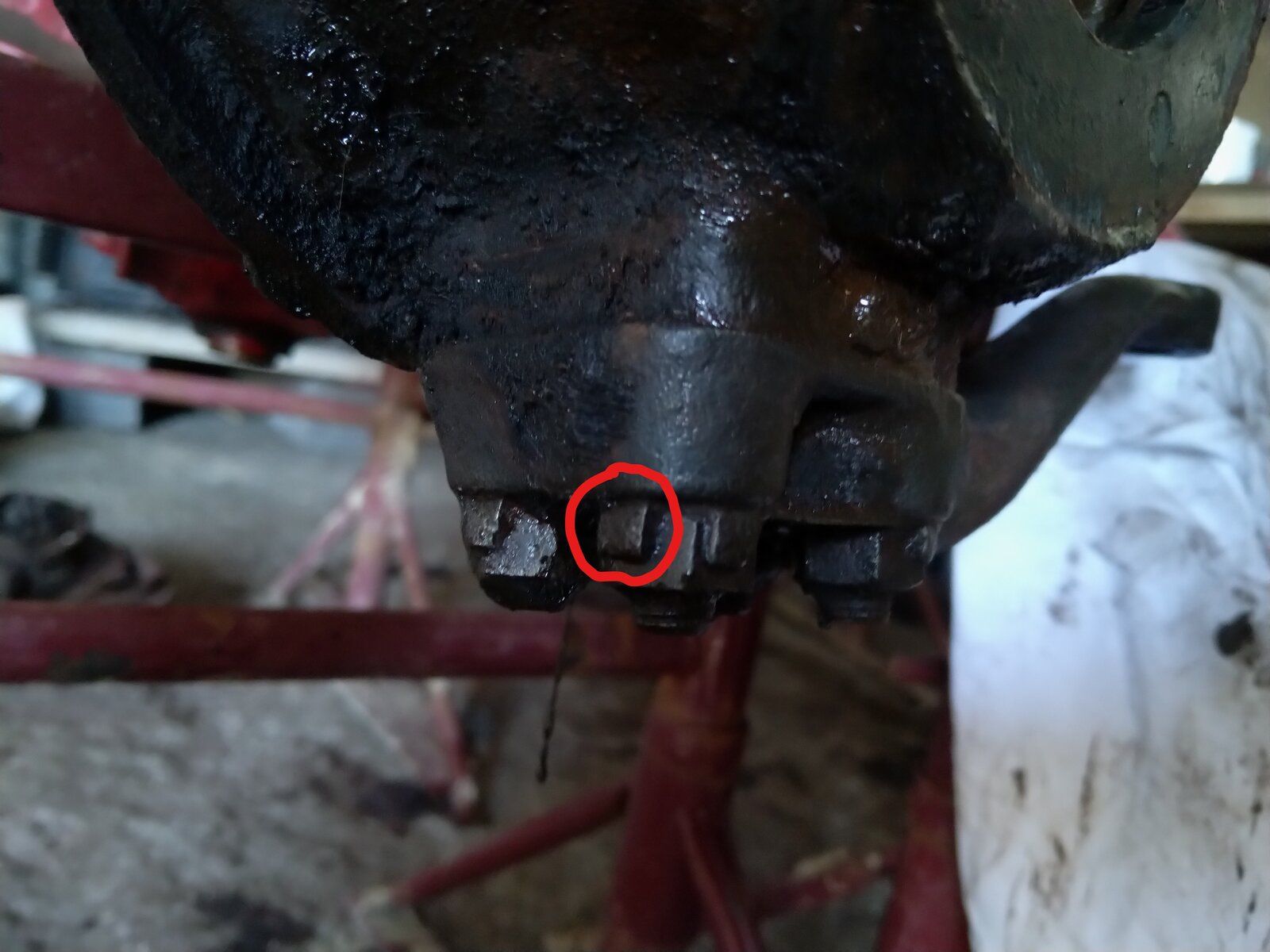

I presume you know they are onto tab washers? Need to push the tabs flat.

border · Apr 21, 2021

V8bob said:
I presume you know they are onto tab washers? Need to push the tabs flat.

Sorry Mate, didnt realise but get the idea now, just never seen these before on normal nuts, Must be a Series thing.
So do these tabs bend back, thought they were part of the bloody nut

jamesmartin · Apr 21, 2021

border said:
Sorry Mate, didnt realise but get the idea now, just never seen these before on normal nuts, Must be a Series thing.
So do these tabs bend back, thought they were part of the bloody nut

yes with a small chisel etc

Turboman · Apr 21, 2021

border said:
Sorry Mate, didnt realise but get the idea now, just never seen these before on normal nuts, Must be a Series thing.
So do these tabs bend back, thought they were part of the bloody nut

Bend them down with a chisel and undo the nuts. New tab washers when refitting, bend the tabs up.

border · Apr 21, 2021

jamesmartin said:
yes with a small chisel etc

Thanks, Think Ill pull the whole thing out and get it on the bench to do it.

border · Apr 21, 2021

Thanks everyone another one solved. please forgive me but I think there'll be more coming in this project.

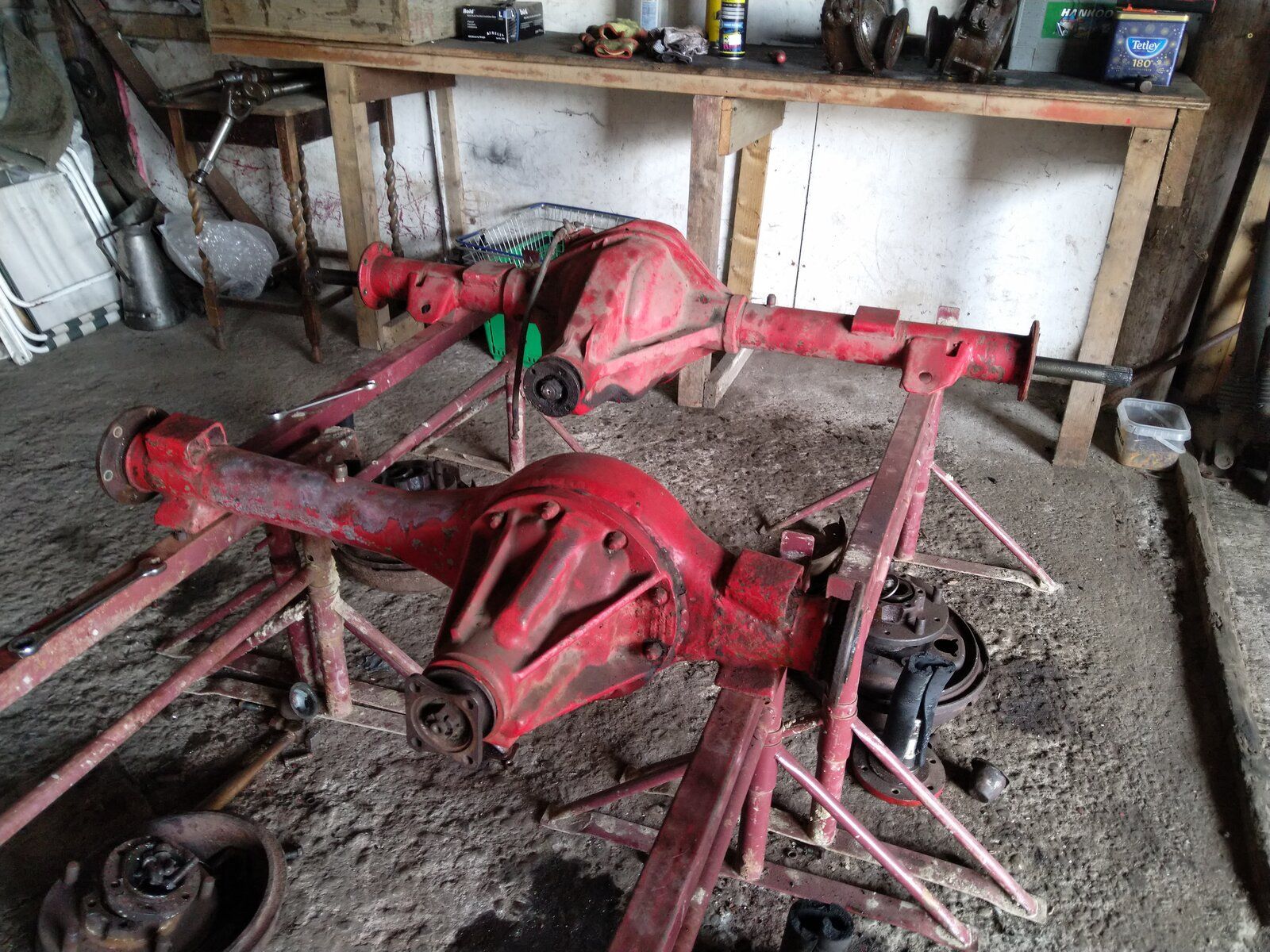

border · May 2, 2021

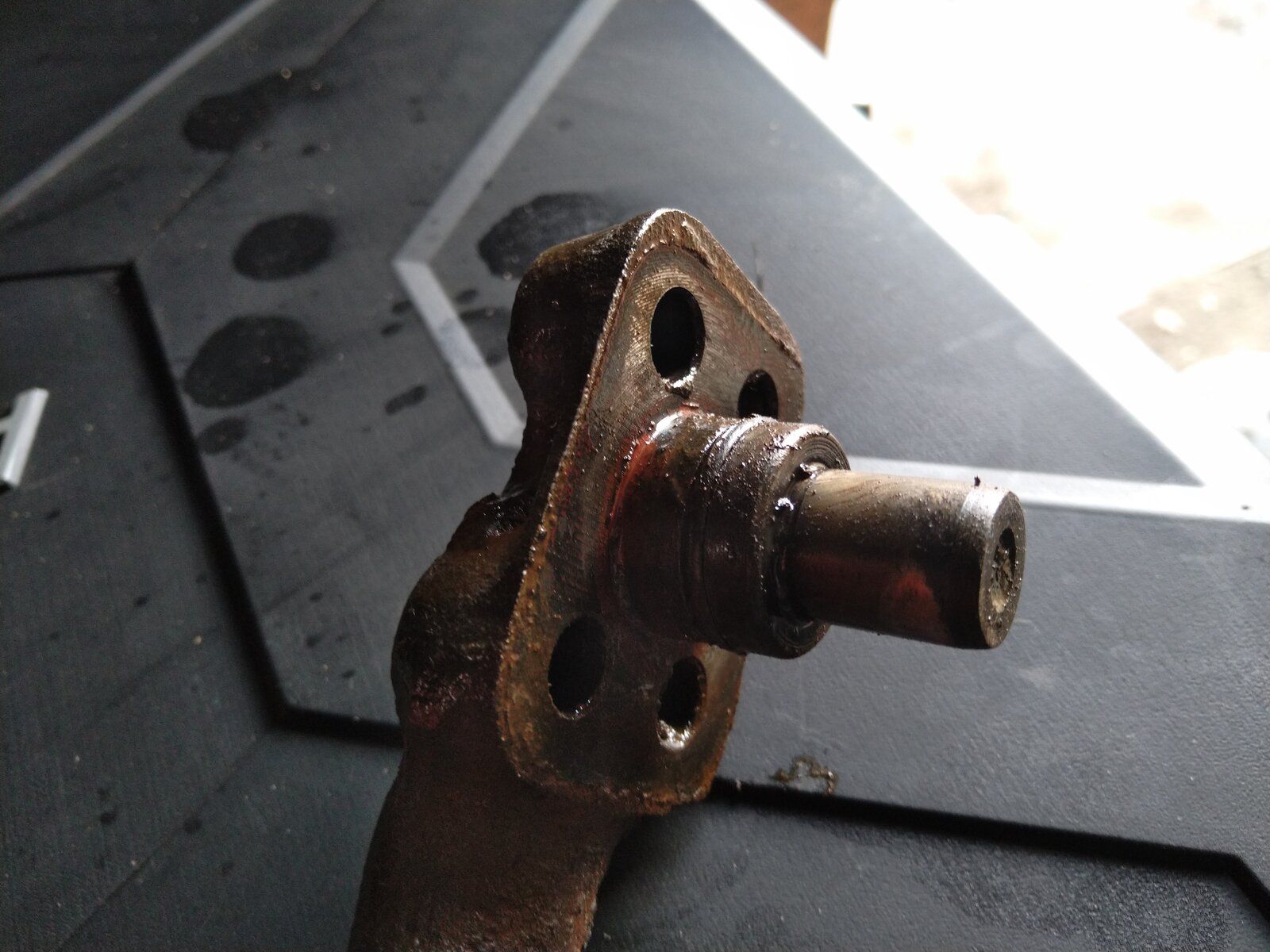

Well got a bit more done. How does this King Pin if Ive named that correctly come out of the arm. dont want to start hitting with the hammer yet untill I have an idea of how it comes out.

jamesmartin · May 2, 2021

border said:
Well got a bit more done. How does this King Pin if Ive named that correctly come out of the arm. dont want to start hitting with the hammer yet untill I have an idea of how it comes out.

it doesnt

border · May 2, 2021

jamesmartin said:
it doesnt

Thanks Thought they could be changed , think I better study it again, I am about to order new seals ect and thought these were a part.
Now Im not sure which kit to order from this lot. Swivel Parts | Front Axle | Axle | Series 2 and 3 | Parts & Accessories - Paddock Spares
Mine is a 1970 109 Pickup.

jamesmartin · May 2, 2021

border said:
Thanks Thought they could be changed , think I better study it again, I am about to order new seals ect and thought these were a part.
Now Im not sure which kit to order from this lot. Swivel Parts | Front Axle | Axle | Series 2 and 3 | Parts & Accessories - Paddock Spares
Mine is a 1970 109 Pickup.

late one da3181

jamesmartin · May 2, 2021

border said:
Thanks Thought they could be changed , think I better study it again, I am about to order new seals ect and thought these were a part.
Now Im not sure which kit to order from this lot. Swivel Parts | Front Axle | Axle | Series 2 and 3 | Parts & Accessories - Paddock Spares
Mine is a 1970 109 Pickup.

bottom arm and pin has the bearing so shouldnt wear its the top pin that sits in the bush needs changing

border · May 2, 2021

jamesmartin said:
bottom arm and pin has the bearing so shouldnt wear its the top pin that sits in the bush needs changing

thanks again james, so da3181, There is a bearing in that kit, should there be one in top pin as there was none on mine. ?
?

jamesmartin · May 2, 2021

border said:
thanks again james, so da3181, There is a bearing in that kit, should there be one in top pin as there was none on mine. ?
?

top is a bush, bottom has the bearing
very early axles had a top steering arm with a changeable pin as it sat in a bush ,yours like most has bottom steering arm and you replace the bush and pin

border · May 2, 2021

jamesmartin said:
top is a bush, bottom has the bearing
very early axles had a top steering arm with a changeable pin as it sat in a bush ,yours like most has bottom steering arm and you replace the bush and pin

OK So do I not need the bearing in kit ? Im hoping these balls will be OK after a good clean, but Maybe not

jamesmartin · May 2, 2021

border said:
OK So do I not need the bearing in kit ? Im hoping these balls will be OK after a good clean, but Maybe not

it looks like you need the full kit , in ay case rerplacing the bush and not bottom bearing wouldnt be good practice
