Possibly another Project

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

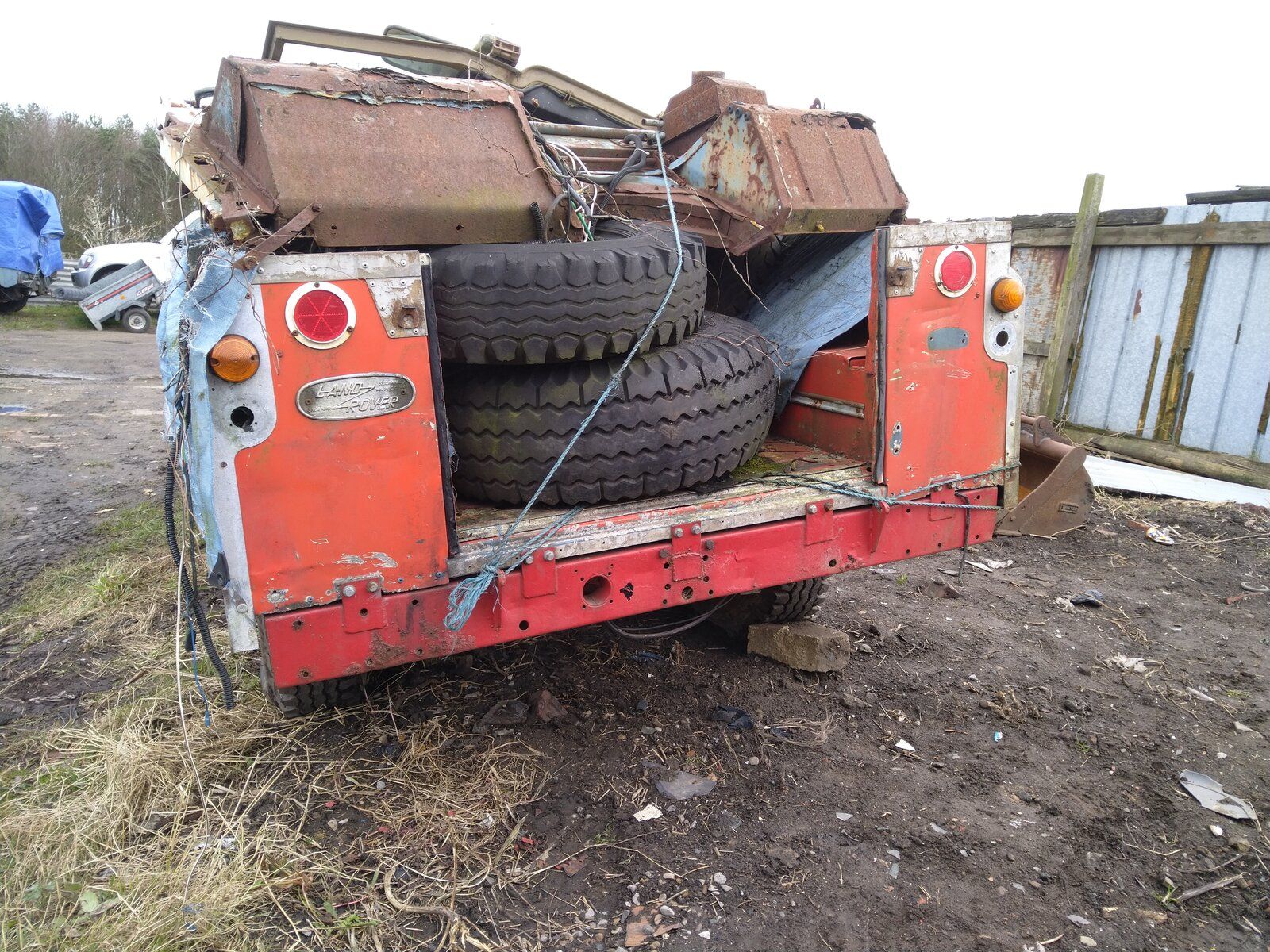

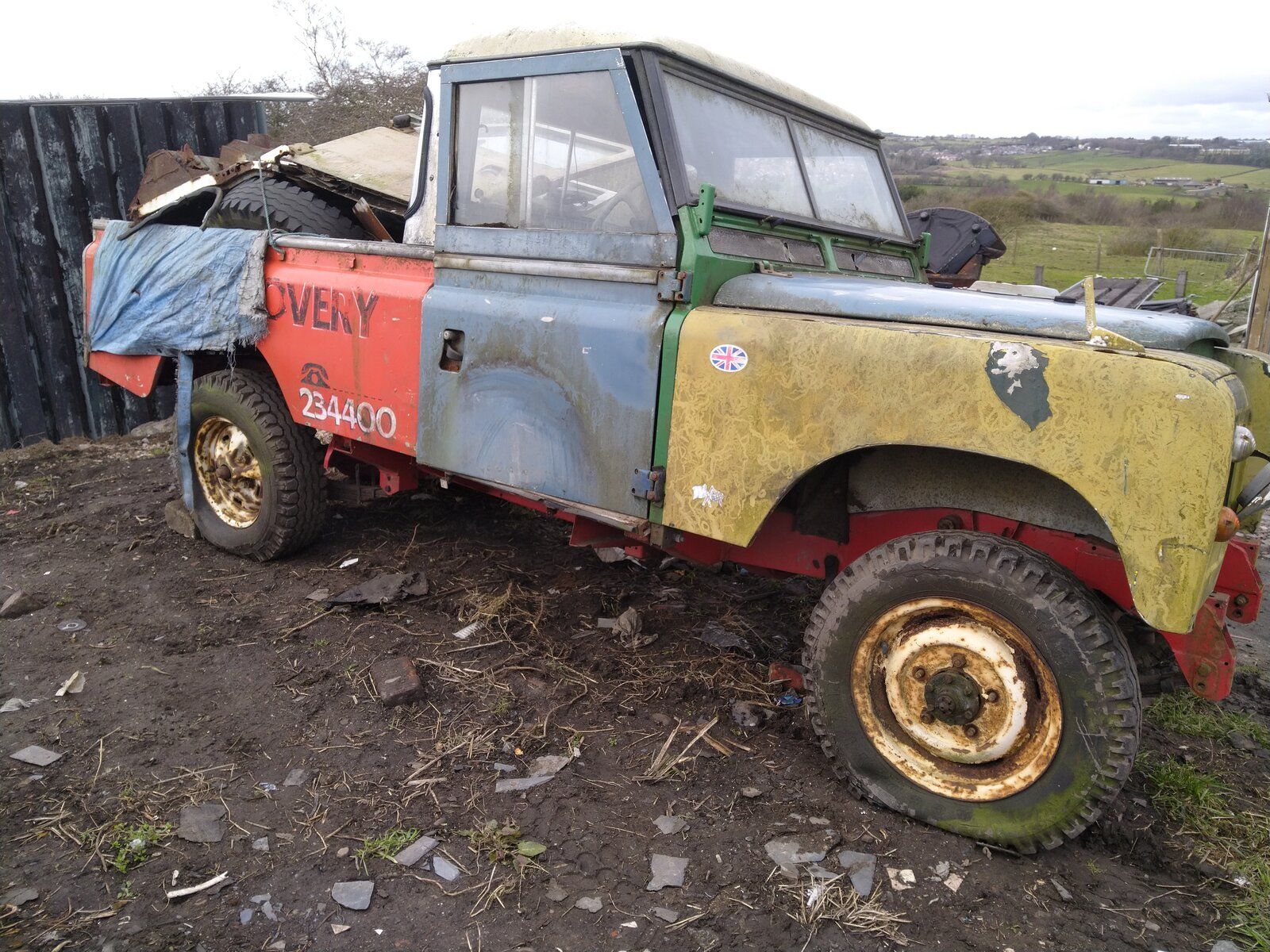

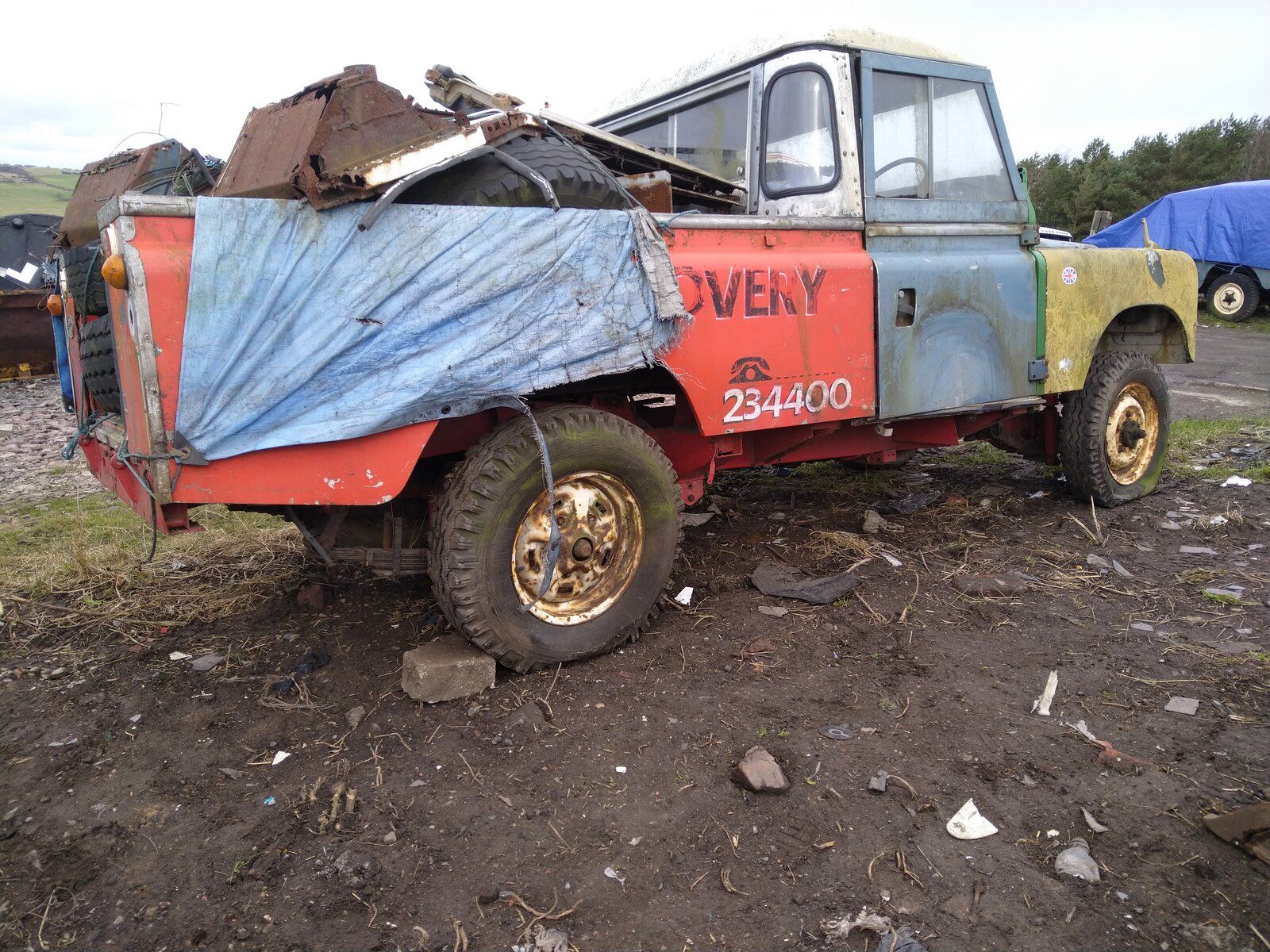

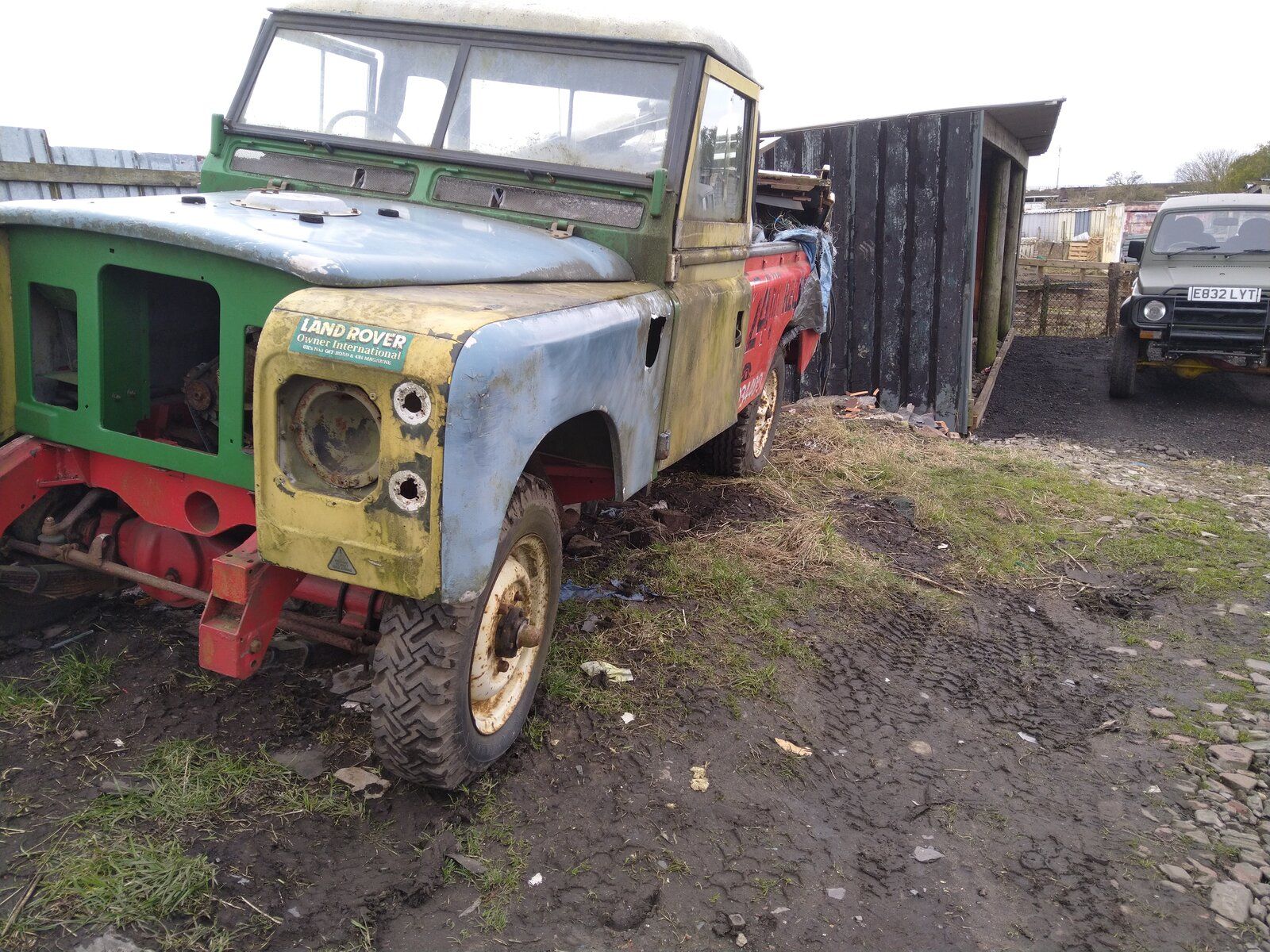

Got my other chassis up today, very solid , just maybe needs a rear crossmember. I can have the doors, wings, bonnet and running gear off this one too. will use the body and cab off the green one.
Still thinking about which engine though,


Attachments

  • IMG_20210314_104952.jpg
    381.8 KB · Views: 151
  • IMG_20210314_104922.jpg
    442.5 KB · Views: 137
  • IMG_20210314_105034.jpg
    479.9 KB · Views: 134
  • IMG_20210314_104942.jpg
    461.4 KB · Views: 132
  • IMG_20210314_105054.jpg
    526.2 KB · Views: 139
If I decide to go with the 300Tdi, will it mate up to Origional gearbox on the green one ?.
The one with red chassis has a 6 cylinder petrol in it but my mate needs that foranother vehicle.

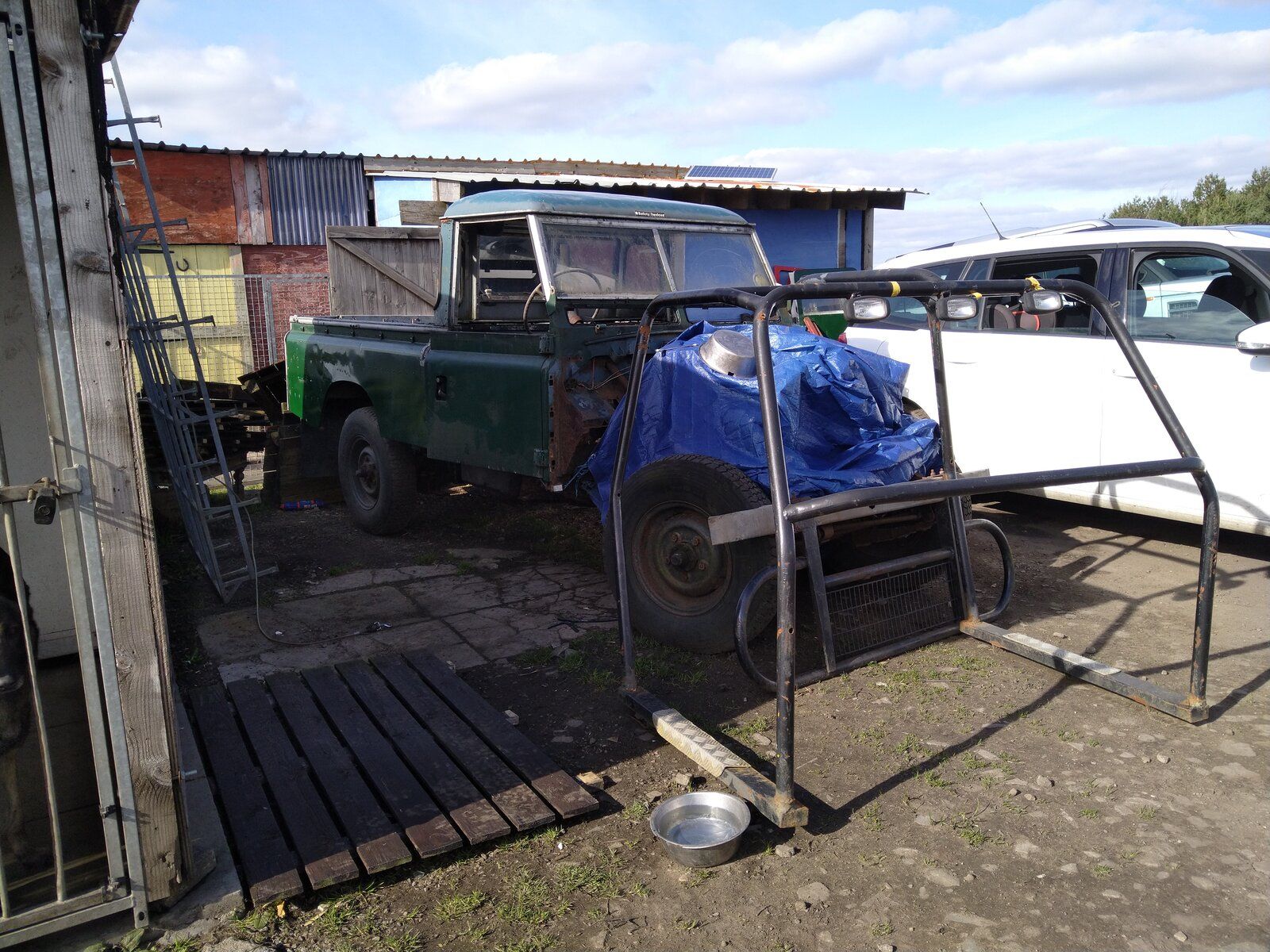

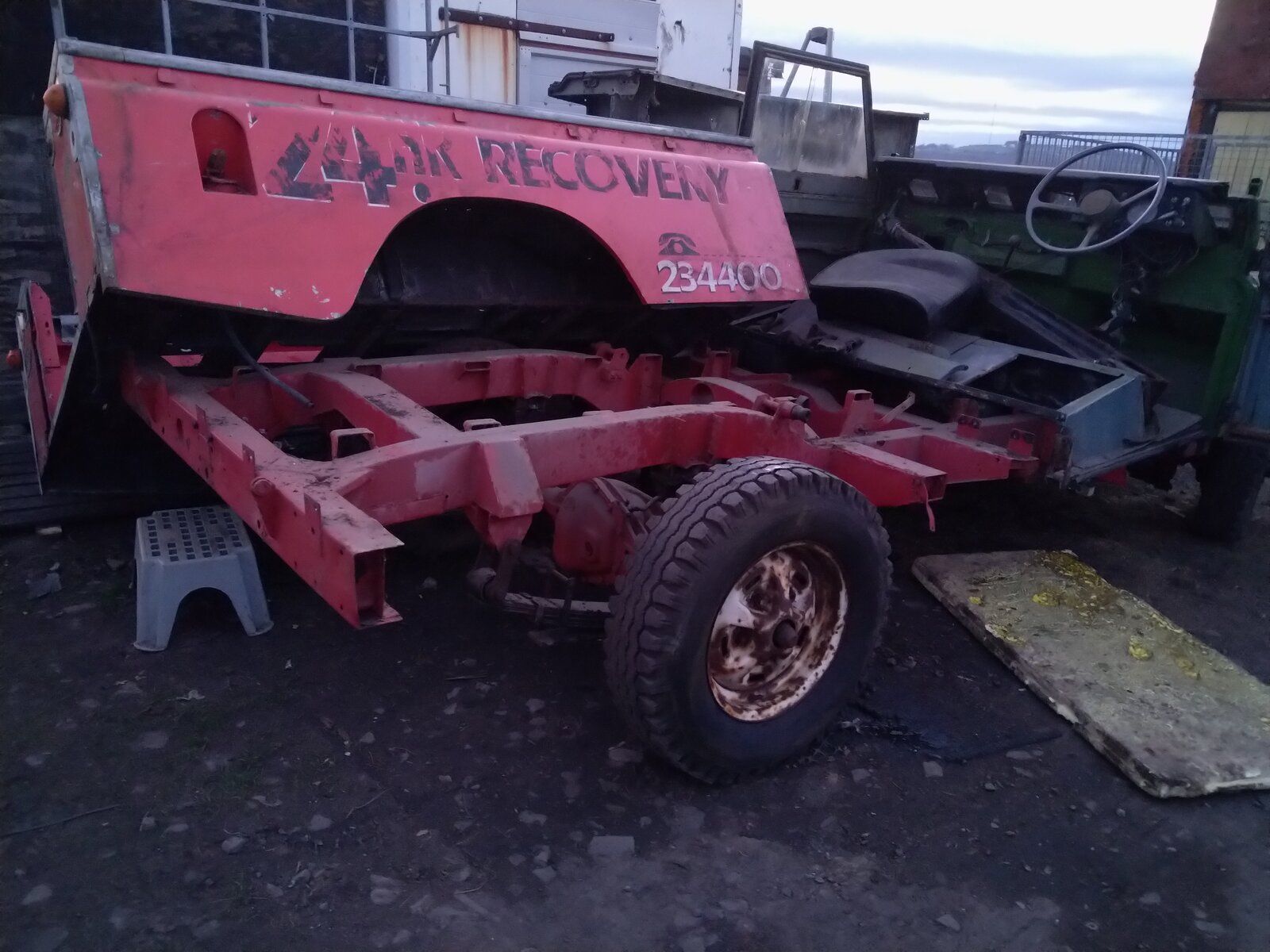

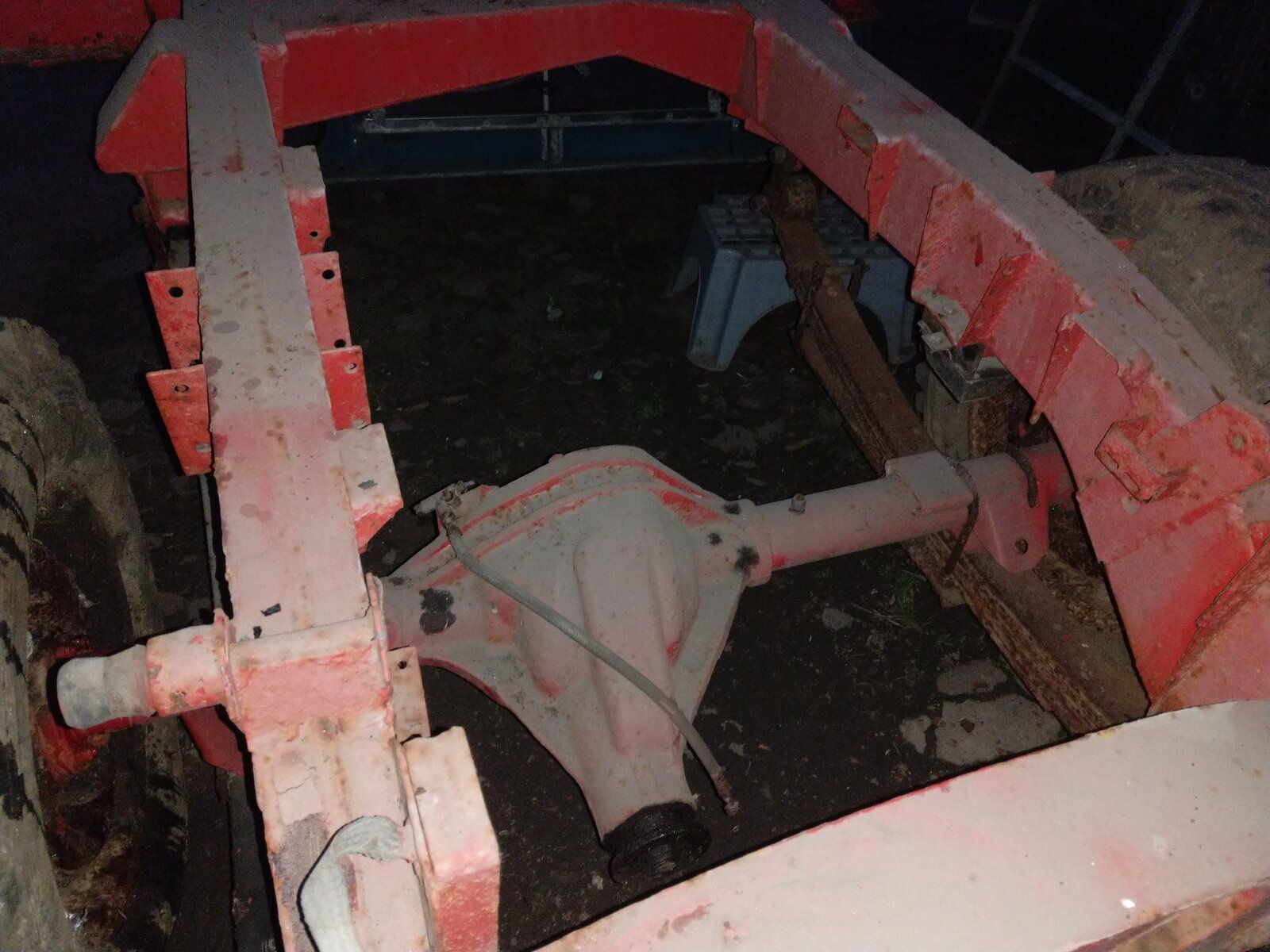

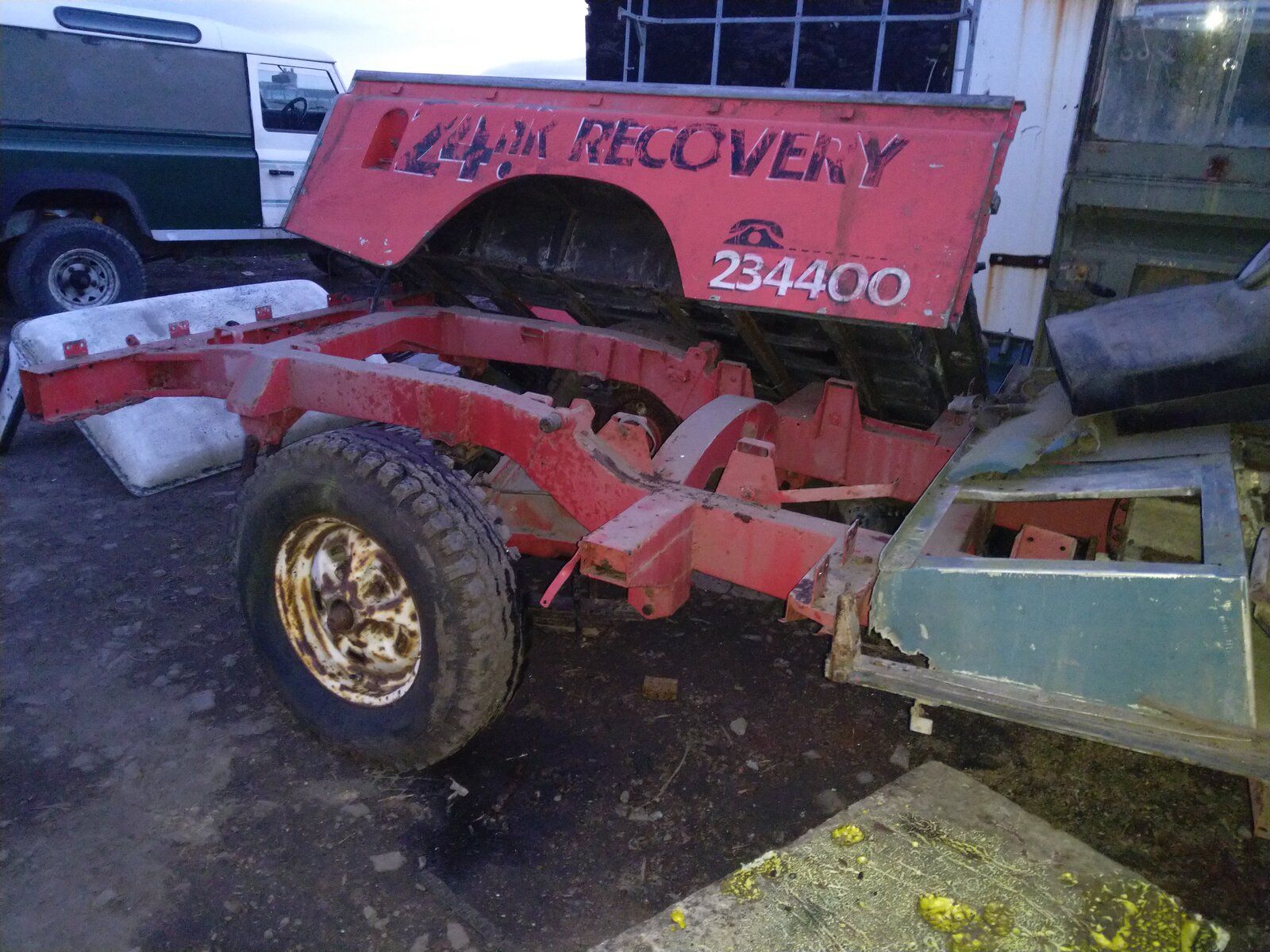

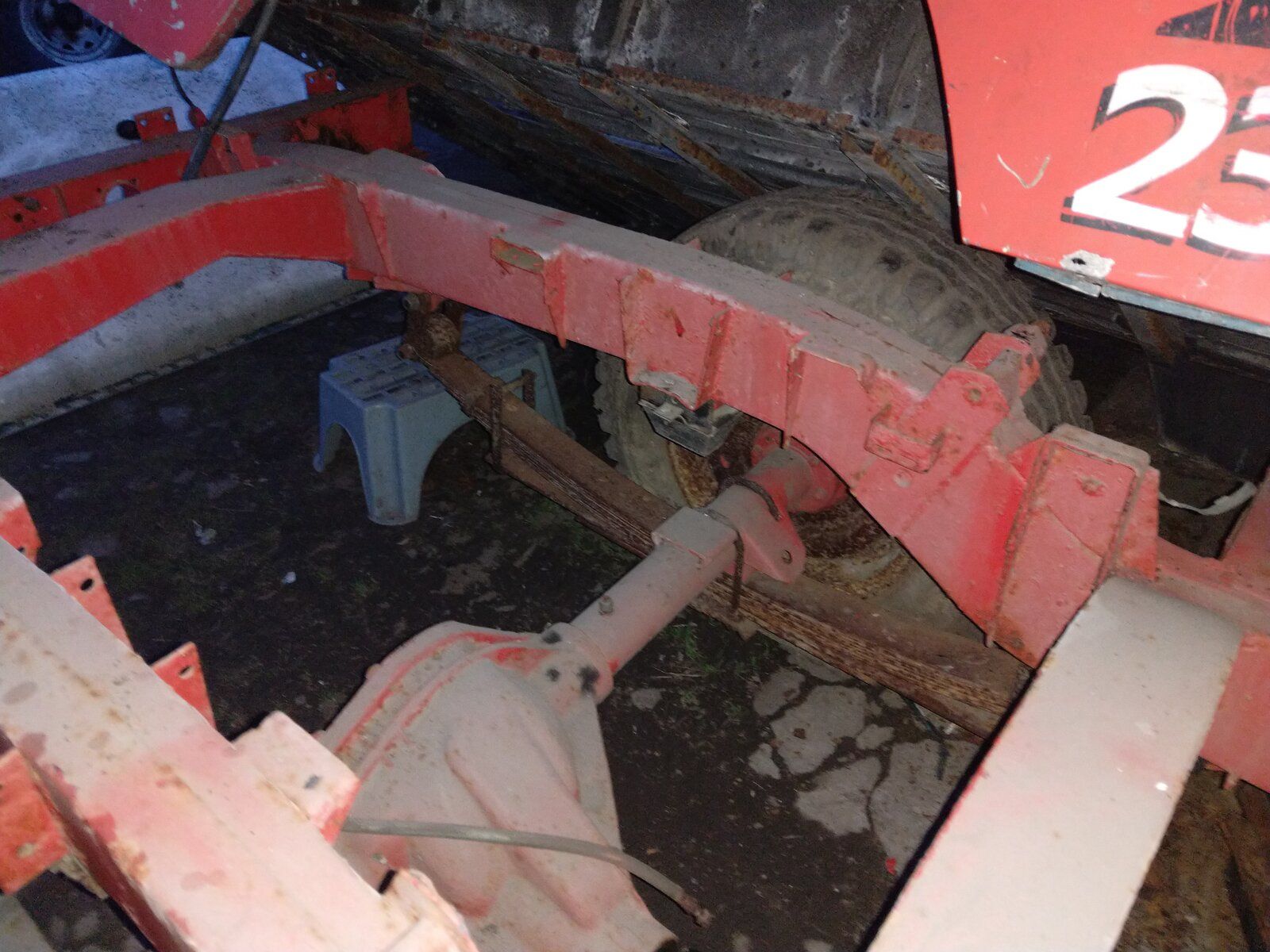

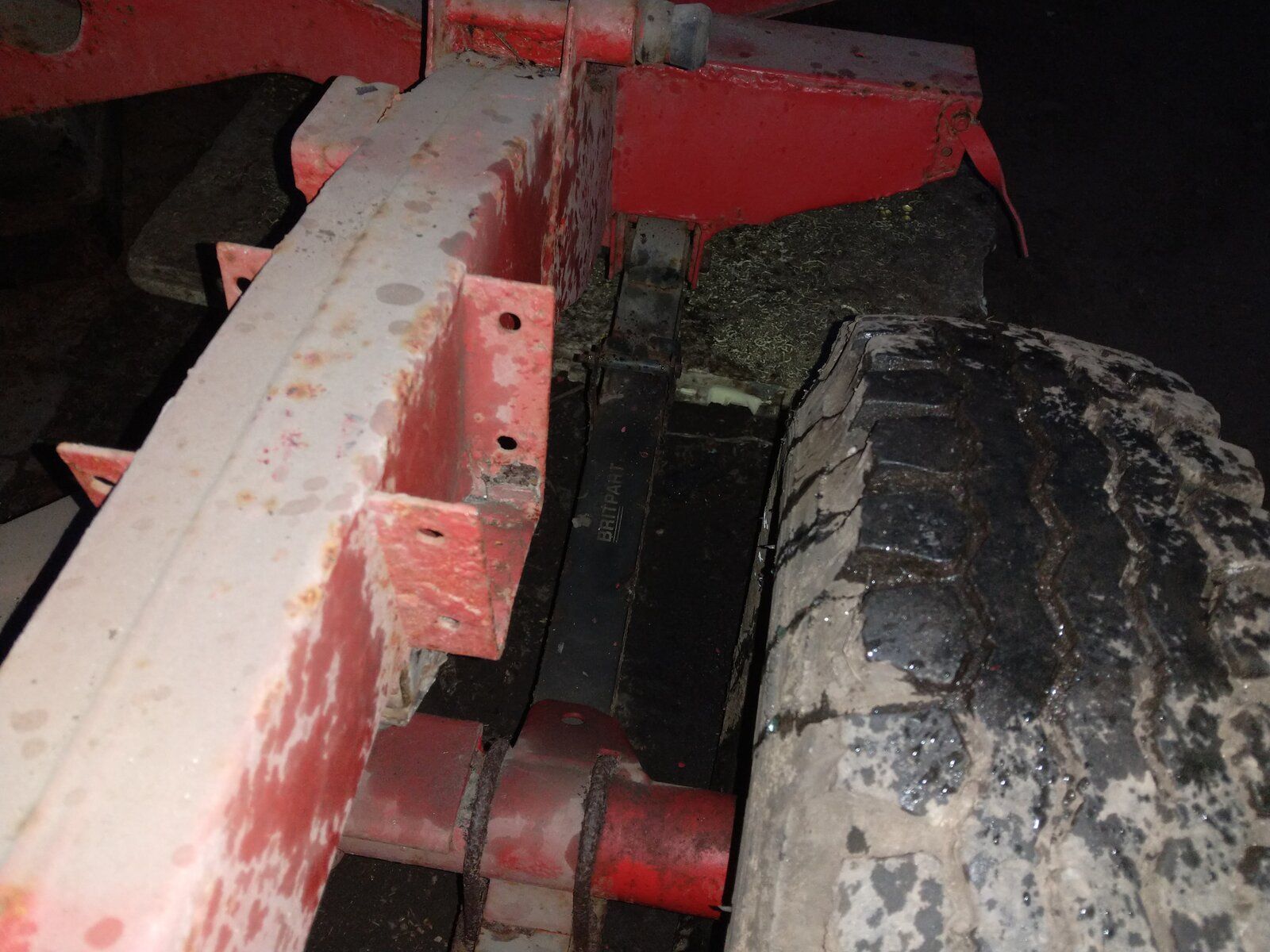

Finally made a start, took both bodys off, Green chassis is totally fu!!!ed, red one is very good, someone has already done some work on it. gonna clean it up and paint it Black. might put a better rear crossmember on it.
Need to sort which bits I am putting back on then start rebuilding axles ect. and decide on what engine to change mounts.


Attachments

  • IMG_20210321_141805.jpg
    395.4 KB · Views: 128
  • IMG_20210322_184252.jpg
    221.9 KB · Views: 129
  • IMG_20210322_184840.jpg
    260.7 KB · Views: 129
  • IMG_20210322_185400.jpg
    250.6 KB · Views: 130
  • IMG_20210322_185738.jpg
    249.6 KB · Views: 127
  • IMG_20210322_184306.jpg
    323.1 KB · Views: 130
If I decide to go with the 300Tdi, will it mate up to Origional gearbox on the green one ?.
The one with red chassis has a 6 cylinder petrol in it but my mate needs that foranother vehicle.

Tell your mate the 6 pot should stay with the red 1:D rare;)
Don’t get the IDs mixed up:).

Good luck here you go again:):)

J

Tell your mate the 6 pot should stay with the red 1:D rare;)
Don’t get the IDs mixed up:).

Good luck here you go again:):)

J
Thanks, might not have to ask so many questions this time.
Think he needs the 6 pot for another series, so Im thinking of my Disco 300tdi ,

OK Ben thinking about choice of engines, after googling all 3 still not sure, only one we know that is good is the 300tdi, not sure if the Perkins will even start, dont think I will get the 6 pot but after reading up on them not sure if I would want it anyway sounds like they are really heavy on fuel, or have I read that wrong.
Anyway also put off the 300 as it seems there is a lot of stuff to cut and alter to get it in, even some people using it without the Turbo if that is possible.
So my next question is what would the original engine and box have been in a 1970 Series ? so if I get the chance to find one it will drop straight in without any faffing about or having to change engine mounts ect. Im not bothered about speed just as long as it runs well.

I thought the 300tdi went into a LWB series ok as turbo in different position to 200tdi.
Engine mount on oil filter side was a problem but this bracket sorted that I believe.


Attachments

  • LRO 300tdi drivers side engine mounting Credit to foggy http.pdf
    510.7 KB · Views: 186
TBH, I admire your enthusiasm. When I see things like that I want to tip them into the nearest crusher to spare them any more pain.
It is certainly not a project for the faint-hearted. Good Luck! :)

TBH, I admire your enthusiasm. When I see things like that I want to tip them into the nearest crusher to spare them any more pain.
It is certainly not a project for the faint-hearted. Good Luck! :)

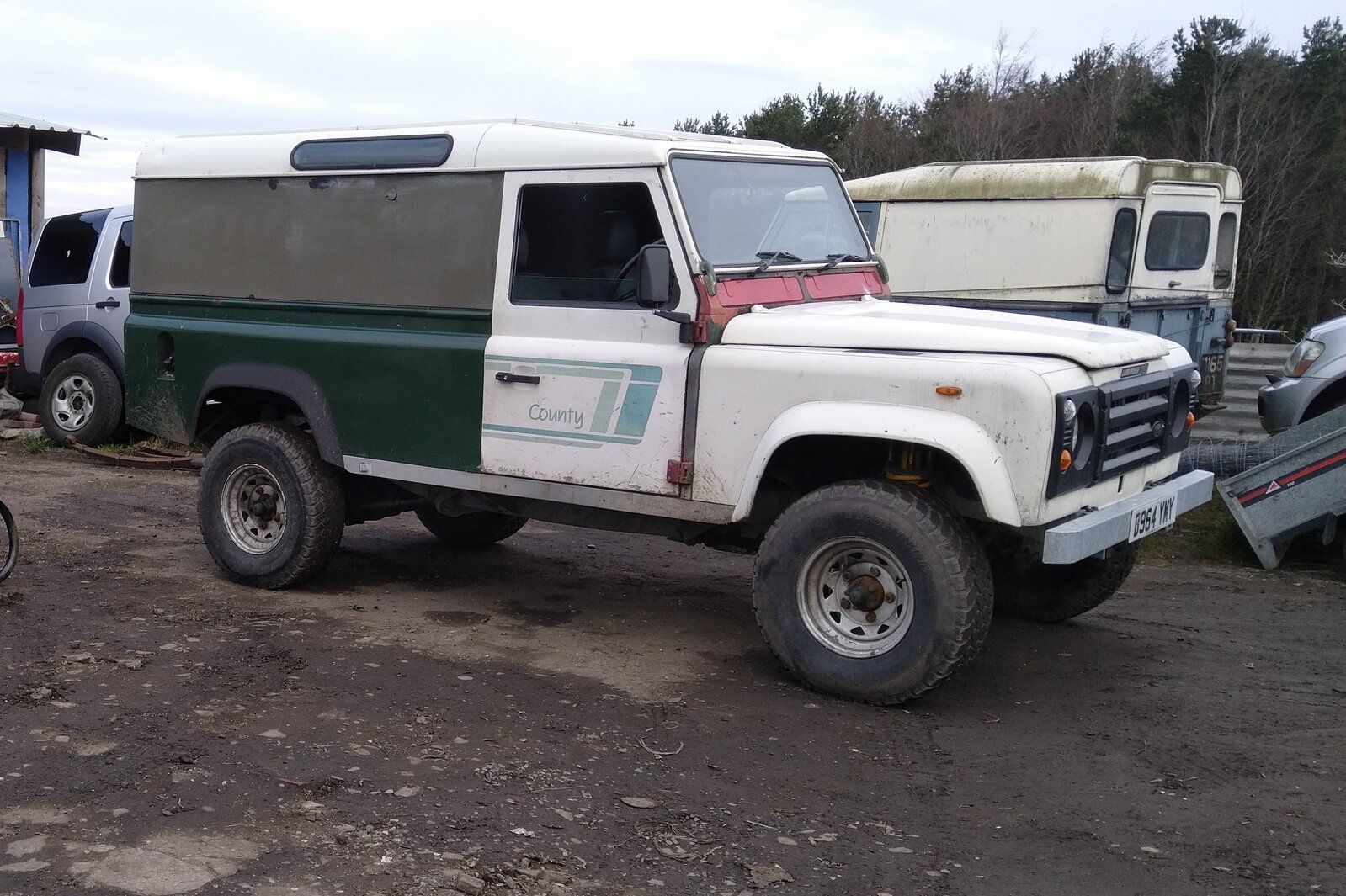

Neither was my first one, but I got there in the end.


Attachments

  • IMG_1246 - Copy.JPG
    IMG_1246 - Copy.JPG
    332.7 KB · Views: 114
  • r1.JPG
    323.6 KB · Views: 103
  • IMG_3201.JPG
    293.8 KB · Views: 128
  • IMG_20210307_114847 (2).jpg
    IMG_20210307_114847 (2).jpg
    321.9 KB · Views: 111

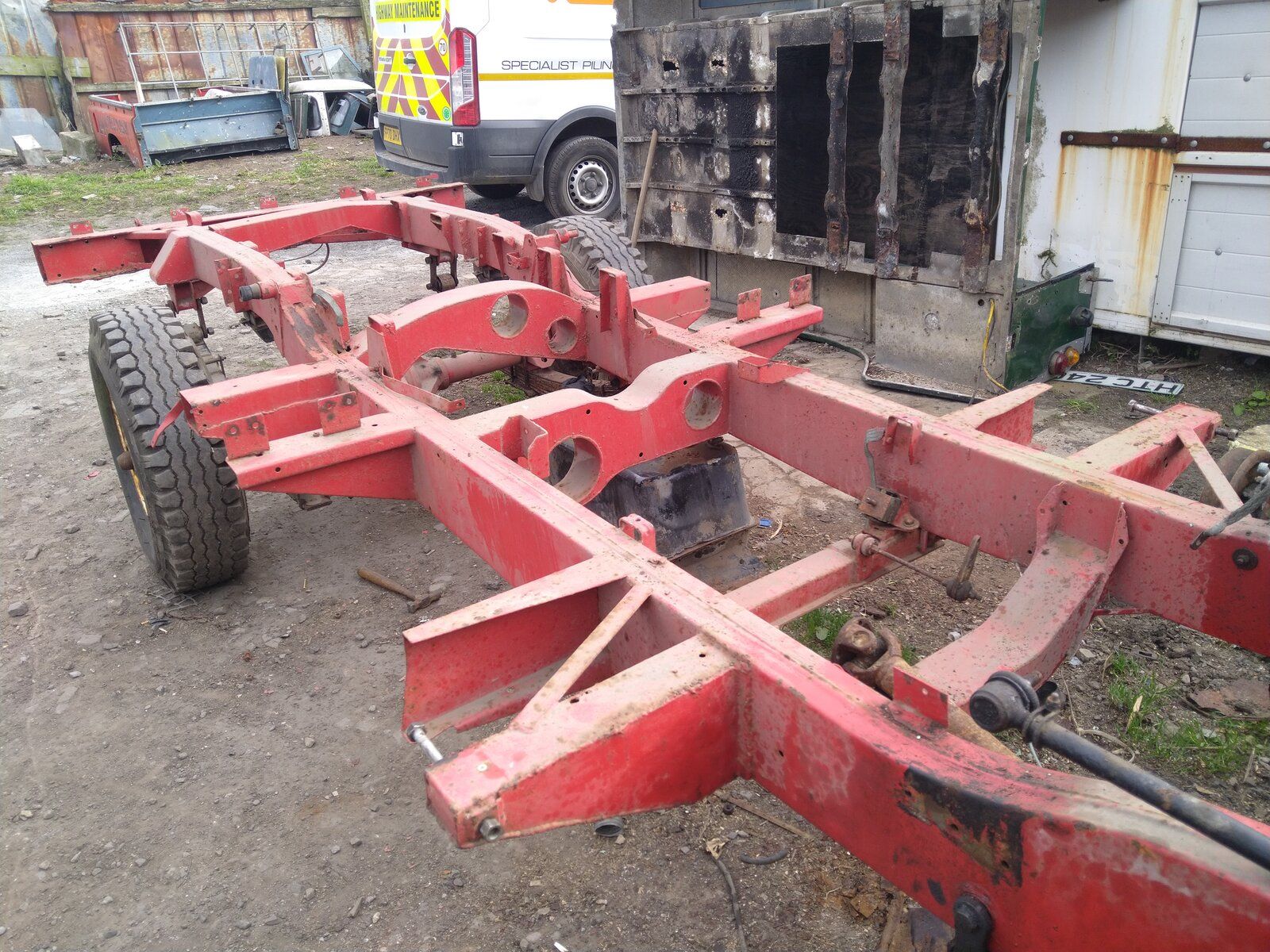

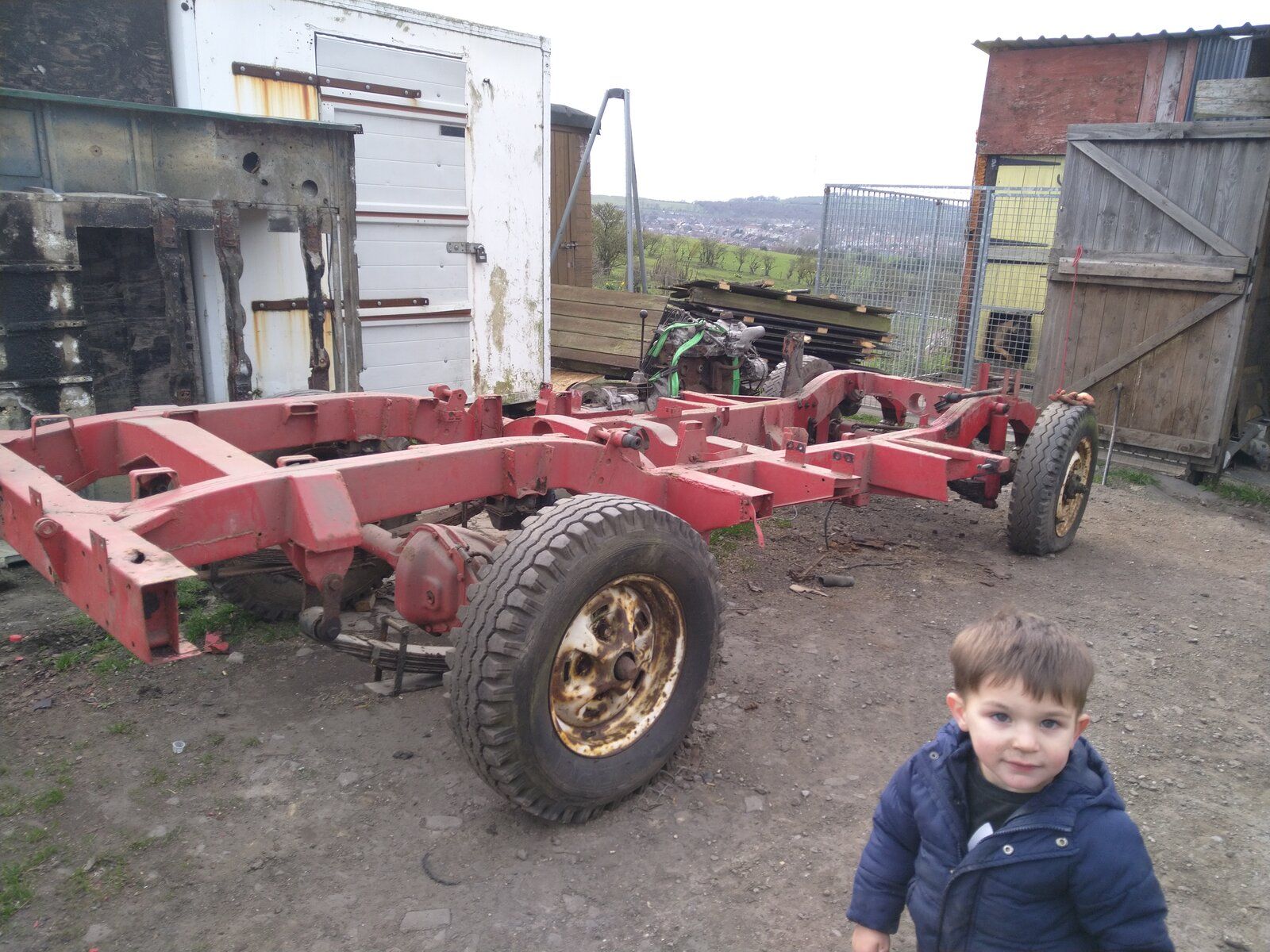

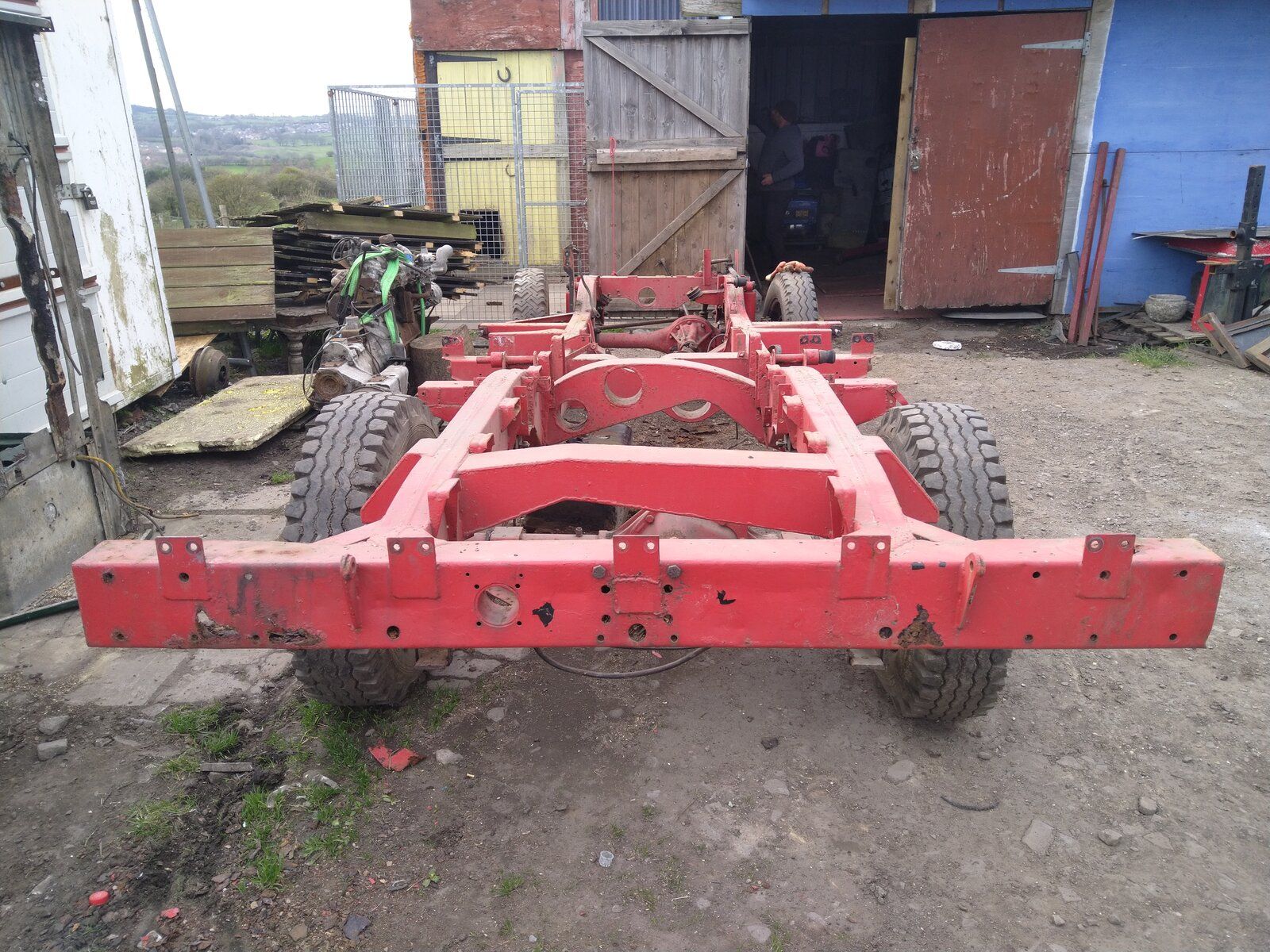

Engine Ooot Axles off next then when Ive got the funds it will eventually get shot blasted then decide whether to send off to Galvanise . Definitely needs rear cross member. but one on other chassis is ok so will cut that one off.


Attachments

  • IMG_20210402_145424.jpg
    429.8 KB · Views: 112
  • IMG_20210402_171459.jpg
    349.9 KB · Views: 108
  • IMG_20210402_171548.jpg
    447.3 KB · Views: 108
  • IMG_20210402_171444.jpg
    437.4 KB · Views: 100

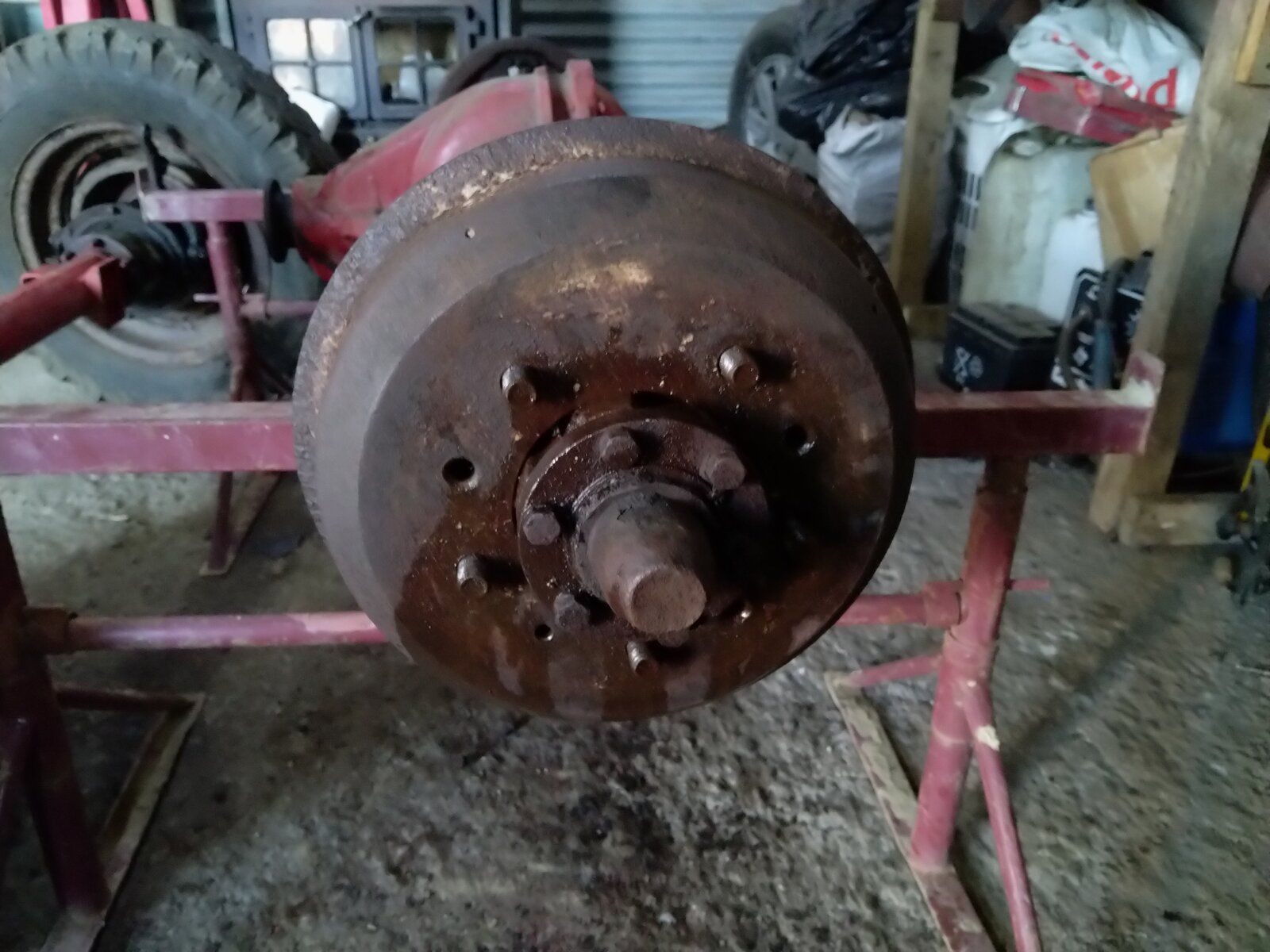

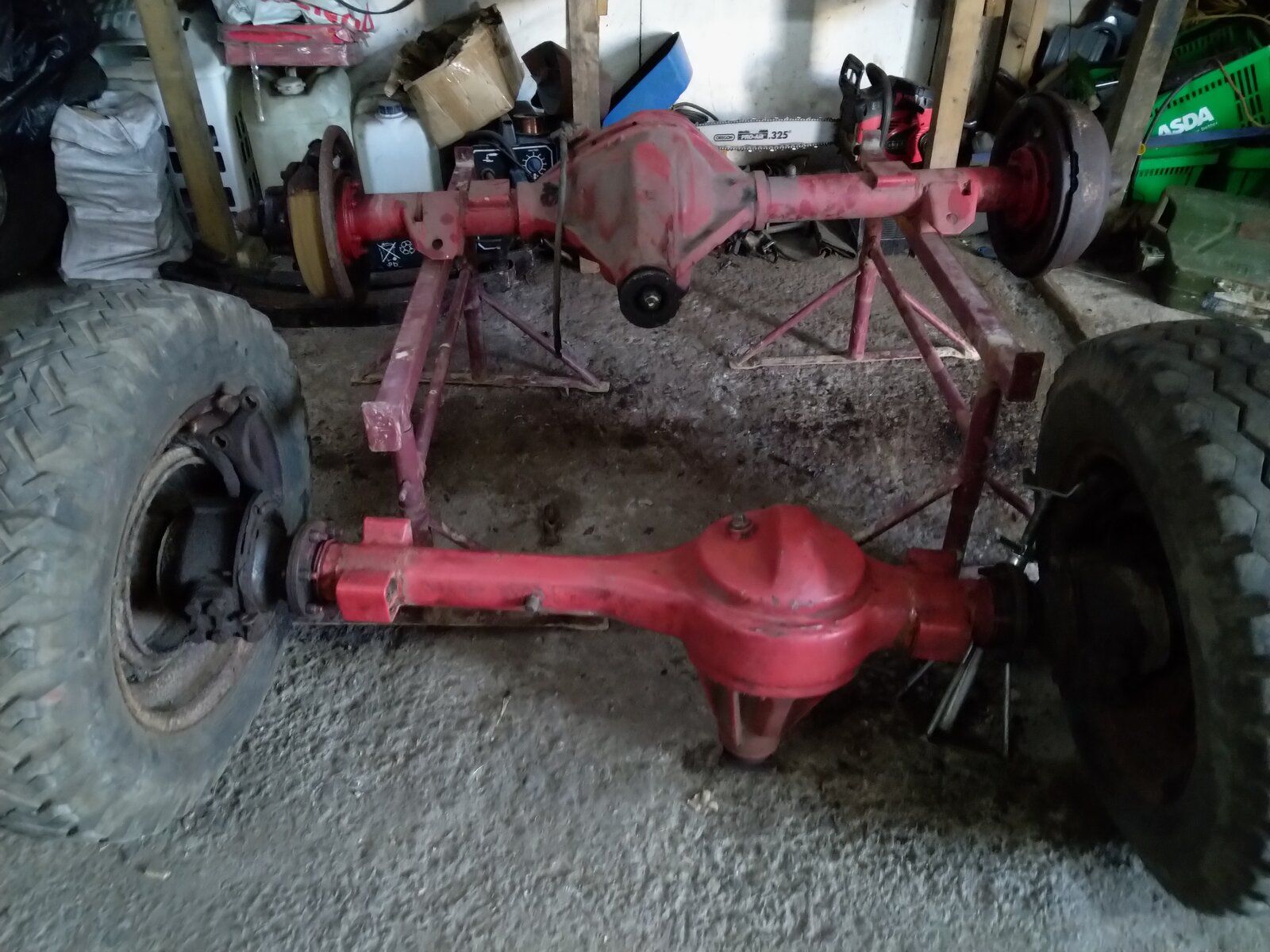

Axles in the shed ready for stripping down. Started on the rear, one drum came off quite easy, but the other side wont , got it moved a little bit but soaked it in wd 40 till tomorrow.
Is there a knack to get these off ?


Attachments

  • IMG_20210415_192323.jpg
    266.5 KB · Views: 132
  • IMG_20210415_192338.jpg
    206 KB · Views: 105
When you look at the drum with wheel off should be 1 or 3 countersunk screws around the centre area of hub flange and a threaded empty hole take the three screws out and screw one into the threaded hole . Replacement drums only have 1 screw originals 3 screws.

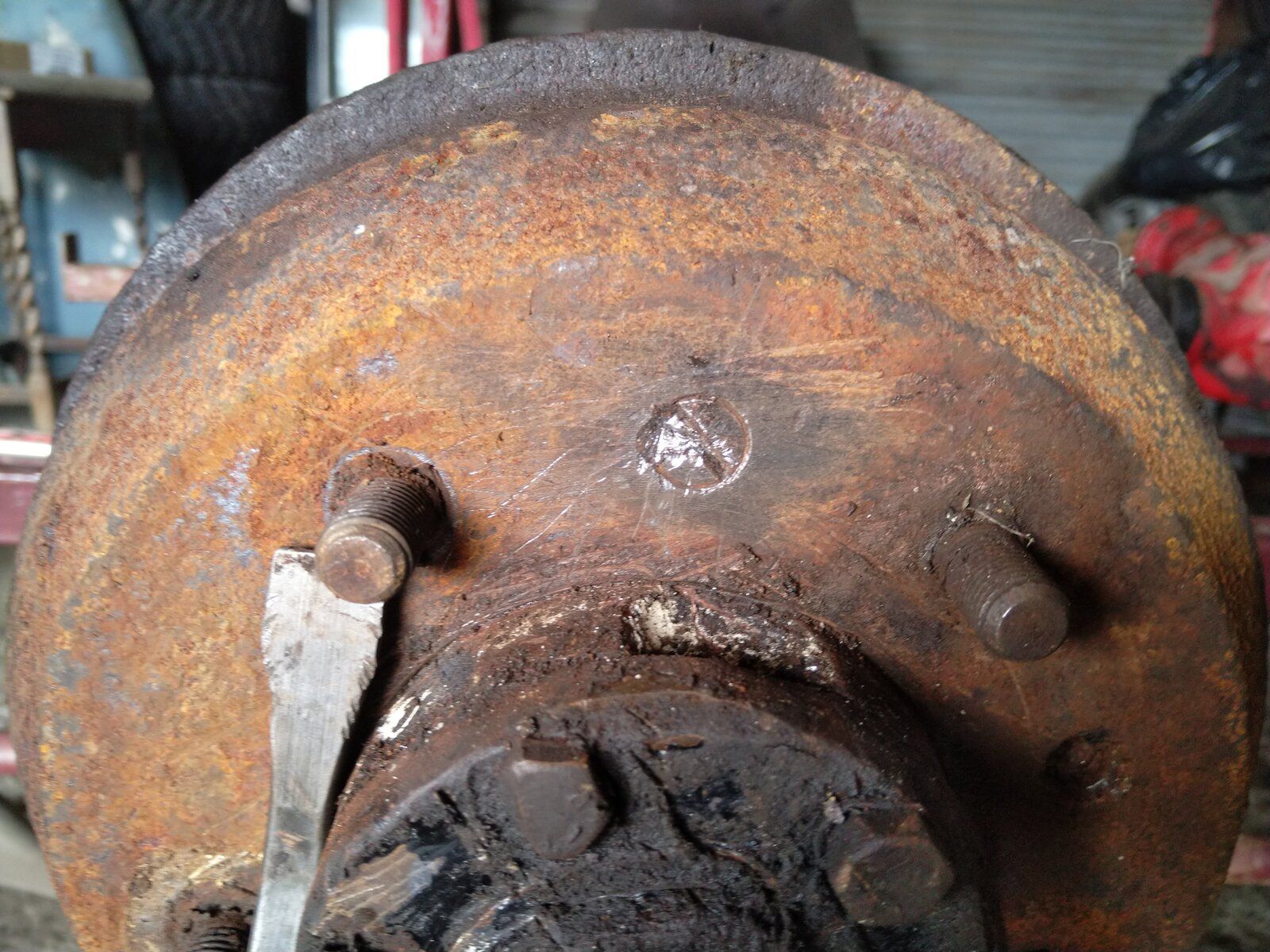

Got my first problem, wont be the first.
Bloody screws that hold the drums on, the rears came out fine, got 2 of this front ones out but think Ive well and truly knackered this one.
Any Ideas of how to get it out ?


Attachments

  • IMG_20210418_162542 (1).jpg
    IMG_20210418_162542 (1).jpg
    339.5 KB · Views: 101
