Series 3 Oil Pressure is at 0

jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Jun 17, 2020

• #21

steve2286w said:

Let’s hope new pump sorts it, hope they sent a standard pump , nice to know what to you have fitted

Click to expand...

any pics of both pumps ,as ive never heard of a non std pump so i can see what they are referring to



olsver

Member

Posts

63

• Jun 17, 2020

• #22

jamesmartin said:

any pics of both pumps ,as ive never heard of a non std pump so i can see what they are referring to

Click to expand...

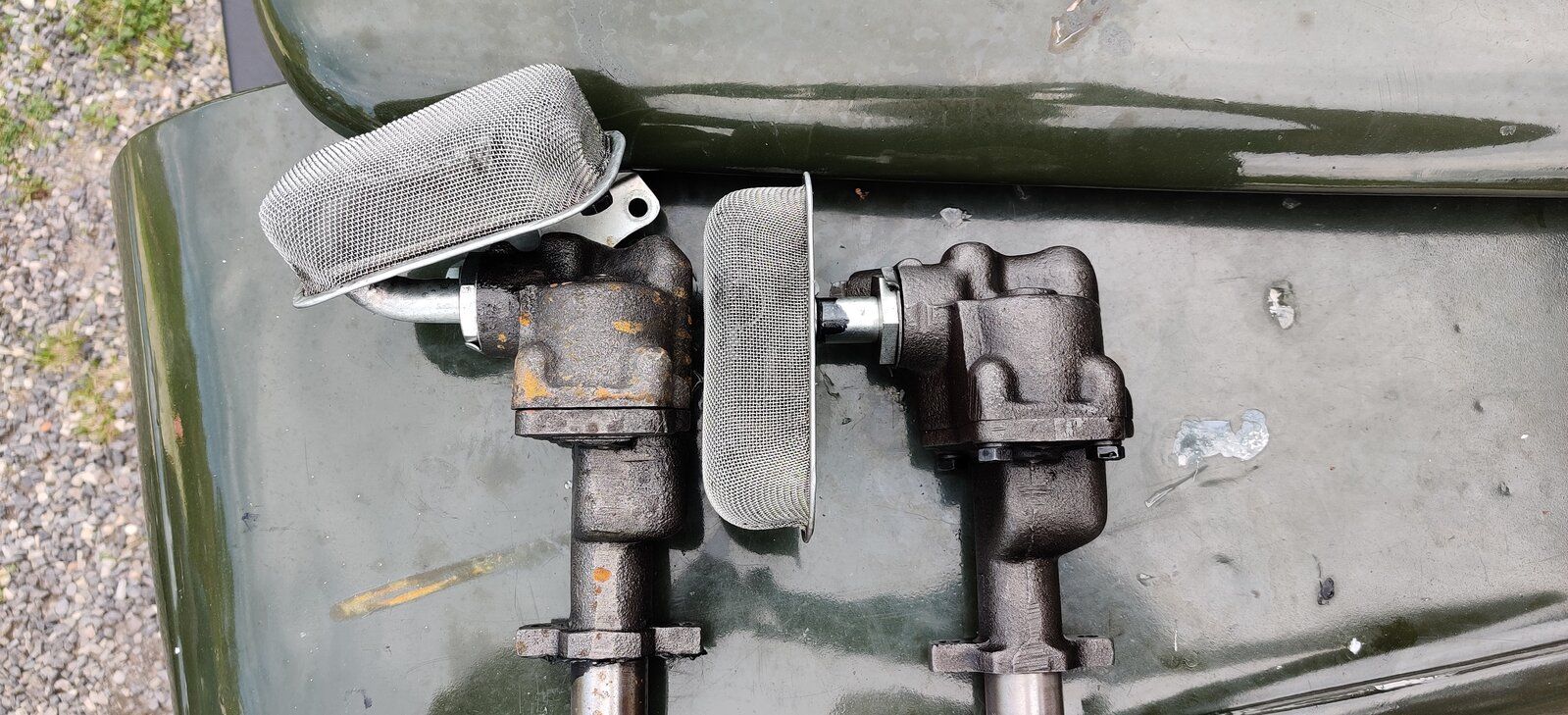

I'm not sure if they meant oversized for the engine or oversized from the original pump.

The one on the right is the one that came with the car when I bought it. I don't know if it is original. The one on the left is the one that failed.



Attachments

•

  275.9 KB · Views: 125

olsver

Member

Posts

63

• Jun 17, 2020

• #23

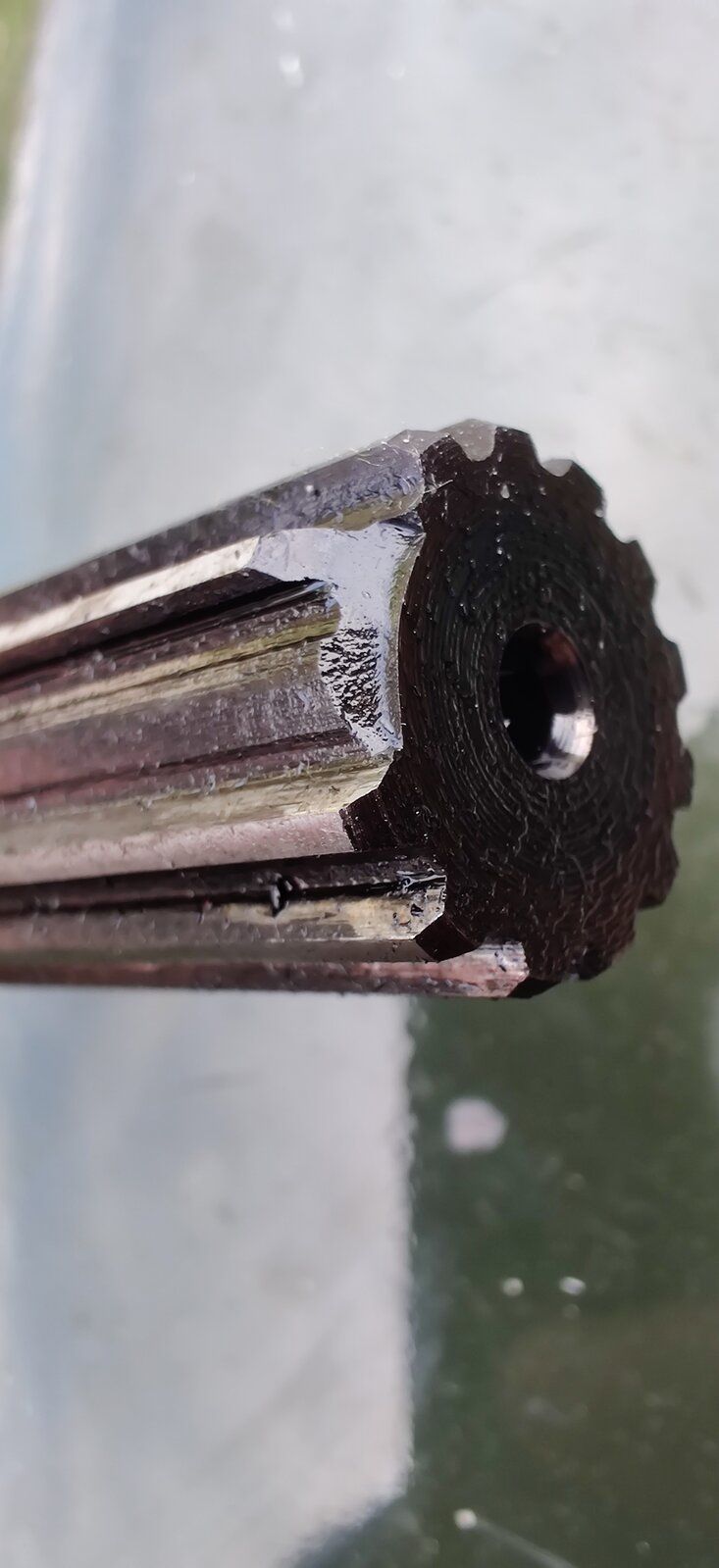

I've checked the spline carefully and there is a chunk missing from the pump end of the driving rod. My guess is that this is the source of the metal in the pump. It isn't easy to see but it is quite a lot that has broken off



Attachments

•

  91.5 KB · Views: 127

olsver

Member

Posts

63

• Jun 17, 2020

• #24

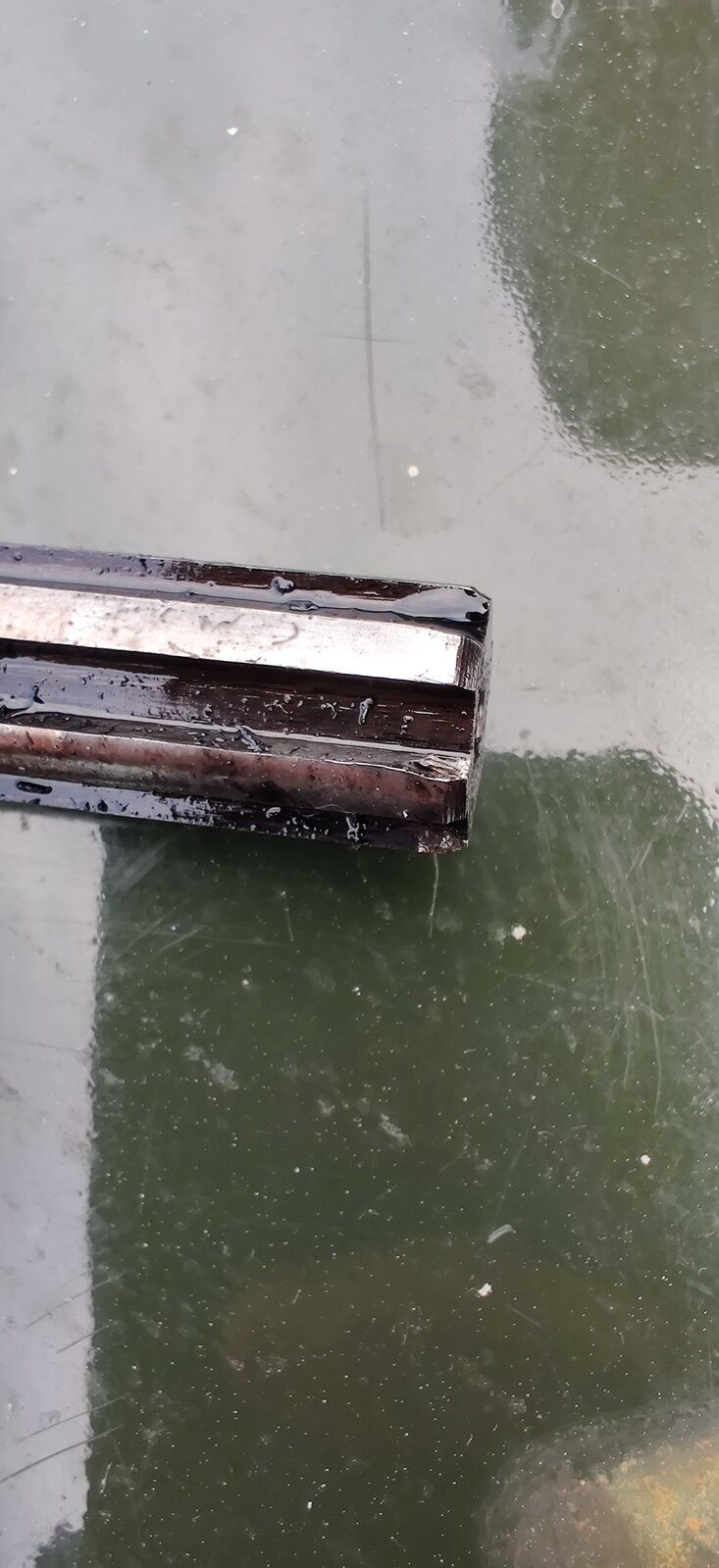

This is another angle.



Attachments

•

  145.5 KB · Views: 154

olsver

Member

Posts

63

• Jun 17, 2020

• #25

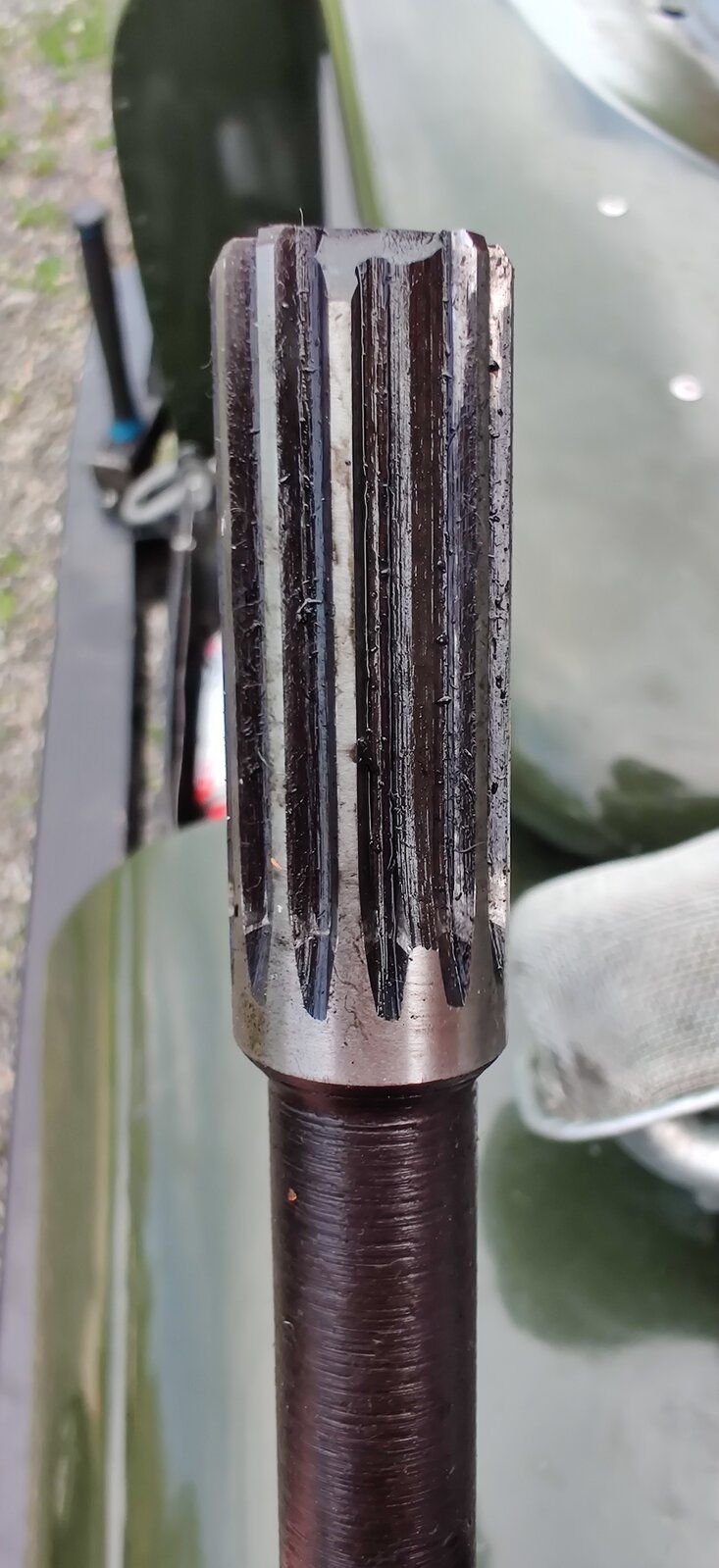

There is also wear at the other end. Maybe from when the metal went through the pump gears.



Attachments

•

  127.1 KB · Views: 110

olsver

Member

Posts

63

• Jun 17, 2020

• #26

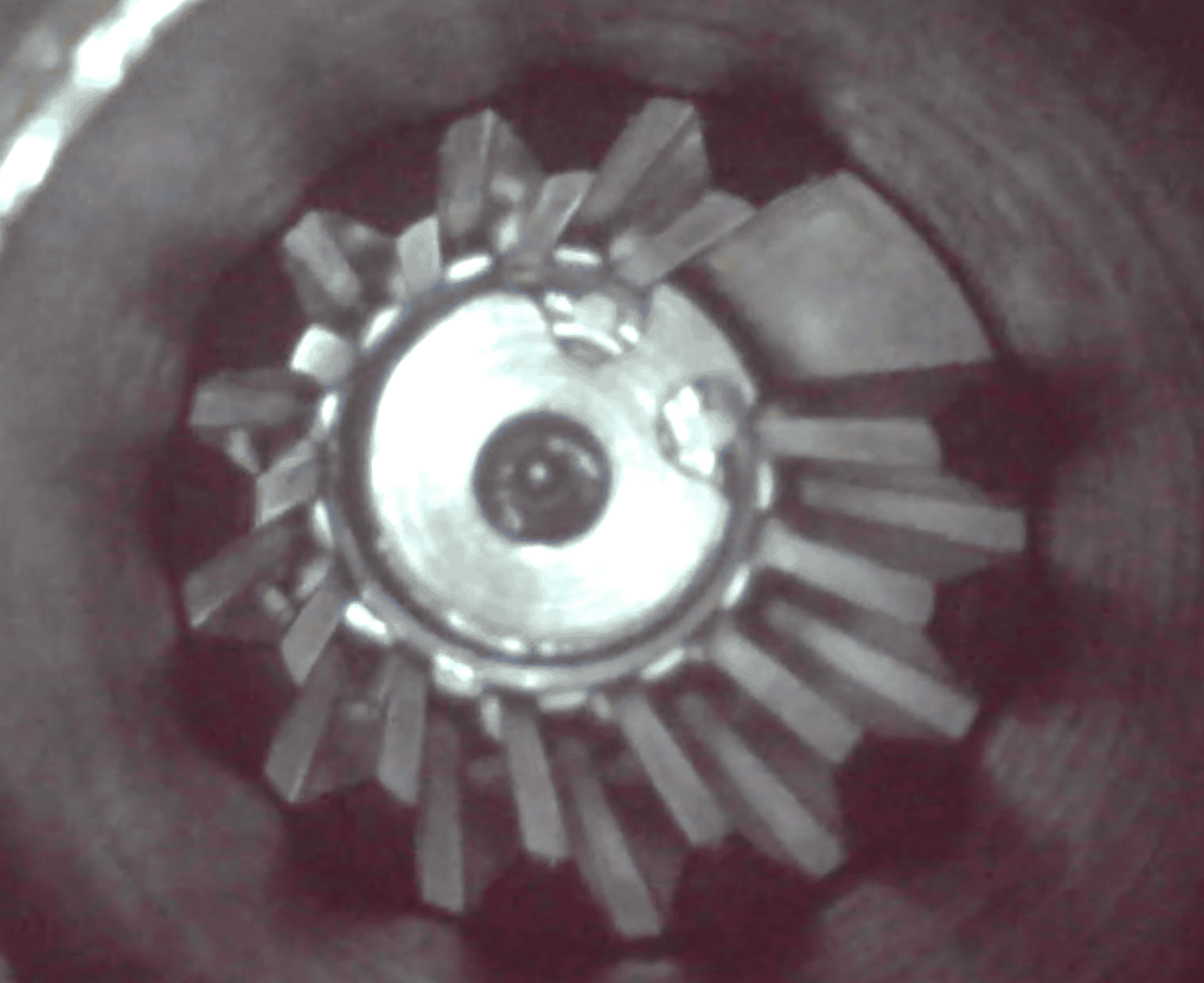

It doesn't seem to have damaged the drive underneath the injection pump. (Sorry for my lack of correct terms)



Attachments

•
  Screenshot 2020-06-17 at 16.59.36.png

  505.7 KB · Views: 134
