GrumpyGel
Well-Known Member
- Posts
- 26,393
- Location
- Christchurch, New Zealand
TC will still function - it helps pull me through gravel and sand in 2WD - but I don't push it!
Non starting Freelander
- Thread starter michael_v
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
michael_v
Member
- Posts
- 45
- Location
- South Africa
Thank you, that was my thoughts about the ABS. I have sourced a good condition low Mileage VCU that is affordable, will maybe buy it and fit it while I try the overhaul on the current one. Inquired from Land Rover and they can supply a brand new one at R10K which is 614 Pounds about.
Madmustang
Well-Known Member
- Posts
- 1,646
- Location
- Castleford
When fitted don't forget to do the one wheel up test to make sure it's within the limits
michael_v
Member
- Posts
- 45
- Location
- South Africa
Ok excuse my ignorance. Can you explain the within limits part, what are the limits?
Madmustang
Well-Known Member
- Posts
- 1,646
- Location
- Castleford
Here have a look at this
https://www.landyzone.co.uk/land-rover/vcu-torque-test-results.109486/
The short answer is once the test is setup with the wheel jacked up and the bar/weight attached. It needs to fall in something like 30 to 60 secs for a VCU to be considered within its limits. I think the wheel needs to turn from a 45 degrees angle to a 90 degree angle in that time. If I am not correct somebody will correct me shortly
michael_v
Member
- Posts
- 45
- Location
- South Africa
Aha, Thanks.
michael_v
Member
- Posts
- 45
- Location
- South Africa
I have done the test and the outcome was that nothing happened. Looks like the VCU has seized. I removed it and took the landy for drive. Noticed the radiator fan came on just after start and the check engine came on for a moment and went out. I have a replacement temp gauge so will replace if required.
Madmustang
Well-Known Member
- Posts
- 1,646
- Location
- Castleford
That's grand! You could try a bench test now if you have time. See how bell do it in this quick video.
michael_v
Member
- Posts
- 45
- Location
- South Africa
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull

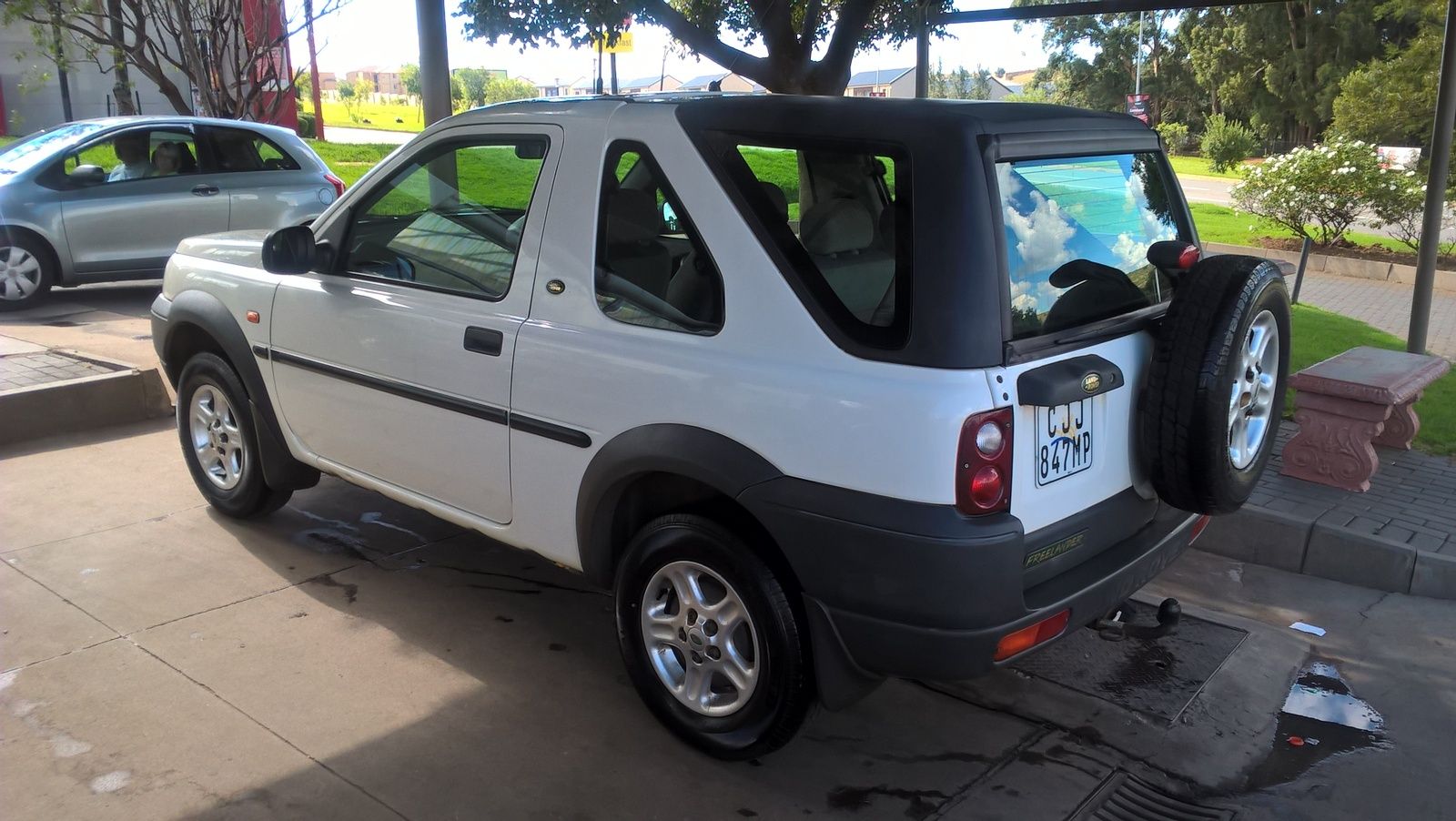

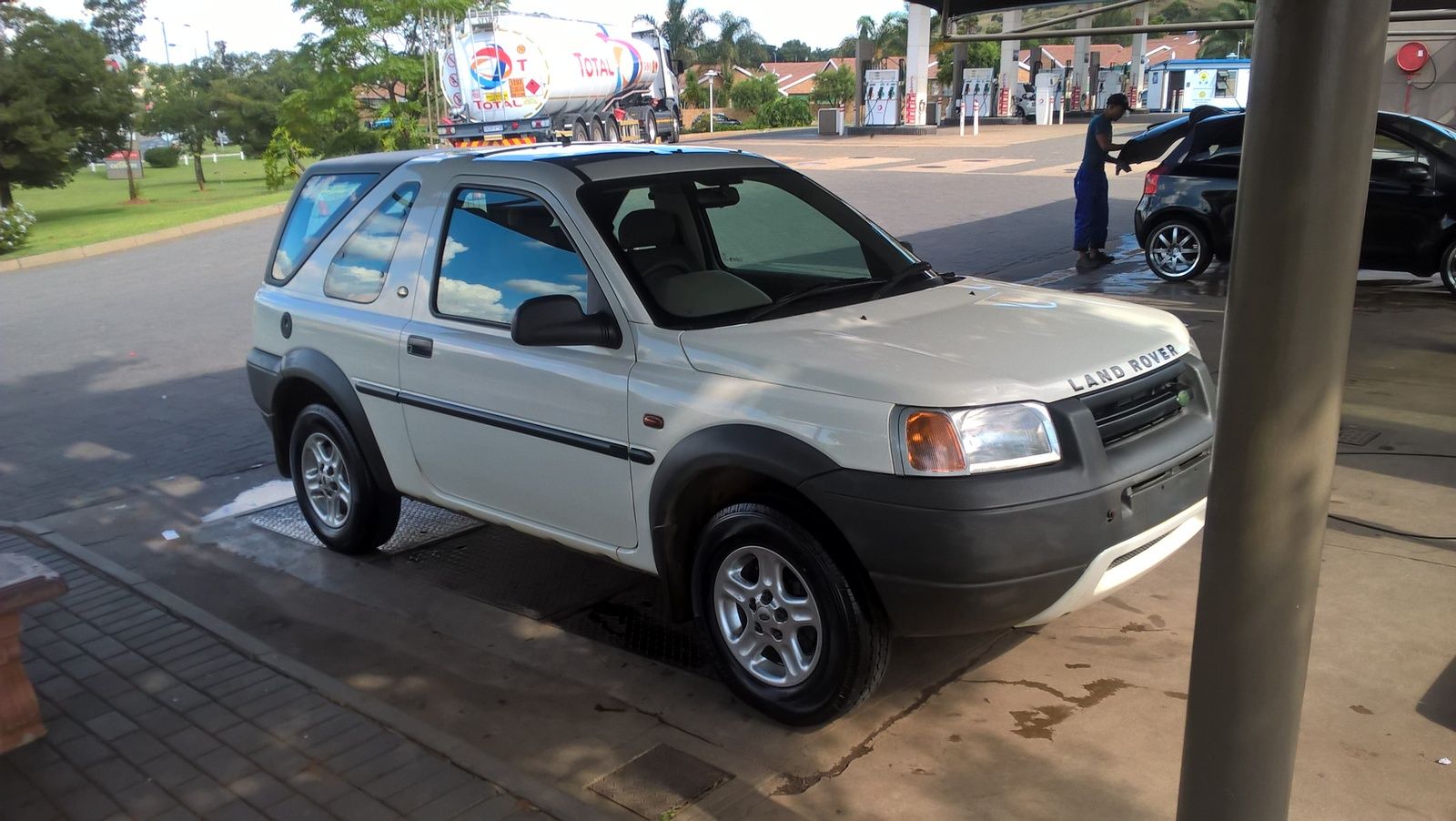

Don't see so many white ones out and about.
michael_v
Member
- Posts
- 45
- Location
- South Africa
I am busy trying to convince my wife to allow me to save a 1800 Petrol model. So far no luck but she is warming up to the idea, got her to take the white one for a drive and she loved it, so maybe I will convince her yet.
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
That's what I'm doing at the moment. Slowly.
