name that part in the photo thread

[honolulujoe]

5 is definitely a spring



[Blackburn]

No 4 is hard top to tub centre of side bracket , handbrake spring bolts to gear box mounting bracket other loop for spring is on handbrake rod



[LordOWar]

Number 3 looks like one of the brackets that holds the apron panel between the front wings on.
Number 5 looks like a throttle return spring, the spring looks too weedy to be the handbrake.



[wattfield]

I'm not sure about No. 1, but I've got one in my garage.



[Rubins4]

Thank you for help all, particularly Wattfield and Honolulujoe

1. Is this something to do with mounting the starter solenoid to the battery tray?

2. I'll get some better pictures at the weekend

3. LordOWar - not quite sure I'm following you, could you explain again or take a picture?

4. Blackburn - same as above

5. I'm pretty sure this is the spring that came with the Hand Brake assembly as I kept everything together in bags/boxes, but some what I can see of online pics the return spring looks shorter and stronger than what i have, so maybe you're right LordOWar? This is the best pic I can find for the lower mounting point for future reference.



[LordOWar]

If you have a look at this old listing on ebay you will see the 2 brackets. I'm not 100% sure on how they fit as mine were missing and the panel was just resting between the wings.

http://www.ebay.co.uk/itm/LAND-ROVE...D&orig_cvip=true&rt=nc&_trksid=p2047675.l2557



[Rubins4]

Great, thanks for that. I didn't understand what you meant by apron as mine doesn't have one; there is was a capstan there instead.



[Rubins4]

OK, better picture of the random bracket. Its got a square bit that goes into a threaded bit at one end, and just a hole in the other end.

It was covered in oily crap so suspect it was from engine/gearbox area



[Blackburn]

Wading plug for bottom of bellhousing.



[wattfield]

It des look like a wading plug, but why is it in a bracket?



[Rubins4]

Dunno, but the bracket is now bolted to the bottom of the flywheel housing for easy access, in case I ever go wading



[Blackburn]

exactly what the bracket is for keeps it next to where it is needed.



[Rubins4]

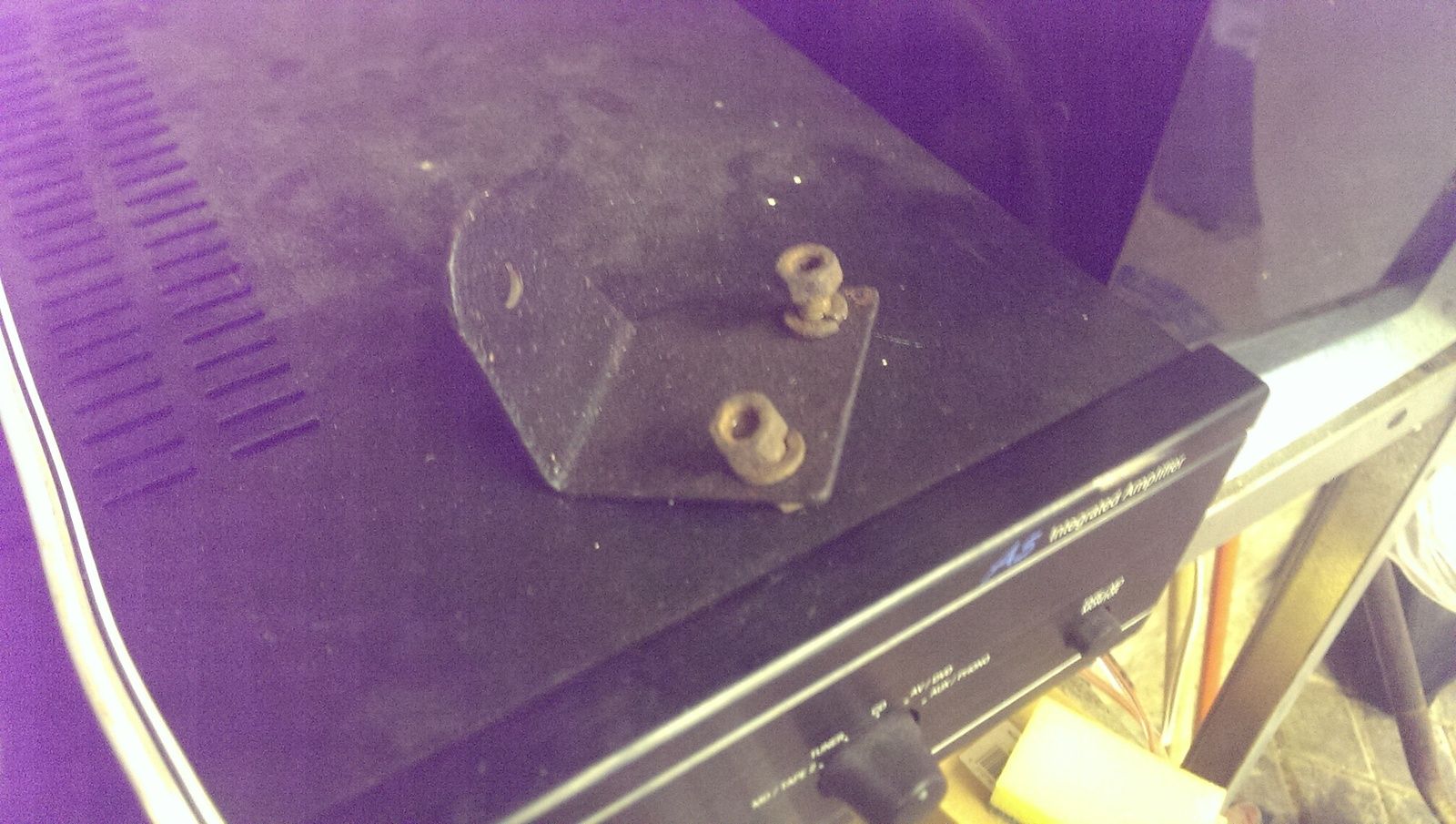

1.
View attachment 106863

Right, this is for mounting the horn on on the front panel behind the grill, for all those still wondering...



[Rubins4]

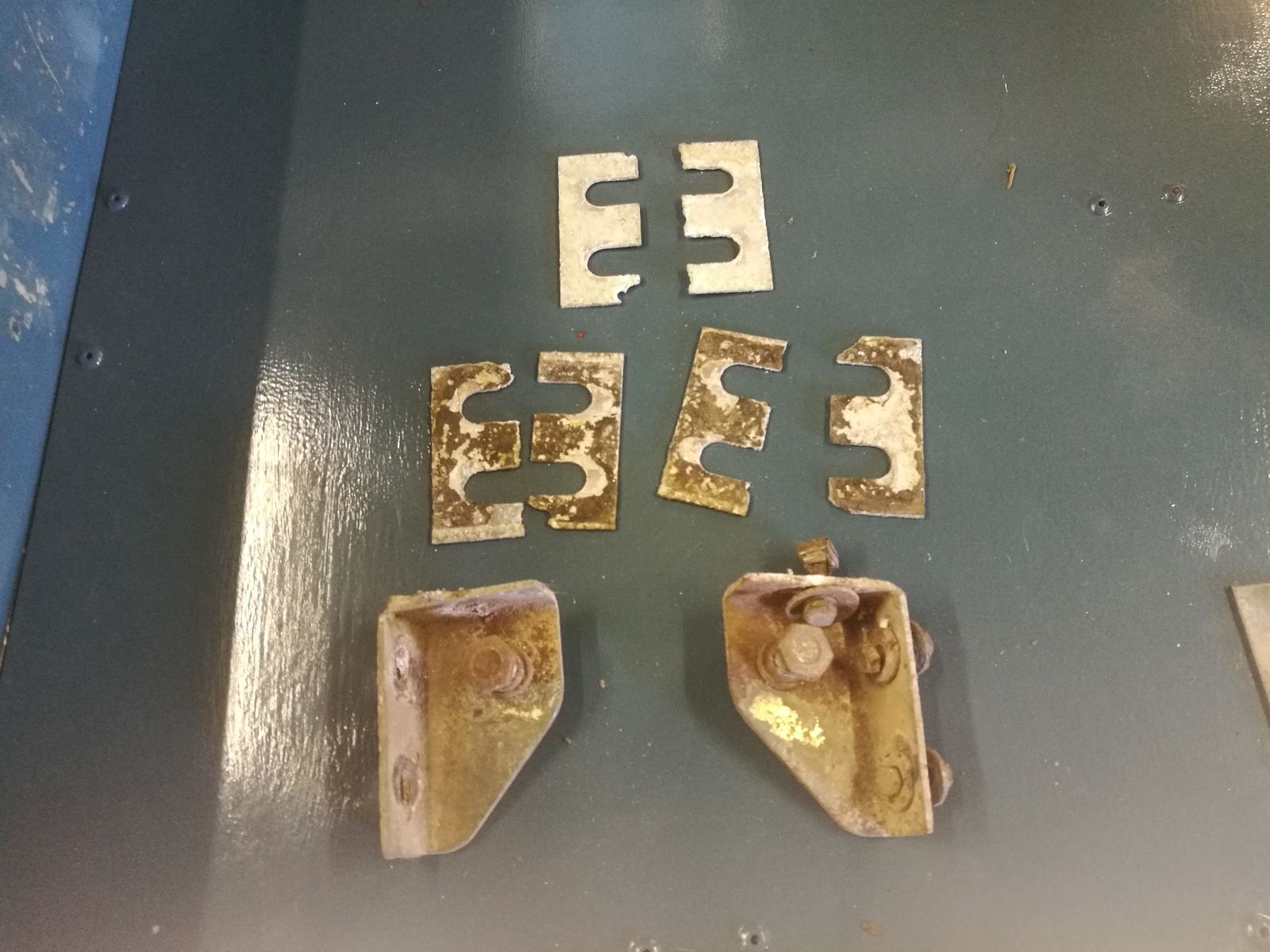

More random bits to identify, this time to do with the rear tub....

I know the E shaped plates/shims go in between the chassis an dthe tub, but I have alot more places they could go than plates. Is there a particular way to set it up?

The bigger brackets at the bottom I have no idea.

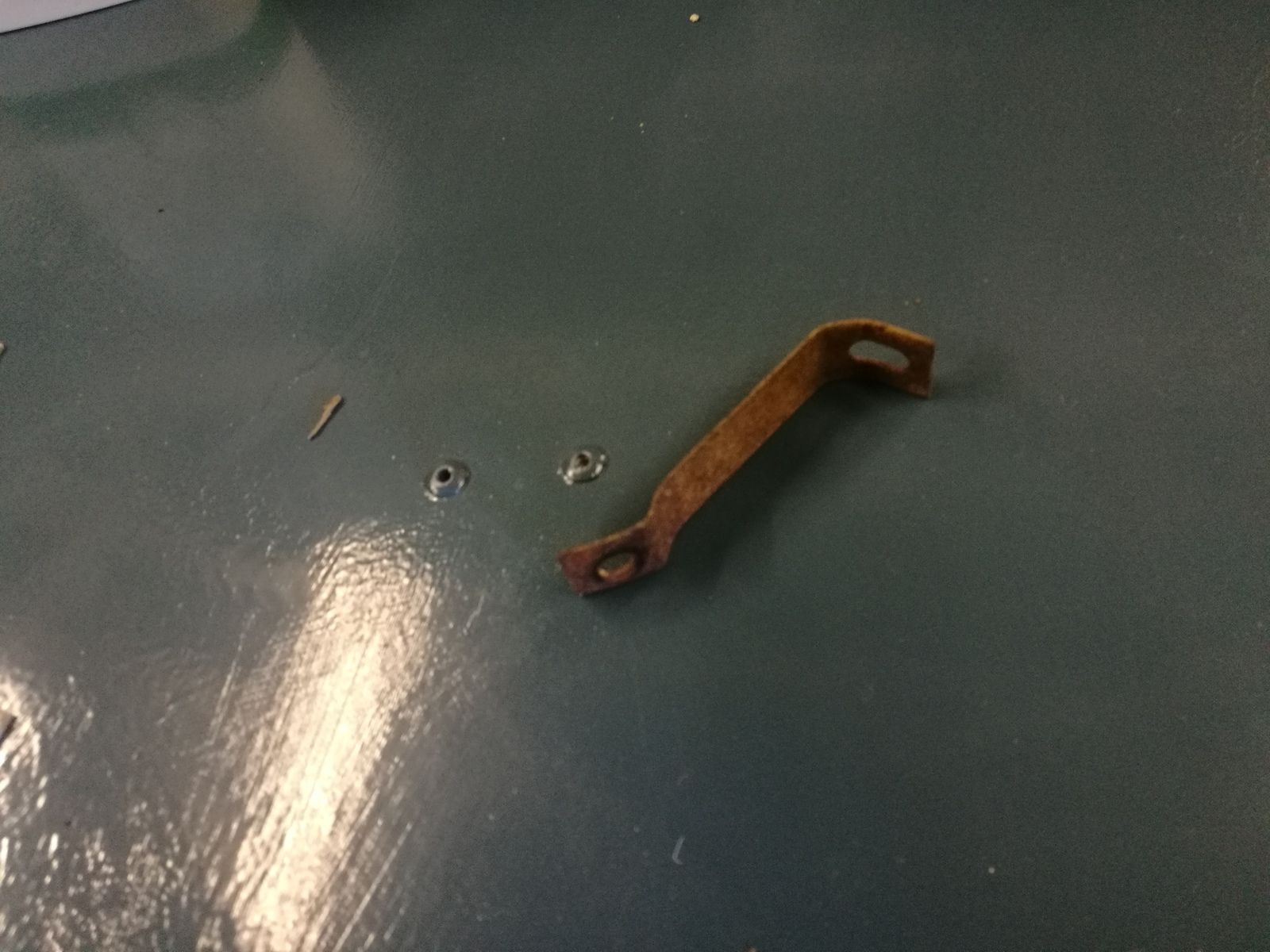

This one haunts me

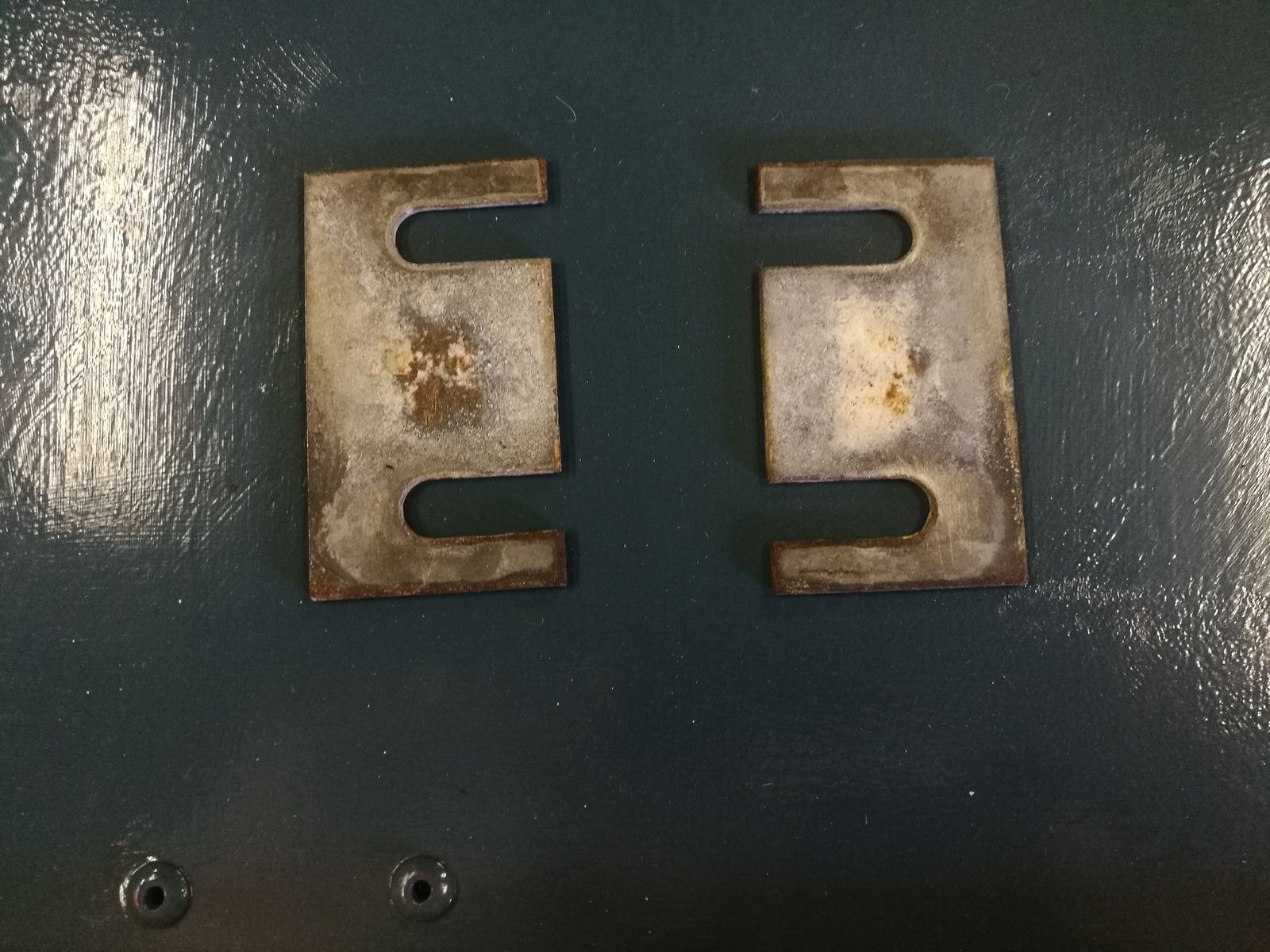

These I think are shims for the door strikers but not sure

As ever, only internet hero points available for the winners.



[jamesmartin]

triangle shaped brackets are lower seat belt mounts fit rear lower corner of seat box



[Rubins4]

Thank you James
