Lower shock bush compressor 3D printable tool

3D model print file free download

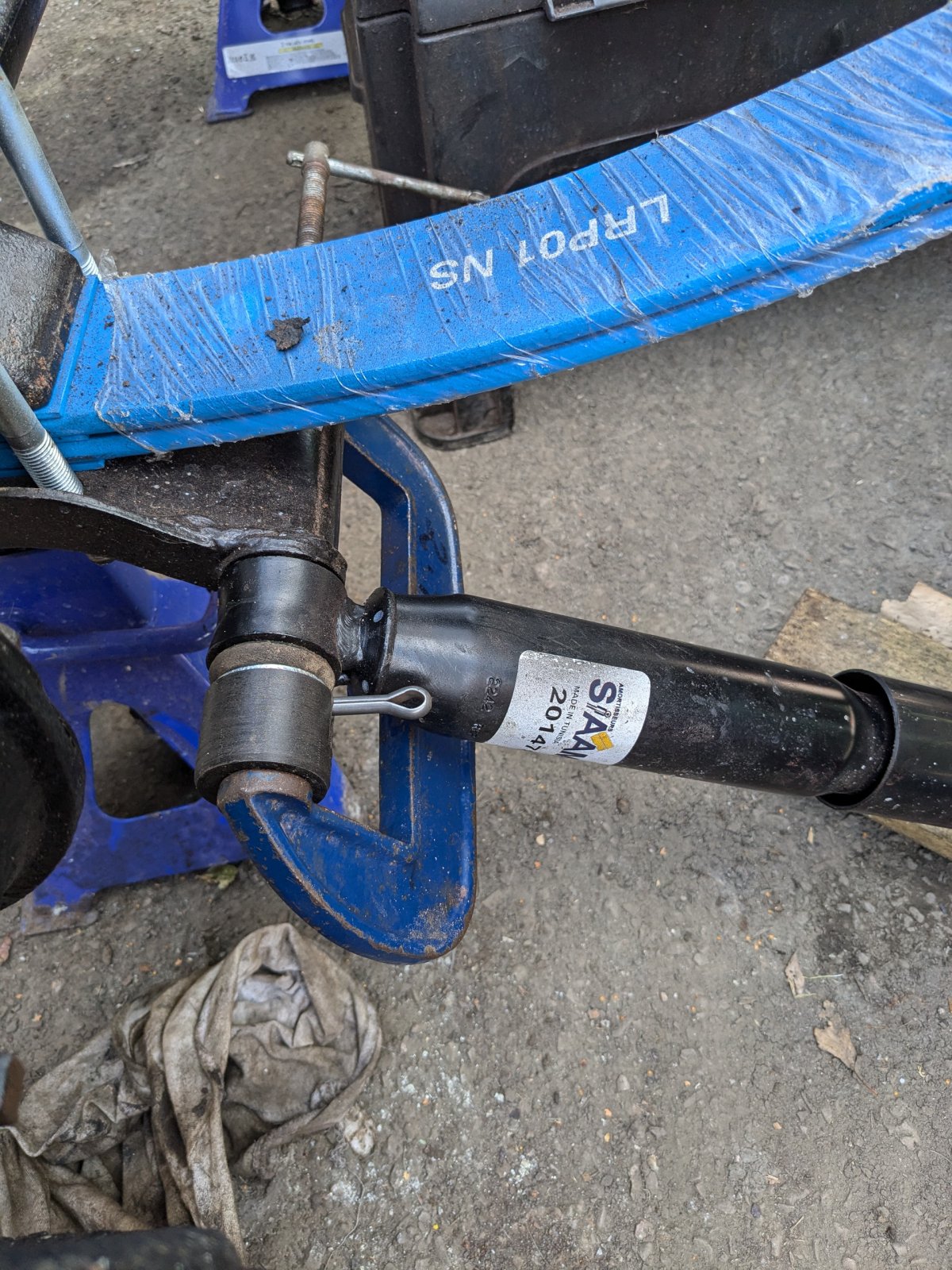

3D printed tool to aid in compressing the bushes while the split pin is fitted .
Used a 9 inch G clamp

Looks like you’ve only got one bush in it

3D printing is far to modern and fancy for an old series vehicle. What is wrong with cutting a slot in an old chineseium socket!

Mine was just a bit of old pipe with a slot, only say was coz just not sure where it is just now.

Bobsticle said:

Looks like you’ve only got one bush in it

Click to expand...

Nah. Just slathered the back one in silicon grease and it got compressed into the shock eye. Popped back out post pin install

dag019 said:

3D printing is far to modern and fancy for an old series vehicle. What is wrong with cutting a slot in an old chineseium socket!

Click to expand...

Nothing wrong with butchering a socket at all It's just I have a printer and plenty of filament plus the software knowledge to design and print in a couple of hours

That’s a useful tool what printer do you use and what wire

steve2286w said:

That’s a useful tool what printer do you use and what wire

Click to expand...

Printed in PETG with 3 perimeter walls and 80% infill on an old ender 3 . Nothing fancy just a simple reliable workhorse

I didn’t realise 3d printers were that cheap , paid more for normal printers , useful tool if you have the imagination to make bits you need

steve2286w said:

I didn’t realise 3d printers were that cheap , paid more for normal printers , useful tool if you have the imagination to make bits you need

Click to expand...

Yeah they can be pretty cheap. Pretty easy to build,maintain and repair too. Over on the Discord 3D printing channel theres a ton of help if needed and a section where people like me are happy to make simple models and edits to models for you. Theres also a few good sources of 3D models for free download like Thingyverse, where I uploaded / shared the tool above. More tech related models can be found on Grabcad where I also uploaded a Series 3 chassis model Im working on Grabcad-S3 - 88 Chassis 3D model
