Light guards don't fit

frog hopper · Oct 18, 2019

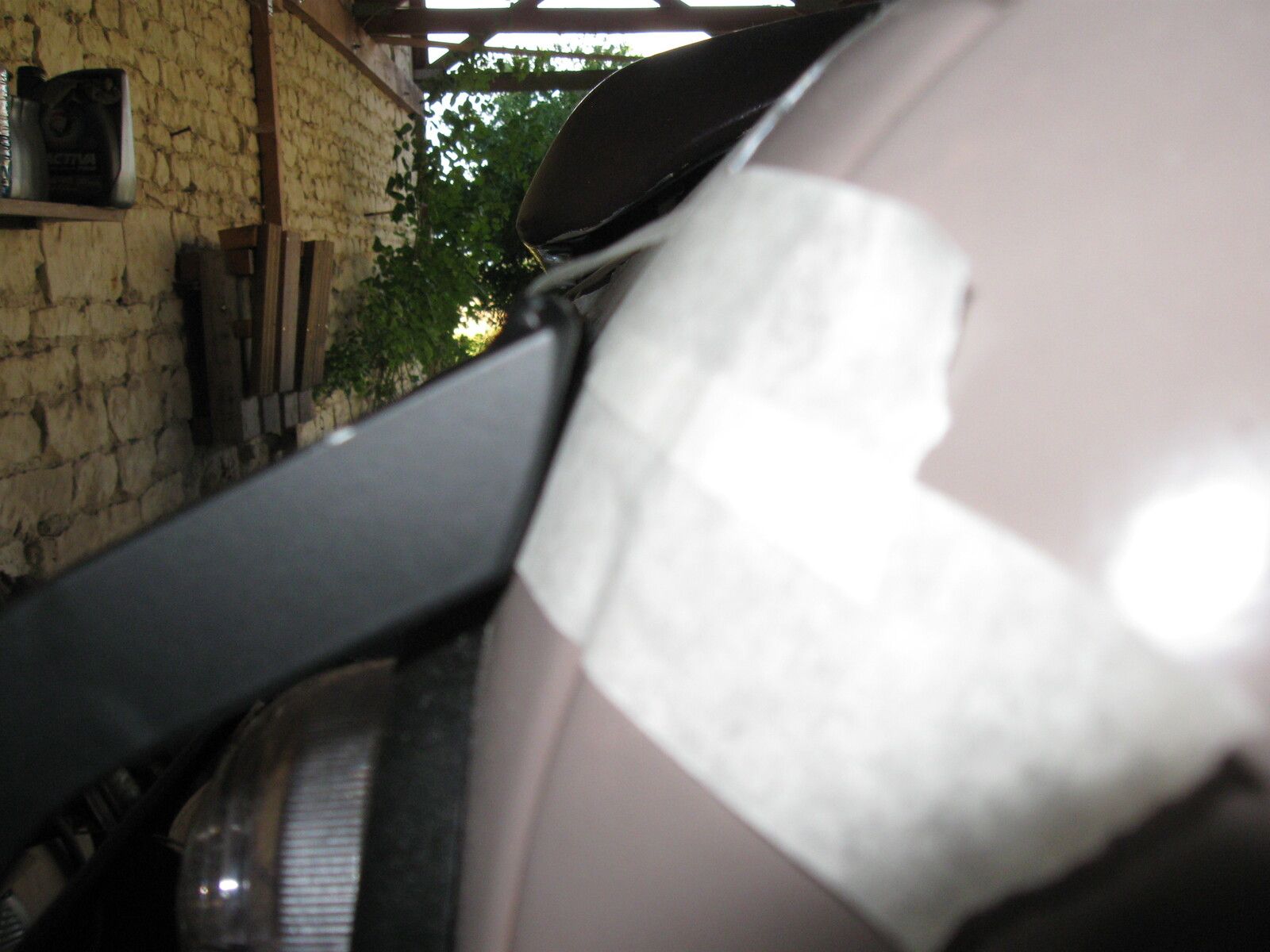

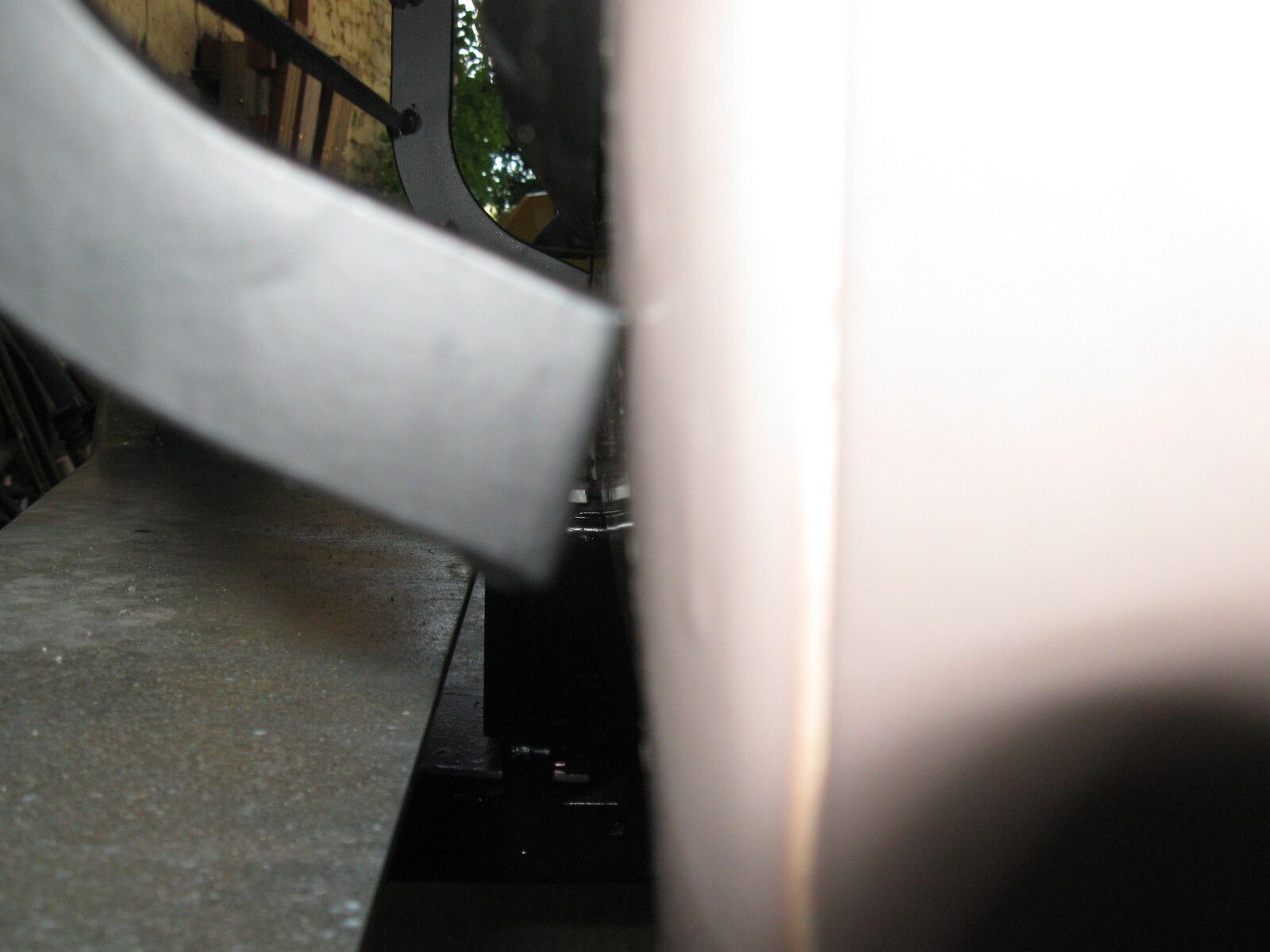

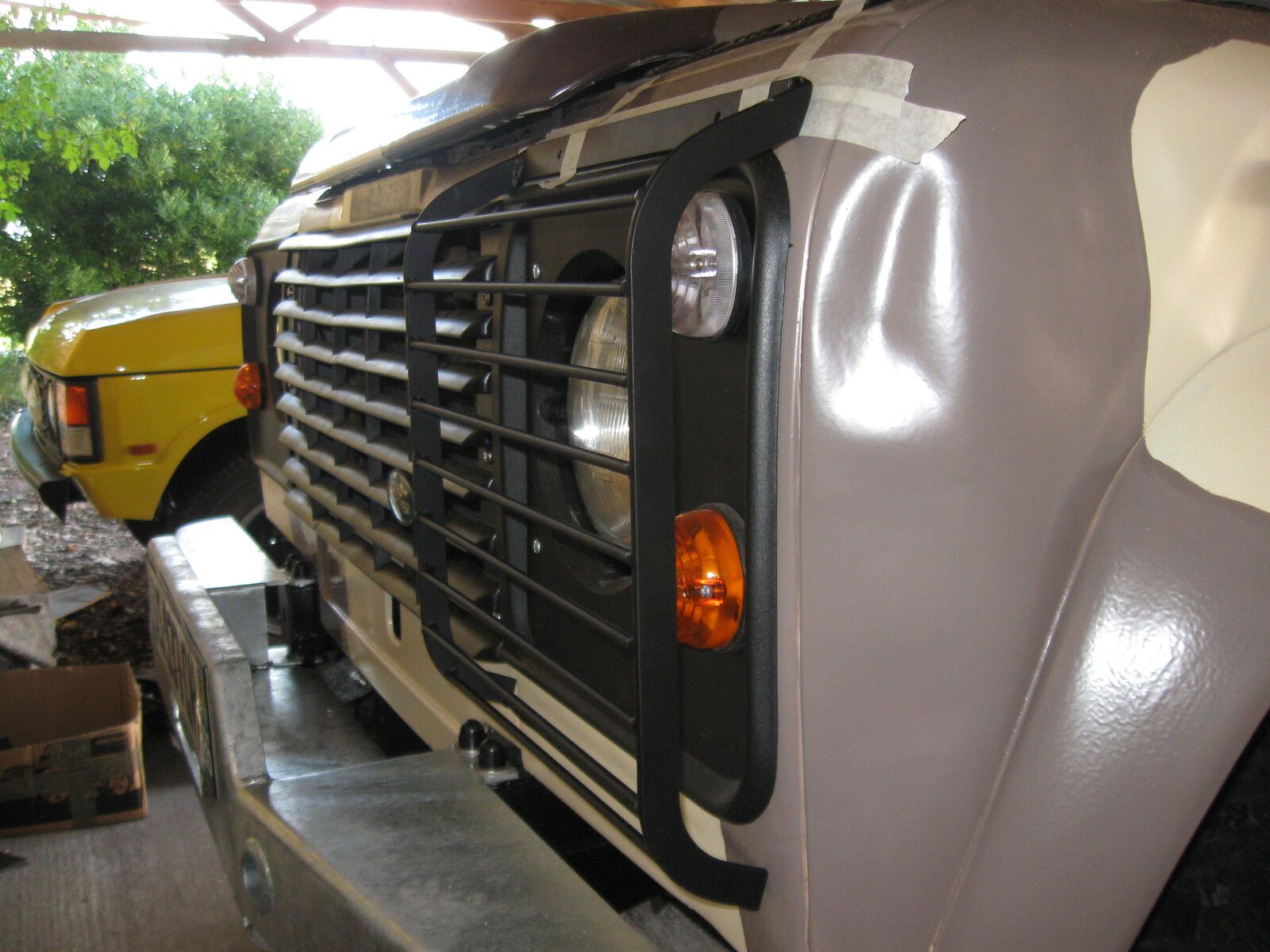

Hi all, purchased some light guards for the front of my 200 Tdi, seems to me that the angles that the guards meet the front of the wing are wrong. The top of the guard where it bolts to the wing above the light surround would probably fit good enough, but I think the bottom needs to be cut to allow mounting in the little hinge brackets and to be able to swing the guard down to service the lights without taking the paint off.
Or am I being a snowflake and I should just get on with it?

https://www.paddockspares.com/pm673-hinged-front-lamp-guards-pair.html

Lief Zpring · Oct 19, 2019

To be honest, it's hardly noticeable. The eye tends to be drawn to the huge dent in the wing

. I'd just fit them as they are.

mick the builder · Oct 19, 2019

If you do have a prang, you will end up with two holes in your wing at the bottom. Send photo to paddocks and instist on replacements that fit. ( unless they are all like that).
How are tey fixed at the bottom? If same as top, theres no way it will work.

lightning · Oct 19, 2019

I have the Land Rover ones and they look the same as those but there’s a bar at the bottom that they swing down on.

Litch · Oct 19, 2019

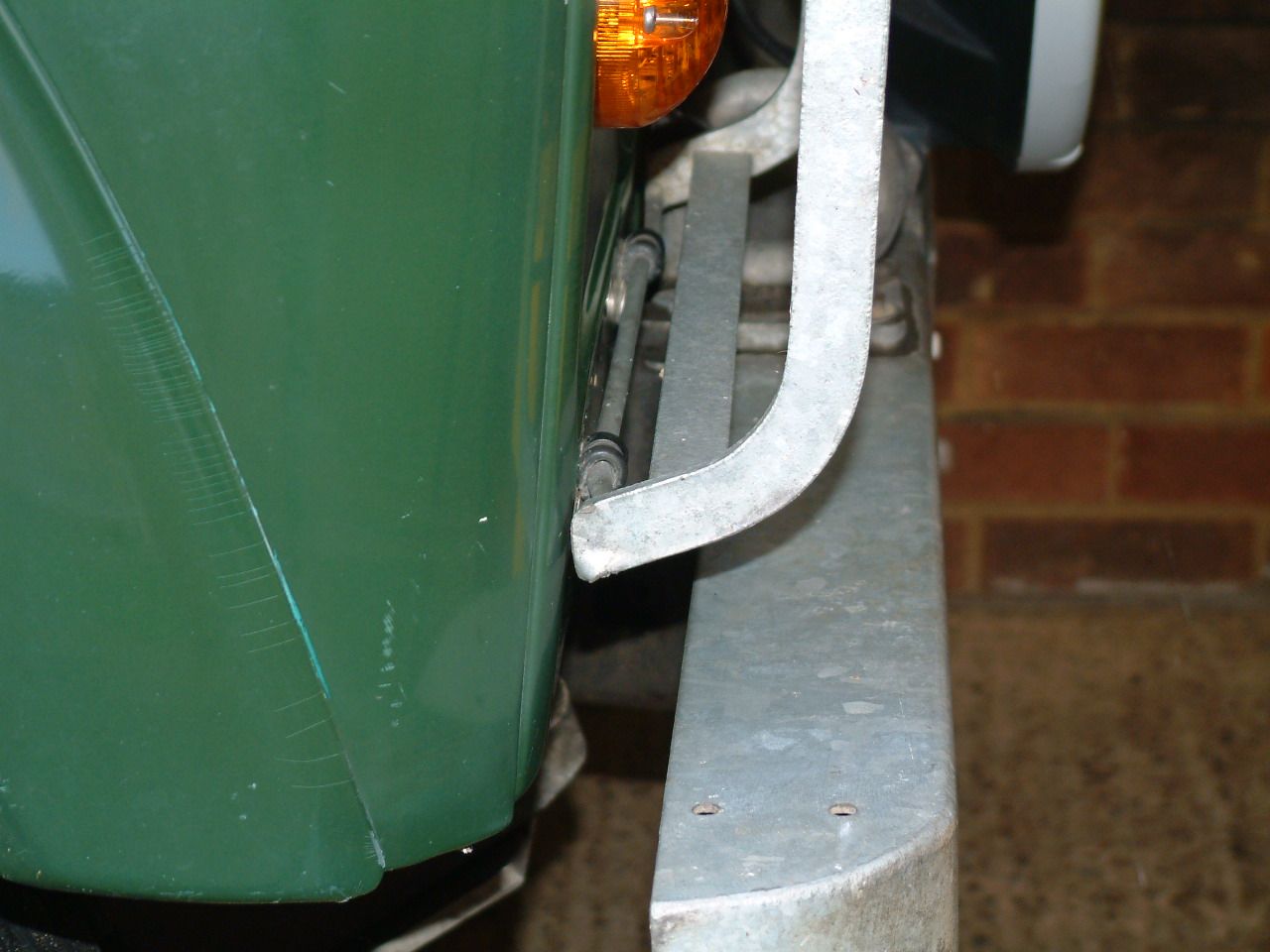

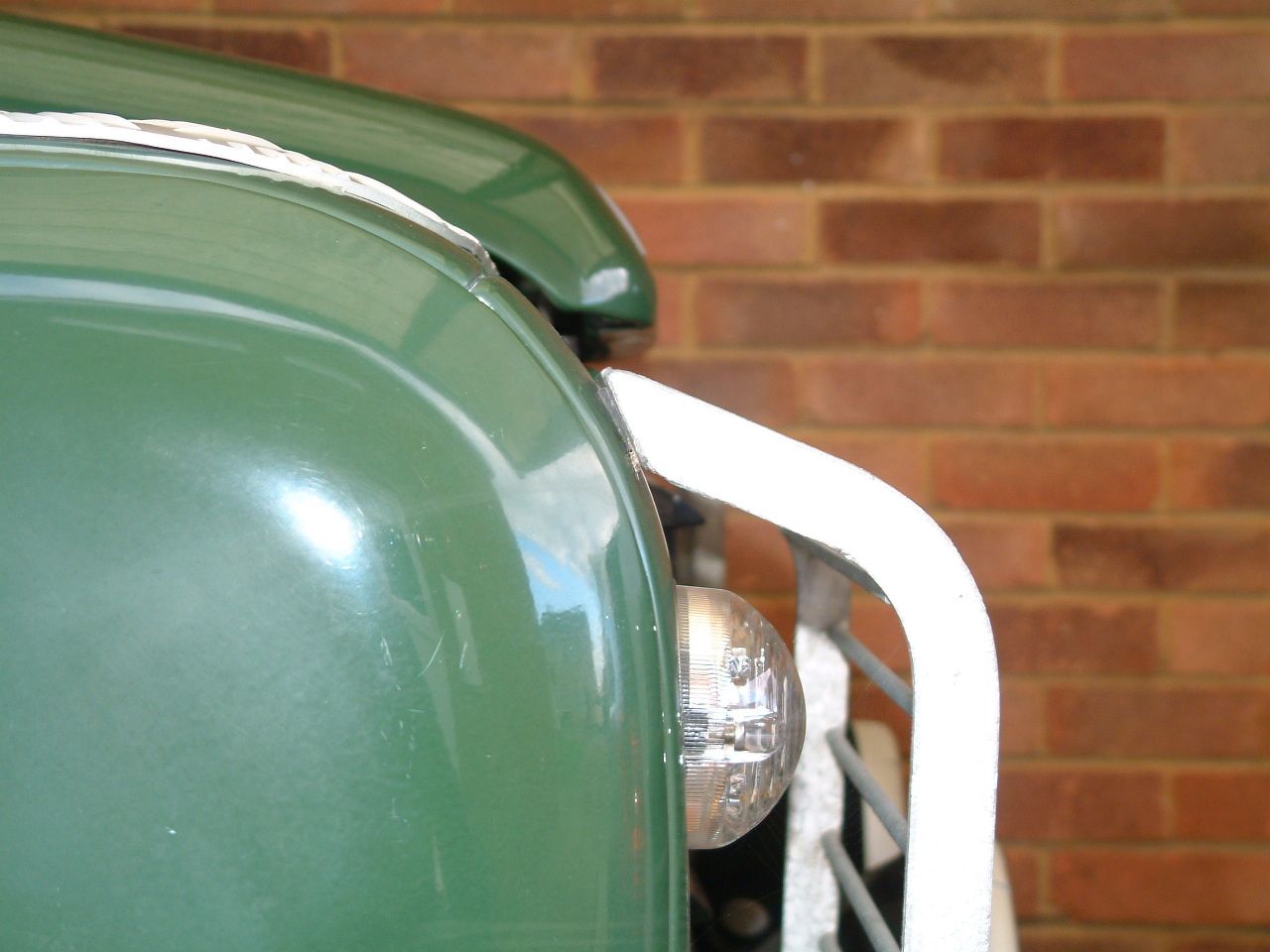

These are mine. BP items (also bought from Paddocks) but I have had them galvanised, no problems with fitting whatsoever.
Profile at the bottom edge is certainly different to yours.

Can't tell from your photo but do yours have the flat bar running widthways at the bottom?

Hicap phill · Oct 19, 2019

@frog hopper
Are yours hinged??
The link is for hinged items.
Better to have the hinged when you have to replace bulbs.

mick the builder · Oct 20, 2019

@frog hopper looking at it again, the odd angle of the cut at the bottom is to allow it to hinge down without binding. Once the clips and hinges are on, it will look right.

frog hopper · Oct 20, 2019

mick the builder said:
If you do have a prang, you will end up with two holes in your wing at the bottom. Send photo to paddocks and instist on replacements that fit. ( unless they are all like that).
How are tey fixed at the bottom? If same as top, theres no way it will work.

I have sent photo's to Paddocks about a week ago, not had a reply yet. If I was being generous I would say they are waiting for their supplier to comment.
They are fixed at the bottom with 2 little plastic clips that locate a round bar to allow the guards to hinge down.

lightning said:
I have the Land Rover ones and they look the same as those but there’s a bar at the bottom that they swing down on.

Yes, as above they hinge down.

Litch said:
These are mine. BP items (also bought from Paddocks) but I have had them galvanised, no problems with fitting whatsoever.
Profile at the bottom edge is certainly different to yours.

Can't tell from your photo but do yours have the flat bar running widthways at the bottom?
No, there is a round bar at the bottom, about 6mm dia from memory.

View attachment 192171

View attachment 192172

Hicap phill said:
@frog hopper
Are yours hinged??
The link is for hinged items.
Better to have the hinged when you have to replace bulbs.

Yes mine are hinged.

mick the builder said:
@frog hopper looking at it again, the odd angle of the cut at the bottom is to allow it to hinge down without binding. Once the clips and hinges are on, it will look right.

I will have another go with them tomorrow, maybe they are ok after all.

mystery · Oct 21, 2019

you did not really

want them you wanted these

frog hopper · Oct 21, 2019

Very nice, to be honest I have spent more than enough on the old girl as it is, so bought what I thought were middle of the range guards. Knee deep in sorting out my home made center consul at the moment to install a radio and a cb, and a few switches, so this will now wait until later in the week.
Will have to get it done soon, I'm off on a mega green laning trip to Portugal in a weeks time.
