L322 Vogue amp fuse location?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Had a better look on my phone and you would think I would have taken pics of the units when I had them opened!

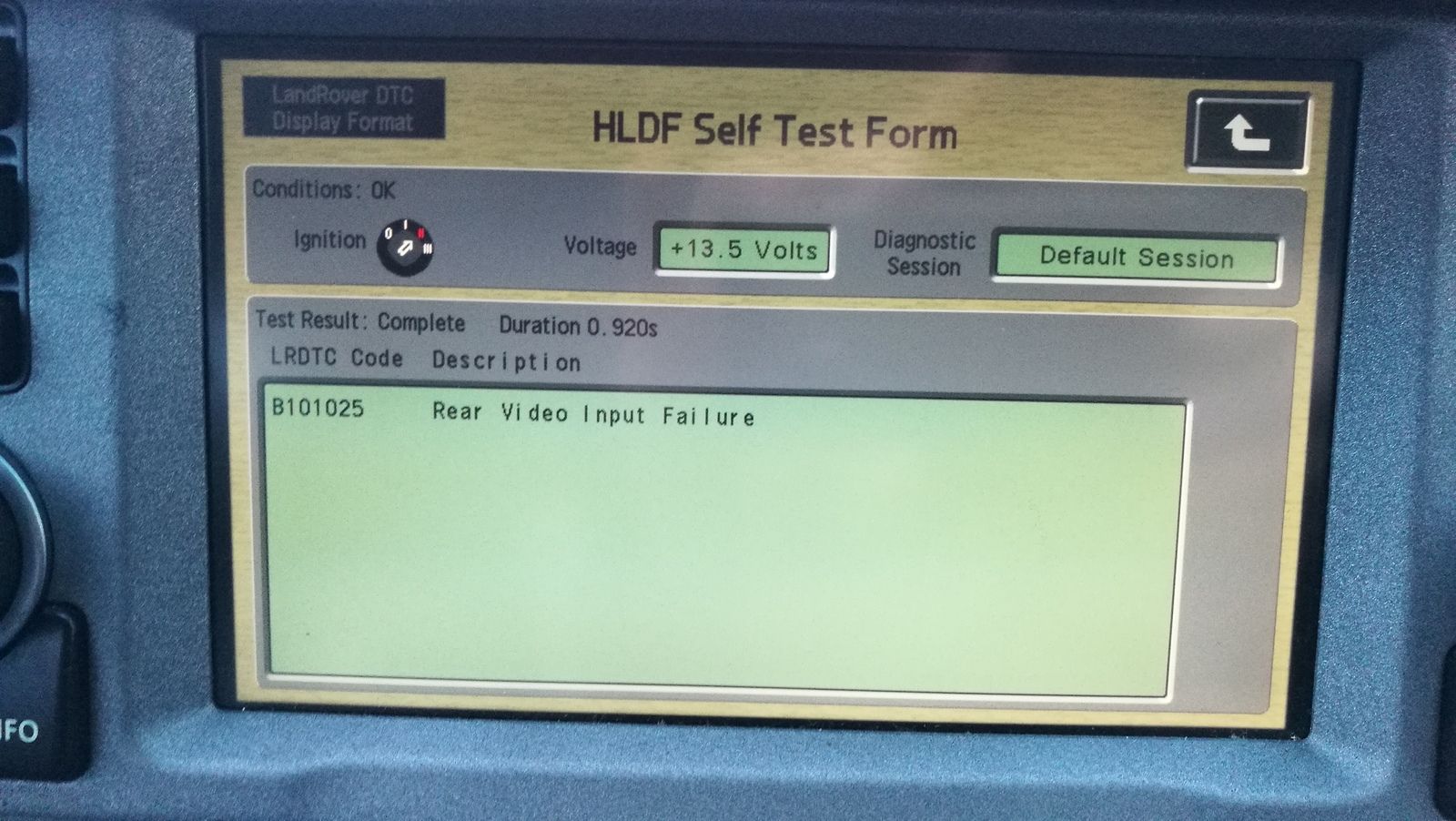

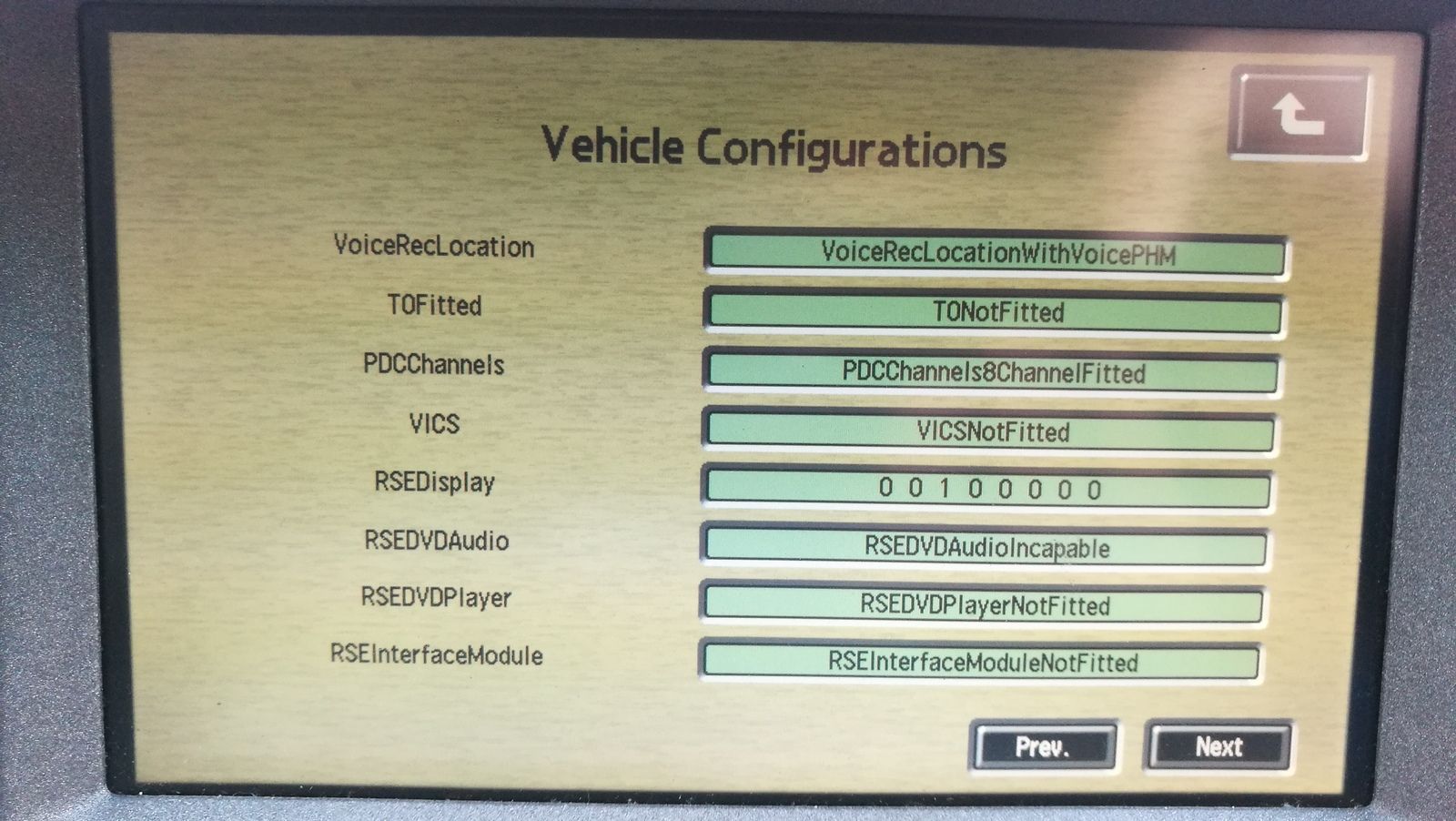

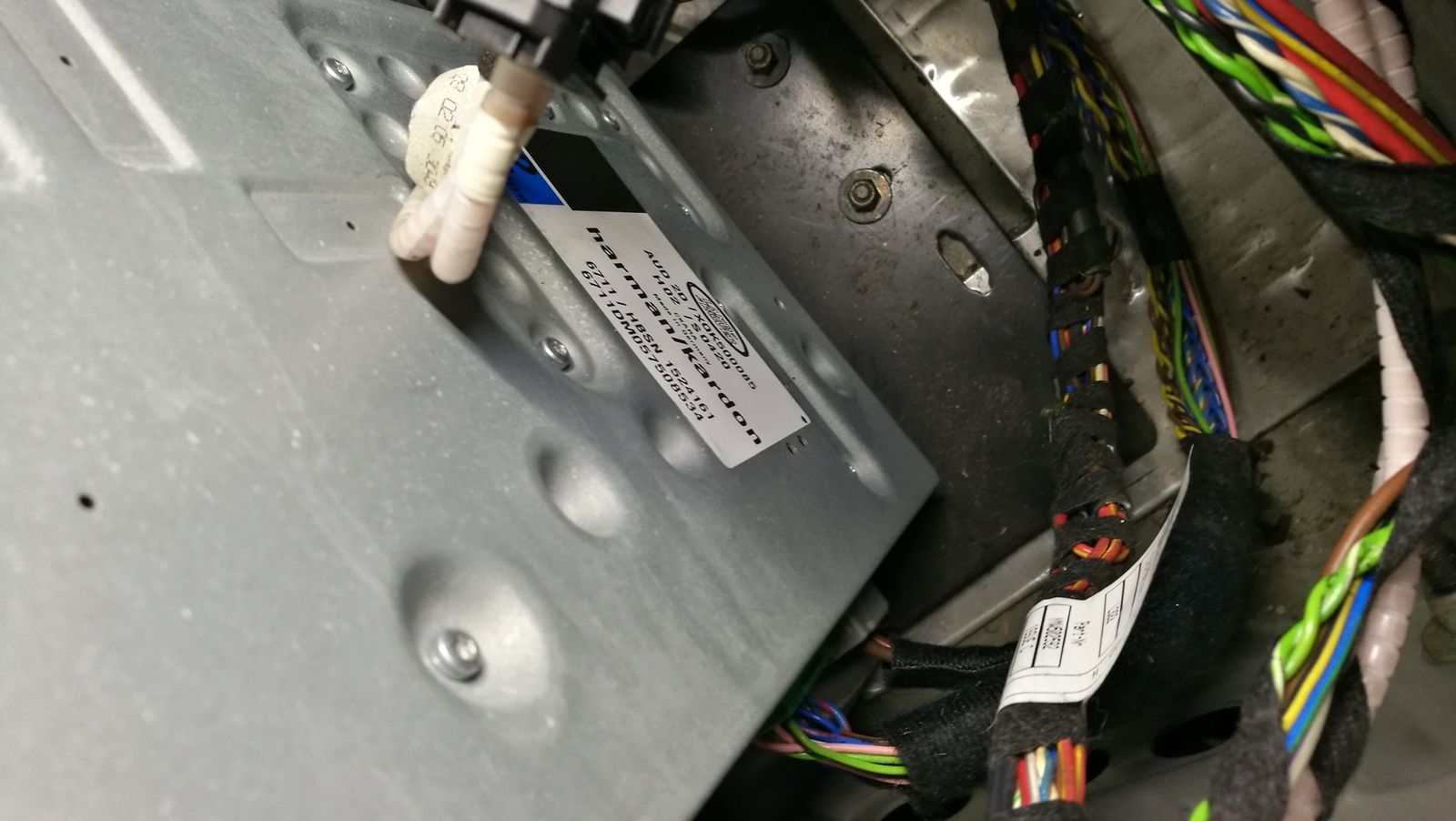

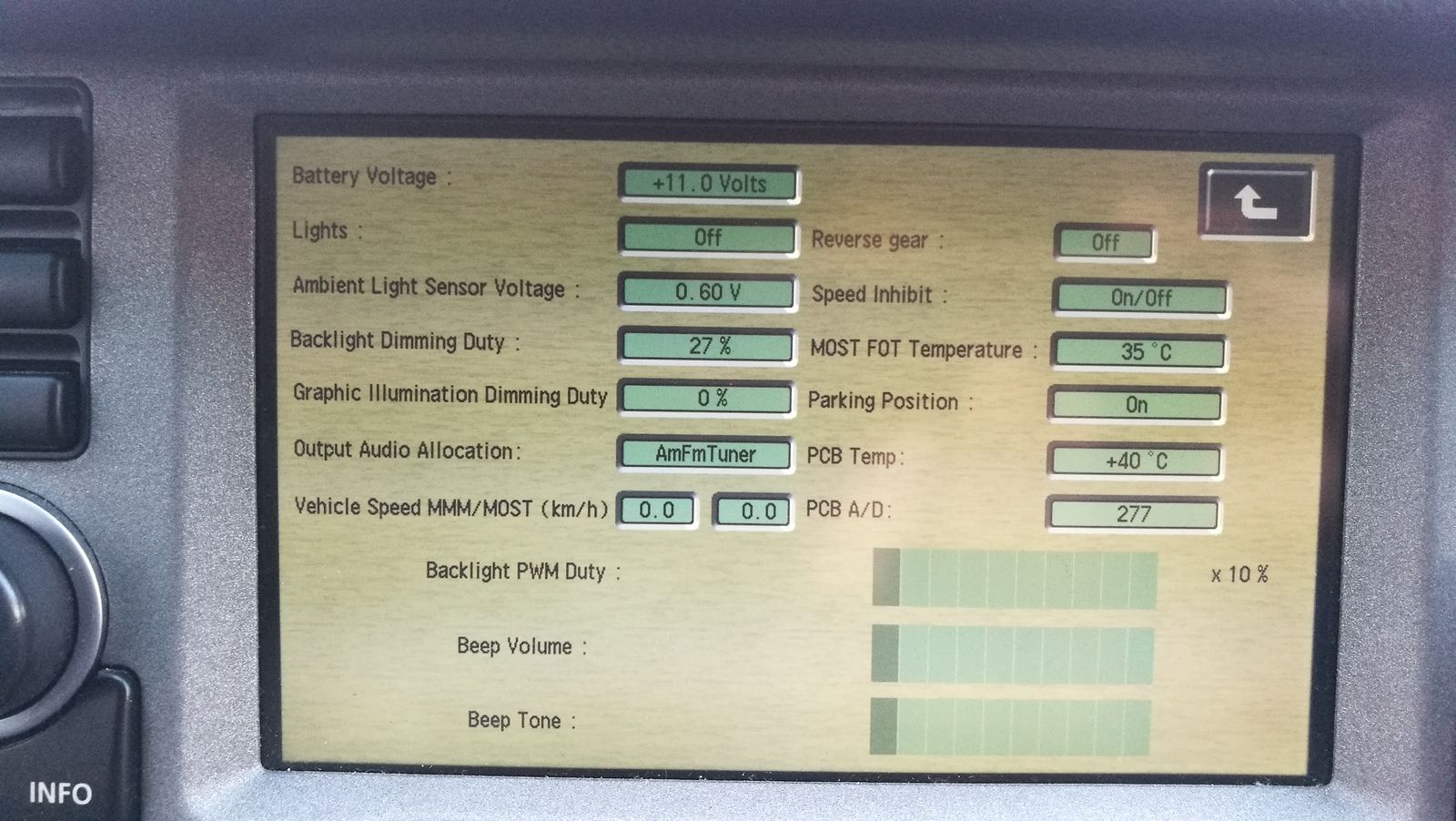

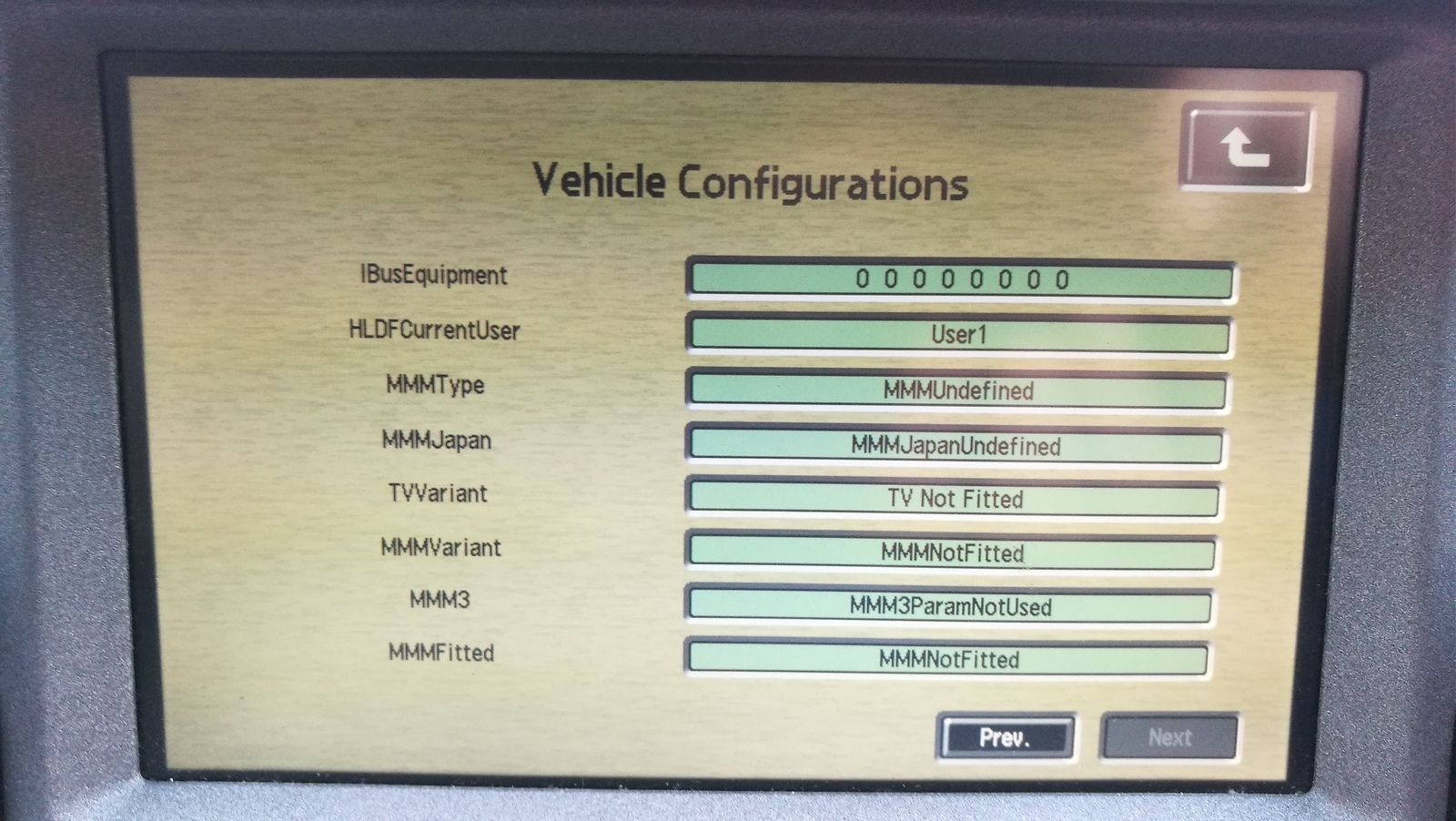

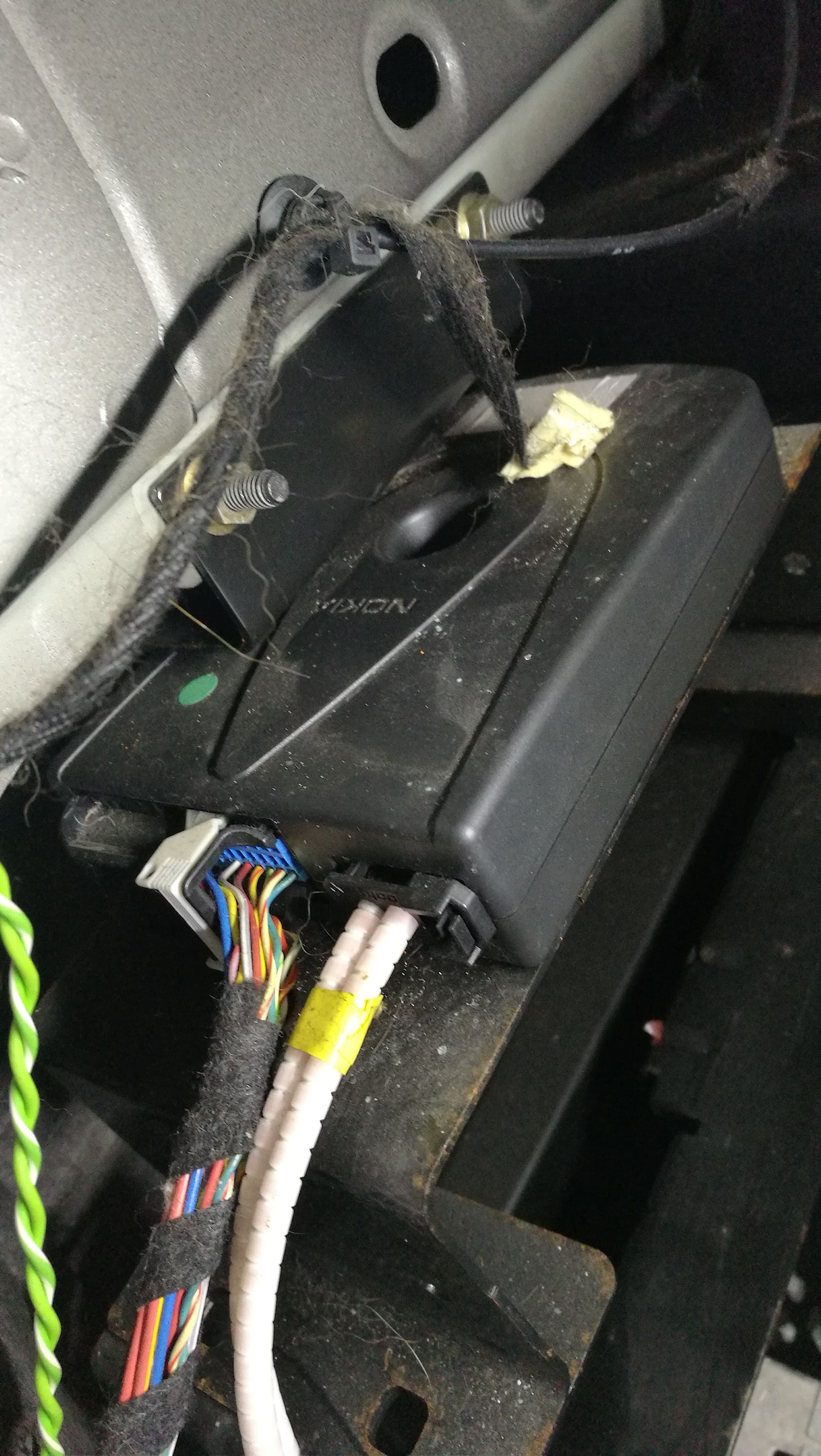

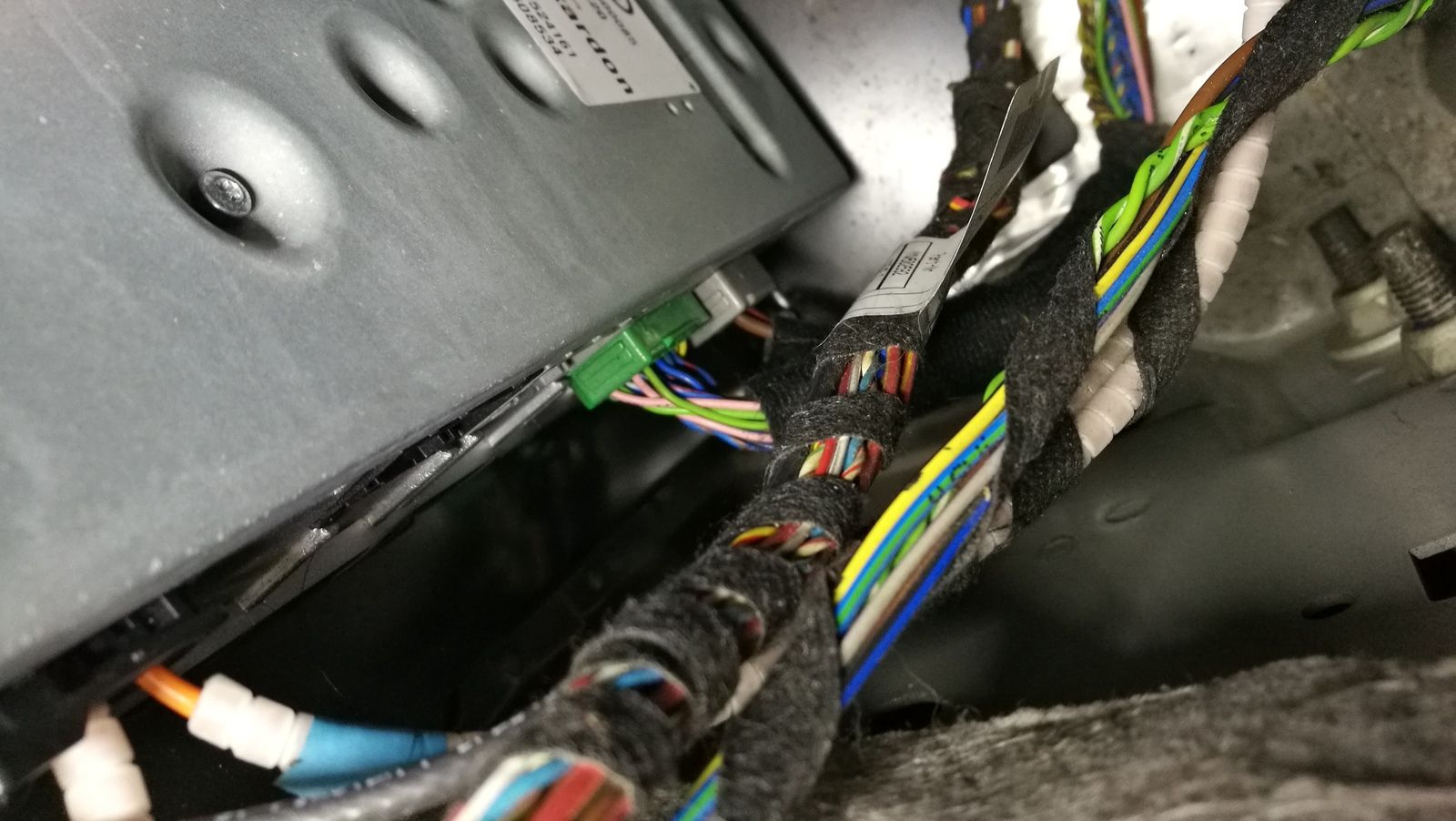

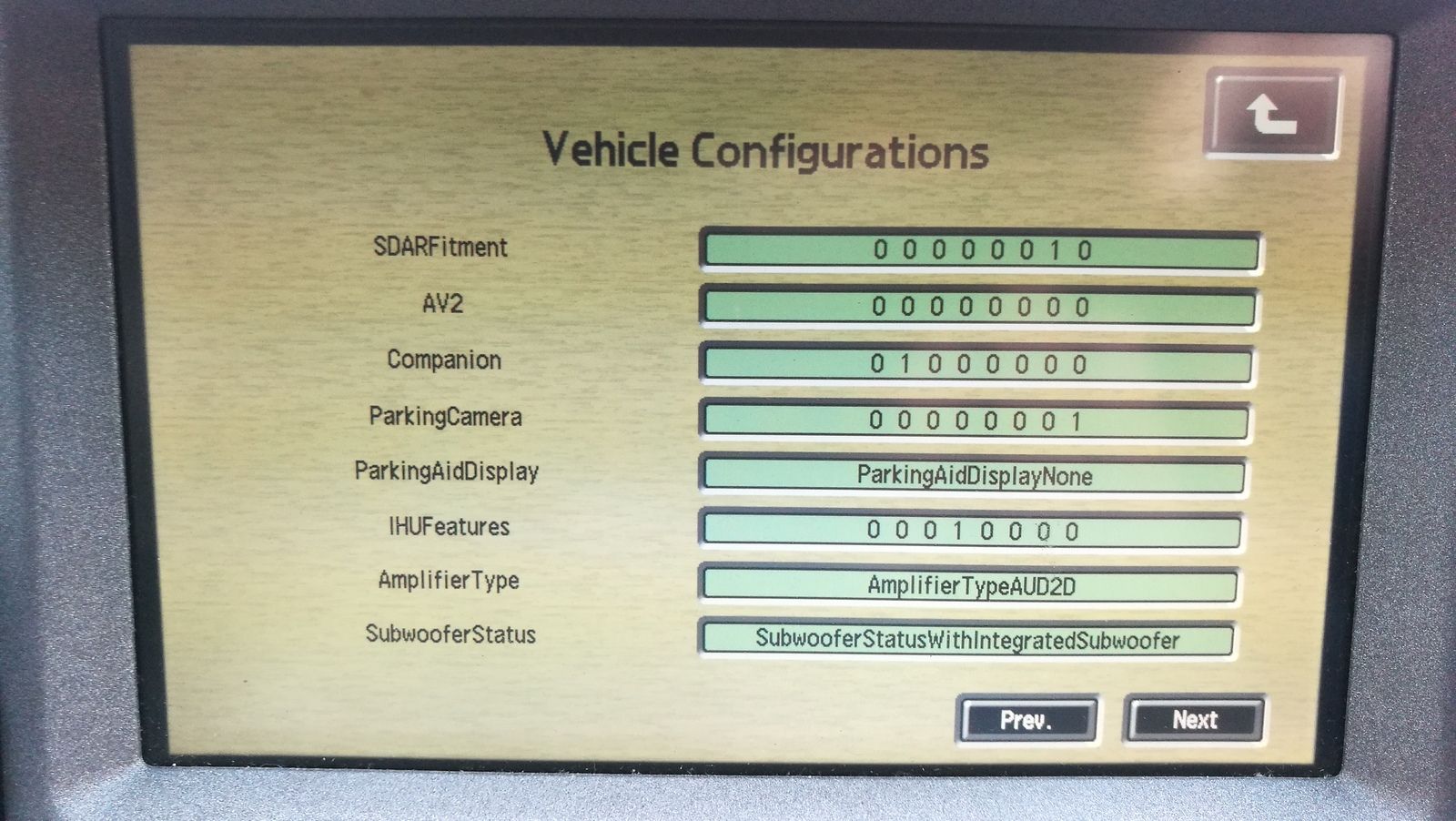

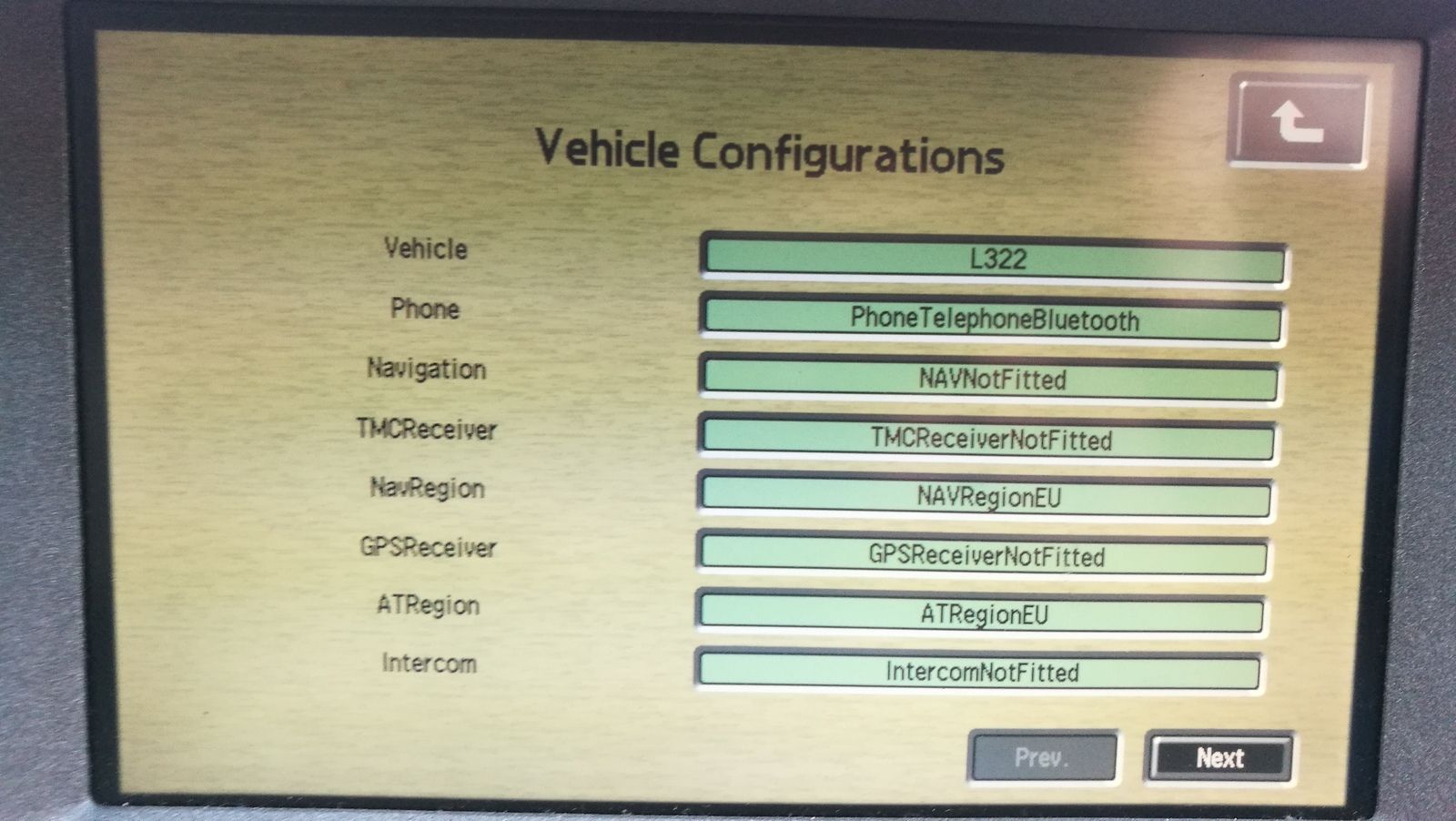

I have found better pics of the Nokia Bluetooth module that I cleaned and refitted and the Amp before I took it out... see attached, I also run some checks months ago on the secret menu MOST system and got the following as it lets you see what system the car has installed



Attachments

  • IMG_20180929_172203.jpg
    205.3 KB · Views: 160
