jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
measure it properly first .you cant bore a few thou out
Last edited:
johnnys series 3 resto project
- Thread starter johnny curt 1
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
nrgserv
Well-Known Member
- Posts
- 4,208
- Location
- shipley, west yorks.
**** mesen laughin if he turns up with a magnetic base drill an a core bit in the chuck.....
but like everyone else, mek sure yer get some piccies of it!
but like everyone else, mek sure yer get some piccies of it!
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
i think this is the eal deal this lads he asked if it were on flat ground for the drain tray and dont worry as its got a built in swarf extractor
sounds a bit technical for a mag drill
sounds a bit technical for a mag drill
I have had loads of cars bored out in situ, we used to do it with a van Norman boring bar. it clamps to an adjacent bore and centers it self with "cats paws" these open out in the bore and are wound back in when the cutting starts. we always taped the big end journal the pressure washed the engine after, a few thou will be no problem.
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
i know mate i know its killin me trying to get the cash together to get the fekker bored out
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester

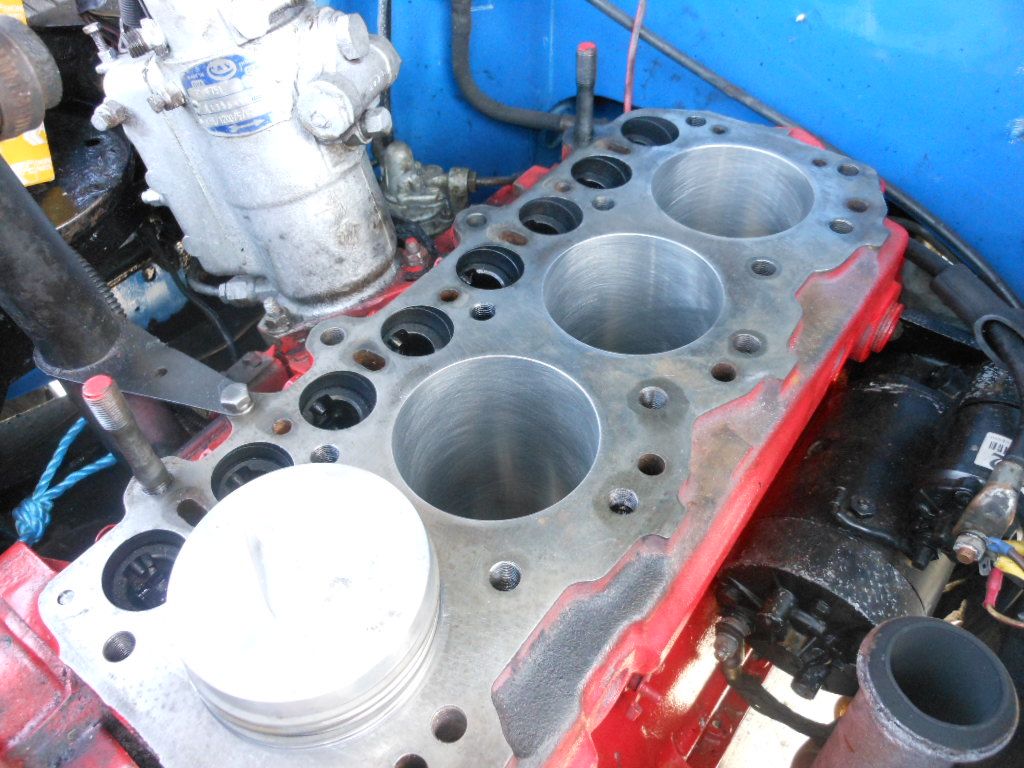

hey boys n gurls its been a little while but finally i got the rebore done about 1 hour ago and hes done an amazing job of it i must say took 2 hours of setting up and measuring but the new pistons fit with the manufacturers tolerances absolutely bang on

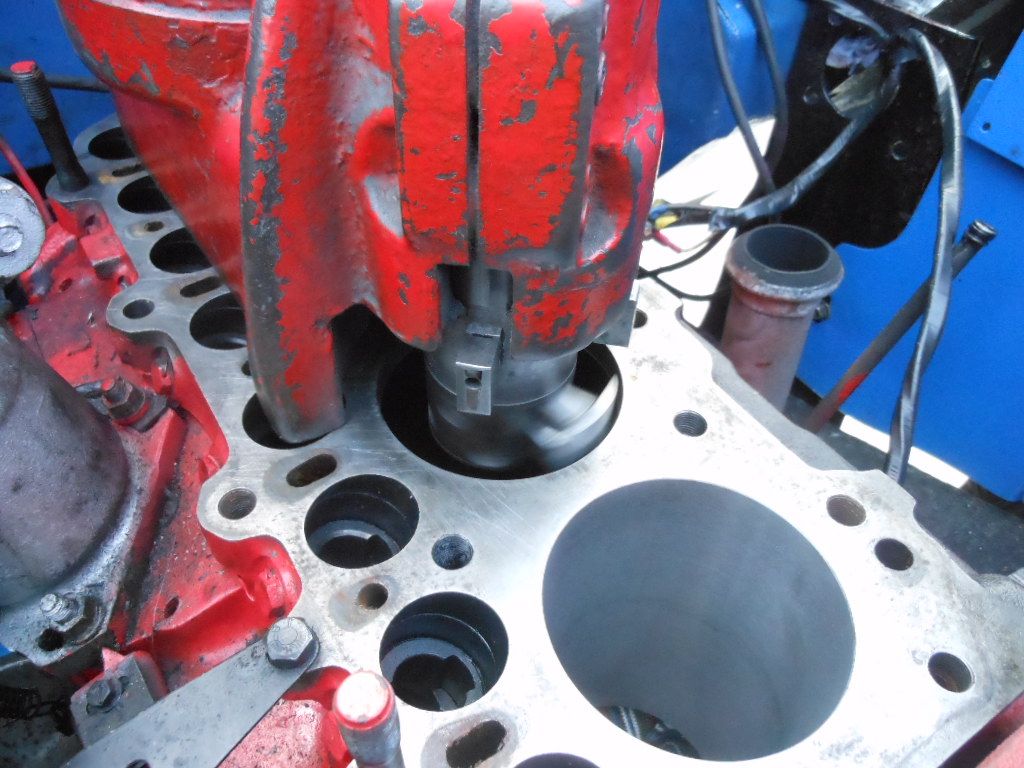

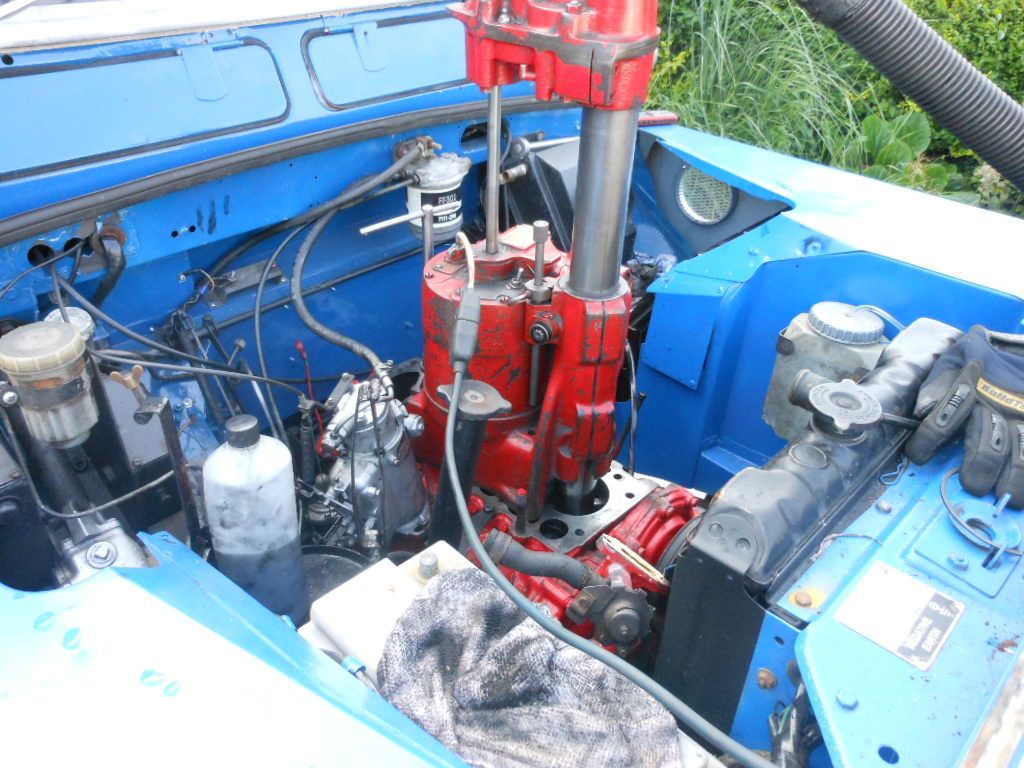

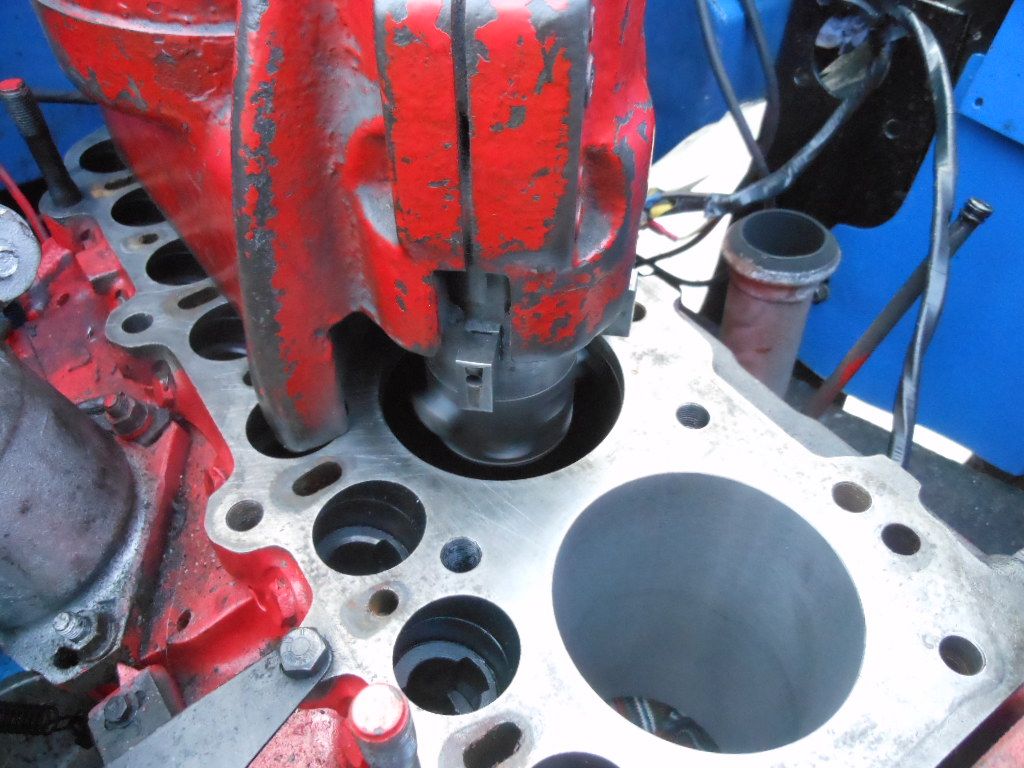

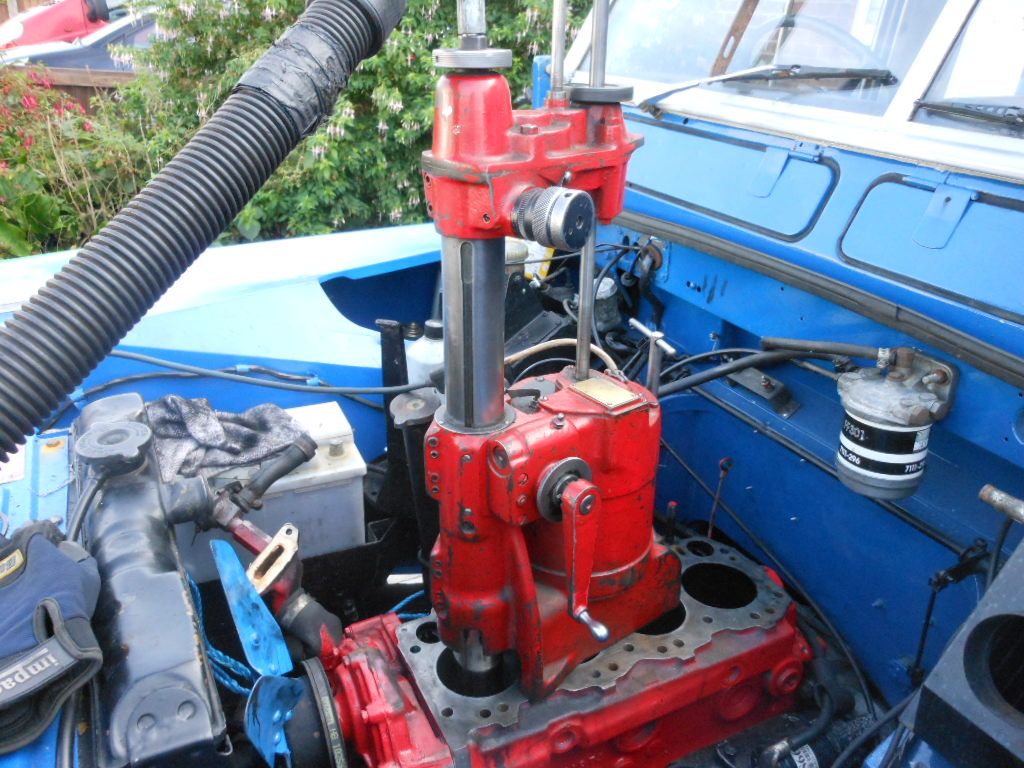

and as promised heres the pics of this beast of a machine
absolutely no swarf anywhere to be seen due to the machine having a vacuume attatchment with a really big industrial hoover on the bugger
and if anyone ever wants this done i can pm you his number
im gonna start building the engine back up later on today so there might be another update later on but not promising anything just yet
im so happy at the moment i could ****
and as promised heres the pics of this beast of a machine
absolutely no swarf anywhere to be seen due to the machine having a vacuume attatchment with a really big industrial hoover on the bugger
and if anyone ever wants this done i can pm you his number
im gonna start building the engine back up later on today so there might be another update later on but not promising anything just yet
im so happy at the moment i could ****
big si
Well-Known Member
- Posts
- 4,651
- Location
- black country
sweeeeeeeet! thats awsome dude
dominicbeesley
Well-Known Member
- Posts
- 1,701
- Location
- Hebden Bridge, West Yorkshire
That is fecking brilliant mate! I want one! Would it be rude to ask how much he charged (PM if you don't want to say in public).
What prep work did you have to do? Just drop the sump and pop the pistons out?
What prep work did you have to do? Just drop the sump and pop the pistons out?
PembsLandy
Active Member
- Posts
- 118
- Location
- Pembrokeshire
Dam impressive mate
Telboy111
New Member
- Posts
- 123
- Location
- South West
No end to your telent my man
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
just drop the sump whip the pistons out take the head off and the manifolds as they get in the way and he'll do the rest apart from asking for help lifting the machine on as it weighs about the same as an engine block
just for the rebore and honing only it were 80 dabs pie n mash
crashbox
Well-Known Member
- Posts
- 12,347
- Location
- In the UK, thankfully.
Feckin awesome machine, I wants one.:hurt: Bet it costs an arm and a leg to buy. You learn summat new every day..as they say. Get it fired up Johnny.
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
Feckin awesome machine, I wants one.:hurt: Bet it costs an arm and a leg to buy. You learn summat new every day..as they say. Get it fired up Johnny.
im stillin the process of reassembly ive done me pistons and fitted them and spent 2 hours cleaning the crankcase out wich looks like its brand new in there now and put me oil pump back in then gave up as the heat of the day has took it out of me ill be resuming efforts tomorow afternoon when i come back from the petrol station with a gallon of cleaning gear ( unleaded ) to wash the sump out with and a tube of instant gasket to make sure the buggers sealed with a new gasket or not
and the machine costs a snip at £1500 to buy with the tooling and cutters
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
tell yer what if i can find the camera ill nip out for some more porn pics for yer
crashbox
Well-Known Member
- Posts
- 12,347
- Location
- In the UK, thankfully.
I love Landy porn. Thats not a bad price, I reckon you could turn that round pretty quick at £80 a shot.tell yer what if i can find the camera ill nip out for some more porn pics for yer
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
I love Landy porn. Thats not a bad price, I reckon you could turn that round pretty quick at £80 a shot.
considering he had another 2 jobs booked in for today i susspect yer right
and wouldnt yer addam and eve it shes buggered off out with the camera
nrgserv
Well-Known Member
- Posts
- 4,208
- Location
- shipley, west yorks.
:tea:
and yes, i googled van norman boring machines.......
available on fleabay.........
and yes, i googled van norman boring machines.......
available on fleabay.........
