How To Maitain Air Suspentions ?

chabrolly · Apr 21, 2007

Hi ..
Is There A Way Or Suggestions To Maintain The Air Suspentions Of The P38 4.6 ( 1996 ) ?? Before I Fall Down In Their Problems ??

Best Regards ..
Charbel ..

brookediamond · Apr 22, 2007

Keep Compresor Filters Clean
Check For Leeky Airbags, As They Will Burn Your Compresor Out After I While If You Dont Replace Leeking Parts.

Other Than That I Think You Have To Suck It And See.
Dont Fix What Aint Broke.

Widget · Apr 22, 2007

I'd use Genuine parts air refills of course, you can't be too careful.

chabrolly · Apr 23, 2007

Hi ..
Thank's For Replying ..
Can I Clean The Compresor Filters By Myself ??
Where's Their Location ?? Do You Have Any Photo About Them ??

Regards
Charbel .

crossa · Apr 24, 2007

chabrolly said:
Hi ..
Thank's For Replying ..
Can I Clean The Compresor Filters By Myself ??
Where's Their Location ?? Do You Have Any Photo About Them ??

Regards
Charbel .

I would also like to know where the filters are as I did not know that there where any, I've so much to learn.

chabrolly · Apr 26, 2007

I Spent Many Hours To Find The Filters ...
Without Result ..

Boydonegood · Apr 26, 2007

Hi guys
The location of the only 2 filters i know of for the Air Suspention ( Doesnt mean there isnt more, as a more knowledgable member may be able to help you with )

As you open the bonnet,In the back Right Hand Corner is a "Shoe Box" sized Black plastic box with "EAS" embossed onit..
The front end of the box has 2 clips that unclip and the lid lifts off,in there is the Air Compressor (Pump)... (Long Black Cylinder)
On the front end is a Black plastic screw on 3" round by 2" long filter,,This is the input filter....

On the same "EAS" Black plastic box....On the back right hand side (Outside of the box) Is a 1" round x 3" long (white) screw in filter..This is the Output filter......

Hope this is some help
LTel

Boydonegood · Apr 26, 2007

Hi again

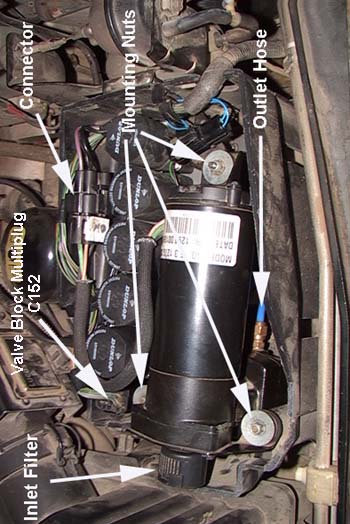

Ok,,this isnt the best description,,but maybe a bit clearer...The picture (The way i have rotated it) Is what you will see inside the EAS Box once you remove the lid looking from the bonnet end..
The Input Filter is marked...
On the outside of the box in the area where it says "Connector" is a screw in Output Filter
LTel

Widget · Apr 26, 2007

To add...only finger tighten the new filter and use loctite on the threads.

And of course, recharge with genuine parts air.

chabrolly · Apr 26, 2007

THANK'S LTel ... you were very helpful ... i appreciate ...
tomorrow after my work , i'm going to clean them ..

GOOD LUCK .
CHARBEL .

chabrolly · Apr 28, 2007

Hi ..
Why It's Hard To Take The Cover Off ??
Or There's Somthing Wrong With The Clips !

Regards
Charbel
