Wow that's a big one
Ginger Tom's P38 Refurb Project
- Thread starter Ginger Tom
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
RangeRoller dt
Well-Sprung Member
- Posts
- 14,411
- Location
- Trapped inside my head @ LZ asylum
Pretty much goes straight on but make sure your cooling system is A O K first
Ginger Tom
Active Member
- Posts
- 63
- Location
- Wisbechistan
Thinking more along the lines of compounding
Pretty much goes straight on but make sure your cooling system is A O K first
There are companies that make a full Ali rad for around £200 that are triple core and the right size, Datatek has sent me the info to conver the Aircon fans to run in conjunction with the viscous fan so cooling shouldn't be an issue.
For the power level I feel the P38 needs I'm thinking more along the lines of a TD05-19t with found on the Volvo V70R iirc and a WRX STI to flow the correct amount of exhaust gas and a blower from Eaton for the low down grunt. I'm not putting on a track or down the strip, it's going to be a work horse to pull trailers with 2ton cars on.
RangeRoller dt
Well-Sprung Member
- Posts
- 14,411
- Location
- Trapped inside my head @ LZ asylum
Get it running sweet before pushing any power or those knocks get louder. They tow no problem as standard just get a run up on hills
Ginger Tom
Active Member
- Posts
- 63
- Location
- Wisbechistan
Get it running sweet before pushing any power or those knocks get louder. They tow no problem as standard just get a run up on hills
The lump is being pulled for a rebuild and I have a turbo at work from a 3.9/4.5 four pot Cummins diesel out of a bus that is more that capable of giving the power without the added issues of vnt/vgt
RangeRoller dt
Well-Sprung Member
- Posts
- 14,411
- Location
- Trapped inside my head @ LZ asylum
Head will crack is generally what will happen
brianp38dse
Well-Known Member
- Posts
- 20,094
- Location
- heathrow
I do wonder on the cooling problems if it has something to do with the thermostat being on the return into the head, i keep meaning to look it the way they did it in the e46 bmw`s
most things i have read say do not increase the turbo pressure up more than about 3psi ,18psi max
most things i have read say do not increase the turbo pressure up more than about 3psi ,18psi max
RangeRoller dt
Well-Sprung Member
- Posts
- 14,411
- Location
- Trapped inside my head @ LZ asylum
They increase the cooling on the bimmers when upping the power. There’s less room in them too so you’d think p38 would handle it fine. Extra weight of the vehicle/drivetrain puts extra stress on the engine perhaps?
No idea why they put the thermostat on ‘wrong’ end with the P38
My guess is they thought it would warm up heaters quicker so as not to appear so defenderish
No idea why they put the thermostat on ‘wrong’ end with the P38
My guess is they thought it would warm up heaters quicker so as not to appear so defenderish
Ginger Tom
Active Member
- Posts
- 63
- Location
- Wisbechistan

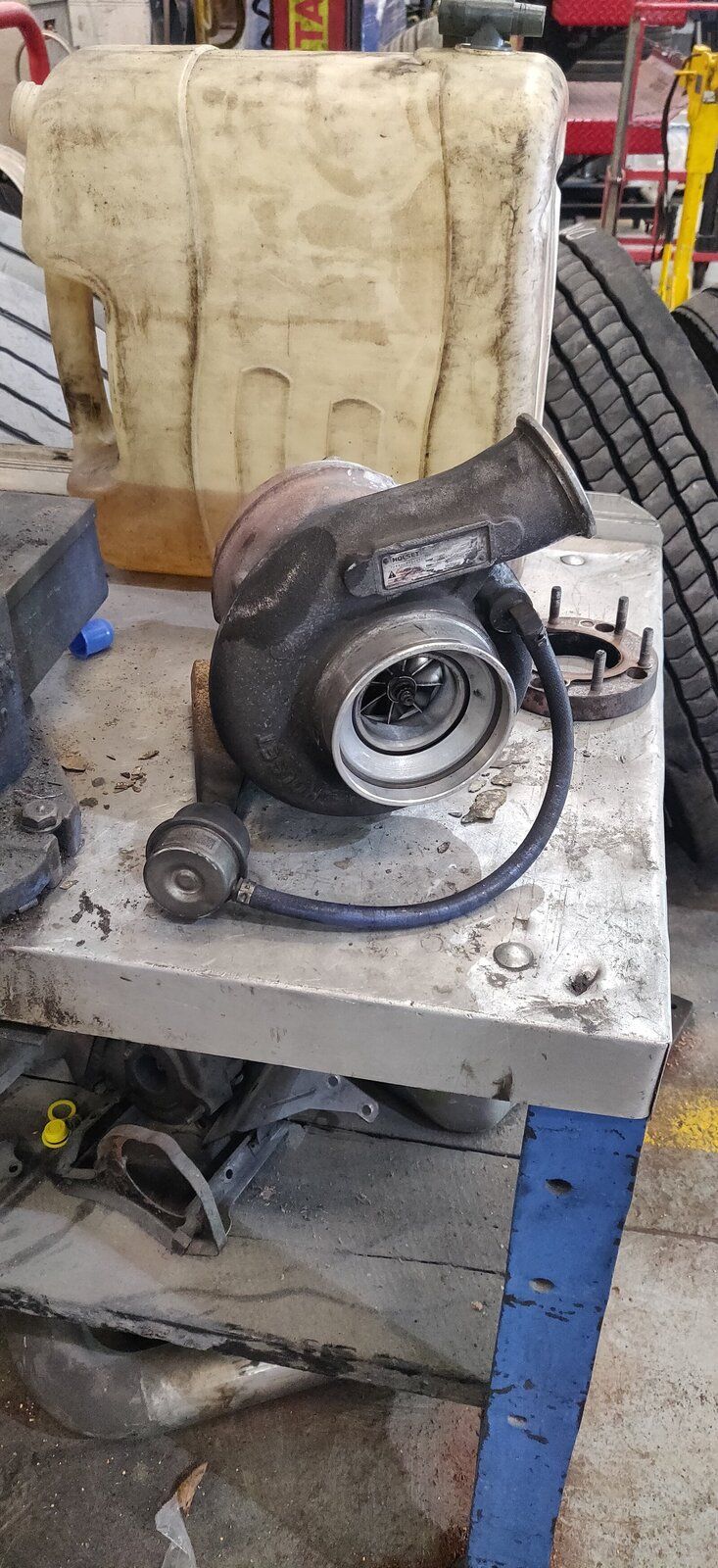

Got one.....
Attachments
RangeRoller dt
Well-Sprung Member
- Posts
- 14,411
- Location
- Trapped inside my head @ LZ asylum
Nice!!!
Can I have it off you when you blow your engine up??
Ginger Tom
Active Member
- Posts
- 63
- Location
- Wisbechistan
Nice!!!
Can I have it off you when you blow your engine up??
Lol I think the gearbox will go first
RangeRoller dt
Well-Sprung Member
- Posts
- 14,411
- Location
- Trapped inside my head @ LZ asylum
That turbos good for 400bhp. Gearbox out of 5.2SC?
Good luck getting it through emissions
Good luck getting it through emissions
Ginger Tom
Active Member
- Posts
- 63
- Location
- Wisbechistan
That turbos good for 400bhp. Gearbox out of 5.2SC?
Good luck getting it through emissions
At about 6500rpm.
I'm going to use the holset he221w off the Cummins lump as that is better suited for the Rangie and it may fit inside the TD04 exhaust housing without too much hassle, may need to adjust the waste gate actuator...
RangeRoller dt
Well-Sprung Member
- Posts
- 14,411
- Location
- Trapped inside my head @ LZ asylum

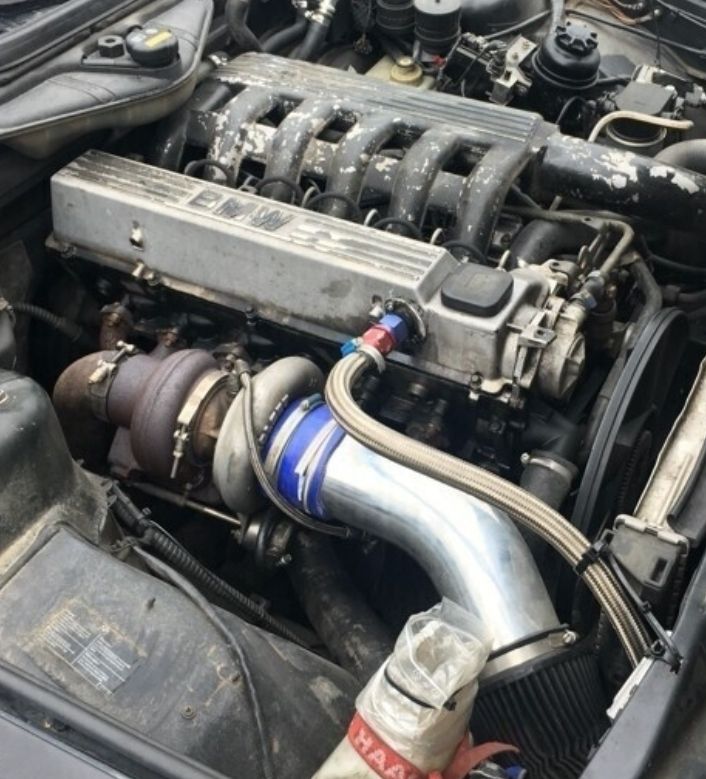

usually see on M52s but they do go on M51s too.
Last edited:
Ginger Tom
Active Member
- Posts
- 63
- Location
- Wisbechistan

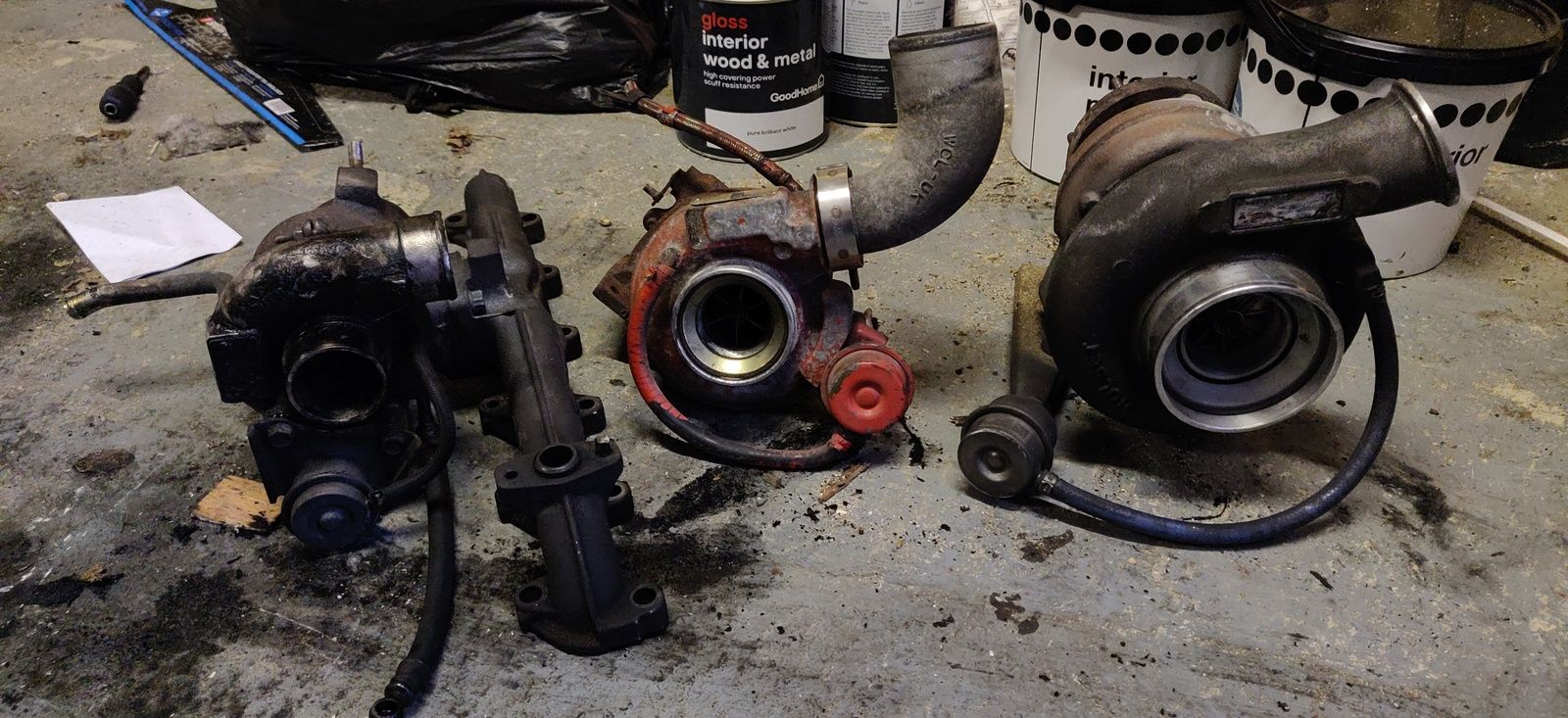

@RangeRoller dt @brianp38dse here is a pic of the three different turbos we have been talking about for a size comparison.
Attachments
Henry_b
Think outside, no box required.
- Posts
- 15,509
- Location
- somewhere else
You'll have to up the fuelling to a good degree to get any benefit
RangeRoller dt
Well-Sprung Member
- Posts
- 14,411
- Location
- Trapped inside my head @ LZ asylum
You pull it from an Iveco truck?
Ginger Tom
Active Member
- Posts
- 63
- Location
- Wisbechistan
You'll have to up the fuelling to a good degree to get any benefit
I have an 11mm pump head fitted atm and from what I have read the injectors are good for upwards of 300hp
Ginger Tom
Active Member
- Posts
- 63
- Location
- Wisbechistan
Which one?
