Front prop shaft
- Thread starter hippolover
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
they arent 90 degrees ,2 splines
- Posts
- 83,296
- Location
- Embasinga stocæ
wot?

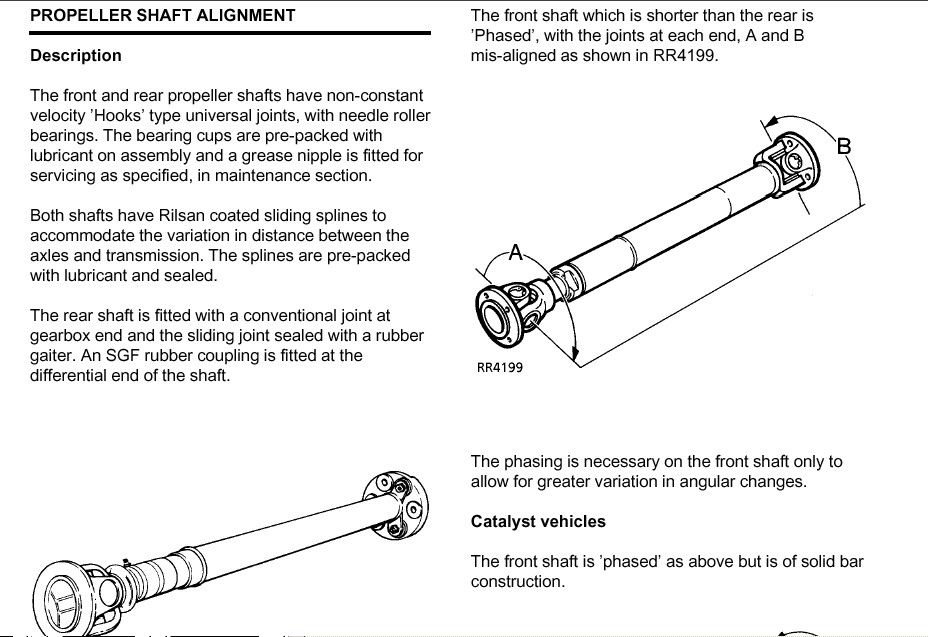

I am confused - No - they are out of alignment - but then they arent "in line" as yu previously stated that should be - they are "phased" or "mis-aligned" or "out of alignment". I didnt state they should be out of alignment by 90 degrees, or for that matter any set amount of mis-alignment, only that some are mis-aligned and some may be in-line. I think that page from Rave quite clearly shows, and states, that some Propshafts (in this case a Disco or RRC) should not be aligned.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
i said that front props should be phased 1 or 2 splines no 90 degrees as you mentioned,and gave an explanation that normally ujs are in line but because of hi angle on front props phasing was employed,in actual fact front props on rr disco def 300tdi are the same
- Posts
- 83,296
- Location
- Embasinga stocæ
would you like to point out to me where I said 90 degrees?
I said that I believed 90 degrees, that implies a degree of uncertainty. The only thing that I was sure of was that there was some degree of misalignment on some props..
maybe we should agree that some props should be mis-aligned, although not by 90 degrees.
I said that I believed 90 degrees, that implies a degree of uncertainty. The only thing that I was sure of was that there was some degree of misalignment on some props..
maybe we should agree that some props should be mis-aligned, although not by 90 degrees.
Last edited:
hippolover
New Member
- Posts
- 672
- Location
- Perthshire

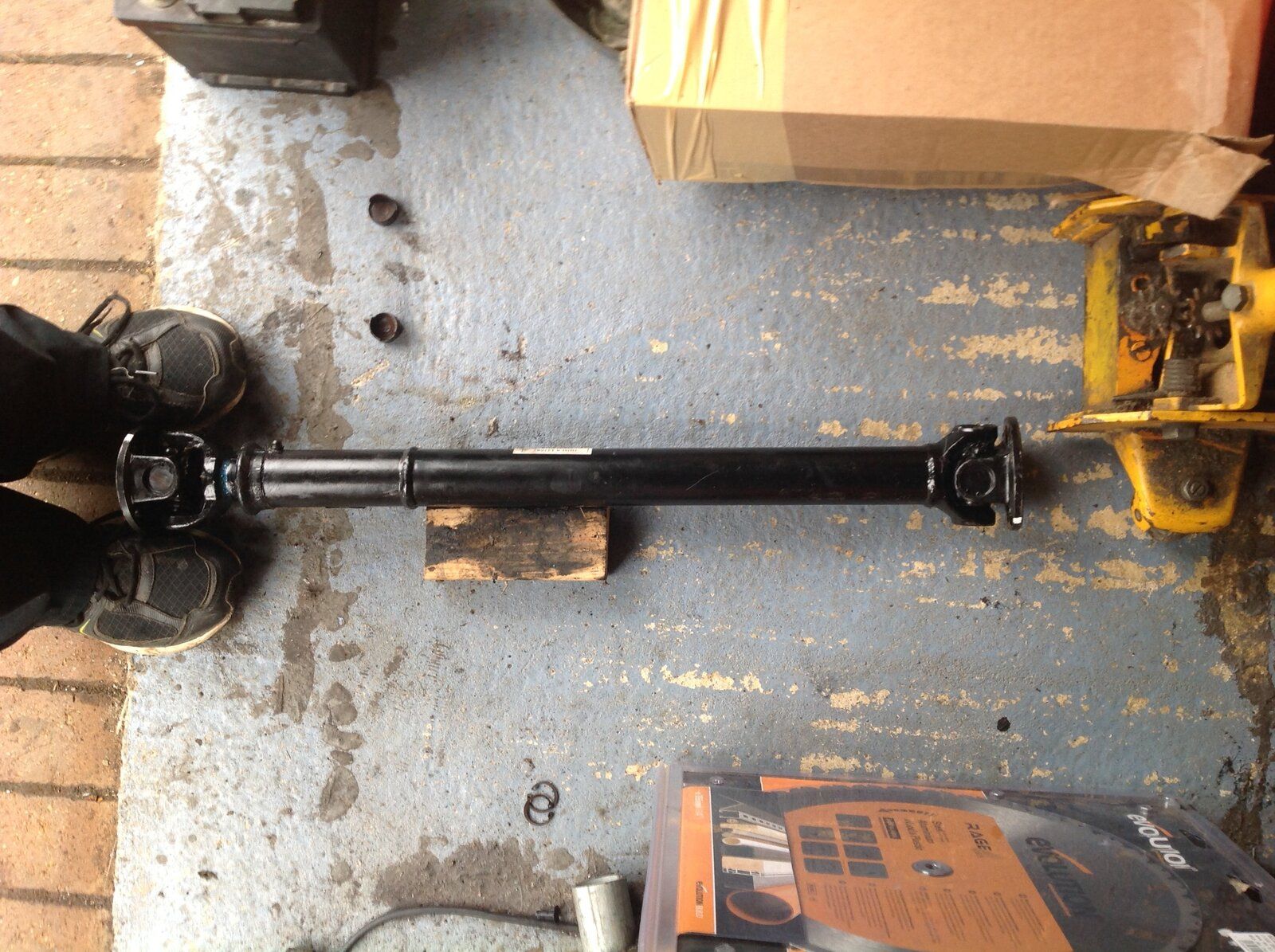

.....anyway, seeing as I asked the original question, my front shaft is phased not unlike the picture uploaded by MHM however on reading further it refers to the classic and Discovery. Mine is a 2000 P38 V8 with cats (so doesn't have the fixed shaft). Not having taken it off myself does the splined end just pull apart or is there some form of circlip retainer preventing them simply sliding apart? I still have the faint vibe at 40mph.
- Posts
- 83,296
- Location
- Embasinga stocæ
They just slide apart. Have yu asked yo local Landy dealer? They should know.
- Posts
- 58,170
- Location
- Preston Lancs.
Tried to post a parts list showing 90 degree phasing, did not work, but believe me it is quite normal on some vehicles.
Last edited:
- Posts
- 58,170
- Location
- Preston Lancs.
Have you considered the possibility it may have the wrong prop fitted?
- Posts
- 83,296
- Location
- Embasinga stocæ
clivesP38
Active Member
- Posts
- 179
The slider on my OLD one was at the transfer box end, is this right or wrong! I am referring to the front prop. Also I have new nuts and bolts, which way around do they go? Do the nuts sit closest to the transfer box and to the front diff? I presume it is obvious which length of bolt goes on which end when I get under it, I have two different lengths of new bolts.
blue beasty
Leaks an prone to bits dropping off
- Posts
- 63,274
- Location
- Gloucestercotshirewolds
As already said it doesn't matter which way round the prop goes but slider to transfer box is normal.
Bolt heads on drive flanges and nuts on U/Js
- Posts
- 58,170
- Location
- Preston Lancs.
Slight out of phasing is used to smooth out rotation, so that both ends rotate at the same speed, if the angle of the spicer at the input end is slightly different to that of the spicer at the output end.
blue beasty
Leaks an prone to bits dropping off
- Posts
- 63,274
- Location
- Gloucestercotshirewolds
- Posts
- 58,170
- Location
- Preston Lancs.

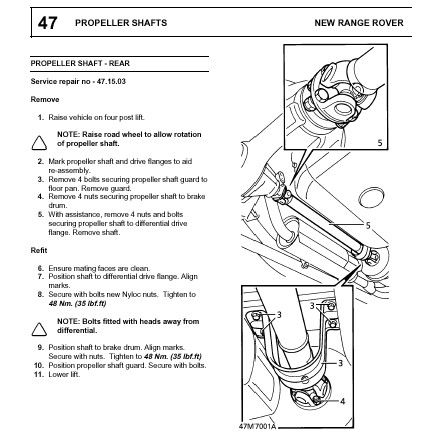

Dafts illustration is correct. Bolts out through drive flange at tranny brake end, nuts to prop. Bolts through prop and flange nuts to flange at diff end.
blue beasty
Leaks an prone to bits dropping off
- Posts
- 63,274
- Location
- Gloucestercotshirewolds
Dafts illustration is correct. Bolts out through drive flange at tranny brake end, nuts to prop. Bolts through prop and flange nuts to flange at diff end.
It's just my head that's wrong then
Trying to work out why it feels wrong, I always put nuts on the removable component side unless there's a compelling reason not to.
clivesP38
Active Member
- Posts
- 179
So in LR's wisdom when you have slight play in the uj the yolks will contact the nuts and **** the uj, nut and bolt! Surely the other way around the bolt head would be missed because it is smaller/thinner than the nut! Just a thought, must be around the way described for a reason I guess!
- Posts
- 58,170
- Location
- Preston Lancs.
It's just my head that's wrong then
Trying to work out why it feels wrong, I always put nuts on the removable component side unless there's a compelling reason not to.
The rear props can be quite tight to get off lengthwise. If the bolts at both ends came through the flange you would not be able to remove it. As you have to put the bolts in the flange before it is fitted, you would not be able to get them out.
