Front lights

Trumar · Aug 7, 2022

Colthebrummie said:
A cheap multimeter is all you need. As long as it measures dc voltage, amps and ohms. They cost about a tenner. The expensive ones can test capacitors and transistors, you dont need one of them. If you plan to do any work on the vehicles electrics a multimeter is a must. A test lamp will only get you so far. I cary my cheap meter in the landy at all times.

Col

Evening sir, I have managed to get a multimeter I have worked out how to find dc and how to plug the red and black probes into the right holes the put red probe onto the left or right indicator wire but where do I put the black probe? Also sorry to be a pain with all these questions but where do I buy a new hazard switch from I have looked on Paddocks and Craddocks with both of them showing just normal switches and not the square box mine has on it?

Trumar · Aug 7, 2022

steve2286w said:
Just came across this bookmark on me tablet you might find useful
https://www.autoelectrics.net/12v_flasher_relay.html

Thank you had a look and by the looks of it the one that could be same as the one I need is special order only and they show no picture so I’m not really sure it is what I need. But thanks anyway much appreciated

Trumar · Aug 7, 2022

kermit_rr said:
I've seen indicator flashers slow with age, they just get old and don't work properly anymore.
Could also be an earth/switching problem, but my bet is the flasher

Evening sir funny you should mention earth problem when I said the hazards work but flash slowly I double checked what you said about earth problem I have noticed that the indicators on the front there was no earth lead plugged into both the front indicators!!

Dippypud · Aug 7, 2022

Trumar said:
Evening sir funny you should mention earth problem when I said the hazards work but flash slowly I double checked what you said about earth problem I have noticed that the indicators on the front there was no earth lead plugged into both the front indicators!!

They may earth through the bulb holders ...

steve2286w · Aug 7, 2022

Trumar said:
Evening sir funny you should mention earth problem when I said the hazards work but flash slowly I double checked what you said about earth problem I have noticed that the indicators on the front there was no earth lead plugged into both the front indicators!!

the side lights and indicators should all have 2 wires coming off them , one of them being black which is the earth these can join together in a female bullet connector and should be earthed to chassis
If you found only the 12v supply connected then that will be the problem

Trumar · Aug 8, 2022

steve2286w said:
the side lights and indicators should all have 2 wires coming off them , one of them being black which is the earth these can join together in a female bullet connector and should be earthed to chassis
If you found only the 12v supply connected then that will be the problem

Thank you I will do like you said and see what happens

Trumar · Oct 6, 2022

[GALLERY=][/GALLERY]

Colthebrummie said:
Yes, its a right rats nest of wiring behind the dash. Be carefull, its very easy to disturb summat and then you find something else isnt working after you put it back together, on mine, its always the dash lights.

Col

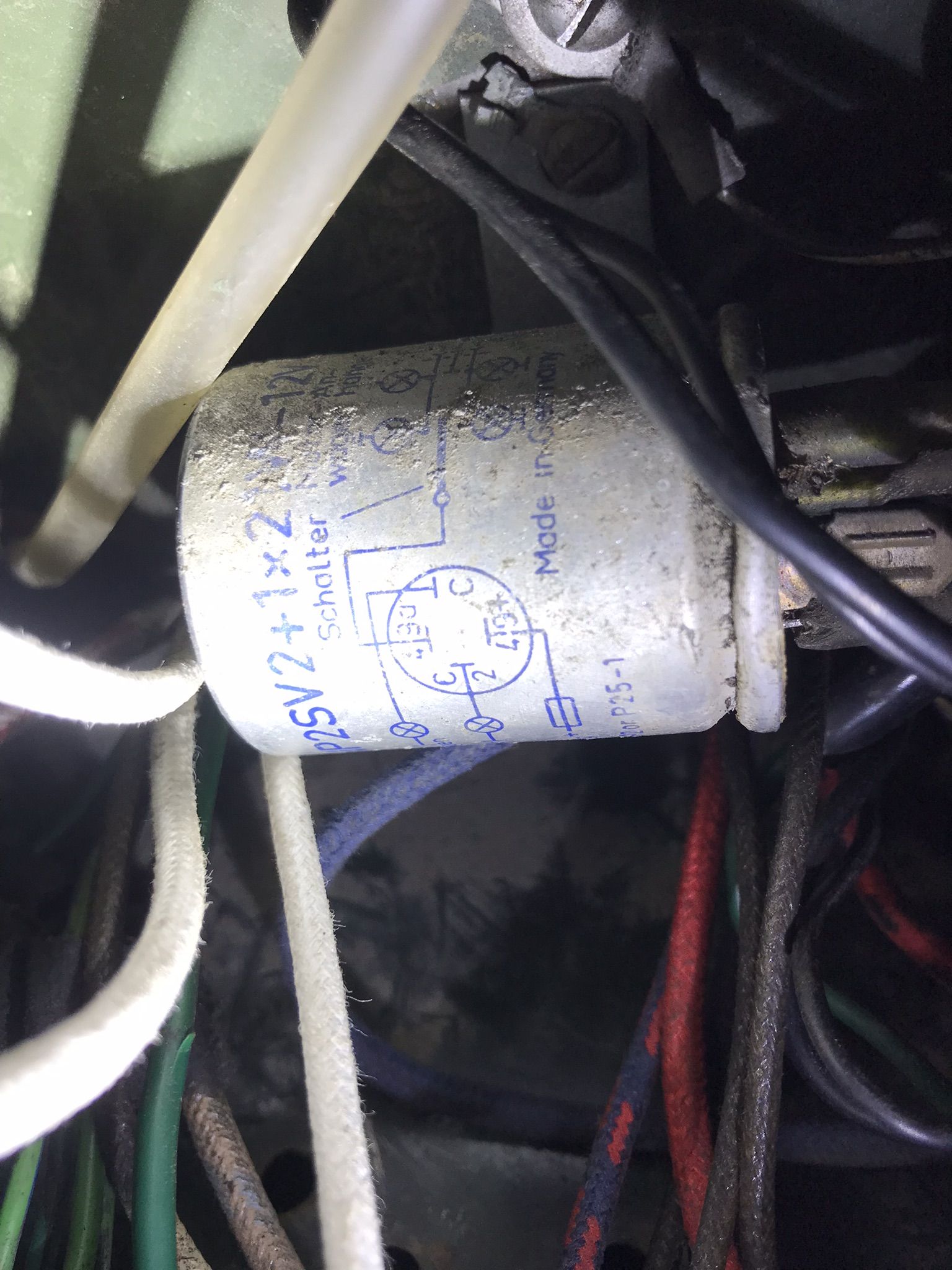

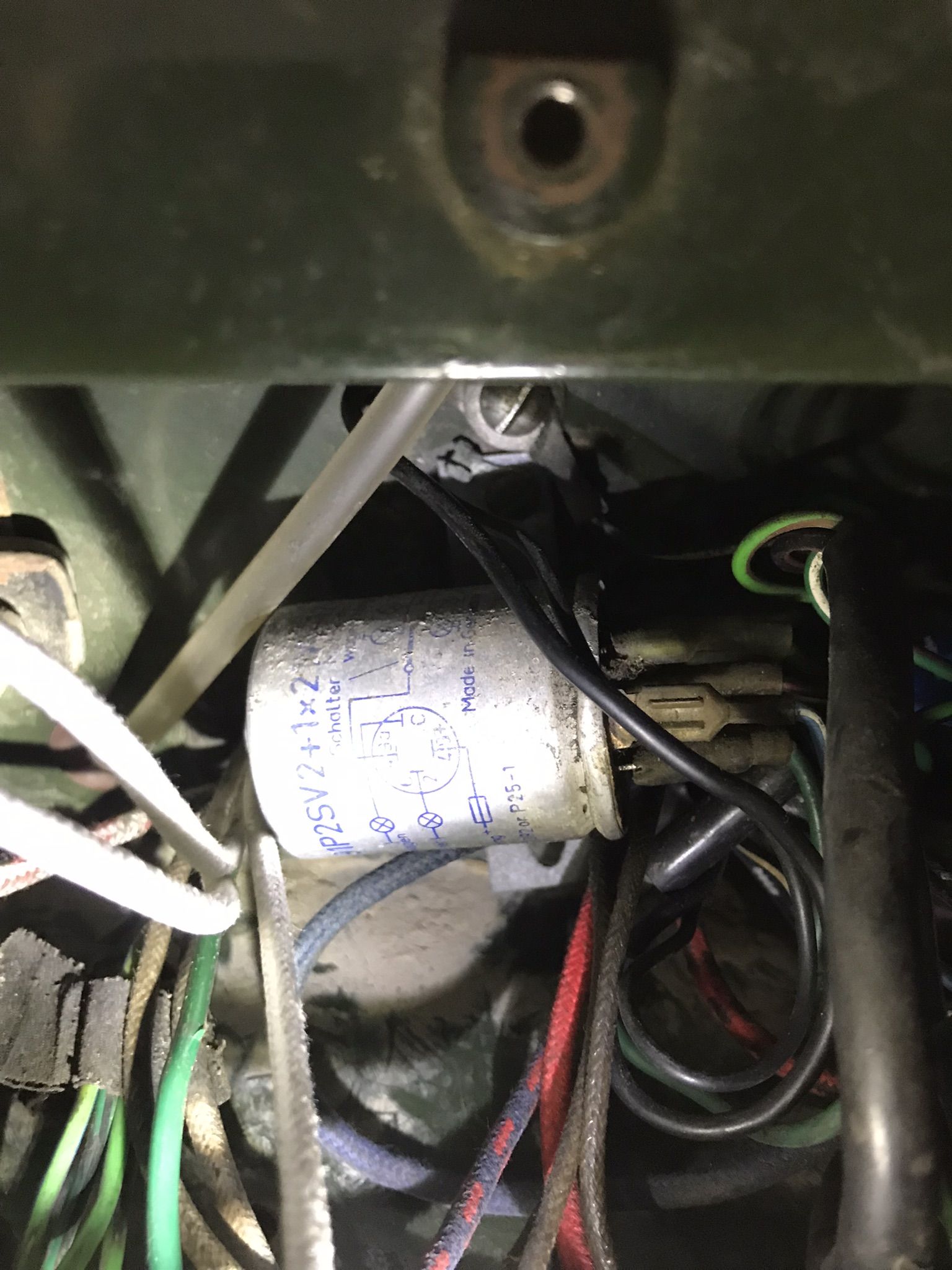

Morning sir, apologies for disturbing you. I have been on my truck today still trying to sort the indicators out, I have run some more earth leads to both indicators now the right indicator is working nearly fast enough and I can hear the like clicking noise coming from the back of the dash behind the panel but when I try the left indicator it hardly flashes and I can’t hear the clicking. With dash panel unscrewed there is a small metal tube with 4 connector’s! I have taken some photos to try show the relay also the box on the back of the hazard pull switch. Also there is another small rectangle box with 3 connectors this I know it has nothing to do with the indicators I was just wondering if you knew what it is??

Colthebrummie · Oct 6, 2022

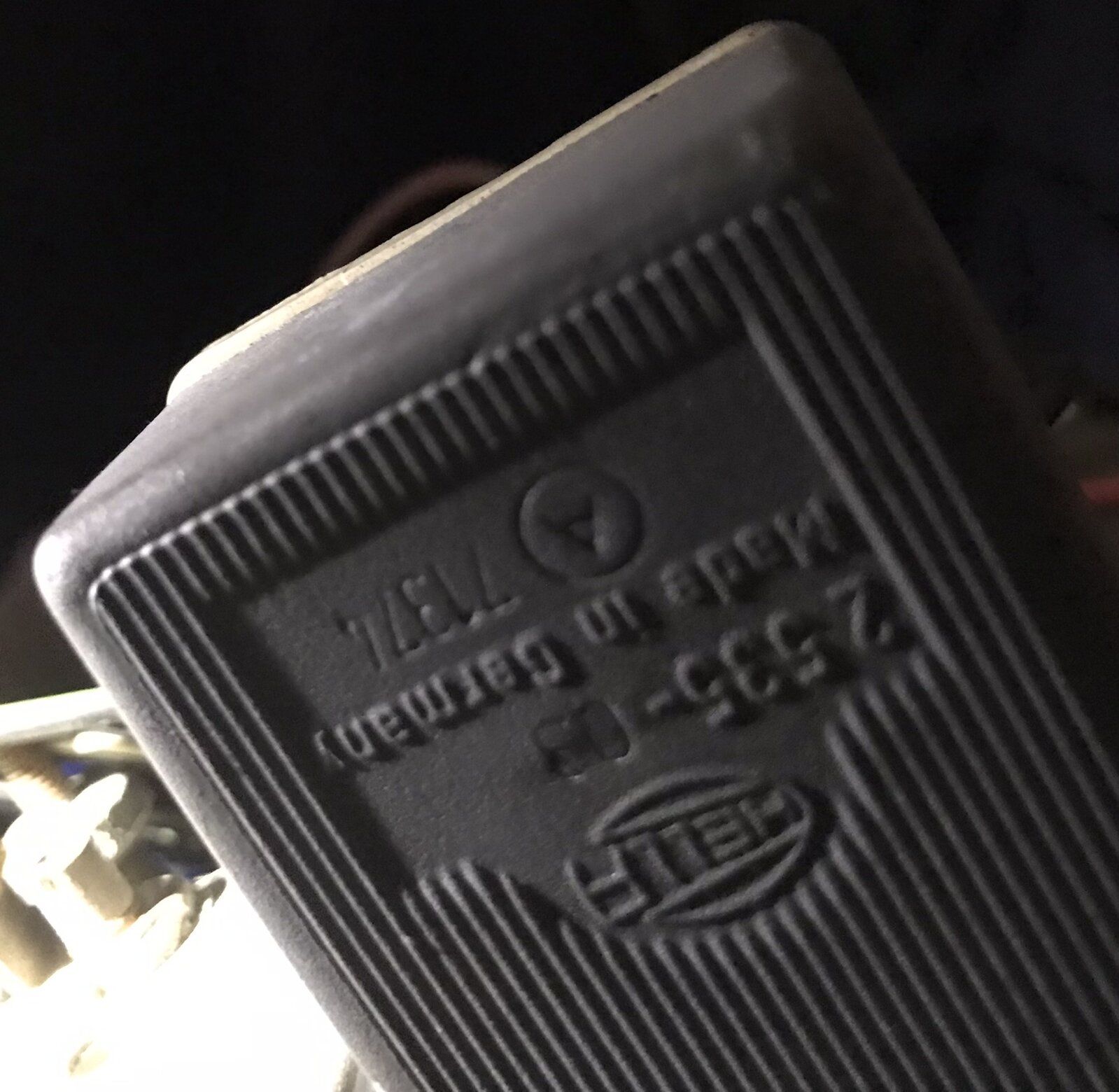

Hello the cylinder unit is your indicator unit, it looks pretty old so it might be that causing your problems. The last pic has the word Hella on it so its something to do with your lights is this the unit connected to the hazard pull switch? If not, it might be a relay for Hella spot lights which might have been removed by a previous owner. If the flasher unit isnt clicking for left indicator its either a bad connection or the flasher unit is faulty.

Col

Trumar · Oct 7, 2022

Colthebrummie said:
Hello the cylinder unit is your indicator unit, it looks pretty old so it might be that causing your problems. The last pic has the word Hella on it so its something to do with your lights is this the unit connected to the hazard pull switch? If not, it might be a relay for Hella spot lights which might have been removed by a previous owner. If the flasher unit isnt clicking for left indicator its either a bad connection or the flasher unit is faulty.

Col

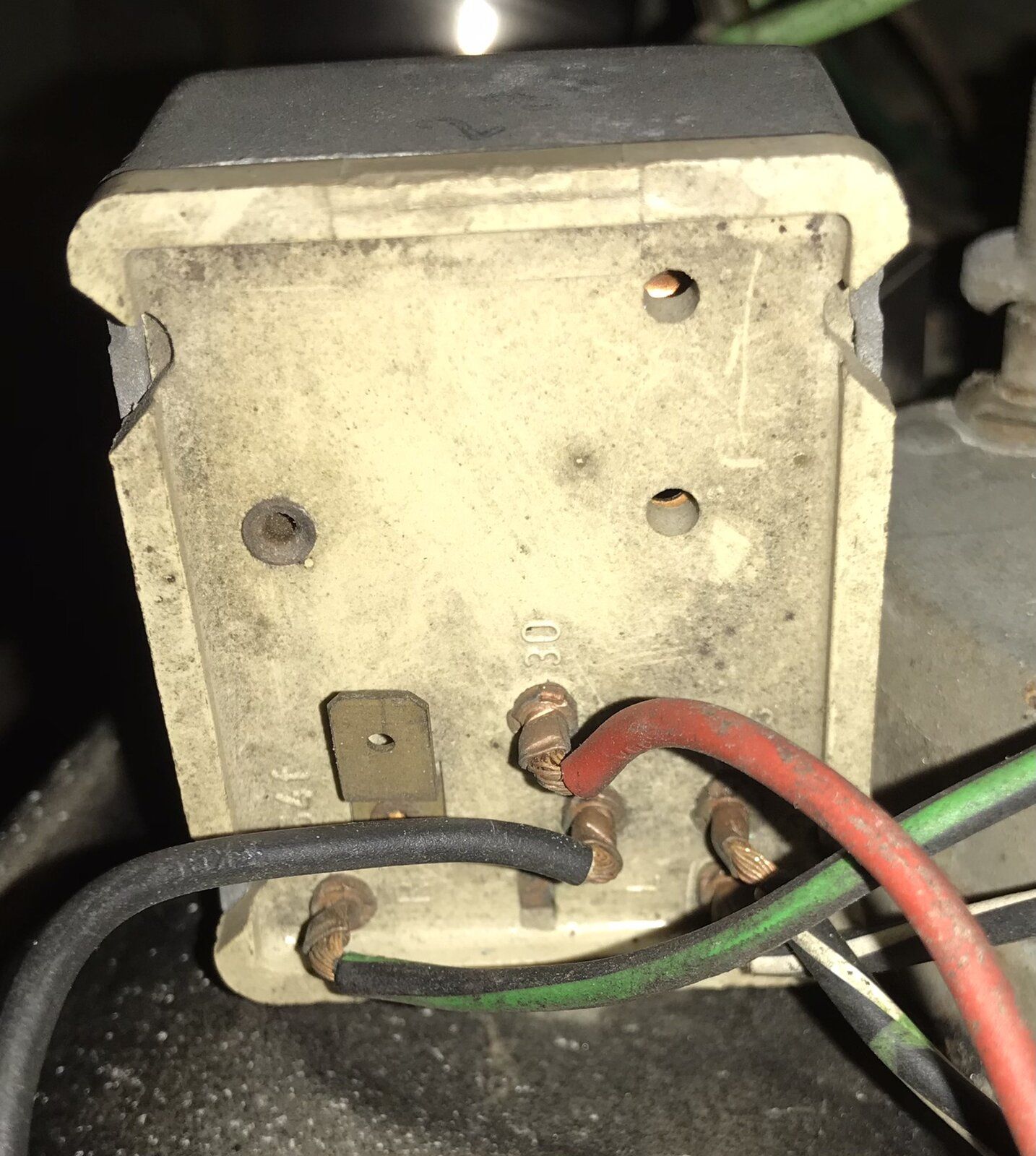

These two pictures is the box on the pull hazard switch

Trumar · Oct 7, 2022

Colthebrummie said:
Hello the cylinder unit is your indicator unit, it looks pretty old so it might be that causing your problems. The last pic has the word Hella on it so its something to do with your lights is this the unit connected to the hazard pull switch? If not, it might be a relay for Hella spot lights which might have been removed by a previous owner. If the flasher unit isnt clicking for left indicator its either a bad connection or the flasher unit is faulty.

Col

This flasher unit has four connectors do I need to get another unit with four connectors or will 3 connectors be ok?

Dippypud · Oct 7, 2022

Trumar said:
This flasher unit has four connectors do I need to get another unit with four connectors or will 3 connectors be ok?

If you get three what will you do with the fourth wire ?

Trumar · Oct 7, 2022

Dippypud said:
If you get three what will you do with the fourth wire ?

The fourth wire I just checked was is doing nothing I put the multimeter on and there was no power going through it. Appreciate you answering my question

Dippypud · Oct 7, 2022

Trumar said:
The fourth wire I just checked was is doing nothing I put the multimeter on and there was no power going through it. Appreciate you answering my question

Just because it wasn't doing anything doesn't mean it doesn't doing anything ...
What does that wire feed to ?

2eZero · Oct 7, 2022

When I had my Series 3 LR my hazards were also too slow. I ended up replacing the flasher relay I think. Being Ex Military it was a bit more complicated.

Trumar · Oct 7, 2022

Dippypud said:
Just because it wasn't doing anything doesn't mean it doesn't doing anything ...
What does that wire feed to ?

It came out the right side of the dash panel out of the big hole and was laying next to steering colum. Wasn’t connected to anything.

Trumar · Oct 7, 2022

Dippypud said:
Just because it wasn't doing anything doesn't mean it doesn't doing anything ...
What does that wire feed to ?

Do you know what the fourth connector is used for?

Trumar · Oct 7, 2022

2eZero said:
When I had my Series 3 LR my hazards were also too slow. I ended up replacing the flasher relay I think. Being Ex Military it was a bit more complicated.

Yes I’m going to order one just trying to workout if I should get the same one I got with the four connectors or get three connectors. Thanks for answering my questions.

Colthebrummie · Oct 7, 2022

I think the best thing would be to get a haynes manual and new flasher unit and hazard switch and replace the lot. My series never had one of those Hella units, just another four way flasher unit. I couldnt get my hazards to work reliably so I replaced both units and now all is well. Your Hella unit is an aftermarket part fitted by a.previous owner so the wiring is anybodies guess.

Col

Trumar · Oct 7, 2022

Colthebrummie said:
I think the best thing would be to get a haynes manual and new flasher unit and hazard switch and replace the lot. My series never had one of those Hella units, just another four way flasher unit. I couldnt get my hazards to work reliably so I replaced both units and now all is well. Your Hella unit is an aftermarket part fitted by a.previous owner so the wiring is anybodies guess.

Col

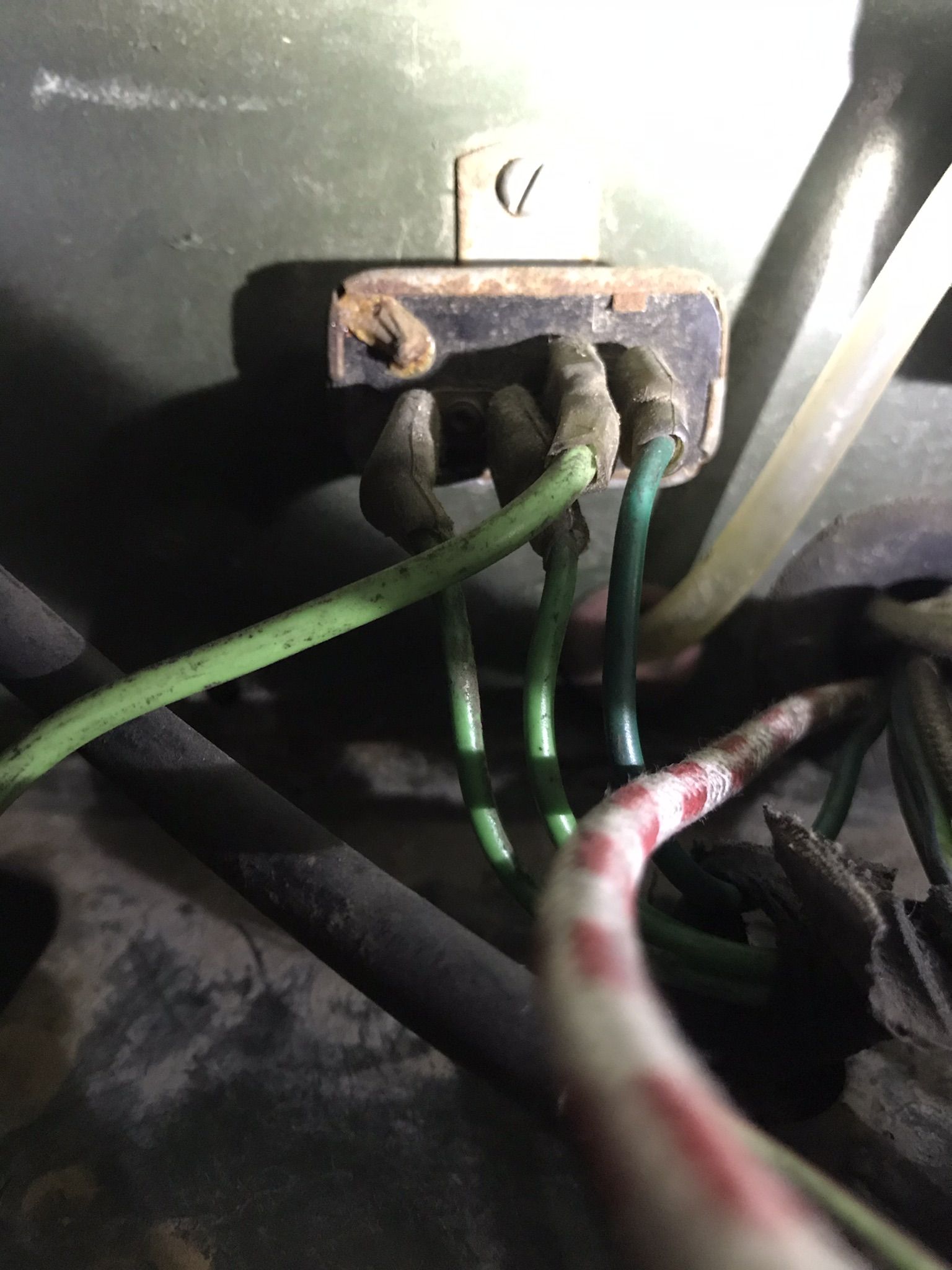

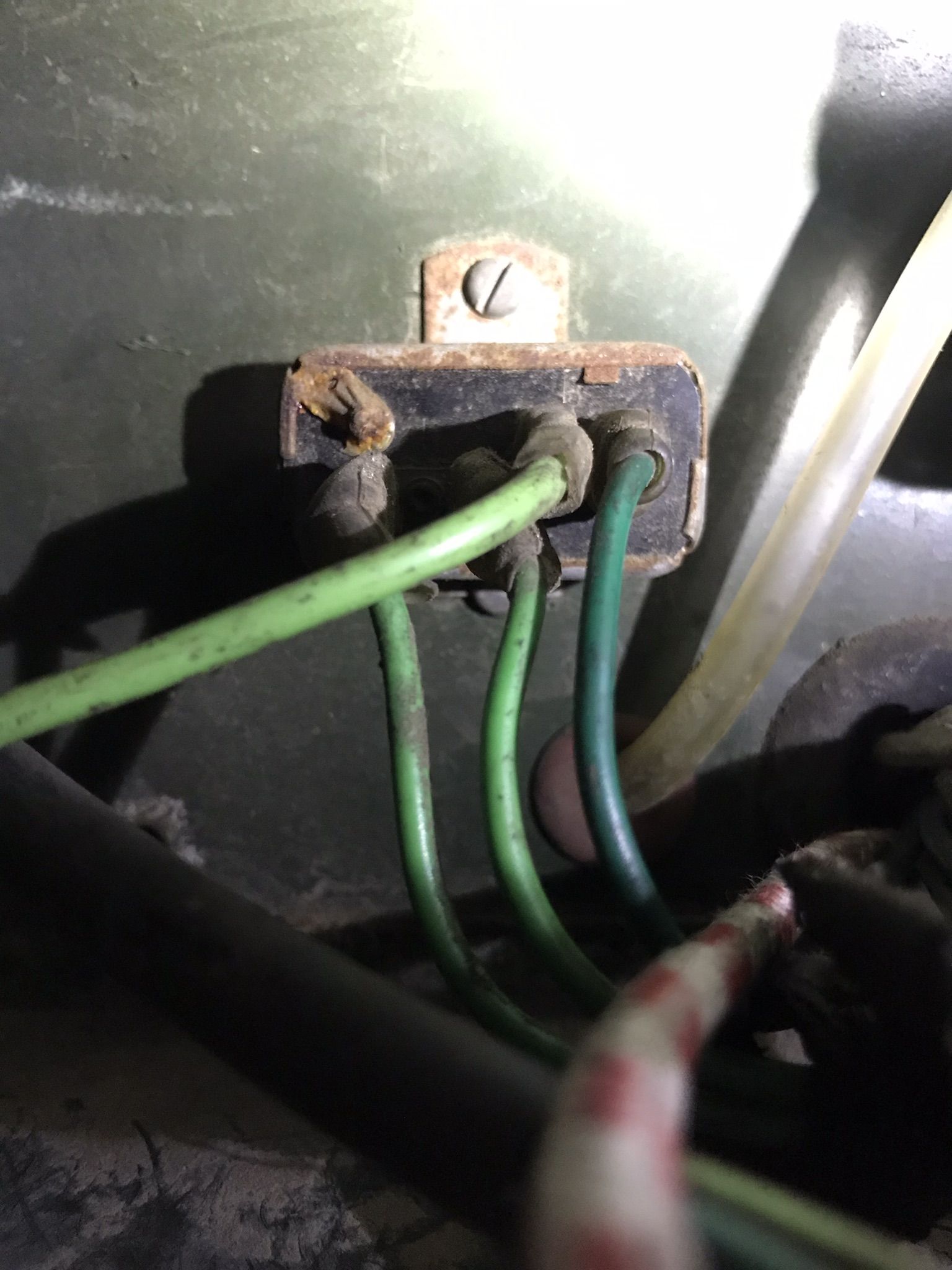

I must of read your mind as I got a Haynes manual come today and haven’t they gone up in price! I last got one for £8 now bloody £25 lol. I will order a new flasher unit. Do you know why the flasher unit I got has four connectors? Also sorry for another question do you know what that is in the picture it is at the back of where the dash panel goes?

Dippypud · Oct 7, 2022

Trumar said:
I must of read your mind as I got a Haynes manual come today and haven’t they gone up in price! I last got one for £8 now bloody £25 lol. I will order a new flasher unit. Do you know why the flasher unit I got has four connectors? Also sorry for another question do you know what that is in the picture it is at the back of where the dash panel goes?

Might be the heater blower rheostat, but as it's Friday and my son has shoved off on his holiday, his beer is mine, so I'm talking rubbish two cans in ... @7%/
