First Time Starting

jamesmartin · Mar 9, 2020

vid doesnt work
key inoff position ie no other terminals will be live
you then have first key position auxillary
second ignition lights
next glow plugs against a spring you hold it there (one of the large connectors)
twist further starter
let go of key it goes back to position 2

border · Mar 9, 2020

jamesmartin said:
vid doesnt work
key inoff position ie no other terminals will be live
you then have first key position auxillary
second ignition lights
next glow plugs against a spring you hold it there (one of the large connectors)
twist further starter
let go of key it goes back to position 2

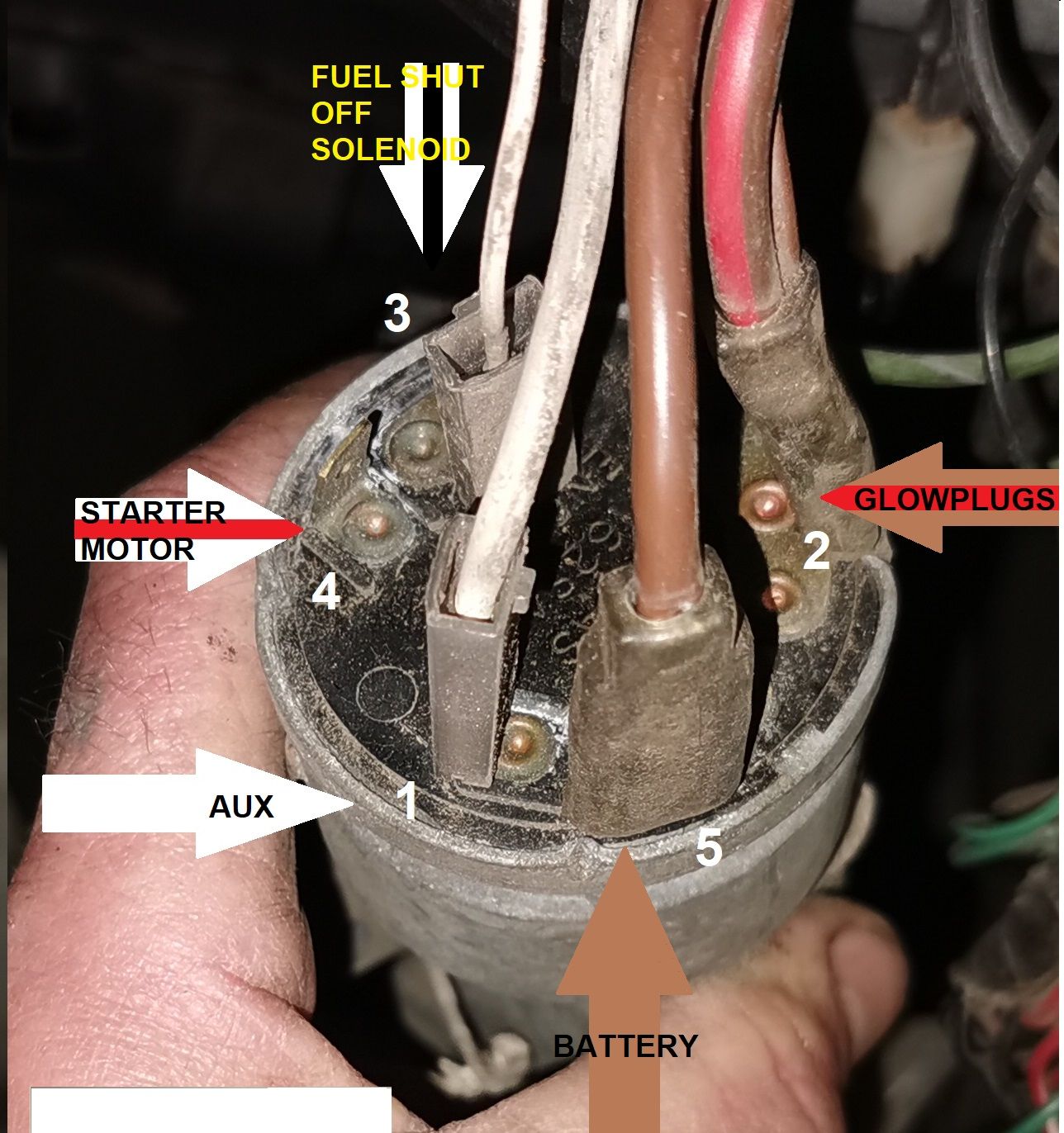

Sounds about what its doing but just not at right position with 2 and 3, one thing is that number 5 on pic the thick Brown gives a live reading even without the Key in, and if I remove thick red and Brown and touch 5 to 2 it cranks with or without key in.

Tried Vid again, should work this time.

border · Mar 10, 2020

Im sure 4 starter is Defiantly in right place, might try swapping 1 and 3 to see if there's any difference.
