Essex lanes

mikeyt said:

cheers matt ive canceled work tomorrow so will open her up and have a look

Click to expand...

What speed and how many revs were you doing when it went just out of interest??

mikeyt said:

bloody cambelt snapped on the fender today

may be a seized tensioner made a funny noise just before it went, looks like im gonna be spending Wednesday getting her back on the road. thanks for helping me out brian!

Click to expand...

Damn mate ya not having much luck hope ya get it sorted soon and it's an easy fix

matthew2riches said:

What speed and how many revs were you doing when it went just out of interest??

Click to expand...

Was about 40 at 1500 rpm in 5th i recon it should only be bent push rods....well im hoping anyway will see tomorrow, ill take some pics tomorrow

mikeyt said:

Was about 40 at 1500 rpm in 5th i recon it should only be bent push rods....well im hoping anyway will see tomorrow, ill take some pics tomorrow

Click to expand...

Thats a bugger did you change the tensioner and idler aswell ?

Best use gen. set its about £110 then change the belt and timing cover seal every year and dont be tempted to over tighten the belt tension.
You can get a good Dayco belt for about £12 and Dayco make the original equipment, when I changed mine last year I had a gen set from LR and also a OE Dayco belt from Paddocks to compare belts, they looked and felt the same, always use corteco cover seal aswell. I take the wading bung out about 1once amonth and push a thin length of wire with about a 20mm 90deg bend on the end if that makes sense, it goes up into the bottom of the timing chest twist it and bring back down, if it has belt dust on it you know to change the belt quick.

Yer Dayco make a lot of OE belts, not expensive either

I got the final arch welded on today Something I've been meaning to do since summer :doh: I've sealed it all up and will hopefully get round to painting it before the weekend. Then I've got a couple of bolts to replace, sort indicator relay out and remove half made rear bumper then I should be good for the MoT. The bushes *should* go through the MoT as the loose one isn't visible once caked in mud I might check the bearings but they were fine before Wales.

If only I could weld, I could make a fortune!
eBay - The UK's Online Marketplace

djguy said:

If only I could weld, I could make a fortune!
eBay - The UK's Online Marketplace

Click to expand...

Photoshop and have it parked between two lorries when they come to collect.

Discodad said:

Photoshop and have it parked between two lorries when they come to collect.

Click to expand...

aha, cracking idea

Tuskenraider said:

Yer Dayco make a lot of OE belts, not expensive either

Click to expand...

James1966 said:

Thats a bugger did you change the tensioner and idler aswell ?

Best use gen. set its about £110 then change the belt and timing cover seal every year and dont be tempted to over tighten the belt tension.
You can get a good Dayco belt for about £12 and Dayco make the original equipment, when I changed mine last year I had a gen set from LR and also a OE Dayco belt from Paddocks to compare belts, they looked and felt the same, always use corteco cover seal aswell. I take the wading bung out about 1once amonth and push a thin length of wire with about a 20mm 90deg bend on the end if that makes sense, it goes up into the bottom of the timing chest twist it and bring back down, if it has belt dust on it you know to change the belt quick.

Click to expand...

The belt was a dayco that was put in in july along with a new OE tensioner and was tightened to 17nm with a dial type torque wrench which is why i dont understand the belt premuturely breaking??? i will definitely use your idea with the bit of wire to keep a eye on this one!

Anyway some gory pics!

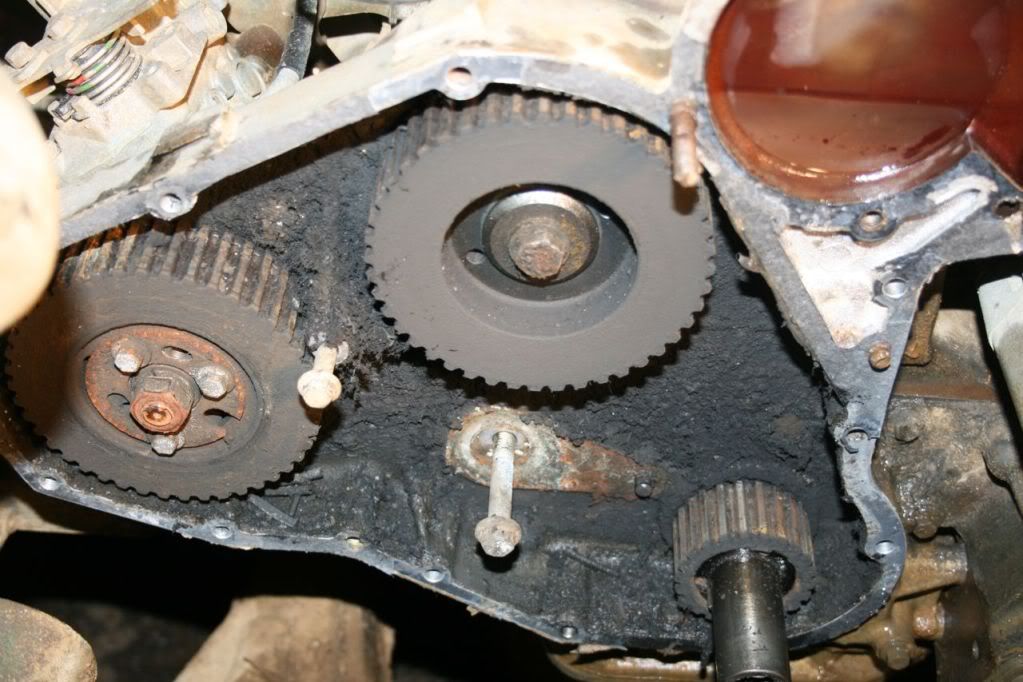

The timing case was cleaned before the last belt went in all the **** in there is shredded rubber and teeth!!!! which can be seen in the second pic at the bottom!

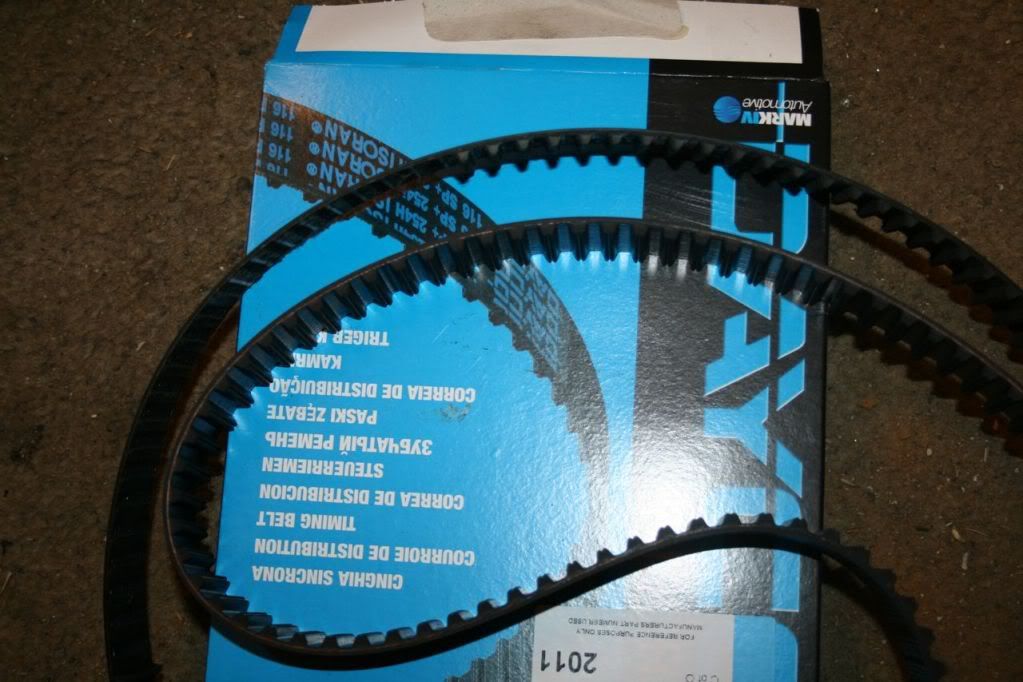

New and old belt, old belt looks completely shagged like its been on for 500000 miles!

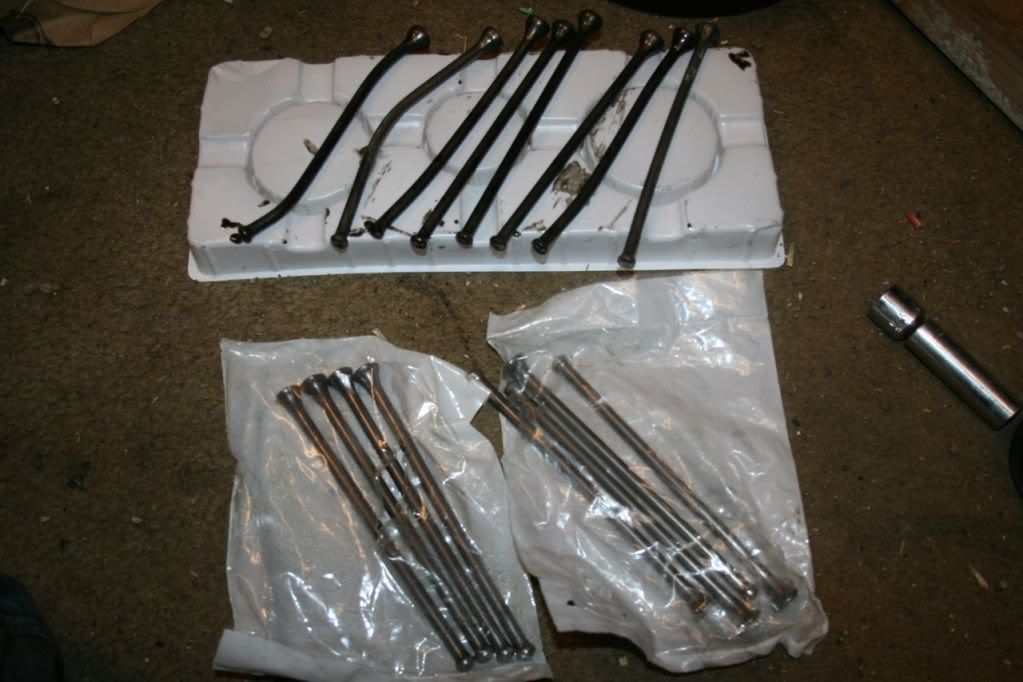

Was gonna reuse the push rods because they looked straight to me but brian persuaded me to get a new set lmao!

Anyway all in all didn't take too long to sort out and starts and runs sweet as a nut, but really paranoid about it now and will be regularly checking it!

Finally a big thanks again to brian for helping me, chauffeuring me around and keeping me warm (not in a gay way lmao)......cheers mate!

That wood chopping lark does keep you warm.

Anyway, what are friends for if not to help in time of need. I was only too glad to do my bit, we need you at the pub tomorrow to guide us to this deep Ford I've been looking forward to.

What time and what pub? remind me....

Glad it wasn't too bad Mike! If it'd been a new car it'd have probably self destructed the engine

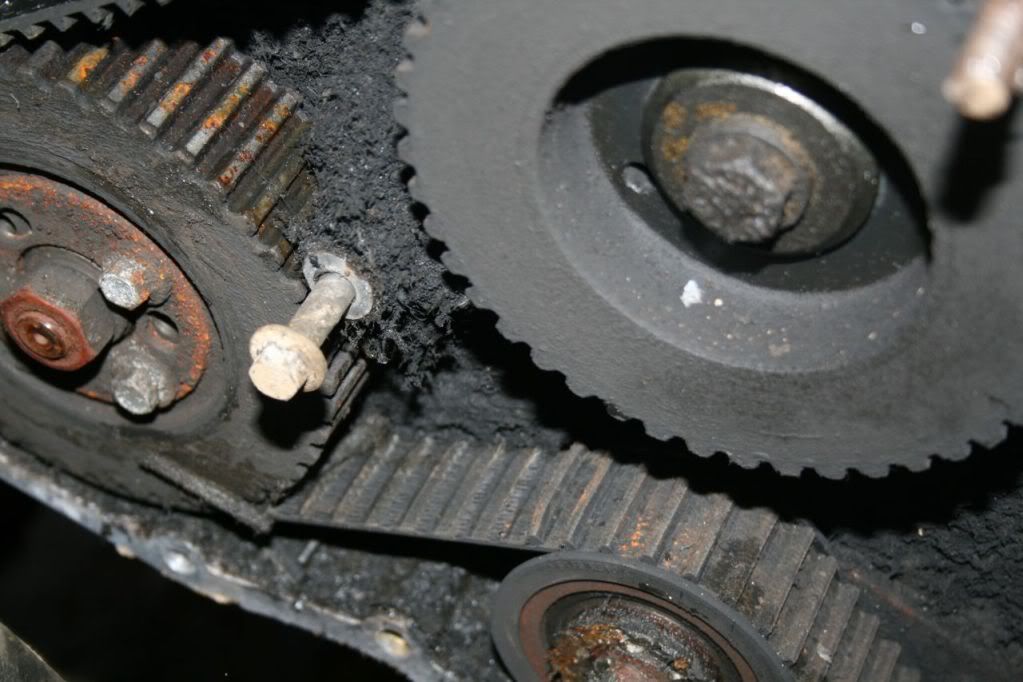

That belt has only worn in one section look at those pics To me it seems like something has jammed like the FIP and stripped the teeth

Strange


Had a good night laning around Harlow/Ongar/Moreton last night, lanes were excellent

However this morning the beast wouldnt start :doh: think the starter is fooked

No I saw it yesterday, all teeth are peeling from the sides

Checked all the gears for sharp edges?

Very odd

Sorted my fast flashing indicators out this morning. Removed the relay that was in there and changed it for a different one and it is sorted now Also pulled the RSJ off the back acting as a bumper. A few more bits and it'll be MoT time

What relay did you use Matt as i need to sort this out.

I presume itll be a 200tdi one

Tuskenraider said:

What relay did you use Matt as i need to sort this out.

Click to expand...

I couldn't tell you Just found it in a box of about a million bits from broken up land rovers. But yeah.... what Drizz says.
