It appears it is there on the L322. or there abouts;)

Did a search theres 67 of the bloody things all over the car:eek:.

J


Attachments

  • Earth RH.pdf
    220.3 KB · Views: 163
I'll see what else I can find

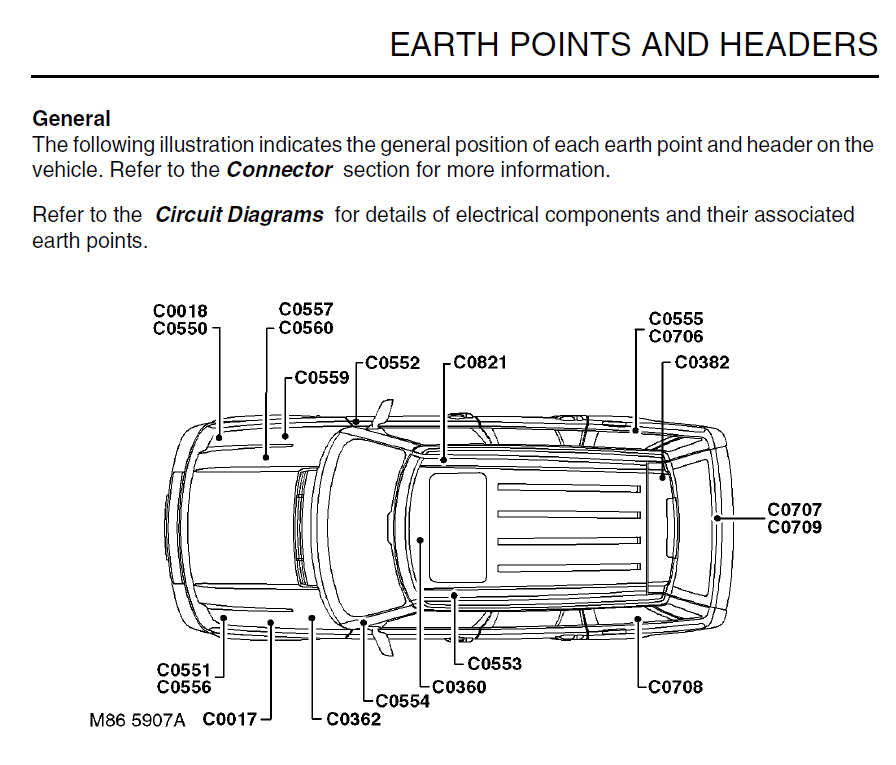

Thanks mate, yeah I did manage to get a copy of RAVE a few years ago and found this diagram. Good for the general whereabouts, but the actual physical locations of them are a bit of a puzzle.
Just finished putting the passenger side wheel arch lining back on...if I never ever have to do that again, it'll be too soon. The kicker is, is that I think I should take a look under the drivers side one now...:rolleyes:

Thanks mate, yeah I did manage to get a copy of RAVE a few years ago and found this diagram. Good for the general whereabouts, but the actual physical locations of them are a bit of a puzzle.
Just finished putting the passenger side wheel arch lining back on...if I never ever have to do that again, it'll be too soon. The kicker is, is that I think I should take a look under the drivers side one now...:rolleyes:

Know what you mean, I've had mine off a few times chasing a loom fault, utter bastid :) still ain't got it to fit right but I think it's cos of the 2006 bumper.

Thats weird...definitely not what it looks like under the bonnet of my L322.

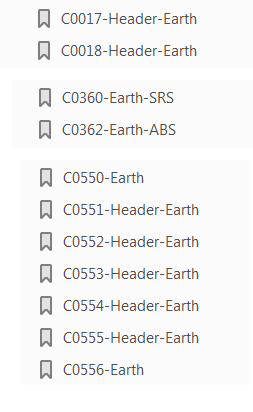

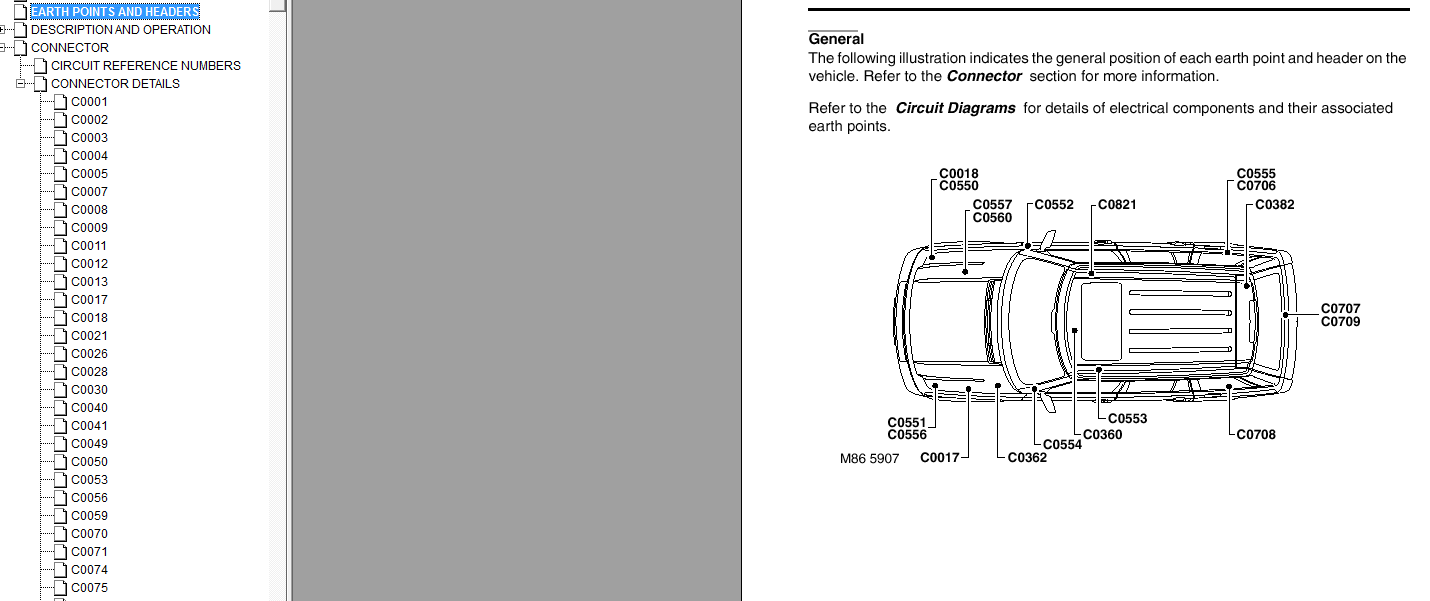

My RAVE file names all went haywire a while ago and now I have to search pretty much every folder in it to find anything. I'll keep looking though

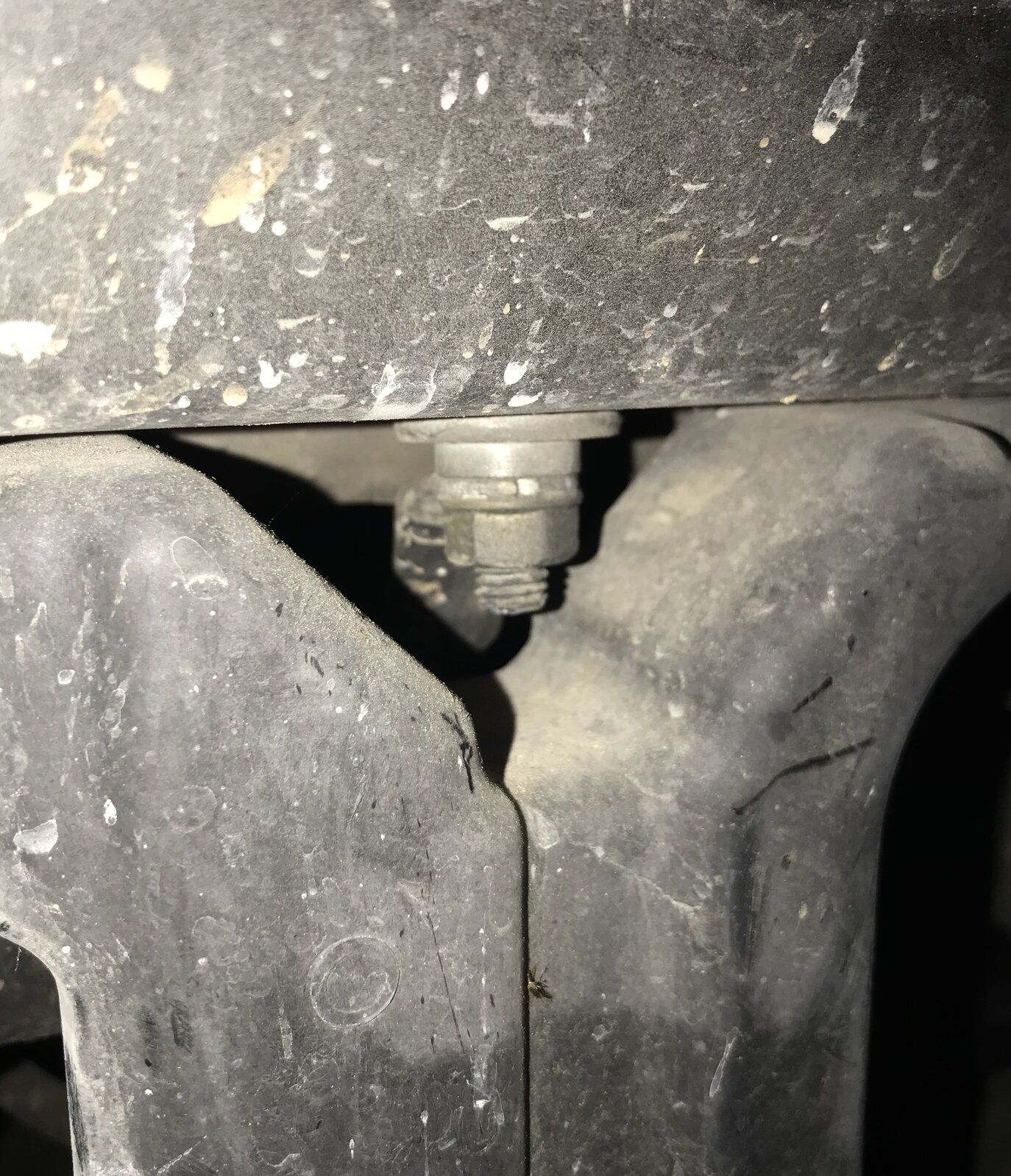

SO...right side is off, and found an earth strap connection, it looks pretty good but will give it a scuff up anyway.
Don't think it's the magic cure...


Attachments

  • earth right side arch.jpg
    earth right side arch.jpg
    396.9 KB · Views: 99
