That isn't a problem, drill some holes in the well. Maybe wrap the electonics in a LR branded carrier bag. Problem solved.
EAS over heat and cure
- Thread starter JohnnyCrash
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
That isn't a problem, drill some holes in the well. Maybe wrap the electonics in a LR branded carrier bag. Problem solved.
cheongthong
Active Member
- Posts
- 214
- Location
- belgium
hello , best and the easy way is to take the cover away
Datatek
Well-Known Member
- Posts
- 45,668
- Location
- Near Poitiers SW France
And watch the box fill with crap:doh:
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
StuckAgainSteve
Well-Known Member
- Posts
- 2,276
- Location
- London
Components rated at 85C, compressor running temperature up to 120C underbonnet temperatures in the 80'sC, heat trapped in the top of the box, recipe for problems with anything electronic, less a case of disguising a fault as giving the components a better chance of surviving.
New driver packs would, I guess, be likely to be a good few years old.
That's my take on it - hence I fitted a new driver pack AND a fan on the EAS lid. Now, my compressor never gets more than fairly warm to the touch where as before it used to be burny hot.
stevebrookman
Well-Known Member
- Posts
- 388
Same as me. I drilled holes months ago in my box to dissipate the heat. Not a problem since-even when towing the tin tent in the heat of this summer.
Steve
Steve
NikTheGeek
New Member
- Posts
- 626
- Location
- Wigan

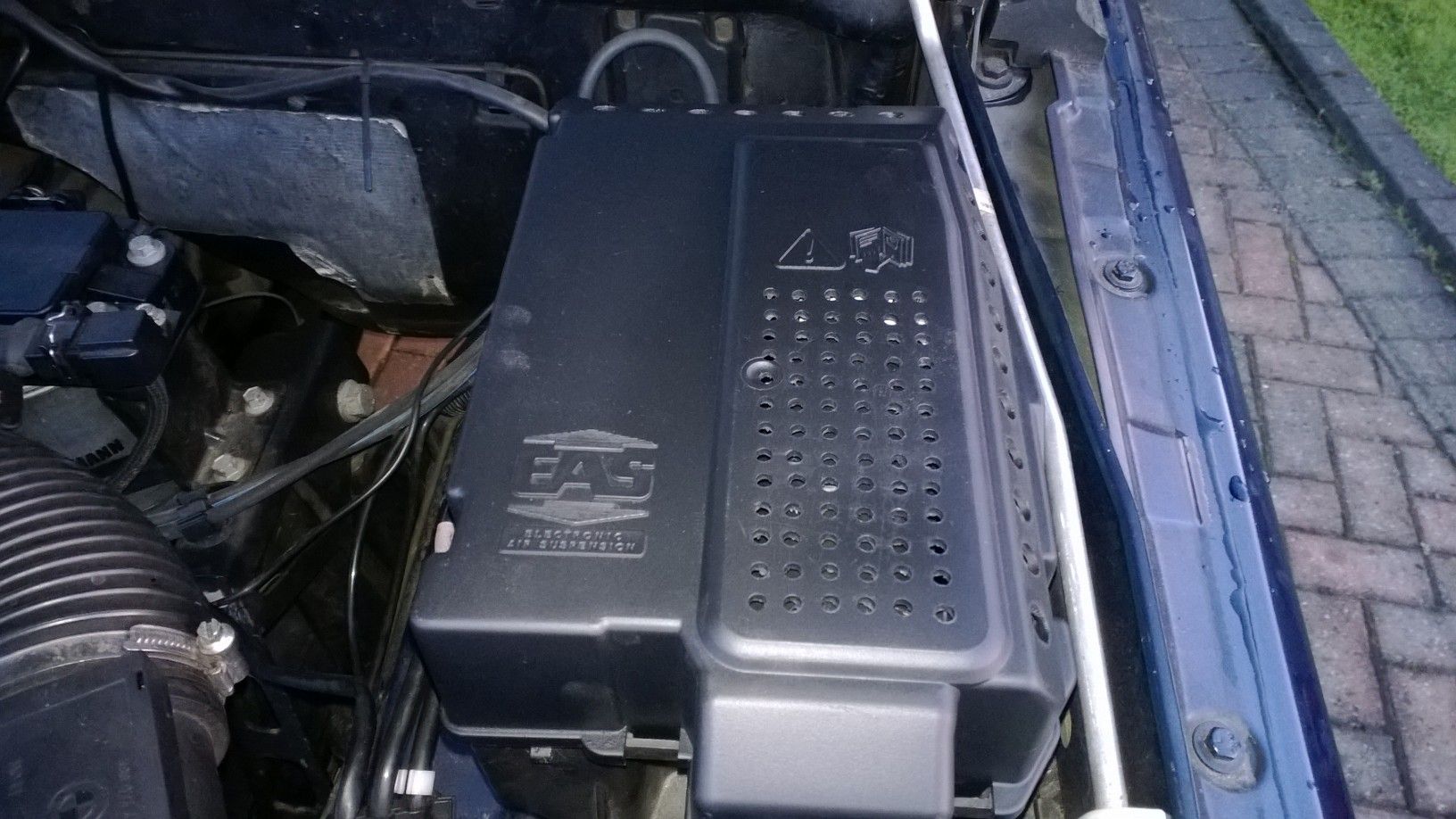

This is my take on venting it. A series of small holes directly above the compressor as well as some slightly larger vent holes as others have done. I have some black steel mesh from a Cooler Master pc case to fit under the holes to trap debris, but not got around to it yet - and I might not bother...
Nik
Nik
Attachments
Datatek
Well-Known Member
- Posts
- 45,668
- Location
- Near Poitiers SW France
That must have taken ages.
NikTheGeek
New Member
- Posts
- 626
- Location
- Wigan
10 mins or so of drilling and about 10 mins of measuring it out with a pencil and ruler
JohnnyCrash
New Member
- Posts
- 1,917
So after running with the 2 fans now for a while and not having any EAS issues, I decided to make it a permanent feature and decided to neaten up the install

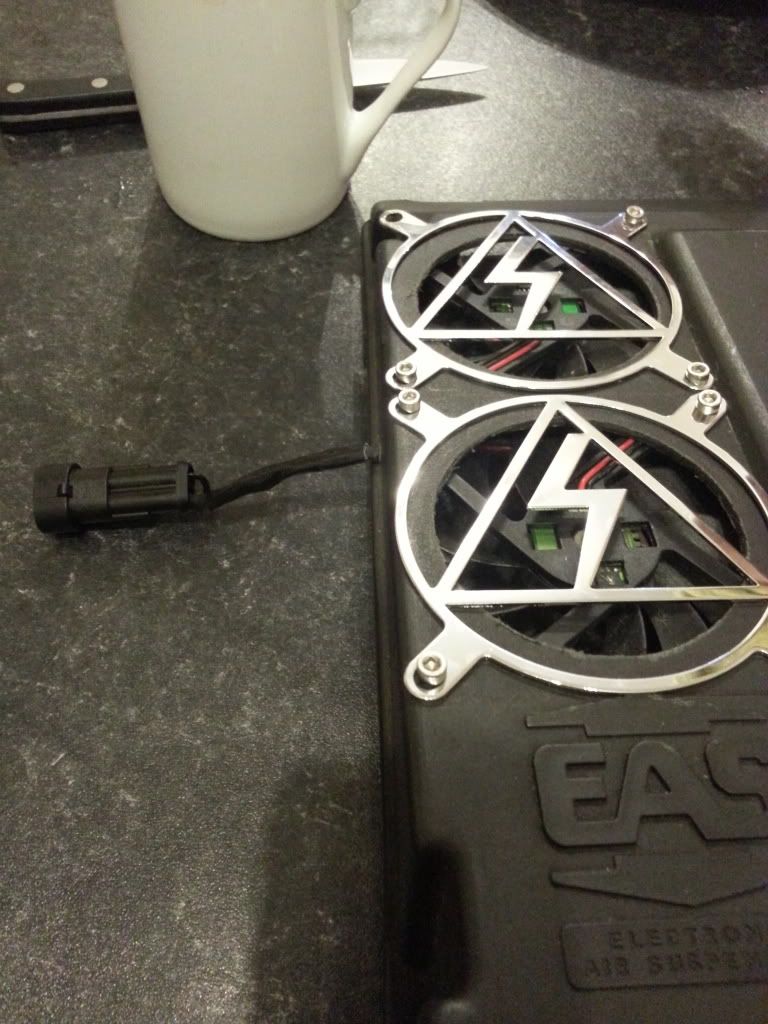

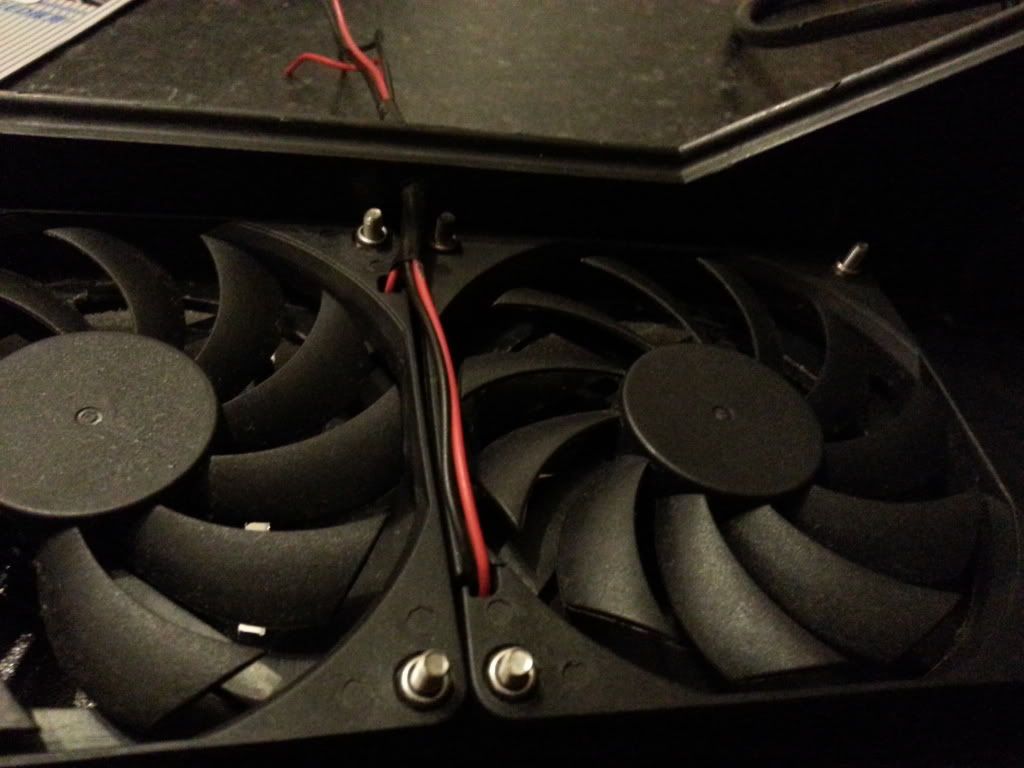

First was to fit 2 much slimmer fans on the inside of the lid
Then 2 vent covers, loads of designs out there, these were just 99p for the pair!!! and 99p for a sureseal connector
back in the car and plug in the eleccy
First was to fit 2 much slimmer fans on the inside of the lid
Then 2 vent covers, loads of designs out there, these were just 99p for the pair!!! and 99p for a sureseal connector
back in the car and plug in the eleccy
Last edited:
stevebrookman
Well-Known Member
- Posts
- 388
I like it.
Mines also not thrown a fit since I drilled holes in the box 6 months ago.
How much room is there between the top of the box and the bonnet insulation?
Steve
Mines also not thrown a fit since I drilled holes in the box 6 months ago.
How much room is there between the top of the box and the bonnet insulation?
Steve
Datatek
Well-Known Member
- Posts
- 45,668
- Location
- Near Poitiers SW France
I think fans are totaly unnecessary, vent holes are all that is required. Mine has also been totaly reliable just with the vent holes.
tony2
Active Member
- Posts
- 351
- Location
- Near Taunton Somerset
JohnnyCrash
New Member
- Posts
- 1,917
My way of dealing with the heat.
Not had a problem mind but prevention is better than trouble, plus it looks a lot nicer too.
Very nice, very neat.
clivesP38
Active Member
- Posts
- 179
My way of dealing with the heat.
Not had a problem mind but prevention is better than trouble, plus it looks a lot nicer too.
Looks OEM!! Good job
NikTheGeek
New Member
- Posts
- 626
- Location
- Wigan
My way of dealing with the heat.
Not had a problem mind but prevention is better than trouble, plus it looks a lot nicer too.
Wow, nice. You should sell them!
gfromleeds
Well-Known Member
- Posts
- 2,234
- Location
- leeds. westyorkshire, uk
Would there be a problem with just takeing the lid off??
Datatek
Well-Known Member
- Posts
- 45,668
- Location
- Near Poitiers SW France
Water and dirt ingress, I wouldn't even have an opening in the top surface, mine are at the side on the sloping edge.
tony2
Active Member
- Posts
- 351
- Location
- Near Taunton Somerset
Wouldn't have thought so but, it would look s**t and get full of s**t over time.
I am sure Land Rover could have saved a couple of quid here, but compare the P38 under bonnet to the new one, covers everywhere which I am sure are only cosmetic.
I am sure Land Rover could have saved a couple of quid here, but compare the P38 under bonnet to the new one, covers everywhere which I am sure are only cosmetic.
