What exactly is a cleco pin. Also where did you get the coppper lines from, and do they seem ok?
Disco rebuild project
- Thread starter RobP
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Cleco's are a reusable temporary sheet metal fixing. Great for holding 2 pieces of metal together where you can't get normal welding clamps to. They do come in several sizes. For the size I have you drill a 3mm hole through both work pieces and use the special pliers insert the sprung loaded pin through the holes and then release and the spring hold the two bits together.
This You Tube video shows how they work. THIS is the set I have.
The copper pipe I bought as a 25ft roll at Newbury and made them up myself. First time making brake pipes but they seem okay. Will know for sure when I fit the new pads and try to bleed the system
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
This ####ing disco is going to end up better than new!
Rob, you're work is so neat I feel you need a thorough commendation!!
Rob, you're work is so neat I feel you need a thorough commendation!!
This ####ing disco is going to end up better than new!
Rob, you're work is so neat I feel you need a thorough commendation!!
Cheers Sam, appreciate the comments fella especially as your thread was one of the ones that inspired me to give this a go
I does feel like I am making progress and the welding is getting better. Which considering I had never welded before starting this I quite an achievement too
Rob
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Practice makes perfect by the time your welded your way through a rusty disco
You can see my work improve as you inspect the car front to rear
You can see my work improve as you inspect the car front to rear
Practice makes perfect by the time your welded your way through a rusty disco
Very true
Glad I followed your advice of getting the quarter panels off too
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Every time
Time to finish off the cross member replacement

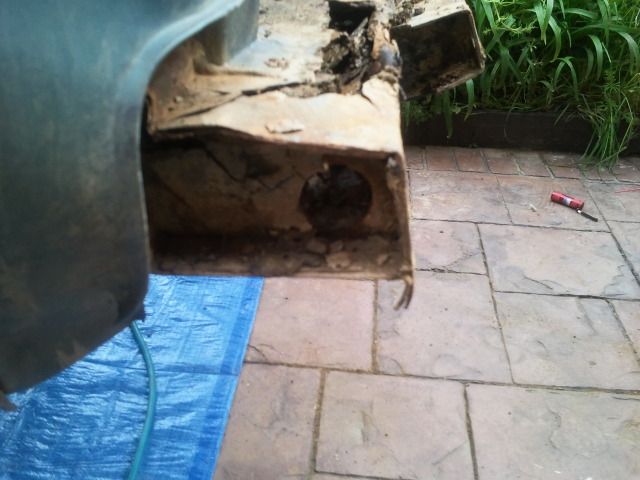

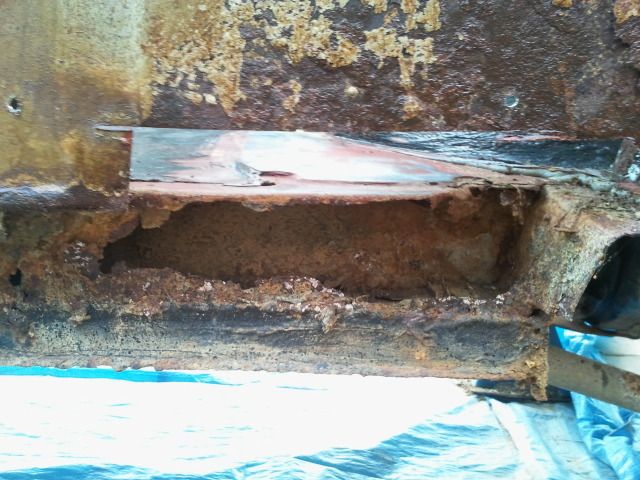

Each end looked like this

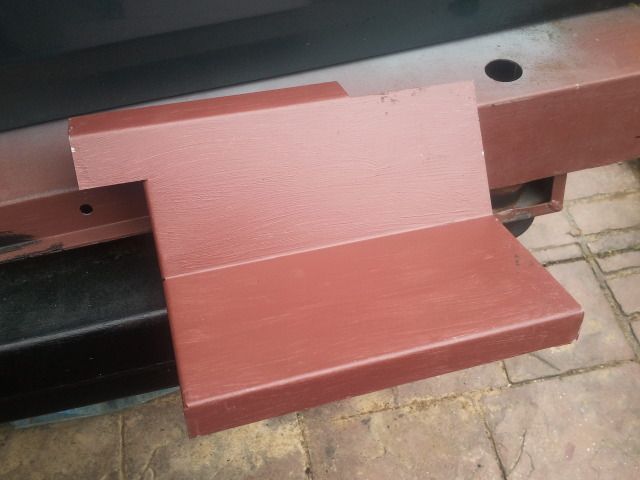

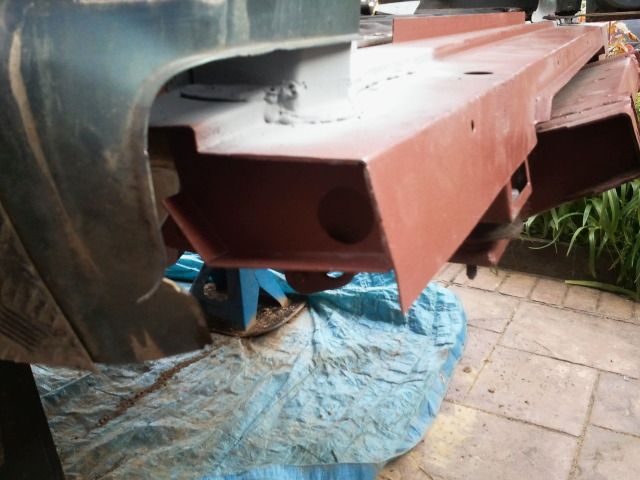

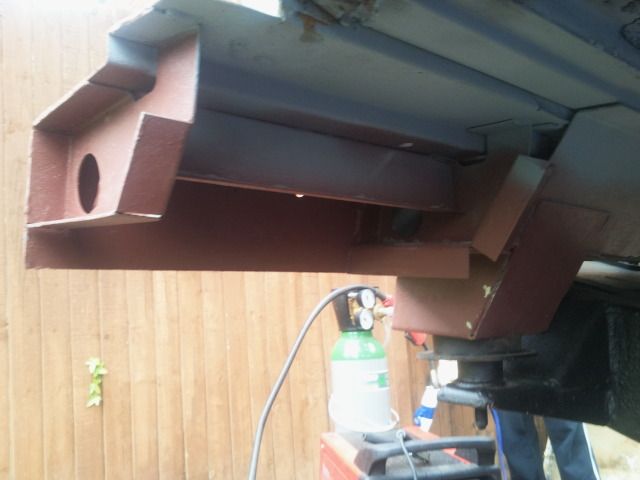

But the kit comes with two of these bits to finish off the job properly

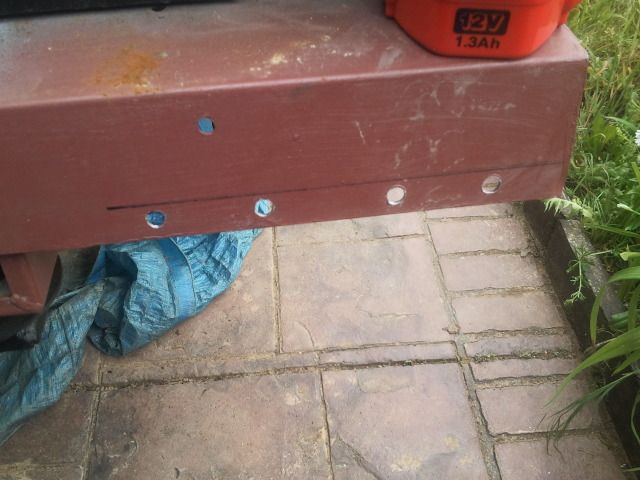

Time to drill a few hole for plug welding
Holes cleaned up

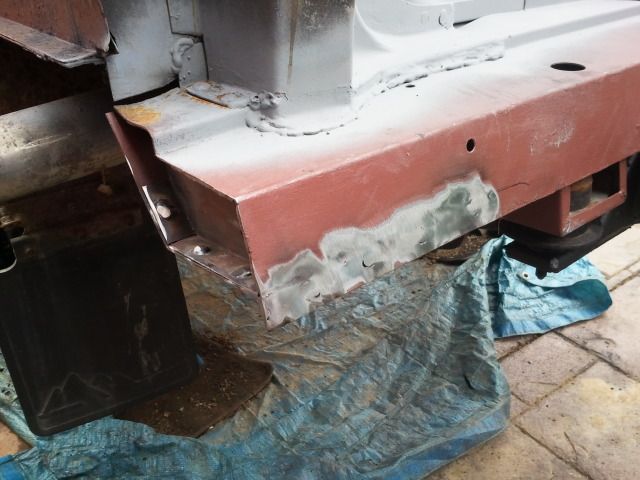

Plug welded and dressed back
Quick coat of zinc primer

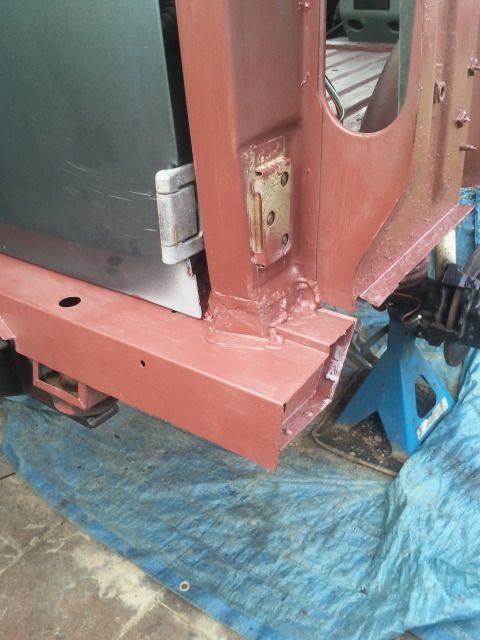

Also had to rebuild the bottom of the door pillar
Repair finished

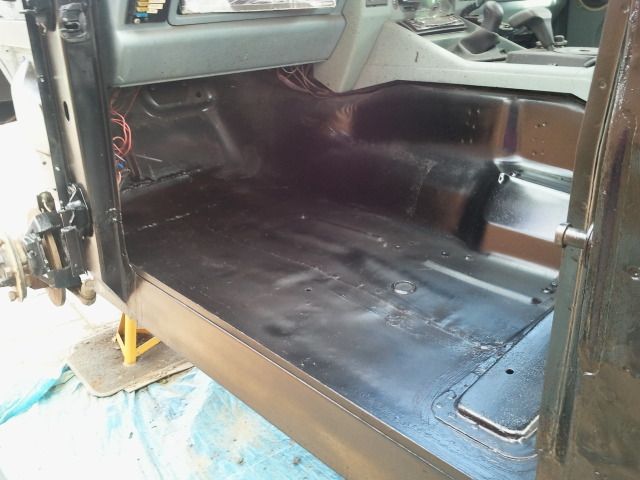

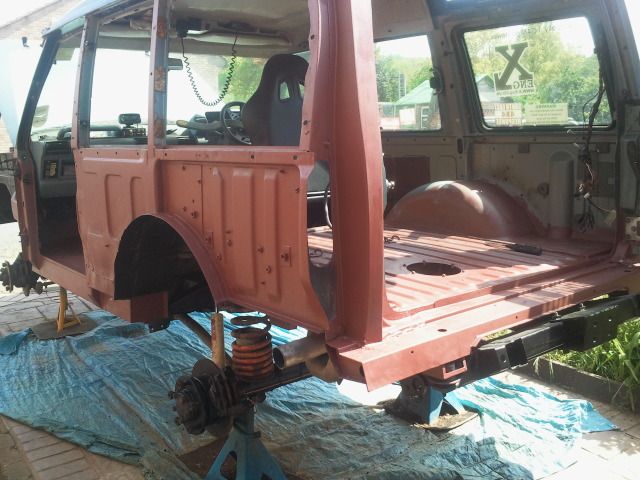

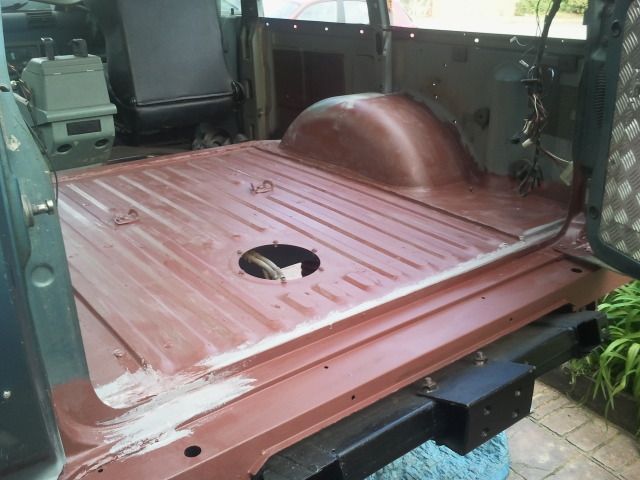

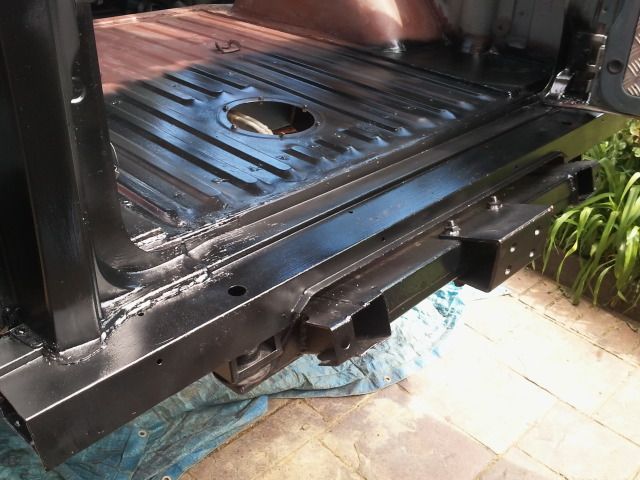

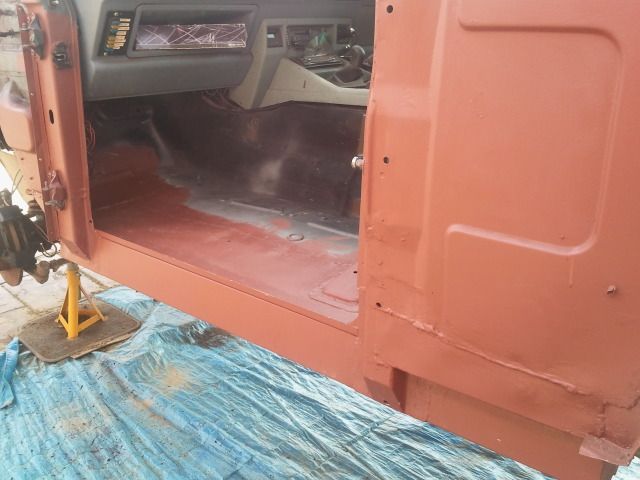

Finished off with giving the whole floor a coat of red oxide and put some seam sealer on the joints
Next job is to give the underside of the boot floor a coat of underseal and them get the fuel tank and tank guard back in
Each end looked like this
But the kit comes with two of these bits to finish off the job properly

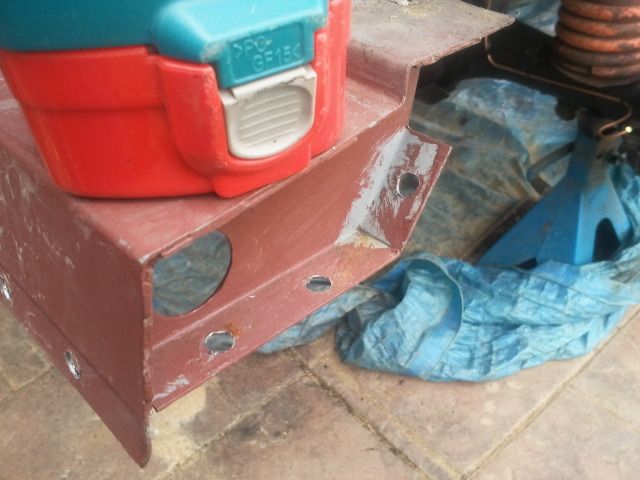

Time to drill a few hole for plug welding
Holes cleaned up

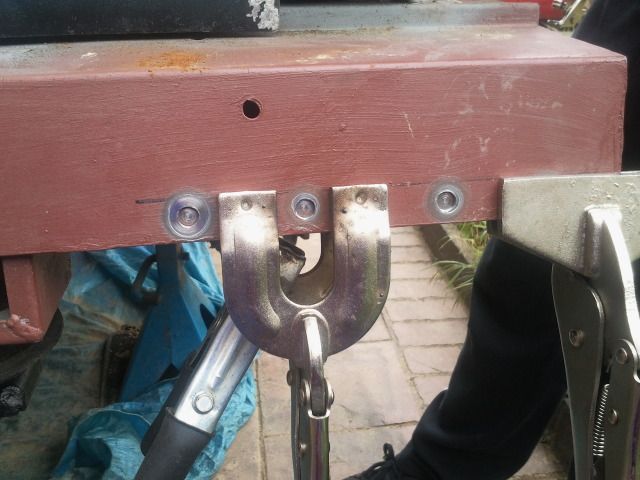

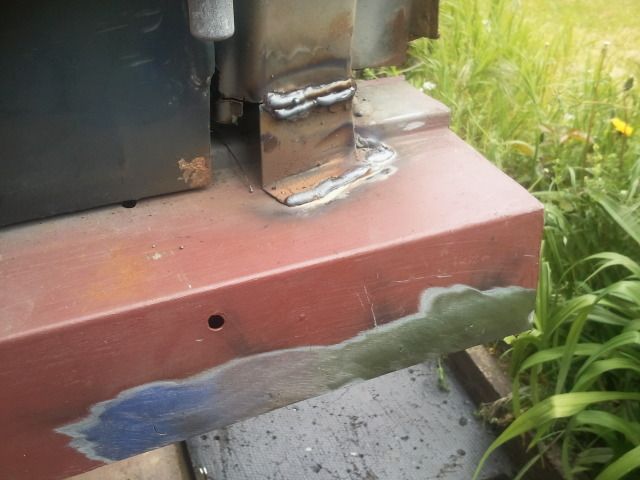

Plug welded and dressed back

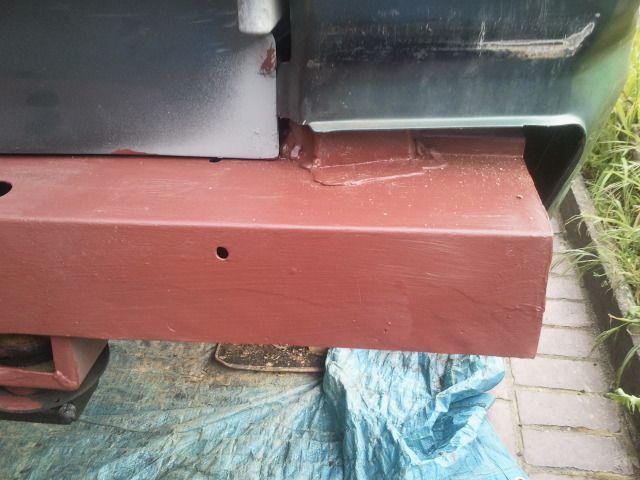

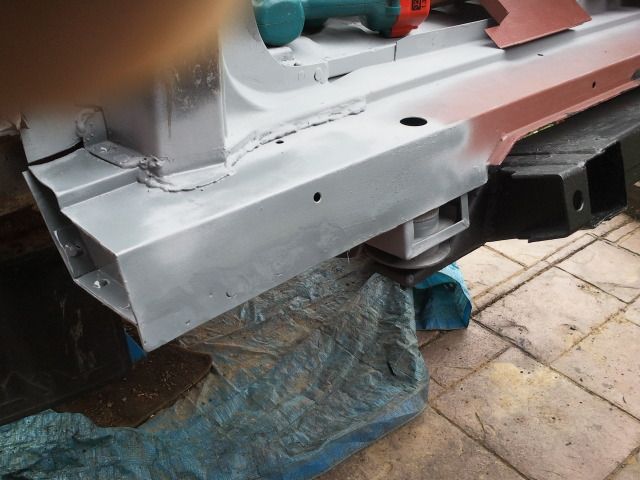

Quick coat of zinc primer

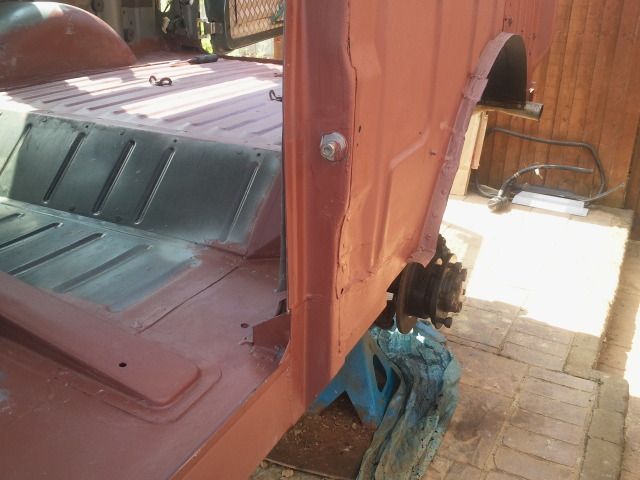

Also had to rebuild the bottom of the door pillar
Repair finished
Finished off with giving the whole floor a coat of red oxide and put some seam sealer on the joints
Next job is to give the underside of the boot floor a coat of underseal and them get the fuel tank and tank guard back in
Final update for the weekend
..

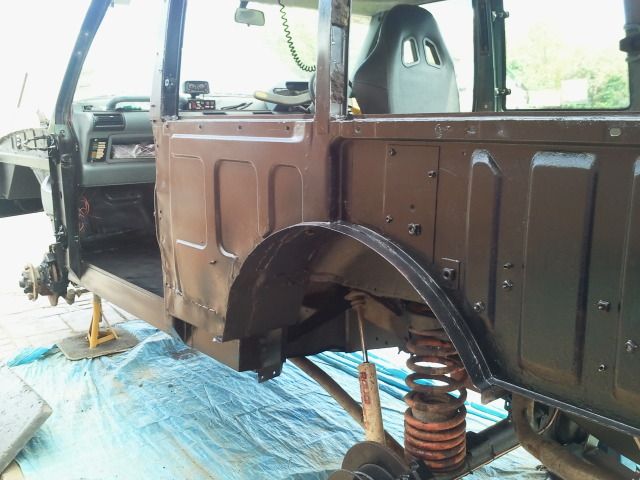

With the welding finished on the passenger side and the cross member I thought it was time to get some paint on it

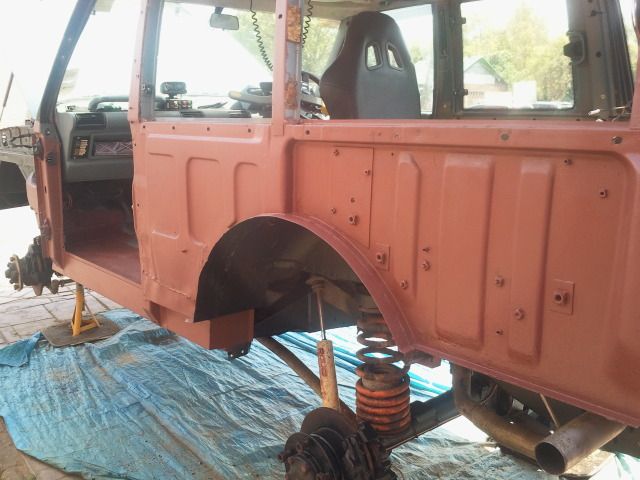

Took the front wing, door and rear quarter back off and gave it all another coat of primer.

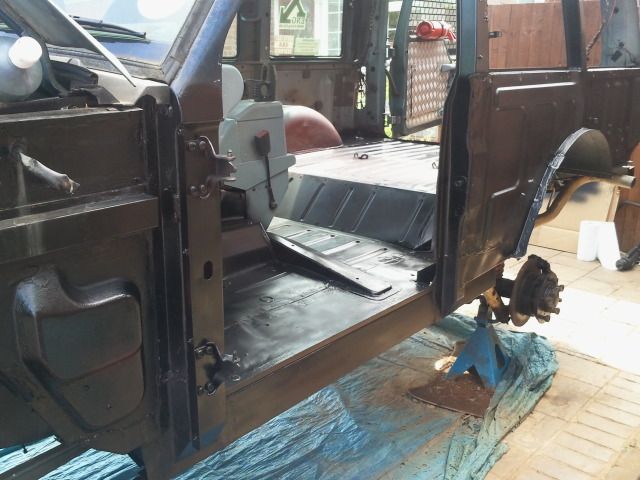

Followed by a couple of coats of black to neaten everything up.

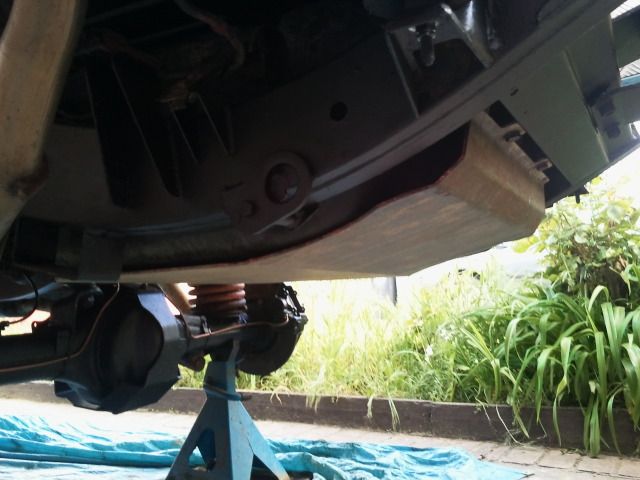

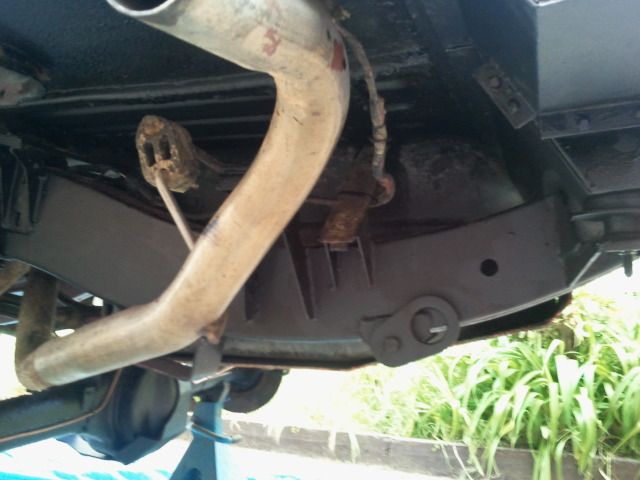

And then having treated the underside of the boot floor it was time to get the fuel tank back in and refit the tank guard (very heavy!!)
Feels like I am making real progress now .
With the welding finished on the passenger side and the cross member I thought it was time to get some paint on it
Took the front wing, door and rear quarter back off and gave it all another coat of primer.
Followed by a couple of coats of black to neaten everything up.
And then having treated the underside of the boot floor it was time to get the fuel tank back in and refit the tank guard (very heavy!!)
Feels like I am making real progress now .
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Yeah man thats the ****
Yeah man thats the ****
I presume that means you like it? :hysterically_laughi
b3nc123
Active Member
- Posts
- 227
- Location
- Derbyshire
Fantastic effort on the landy mate, looking really good!
Cheers mate, much appreciated
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
snapeo29
New Member
- Posts
- 10
- Location
- northwich cheshire
hi just joined the site today and found the work you have done is great and the info very helpful inspired me to do mine keep up the good work
Thanks mate, that's what this site is all about. I read several posts by others detailing their work and it inspired me to give it a go too and to share how I did it.
Now you need to:
1. Get yourself along to the introductions section and post a bit about you and your motor. Don't forget a pic too:welcome2:
2. Enter your location in your profile so we know where you are
3. Make a start on your motor and posts details
andrewblueboy
Active Member
- Posts
- 245
- Location
- bolton
excellent thread well done
Thank you, glad you like it
SmileySteve
Well-Known Member
- Posts
- 1,423
- Location
- Dumfrieshire
Great stuff! Love these rebuild threads, lots of graft but looking great, be proud mate really nice job, this will be so rewarding, last many years :crazy_driver::5bhurray:
