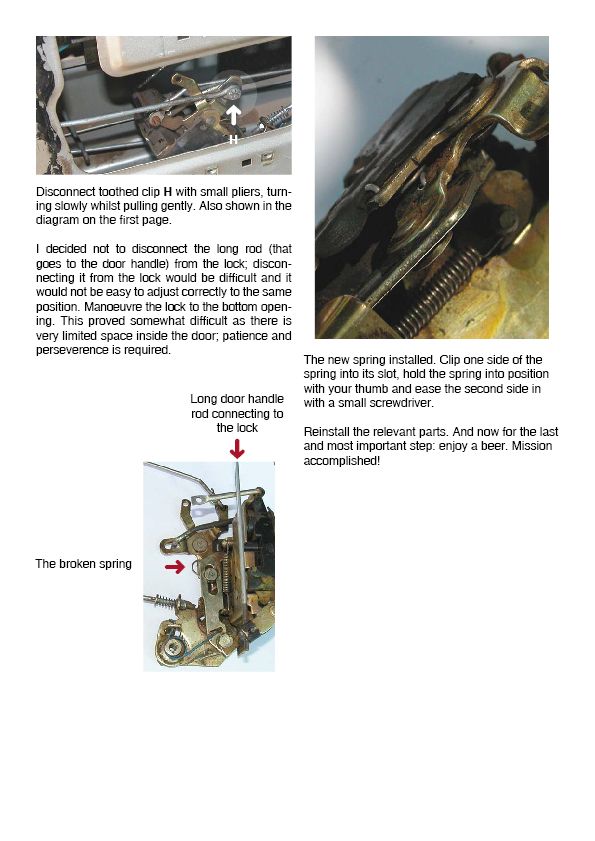

Disco Door springs How-to...
- Thread starter lerk
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
lerk
New Member
- Posts
- 1,763
- Location
- Creswell, Derbyshire UK
Maintenance Boy
New Member
- Posts
- 6
- Location
- Suffolk
Cheers Lerk,
Just finished the boot lock on my disco. Handle had seized and the spring had snapped. Pics etc were great help. Got a kit of five off ebay. Just the four doors to do now and maybe the central locking will work properly again!!!
Just finished the boot lock on my disco. Handle had seized and the spring had snapped. Pics etc were great help. Got a kit of five off ebay. Just the four doors to do now and maybe the central locking will work properly again!!!
davek0974
Well-Known Member
- Posts
- 4,848
- Location
- Bishops Stortford, Herts.
Anyone got a picture of where the rear lock spring actually sits???
Mine is missing and i have the spring but have no idea where to put it.
Thanks
Mine is missing and i have the spring but have no idea where to put it.
Thanks
Done the passenger front door - took ages ! but works fine now. Also done rear door - much easier now i vaguely know what I am doing. Will finish the rest now
davek0974 - Sorry I dont have a pic of where the spring goes, but if you send a pic of the mechanism out the car, i will try to show you where it goes !
davek0974 - Sorry I dont have a pic of where the spring goes, but if you send a pic of the mechanism out the car, i will try to show you where it goes !
davek0974
Well-Known Member
- Posts
- 4,848
- Location
- Bishops Stortford, Herts.
Done the passenger front door - took ages ! but works fine now. Also done rear door - much easier now i vaguely know what I am doing. Will finish the rest now
davek0974 - Sorry I dont have a pic of where the spring goes, but if you send a pic of the mechanism out the car, i will try to show you where it goes !
Dont worry
it's all done now, another job off the listThanks anyway
Dave
One thing witht he front doors, make sure the glass is FULLY rasied and undo the frame retating bolts. you can lift the frame clear and it gives you better access. After now pretty much doing all 5 (between mine and my bruv's disco) we have become quite experts, so far we have replaced nealry 20 over the last few months with mates disco's to. i will say tho, the tailgate can be fiddly with all the added trims and the connecting rods. If anyone esle needs help please ask Rob
- Posts
- 83,299
- Location
- Embasinga stocæ
And how do you think replacing the door springs will help? Start a new thread.
It might be a slitty or a Gaylander, so perhaps he was right to ask about door springs?
- Posts
- 83,299
- Location
- Embasinga stocæ
door springs eternal? .
2002 td5 Disco !!!
.2002 td5 Disco !!!
door springs eternal?
2002 td5 Disco !!!
You can come and do mine anytime.
I am on ONE door that opens properly, and it isn't the driver's door.
Must get a set of springs soon.
wasnt sure how to start a new thread.. and thought after reading you guys were hands on and thought maybe if any one could help it would be you, it would seem however that i was wrong, i do apologise if i have offended any one, after much searching i discovered that it was a broken pipe that feeds the egr, so bought the blanking kit and removed egr runs fine now , but thanks all the same
- Posts
- 83,299
- Location
- Embasinga stocæ
see post #52
davesnapeuk
New Member
- Posts
- 18
- Location
- Llanelidan
Cracking set of instructions.
Got my springs. Replaced them on the back door and it's great - apart from also having a lazy motor that occassionally can't be arsed to push up the rod to release the lock. Maybe I'll soak it in WD40 and see if that helps
Got my springs. Replaced them on the back door and it's great - apart from also having a lazy motor that occassionally can't be arsed to push up the rod to release the lock. Maybe I'll soak it in WD40 and see if that helps
finallysnapped
Well-Known Member
- Posts
- 1,127
- Location
- East Lothian
Did my front passenger door today and most of it was nice and straightforward, my two tips though are.
1) If you have two torx screws holding the window frame at the top (apparently some have bolts some have torx) get yourself a torx bit set because its a lot lot easier to get into the inside of the door with a bar or ratchet.
2) I found it easier to remove the interior door handle completely so you pull the mechanism out with most of the rods still in place, saves your sanity trying to undo them all while it's in the door and gives you less to worry about putting back together when re-fitting.
Really rewarding job to complete but can be a major pain in the hole unclipping the rods to get the mechanism out.
1) If you have two torx screws holding the window frame at the top (apparently some have bolts some have torx) get yourself a torx bit set because its a lot lot easier to get into the inside of the door with a bar or ratchet.
2) I found it easier to remove the interior door handle completely so you pull the mechanism out with most of the rods still in place, saves your sanity trying to undo them all while it's in the door and gives you less to worry about putting back together when re-fitting.
Really rewarding job to complete but can be a major pain in the hole unclipping the rods to get the mechanism out.
