Detailed instructions for fitting Mazda RX8 seats needed

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

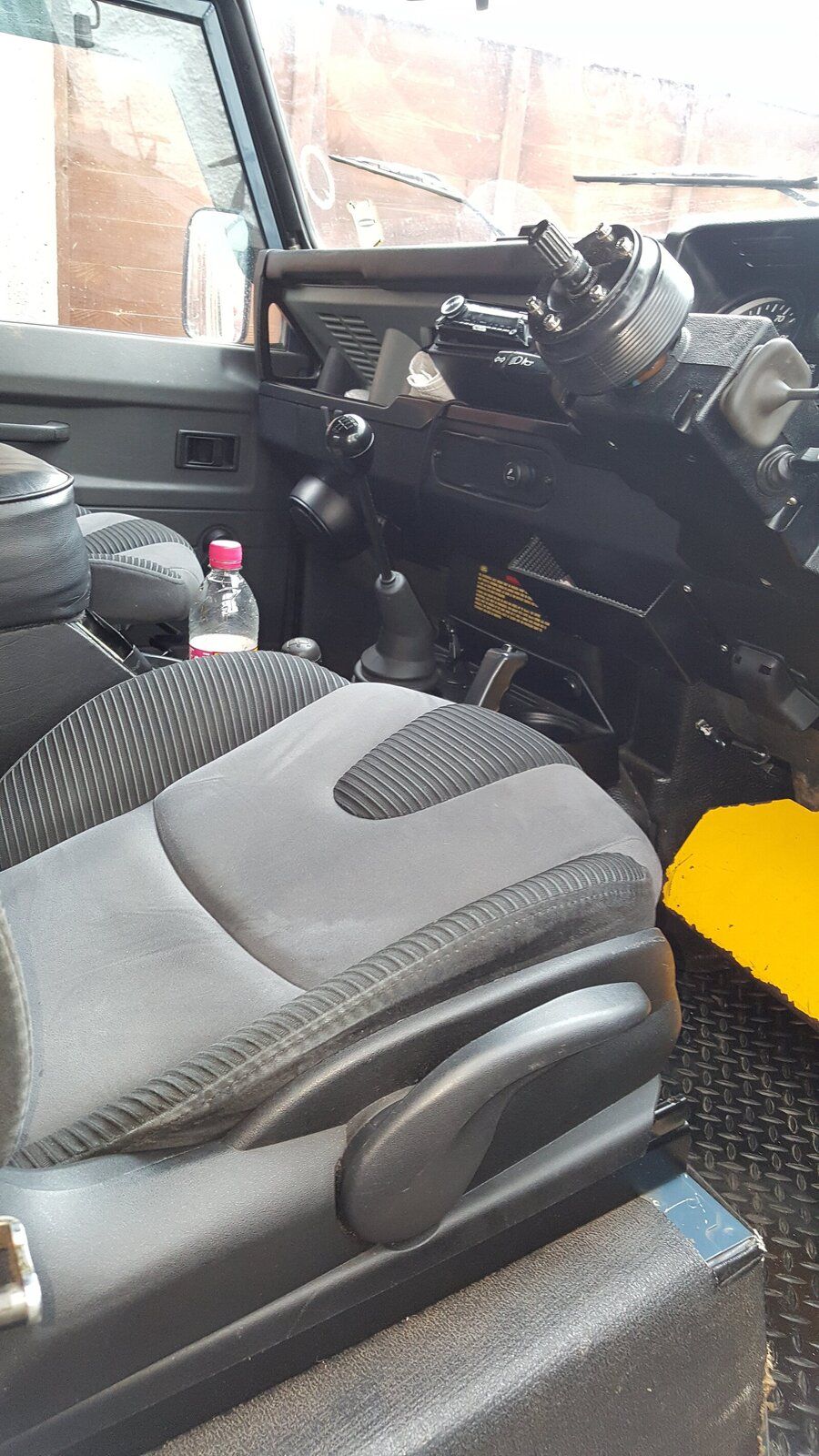

Just followed these instructions and we'll pleased with my new seats. Paid £50 on ebay for them.


I'll PM you the number of the bloke I got mine from, he breaks RX8s solely and has loads and can get more. I paid £100 for mine including the 2 rears which you can sell on.
Do you know If those back seats will fit into a 110CSW? If I could have his number that would be lovely please?

Here you go Mate try and expose some wire and use this guide below to work out which is which. One thing I did suss out with these seats is that they go so far forward that you don't need to remove the seat base to access the boxes beneath for battery and jack etc.


Seat Motion
Grey - +12v
Purple - Ground

Lumbar
Yellow w/red stripe - +12v
White w/yellow stripe Ground

Seat Heater
Blue - +12v

Passenger seat
Seat heater
Red +12v
Black - ground

Heated seats work, 12v is 12v, just have a on off switch in line so they do not burn out
Great post this, just got some RX8 seats so planning how to go ahead and fit/wire them up.
I have identified those wires quoted above, but what are all the other wires for. I see the yellow plug for the airbag, but there are still several others going into the main plug, what are they for?
Also what about the airbag? Does it need to be removed? Will it go off in a crash, or worse when off roading?
