Def 90 Sw tdi my 2004 Head lamps

blizzy2010 · Oct 28, 2022

Hi Sirs, i have a problem with the external head lamps, please could someone be so kind telling me where the Realy "R 123" is located ?
Thank you very much in advance for your help

miktdish · Oct 28, 2022

~~What model and year of Defender do you have ?~~

Sorry, I just rear the message not the title --- DoH !

Does this help .. https://www.lrworkshop.com/electrics/components/defender-2002my/R123

blizzy2010 · Oct 28, 2022

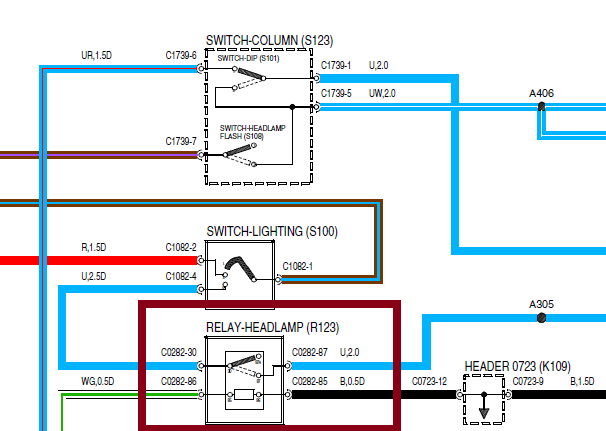

Ok i have seen the diagram but this R123 Relay but where is it phisically placed ?
Thanks a lott

miktdish · Oct 28, 2022

On my 300tdi it is in the fuse box in front of the gearstick in the cabin ... I think the TD5's are the same ... sorry I can't be more specific

slomofo · Oct 28, 2022

Don’t recognise Relay 123 on that diagram, but Headlight relay lives on the fuse box in front of the gearstick in the cab

https://www.lrworkshop.com/connectors/defender-2002my/C0282

Scooby22 · Oct 30, 2022

Relay 4 under fuse box, 4th from left.
