12ustySALLY
Member
- Posts
- 14
- Location
- Ct51sf
Thankyou. I will try with the mulitmeeter today..
And
I think it's just the picture. But I will double check that.!
Sorry I had shakey hands. It was cold.!
Disco 1 Can Any One Help
- Thread starter 12ustySALLY
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
And
I think it's just the picture. But I will double check that.!
Sorry I had shakey hands. It was cold.!
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON
12ustySALLY
Member
- Posts
- 14
- Location
- Ct51sf

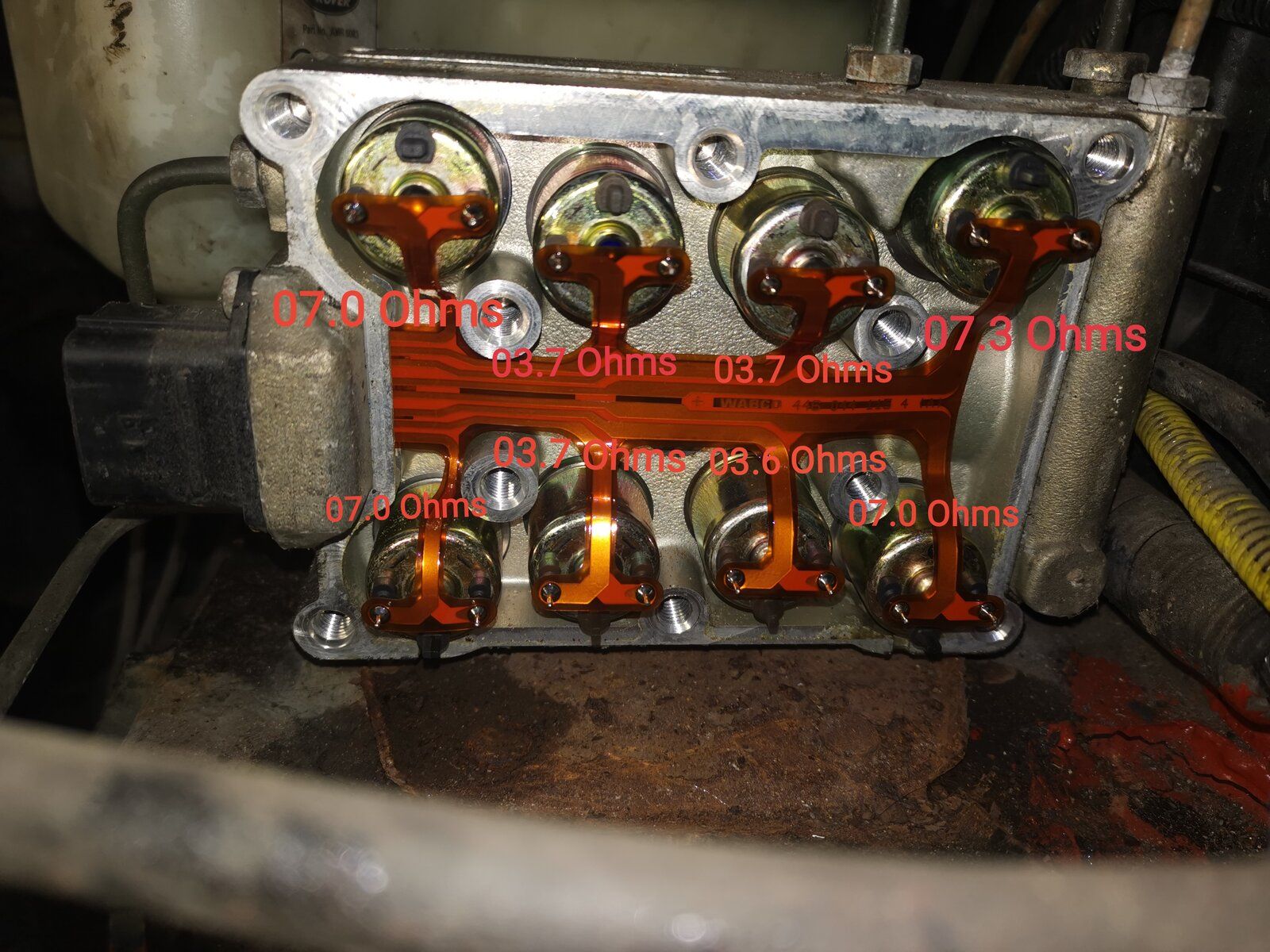

This was the results. With the Multimeter.
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON
sierrafery
Well-Known Member
- Posts
- 17,911
- Location
- Arad/Romania

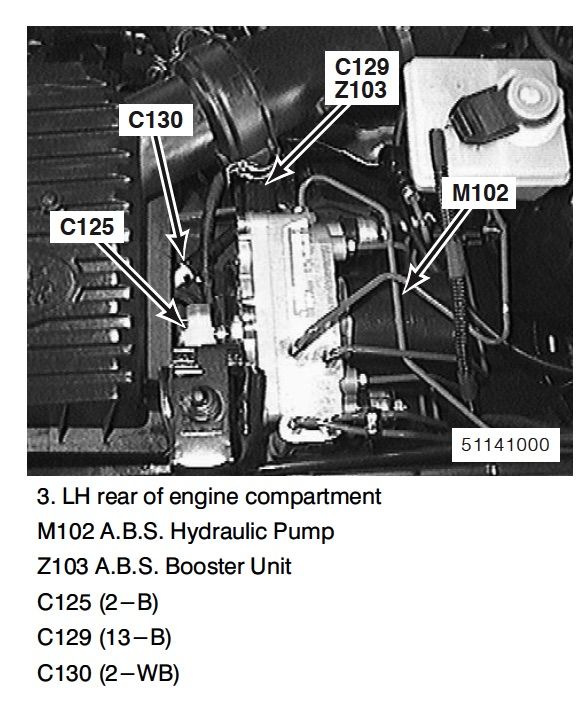

You said that the pump's fuse is blowing so the solenoid's resistance is irrelevant, the pump is connected to C125 confirmed by the first diagram posted by @mystery, watch the left side of the scheme in post #15 to see where the 40A(MF6) fuse is connected while you measured the resistances of the solenoids which are in the yellow box at the right bottom side of the diagram but if you didnt disturb that plug it might be a short in the harness which went way as you fiddled with it there
Last edited:
12ustySALLY
Member
- Posts
- 14
- Location
- Ct51sf
Okay, Thankyou. I will be checking all wires again and again today . And with multi meter too.
The new Abs sensor came too so popped that In along with a few dash bulbs that where missing..
Yesterday I unplugged the booster unit and pump.
Powered each solinoid with 9v.battery to actuate them..a cople Times each. That worked..
Took a small 12v battery to pump. That worked..
Pluged all back in.
Now the 40a fuse hasn't seemed to blow Yet.
So decided to do another blink test.
Got New code.
2-3 RCP Failure 2.
1.35a fuse
2.pump conector
3.pump relay (doesn't switch on)
sierrafery
Well-Known Member
- Posts
- 17,911
- Location
- Arad/Romania
Seems very like that ECU is fubar too or there's some wiring issue somewhere in the harness, at this stage the troubleshooting needs a diagnostic tool to watch live inputs as the randomness of those blink codes is not helping at all
