Sleep well.
Broken down in 300tdi in Uttoxeter!
- Thread starter Mr Noisy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Just got home!
Kin ell!
Kin ell!
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Thanks again for the attention tonight folks, shame it couldn't be a LZIR jobby...
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
Thanks again for the attention tonight folks, shame it couldn't be a LZIR jobby...
do you feel let down ?
haigy
Well-Known Member
- Posts
- 1,277
- Location
- Crewe cheshire
You should have gone in starbucks and waited or burger king mate
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
No, it's just a shame we couldn't do our thing, everyone likes a LZIR success story
- Posts
- 7,332
- Location
- Under my landy
Friend just text back saying he can bring tools down... bit late now I guess, sorry!!
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
So fixed the disco this morning, quite simple really

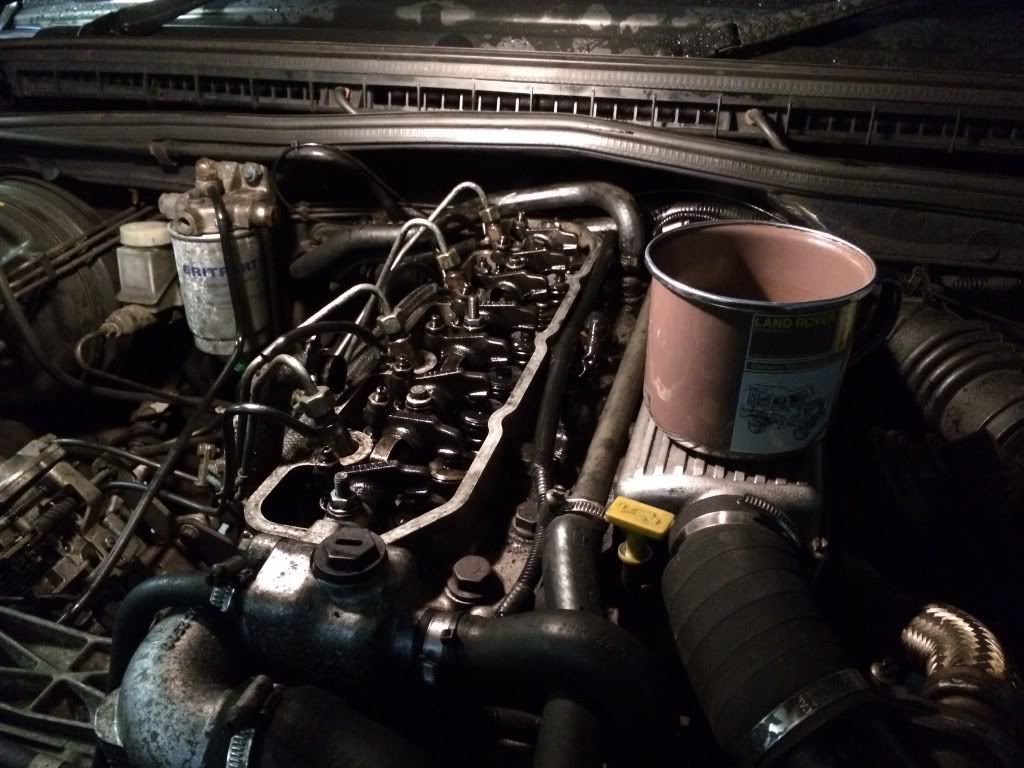

First job, get a brew on the job...
Pulled out rocker shaft, snapped underneath no4 pedestal, clean break around the bolt.
This gave access to the no5 pedestal hole which was indeed stripped
Ran a tap down it and to my joy I found the hole was deeper, much deeper in fact than the stud was long!
So, I thought a fix was on the horizon!

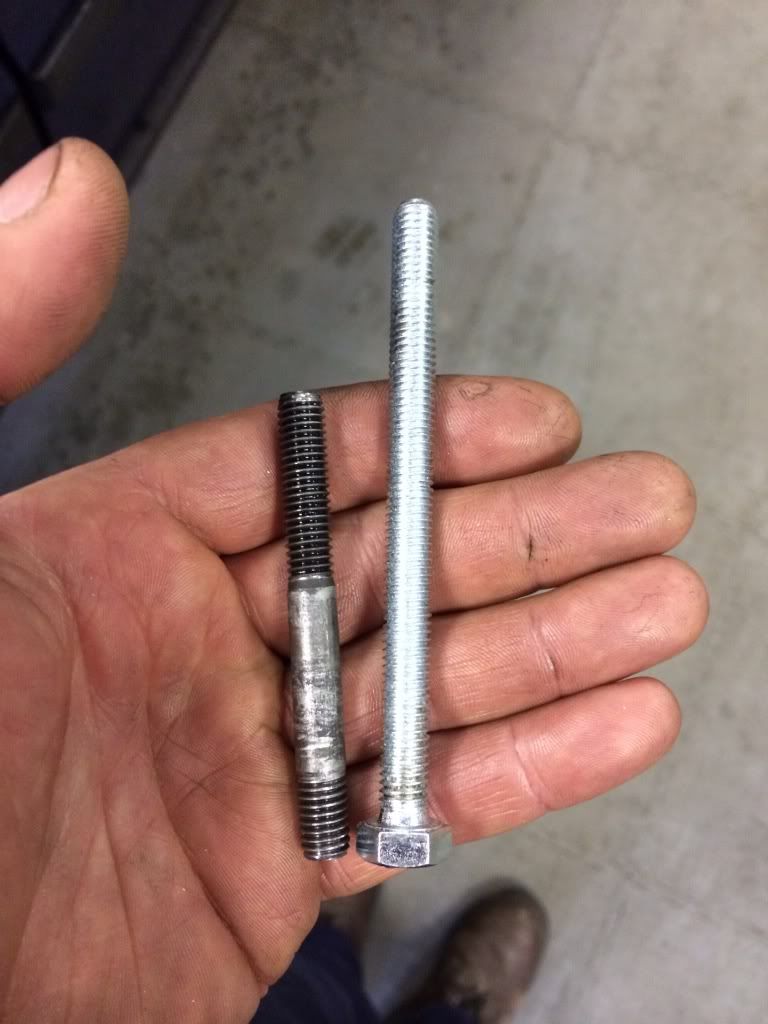

Got a bolt, m8x1.25 x100mm - must be 8.8 grade or better!

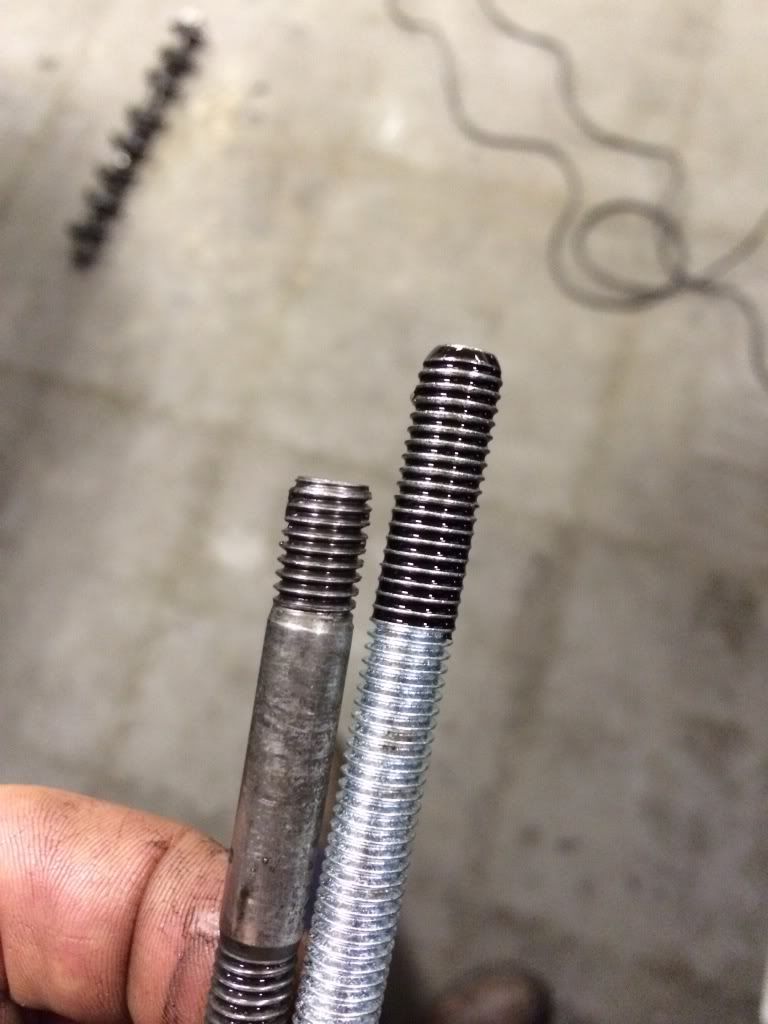

Ran the bolt into the hole and luckily it was oily so it showed the depth nicely...
This demostrated the difference!
Cut the bolt into a stud at the correct length to screw all the way into the head.
And that was it, job done
Throw it back together and we're good
Now, if you're a high mileage or long distance/overland user, I'd recommend doing this mod to all 3 studs at least and maybe the 2 bolts aswell!
Cheers, Sam
First job, get a brew on the job...
Pulled out rocker shaft, snapped underneath no4 pedestal, clean break around the bolt.
This gave access to the no5 pedestal hole which was indeed stripped
Ran a tap down it and to my joy I found the hole was deeper, much deeper in fact than the stud was long!
So, I thought a fix was on the horizon!
Got a bolt, m8x1.25 x100mm - must be 8.8 grade or better!
Ran the bolt into the hole and luckily it was oily so it showed the depth nicely...
This demostrated the difference!
Cut the bolt into a stud at the correct length to screw all the way into the head.
And that was it, job done
Throw it back together and we're good
Now, if you're a high mileage or long distance/overland user, I'd recommend doing this mod to all 3 studs at least and maybe the 2 bolts aswell!
Cheers, Sam
- Posts
- 83,299
- Location
- Embasinga stocæ
stud hadn't been put in wrong way around?
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
No because you need the longer part on top, it holds the pedestal first with 1 nut then the rocker cover on top with second nut!
easye1
Banned
- Posts
- 8,557
So fixed the disco this morning, quite simple really
First job, get a brew on the job...
Pulled out rocker shaft, snapped underneath no4 pedestal, clean break around the bolt.
This gave access to the no5 pedestal hole which was indeed stripped
Ran a tap down it and to my joy I found the hole was deeper, much deeper in fact than the stud was long!
So, I thought a fix was on the horizon!
Got a bolt, m8x1.25 x100mm - must be 8.8 grade or better!
Ran the bolt into the hole and luckily it was oily so it showed the depth nicely...
This demostrated the difference!
Cut the bolt into a stud at the correct length to screw all the way into the head.
And that was it, job done
Throw it back together and we're good
Now, if you're a high mileage or long distance/overland user, I'd recommend doing this mod to all 3 studs at least and maybe the 2 bolts aswell!
Cheers, Sam
a good fix mate - impressed.
its one to remember for this old boy, just incase....
disco300tdidom
New Member
- Posts
- 154
- Location
- De da land aka Sheffield
Top job mate. I'll be doing this repair on mine today! How much did you pay for the rocker shaft?
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Nothing cos it's still got the broken one in there!
disco300tdidom
New Member
- Posts
- 154
- Location
- De da land aka Sheffield
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Looked at it and it was a tidy break halfway through the pedestal so plenty of purchase still
Was in the mood for throwing it back together and using the car rather than waiting for parts that I don't need so that's what I did
Was in the mood for throwing it back together and using the car rather than waiting for parts that I don't need so that's what I did
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Wouldn't do it on my v8 mind but the tdi is more of a workhorse for us and receives minimal expenditure (so I can waste it all on the off-roader!)
disco300tdidom
New Member
- Posts
- 154
- Location
- De da land aka Sheffield
I've sourced a new rocker shaft for £20 and im picking it up tomorrow so 'fixits' are coming out. Interestingly after removing my rocker shaft today its in 4 pieces! And its also missing 2 valve caps! But at 25p each im replacing all 8 anyway just a bit worried on where they've gone. Ive searched everywhere for them, push rods out nope not there. .........
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Maybe they were never there?
Or they've trickled into the sump where tbh they'll be safe
Mine have always luckily sat in the head (cambelt went once and we ran it for months without knowing it had ultra bent pushrods and 10mm of valve clearance!)
Good luck!
Or they've trickled into the sump where tbh they'll be safe
Mine have always luckily sat in the head (cambelt went once and we ran it for months without knowing it had ultra bent pushrods and 10mm of valve clearance!)
Good luck!
disco300tdidom
New Member
- Posts
- 154
- Location
- De da land aka Sheffield
Im guessing they've been off for a while now because I had to adjust the tappets a couple of months ago so I should of checked then! I've done an oil change since then so fingers crossed they came out then!
10mm jesus. Surely it was tapping like hell??
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
It was bizarre
Did timing belt
Idler failed within 15 minutes, teeth slipped etc etc
Fitted another timing belt kit, timed up, all good
Ran the car for months and decided to do valve clearances whilst it was in
Checked them and found pushrods like cheesestrings
God knows how it was even running but I guess that's why it failed the emissions that year on the mot (had to bodge it through on a diesel/petrol blend after cleaning inlet and de-egr etc didn't help)
At the time I didn't know pushrod damage needed checking on these engines that's why I didn't look
Just assumed it was ok seeing as it was running!
Anyway so after some trials and tribulations it's been a good old motor
Did timing belt
Idler failed within 15 minutes, teeth slipped etc etc
Fitted another timing belt kit, timed up, all good
Ran the car for months and decided to do valve clearances whilst it was in
Checked them and found pushrods like cheesestrings
God knows how it was even running but I guess that's why it failed the emissions that year on the mot (had to bodge it through on a diesel/petrol blend after cleaning inlet and de-egr etc didn't help)
At the time I didn't know pushrod damage needed checking on these engines that's why I didn't look
Just assumed it was ok seeing as it was running!
Anyway so after some trials and tribulations it's been a good old motor
