You sure, ops pic looks like std 10 inch set up! exclamation mark for Kurts benefit.
Bloody Brake Shoes
- Thread starter border
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
You sure, ops pic looks like std 10 inch set up! exclamation mark for Kurts benefit.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

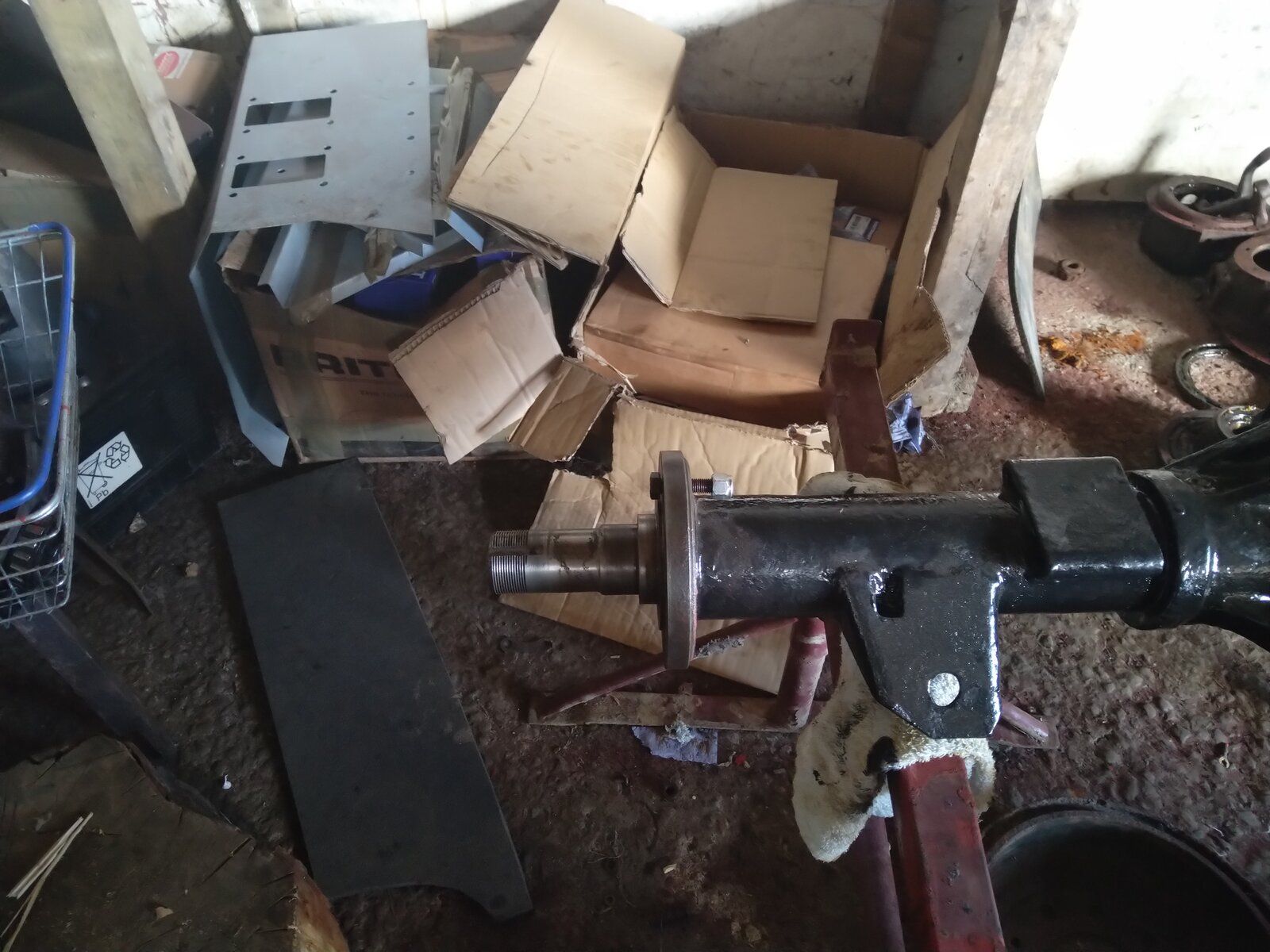

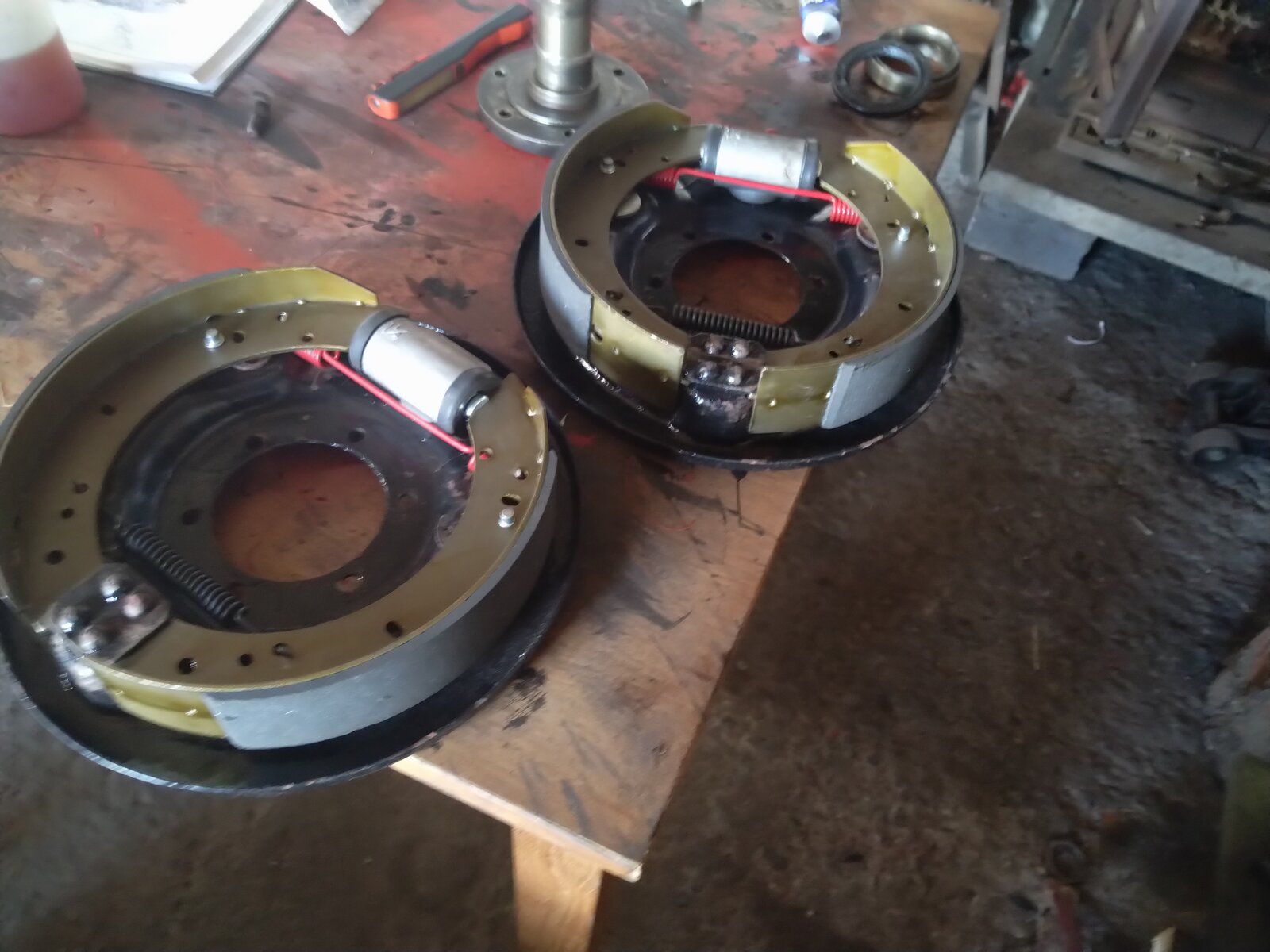

Got the dam things on right way as in leading edge ect but still not right,. Just gonna leave them as is for now and start getting axle built by back up. Anyone know what torque setting for bolts that go through backing plates and stub axle on to main axle ?? On with it now so might be more questions if yous don't mind.
Attachments
tottot
Well-Known Member
- Posts
- 8,028
- Location
- west wales coast
That was me Col, It was a while before I found the front axle had left hand back plates both sides !
tottot
Well-Known Member
- Posts
- 8,028
- Location
- west wales coast
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Well took the bas!!!d things off so I could get on with rebuilding the rest of axle, But what a Nightmare Im having now. Gonna post another thread soon.
Thanks everyone so far
Thanks everyone so far
Two adjusters, not the normal just one on leading shoe.
I must be missing soemthing then as the ops pic is standard 10 brake set up with one cylinder for both shoes?
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Rears have 1 cylinder each side fronts have 2 each side.
tottot
Well-Known Member
- Posts
- 8,028
- Location
- west wales coast
If you look at OP's first pic You can see there is no ring fixing at the bottom and that there is an adjuster for each shoe.
Tottot explains it better in his post above.
