Bhudda's 200Tdi Chassis Swap

Paul D · Oct 8, 2017

Sweet. Like the colour ..

TorsionBhudda · Oct 9, 2017

Paul D said:
Sweet. Like the colour ..

Thanks

once the doors go on and roof its going to be multi coloured got Green front doors a Silver rear door and a Green roof. I had planned to respray everything but i've now decided to fit everything and get the Landy back on the road make sure everything works fine etc then respray Grey it next year when funds and time allows.

zeaphod · Oct 9, 2017

Looks like a great build. If I were you I'd get that shiny new wiring loom into convoluted tubing before connecting it up - particularly between where it leaves the chassis and enters the rear tub. You can buy it with a split which makes fitting a doddle.

TorsionBhudda · Oct 9, 2017

zeaphod said:
Looks like a great build. If I were you I'd get that shiny new wiring loom into convoluted tubing before connecting it up - particularly between where it leaves the chassis and enters the rear tub. You can buy it with a split which makes fitting a doddle.

Thanks

I'm all over the tubing I've got quite a few diffrent diameters ordered for that very purpose and for the new wiring when i install the electric windows etc

allan downes · Oct 11, 2017

niiiice i like it coming on great now

TorsionBhudda · Oct 18, 2017

Working locally for a change this week so managed to get a few hours in at night. The big thing is HE's ALIVE!!! Got most off the fluids in still got more coolant to put in but I couldn't wait any longer so joined the two pipes from the Engine to heater matrix with some hose and fired him up. Started first turn but ran like a bag of spanners!! Someone (me) fitted the fuel pipes to lift pump wrong

no wonder I couldn't bleed fuel system

anyway once sorted it ran perfectly

TorsionBhudda · Oct 18, 2017

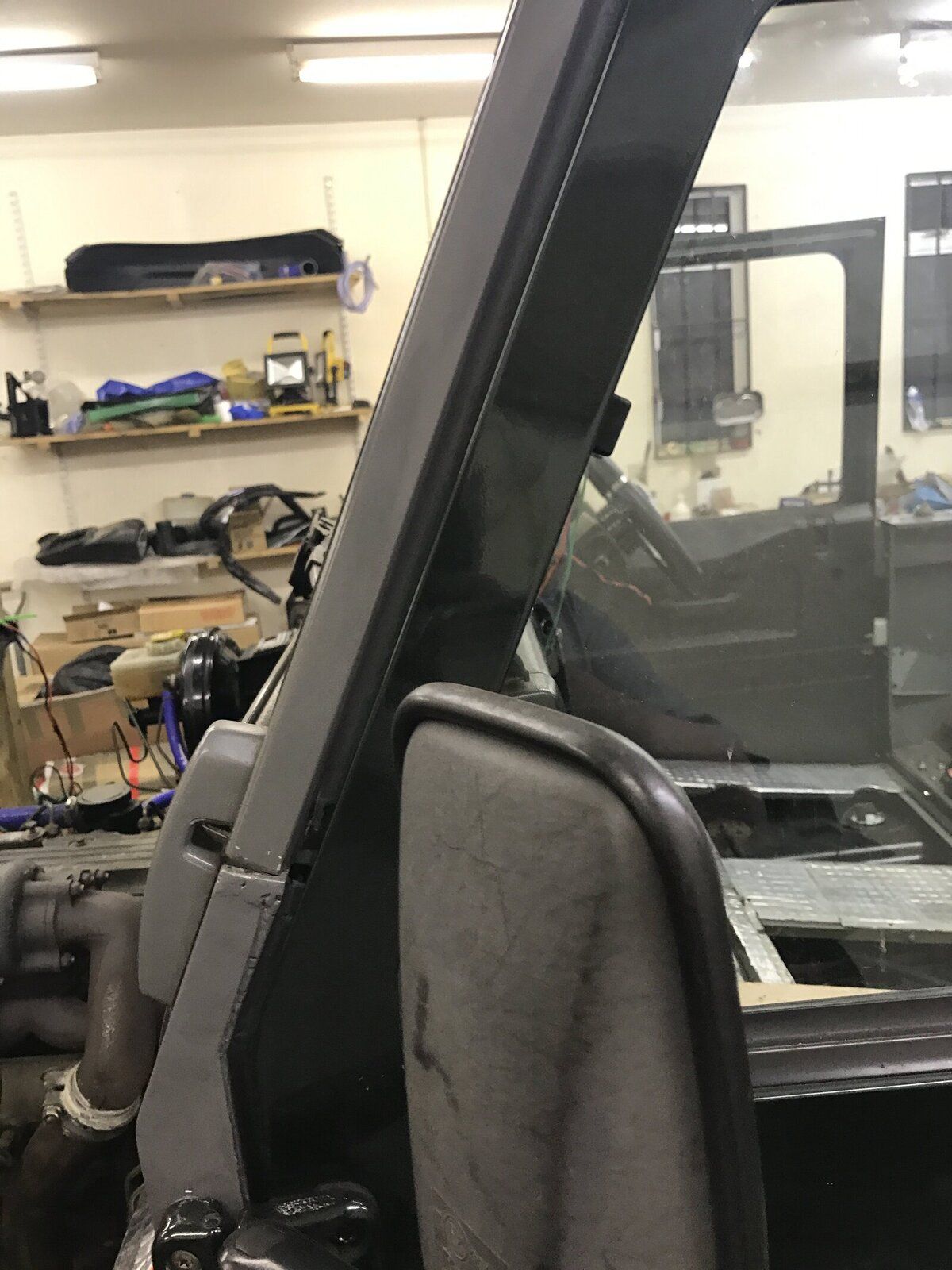

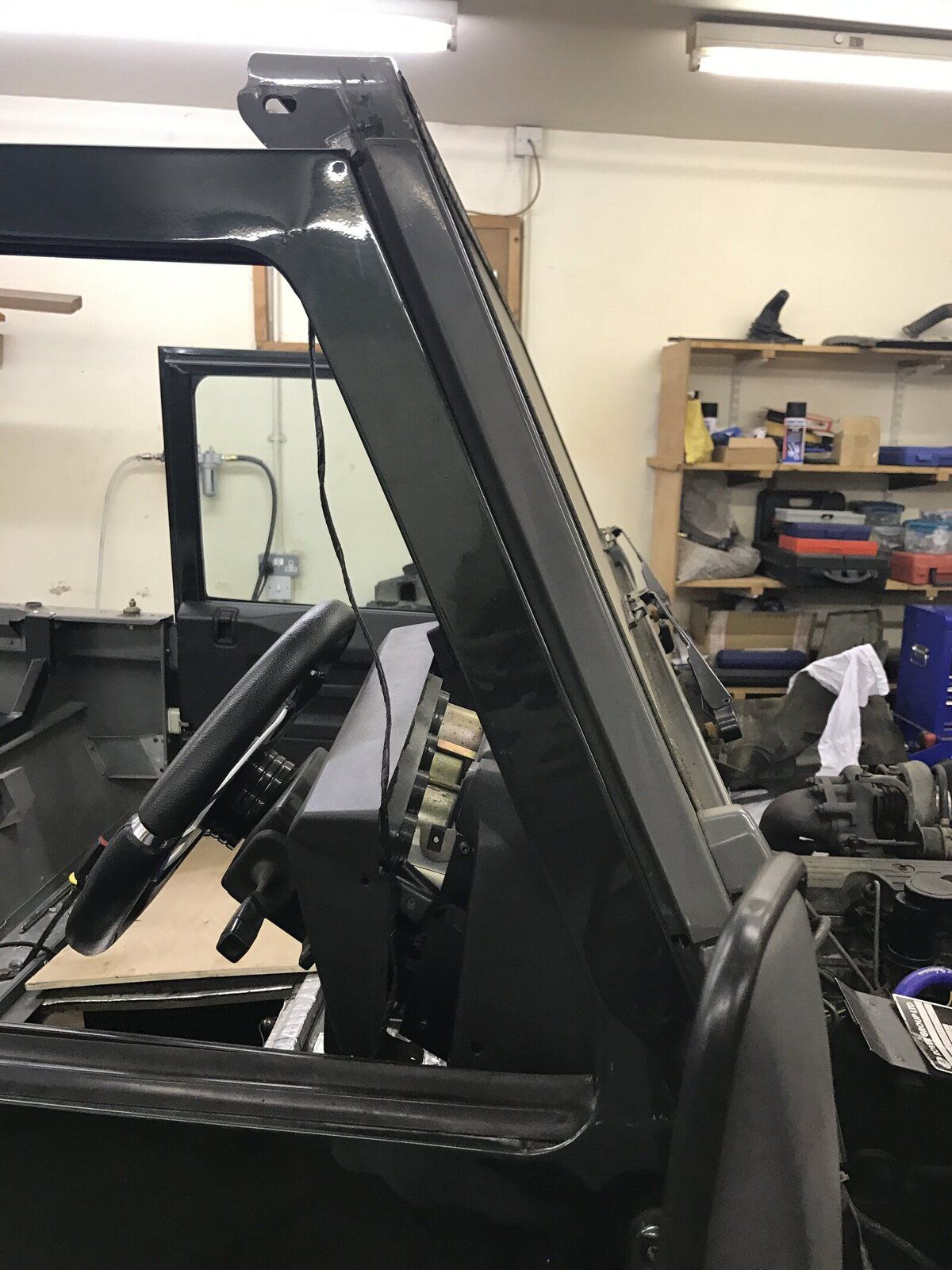

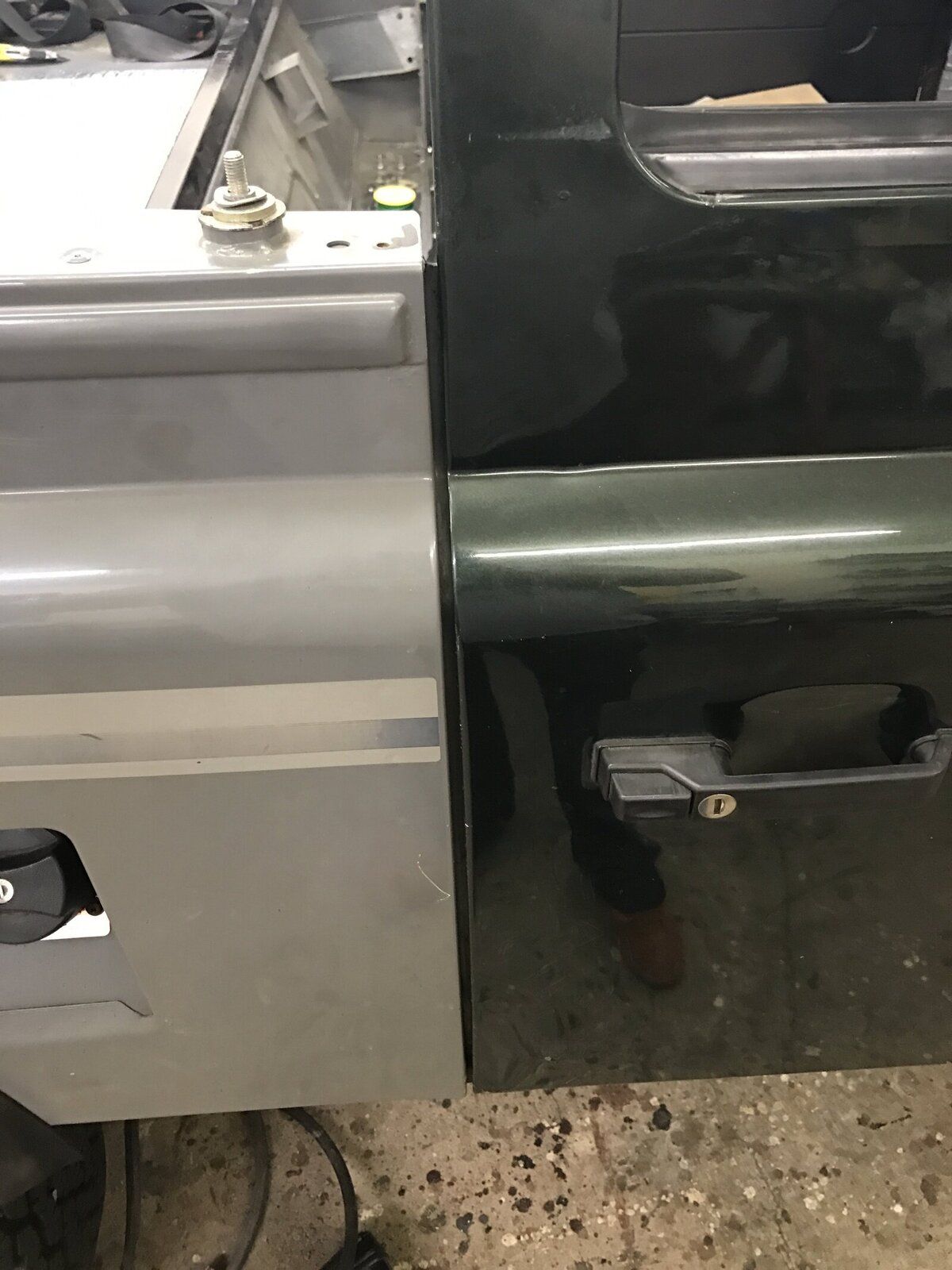

Got the doors fitted they are second hand ones I got at the Scottish Land Rover show they will be painted eventually (next year now) good thing is they ain't rusted out and came with electric windows and the actuators for central locking. Lining the doors up was a baw ache drivers side is almost perfect passengers side feck knows it's as good as we can get it hopefully when roof is fitted we can pull in the gap at windscreen.

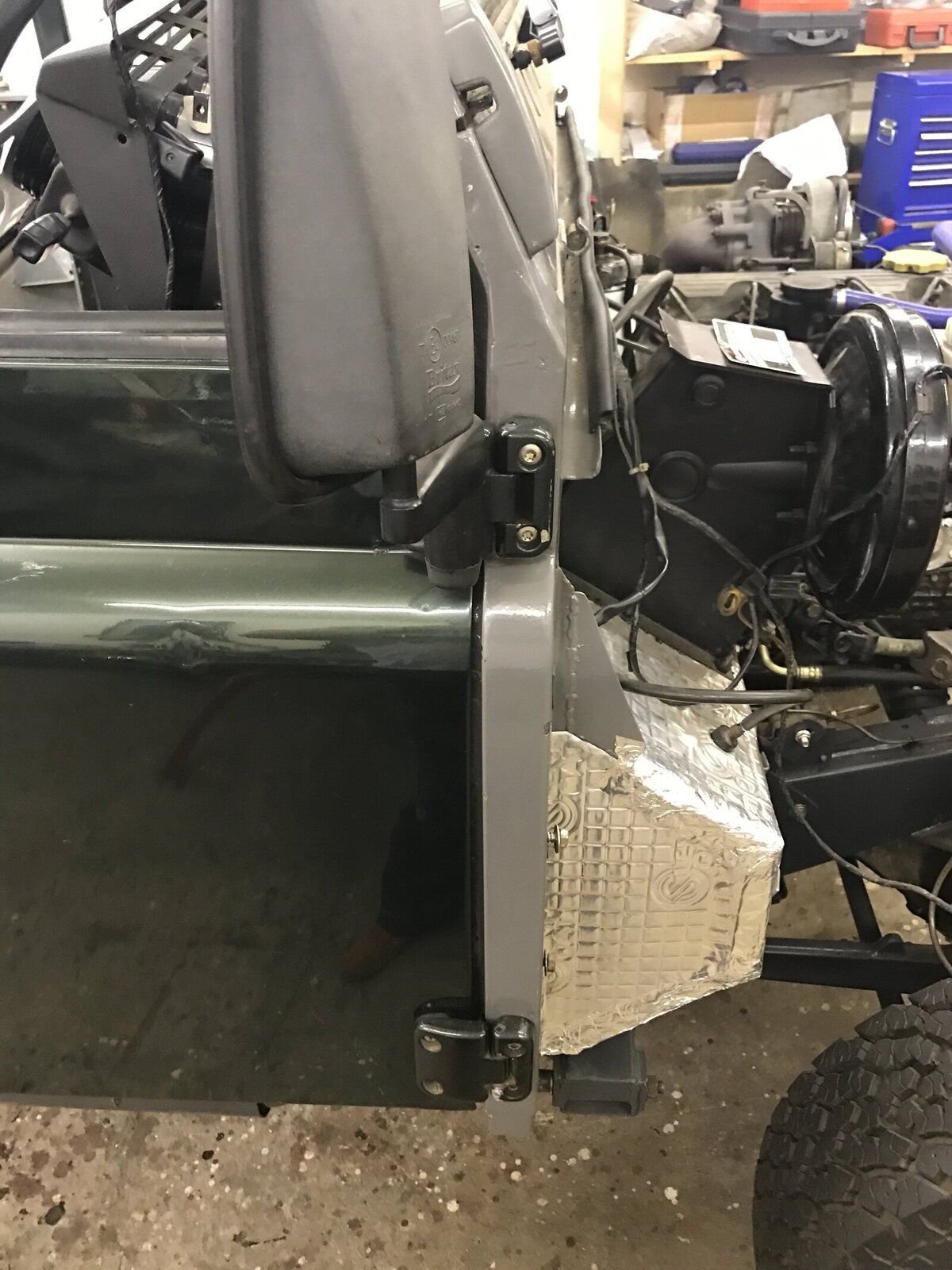

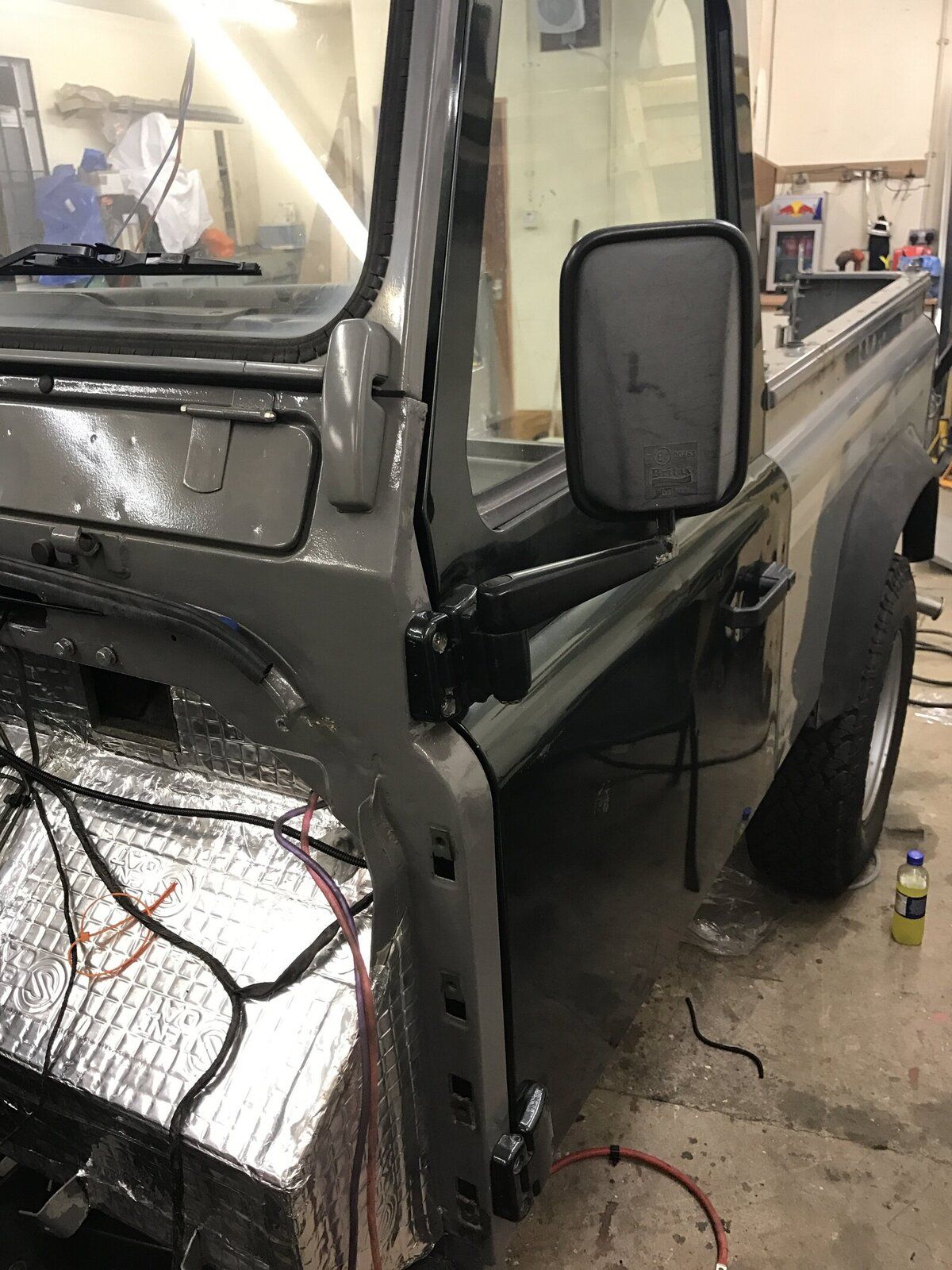

And the drivers door

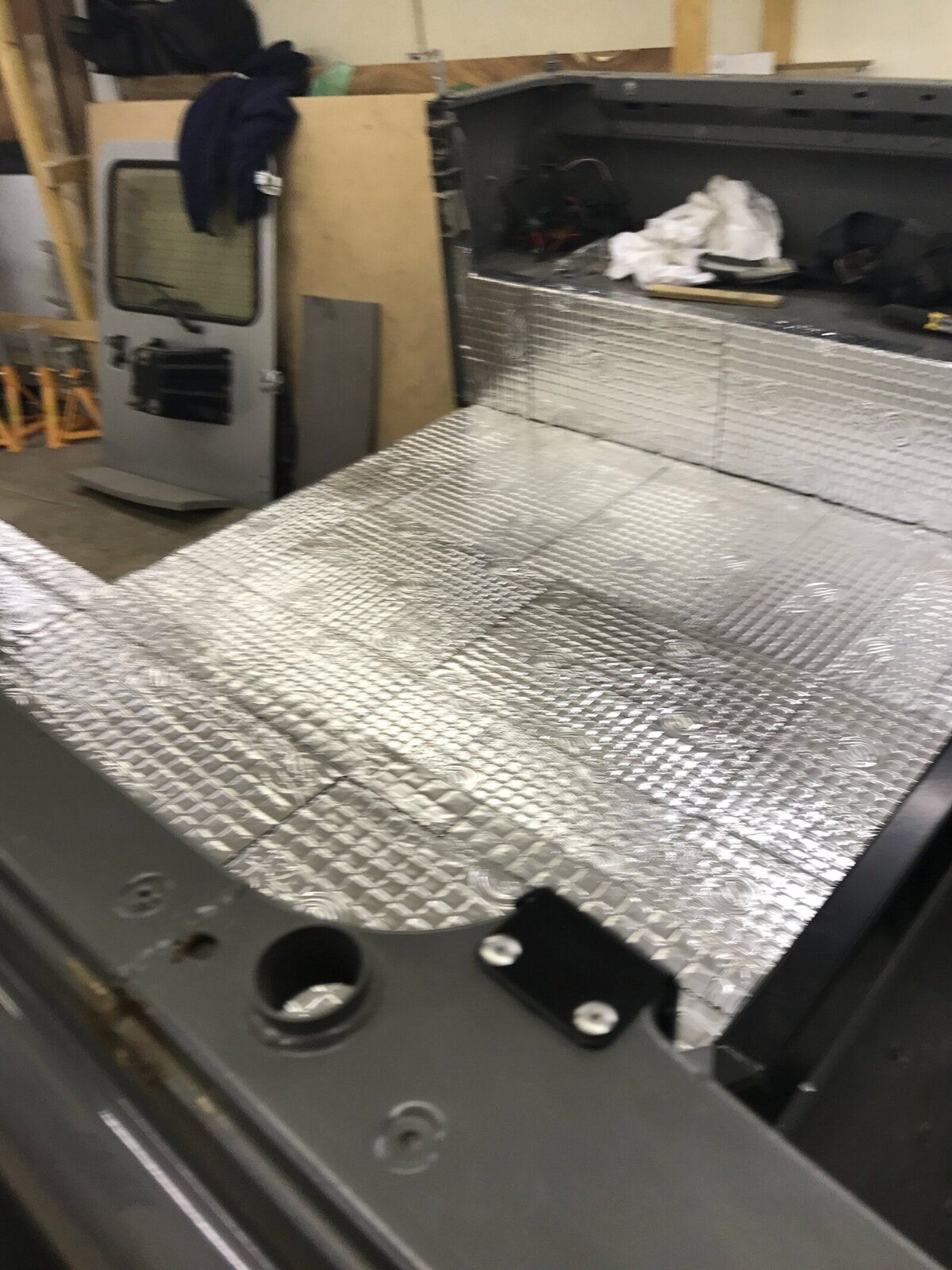

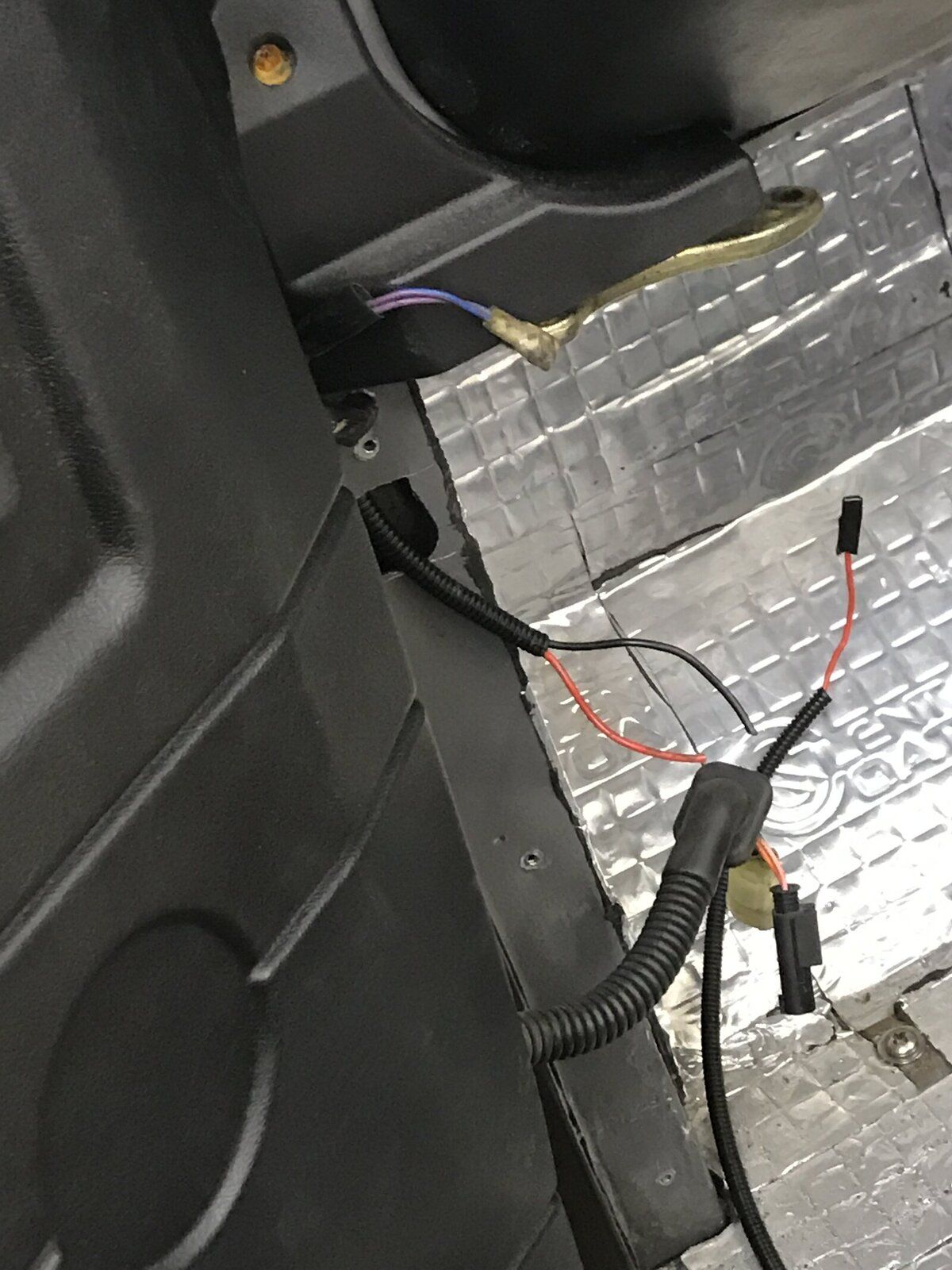

also got the rear tub covered in sound deadening

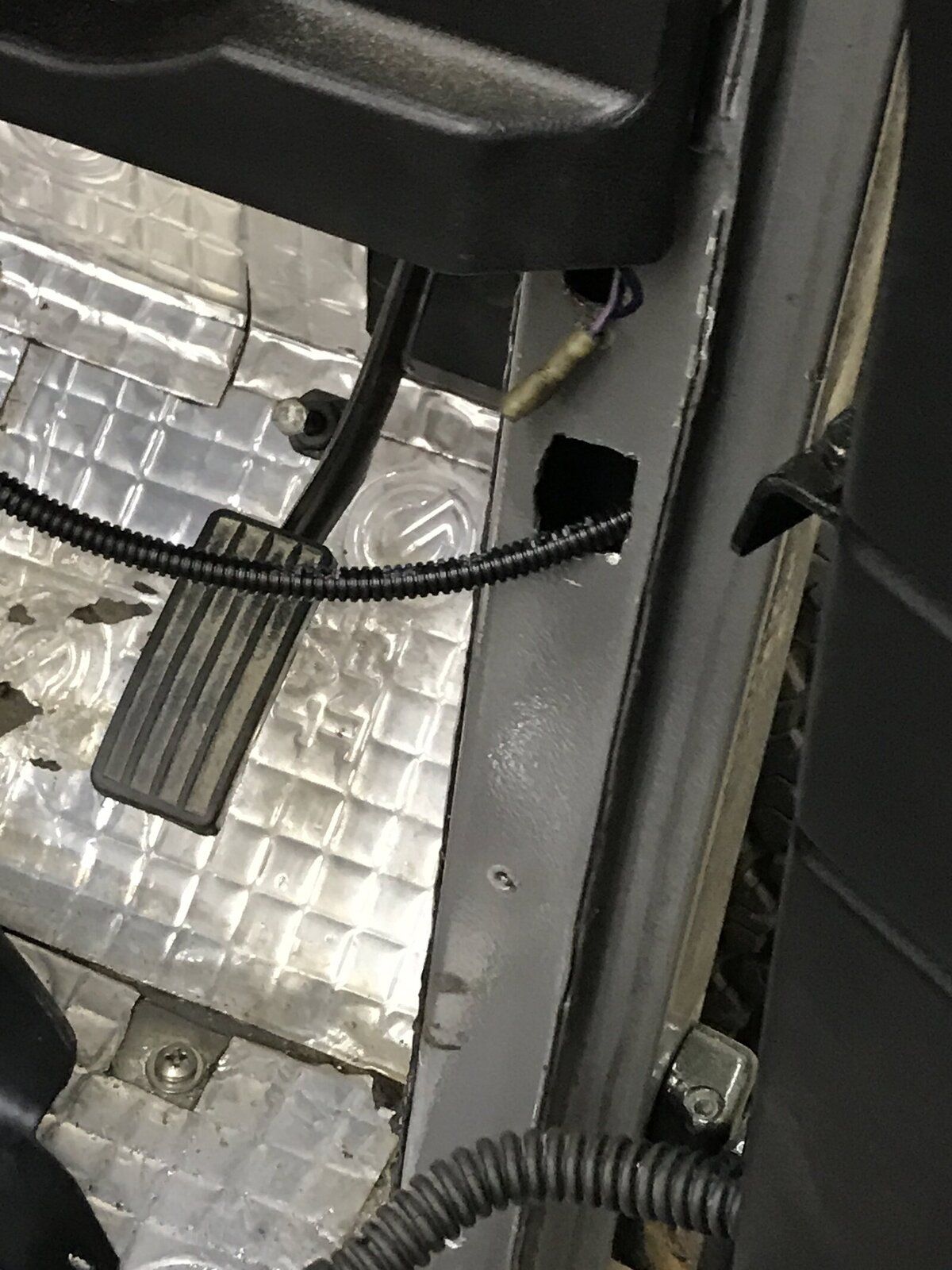

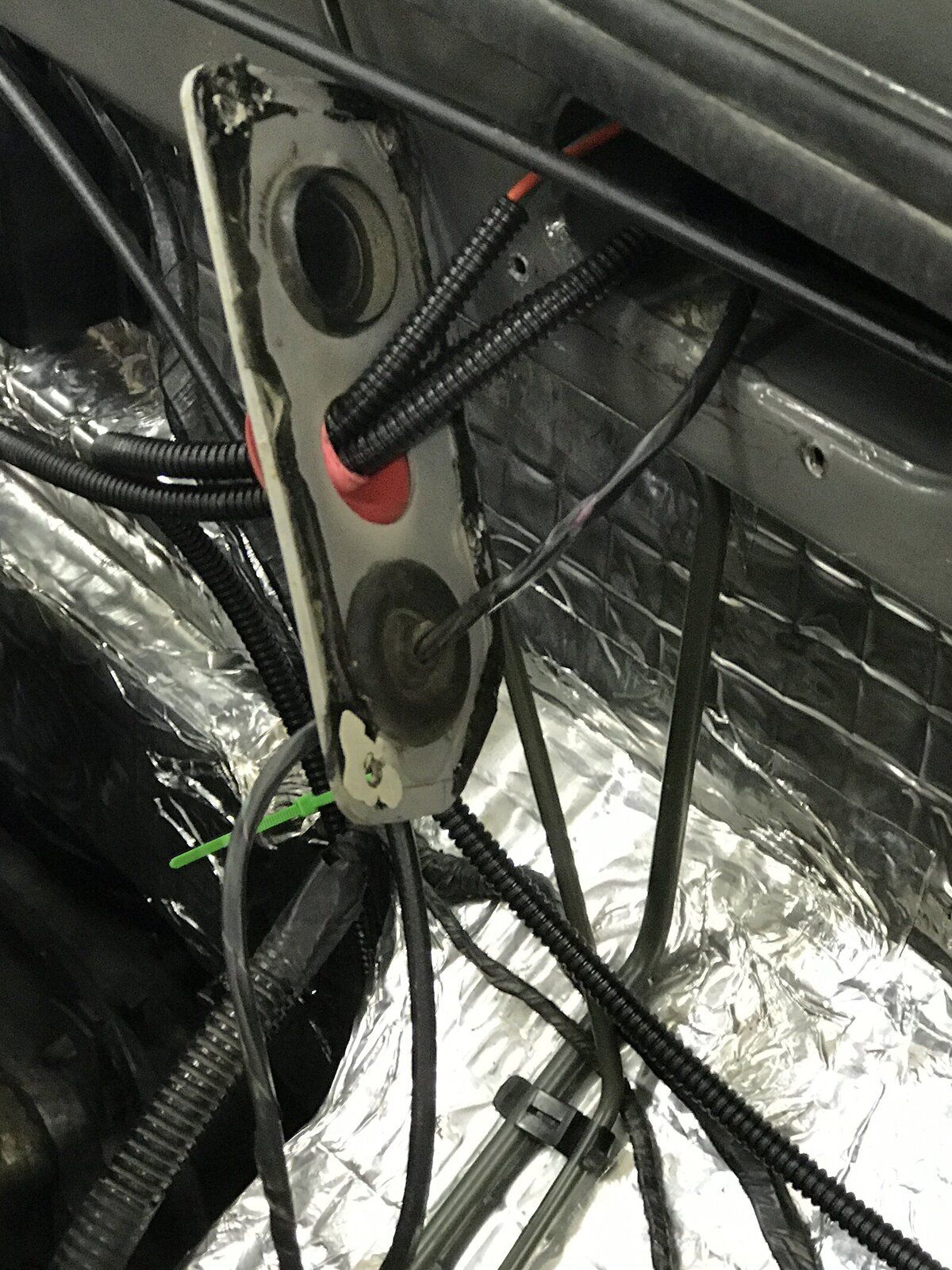

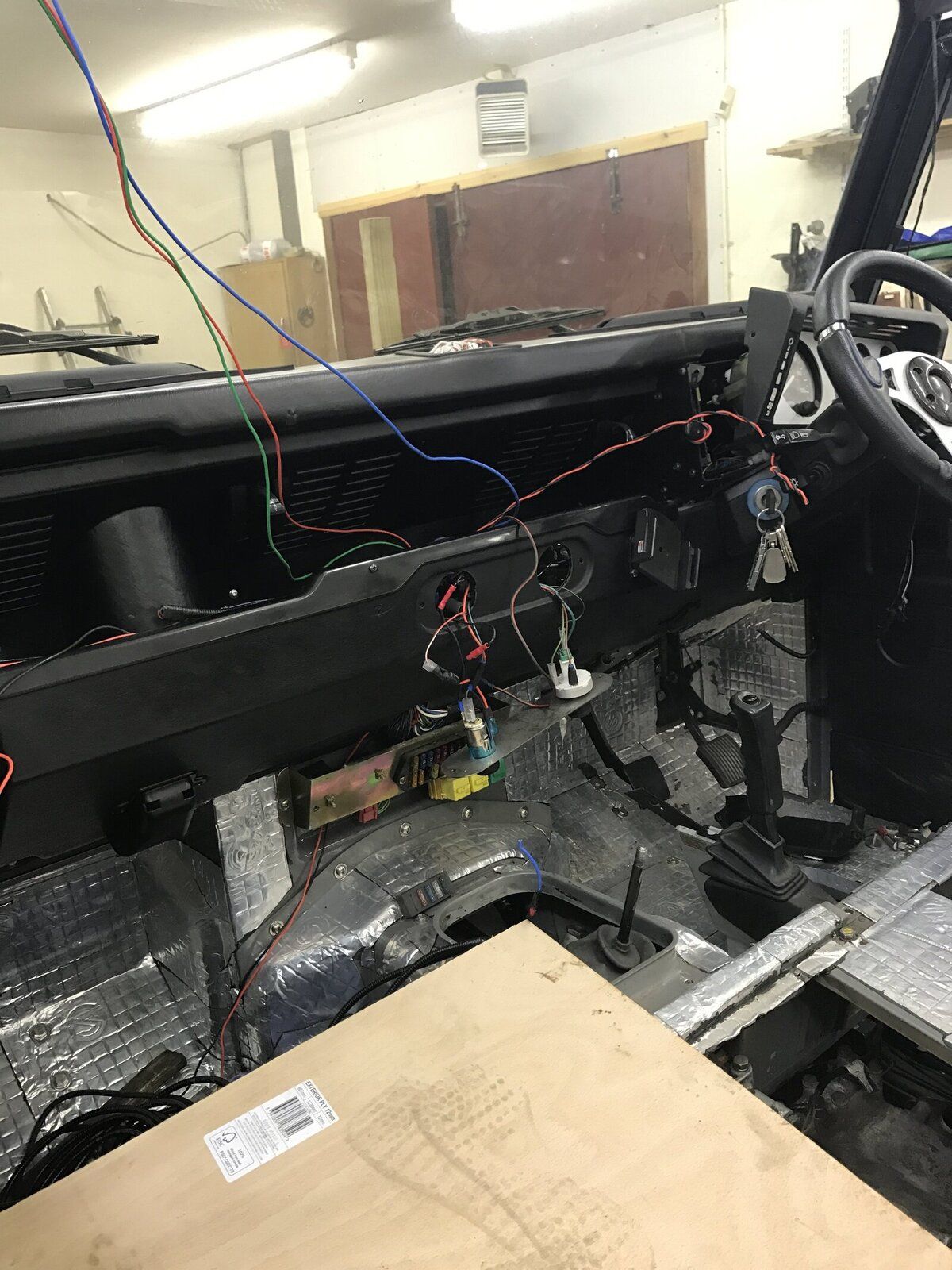

and started running the wiring for the electric windows and heated seats.

Tommyharris · Oct 18, 2017

What sound proofing did you use if you dont mind me asking?

TorsionBhudda · Oct 18, 2017

Tommyharris said:
What sound proofing did you use if you dont mind me asking?

Silent Coat I've used it around seatbox before I did the chassis swap and it made a difference now I've got it on the bulkhead in the Engine bay and covered the rear tub as well

allan downes · Oct 21, 2017

Nice work . I like it ,i had a mint pair of early county lift up handle doors with sliding windows i flogged them.they were really heavy. Been trying to get them back lol.

TorsionBhudda · Oct 25, 2017

allan downes said:
Nice work . I like it ,i had a mint pair of early county lift up handle doors with sliding windows i flogged them.they were really heavy. Been trying to get them back lol.

Thanks. I had thought about getting the SP4x4 sliding window doors but was talked out of it by my faither then these doors turned up at a resonable price with electric windows and central lock actuators fitted so got them instead.

TorsionBhudda · Dec 17, 2017

Not updated this for awhile I'm on holiday from work now till 8th January so for past couple weeks ive just been trying to get it finished. The passenger door alignment is absolutely Sh*t it's worse than I thought it would be now the rear sides and roof is on the door almost overlaps the side and I can't get it to move any further forward

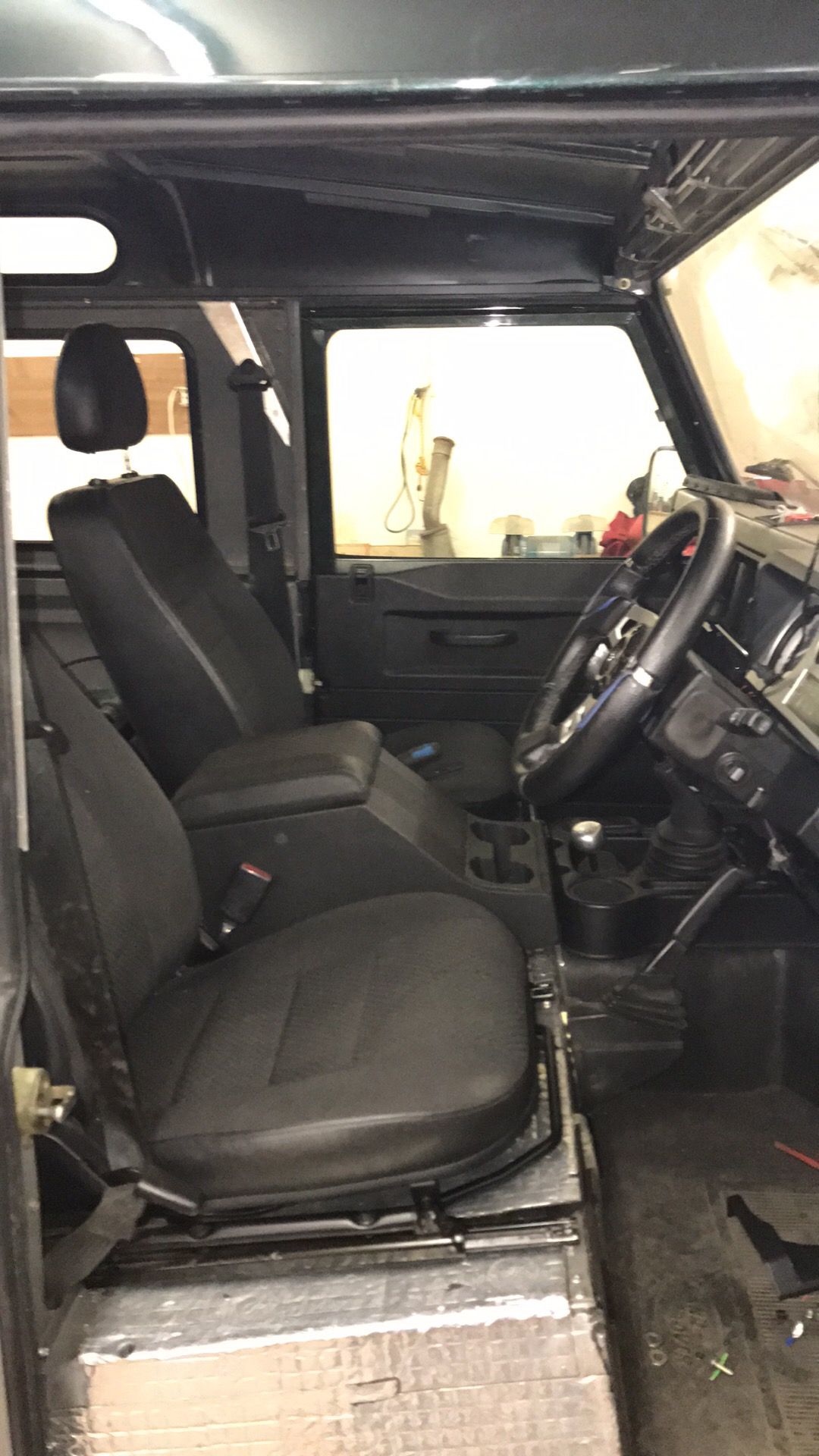

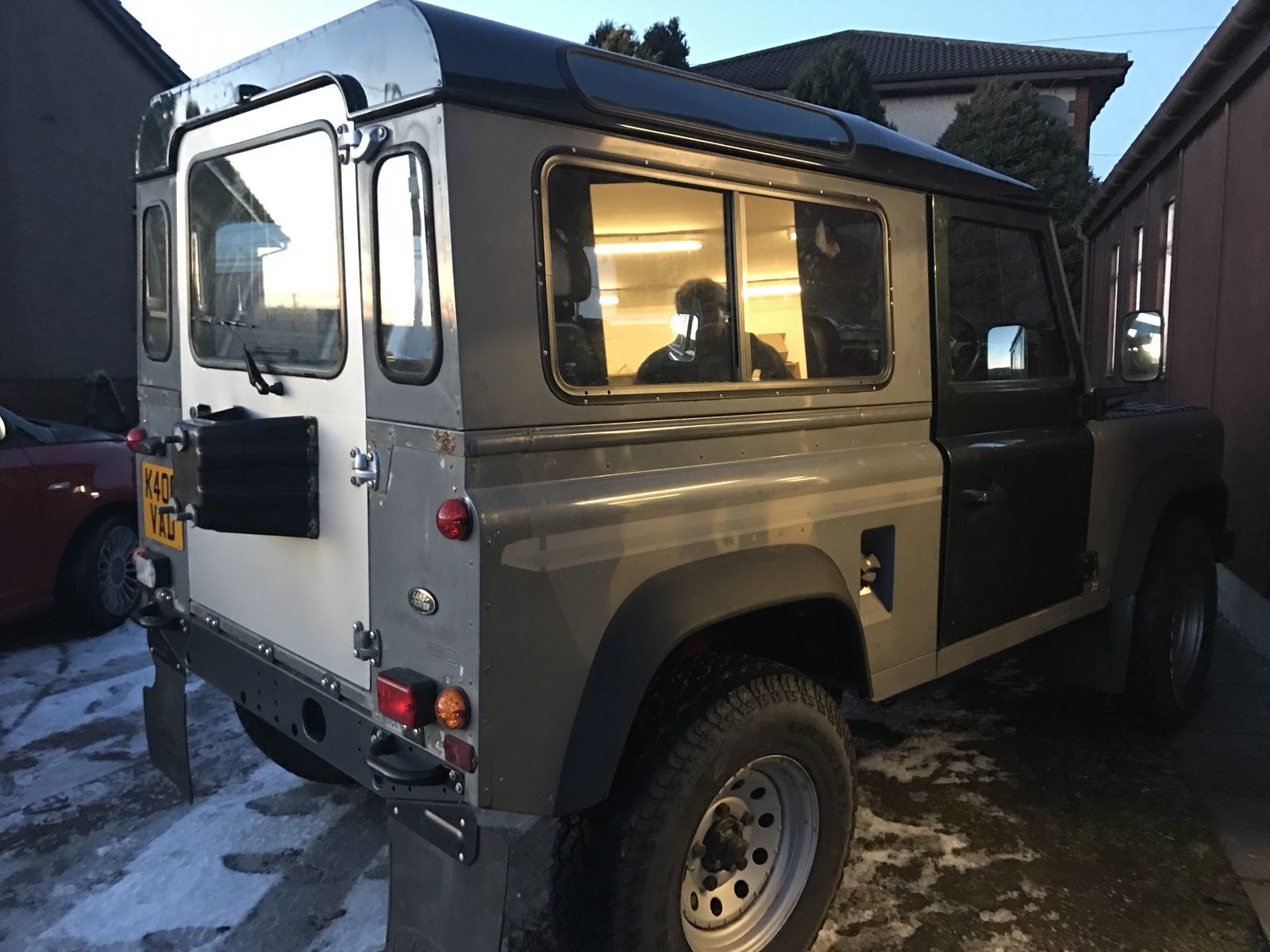

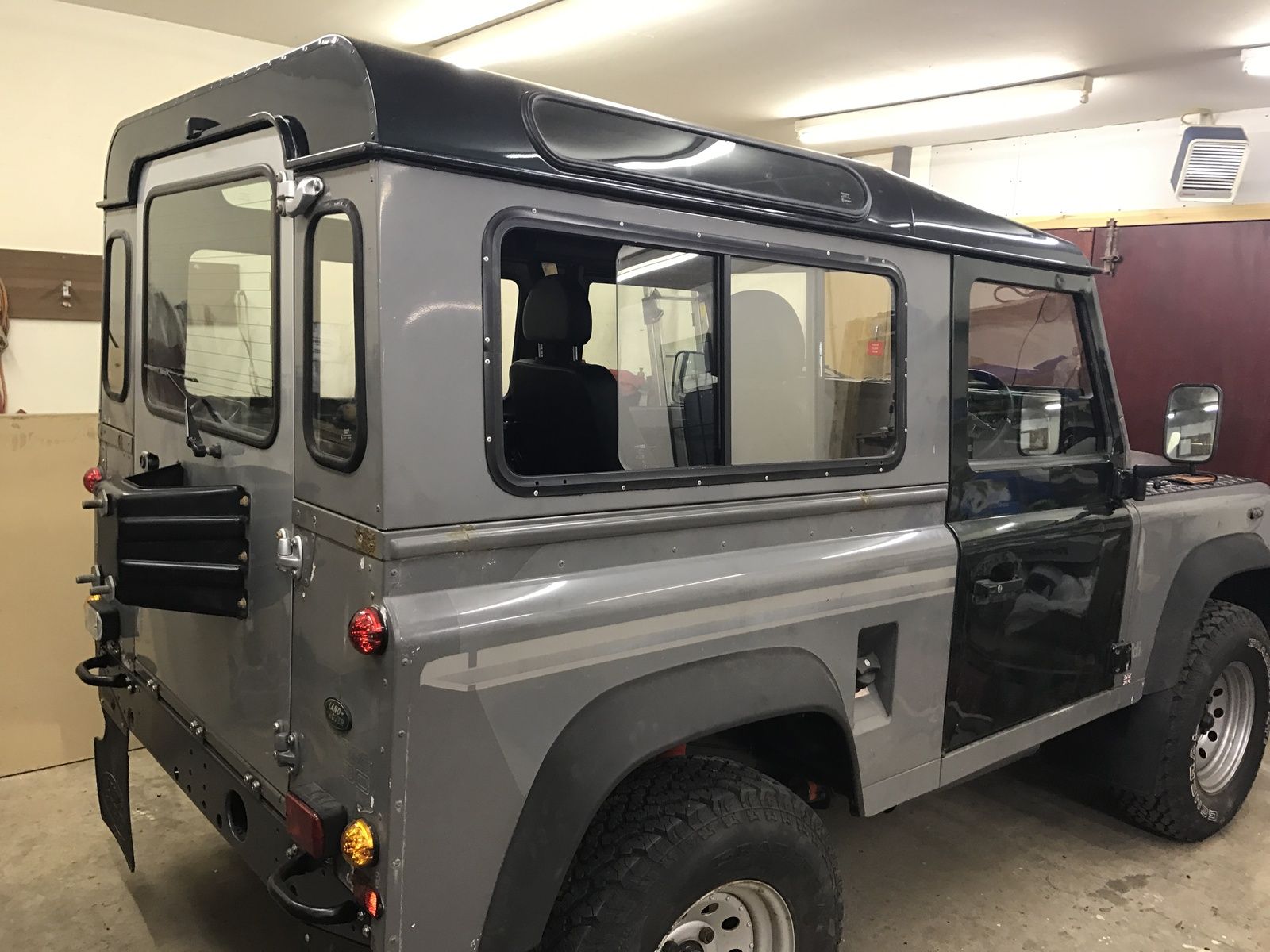

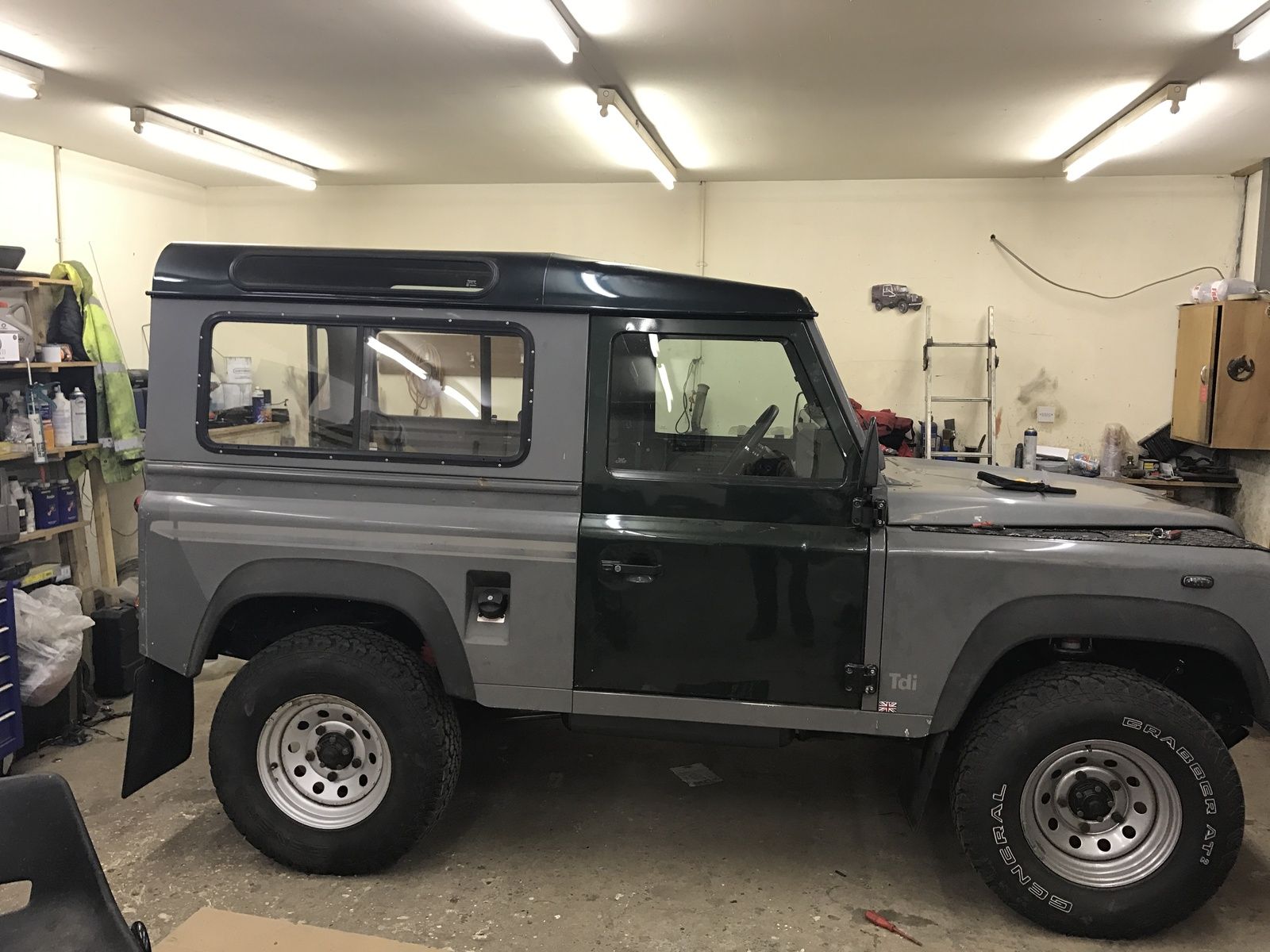

. I have noticed the passenger front wing sits about 5mm further back in relation to the bumper bolt holes than the drivers side. So I'm thinking maybe need to loosen passenger side wing etc take the big Bulkhead bolt back out and cut 5-10mm off the bulkhead tube that sits against the outrigger to allow everything to move forward and fix door gap. That's a job for next year VLAD the Landy is back on road for now and seems to be going good here's a couple pics.

Mikewilliams · Dec 17, 2017

Looking good!

TorsionBhudda · Dec 17, 2017

Mikewilliams said:
Looking good!

Thanks mate not perfect by any stretch but will do for now till I've got the time and funds for a respray then I'll sort door gaps and any other bits of snagging that need doing

TorsionBhudda · Dec 18, 2017

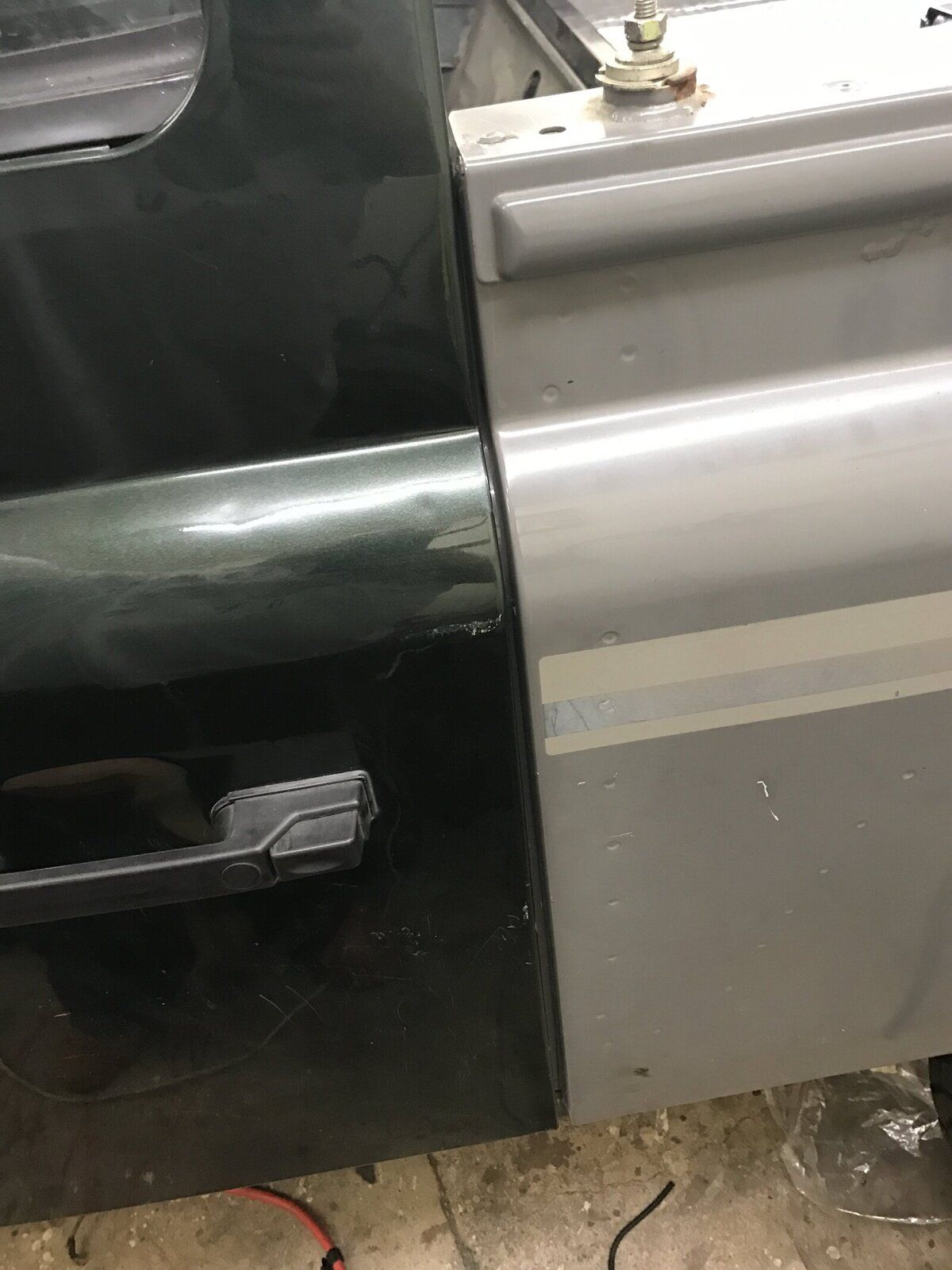

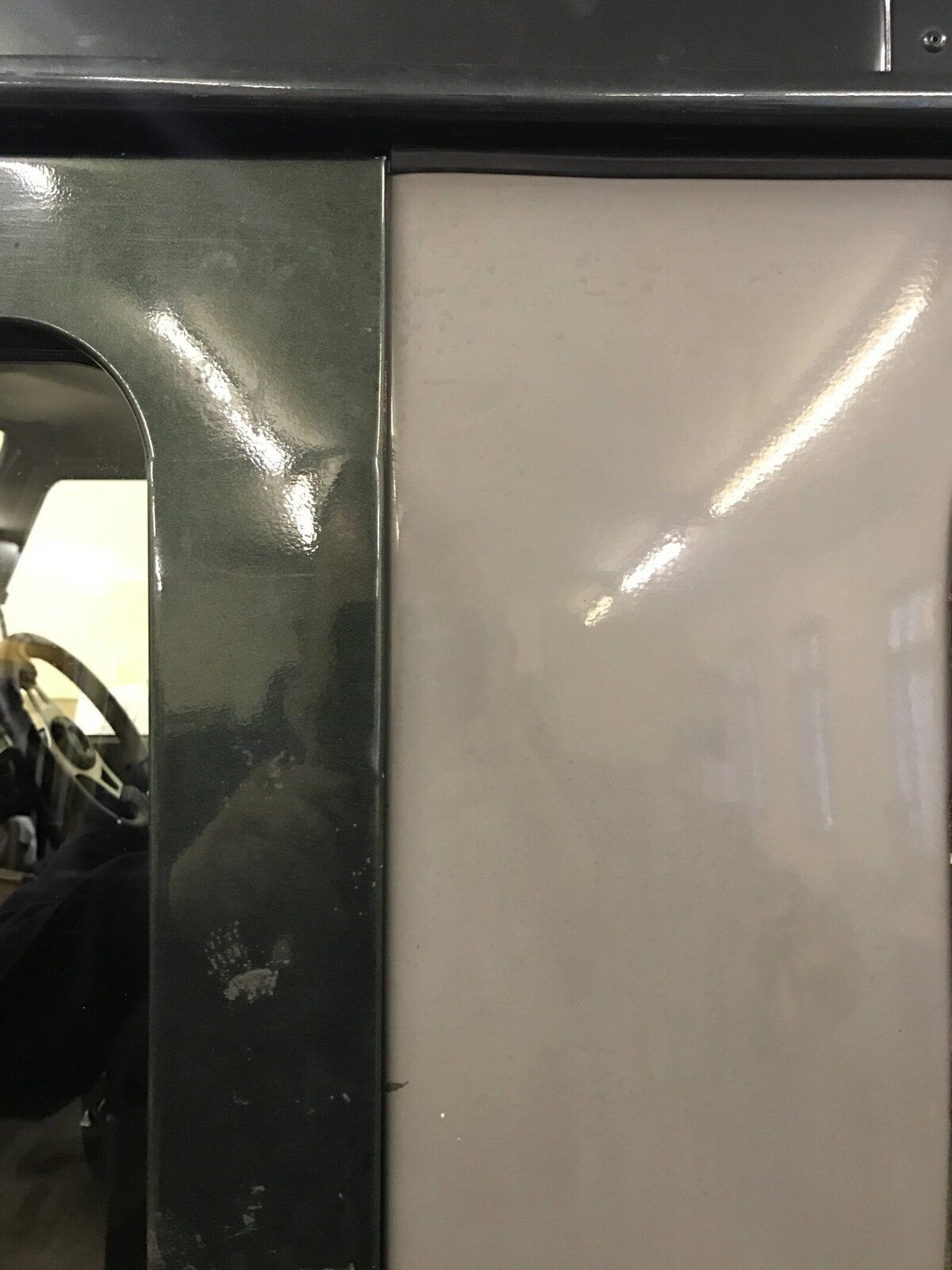

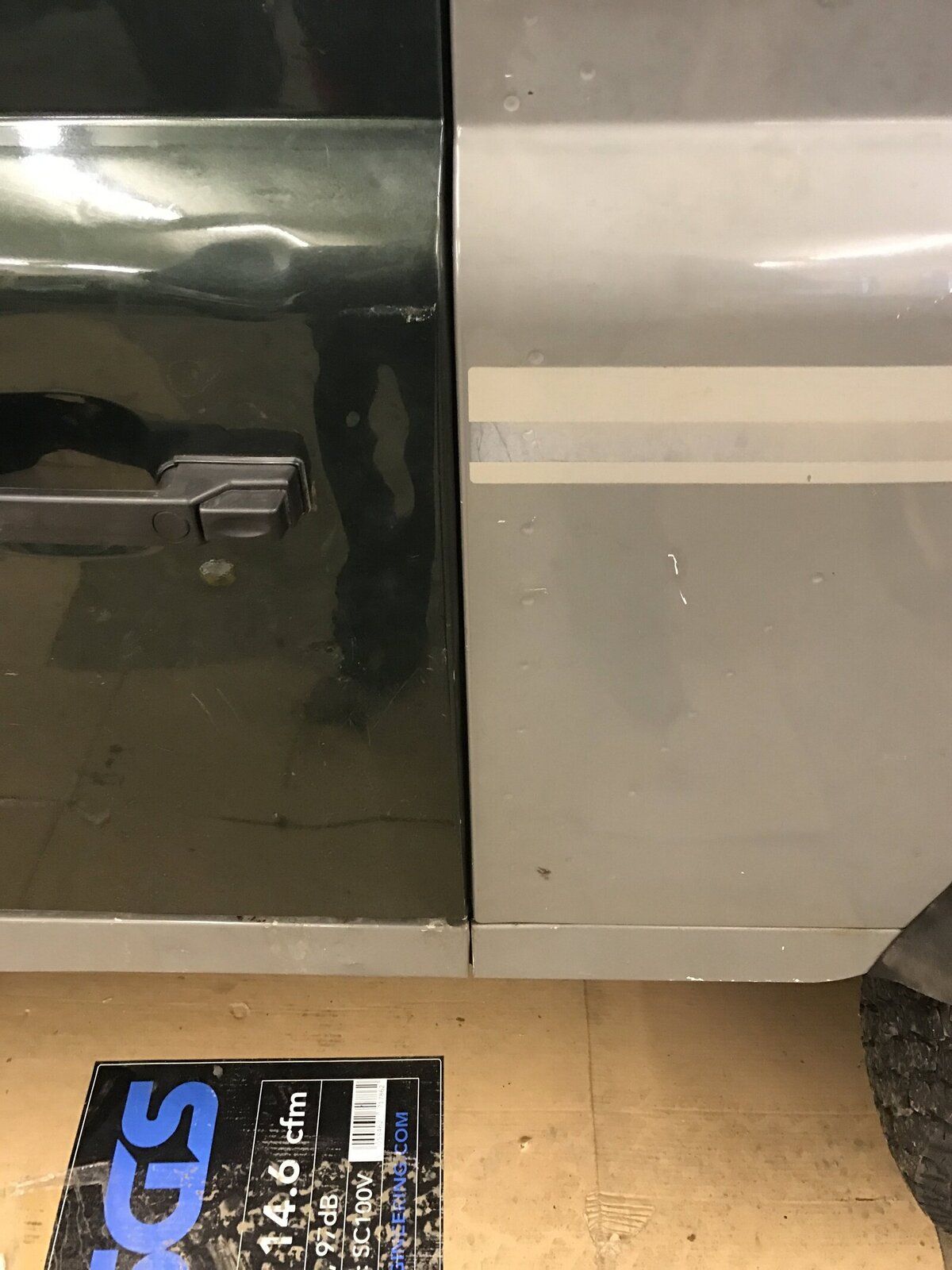

Pics of the passenger door gap or lack off

Al2O3 · Dec 18, 2017

That's a puzzler.

Marsland chassis anorl, which seem to have a much better reputation for accuracy. I'm presuming you have not put any washers between the bulkhead bolt holes and the outriggers? Have you checked any chassis dimensions yet? Same tub and doors?

DanClarke · Dec 18, 2017

Alan Crossley said:
Congratulations. The chassis looks great and the workshop looks almost perfect.

Are you going to paint the new chassis black before you start the rebuild? When the local thieves see your nice new chassis it's going to attract them like bees to honey . A coating of something black might just make your pride and joy slightly less desirable . Good luck with the project and keep us up to speed with pics.

Clearly the chassis survived the attentions of any passing thieves.

TorsionBhudda · Dec 19, 2017

Al2O3 said:
That's a puzzler. Marsland chassis anorl, which seem to have a much better reputation for accuracy. I'm presuming you have not put any washers between the bulkhead bolt holes and the outriggers? Have you checked any chassis dimensions yet? Same tub and doors?

I checked the dimensions not long after getting the chassis and was spot on. I think it's the ****ty ashtree galvanised Bulkhead I had problems before lining up passenger door when I fitted Bulkhead last year. There's two washers in the drivers side passenger side needs go 5-10 mm forward I'm thinking of cutting/grinding down the tube the big bulkhead mounting bolt goes through a bit at a time till I can get the door gap sorted. I had thought of moving the tub but think that will throw drivers side out. Anyways that's for next year I'm just going to use it as is for now.... My oldest will kill me if we miss anymore Off road runs we've missed at least 6 so have to keep her happy lol I've got MOT booked for 9:30am Tuesday so fingers crossed

TorsionBhudda · Dec 19, 2017

DanClarke said:
Clearly the chassis survived the attentions of any passing thieves.

Yeah I think the Grey painted chassis has confused them!!! lol

Cdr Shephard · Dec 19, 2017

TorsionBhudda said:

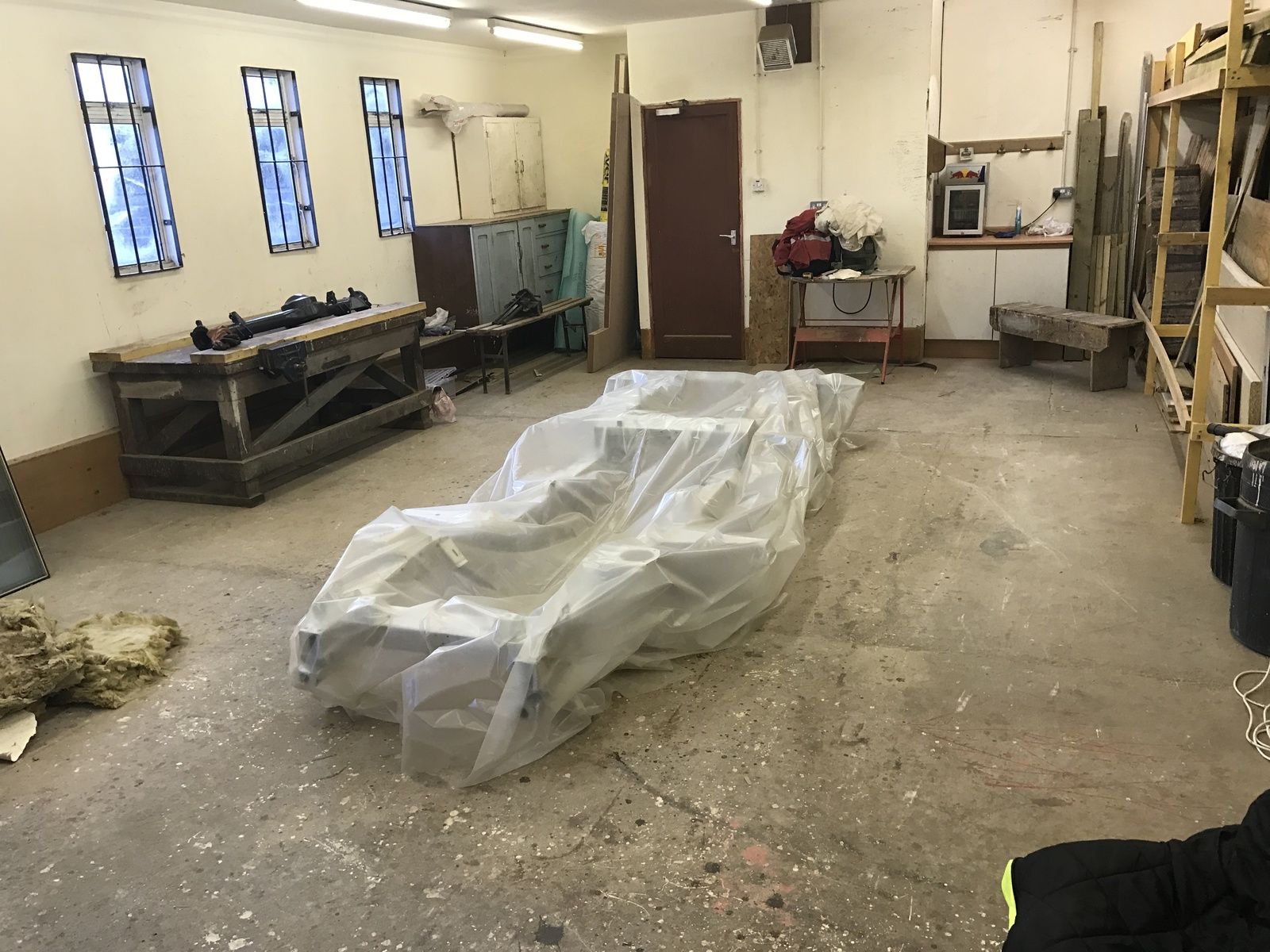

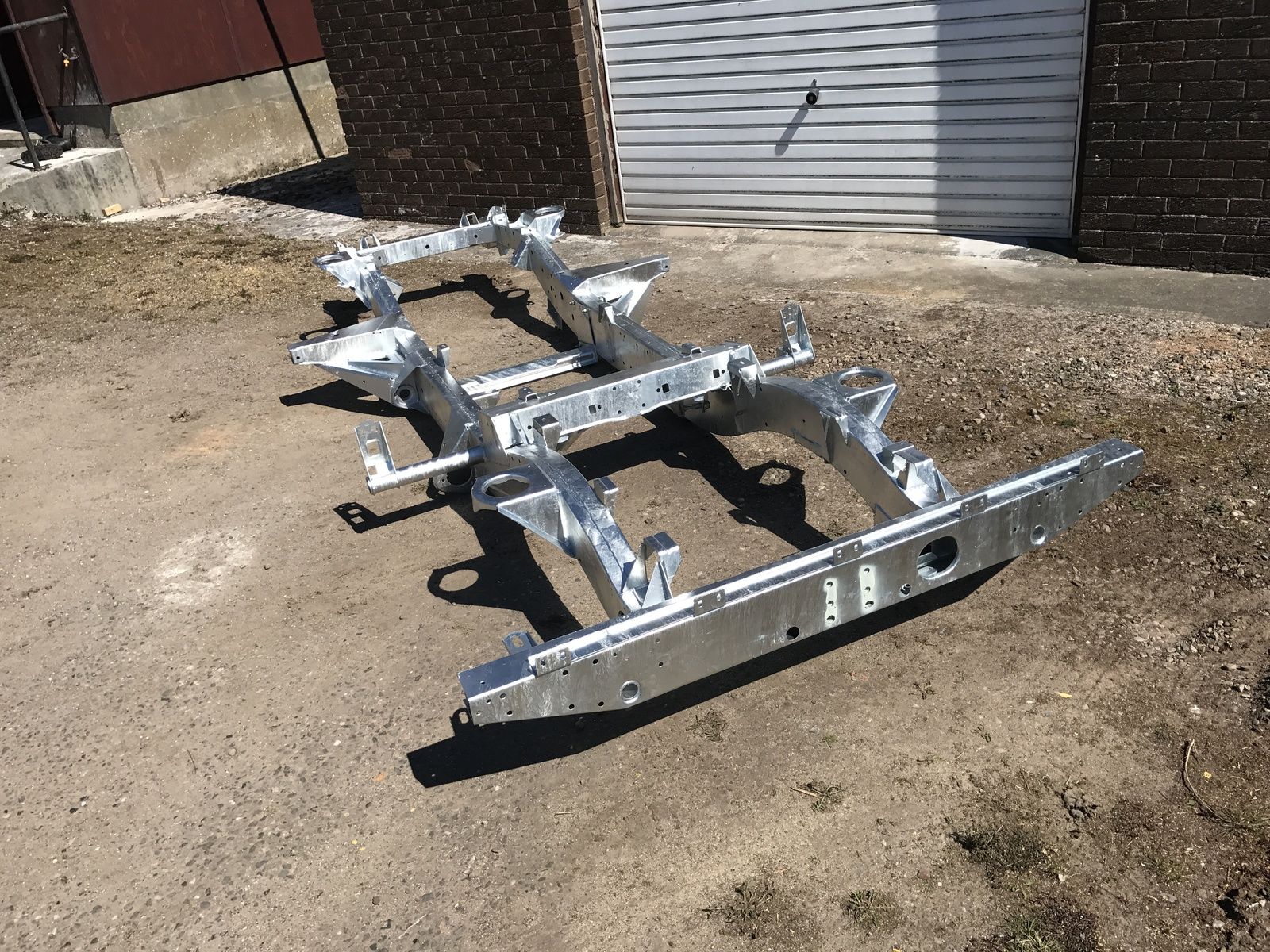

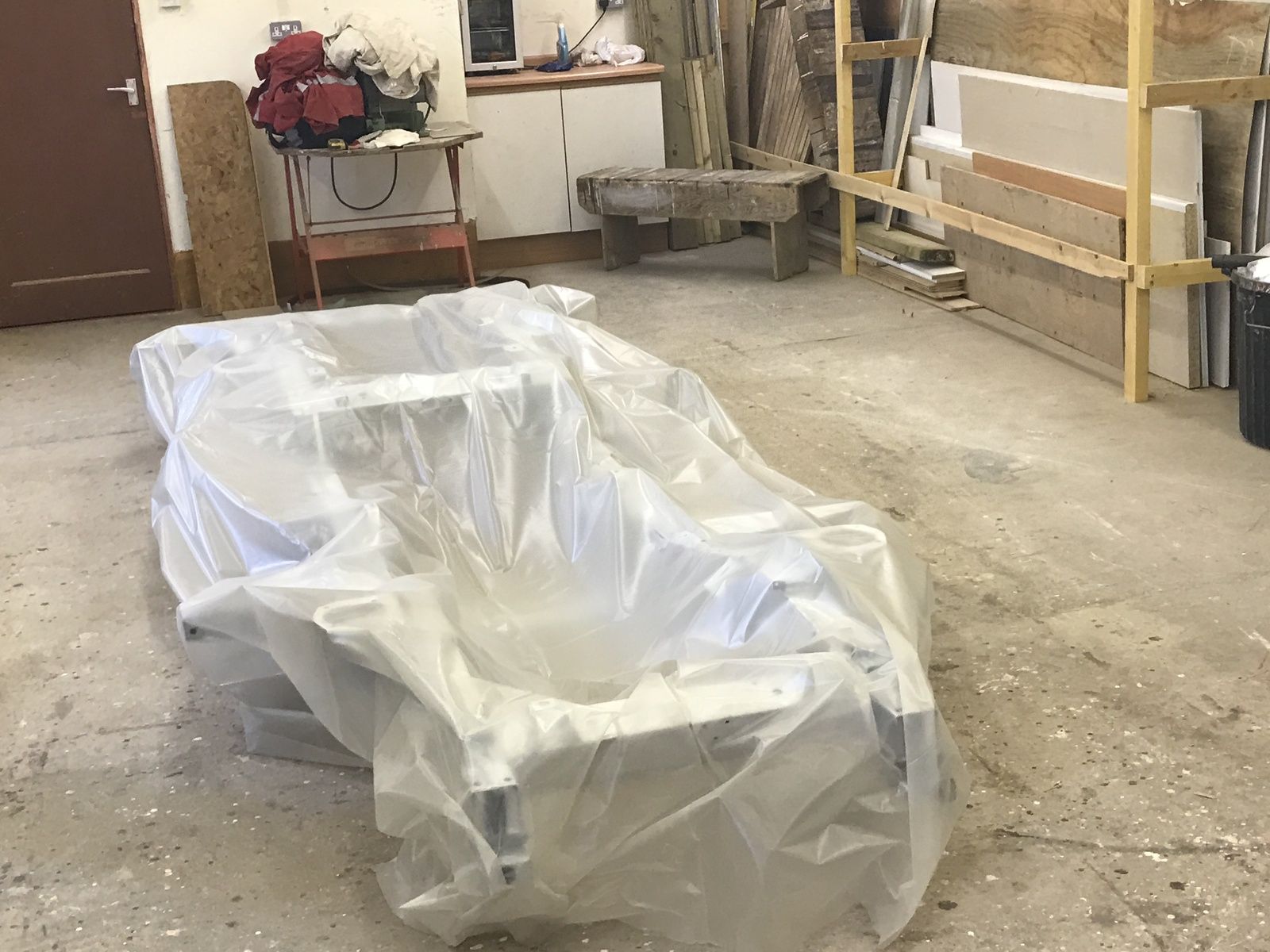

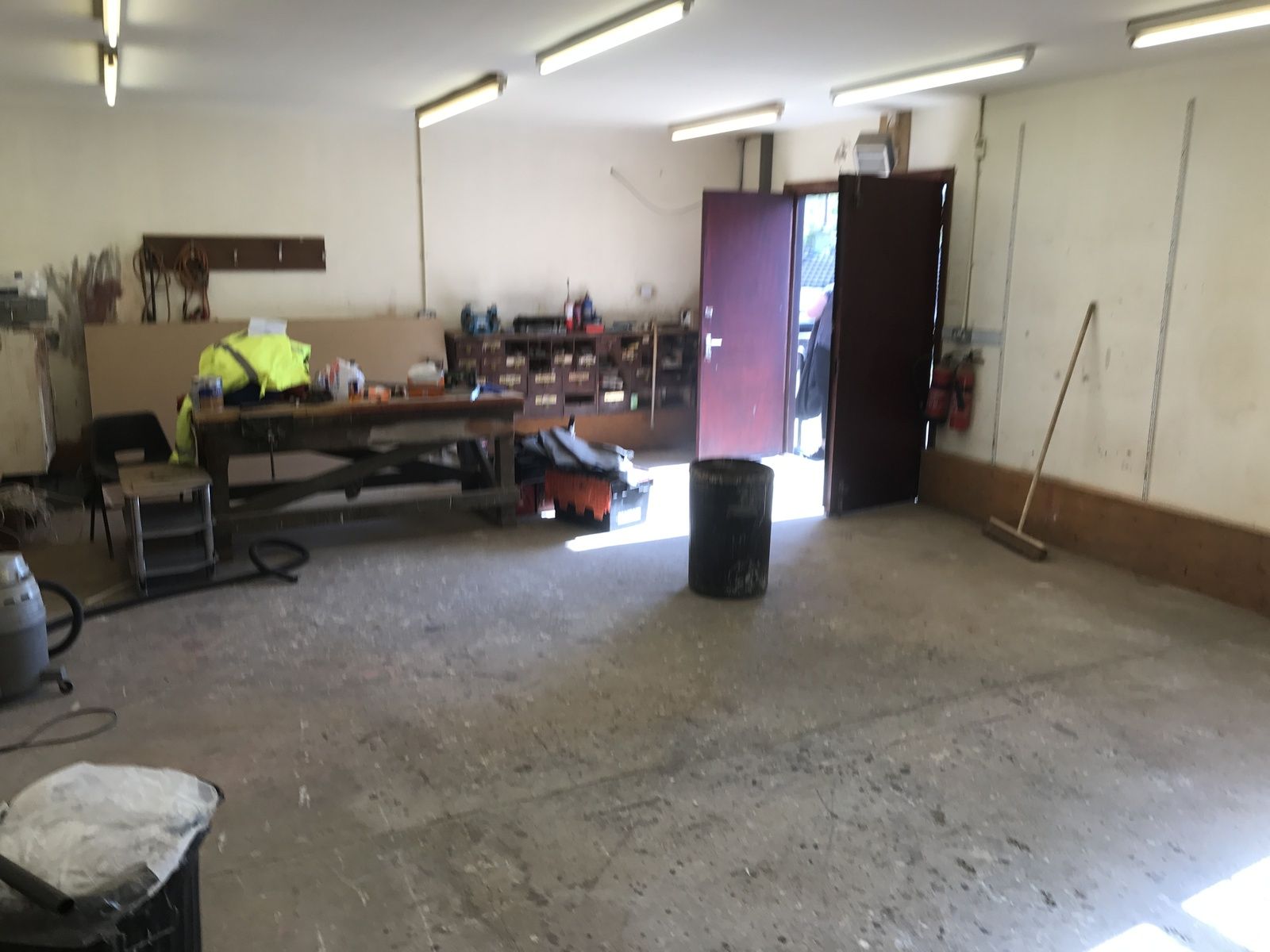

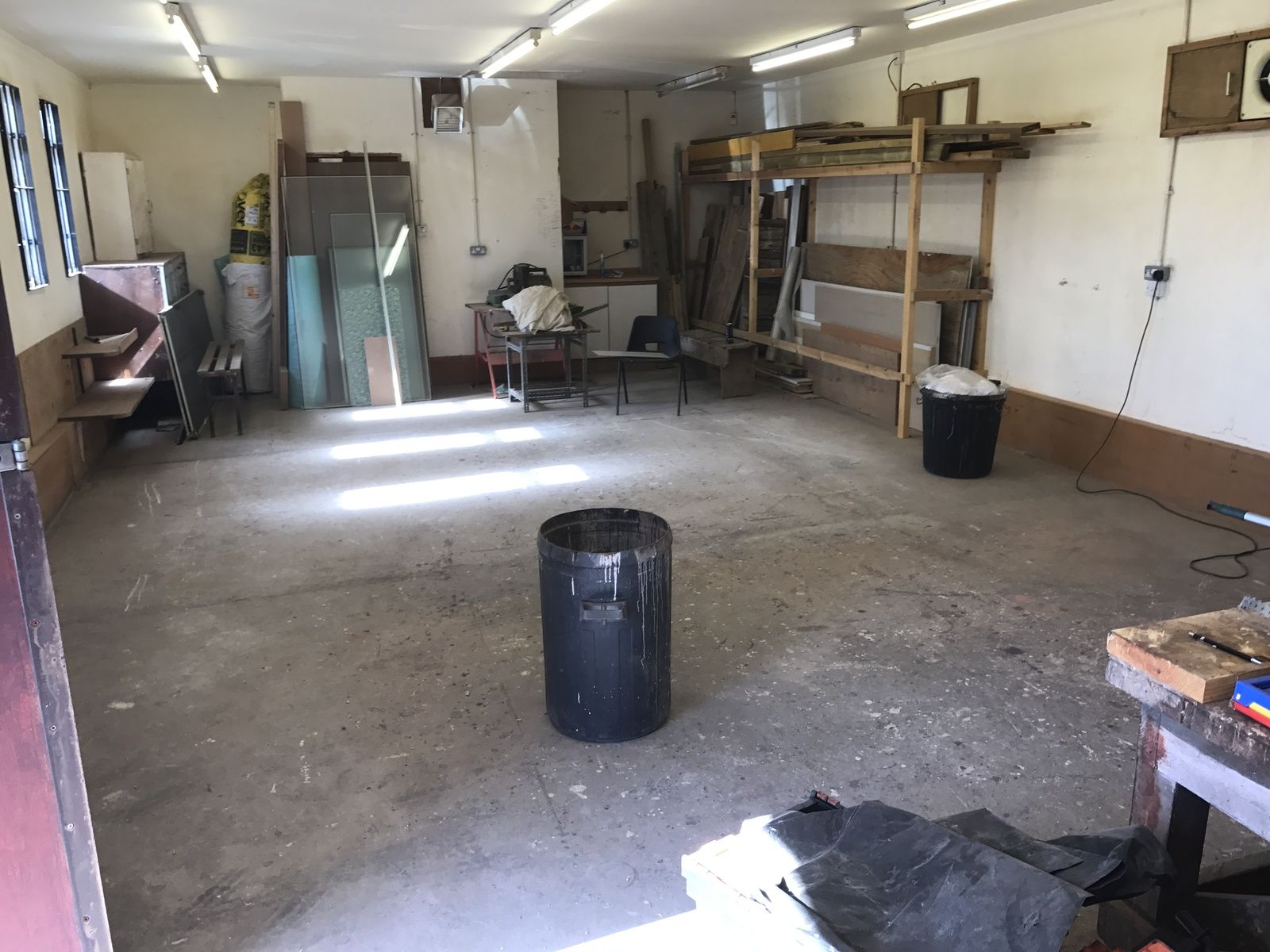

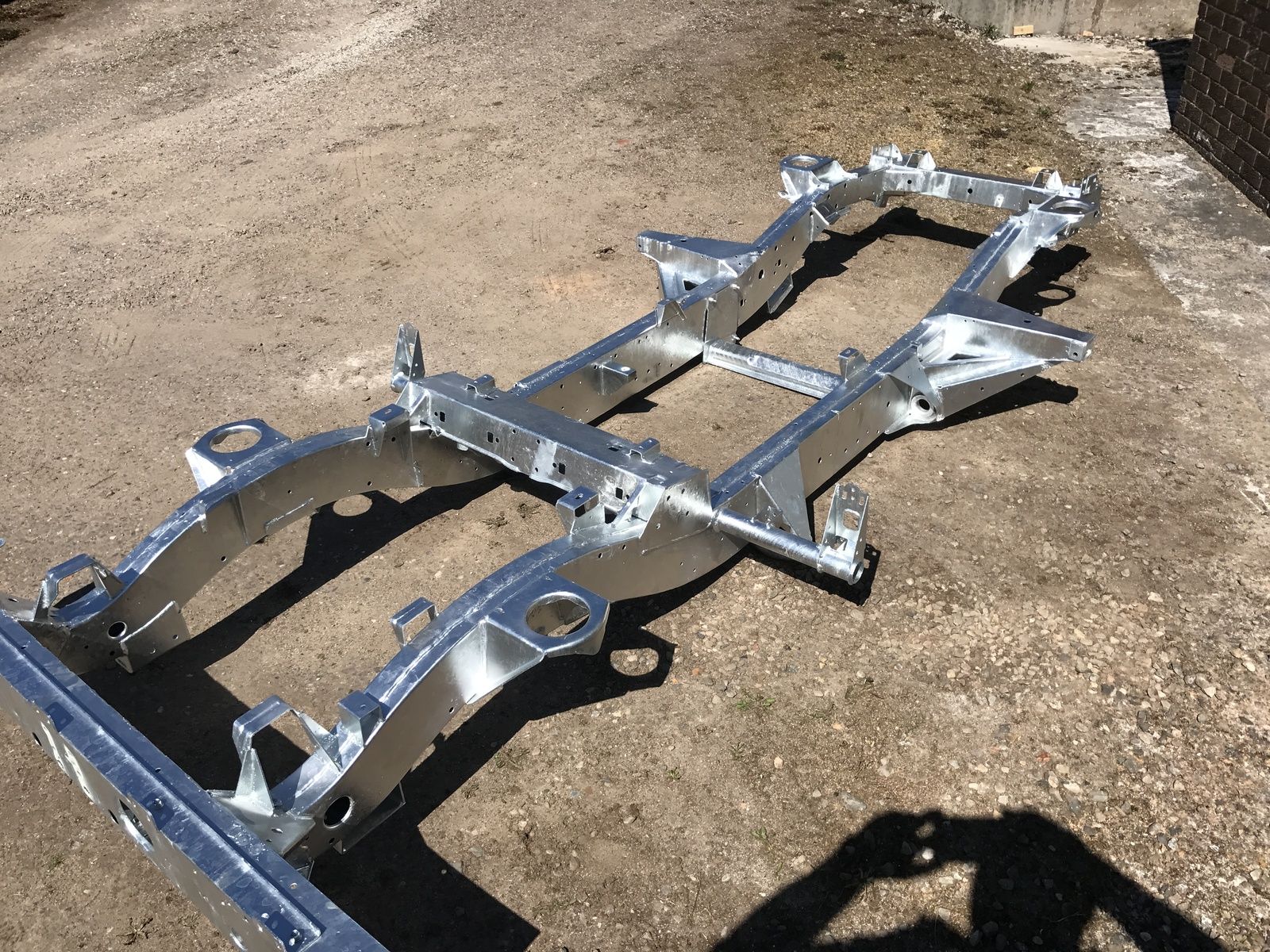

I've decided to replace the chassis on my 200Tdi Defender 90.(fed up with spatter raining down on me when welding) I phoned Marsland last Monday and placed an order told it be 3-4weeks got phone call from them Wednesday saying actually we can deliver next Wednesday (today) and look what's turned up View attachment 123470 View attachment 123471 ooooo very shiny!! Overall I'm extremely happy with Marsland the quality of the galv etc looks great. Only fly in the ointment is I had planned to use the 3-4weeks to empty my grandfathers old workshop that was full rubbish and hadn't been really used since he retired 10 years ago but after 6 van loads to the tip and nearly chocking on all the sawdust/dust and cobwebs it's almost ready to start working in just need move my tools inView attachment 123472 View attachment 123473 View attachment 123474 View attachment 123475

thats a waste of money.
