Project 'Axle' can commence:
Last edited:
BennehBoy's D2 adventure
- Thread starter Bennehboy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
There's always something!!!
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
Made a start on cleaing up the axle casings last night... cup brush on my grinder... attempted the front first. It's cleaning up really nicely, but all the nooks and crannies are a nightmare.
Think I'm going to just drop these off at the local shot blasters.
Think I'm going to just drop these off at the local shot blasters.
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
Took the knuckles off, double hammer method cracked off the tapers like a charm...
Need to grab my mates balljoint tool now to press the old ones out before I take these to the shotblasters.
Need to grab my mates balljoint tool now to press the old ones out before I take these to the shotblasters.
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
Swapped the coolant pump to manifold hose, my old one was weeping a bit...
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
I snagged this military 4 pin centre by swapping some parts with James Martin (had a good old chin wag too!). It's away being rebuilt with a 3.8 KAM crownwheel & pinion by Nige at Xcess4x4.com
Nige says the cross shaft is forged so will be 'super strong'.
I'm also having an Ashlocker built for the rear with a 3.75 Ashcroft HD CW&P.
The KAM is used and saving me some £££'s, the ratio difference of 0.05 is tiny and equivalent to usual tyre psi differences so won't be an issue.
Can't wait to see what the locker does around Tong, and what the ratio change does for drivability.
Before
After - ultrasonic clean & 12.9 capheads
Nige says the cross shaft is forged so will be 'super strong'.
I'm also having an Ashlocker built for the rear with a 3.75 Ashcroft HD CW&P.
The KAM is used and saving me some £££'s, the ratio difference of 0.05 is tiny and equivalent to usual tyre psi differences so won't be an issue.
Can't wait to see what the locker does around Tong, and what the ratio change does for drivability.
Before
After - ultrasonic clean & 12.9 capheads
Last edited:
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
If anyone's reading, are the photos showing OK for the last few pages? I'm having problems with them being visible for people on another forum...
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Photos look good.
cheers
cheers
aaronmorris
Head's a shed
- Posts
- 6,369
- Location
- Doncaster
Ooh.. Shiny diff
Looks bloody good after a thorough clean.
Looks bloody good after a thorough clean.
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
Ooh.. Shiny diff
Looks bloody good after a thorough clean.
Yeah Nige is doing a cracking job, wouldn't expect anything else though TBH. If I wasn't having the CW&P changed I'd have had a crack at building these myself, but TBH I'd not have done half as good a job. And you know I like shiny
Hopefully have some more pics tomorrow.
Nigel Barker
New Member
- Posts
- 2
- Location
- Costa Del Haslemere
Oh Cooooooooooooooooooooooooooooooooooooooooeeeeeeeeeeeeeeeeeeeeee

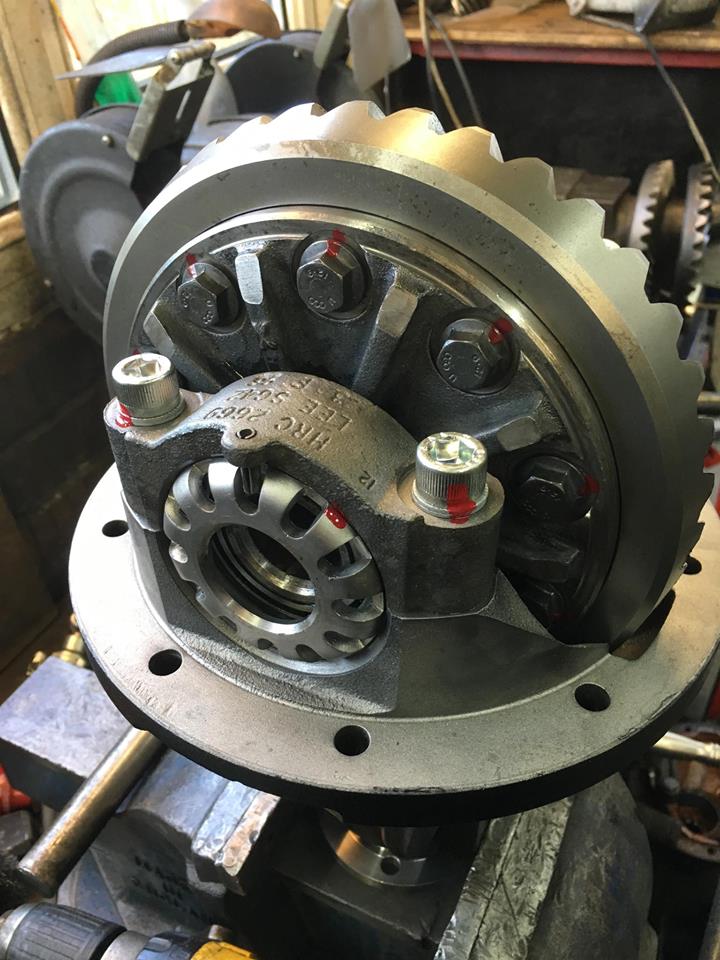

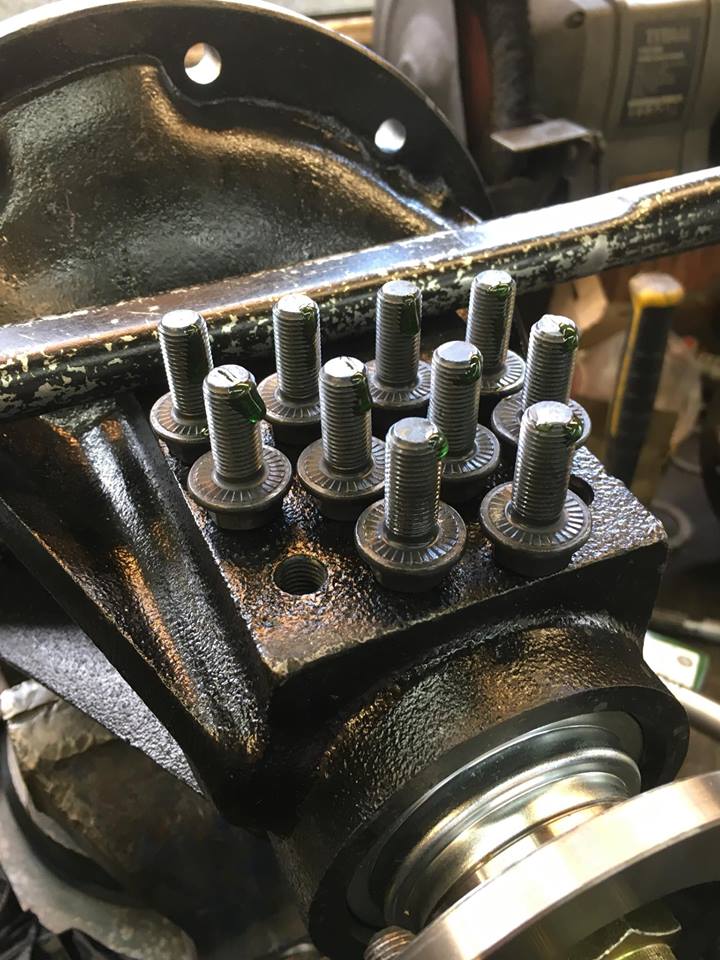

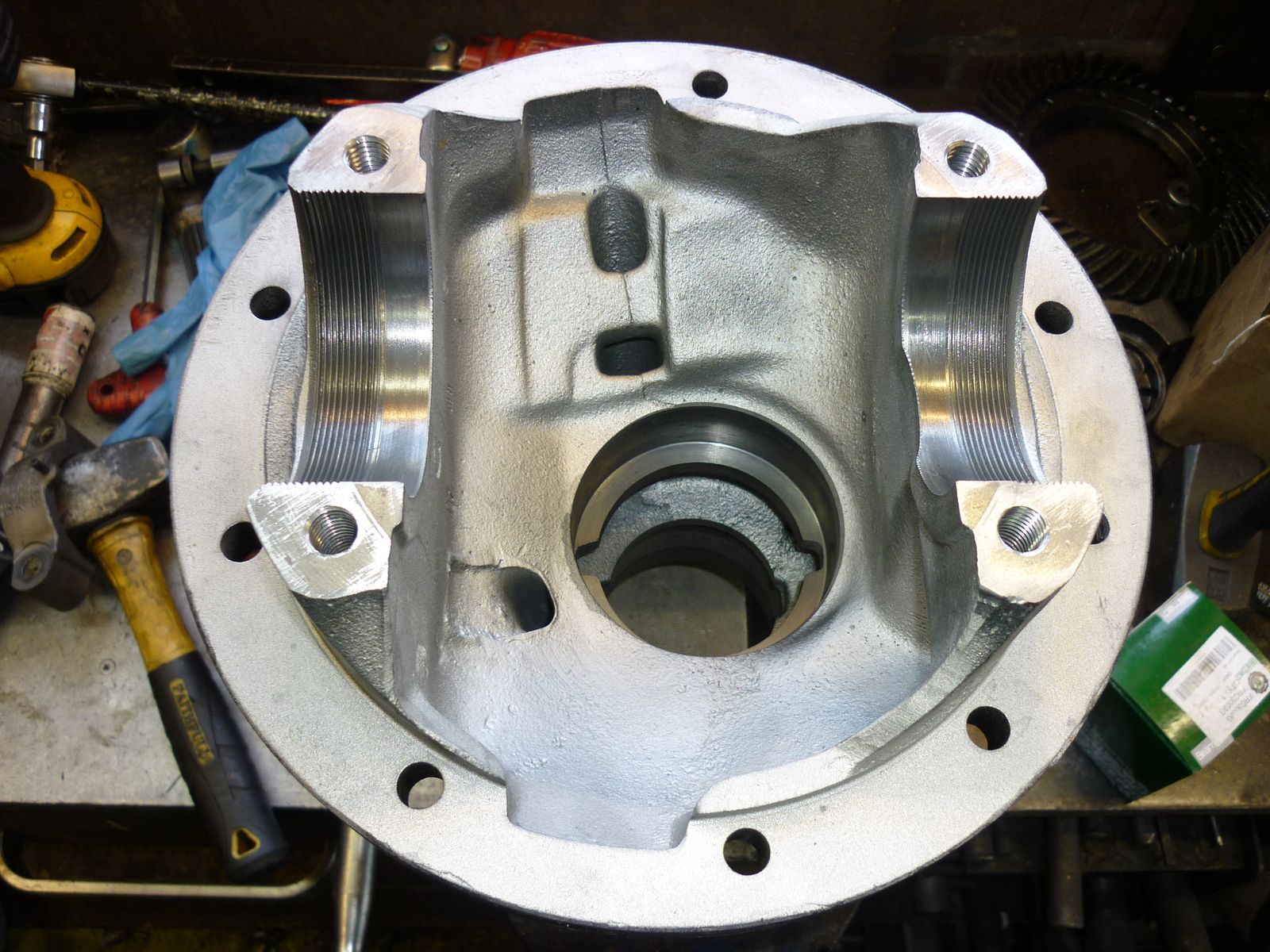

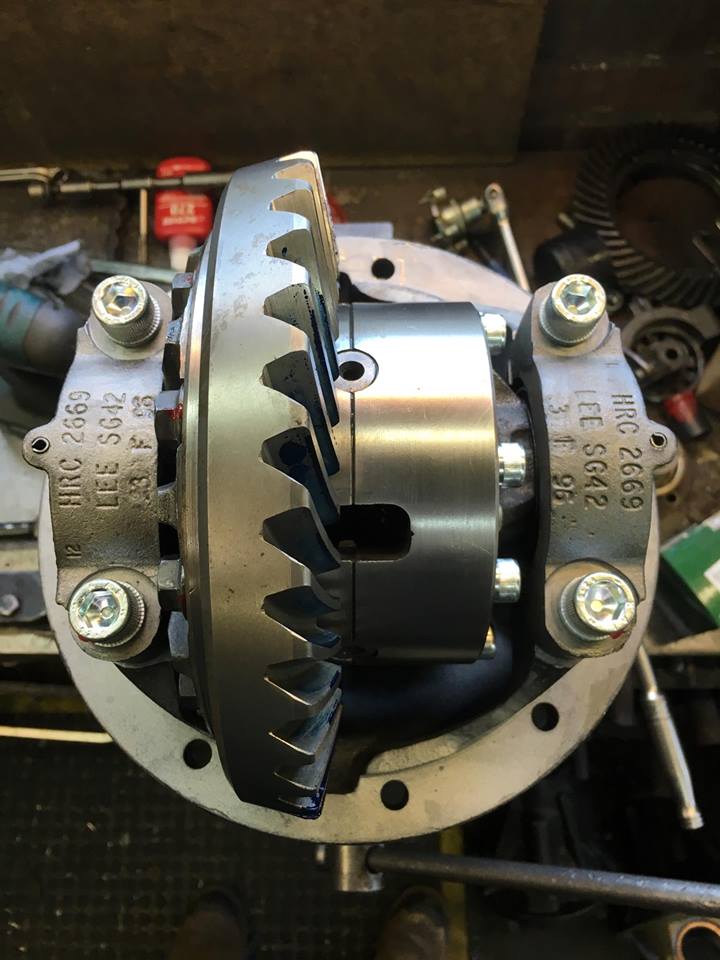

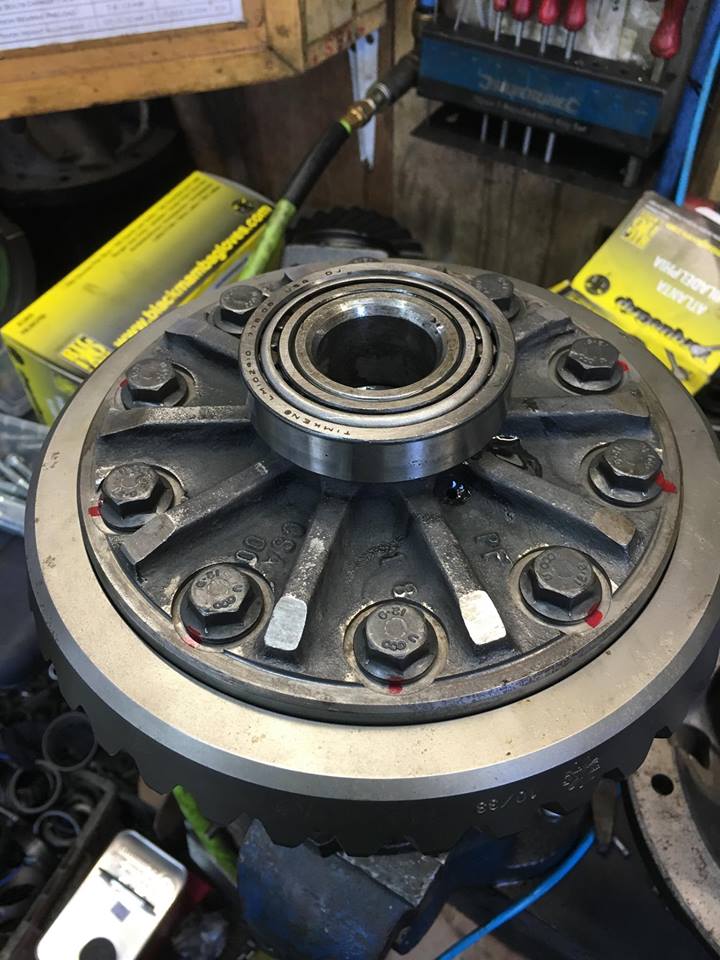

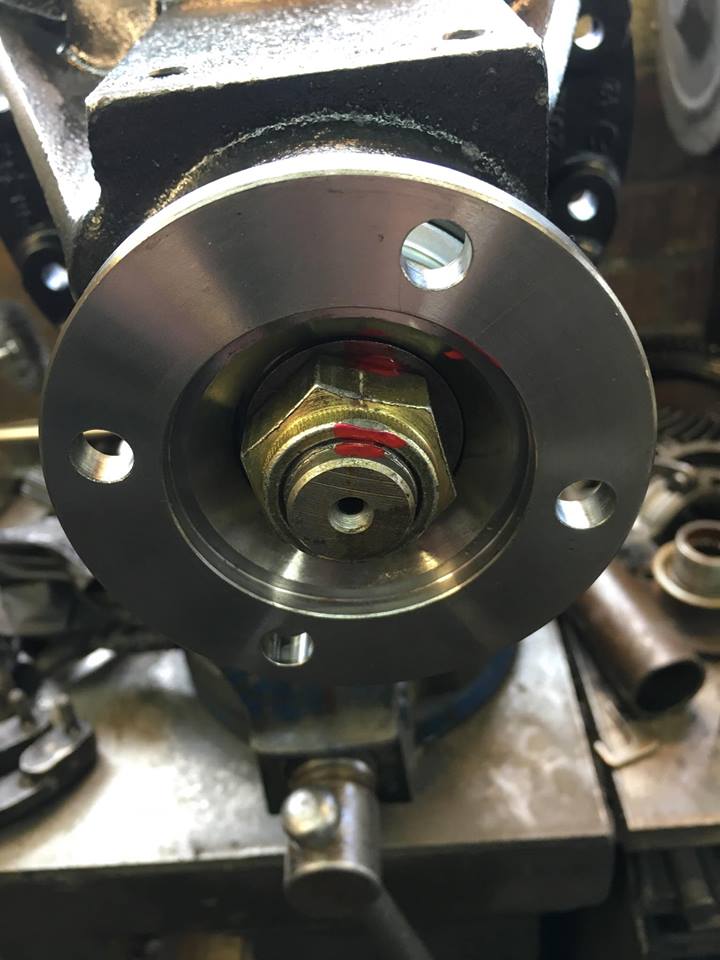

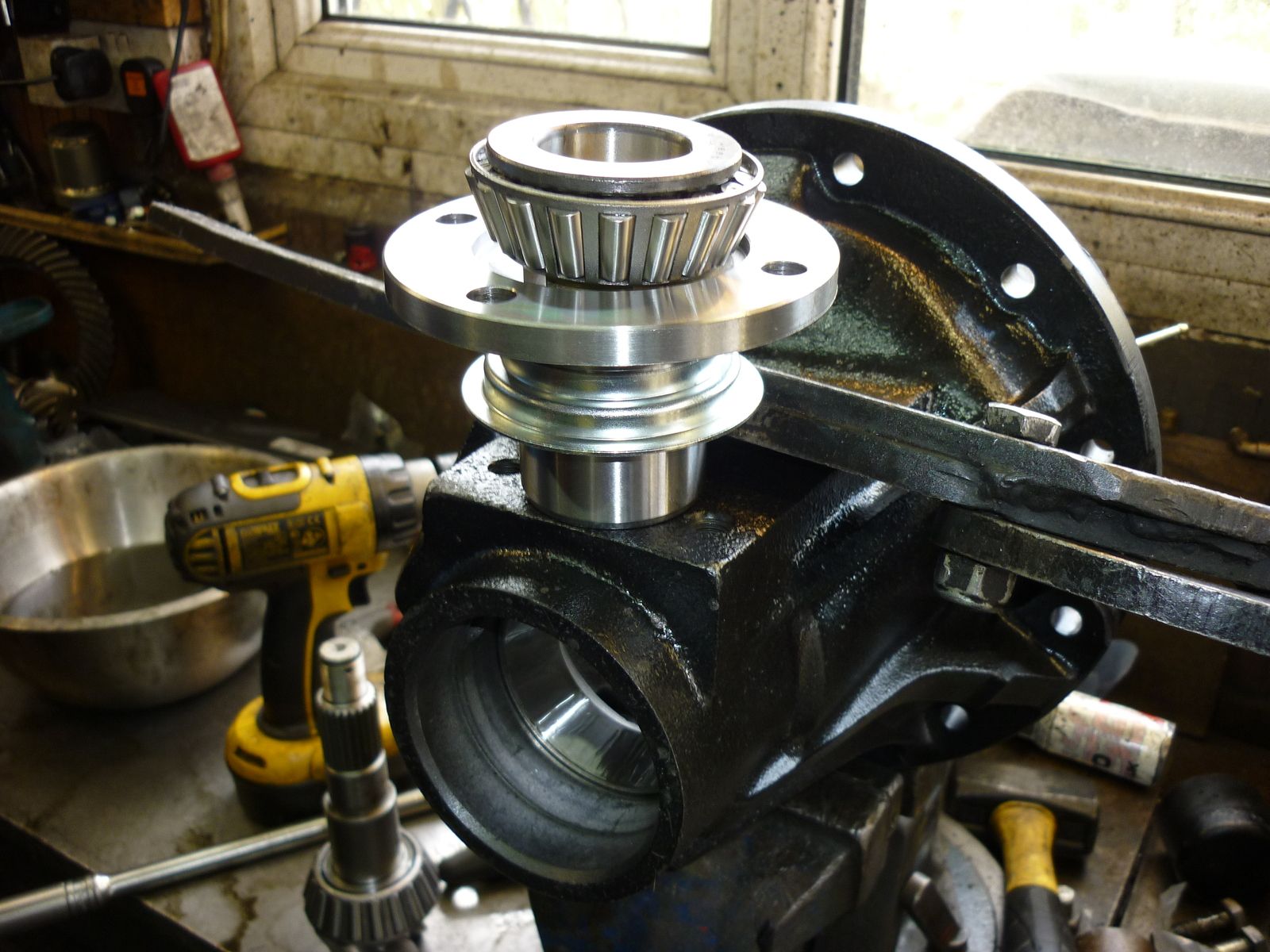

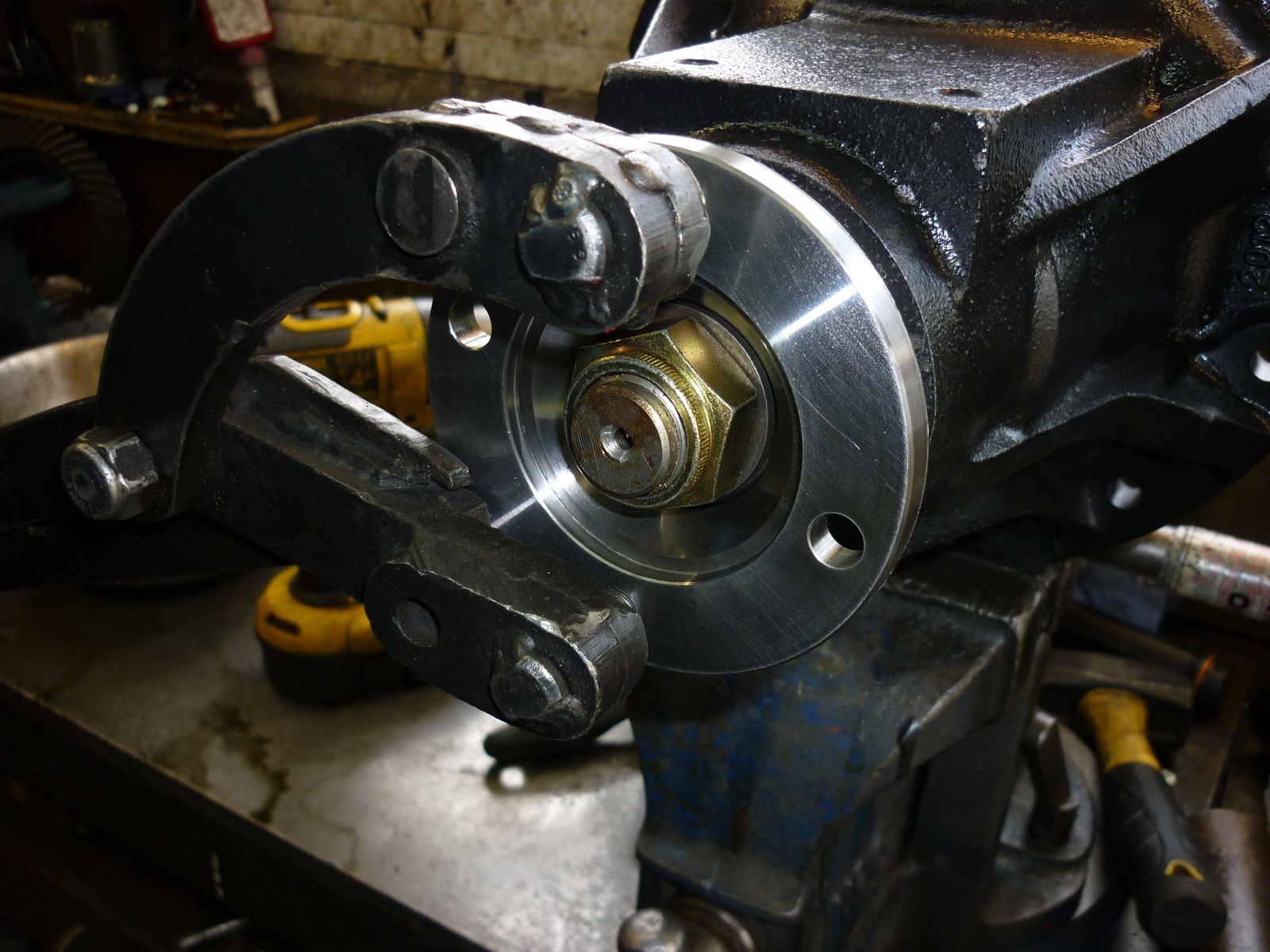

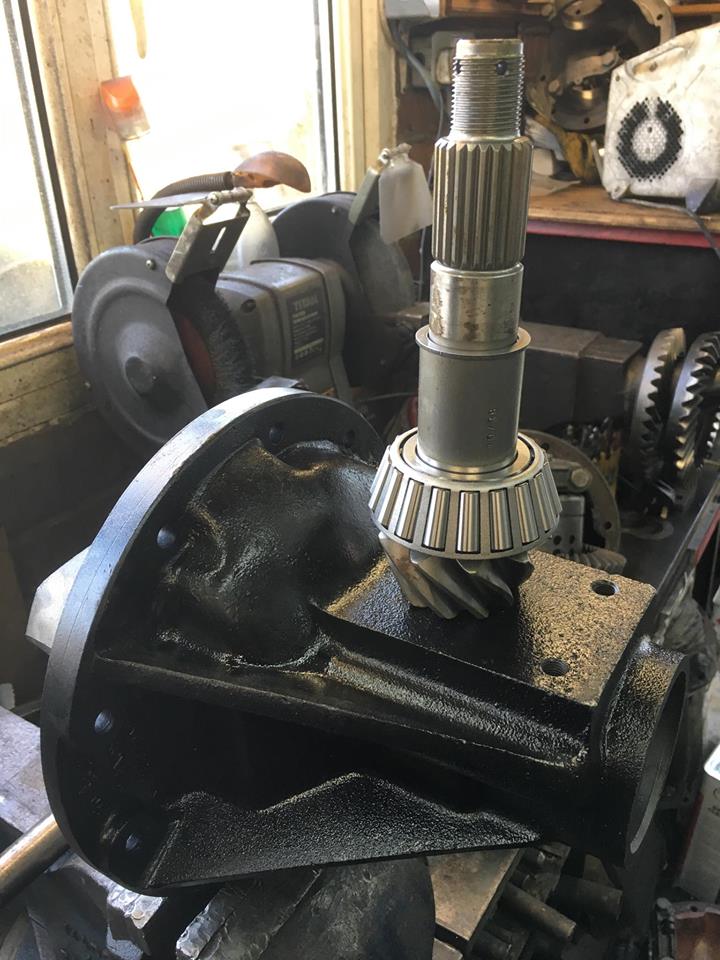

That Scabby old 4 Pin & dire casing given to us is all done ...keep up ben
Nige
That Scabby old 4 Pin & dire casing given to us is all done ...keep up ben
Nige
Attachments
-
12325104_636442206494536_606545101_n.jpg -
12516318_636442243161199_1619217607_n.jpg -
12767406_636446296494127_1168690004_n.jpg -
12767550_636447466494010_360668774_n.jpg -
12769433_636428286495928_376263801_n.jpg -
12769572_636446099827480_1469030355_n.jpg -
12784498_636442213161202_336520110_n.jpg -
P1050719.JPG -
P1050723.JPG -
P1050724.JPG -
P1050725.JPG -
P1050726.JPG -
P1050727.JPG -
P1050728.JPG -
raywin
Well-Known Member
- Posts
- 3,808
- Location
- North Yorkshire
Wow long time since I have seen any engineers Blue, or had any behind my finger nails.
Nigel Barker
New Member
- Posts
- 2
- Location
- Costa Del Haslemere
LOL...some peeps think I have some weird ilness when Suz & I go out and I have Eng Blue in my ear where is had a "Hmmmm let me think ...wiggle ...Waggle" moment
Stains like nothing else.

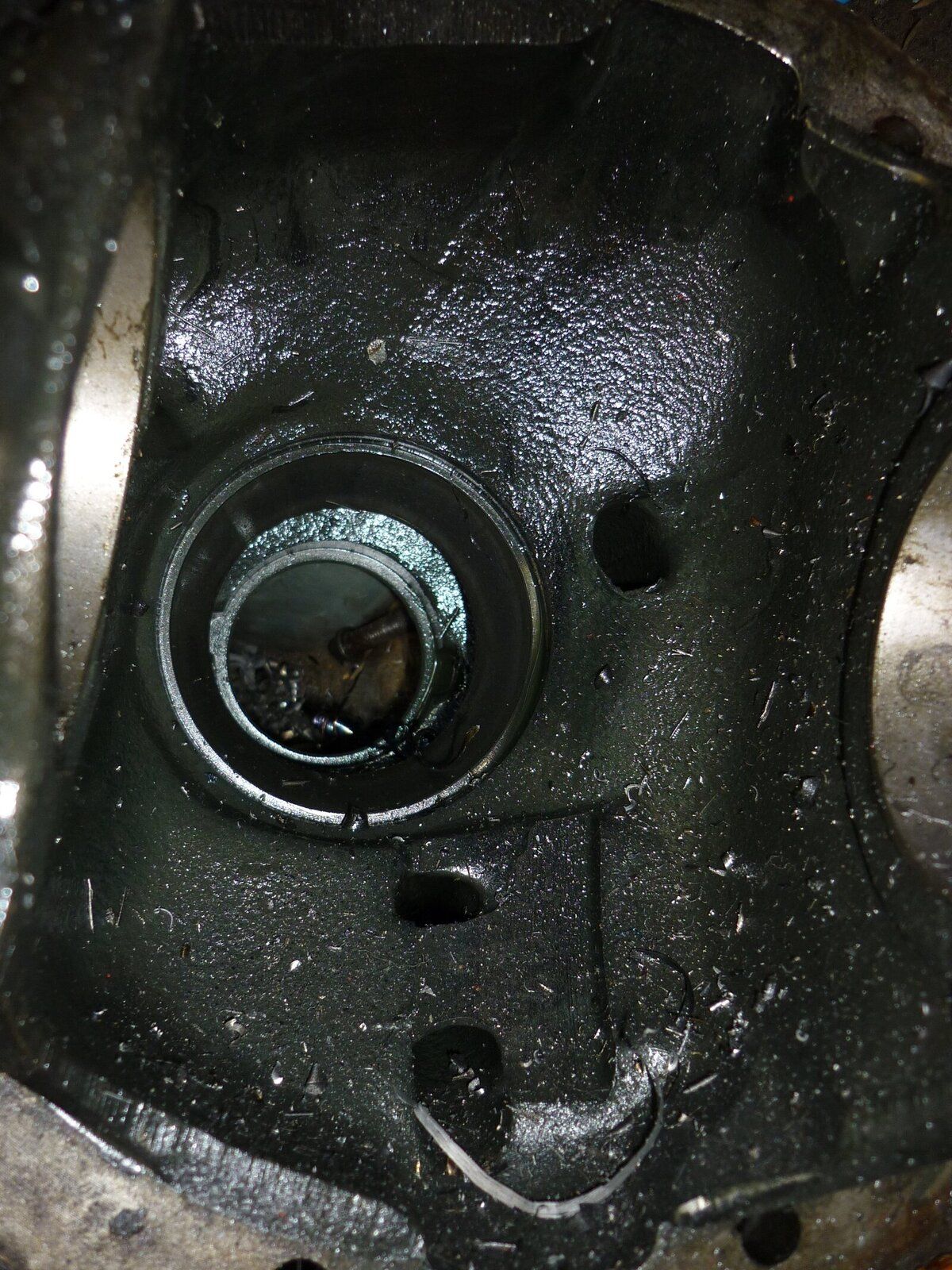

Thats a really nice 4 pin Ben has here, its a PROPER LR long Nose Military model mit forged cross shfat - = f strong !
Some serious ultrasonics and polishing brough it back well, some deeper pitting cant be removed buts more than good now, which is as much down to what we do as more the metal quality it was made from. Back in the 80s what LR served up to Civvy Street and what they sent the military where hugely different !!!!!!
Nige
Stains like nothing else.
Thats a really nice 4 pin Ben has here, its a PROPER LR long Nose Military model mit forged cross shfat - = f strong !
Some serious ultrasonics and polishing brough it back well, some deeper pitting cant be removed buts more than good now, which is as much down to what we do as more the metal quality it was made from. Back in the 80s what LR served up to Civvy Street and what they sent the military where hugely different !!!!!!
Nige
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
Proper job!
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
that was quick, pleased it was what you wanted
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
Spot on, cheers again James - we'll have to have another chin wag at some point.that was quick, pleased it was what you wanted
Last edited:
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield

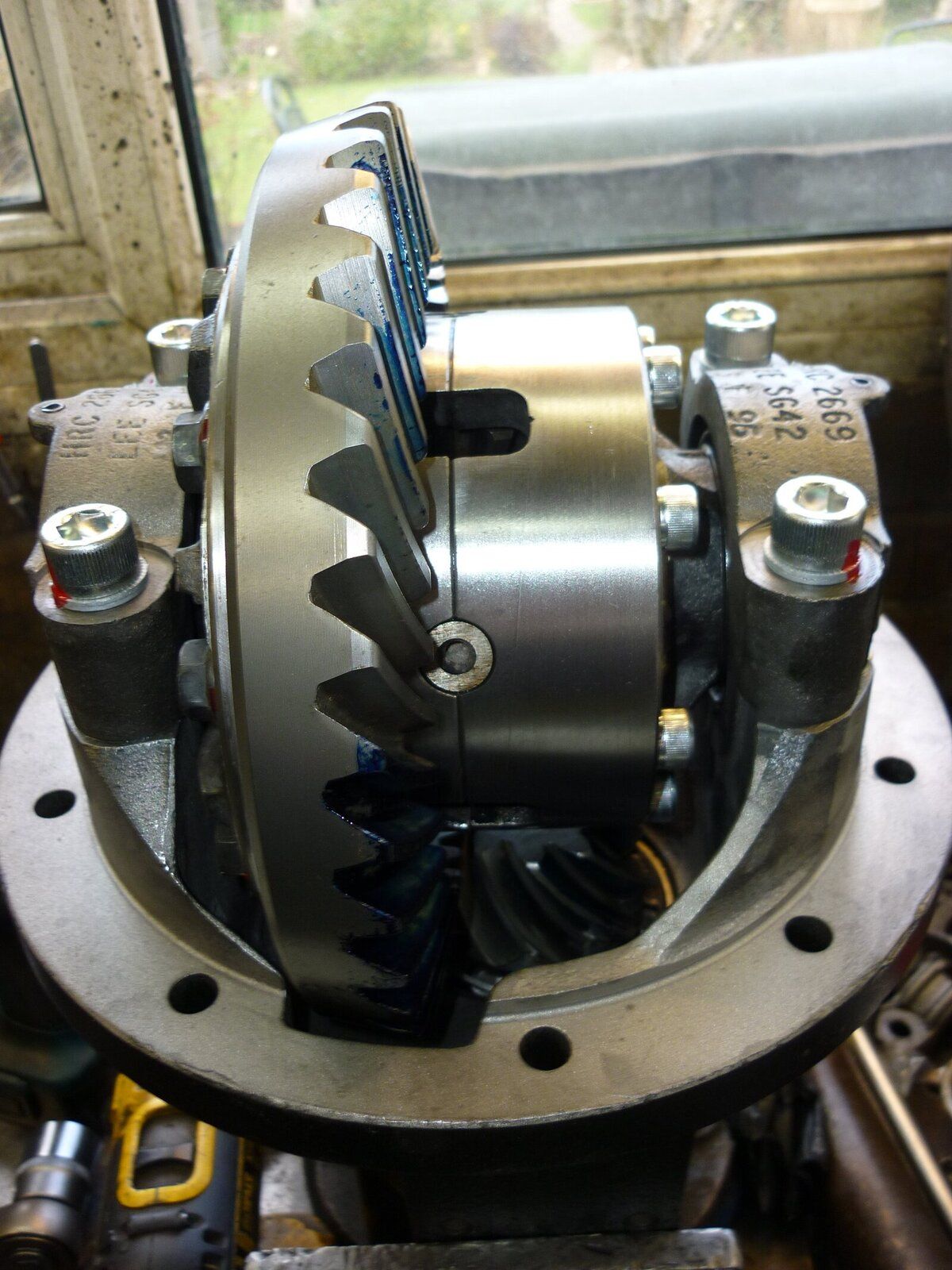

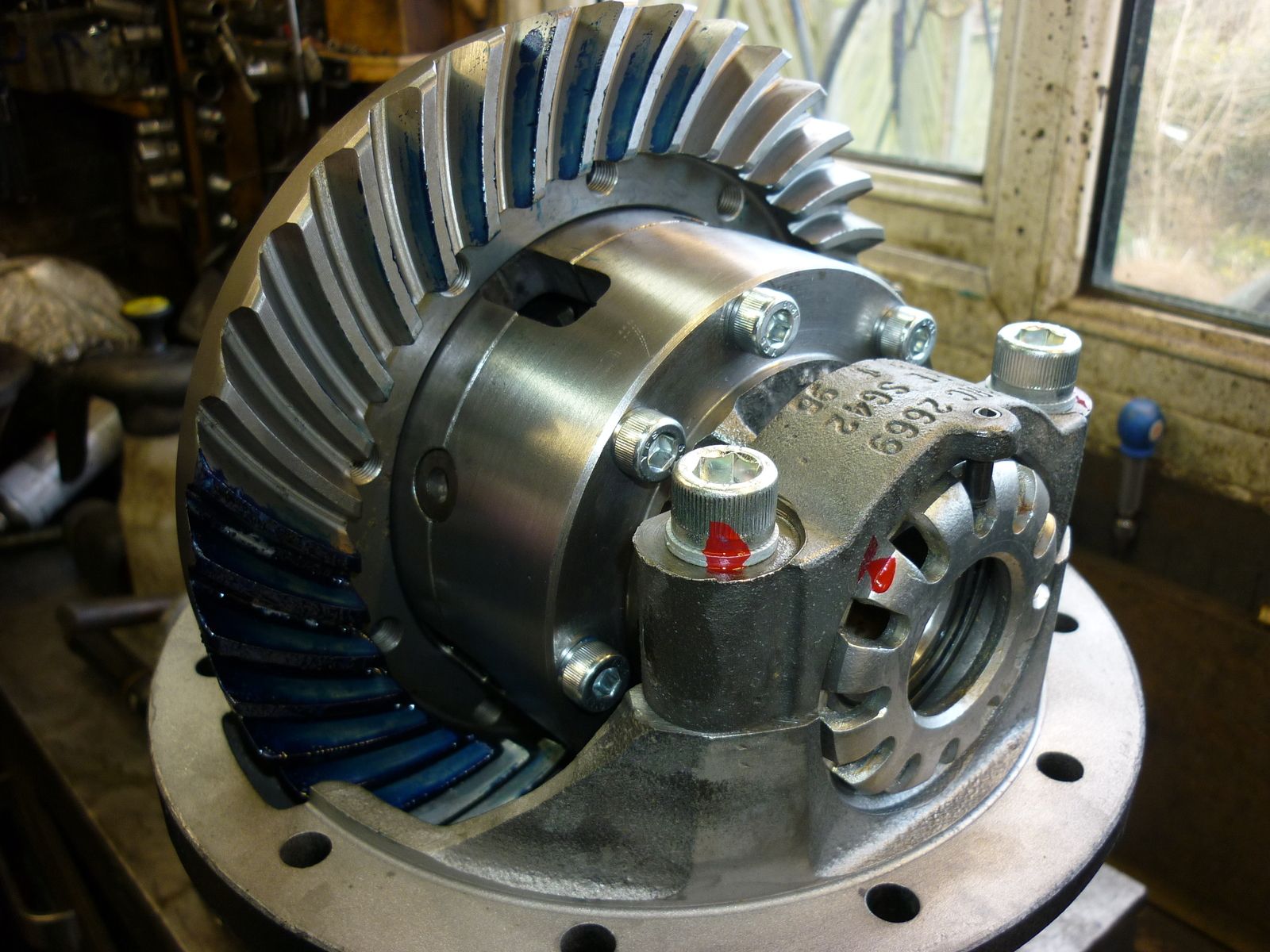

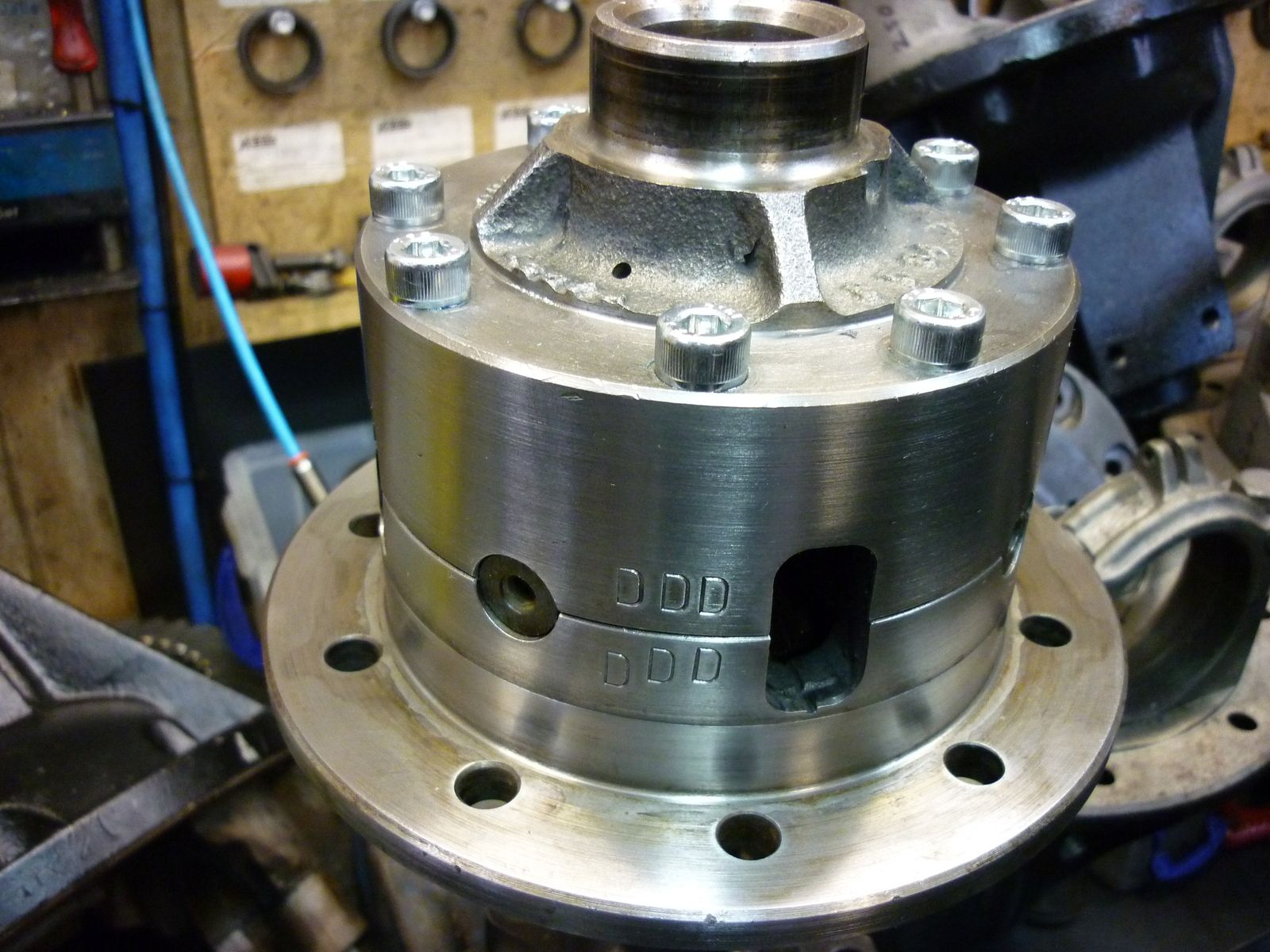

Ashlocker being built up....

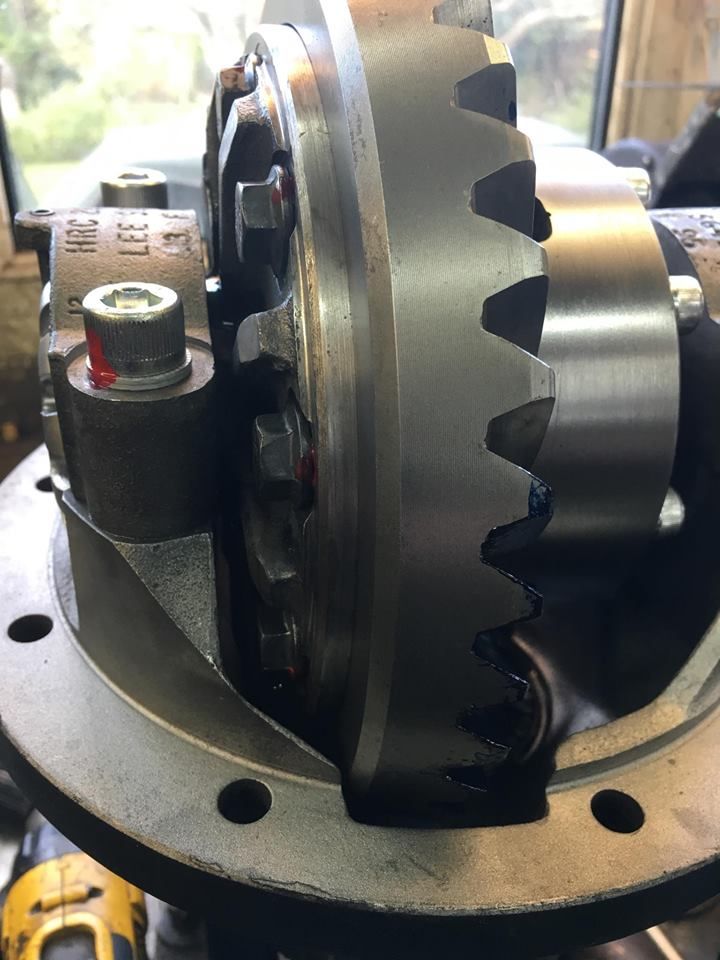

That's some whopping big teeth!

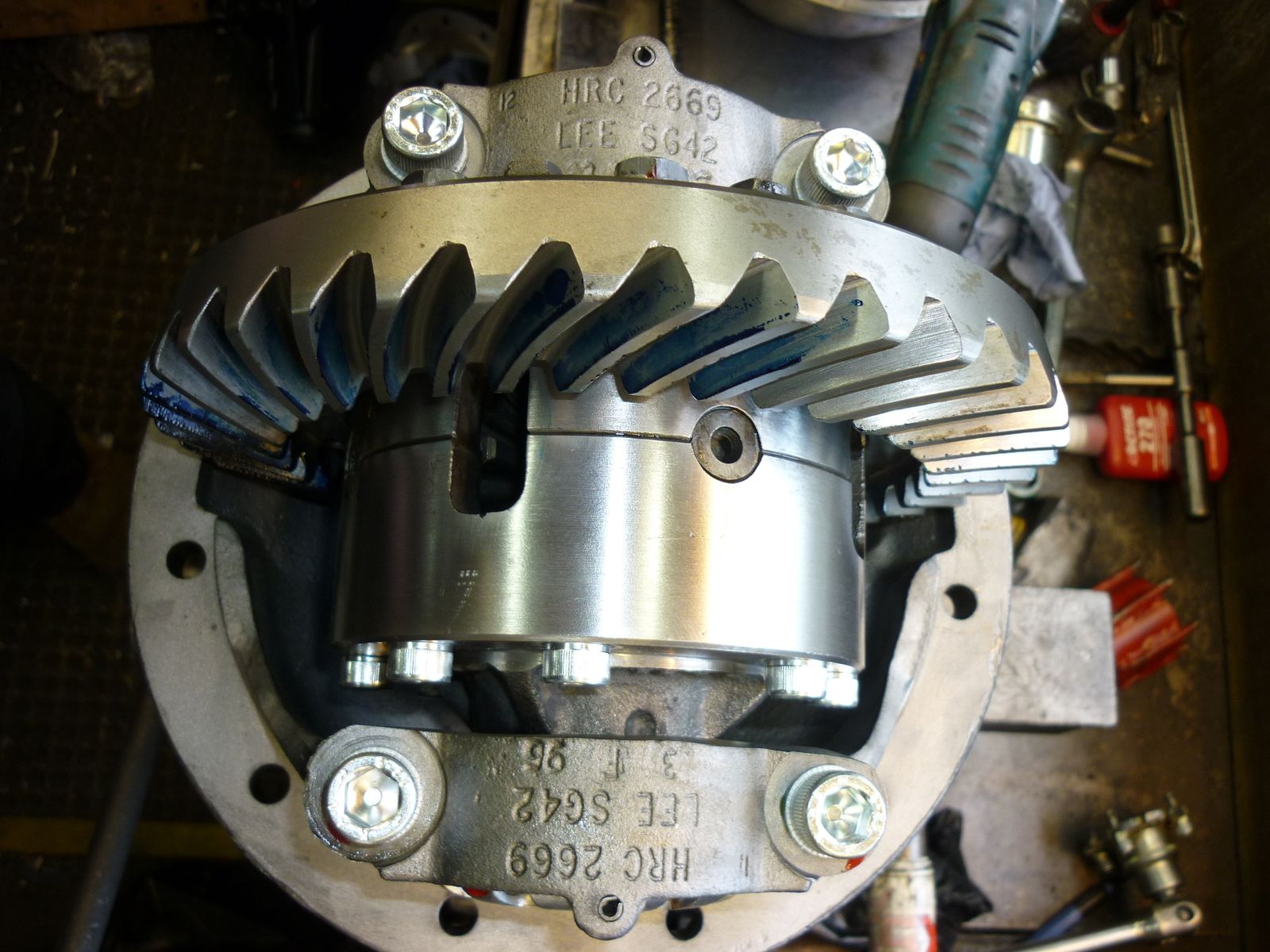

Blue check
Can't wait to get these beauties fitted, I better get the axles off to the blasters!
That's some whopping big teeth!
Blue check
Can't wait to get these beauties fitted, I better get the axles off to the blasters!
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
Popped the balljoints out of the axles...
Then they went to the blasters....
When the rain stops I'll get them into the shed and slap them up with red oxide.
Then they went to the blasters....
When the rain stops I'll get them into the shed and slap them up with red oxide.
Bennehboy
Well-Known Member
- Posts
- 2,215
- Location
- Huddersfield
Rear Axle in red oxide
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
yes certainly
