I think there is a dent from my head in the roof of a 'fender somewhere
Bankz's 110 Double Cab
- Thread starter bankz5152
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
Then you feel for my mate who was in the back of mine for 2k miles to Spain and back
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Then you feel for my mate who was in the back of mine for 2k miles to Spain and back
2k miles
He is either somewhat vertically challenged or was inebriated and self medicating on whisky for the journey
I think they missed the boat so many times with Defenders and Discoveries to take the fight to the rivals in their sectors.
I like your frames, they look plenty strong enough, the RRS seats are going to be uber comfy though.
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
Erm bit of both
Thats the idea anyway! Whole lot cost sub £200, better than £2k for the Puma conversion! or £1200 for the exmoors
I keep being annoyed as they would be perfect and brilliant in a CSW/USW maybe 130 DCPU but im just lacking that touch of extra space needed to make it truely comfy. However they will do!
Ive done it as much to see if it can be done, if i can do it and to see what its like. Plus uber cool having RRS seats in an old fender
Thats the idea anyway! Whole lot cost sub £200, better than £2k for the Puma conversion!
or £1200 for the exmoors I keep being annoyed as they would be perfect and brilliant in a CSW/USW maybe 130 DCPU but im just lacking that touch of extra space needed to make it truely comfy. However they will do!
Ive done it as much to see if it can be done, if i can do it and to see what its like. Plus uber cool having RRS seats in an old fender
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
- Posts
- 9,105
- Location
- Roaming the UK on assignments
That is memory making right there, lovely gift from your dad
The Mrs isn't quite so impressed with the swanky 1/4 drive set I got her but it'll grow on her in time I suppose lol
The Mrs isn't quite so impressed with the swanky 1/4 drive set I got her but it'll grow on her in time I suppose lol
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
Hahahaha she will like it!
DaveM-sport
Active Member
- Posts
- 847
- Location
- Cork, Ireland
Those subframes are tidy. I must do the same for my 130 to fit my two rear Recaros. I'm making a full length center console like a cubby box back to the rear window.
The cab of the 110dcpu and 130 is exactly the same so no difference in rear seat room.
Would have room to play2with in a CSW or USW alright but the pickup of the 130 is much more useful.
The cab of the 110dcpu and 130 is exactly the same so no difference in rear seat room.
Would have room to play2with in a CSW or USW alright but the pickup of the 130 is much more useful.
Attachments
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
Slight diff being youve no wheel arches in a 130! Makes a touch more space. Looks really good!
Cheers! Quite the project but getting there! Ive if find the RRS seats too big ill test fit some standsrd front seats
Cheers! Quite the project but getting there! Ive if find the RRS seats too big ill test fit some standsrd front seats
DaveM-sport
Active Member
- Posts
- 847
- Location
- Cork, Ireland

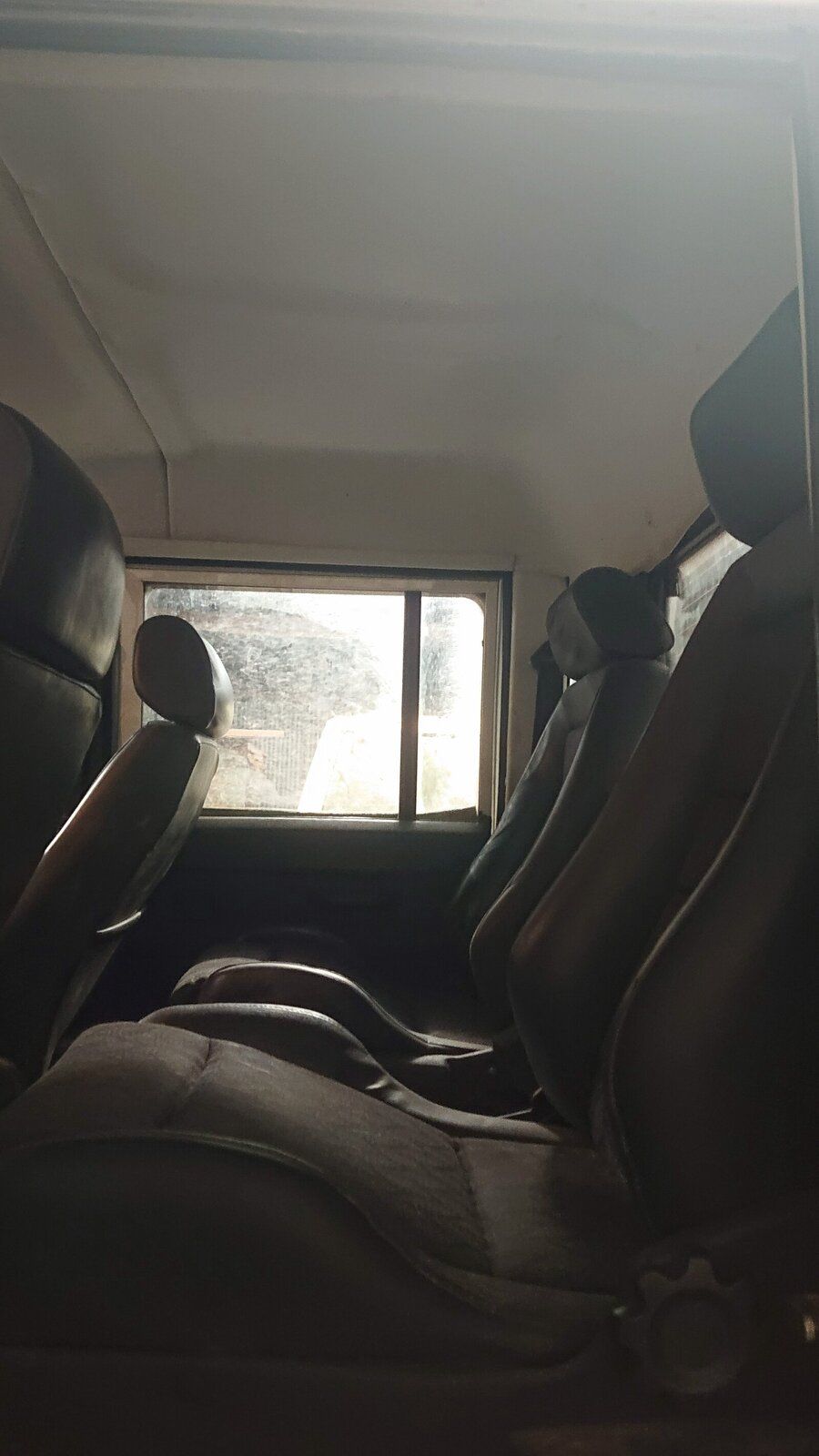

Ahhh! I knew there was something but couldn't remember. I had test fitted the same seats in my first 110 a few years ago too which was a 110dcpu and it was abit more awkward to get them sitting in a nice position now that ai think of it and they ended up being a few inches higher so headroom would have suffered a tiny bit.
I'm going future proofing mine too and goings fitting isofix if can manage the mounts
I'm going future proofing mine too and goings fitting isofix if can manage the mounts
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
Honestly thats 80% of the reason for the conversion
They have ISO fix too which is a huge bonus. The RRS seats will be pure luxury for a kid in a DCPU!
They have ISO fix too which is a huge bonus. The RRS seats will be pure luxury for a kid in a DCPU!
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
Ahhh got some wonderful Corbeau RRS in the front! Love them.
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
More progress! But no pics atm
Subframe is painted - Buzzweld CIO
All mounting holes drill in the body and subframe
Test fitted the derv heater - Its tight but fits. Should have put more thought into this area as that will be a pig to remove should I need to
Both seats are welded in position upright
Drawer runners are on and within 1-2mm so shouldnt be too sticky!
Will hopefully get on to welding up the drawer tonight. Soon as thats done its final fit time!
Subframe is painted - Buzzweld CIO
All mounting holes drill in the body and subframe
Test fitted the derv heater - Its tight but fits. Should have put more thought into this area as that will be a pig to remove should I need to
Both seats are welded in position upright
Drawer runners are on and within 1-2mm so shouldnt be too sticky!
Will hopefully get on to welding up the drawer tonight. Soon as thats done its final fit time!
DaveM-sport
Active Member
- Posts
- 847
- Location
- Cork, Ireland
Where did you bolt the subframes to in the body? That's the only thing I was thinking about if should use all the orginal mounting points for strength or not.
Or just anywhere and hace spreader plates underneath.
Or just anywhere and hace spreader plates underneath.
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
Bolted thru where the seatbelt crossmember is with an M8 10.9 HT bolt. Along with 10 stainless M8 rivnuts. Front seats are held in with rivnuts so should do the job fine. As its the seatbelts that will do the heavy lifting not the seats.
That said I am going to add some 5mm steel plates at the back of the subframe, which will bolt down through the existing seatbelt mount.

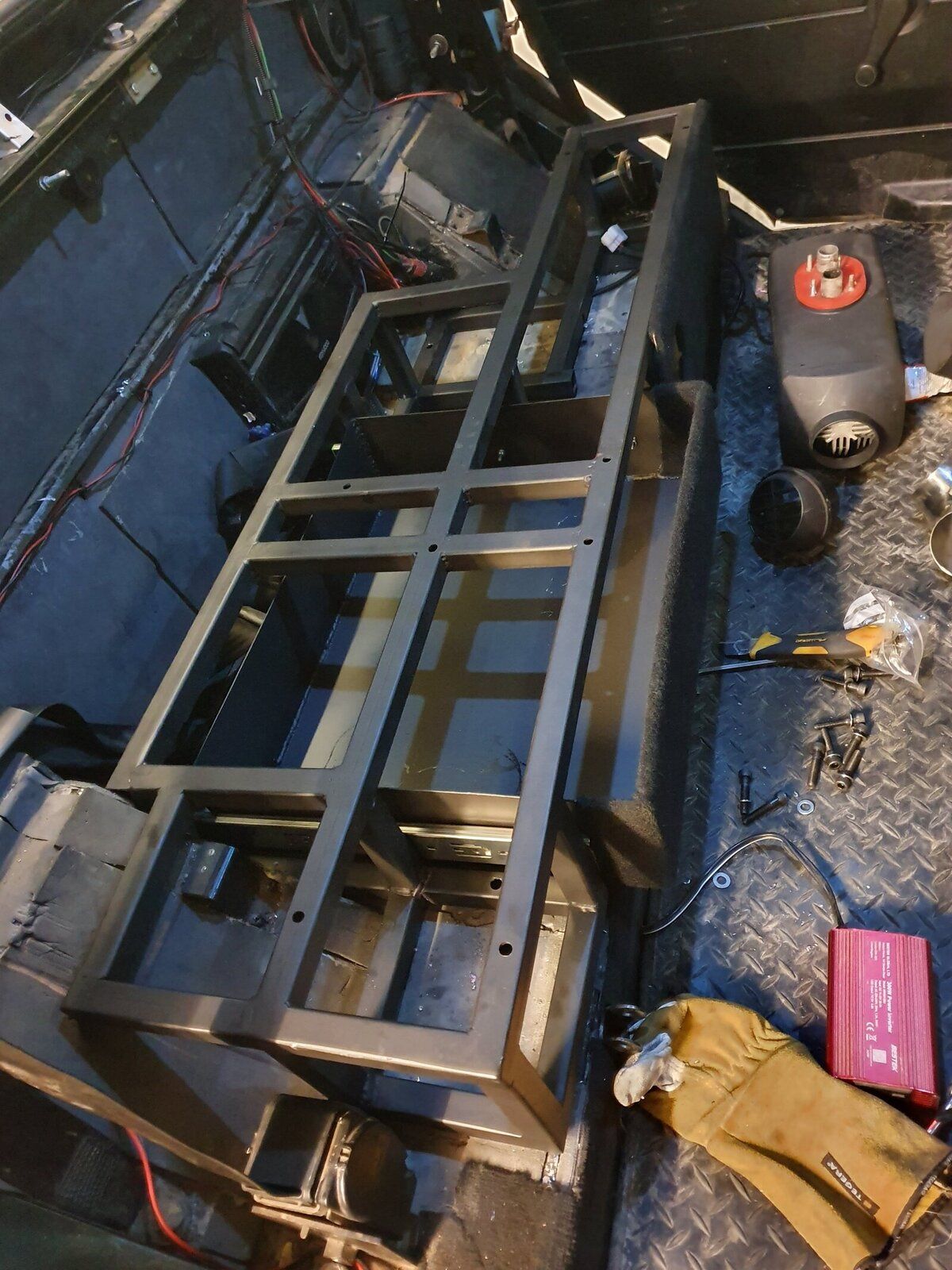

Fair bit this evening in between Boxing Day festivities!

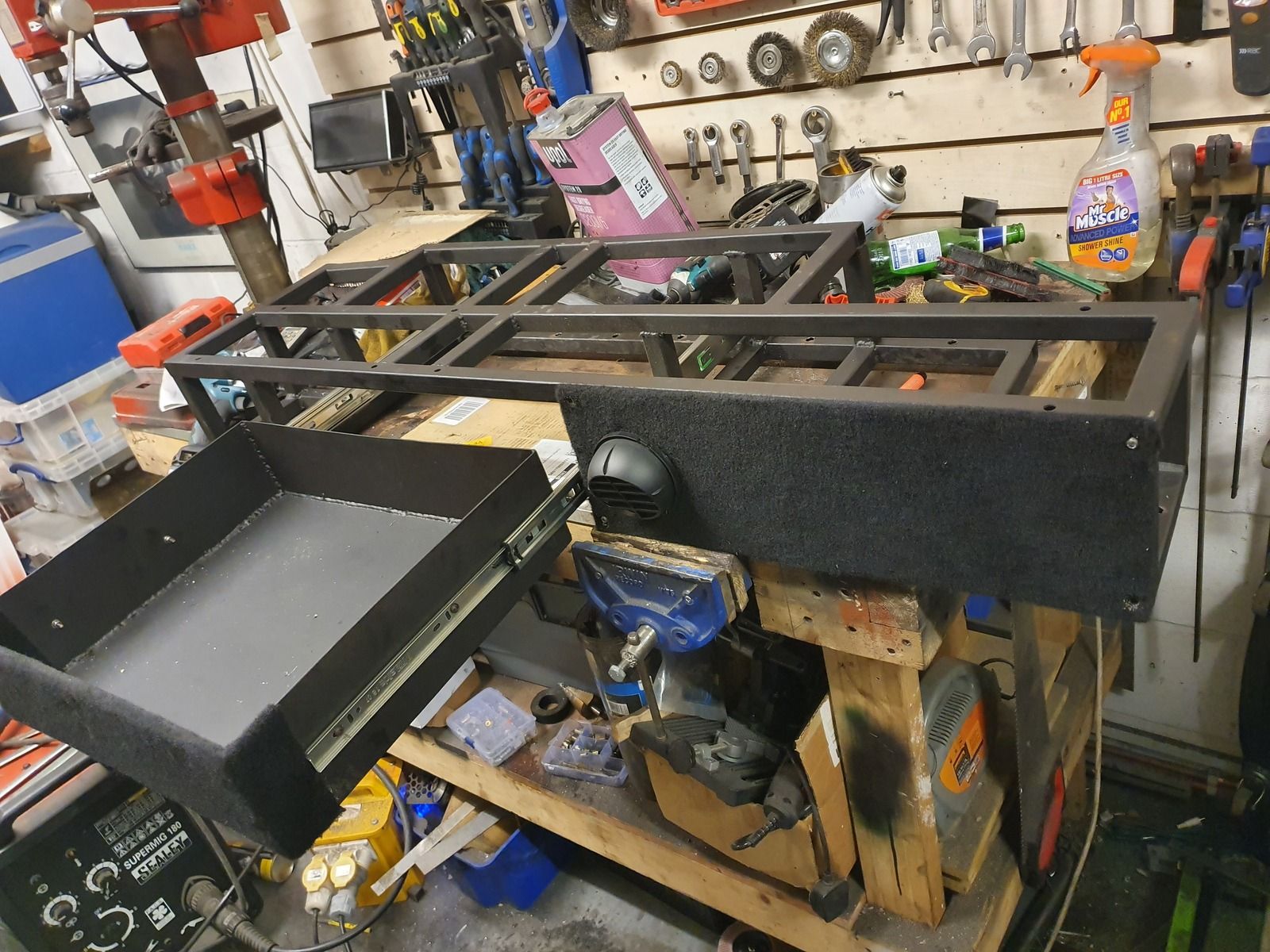

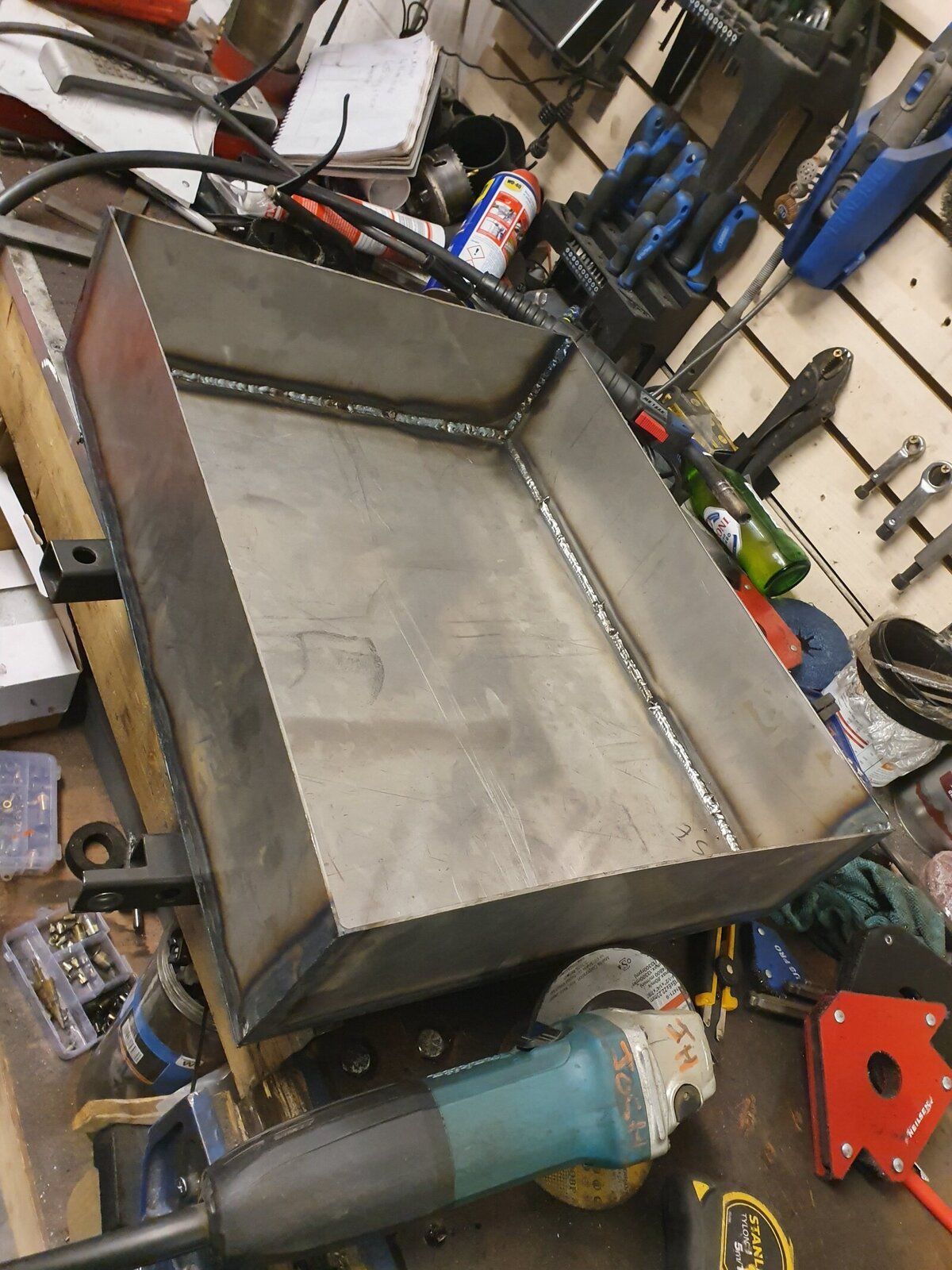

Drawer welded up from 1.5mm steel sheet.

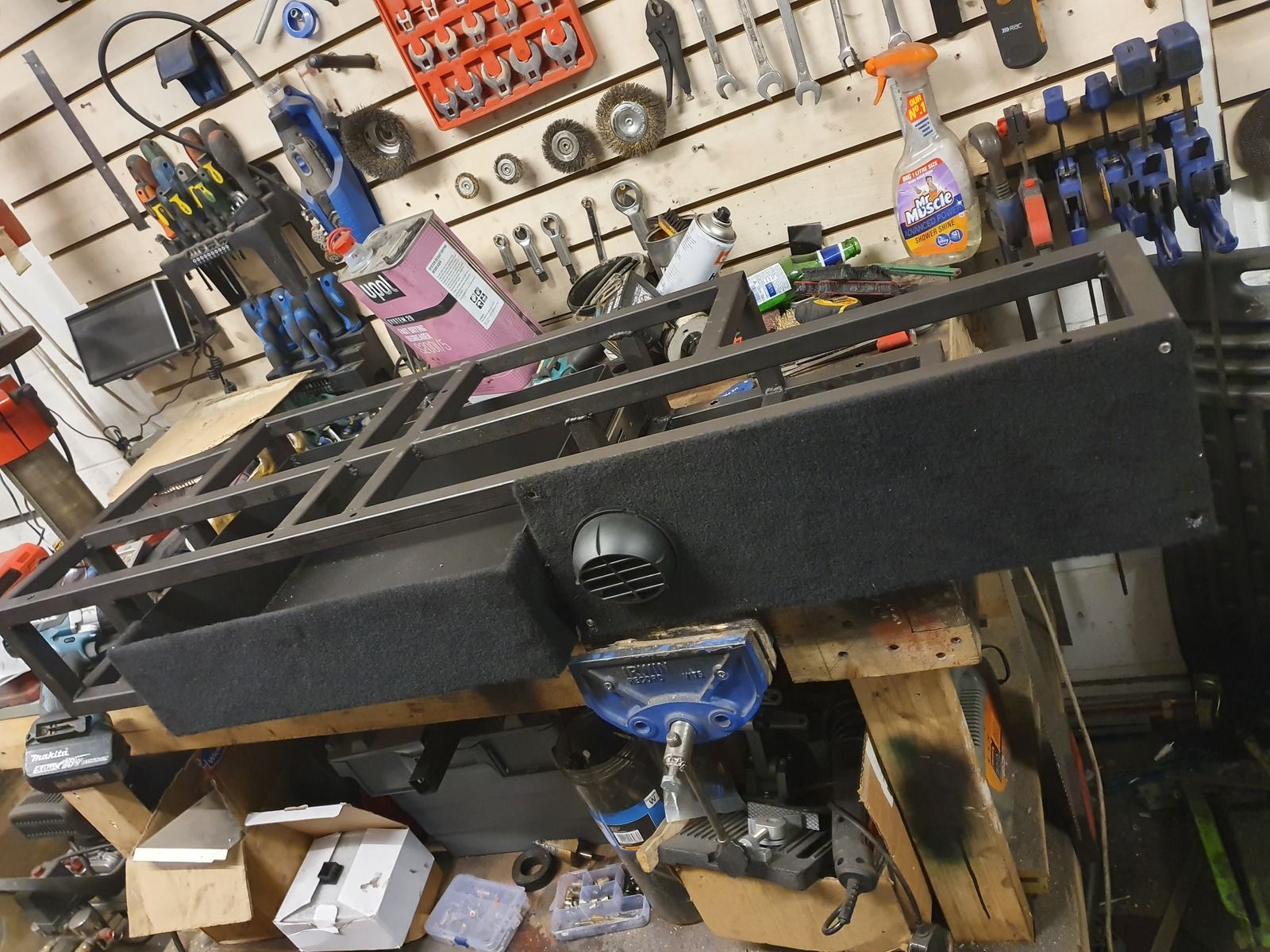

Cladding on and derv heater vent fitted.
Drawer fitted and carpeted
Final test fit before bolting it down
Really pleased with how its turning out so far. Few issues but nothing that wasnt over come. All coated with CIO
Will finish it over tomorrow, maybe Saturday as seeing the new Star Wars!
Eventually ill get round to wiring in the heated seats, got the wiring left over from the original front seats so should be easy enough.
Also going to fit some USB sockets and a 12v socket in the cubby box bit.
Then when I have time will fabricate a flat floor to sit in place when the seat bases are removed for storage. Will also include a slide out for my fridge. Could be tricky if I want to take 2 passengers but ill work it out
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent

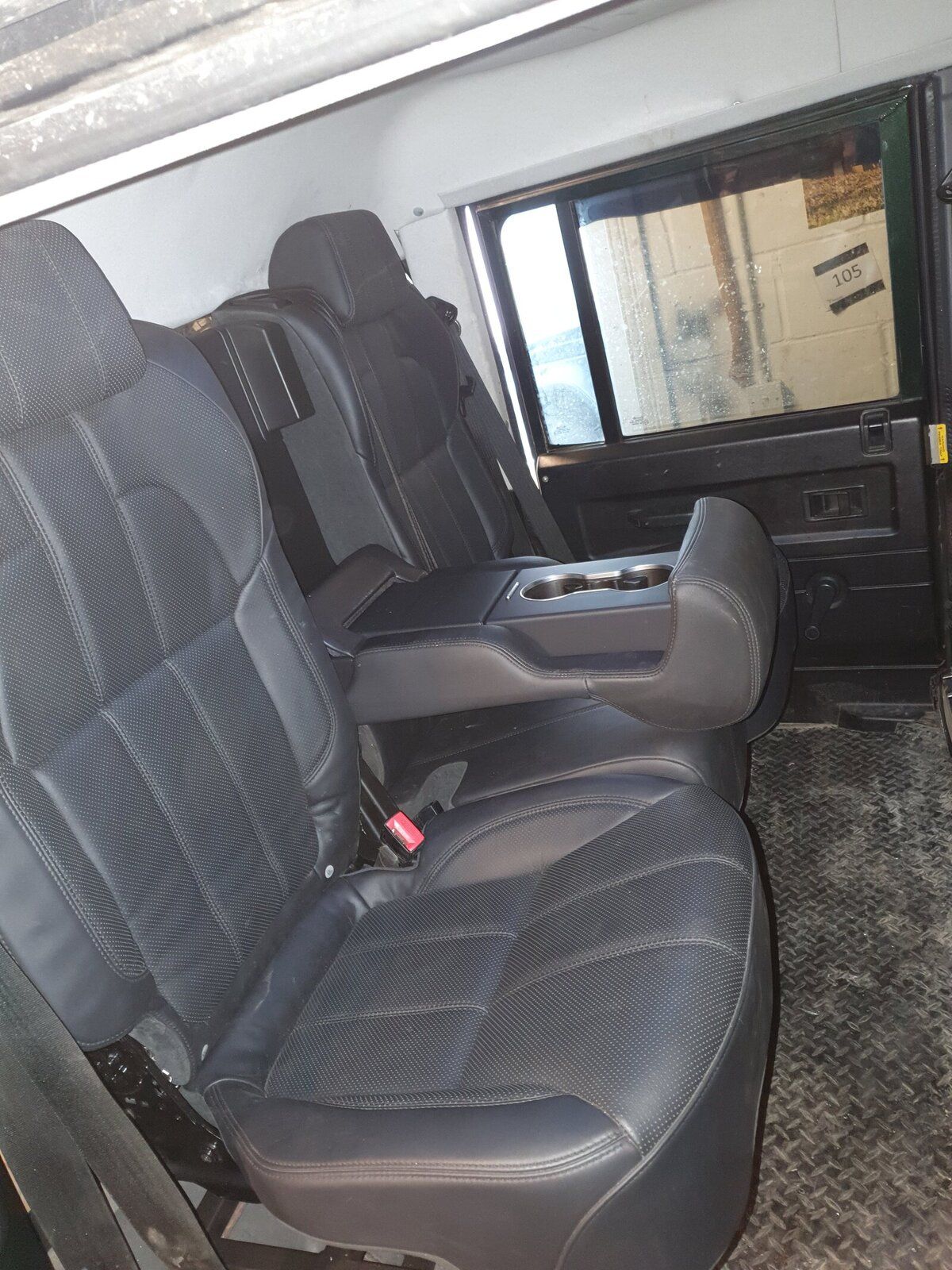

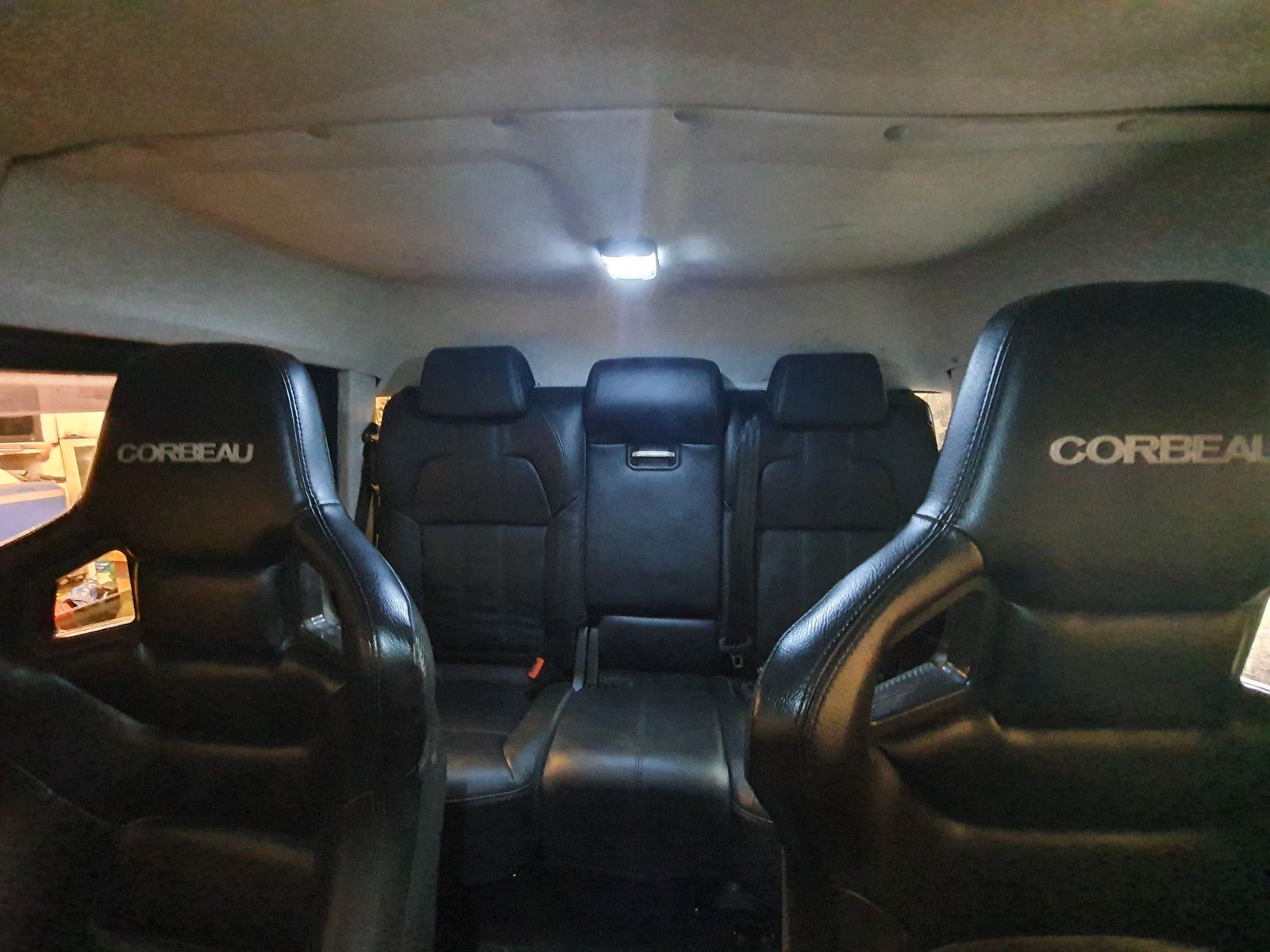

Annnnd finished! Late night last night paid off. Seats are rock solid and fit well despite their huge size.
Just got to plumb the heater back in and finished. Then onto a service

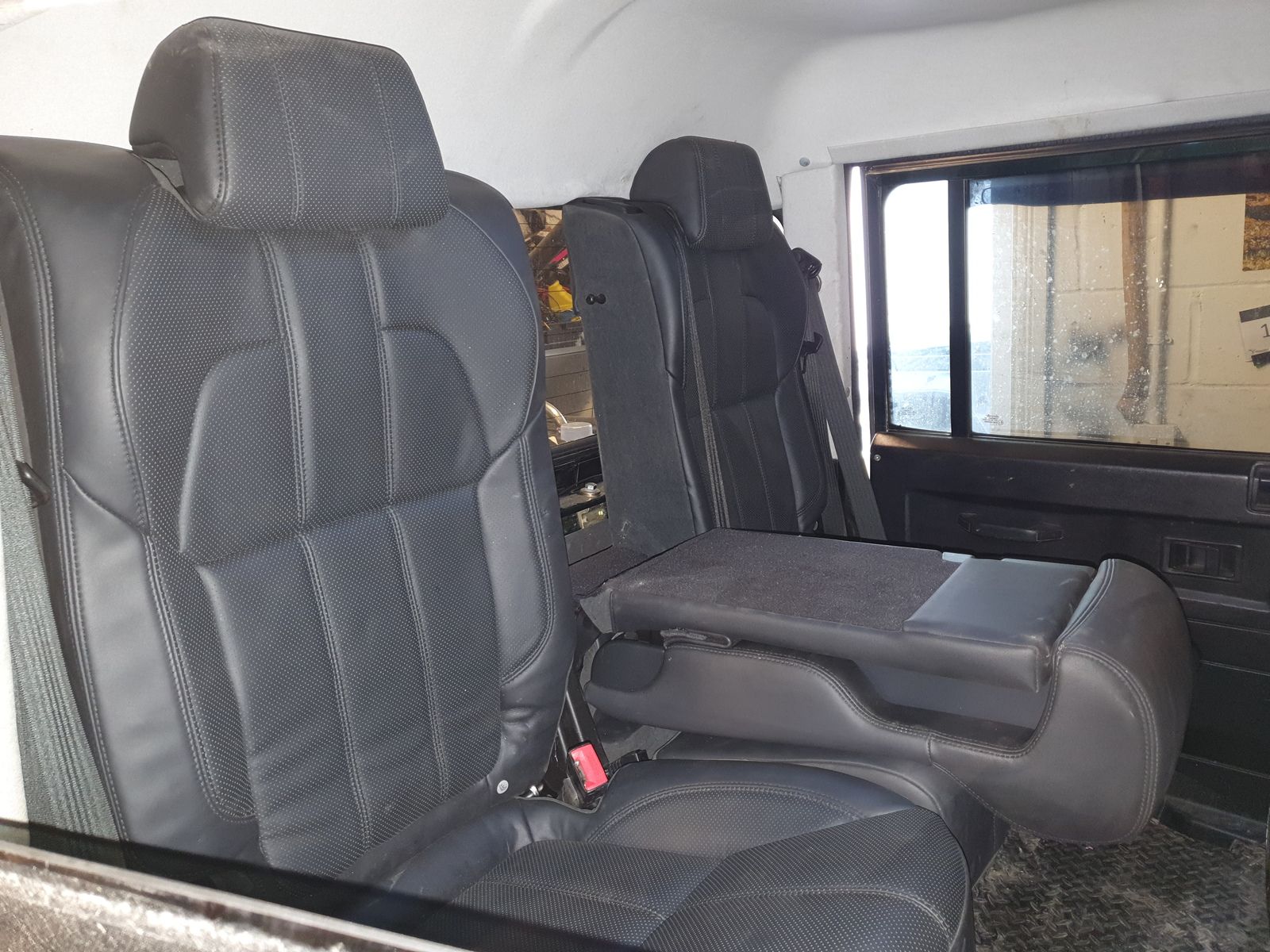

Only downside is the rear view is fairly diminished now but I can drop the center seat down for some more visibility.
Just got to plumb the heater back in and finished. Then onto a service
Only downside is the rear view is fairly diminished now but I can drop the center seat down for some more visibility.
bankz5152
Well-Known Member
- Posts
- 9,311
- Location
- South London/North Kent
Taking a break from the 110 to build the 90. Hard task but going well
Suspension was easy on this one
Bit tougher too install on the 110
Can finally get the Terrafirma rubbish off my 110. I know in the past i have defended them but over the past 2 years ive really put there stuff to the test and it is not up to scratch. Its poor and unreliable.
Springs have sagged back to standard height in less than 2 years and 18k miles (if that).
Dampers ive had a 3 fronts fail from leaking oil and needed bushes in the rese shocks. Expedition shocks there are not.
Cheap n cheerful gave a good ride but not reliable.

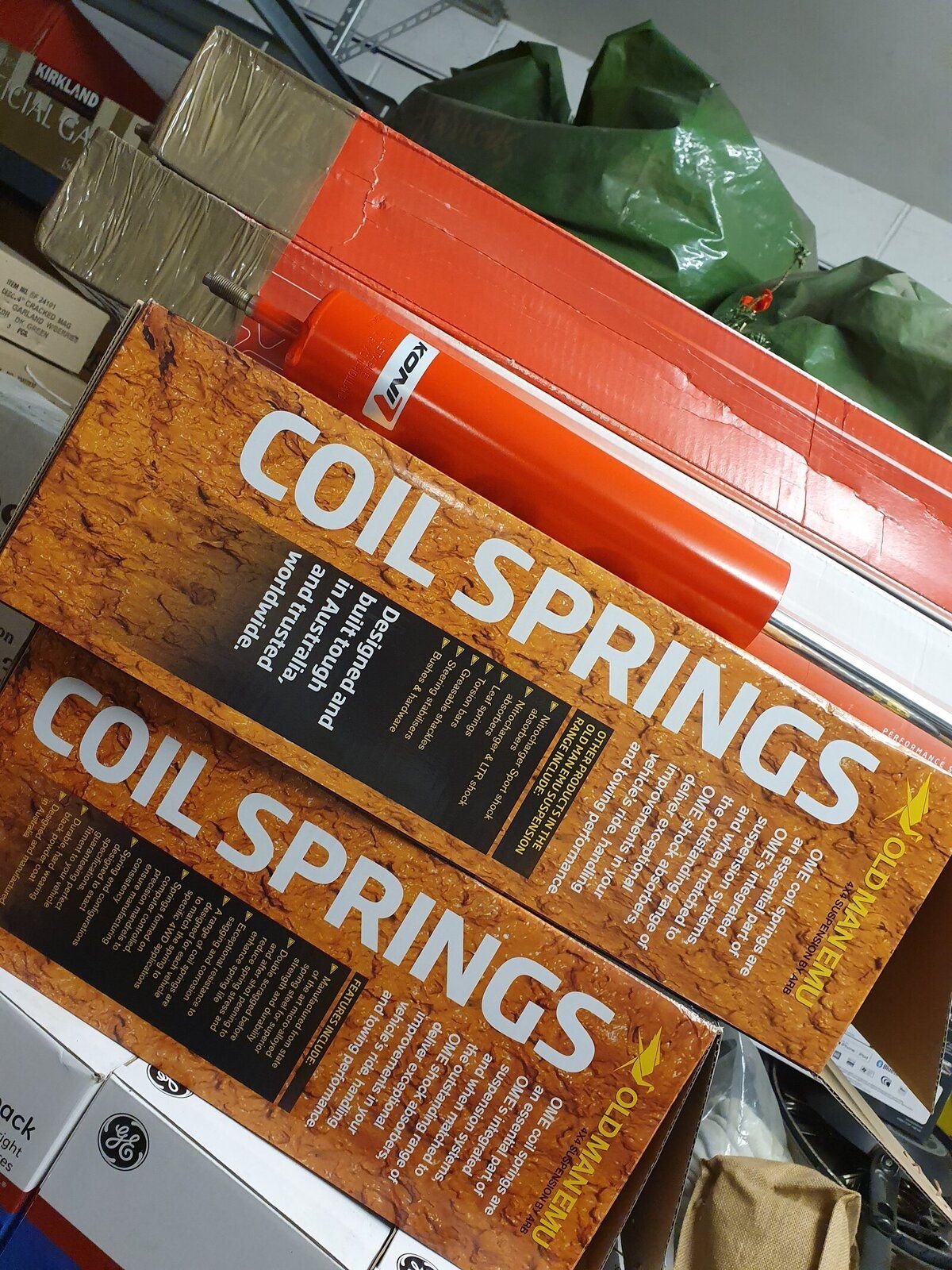

Looking forward to a proper set up with Koni/OME
Suspension was easy on this one
Bit tougher too install on the 110
Can finally get the Terrafirma rubbish off my 110. I know in the past i have defended them but over the past 2 years ive really put there stuff to the test and it is not up to scratch. Its poor and unreliable.
Springs have sagged back to standard height in less than 2 years and 18k miles (if that).
Dampers ive had a 3 fronts fail from leaking oil and needed bushes in the rese shocks. Expedition shocks there are not.
Cheap n cheerful gave a good ride but not reliable.
Looking forward to a proper set up with Koni/OME
Last edited:
- Posts
- 10,370
- Location
- A bit sarf of Dorking
I'm glad you've said that. My last SIII had new looking TerraFirma shocks on it when I bought it, one of which had lost oil. Changed the lot for OEM, wondering if I'd done the right thing.
