Axles and Wheels - Which Type?

S

SimonBrown

Member

Posts

21

• Friday at 18:58

• #1

These axles and wheels are fitted to my 1987 110 (the one in projects...up for restoration).

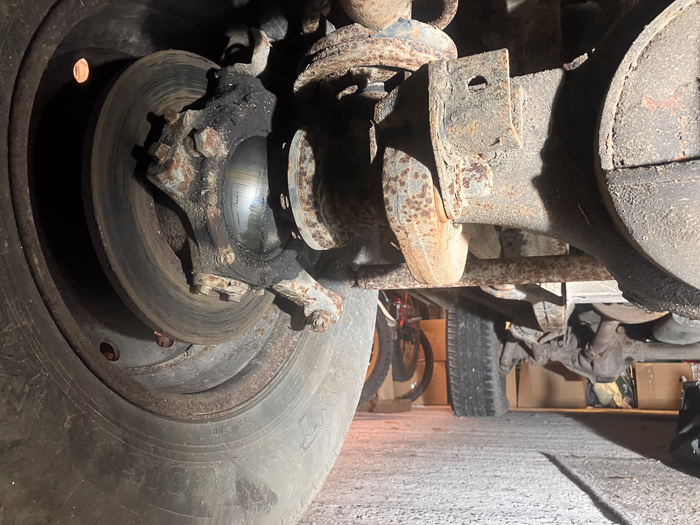

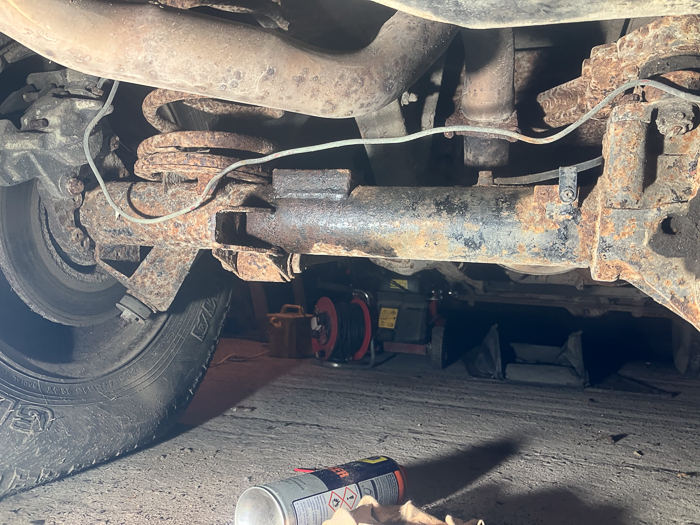

The front axle serial number is elusive and I cannot find it but could do with an ID:

Any clues there?

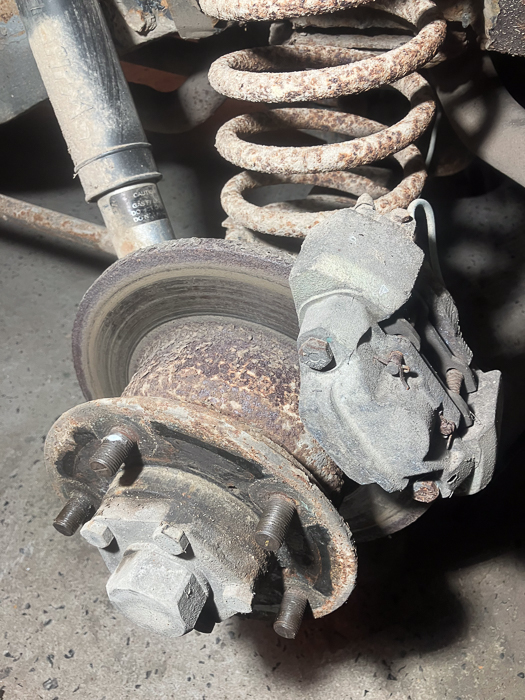

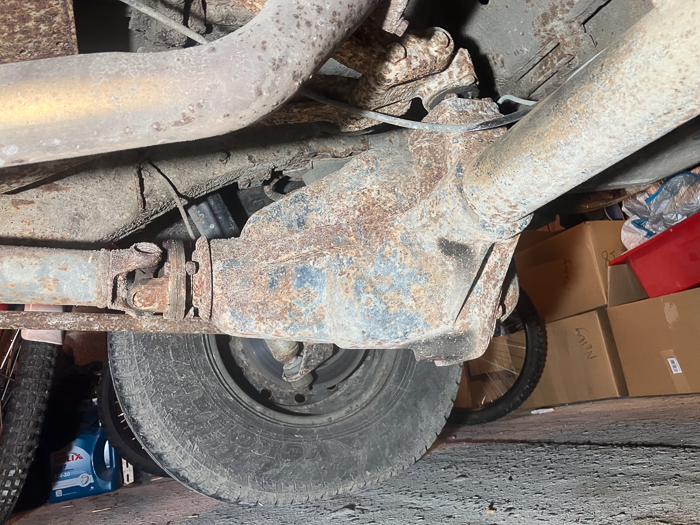

Next, the rear axle. This is fitted with discs, which as I understand it, were not fitted until later. Again, any ID most welcome:

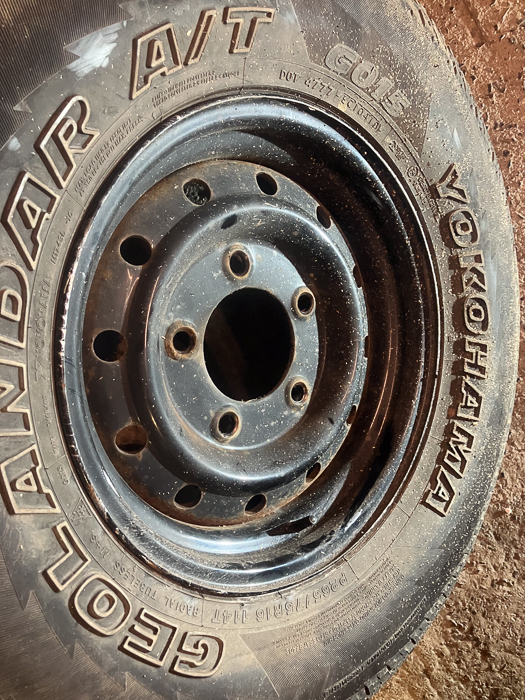

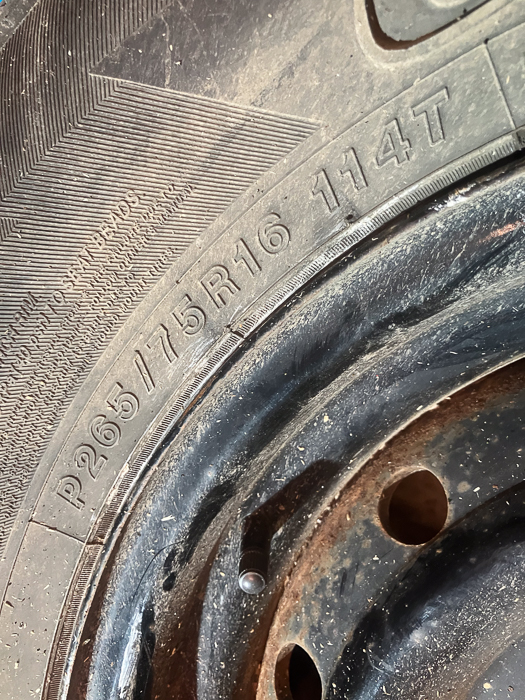

Finally, the previous owner muttered something about "Wolf wheels". I have no idea here...so again any ID welcomed:

And I did find the source of a transmission clunk. Predictably the rear UJ is...beyond its end of life.



Flossie

Well-Known Member

Posts

11,147

Location

Shropshire

• Friday at 19:23

• #2

Rear is a Salisbury so that's good.
id is on the top axle tube if I recall but it's been a while and it's hard to see without wire brushing the cack off.



kevstar

Well-Known Member

Full Member

Posts

23,395

Location

In the next Glen

• Friday at 22:28

• #3

Flossie said:

Rear is a Salisbury so that's good.
id is on the top axle tube if I recall but it's been a while and it's hard to see without wire brushing the cack off.

Click to expand...

Agreed, the front id will be on the near side front near the top iirc stamped in & wire wheel n drill to clean the rust off.



Knappster

Well-Known Member

Full Member

Posts

3,739

Location

Stroud

• Friday at 23:41

• #4

Wolf wheels, or officially heavy duty rims. Fitted to military wolf defenders hence the name.



300bhp/ton

Well-Known Member

Posts

5,081

Location

Near MK

• Saturday at 07:24

• #5

Front axle is probably standard and original unless there was call for it to be changed. All the front axles look mostly the same and relatively few changes over the years.



E

Eldon

Active Member

Posts

52

• Saturday at 09:01

• #6

Rear salisbury disc braked is nice
Solid dependable unit.



Flossie

Well-Known Member

Posts

11,147

Location

Shropshire

• Saturday at 13:24

• #7

Didn't the width of the hockey sticks change at a certain year? Also swivel bearings went from Bush to bearing, both front axle related.



S

SimonBrown

Member

Posts

21

• Saturday at 17:37

• #8

Eldon said:

Rear salisbury disc braked is nice
Solid dependable unit.

Click to expand...

I'm picking up the mood music on this...I did think it looked not unlike a 101 at the diff housing.



H

Hicap phill

Well-Known Member

Posts

16,517

Location

Wiltshire

• Saturday at 21:45

• #9

If the axles were put on at the same time that’s from a late 300tdi 110.

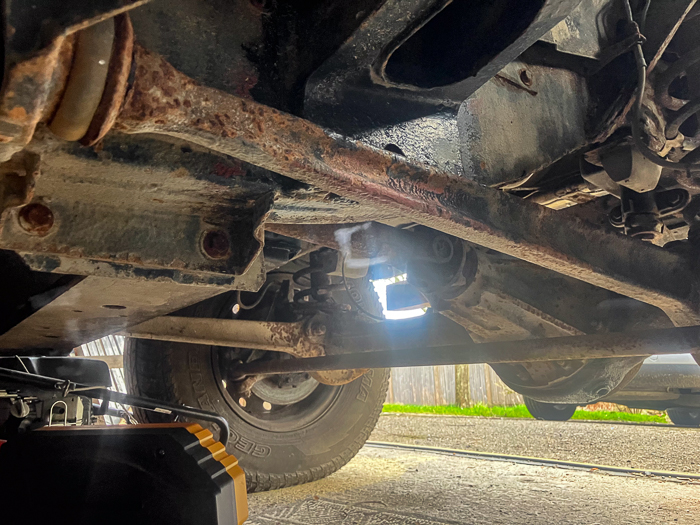

Have you a photo of the front arms to chassis ?
This will confirm not a later model
