300tdi Conversion

border · Aug 27, 2019

Thanks for pic, mine has the wavey ones . So is it just a case of cutting off and replacing with longer hose then tightening on jubilee clips, or is that just wishful thinking ??

border · Aug 28, 2019

Rougharse Racing said:

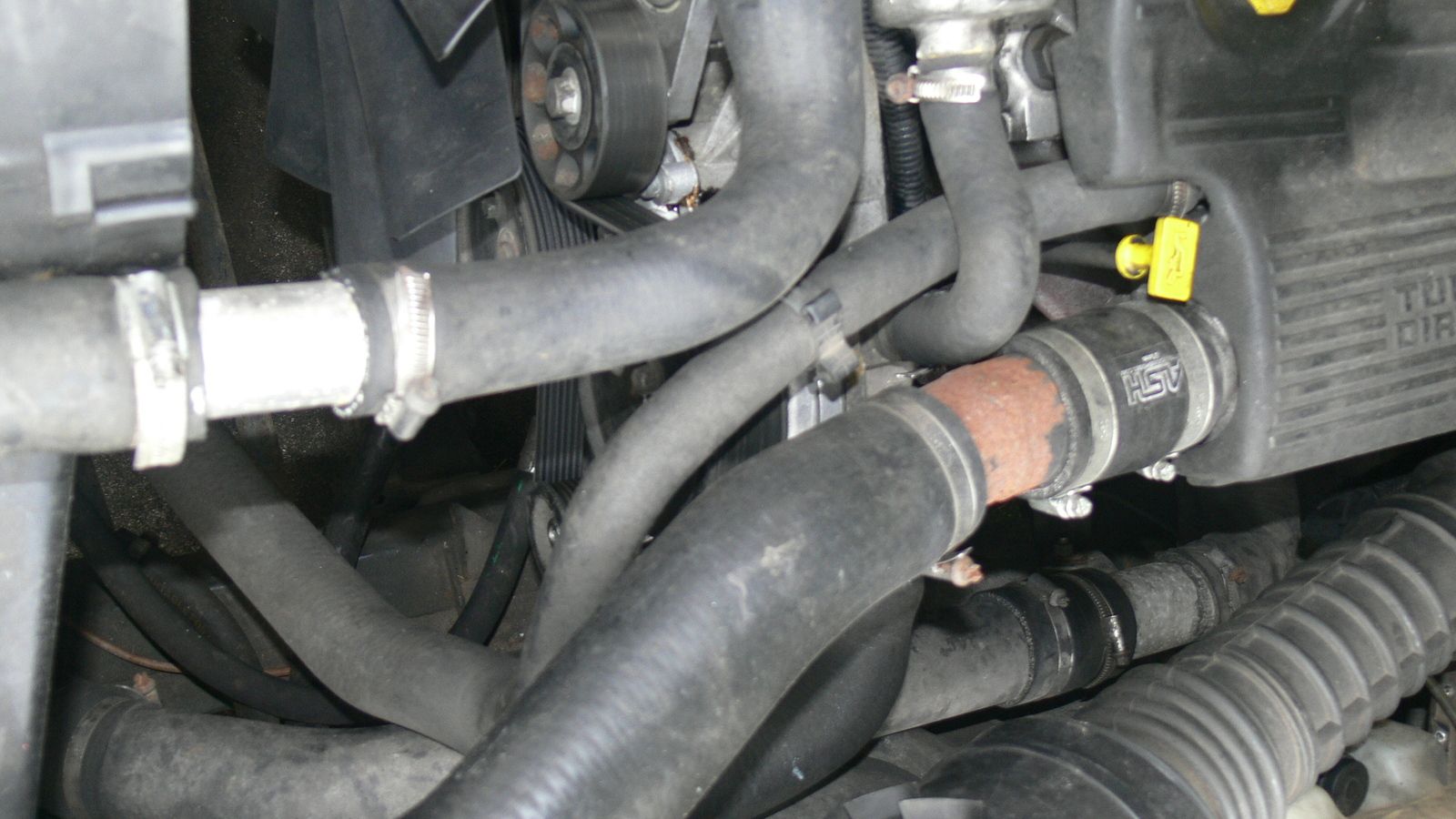

View attachment 188025 View attachment 188024

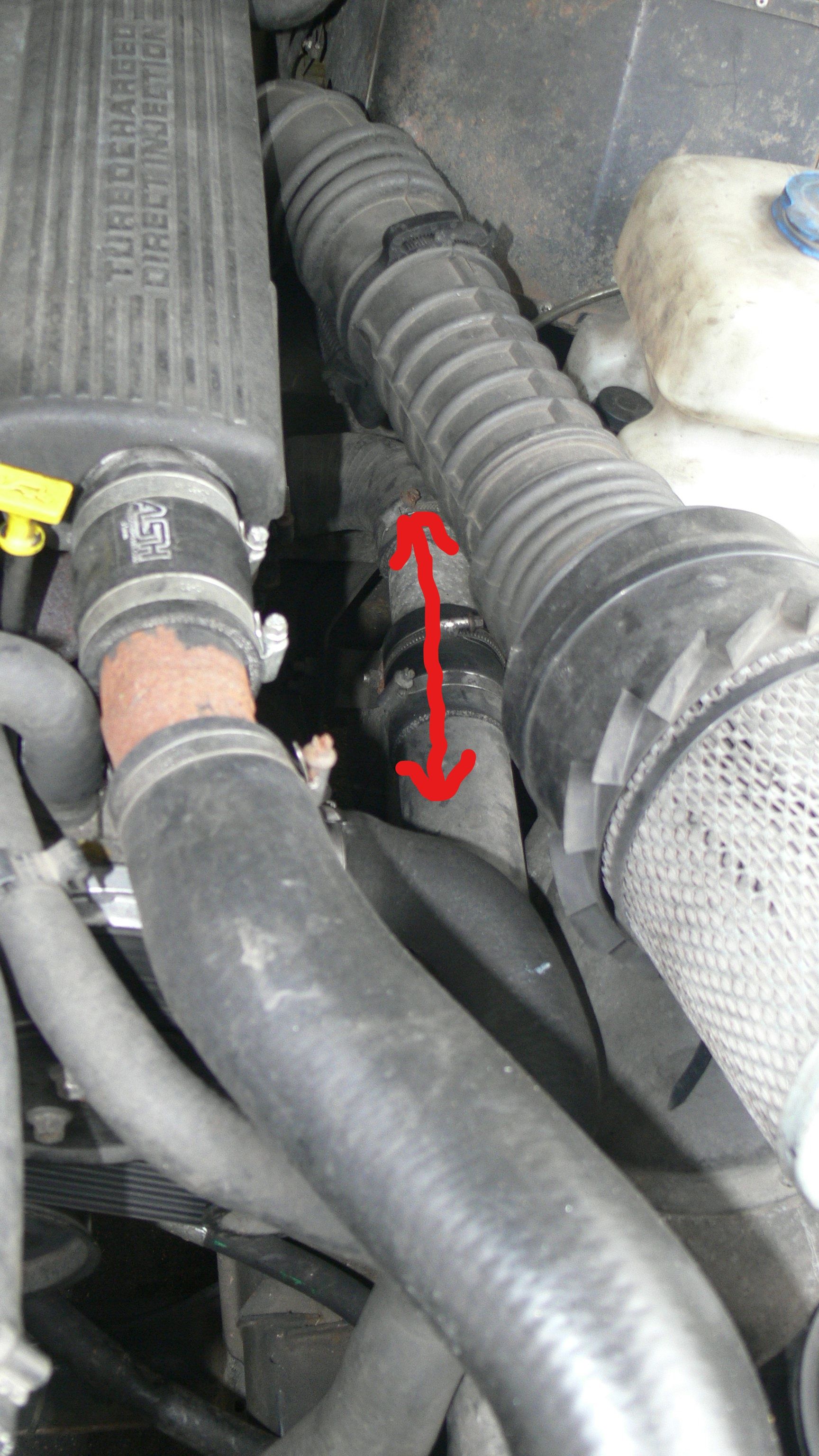

In pic I have arrowed is that your pipe going from bottom of Intercooler to Turbo ?. think I might have a piece of pipe to make that one up, and some people have said that the original bottom Rad pipe fits ok, is it this one https://www.paddockspares.com/esr3296-bottom-hose-300tdi.html
Thanks

Rougharse Racing · Aug 28, 2019

Yes, the standard 300tdi Defender / Discovery bottom radiator pipe has enough free play to fit easily, even though the engine is 6" further back than standard.
The section of the lower intercooler pipe you have arrowed is where I added an extra section.

owas · Aug 29, 2019

One thing I'll add, w.e you do with the oil cooler pipes, make sure you get the clamp that holds them together, even more important when there longer

border · Aug 29, 2019

owas said:
One thing I'll add, w.e you do with the oil cooler pipes, make sure you get the clamp that holds them together, even more important when there longer

Yes got the clamp. Ive read somewhere that the bottom cooer pipe fits, and that a 2.5na top fits without extending, not sure if its true.

Rougharse Racing said:
Yes, the standard 300tdi Defender / Discovery bottom radiator pipe has enough free play to fit easily, even though the engine is 6" further back than standard.
The section of the lower intercooler pipe you have arrowed is where I added an extra section.

Cheers Mate

border · Aug 29, 2019

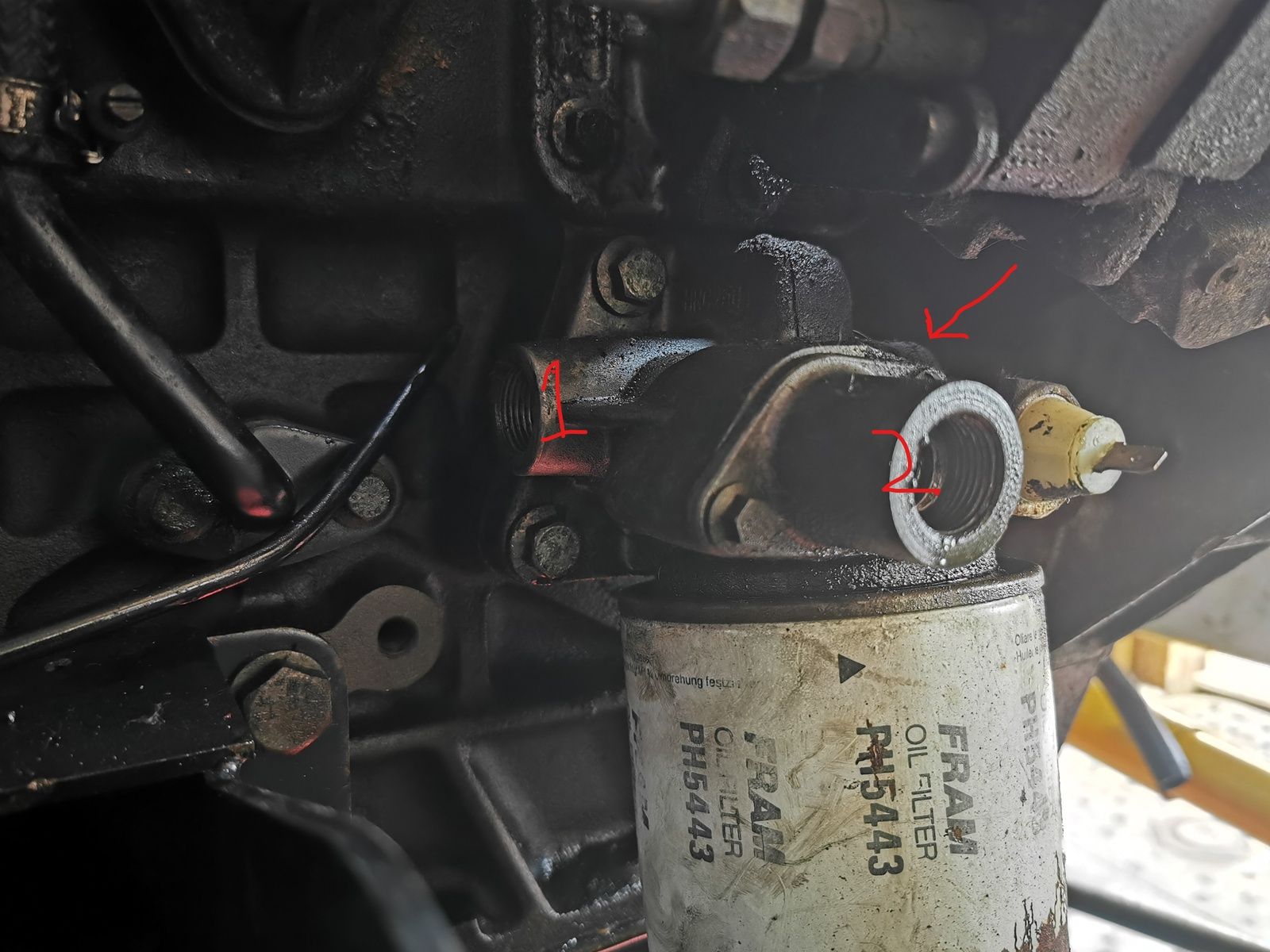

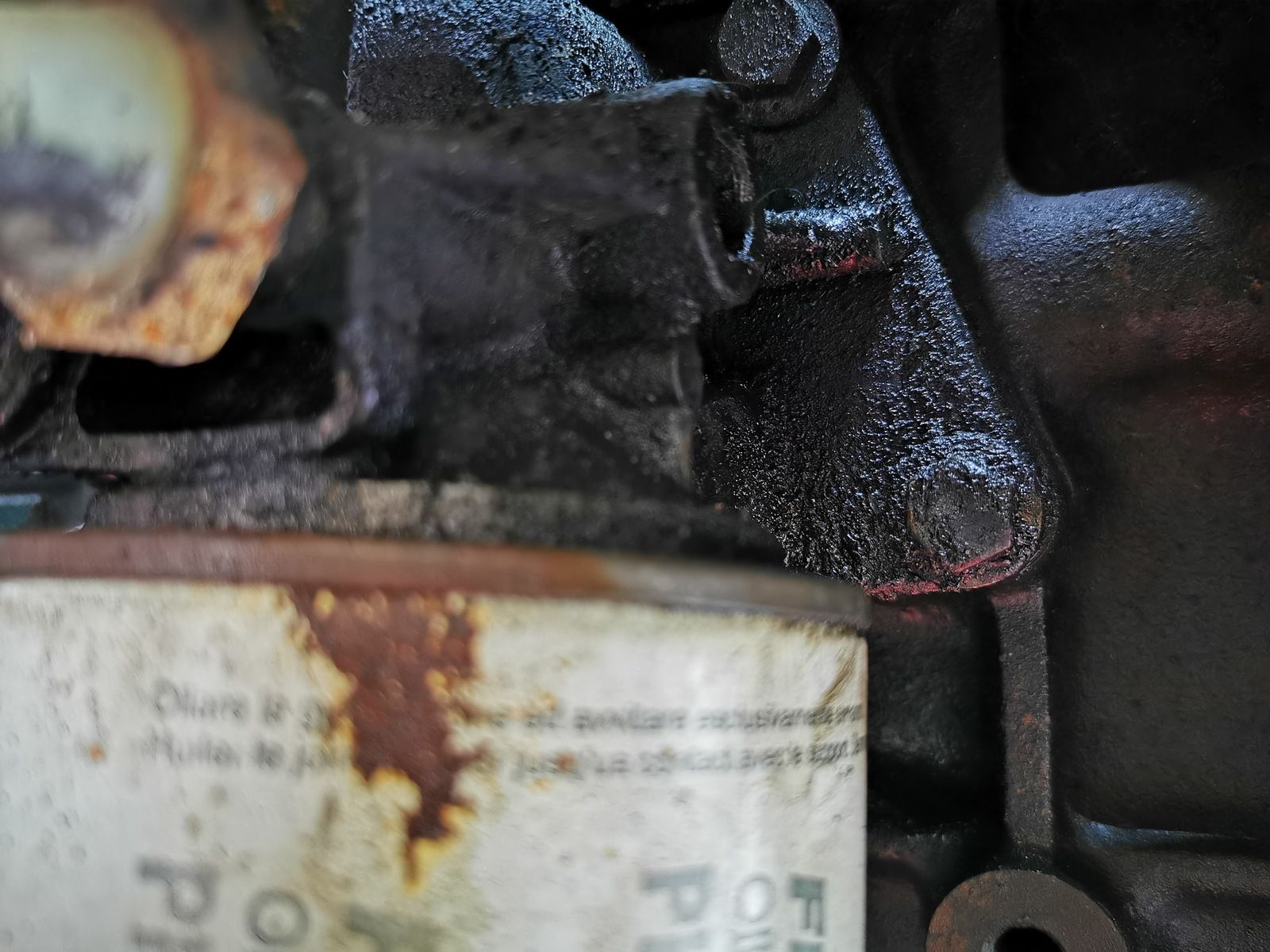

Just to be sure In first pic are 1 and 2 where the 2 oil Cooler pipes go in to, as there is another smaller diameter hole on other side arrowed, that Im sure oil was coming out when I started engine up for a few seconds, second pic. i

Rougharse Racing · Aug 30, 2019

The first pic are where the the oil cooler pipes go, not sure what the hole in the second pic is, but it is next to the oil pressure sender / sensor/ switch. Is it possible that an oil pressure gauge has been fitted in the past and the pipe plumbed in the small hole.

border · Aug 30, 2019

Rougharse Racing said:
The first pic are where the the oil cooler pipes go, not sure what the hole in the second pic is, but it is next to the oil pressure sender / sensor/ switch. Is it possible that an oil pressure gauge has been fitted in the past and the pipe plumbed in the small hole.

Just googled defender 300tdi oil pressure gauge and it looks like they go in the same hole that the sender goes in to, Im sure that this spare hole on mine is threaded and oil was coming out, will have to take a closer look tomorrow, or has anyone else got the same hole ??

border · Aug 30, 2019

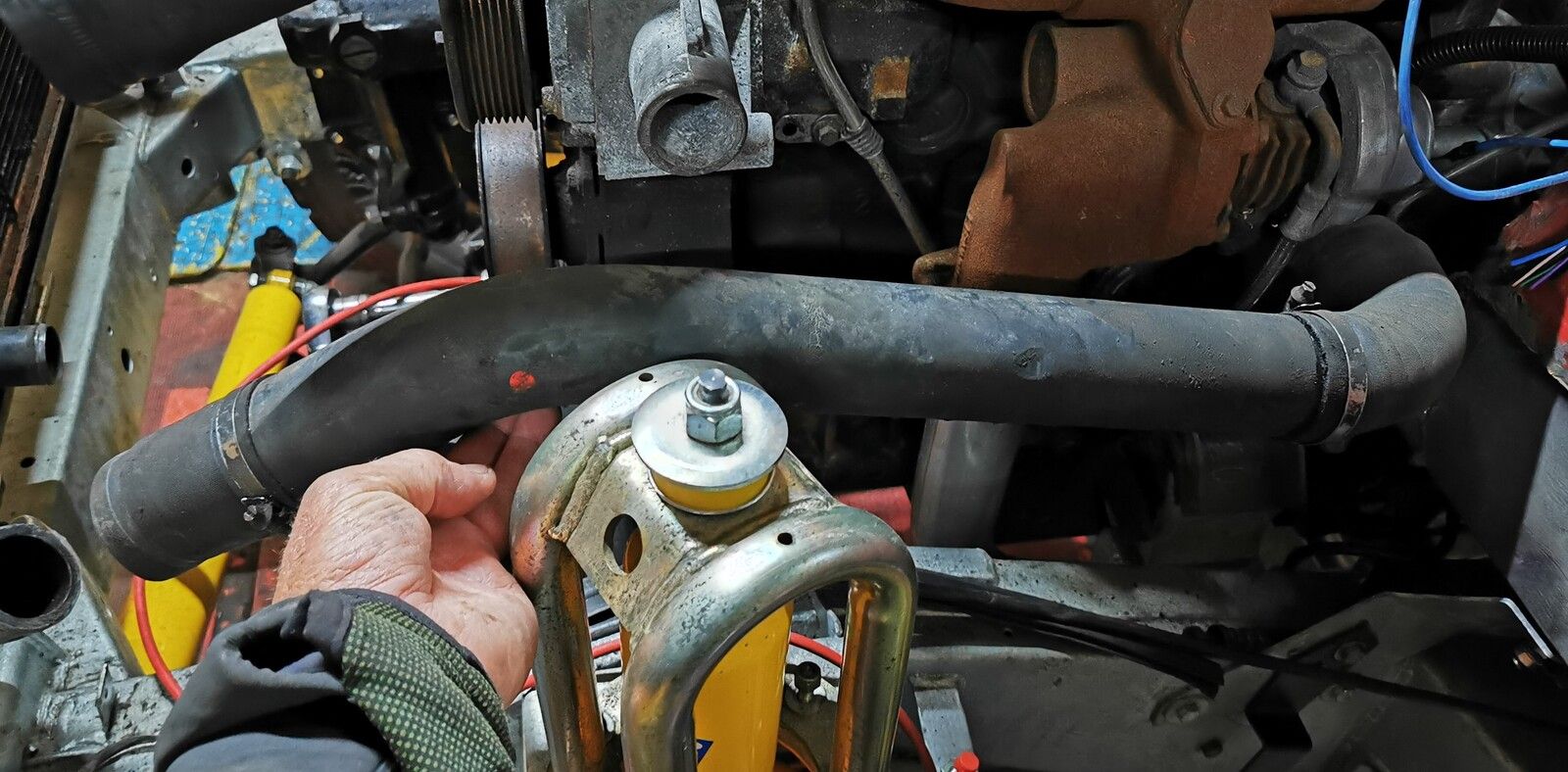

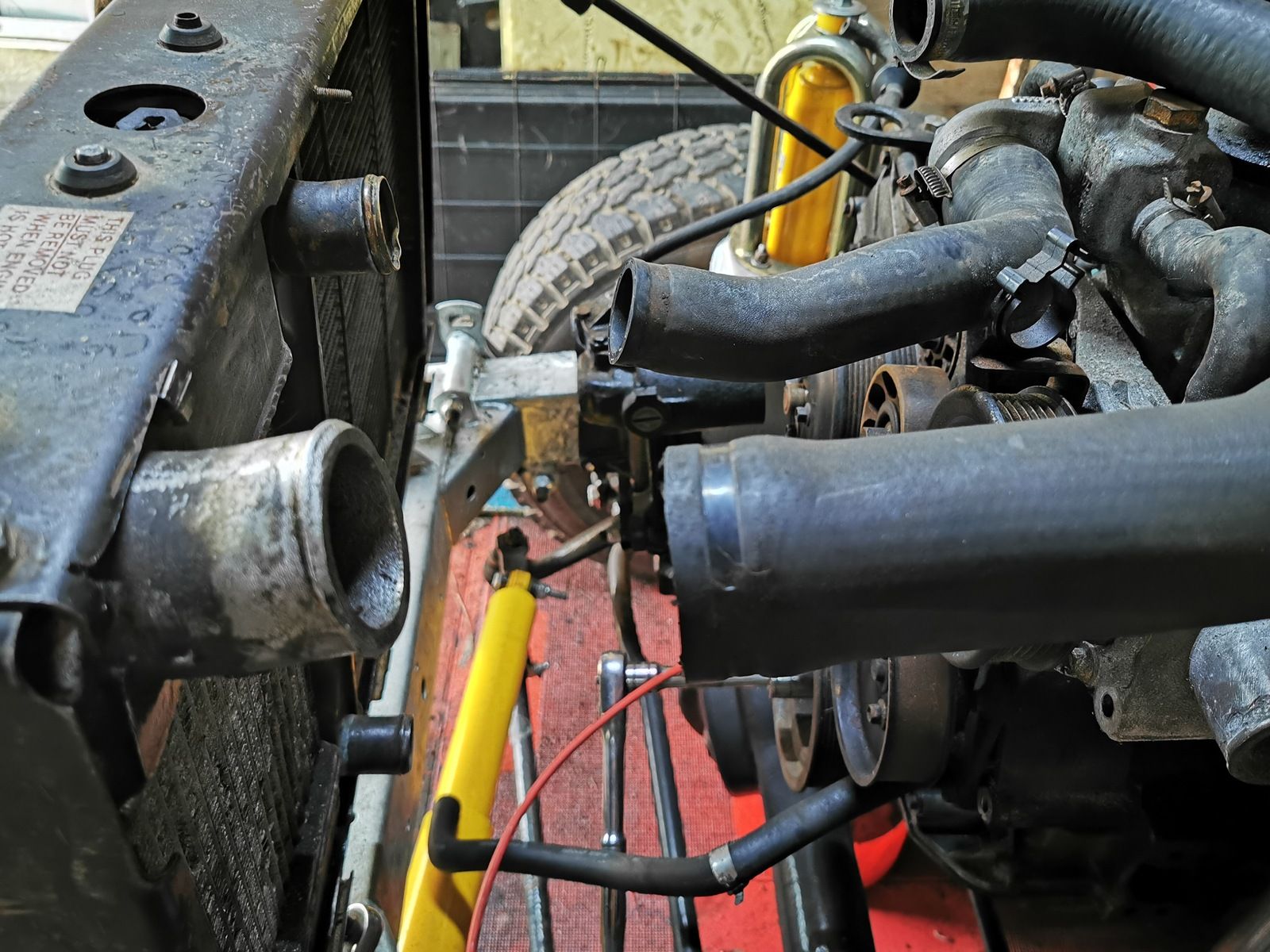

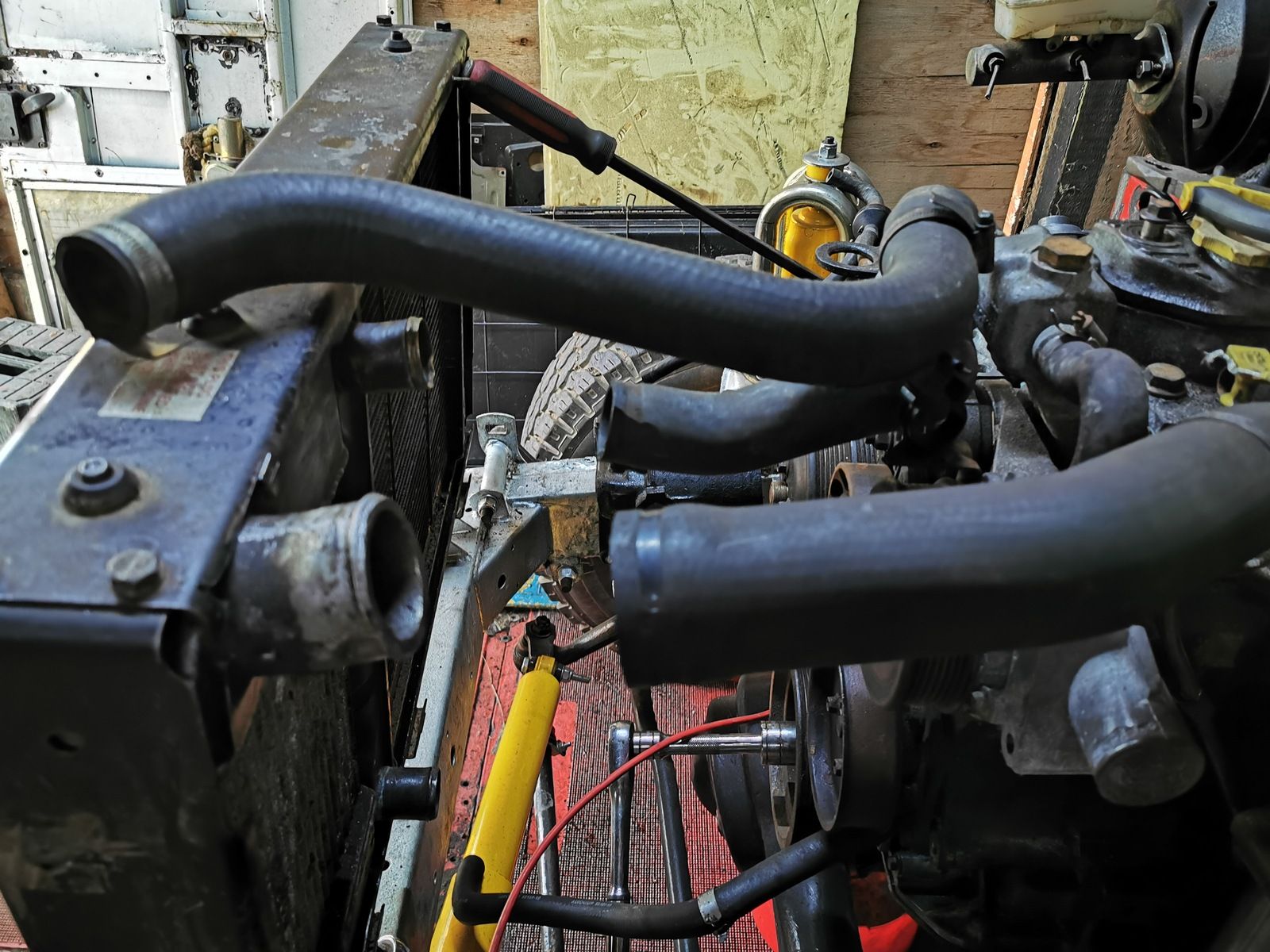

think Ive got all the hoses sorted, got new bottom hose and will fit easily, Found this today in my shed of parts in first pic it looks like the original pipe, just needs a bit of longer rubber at cooler end, also found a pipe to fit top rad too.
